| 圖片 | 編號 | 位置 | 品名尺寸 | 適用機種 | 原廠編號 |
|---|---|---|---|---|---|
 | F101 | Upper | 鑽石眼膜 Wire Guide 0.1,0.15,0.2,0.25,0.3 | O,P,Q,T,W series (Manual) | A290-8021-X765 A290-8021-X766 A290-8021-X767 |
| F102 | Lower | 鑽石眼膜 Wire Guide 0.1,0.15,0.2,0.25,0.3 | O,P,Q,T,W series (Manual) | A290-8021-X775 A290-8021-X776 A290-8021-X777 |

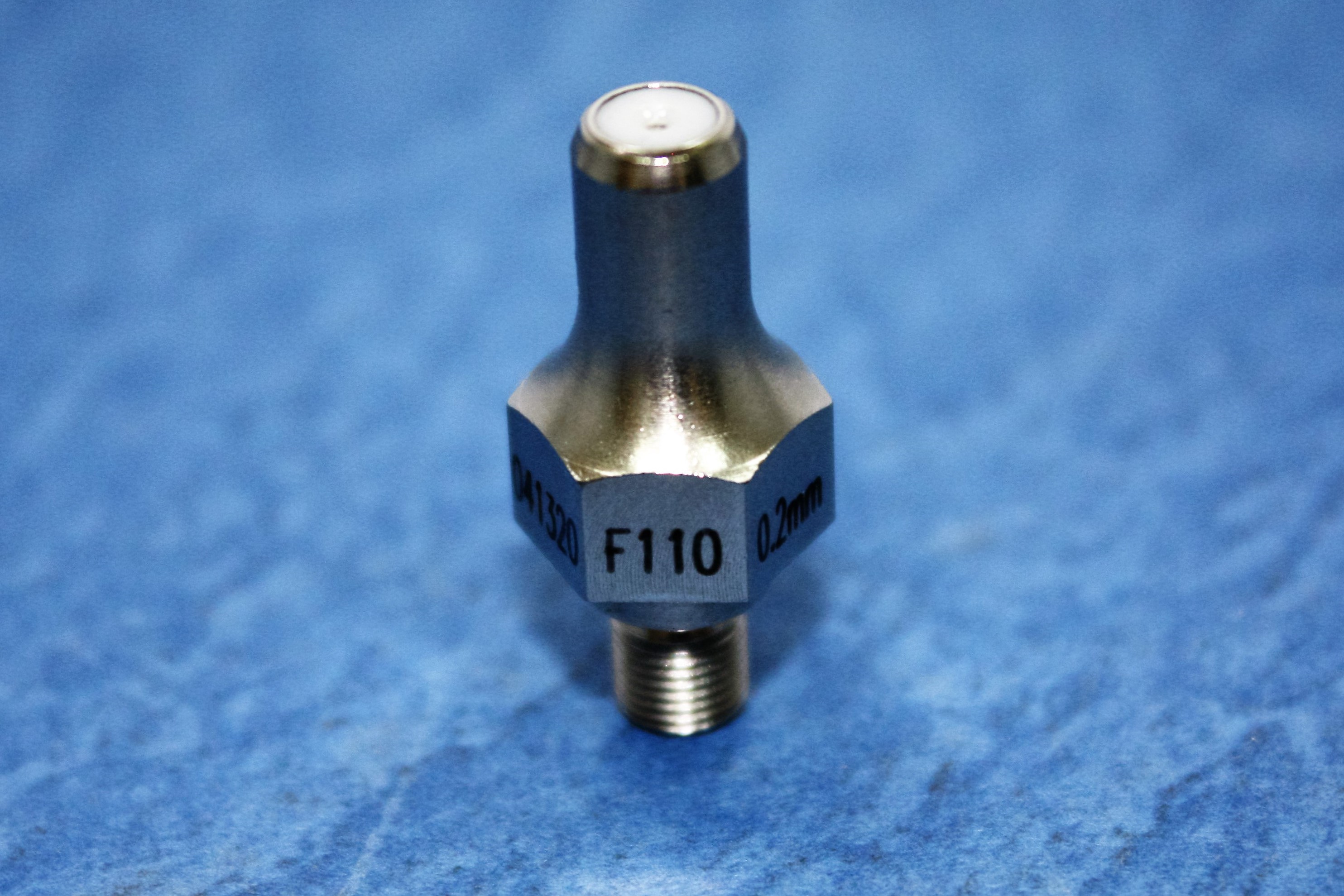

| F110 | Upper | 鑽石眼膜 Wire Guide 0.1,0.15,0.2,0.25,0.3 | α-A,B,C,iA,iB series(Manual) (Flat-opener) | A290-8101-X733 A290-8101-X734 A290-8101-X735 |

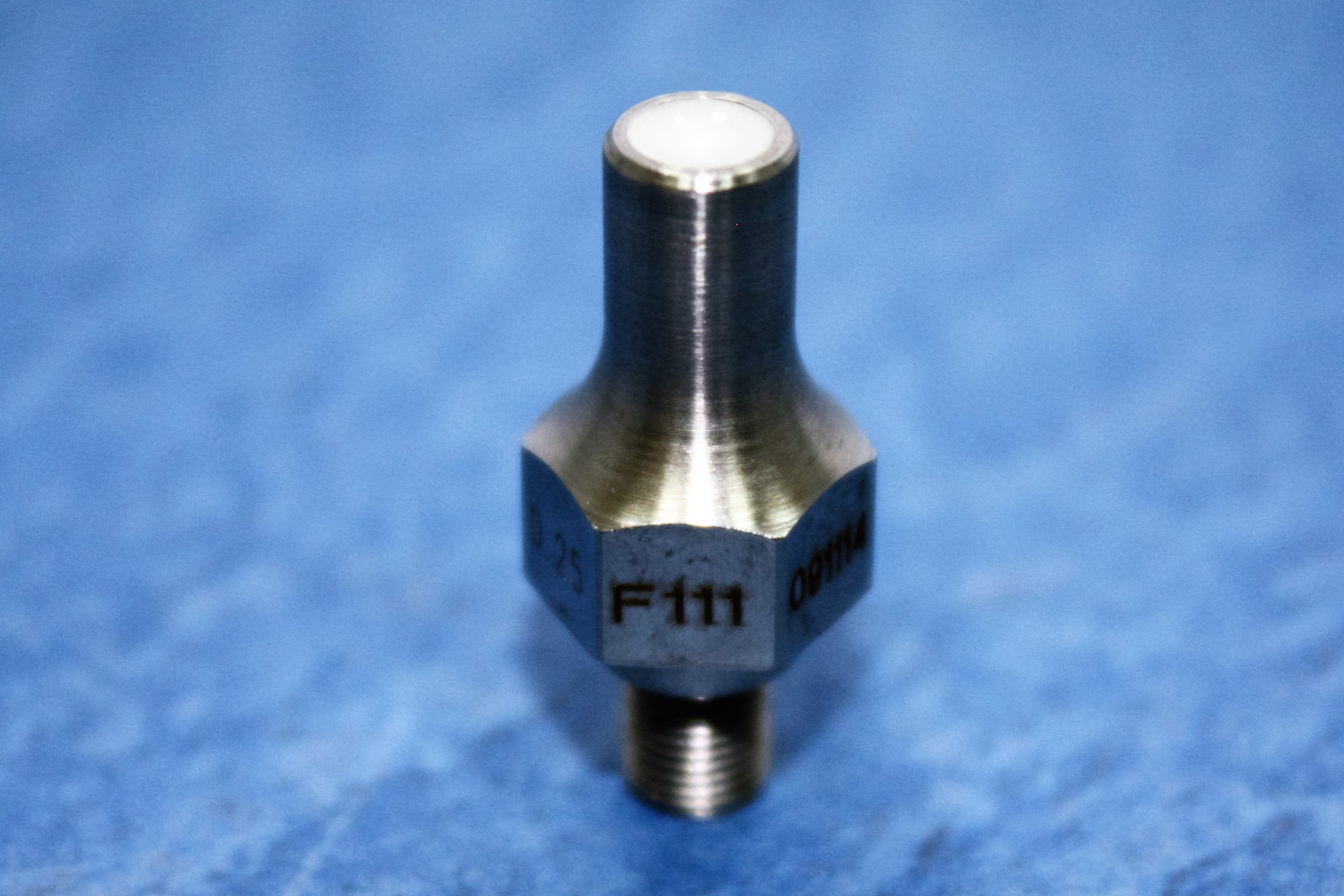

 | F111 | Lower | 鑽石眼膜 Wire Guide 0.1,0.15,0.2,0.25,0.3 | α-A,B,C,iA,iB series(Manual)(Shallow-opener) | A290-8101-X743 A290-8101-X744 A290-8101-X745 |
 | F112 | Upper | 鑽石眼膜 Wire Guide 0.1,0.15,0.2,0.25,0.3 | DWC-A,B,C, iA, iB,iC DWC-iD,iE, 400iA,600iA (AWT) | A290-8092-X705 A290-8092-X706 A290-8092-X707 |
 | F113 | Lower | 鑽石眼膜 Wire Guide 0.1,0.15,0.2,0.25,0.3 | DWC-A,B,C,iA,iB, iC (AWT) | A290-8081-X715 A290-8081-X716 A290-8081-X717 |
 | F113D | Lower | 鑽石眼膜 Wire Guide 0.1,0.15,0.2,0.25,0.3 | DWC- iD,iE (AWT) | |

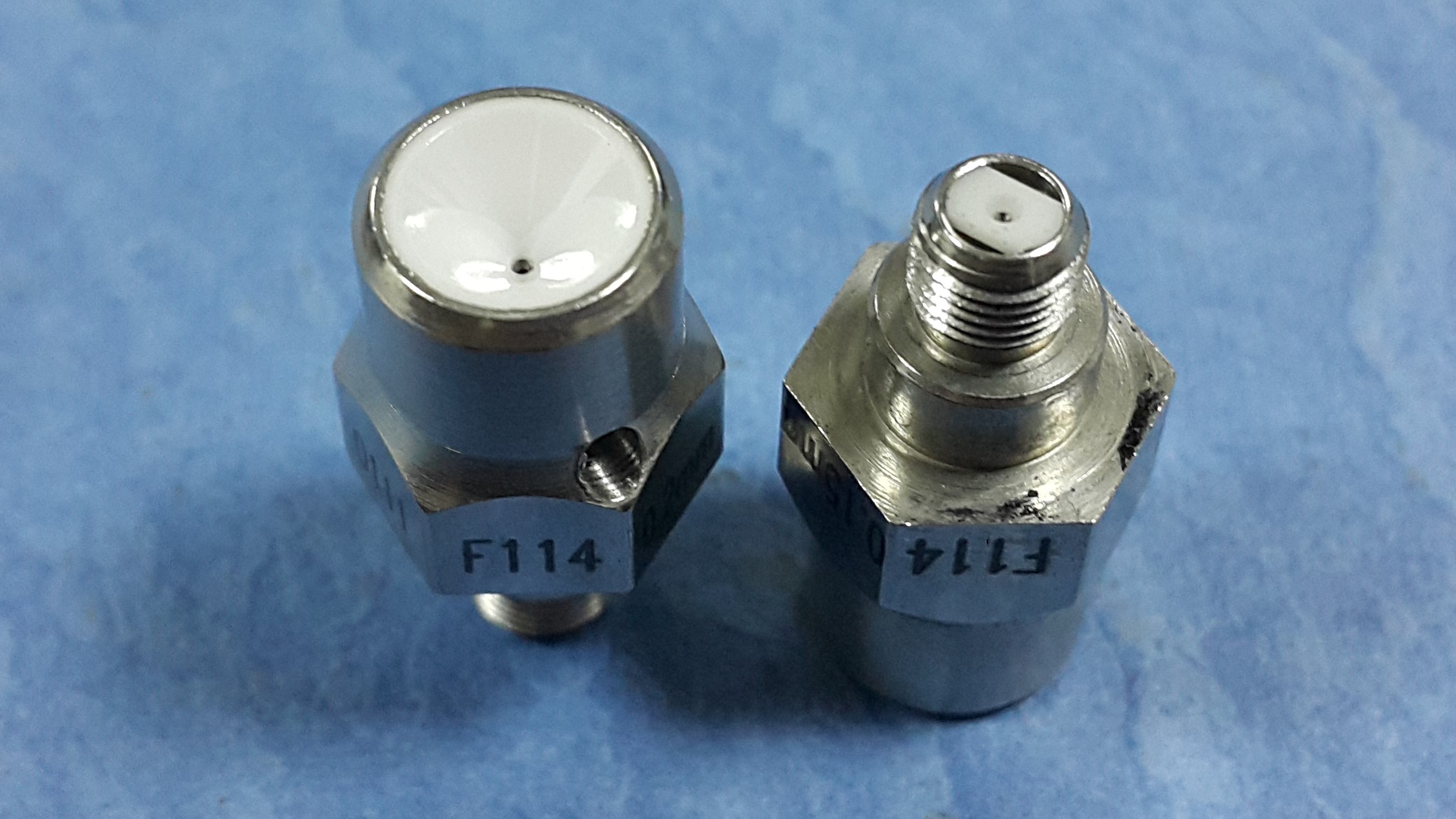

 | F114 | Lower | 鑽石眼膜 雙鑽石 Dual Diamond Lnserts Wire Guide 0.1,0.15,0.2,0.25,0.3 | DWC-iD,iE α-iD,iE, 400iA,600iA,(AWT) |
| 圖片 | 編號 | 位置 | 品名尺寸 | 適用機種 | 原廠編號 |
|---|---|---|---|---|---|
 | F002 | Upper & Lower | 給電板 Power Feed Contact 16Ø×6.3×6t | O,P,Q,R,T,W | A97L-0126-0001 |

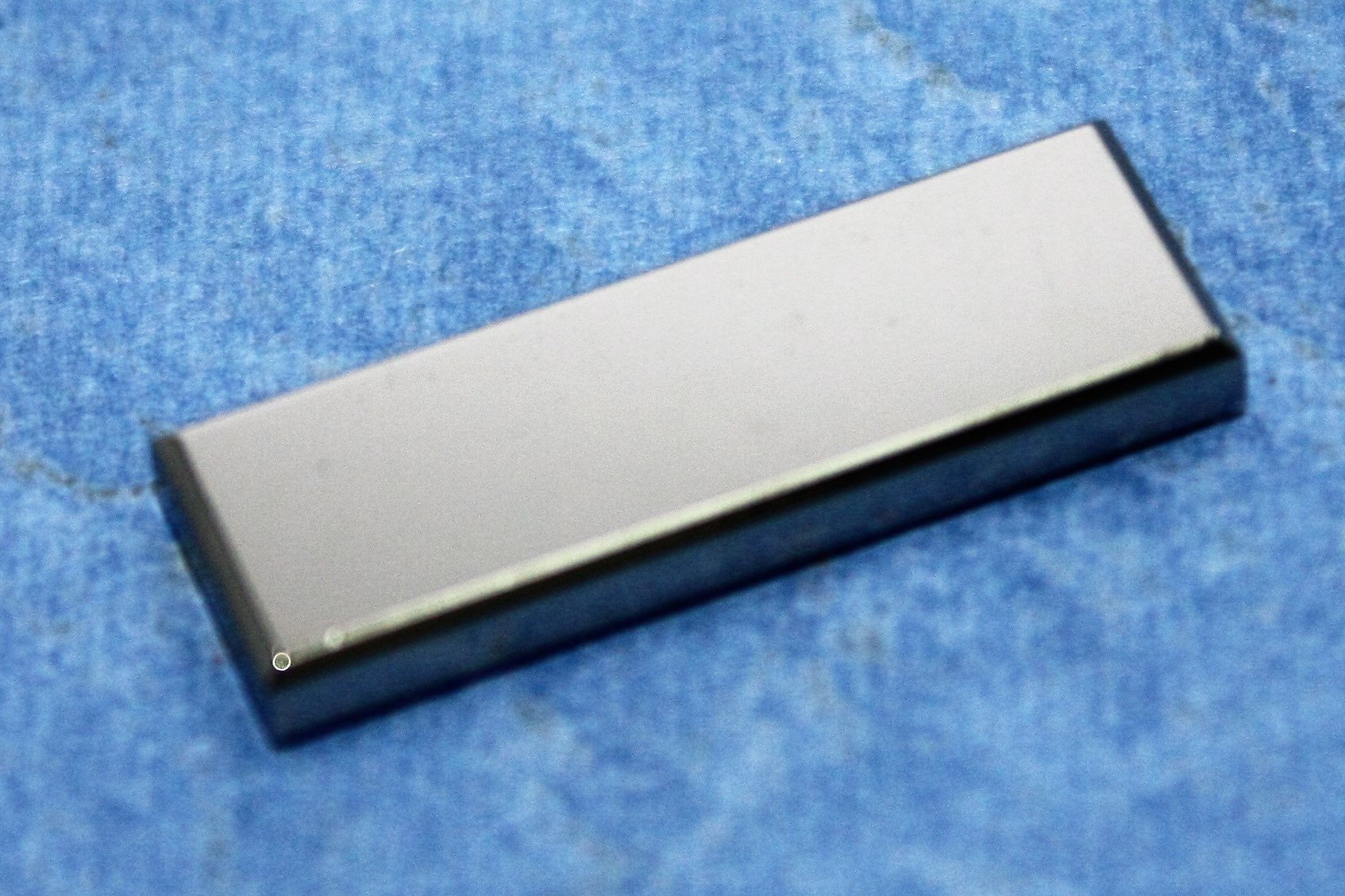

 | KF005 | Upper & Lower | 給電板 Power Feed Contact 23×8×3t(平面) | α-A,B series(Manual/AWF) | |

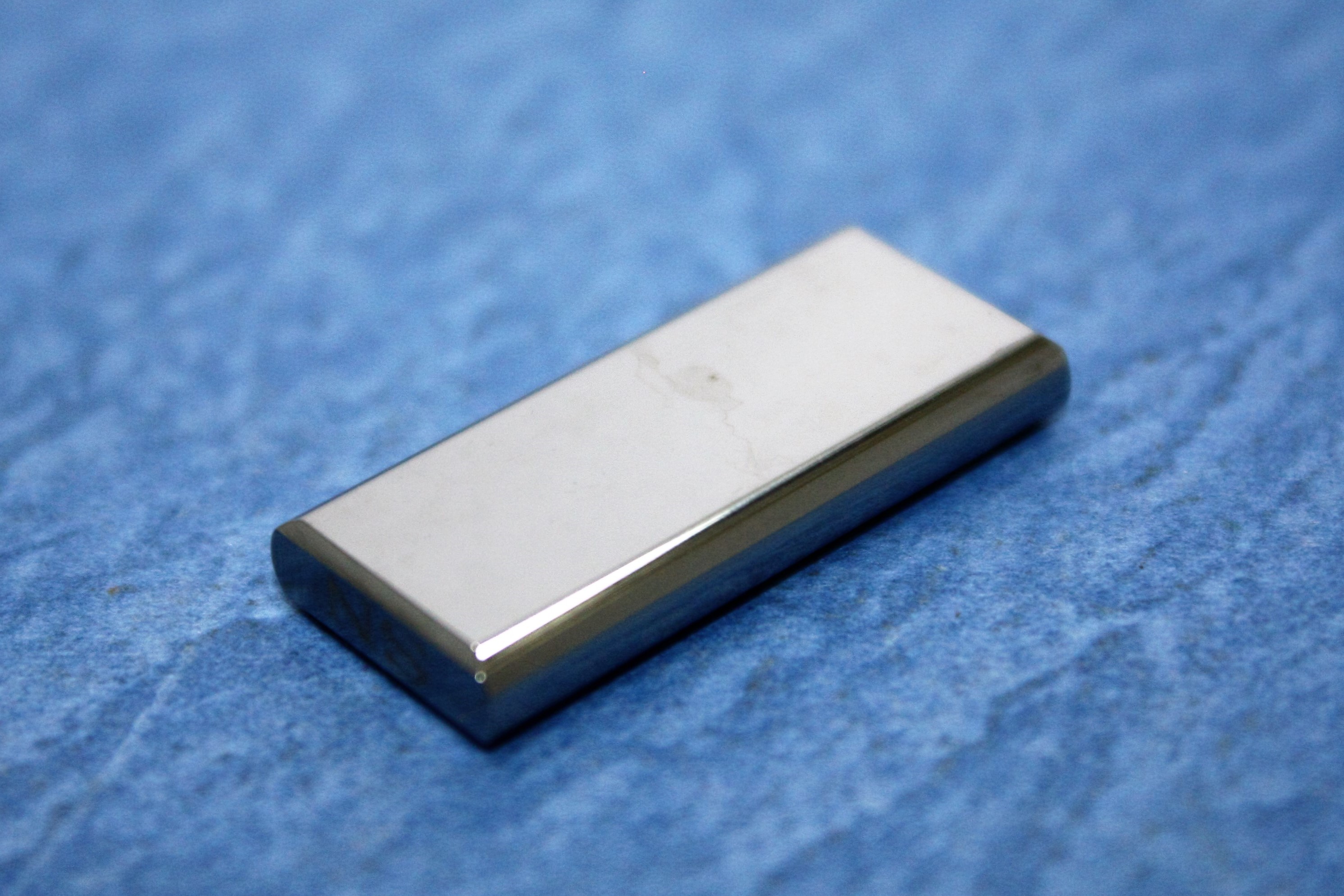

 | F006 | Upper & Lower | 給電板 Power Feed Contact 26×12×4t | DWC-A,B,C, iA,iB,iC DWC-600 iA,iD,iE(Manual/AWF) | A290-8110-X750 |
 | F006iDL | Lower | 給電板 Power Feed Contact 26×10×4t | DWC-600 iA,iD,iE (Manual/AWF) | A290-8119-Z780 |
 | F006LR | Upper & Lower | 給電板 Power Feed Contact 30×12×4t | DWC-A,B,C, iA,iB,iC DWC-600 iA,iD,iE(Manual/AWF) CiC | A290-8110-X750L |
| 圖片 | 編號 | 位置 | 品名尺寸 | 適用機種 | 原廠編號 |
|---|---|---|---|---|---|
 | F201 | Upper | 噴水頭 Water Nozzle (Plastic) 5.5Ø | O,P,Q,R,T,W series (Manual) | A290-8021-Y745 |
| F202 | Upper&Lower | 噴水頭 Water Nozzle (Plastic) 3~5.5Ø 8Ø 10Ø | O,P,Q,R,T,W series (Manual) | A290-8021-Y755 |

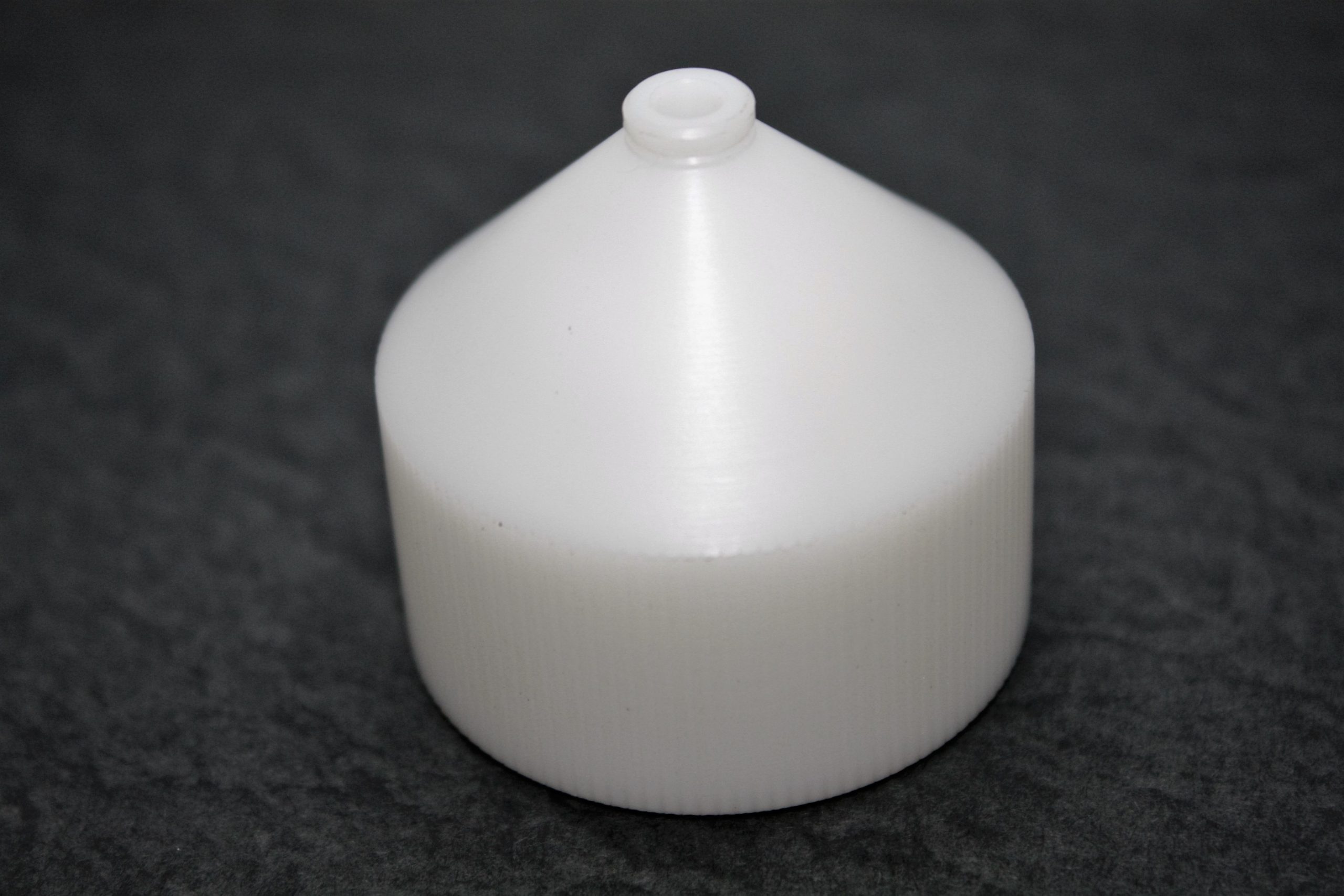

 | F209 | Upper | 噴水頭 Water Nozzle 2Ø 4Ø 6.5Ø | α-A,B series | A290-8111-X772 A290-8111-X774 A290-8111-X776 |

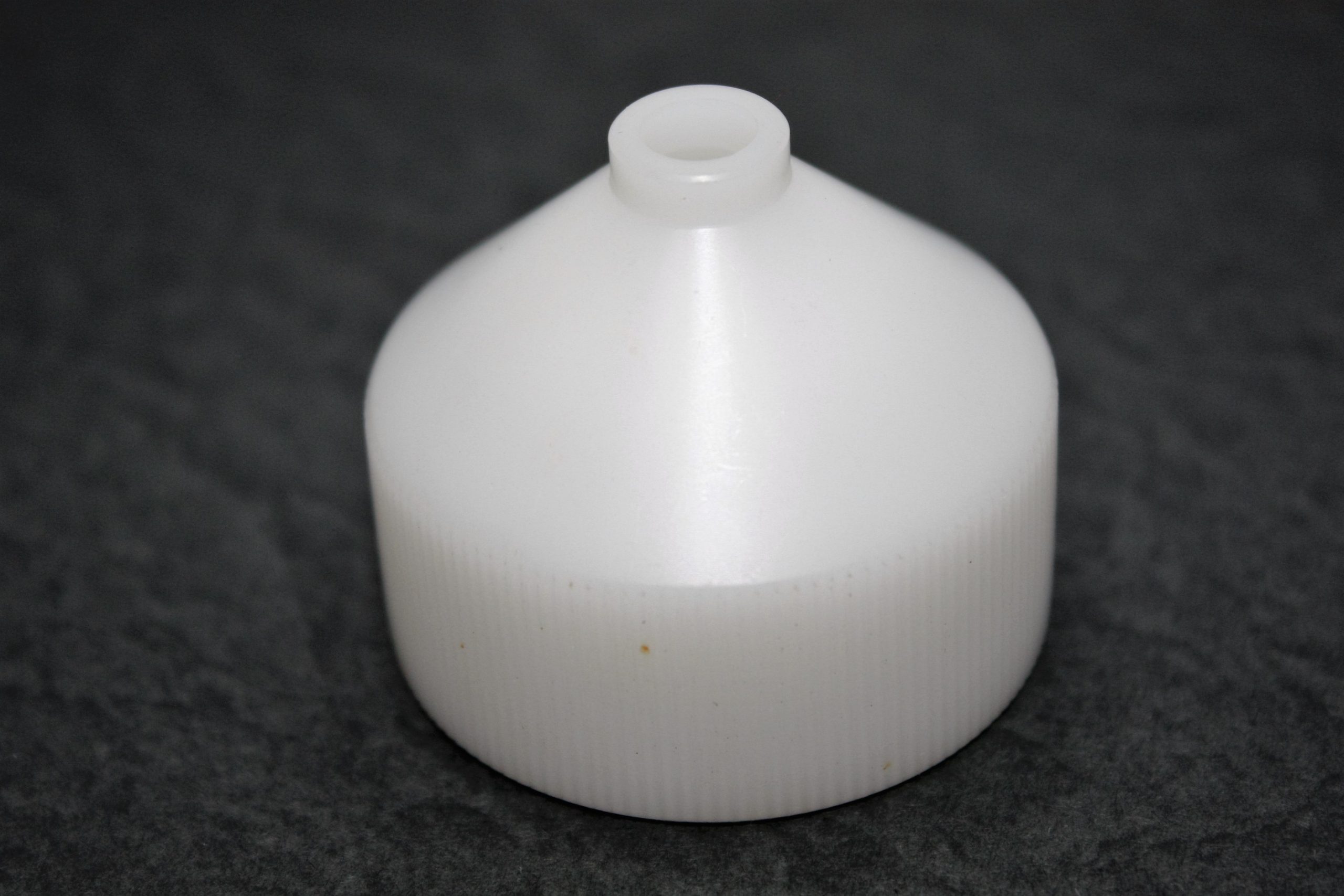

 | F209L | Upper | 噴水頭 Water Nozzle (Extended Length) 6.5Ø+3/5/10mmL | α-A,B series (Manual) | |

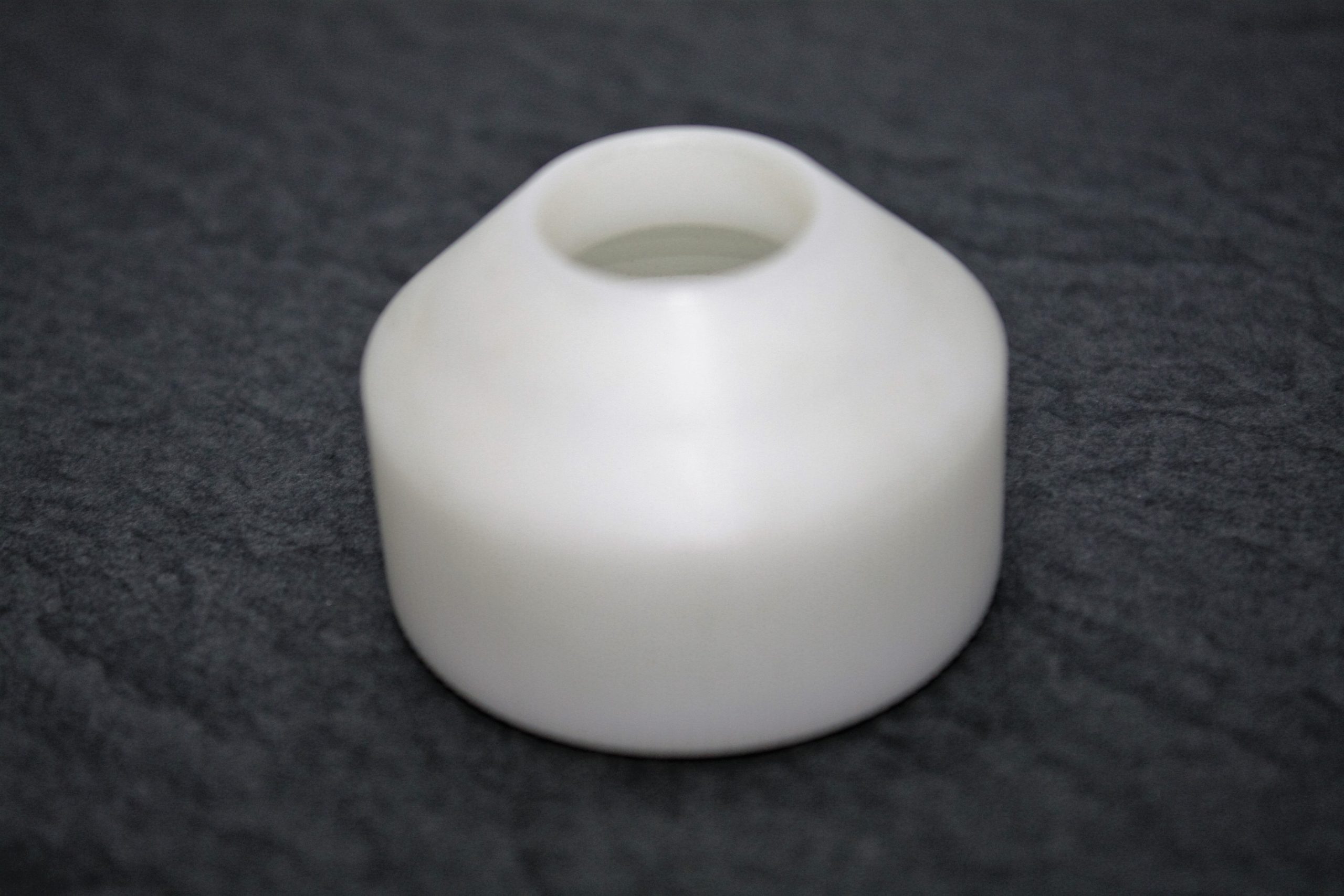

 | F210 | Lower | 噴水頭母套 16Ø Water Nozzle Holder | α-A,B,C,iA series (Manual) | A290-8101-X755 |

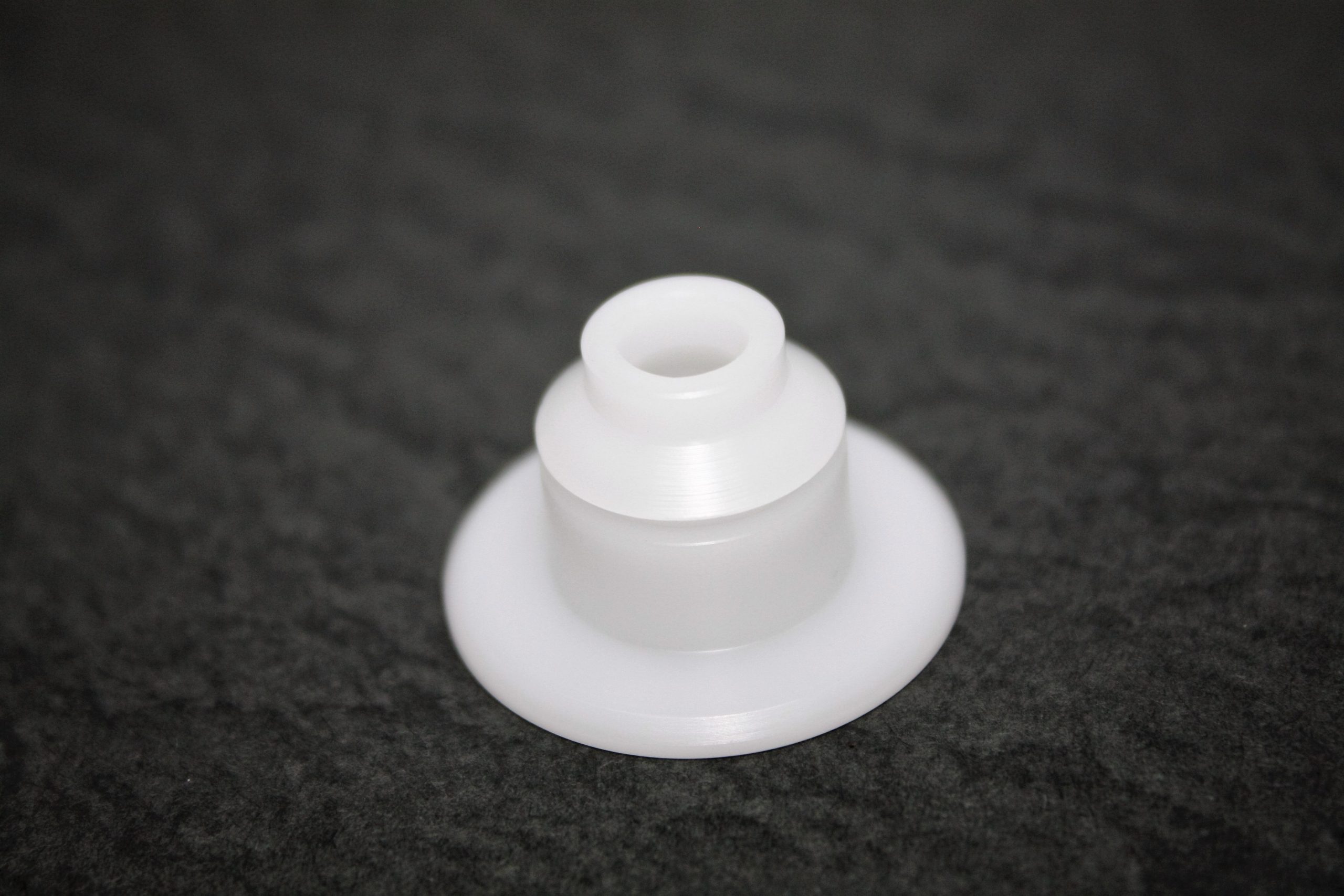

 | F211 | Lower | 子噴水頭 Water Nozzle 2Ø 4Ø 6.5Ø ~10Ø | α-A,B,C,iA series (Manual) | A290-8103-X774 A290-8101-X774 A290-8101-X756 |

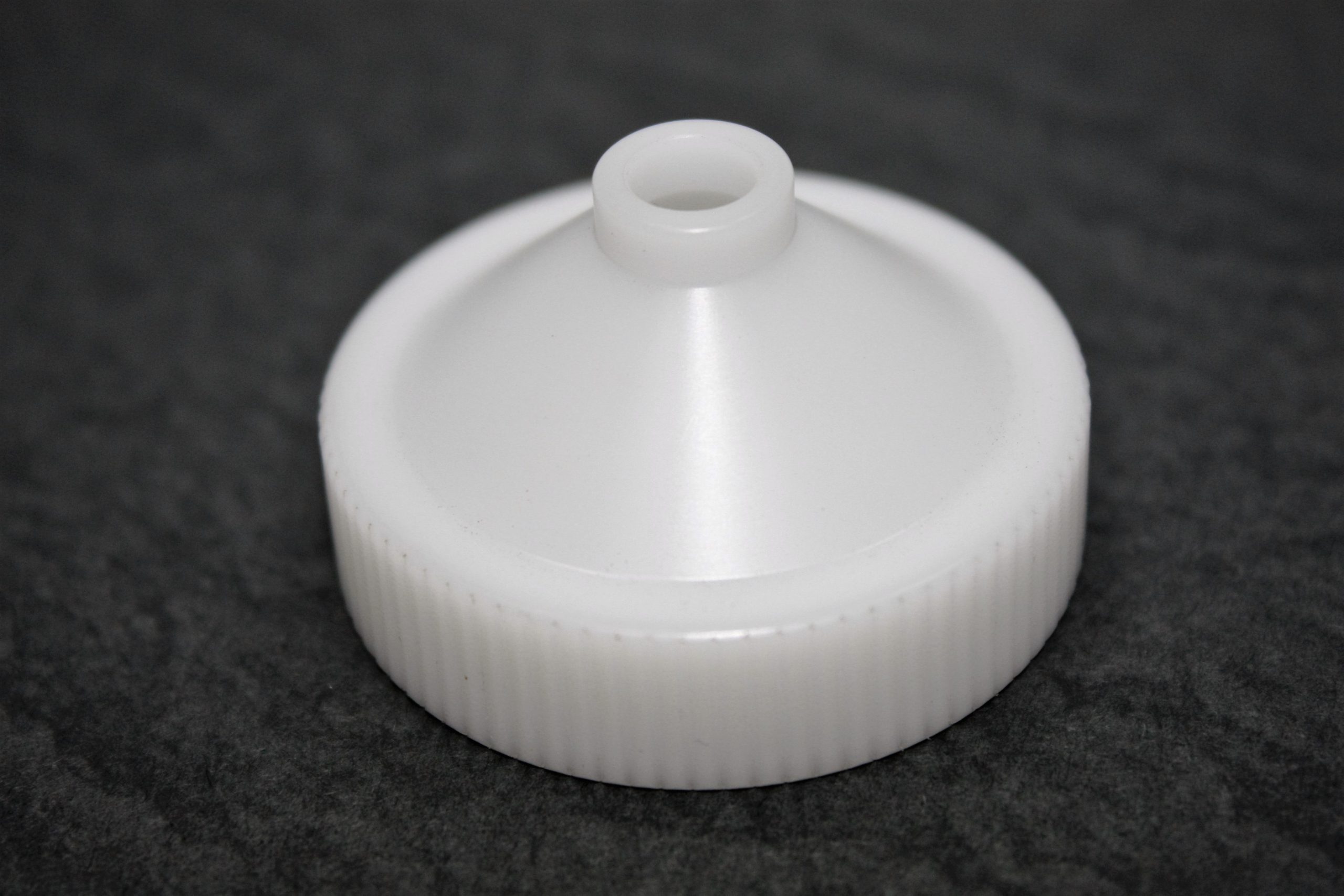

 | F212 | Upper | 上噴水頭 Water Nozzle 2Ø 4Ø 6.5Ø | DWC-A,B,C, iA,iB,iC DWC- iD,iE, 400iA,600iA (AWF) | A290-8104-X775 A290-8102-X775 A290-8102-X751 |

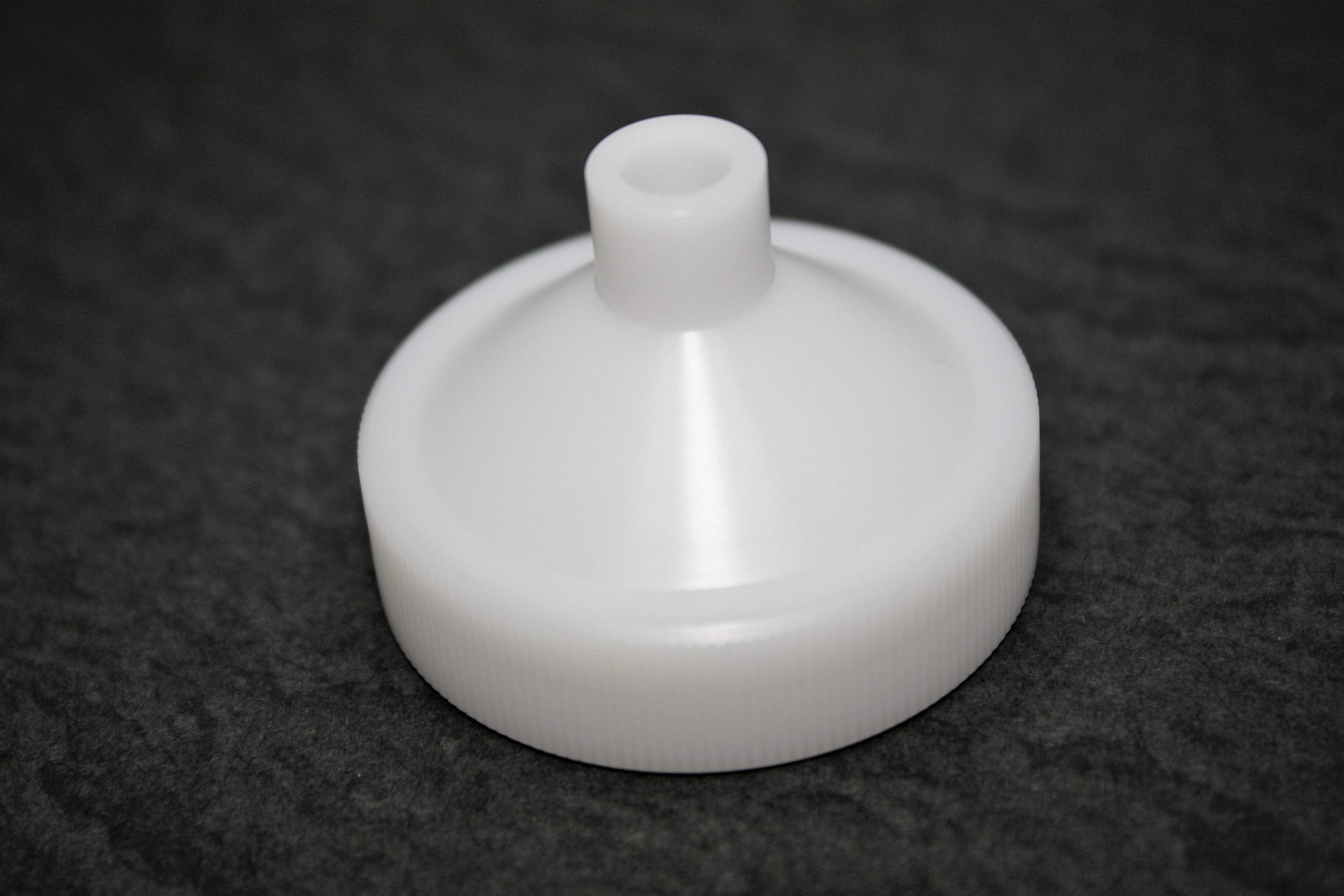

 | F212L | Upper | 上噴水頭 Water Nozzle (Extended Length) 6.5Ø+5/10/15mmL | DWC-A,B,C, iA,iB,iC DWC- iD,iE(AWF) | |
 | F213 | Lower | 下噴水頭 Water Nozzle 2Ø 4Ø 6.5Ø | DWC-A,B,C, iA,iB,iC (AWF) | A290-8104-X774 A290-8102-X774 A290-8102-X771 |

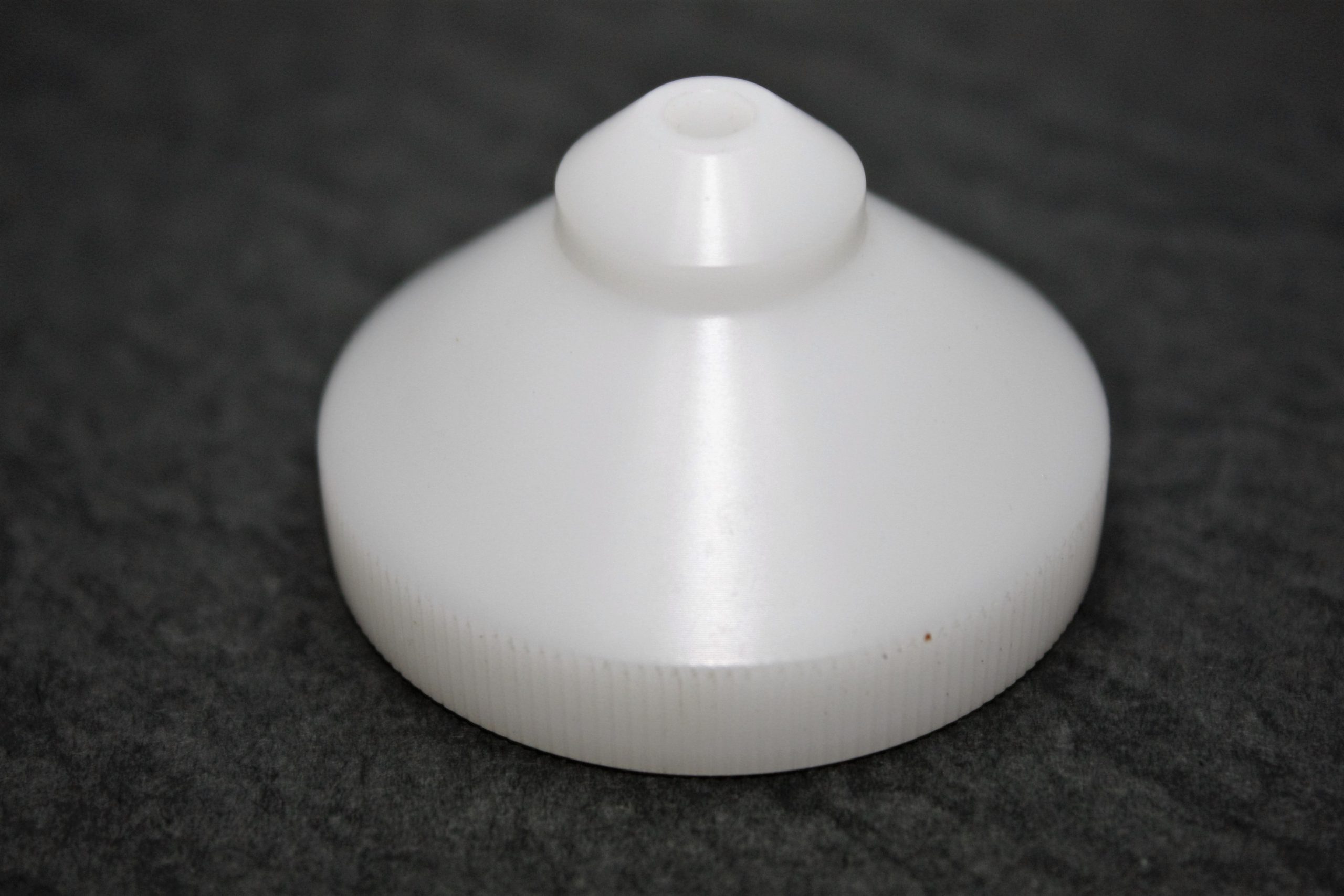

 | F213S | Lower | 下噴水頭 Water Nozzle 高度:24.2 2Ø 4Ø 6.5Ø 12Ø | CiC | A290-8130-X781 A290-8130-X782 A290-8130-X783 A290-8130-X784 |

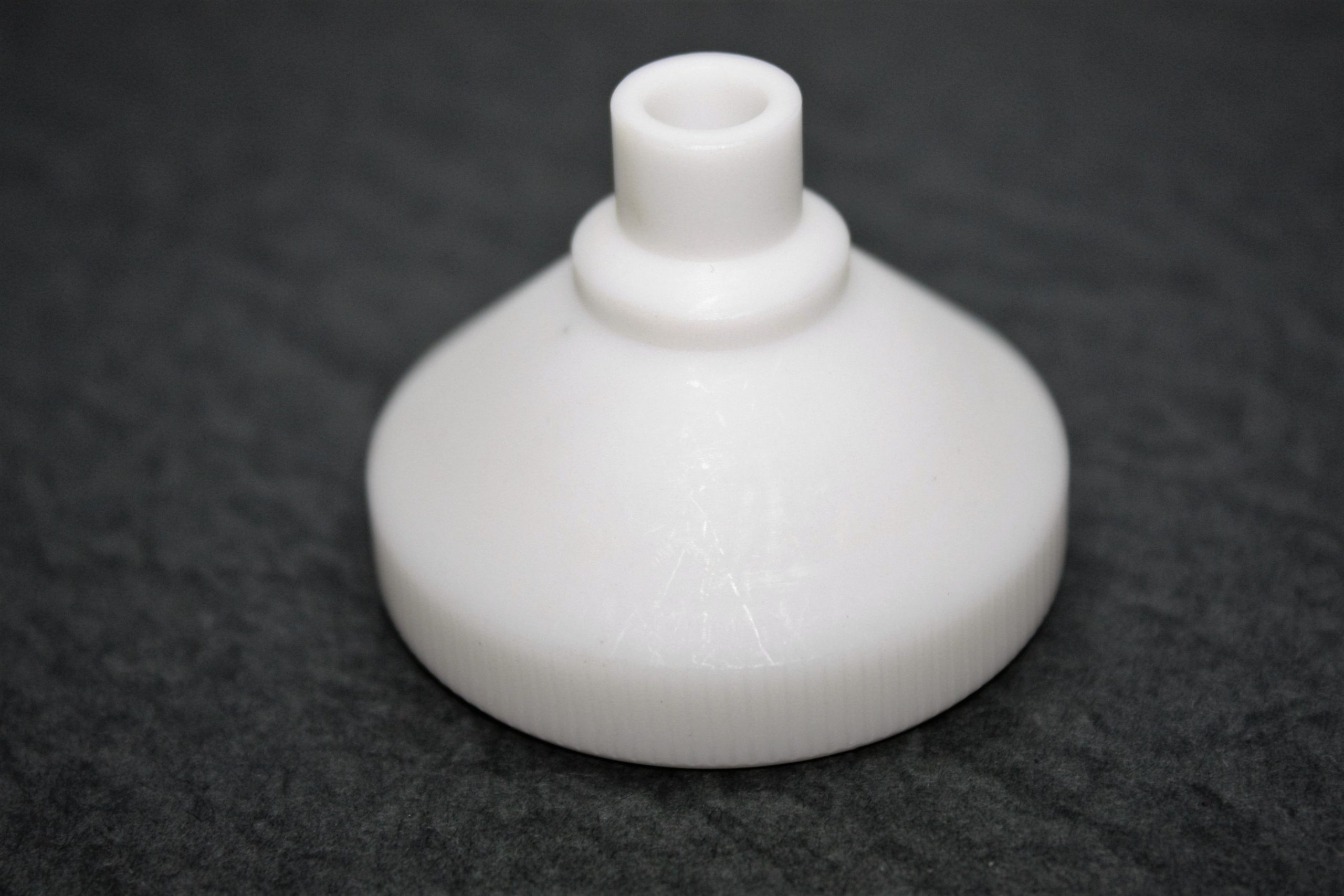

 | F213L | Lower | 下噴水頭 Water Nozzle (Extended Length) 6.5Ø+5/10/15mmL | DWC-A,B,C, iA,iB,iC (AWF) | |

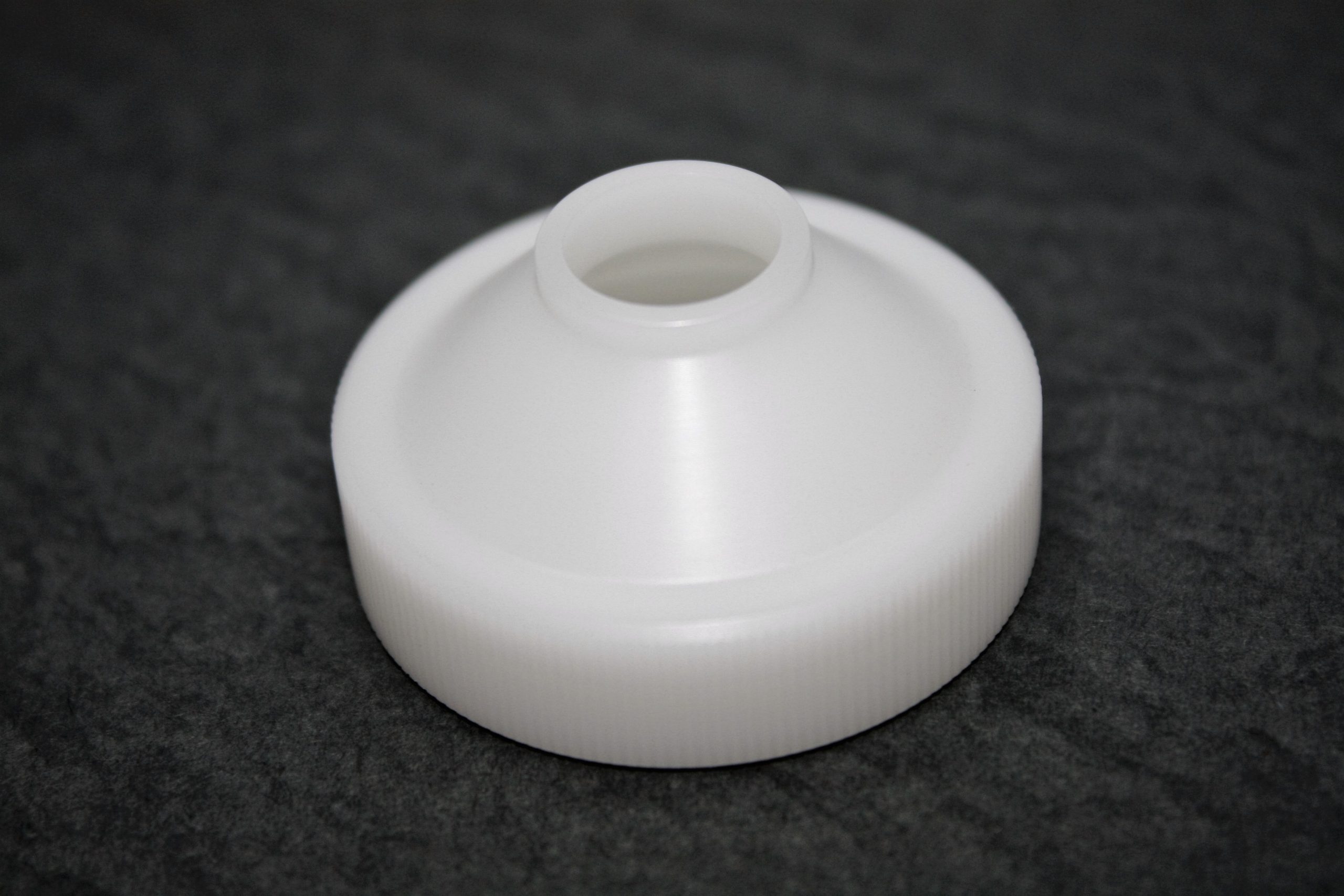

 | F216 | Upper | 上噴水頭 Water Nozzle 12Ø | DWC-A,B,C, iA,iB,iC (AWF) | A290-8102-X752 |

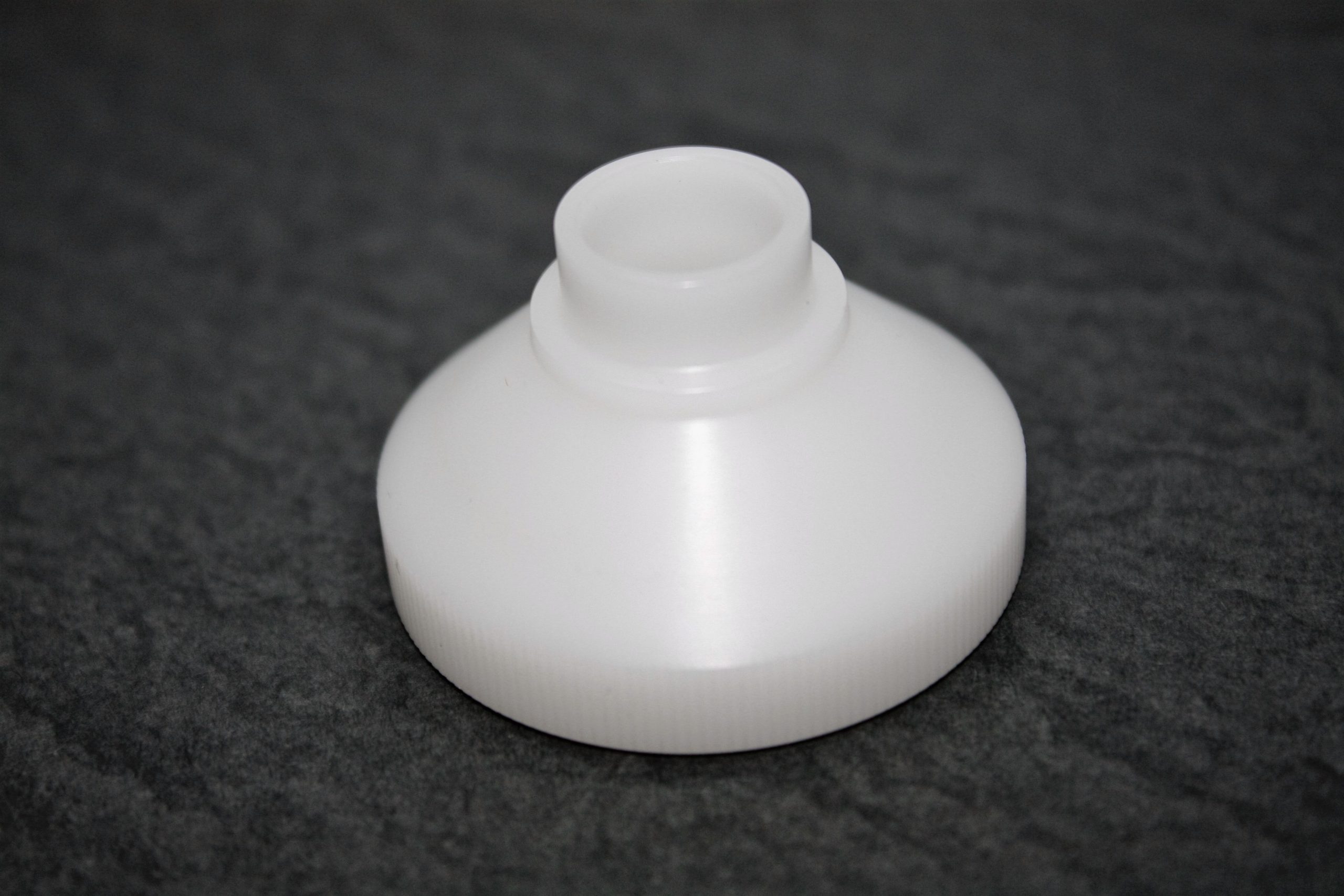

 | F217 | Lower | 下噴水頭 Water Nozzle 12Ø | DWC-A,B,C, iA,iB,iC (AWF) | A290-8102-X772 |

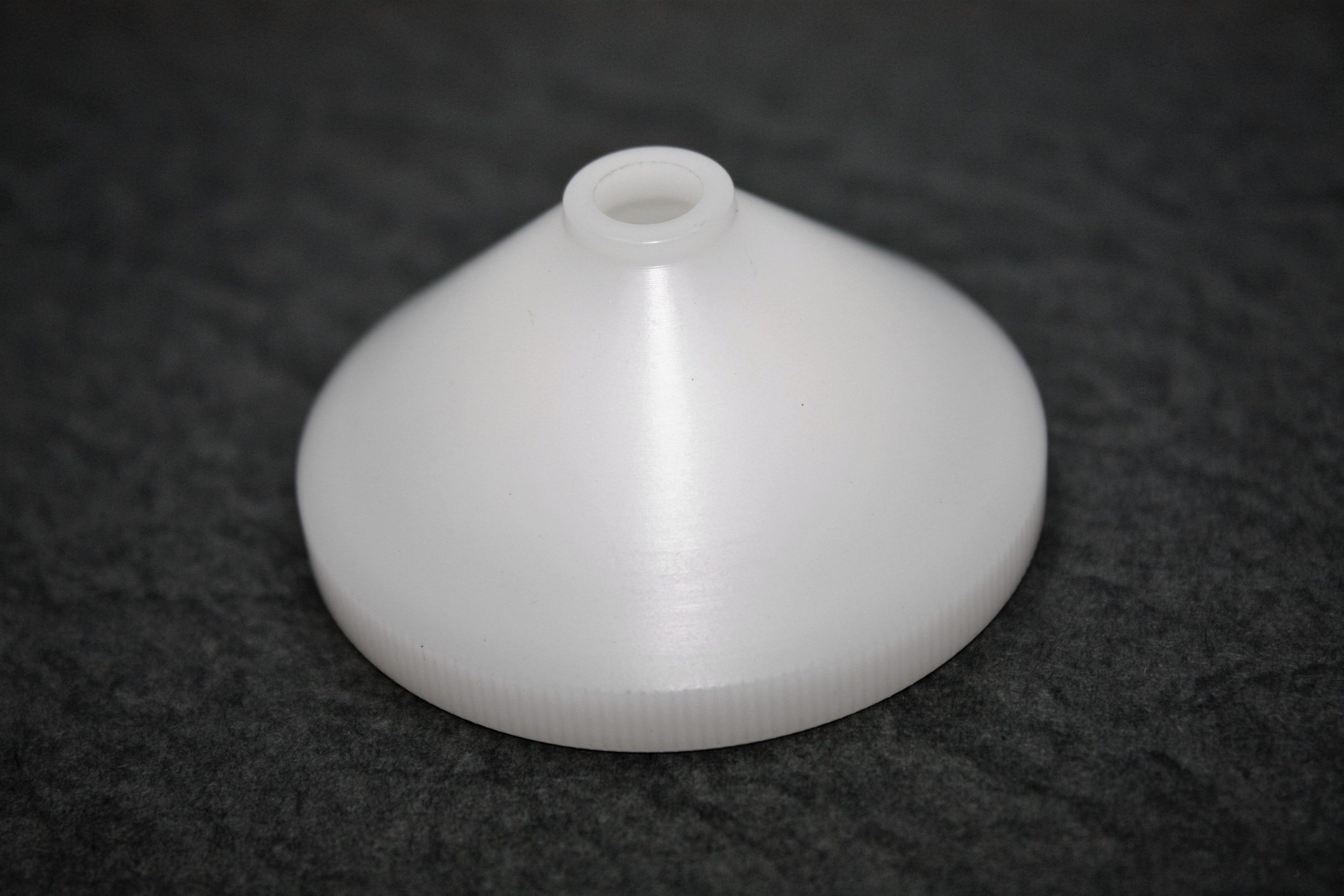

 | F218 | Lower | 下噴水頭 Water Nozzle 2Ø 3.4Ø 6.5Ø | α-iD,iE,400iA,600iA (AWF) | A290-8119-Z791 2Ø A290-8119-Z786 3.4Ø A290-8119-Z787 6.5Ø |

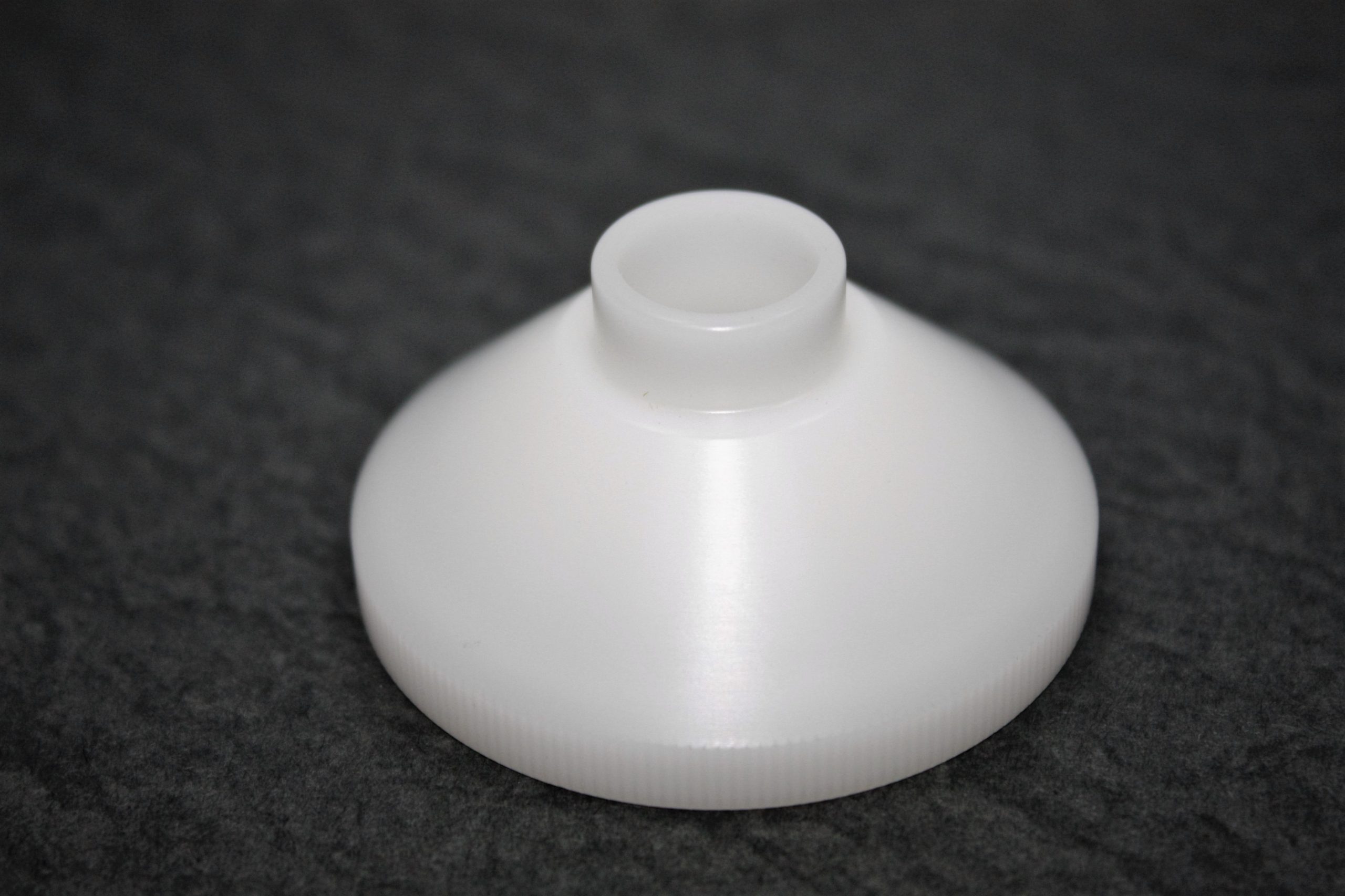

 | F219 | Lower | 下噴水頭 Water Nozzle 12Ø | α-iD,iE,400iA,600iA (AWF) | A290-8119-Z788 |
 | F220 | Upper | 上噴水頭 Water Nozzle 2Ø 4Ø 6.5Ø 12Ø | DWC-600iC,400iC (AWF) | A290-8130-X751 2Ø A290-8130-X752 4Ø A290-8130-X753 6.5Ø A290-8130-X754 12Ø |
| 圖片 | 編號 | 位置 | 品名尺寸 | 適用機種 | 原廠編號 |
|---|---|---|---|---|---|

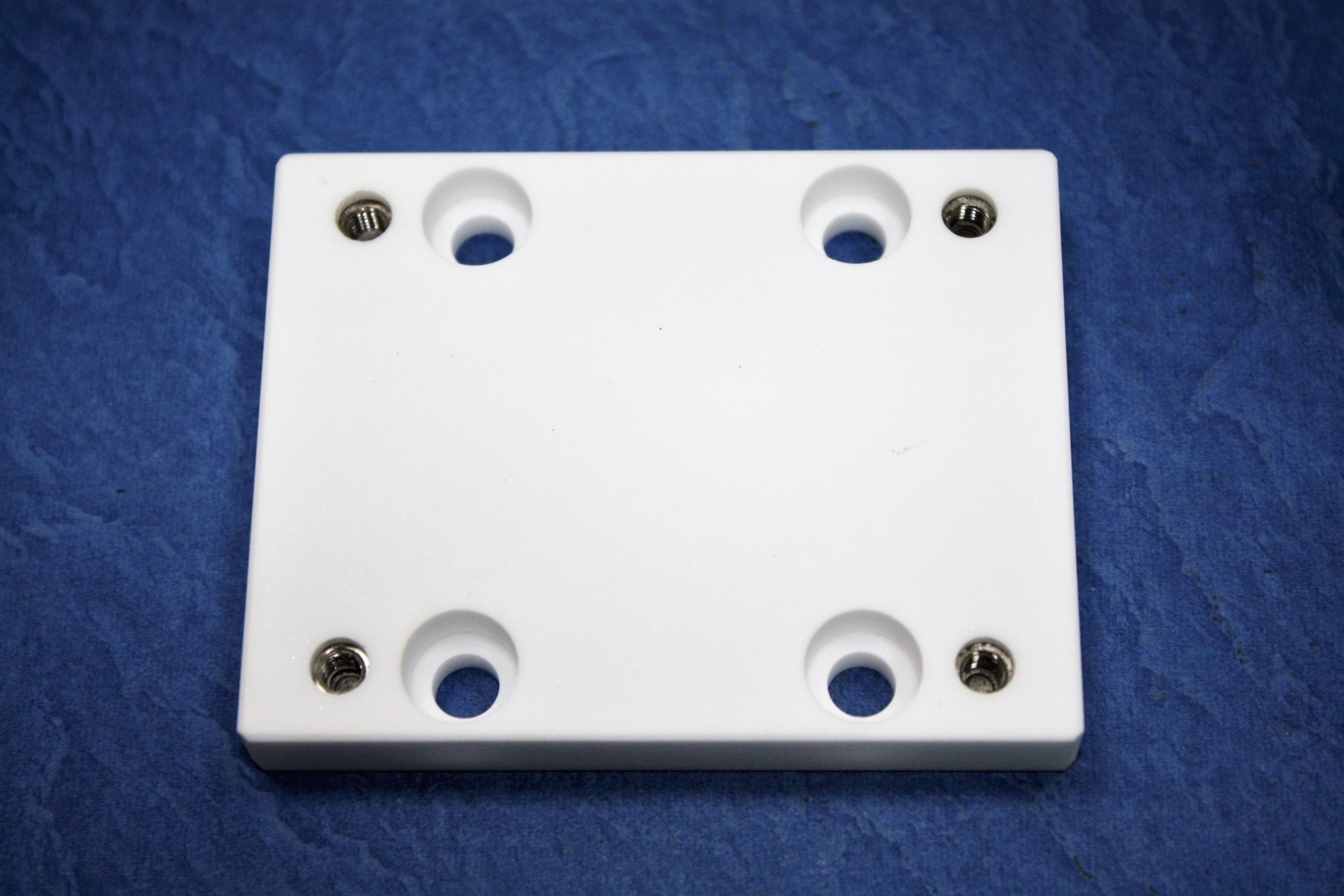

 | F302 | Lower | 下絕緣板 Lsolator Plate 75L×60W×10H | O,P,Q,R,W | A290-8021-X709 |

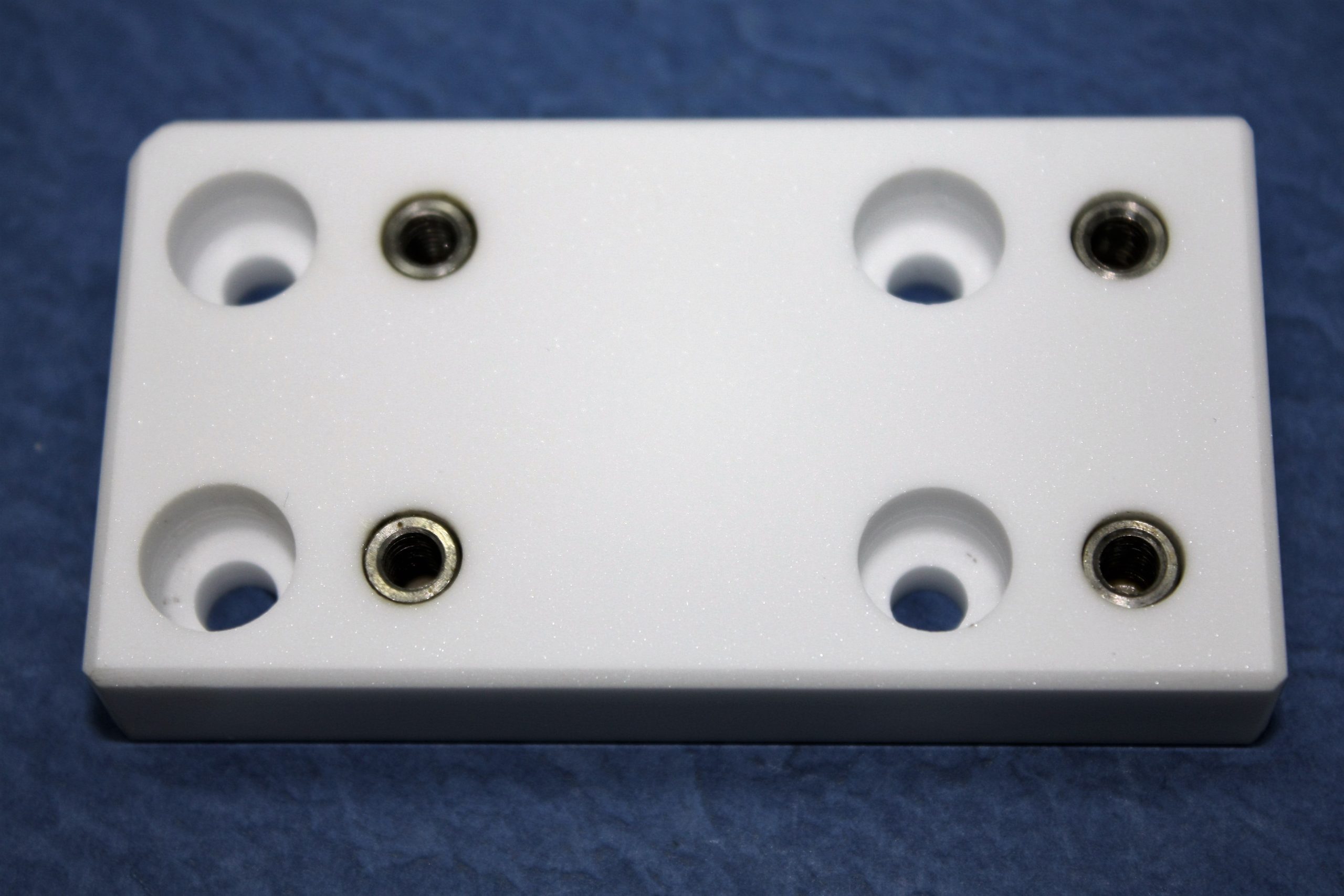

 | F303 | Lower | 下絕緣板(半)自動 Lsolator Plate 73L×39W×12H | W series (AWF) | A290-8032-X334 |

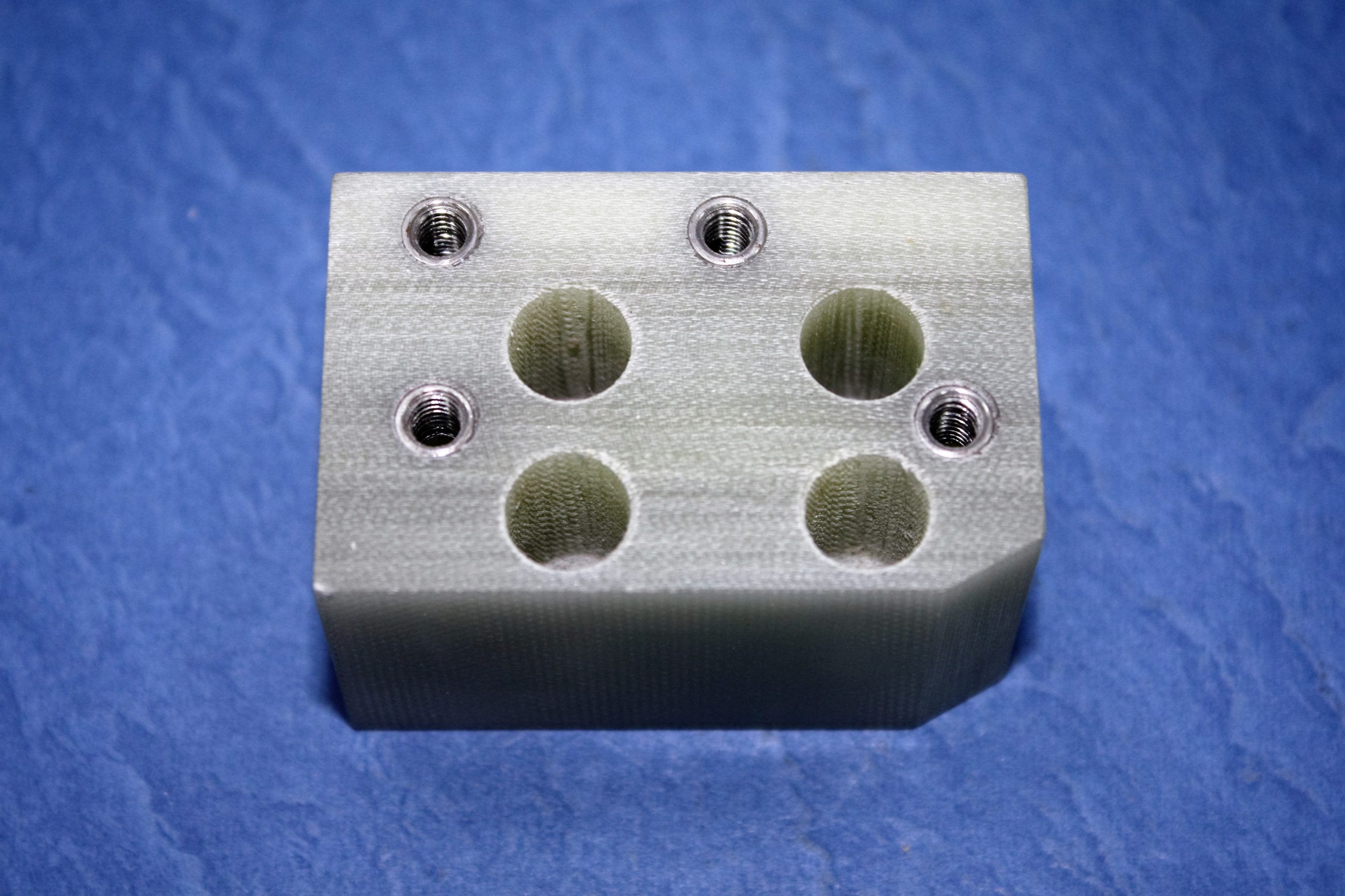

 | F304 | Upper | 上絕緣板 Lsolator Plate 51L×33W×29H | O,P,Q,R,W | A290-8021-X602 |

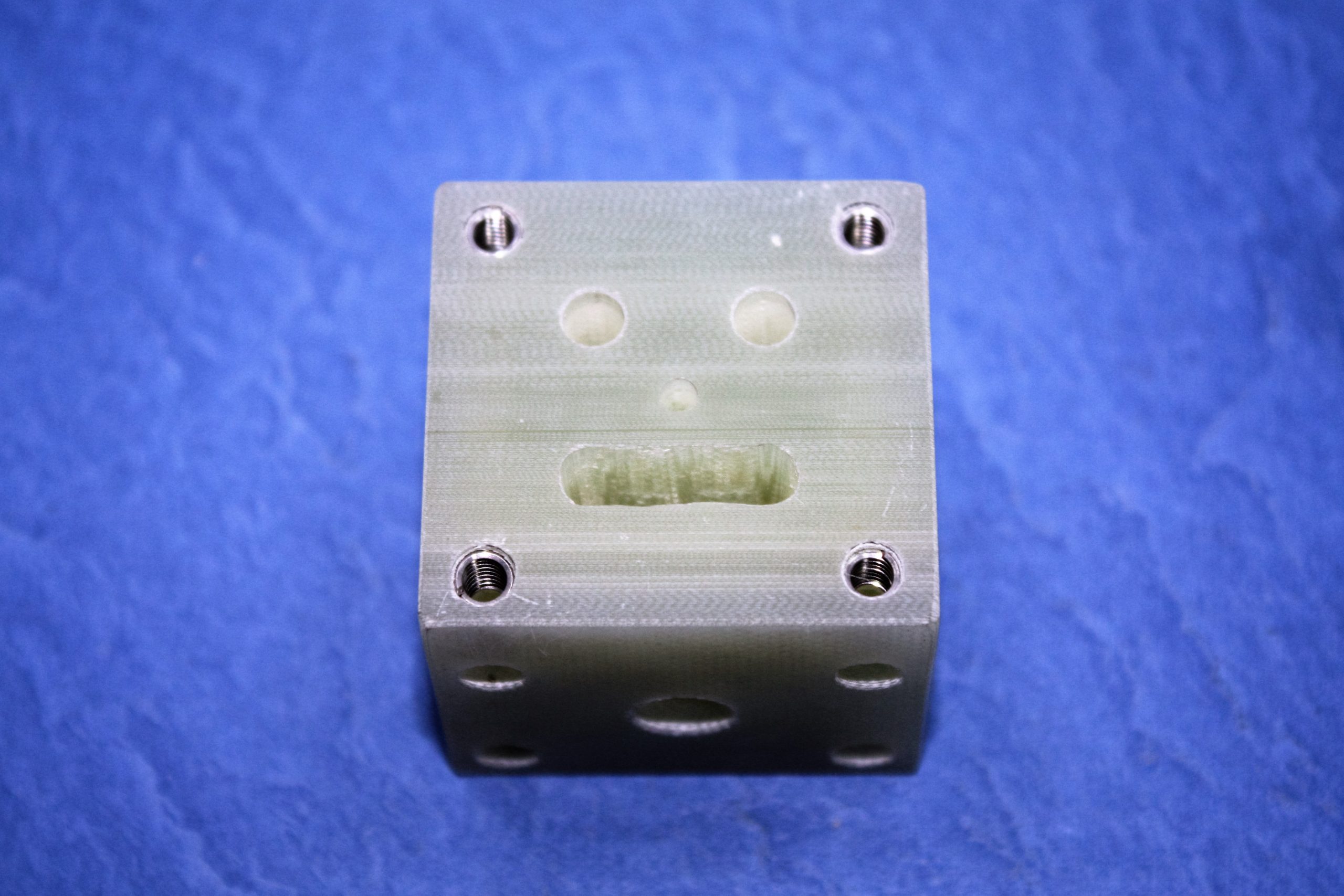

 | F305 | Upper | 上機頭絕緣固定座 Lsolator Plate 40L×40W×34H | α-A,B series | A290-8101-X509 |

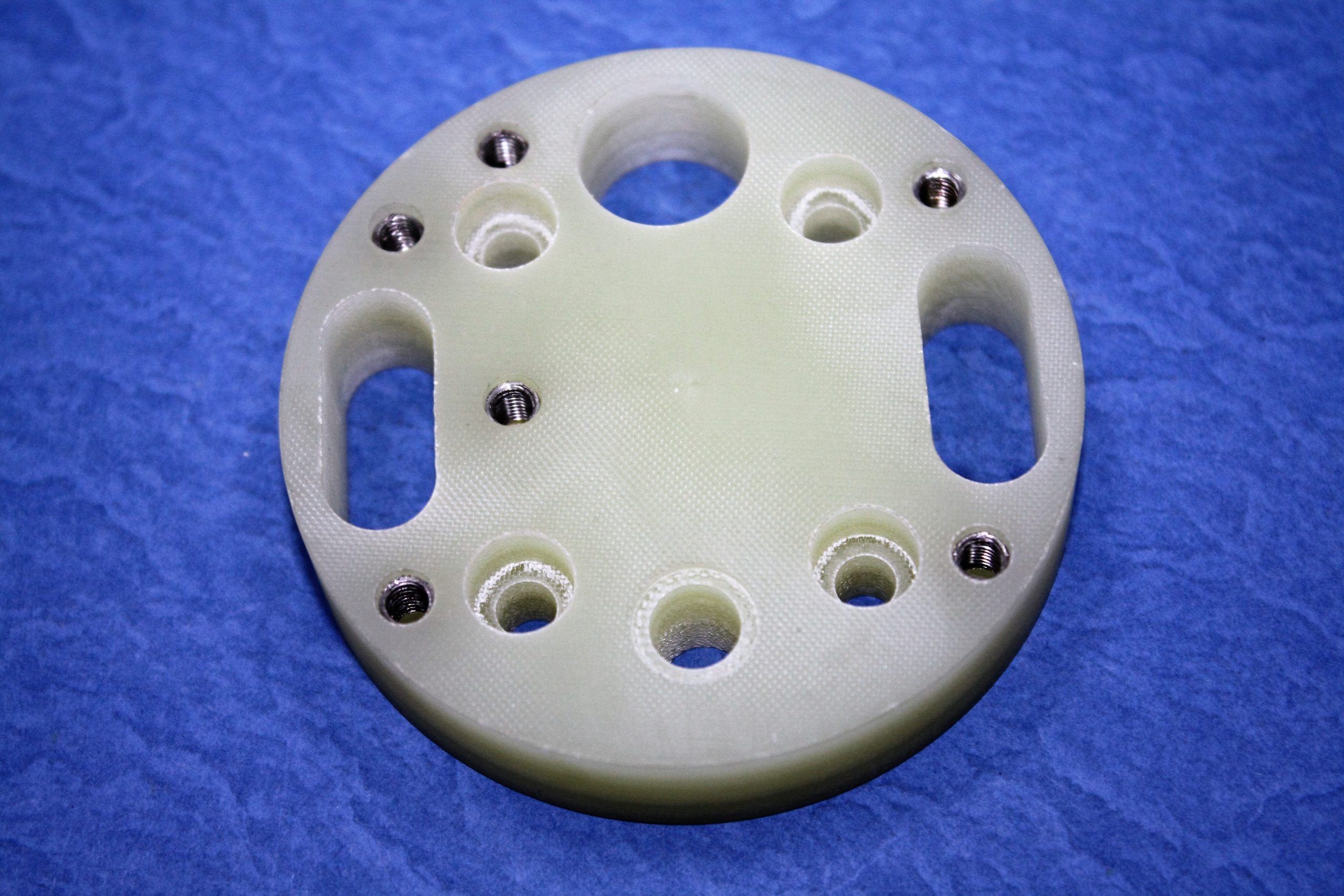

 | F306 | Lower | 下機頭絕緣固定座 Lsolator Plate 72Ø×15t | α-A,B series | A290-8101-X312 |

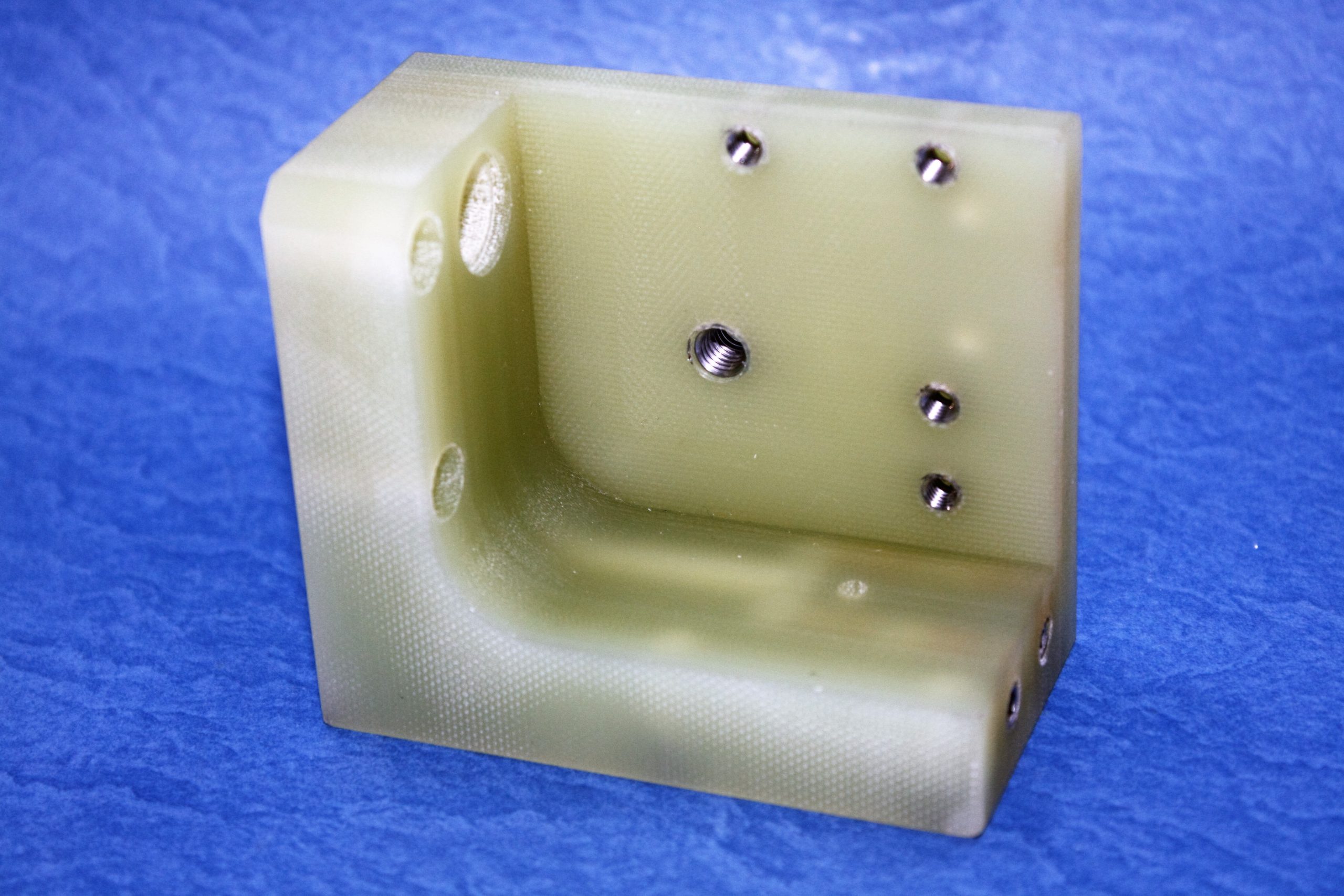

 | F307 | Lower | 下絕緣板 Lsolator Plate 75L×56W×66H | α-A,B series | A290-8101-X761 |

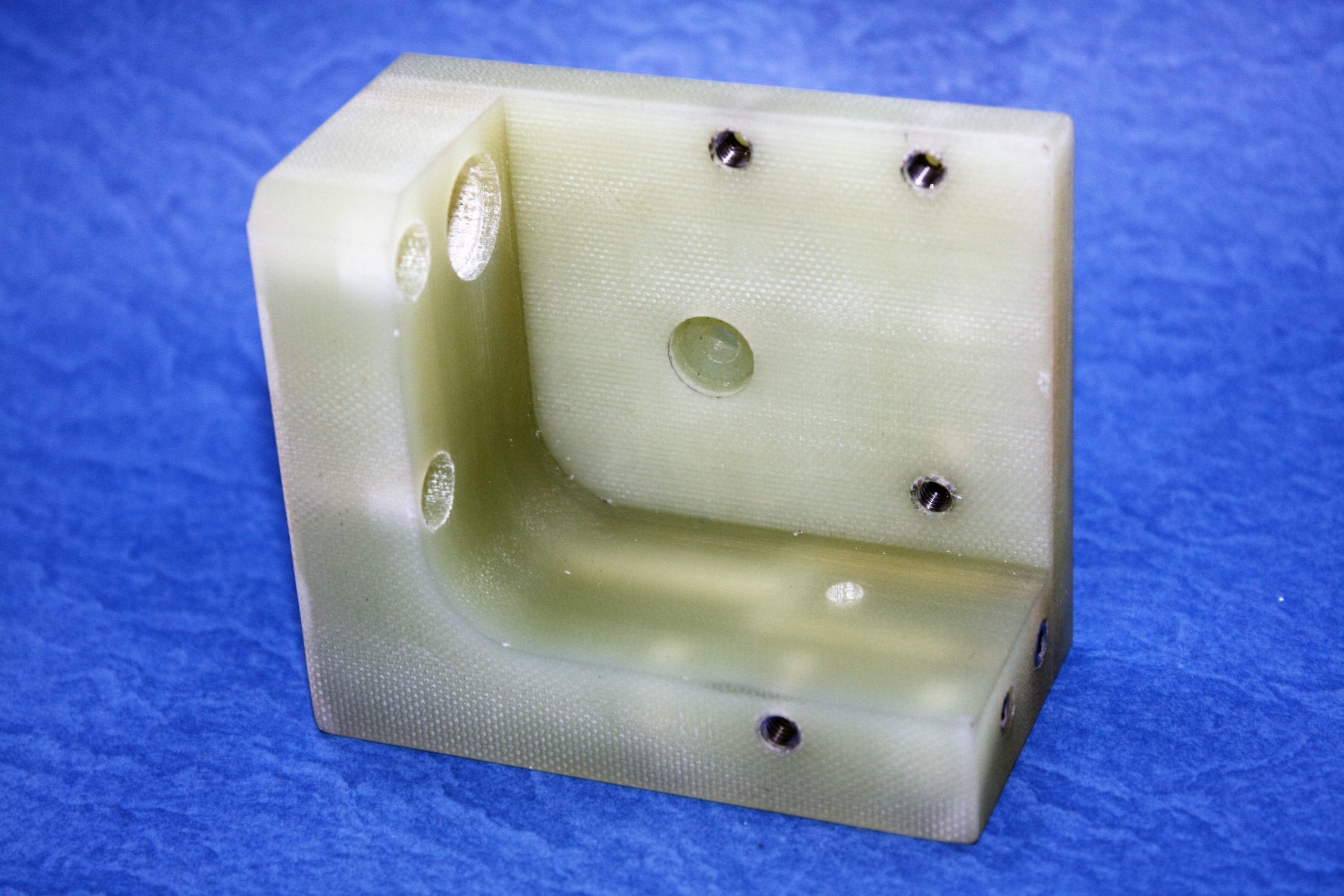

 | F308 | Lower | 下絕緣板 Lsolator Plate 75L×56W×66H | α-C 第一代 | A290-8110-Y761 |

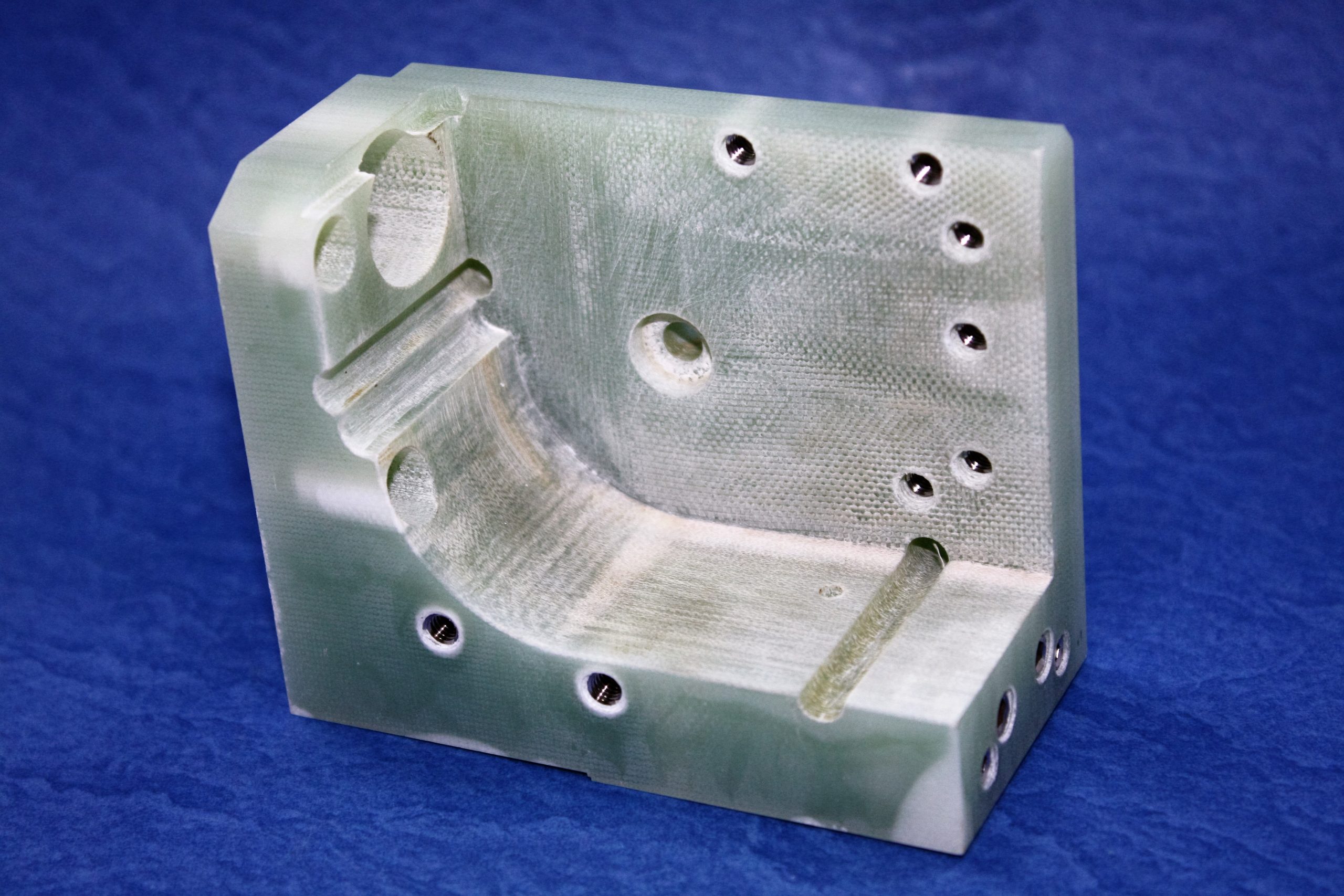

 | F309 | Lower | 下絕緣板 Lsolator Plate 81L×66W×56H | α-C | A290-8110-Y761 |

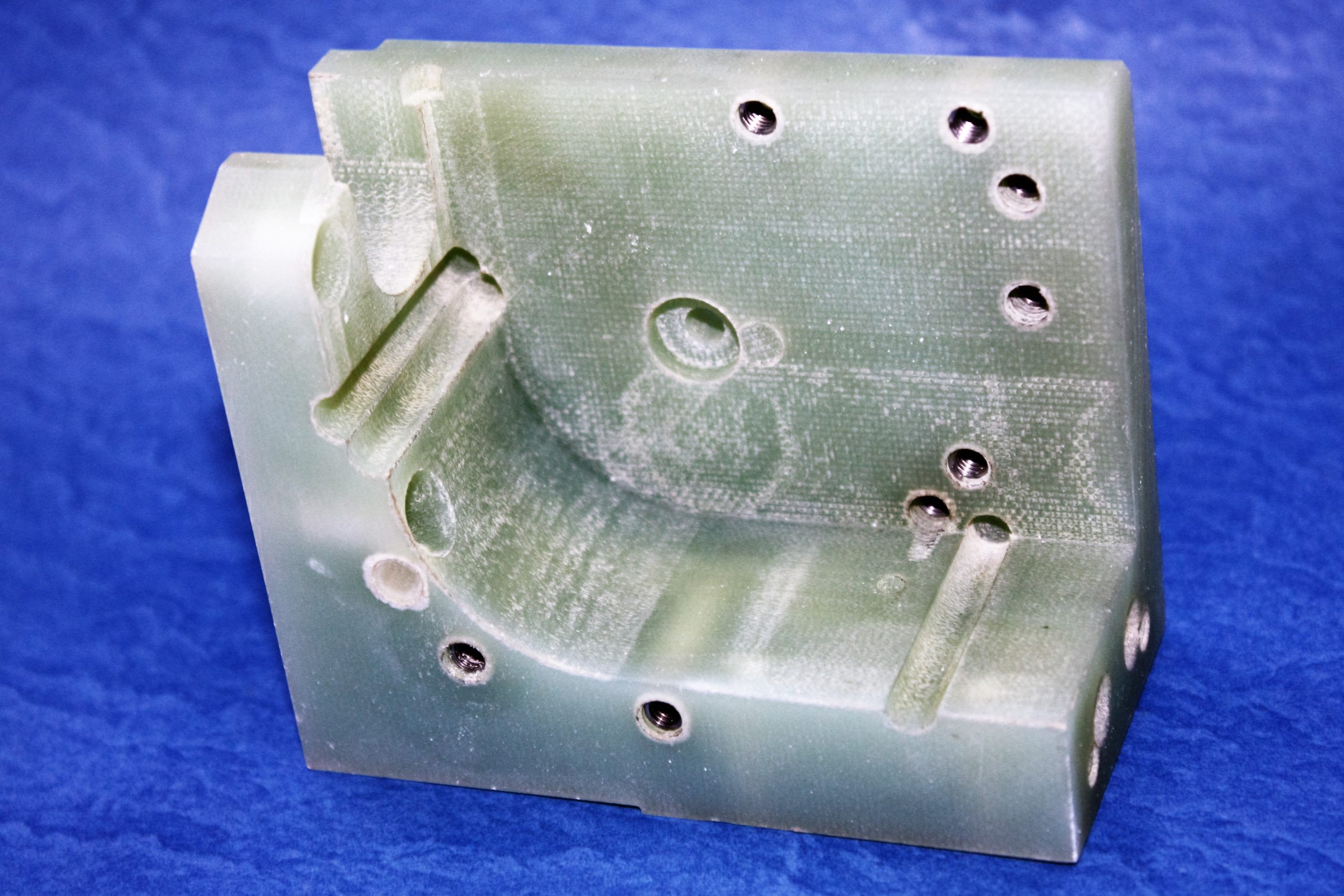

 | F310 | Lower | 下絕緣板 Lsolator Plate 81L×56W×66H | α-i | |

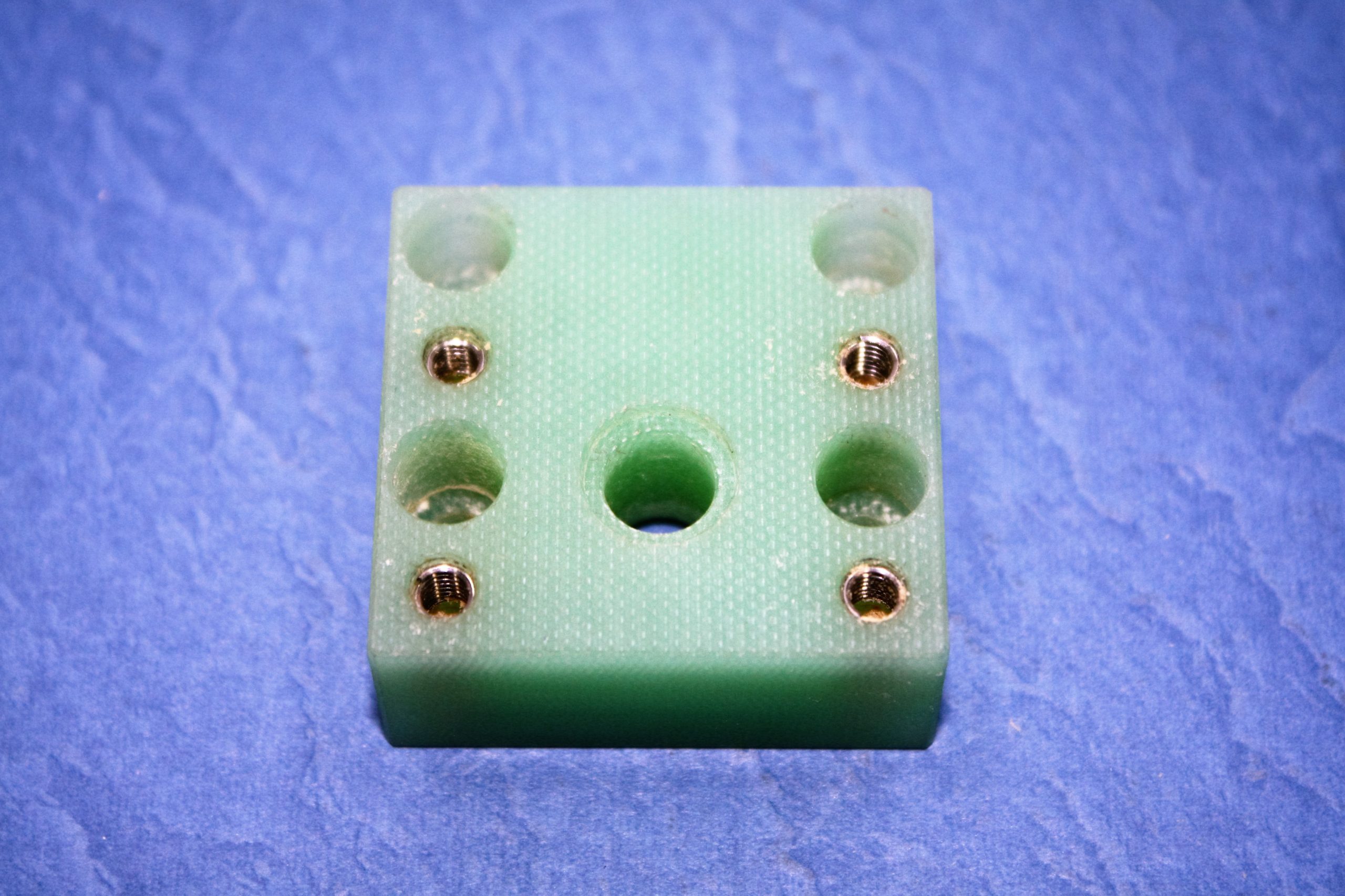

 | F312 | Upper | 上機頭絕緣固定板 Lsolator Plate 40L×38W×17H | α-A,B | |

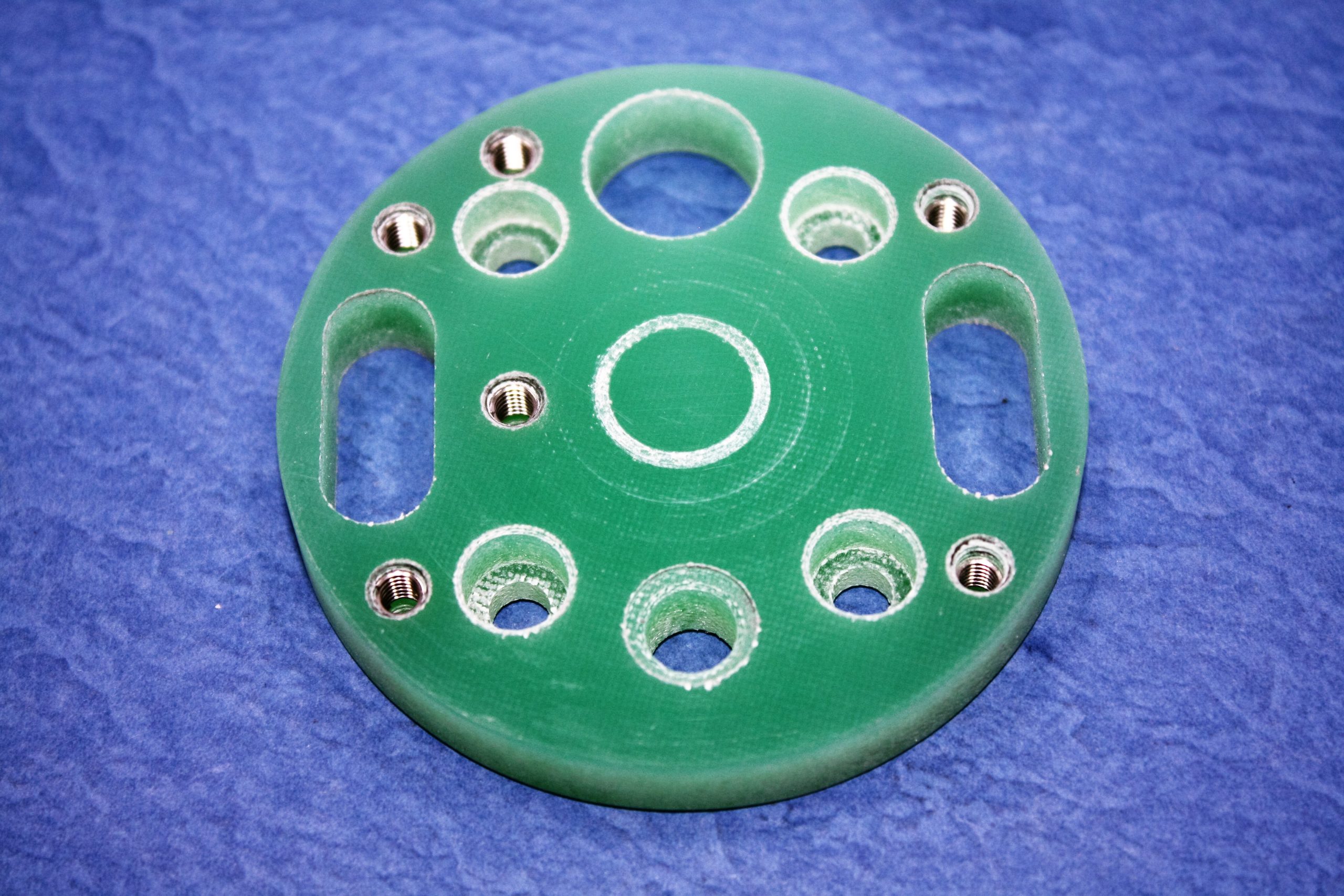

 | F313 | Lower | 下機頭絕緣固定板 Lsolator Plate 72Ø×10t | α-C,iA,iB | A290-8110-Y312 |

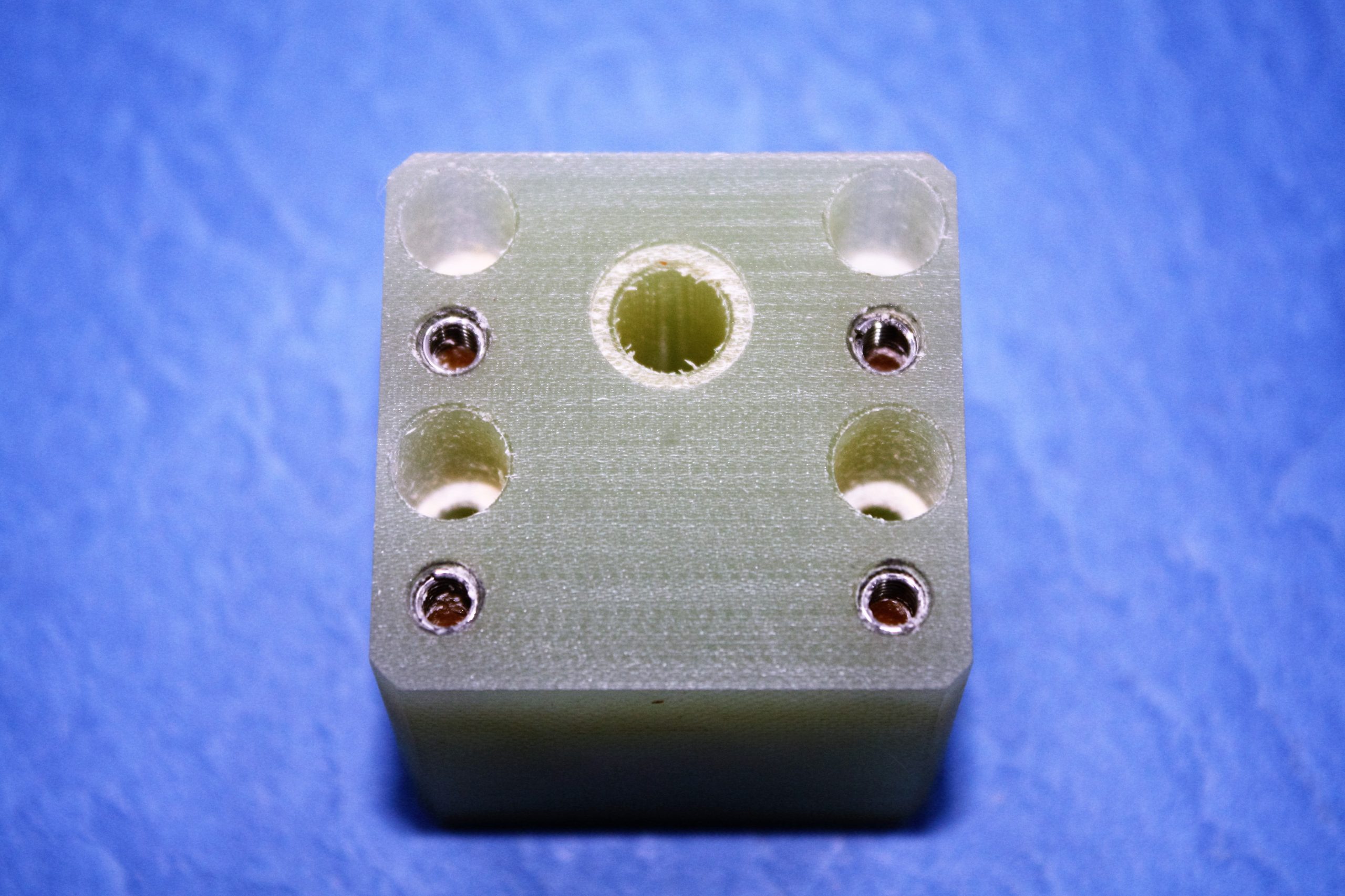

 | F314 | Upper | 上絕緣板 Lsolator Plate 39L×40W×39t | α-C series (Manual) | |

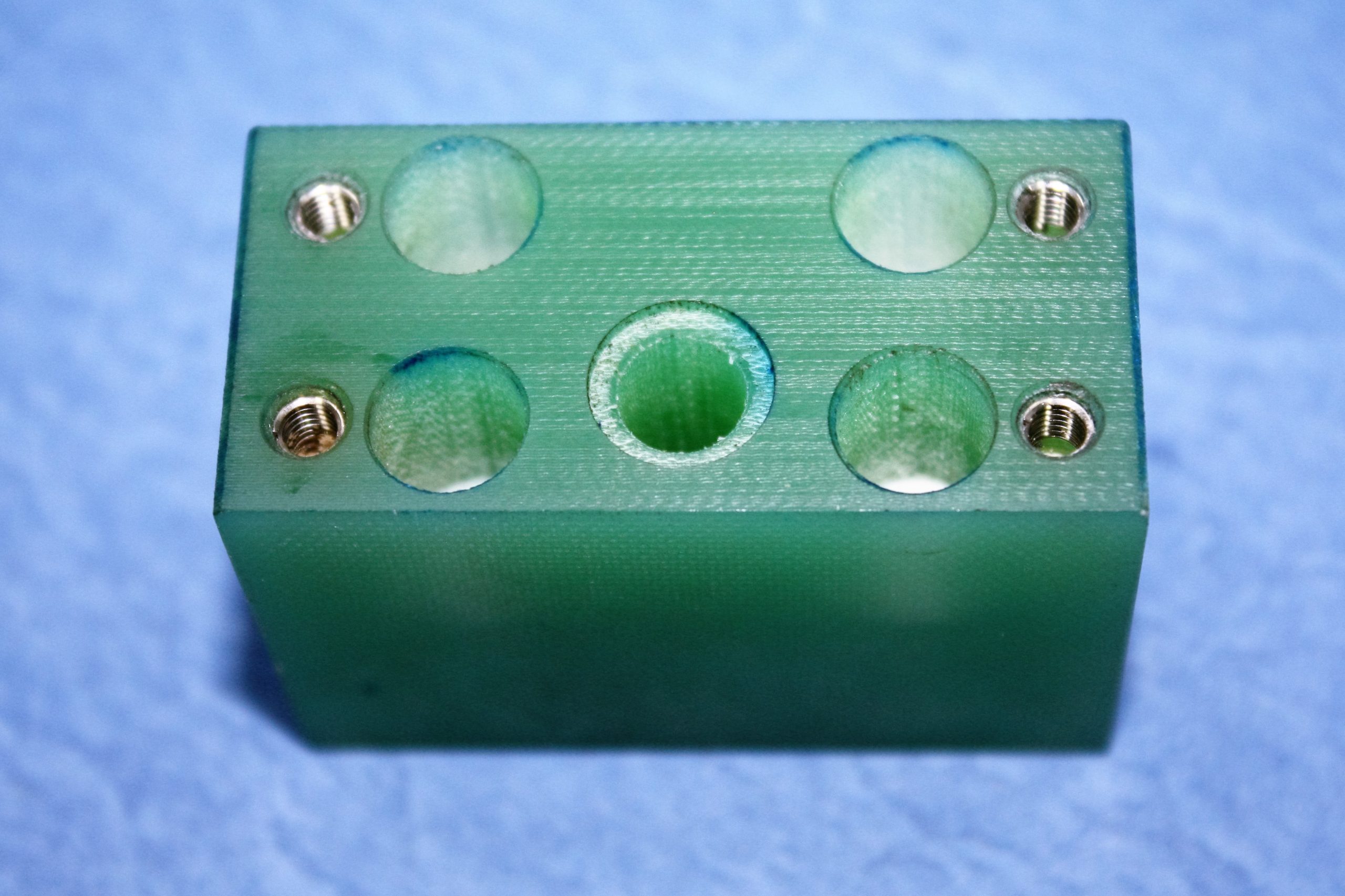

 | F315 | Upper | 上絕緣板 Lsolator Plate 27L×55W×39H | α-1iA,1iB (Manual) | A290-8112-X535 |

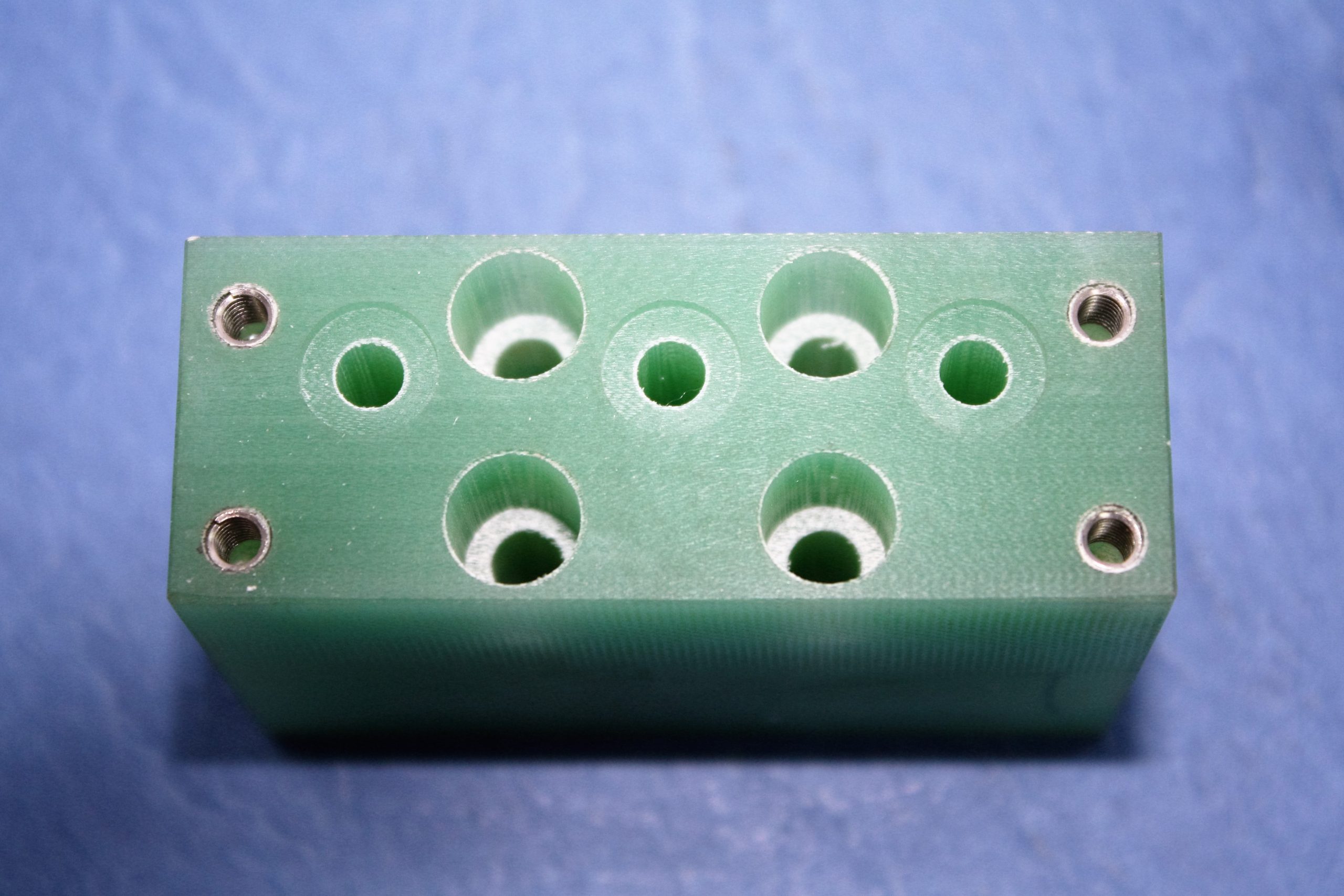

 | F316 | Upper | 上絕緣板 Lsolator Plate 27L×70W×48H | α-B (AWF) | A290-8102-X600 |

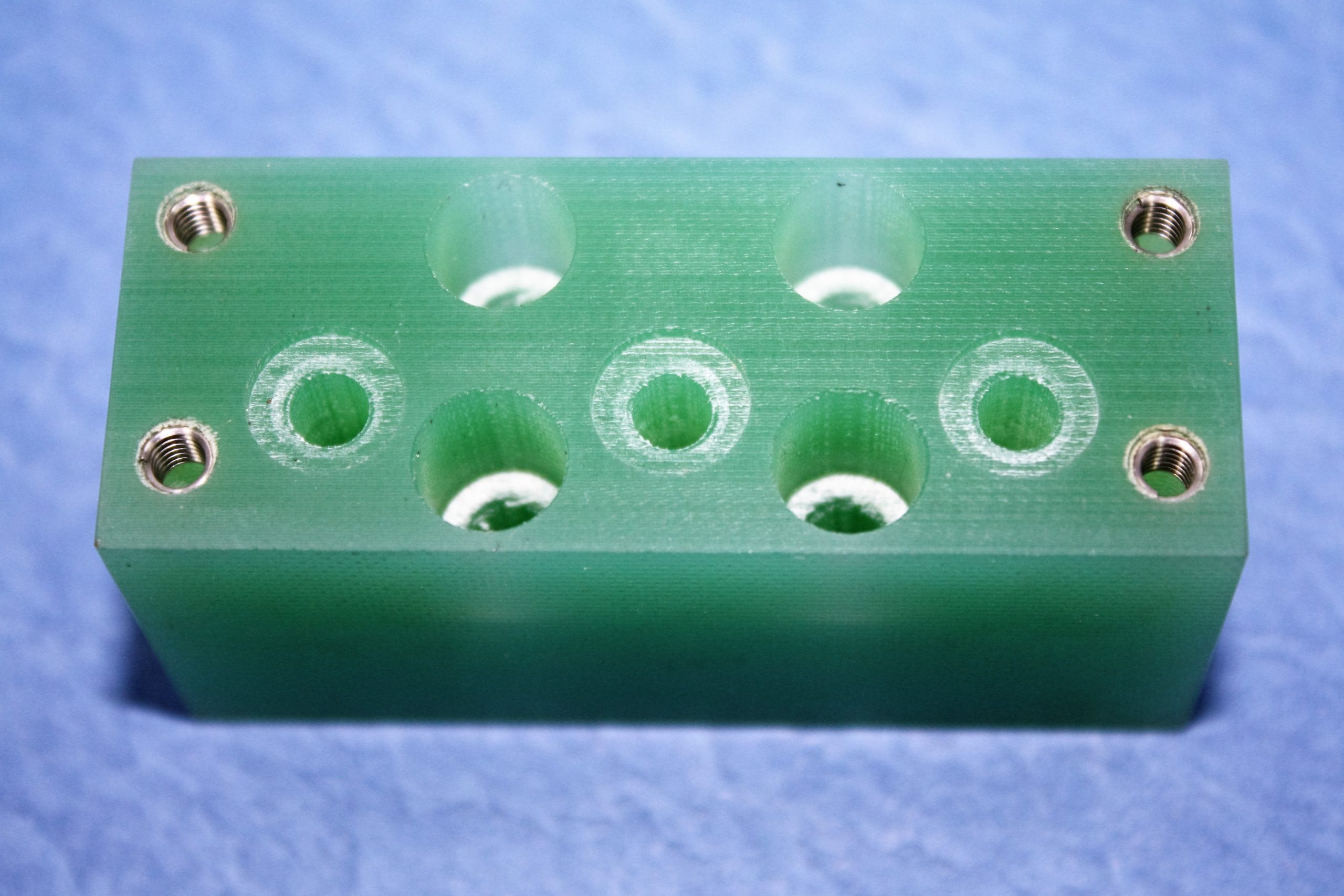

 | F317 | Upper | 上絕緣板 Lsolator Plate 27L×70W×35H | α-C,iA,iB (AWF) | A290-8111-Y527 |

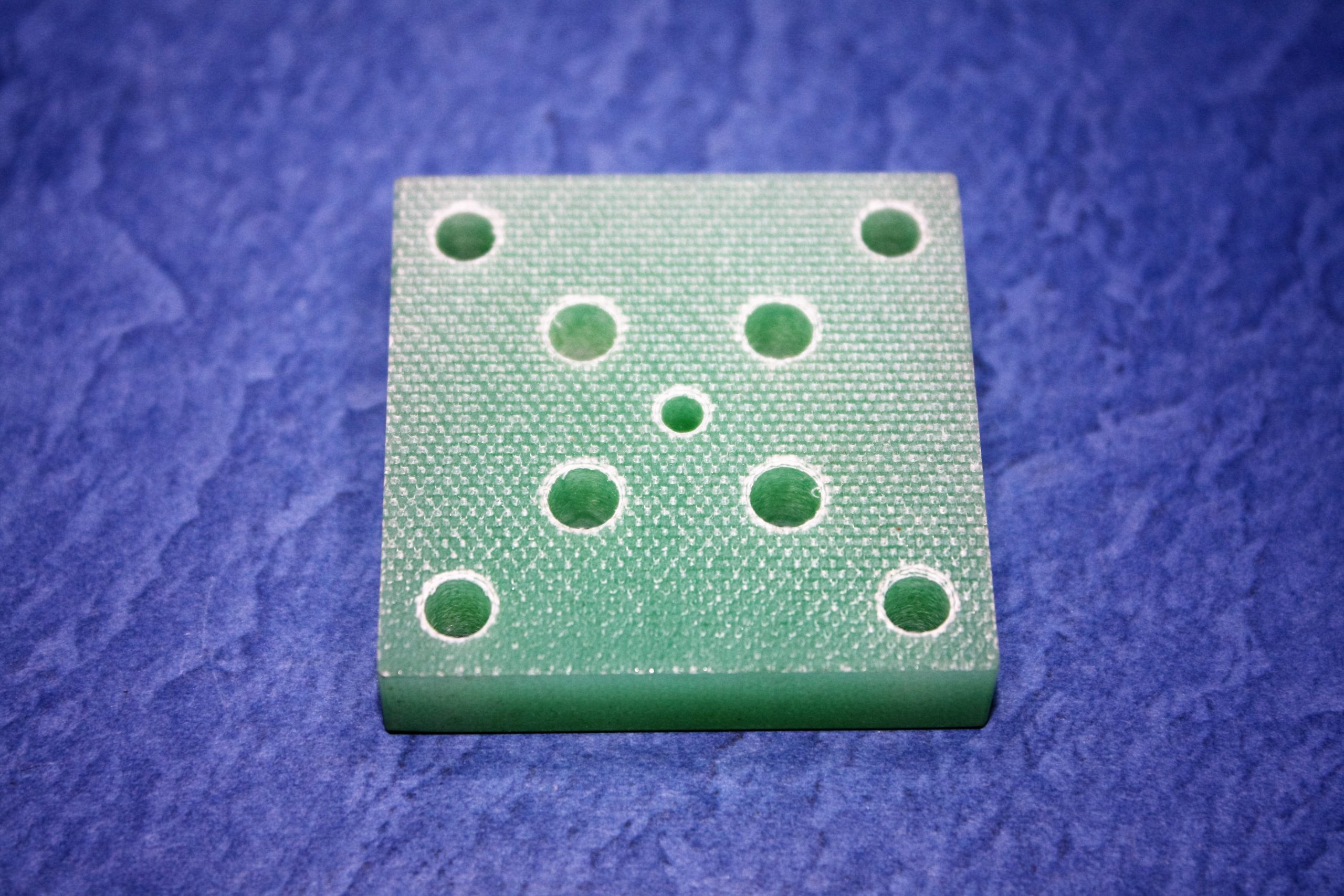

 | F318 | Lower | 下絕緣板 Lsolator Plate 40L×40 9T | α-A,B | |

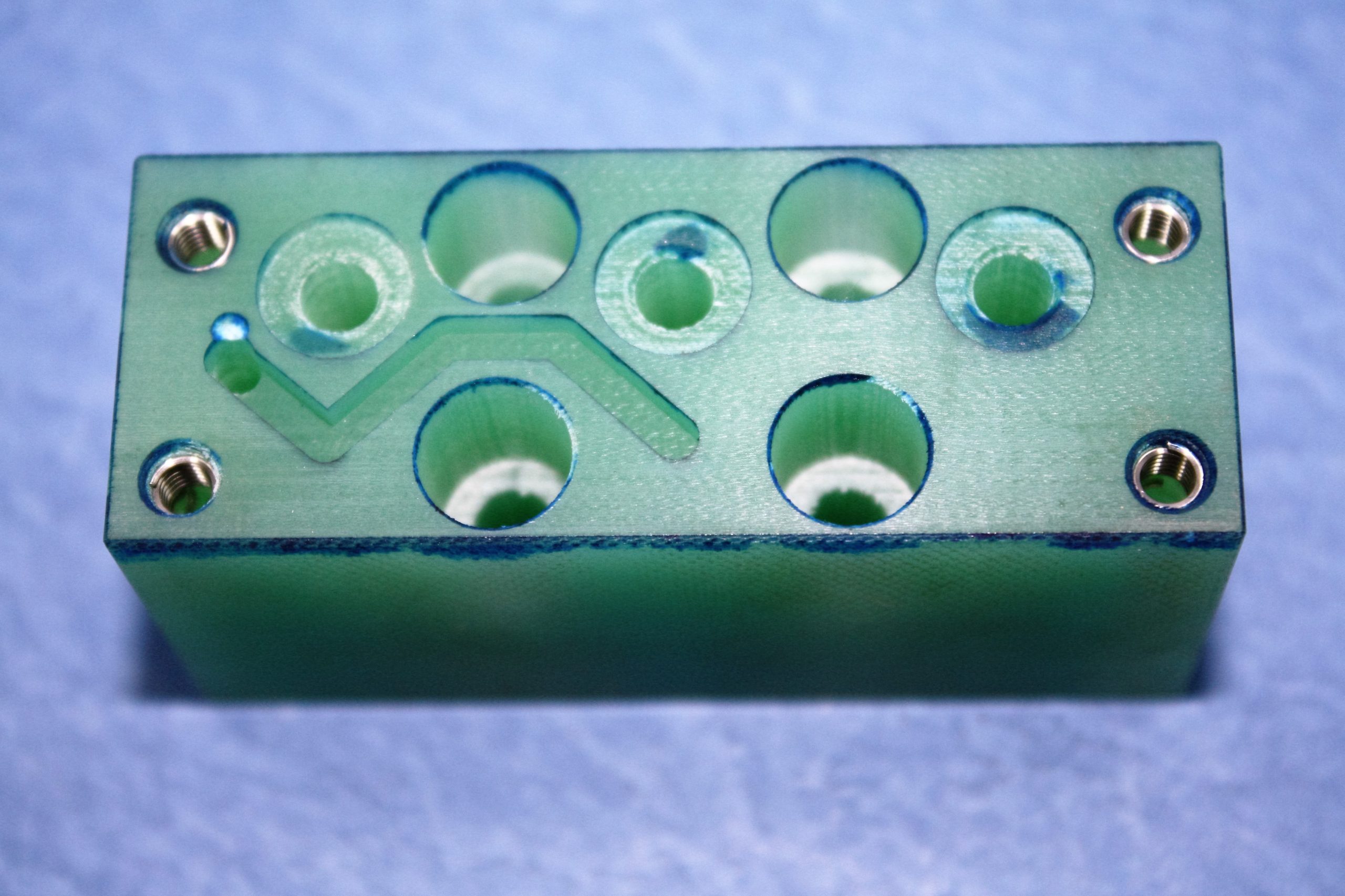

 | F319 | Upper | 上絕緣板 Lsolator Plate 27L 70W×35H | DWC- iC,iD,iE (AWF) | A290-8116-Y546 |

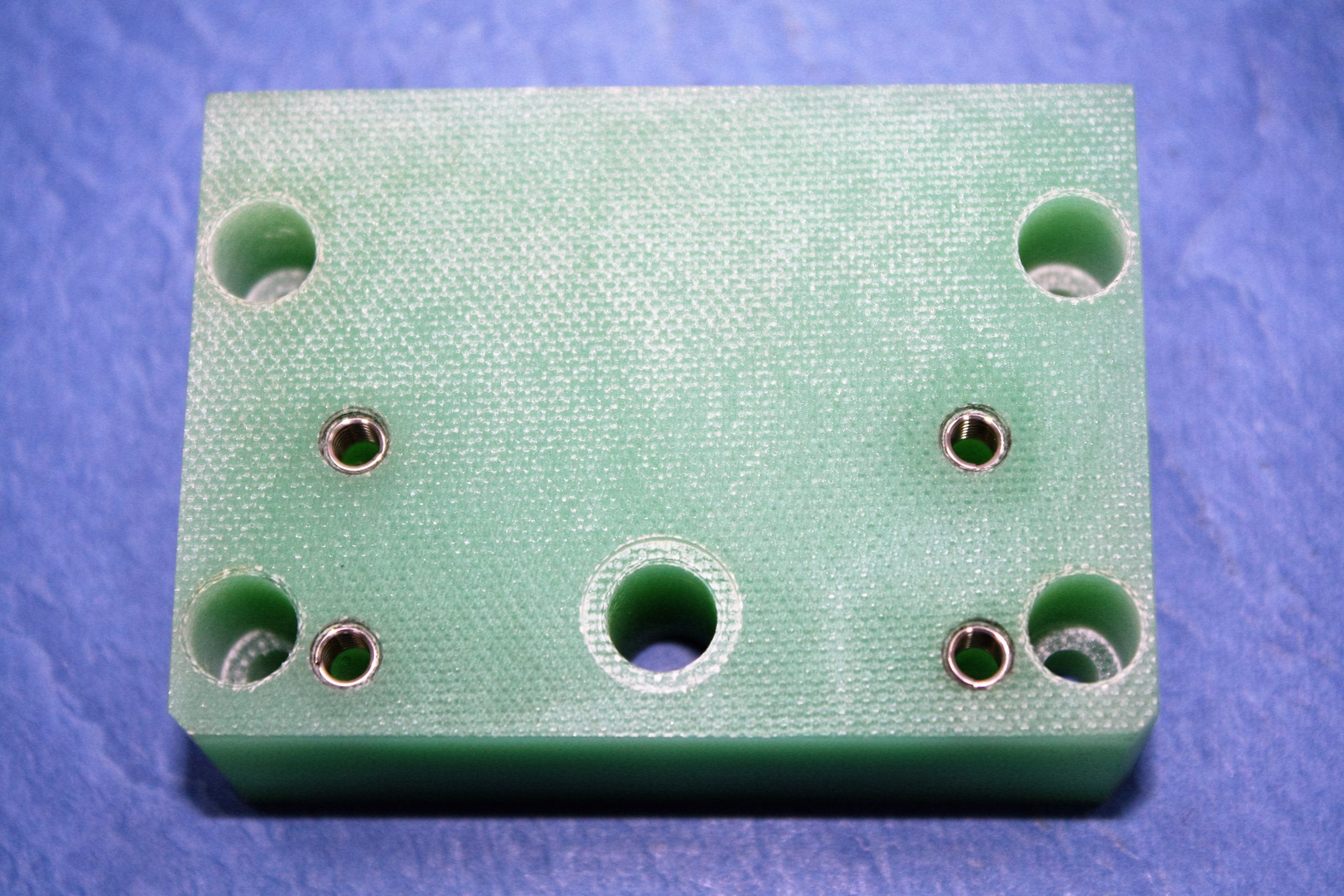

 | F320 | Upper | 上絕緣板 Lsolator Plate 50L ×70W×23H | DWC-0 iA (AWF) | A290-8111-X527 |

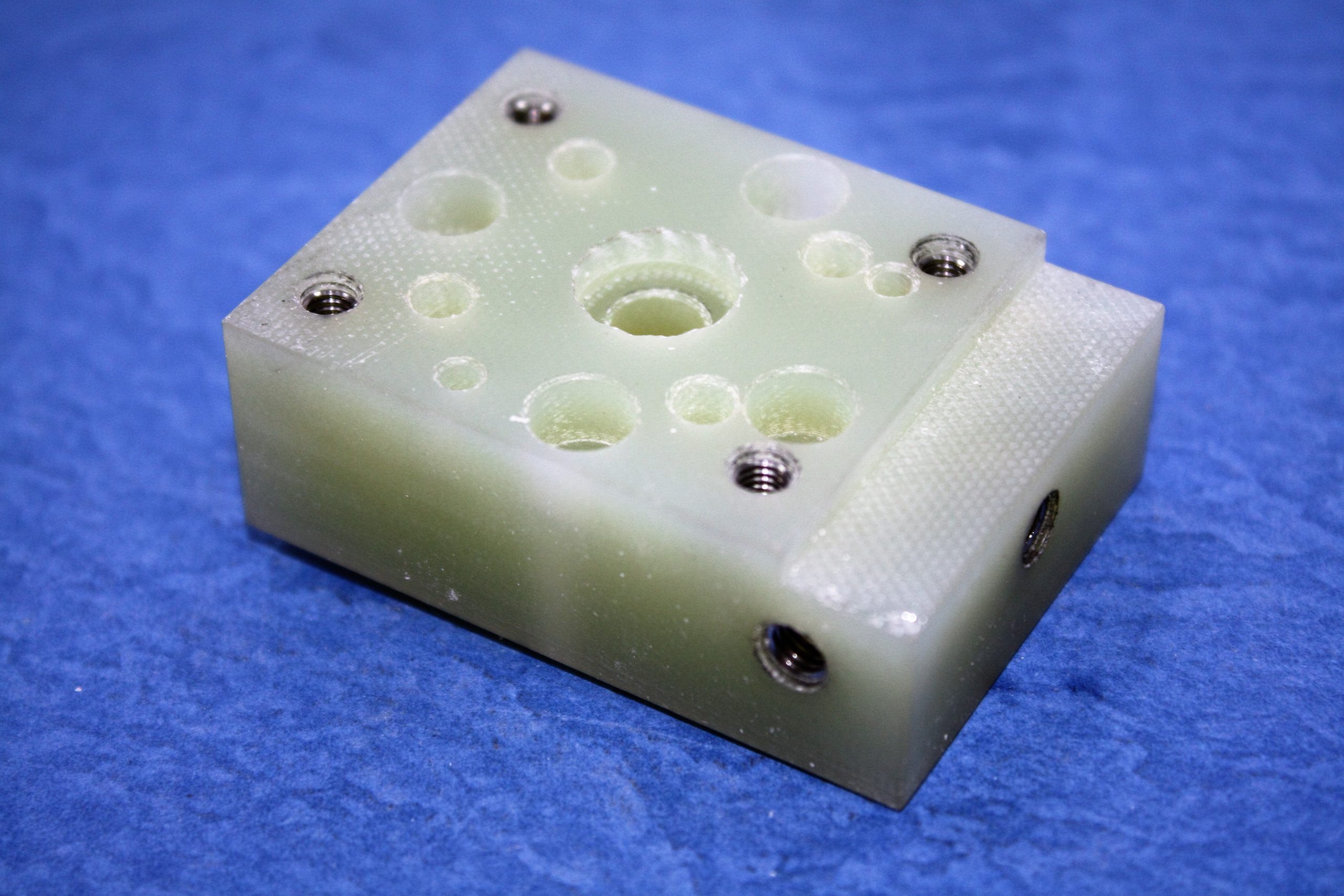

 | F321 | Lower | 下絕緣板 Lsolator Plate 56L×40×20t | DWC-0 iE (AWF) | A290-8120-Z764 |

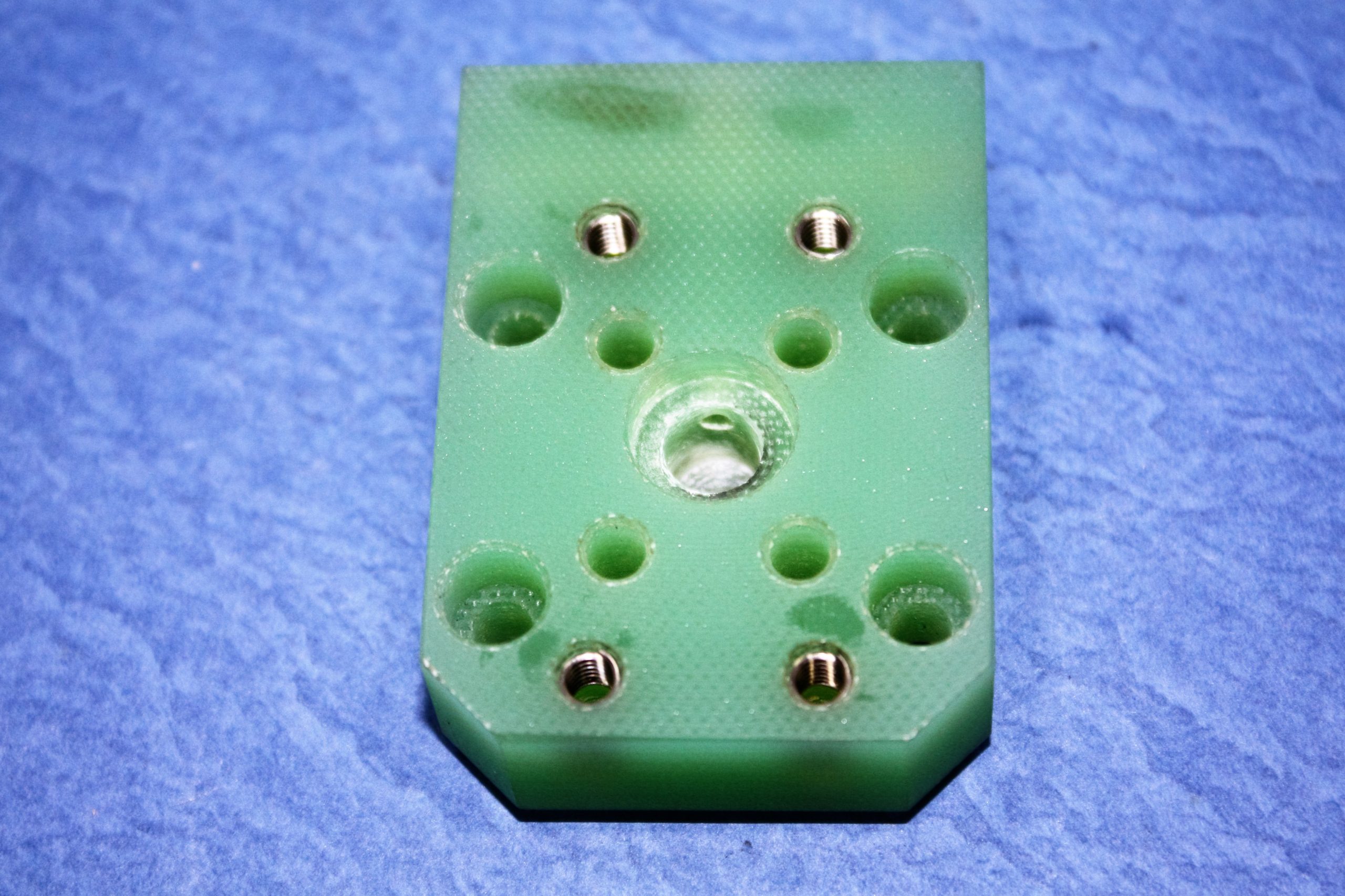

 | F322 | Lower | 下絕緣板 Lsolator Plate 56L×40W×13t | DWC-0iC (AWF) | A290-8119-X764 |

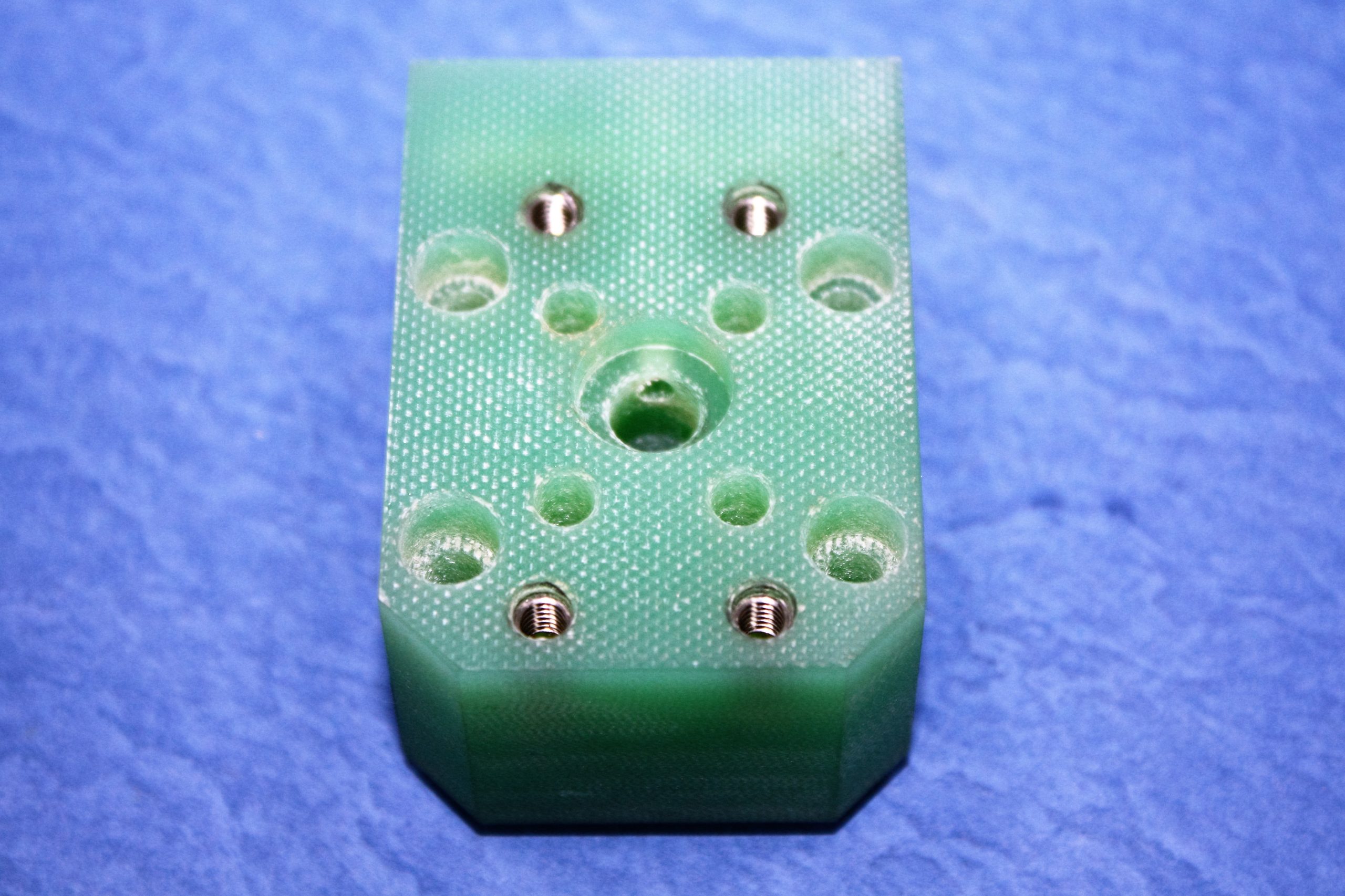

 | F323 | Lower | 下絕緣板 Lsolator Plate 56L×40W×26t | DWC-1 iC (AWF) | A290-8120-X764 |

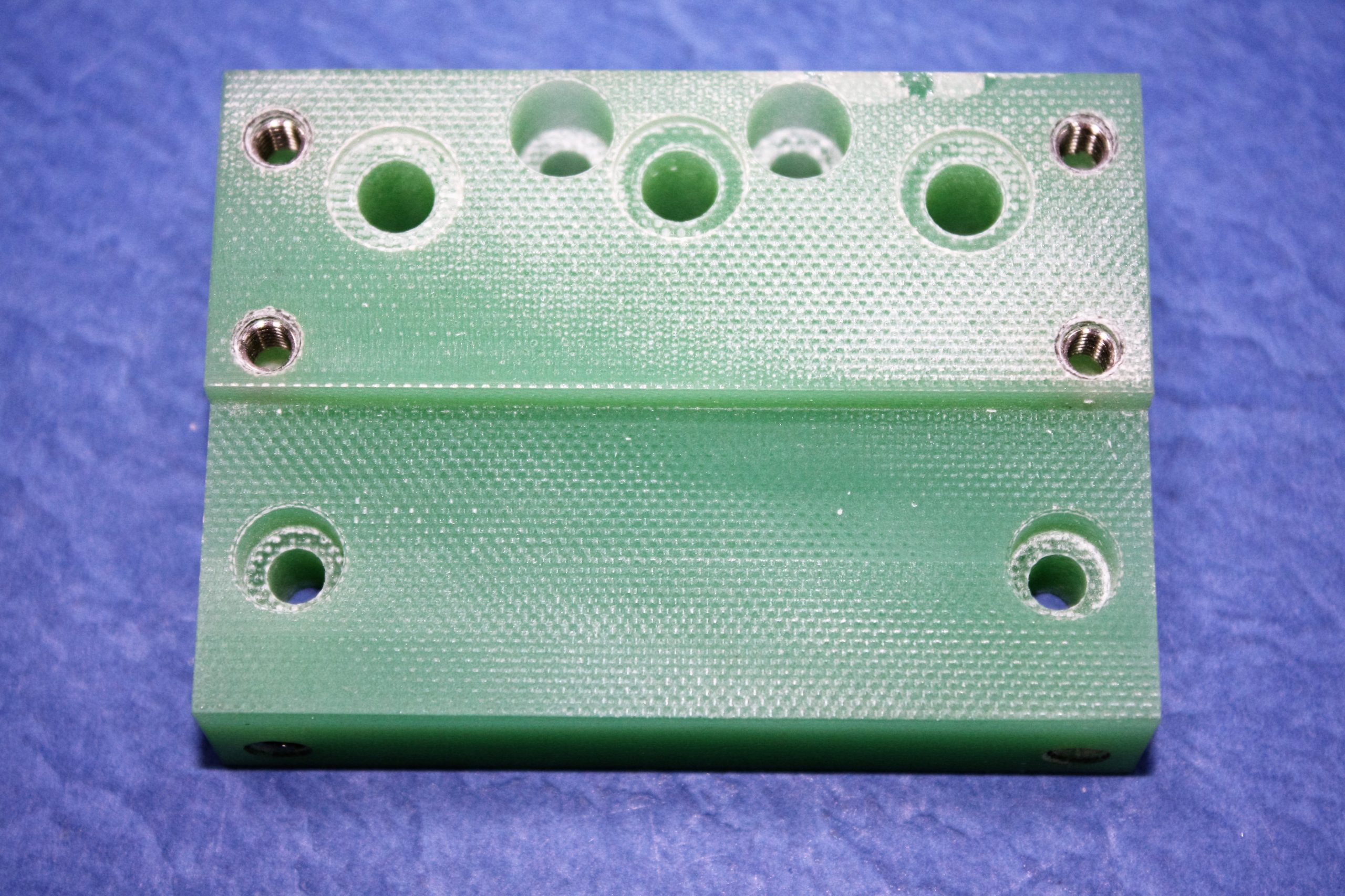

 | F324 | Upper | 上絕緣板 Lsolator Plate 70L×50W×19H | DWC-0iC (AWF) | A290-8111-Y526 |
 | F325 | Upper | 上絕緣板 Lsolator Plate 70L×50W×19H | DWC-0iC,0iD,0iE,400iA | A290-8115-Y526 |

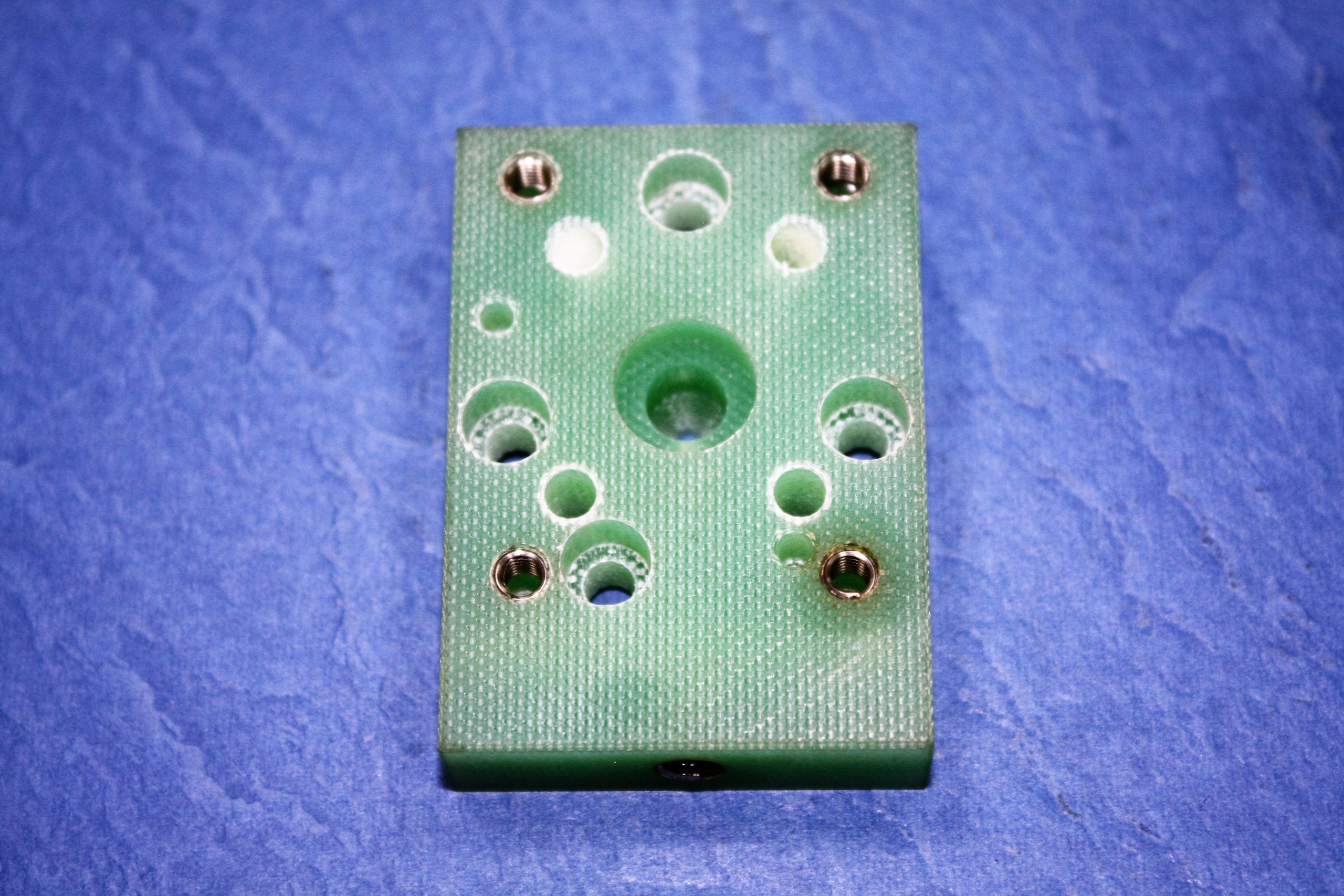

 | F326 | Lower | 下絕緣板 Lsolator Plate 56L ×40W×13H | DWC-0iD |
| 圖片 | 編號 | 位置 | 品名尺寸 | 適用機種 | 原廠編號 |
|---|---|---|---|---|---|

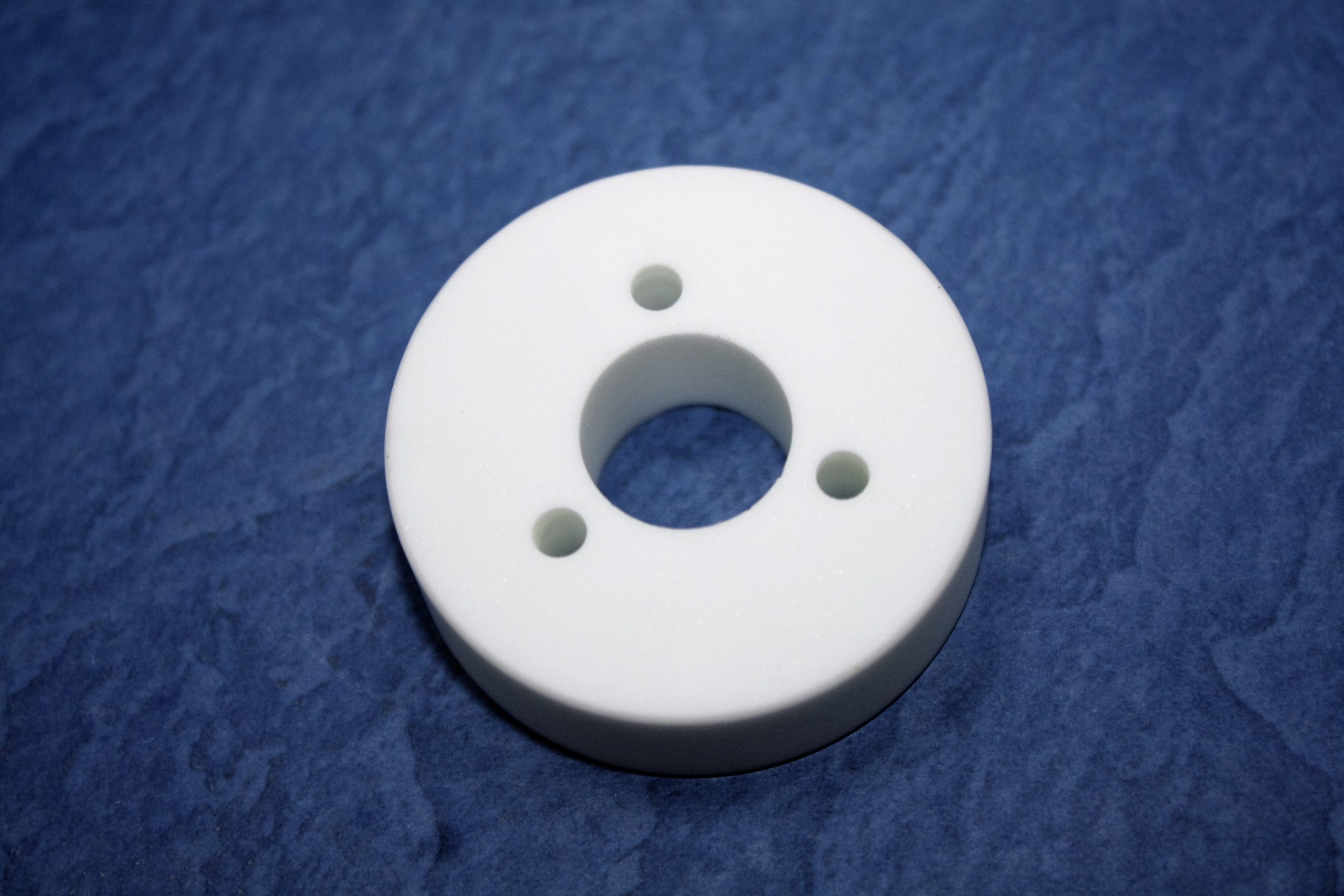

 | F401-2 | Lower | 下機頭引線輪 Ceramic Roller 40×14×12t | DWC-W series (AWF) | A290-8037-X805 |

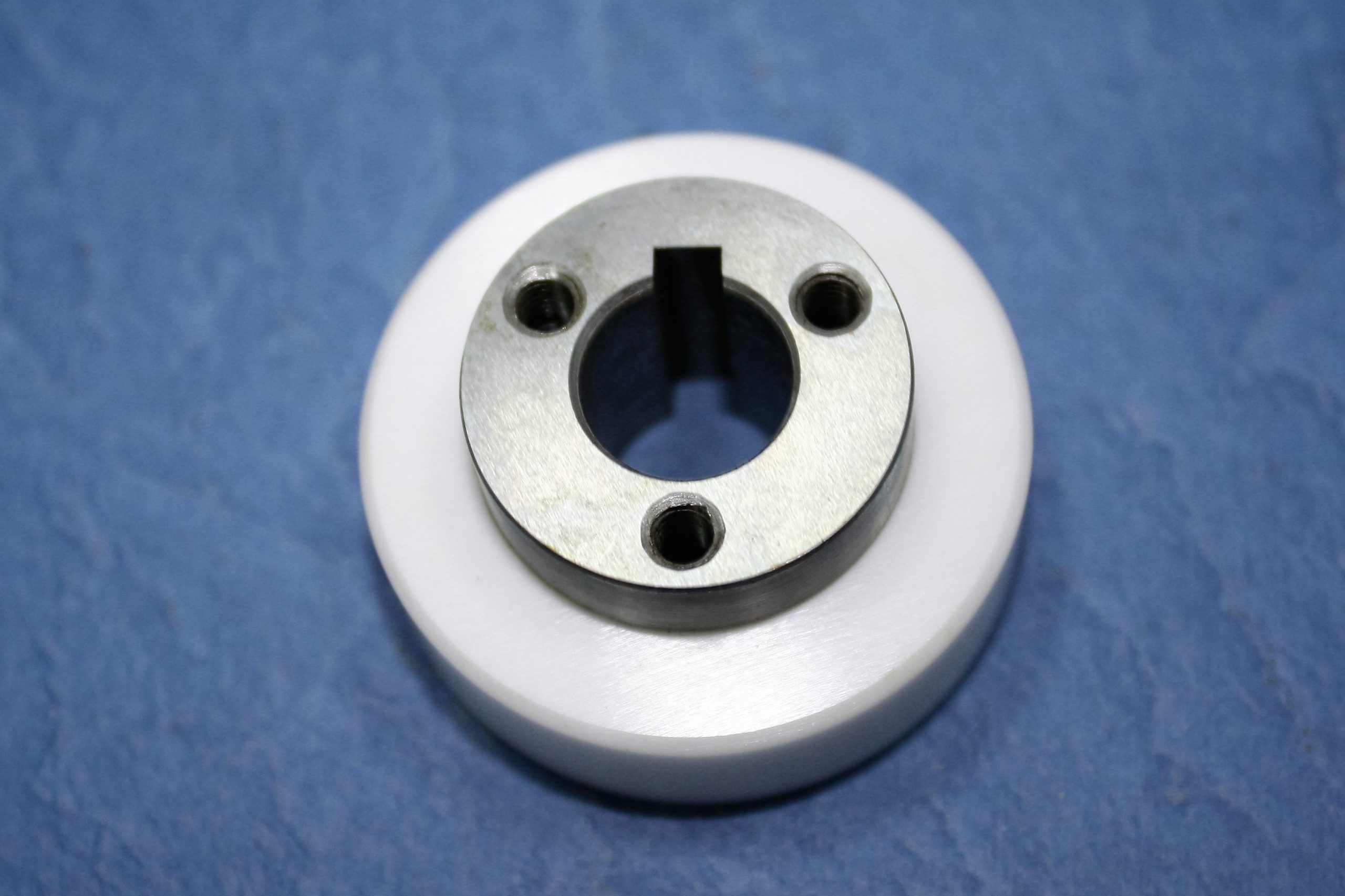

 | F402 | Feed Section | 陶瓷出線主輪 Feed Roller(Ceramic) 40×12×19W | α-A,B series (Manual/AWF) | A290-8110-Z383 |

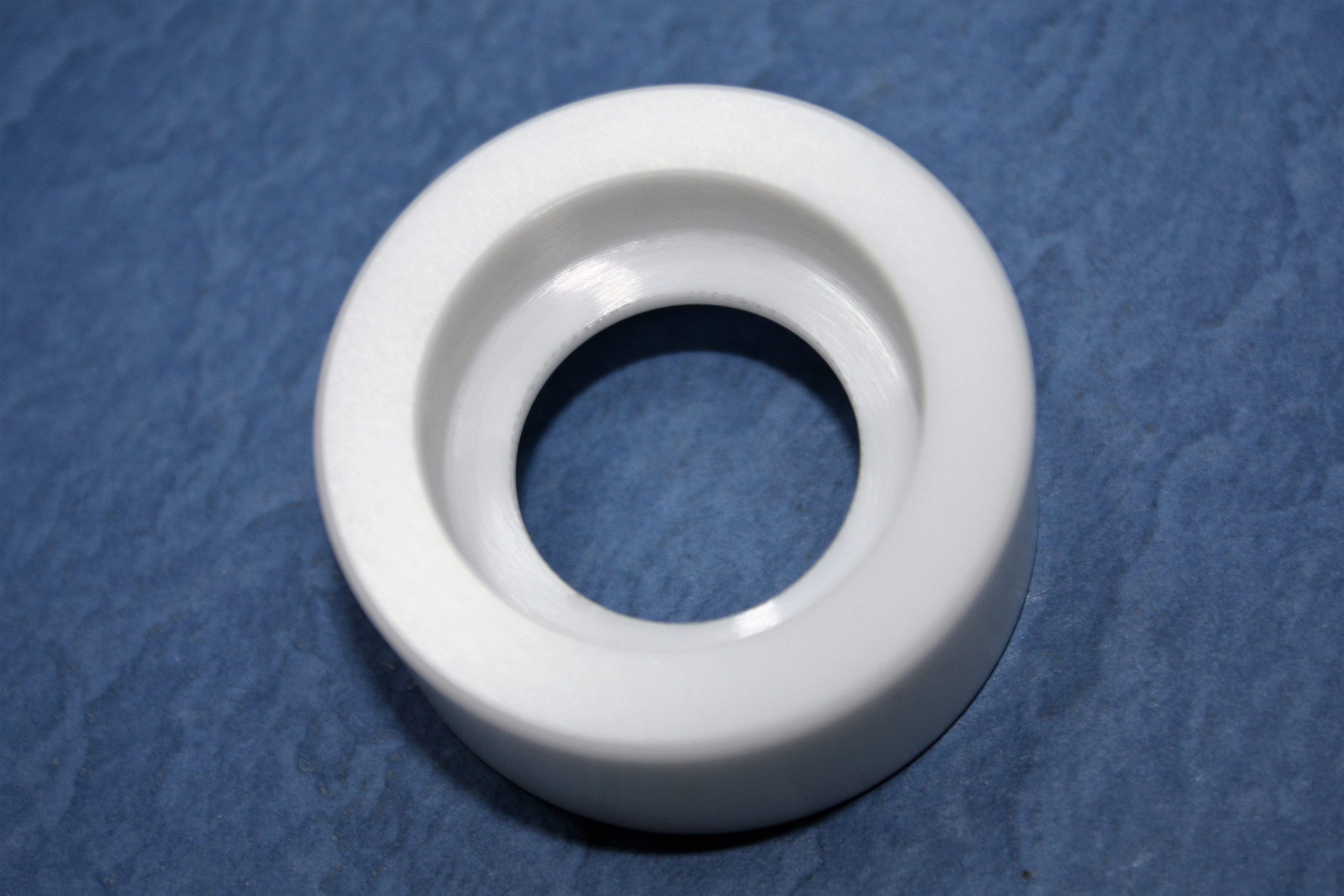

 | F402-1 | Feed Section | 陶瓷出線副輪 Pinch Roller(Ceramic) 40D×20× 18W | α-A,B series (Manual/AWF) | A290-8110-Z382 |

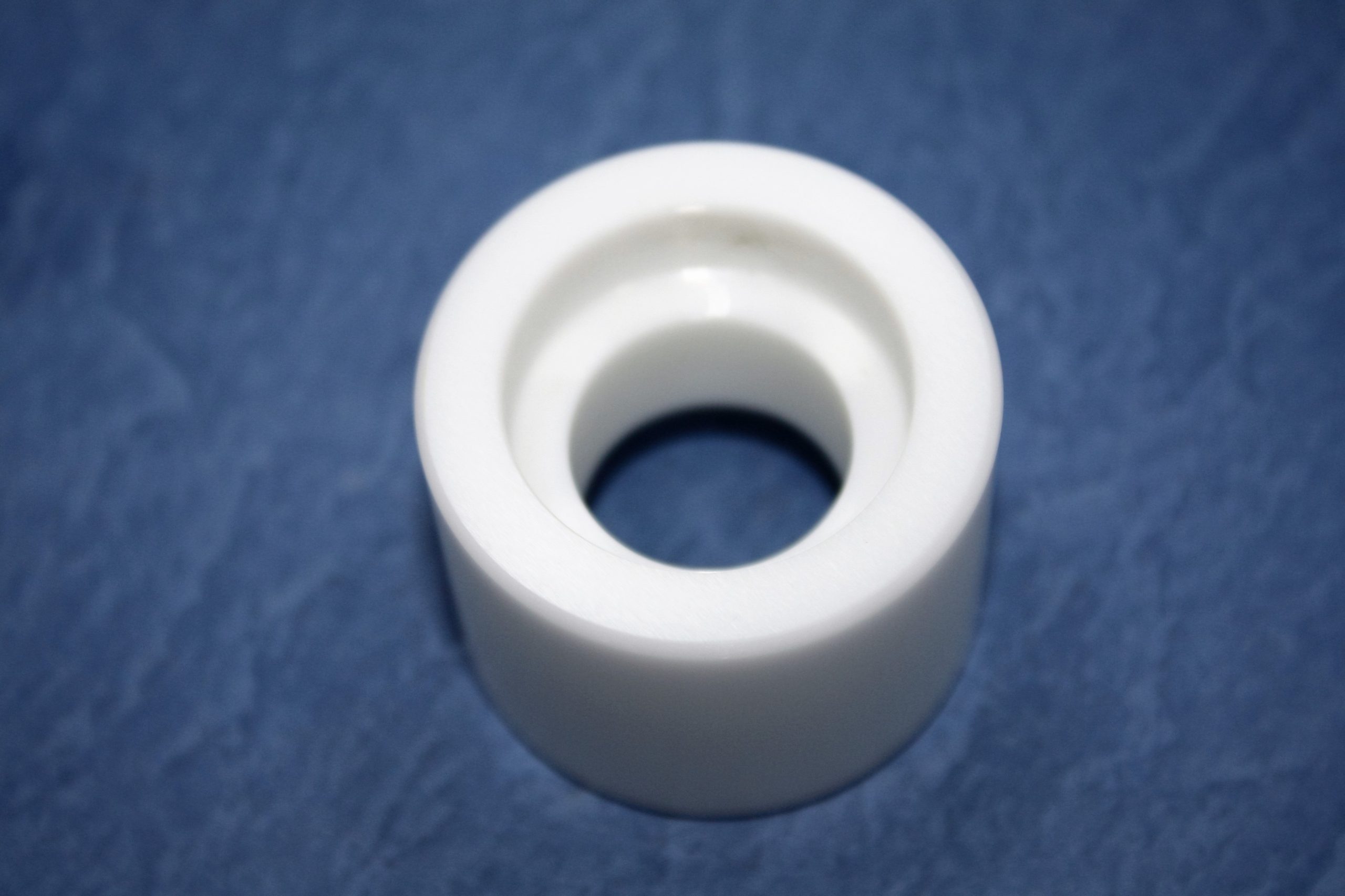

 | F403 | Feed Section | 陶瓷出線副輪 Pinch Roller(Ceramic) 40D×20×30W | α-C series (Manual/AWF) | A290-8110-X382 |

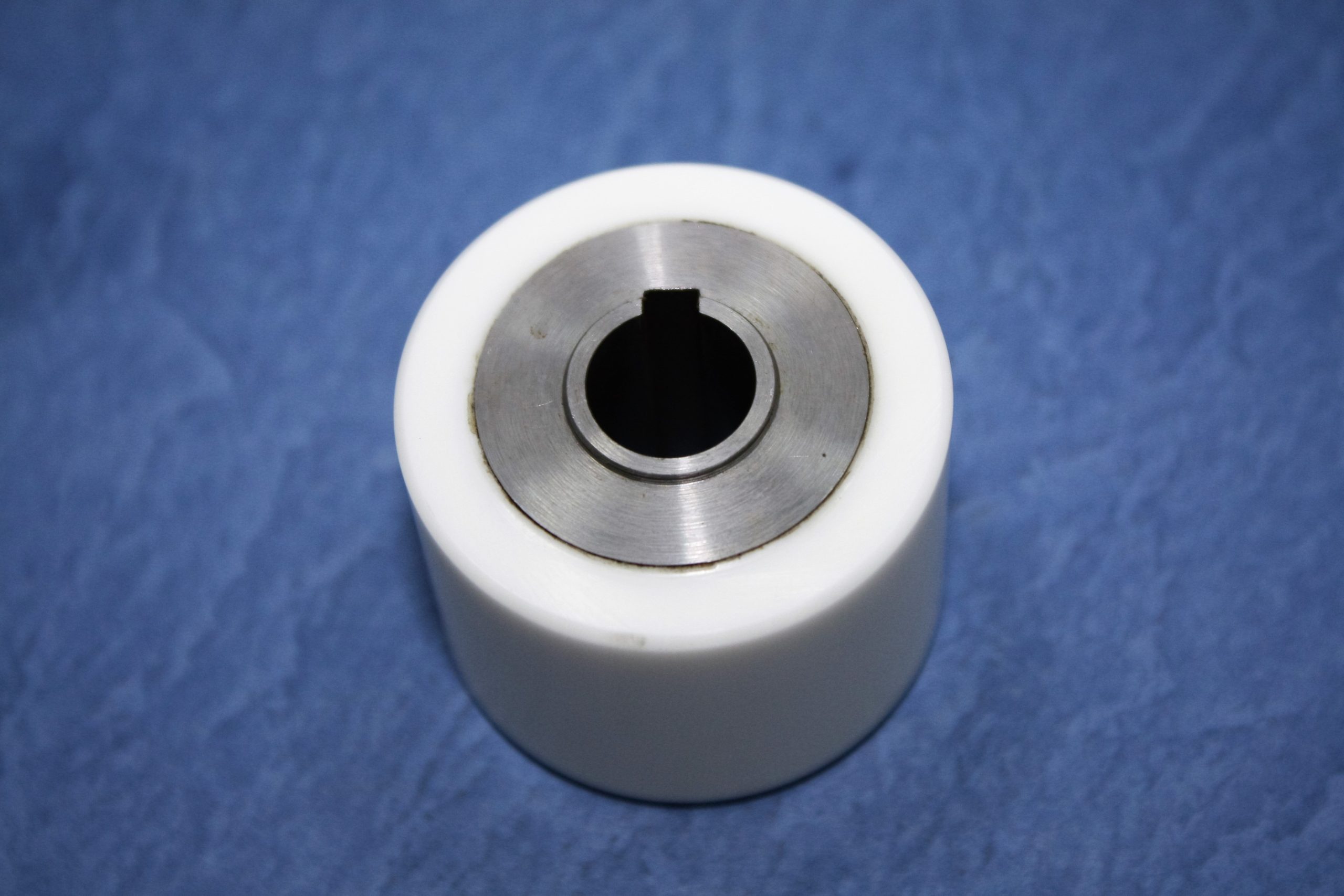

 | F404 | Feed Section | 陶瓷出線主輪 Feed Roller(Ceramic) 40D×12×32W | α-C series (Manual/AWF) | A290-8110-X383 |

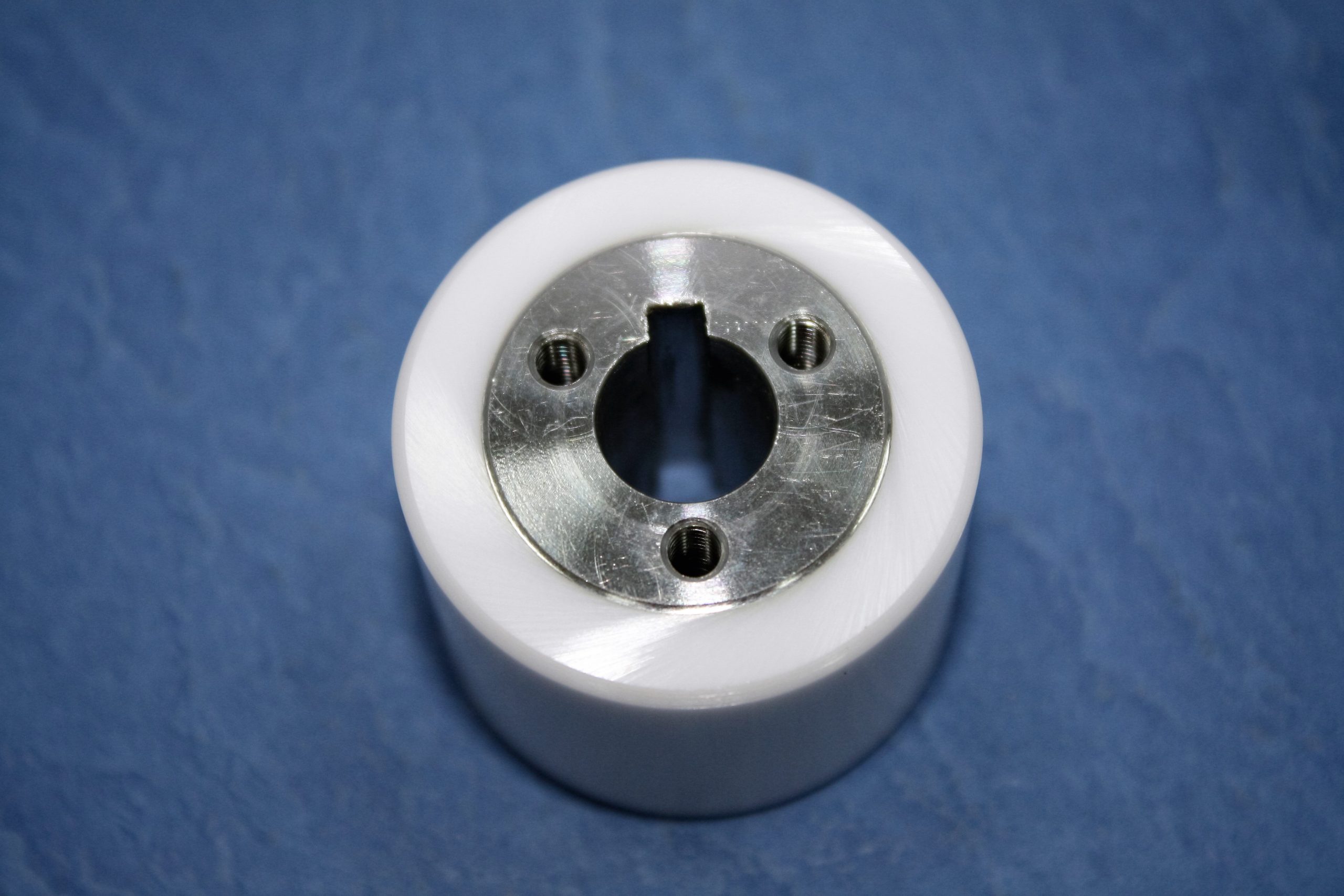

 | F405 | Feed Section | 陶瓷出線主輪 Feed Roller(Ceramic) 40D×12×30W | α-B series (Manual)/AWF | |

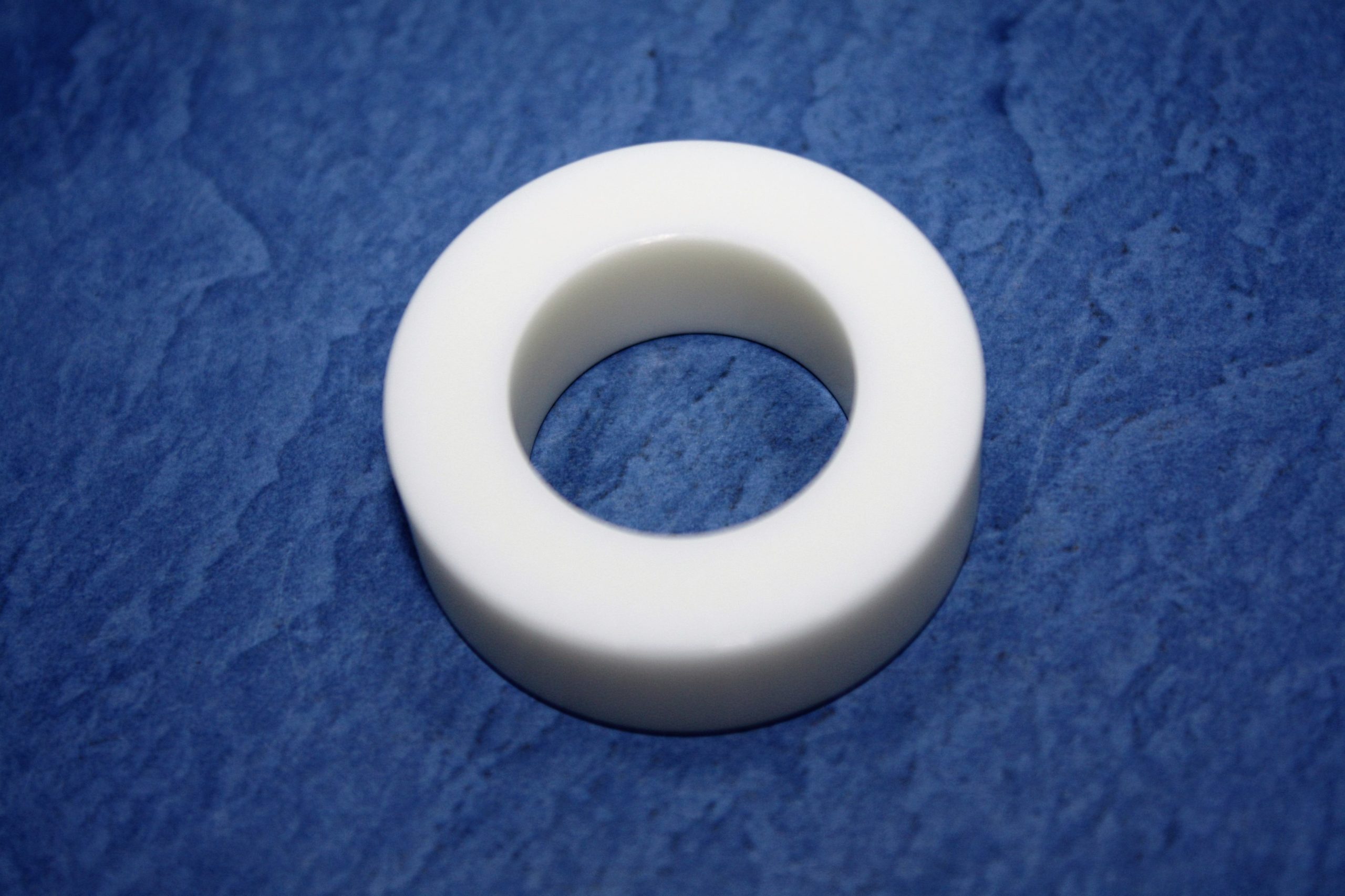

 | F406 | Lower | 下機頭引線輪 陶瓷 Lower Roller(Ceramic) 38Ø×22Ø×12t | α-A,B,C,iA,iB,iC series (Manual/AWF) | A290-8101-X765 |

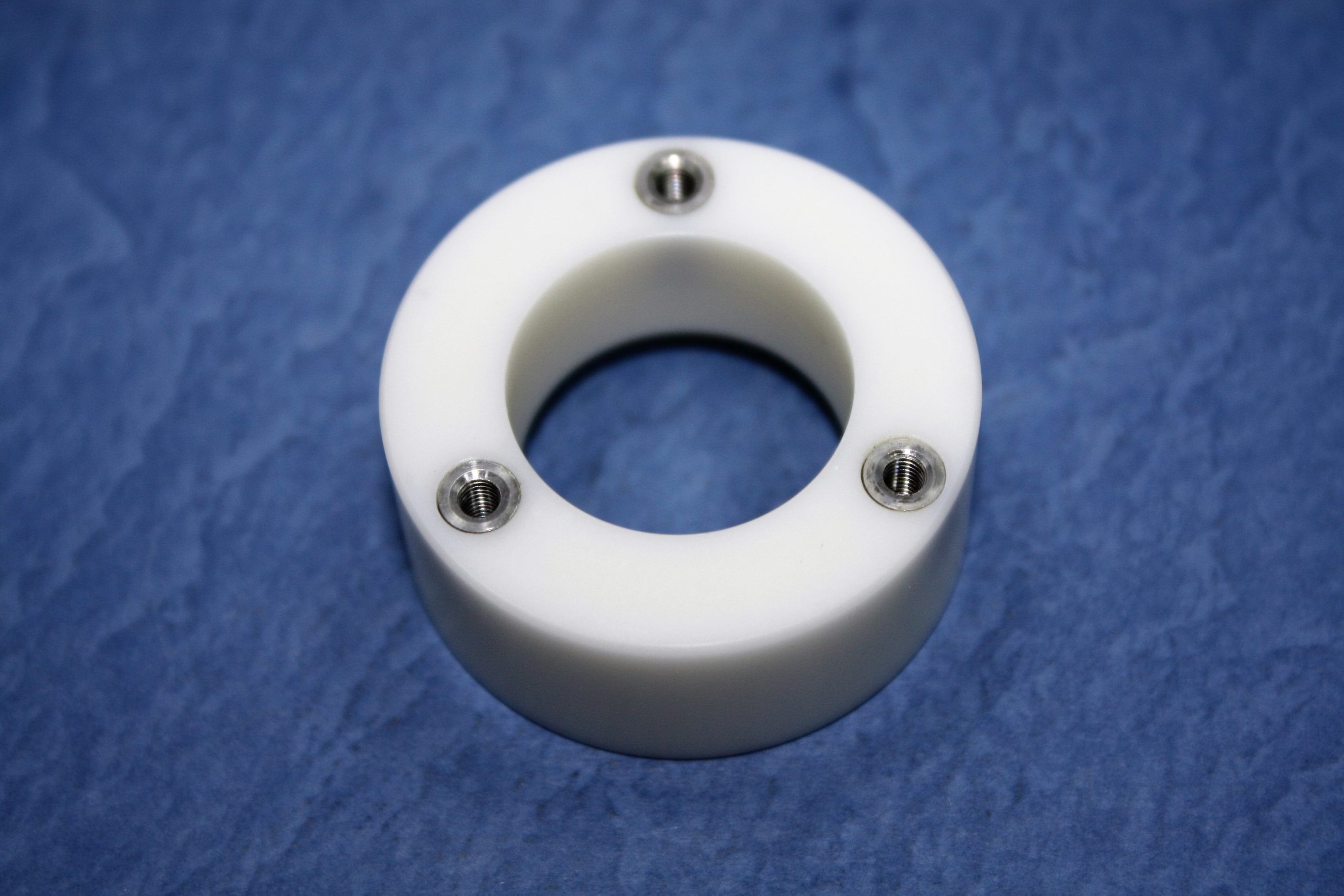

 | F407 | Lower | 下機頭引線輪 陶瓷 Lower Roller(Ceramic) 38Ø×22Ø×16t | DWC- iD,iE,400iA,600iA (Manual/AWF) | A290-8119-X766 |

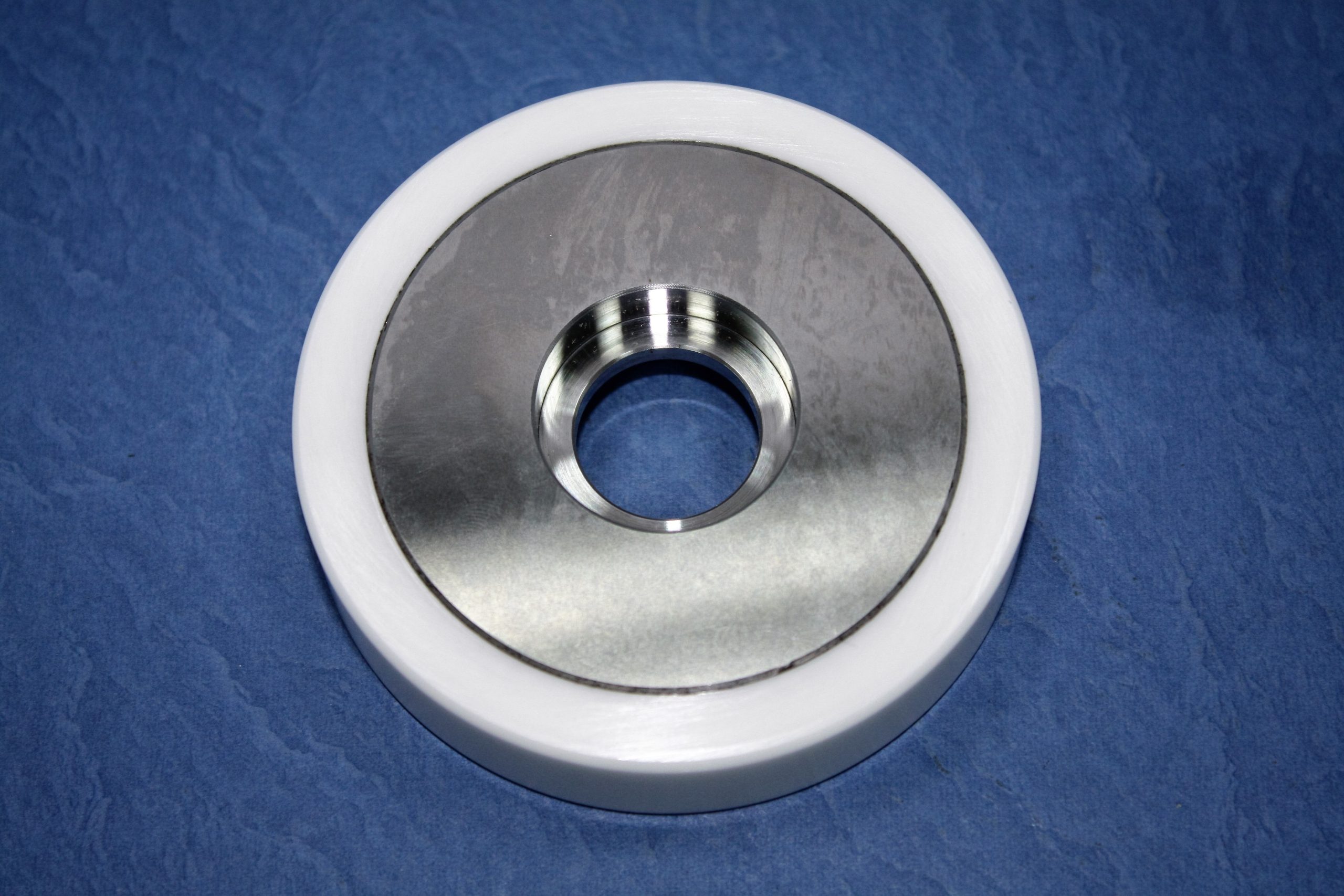

 | F412 | Feed Section | 陶瓷出線副輪 Pinch Roller(Ceramic) 80D×20×24t | DWC-W2(Manual) Pinch roller | |

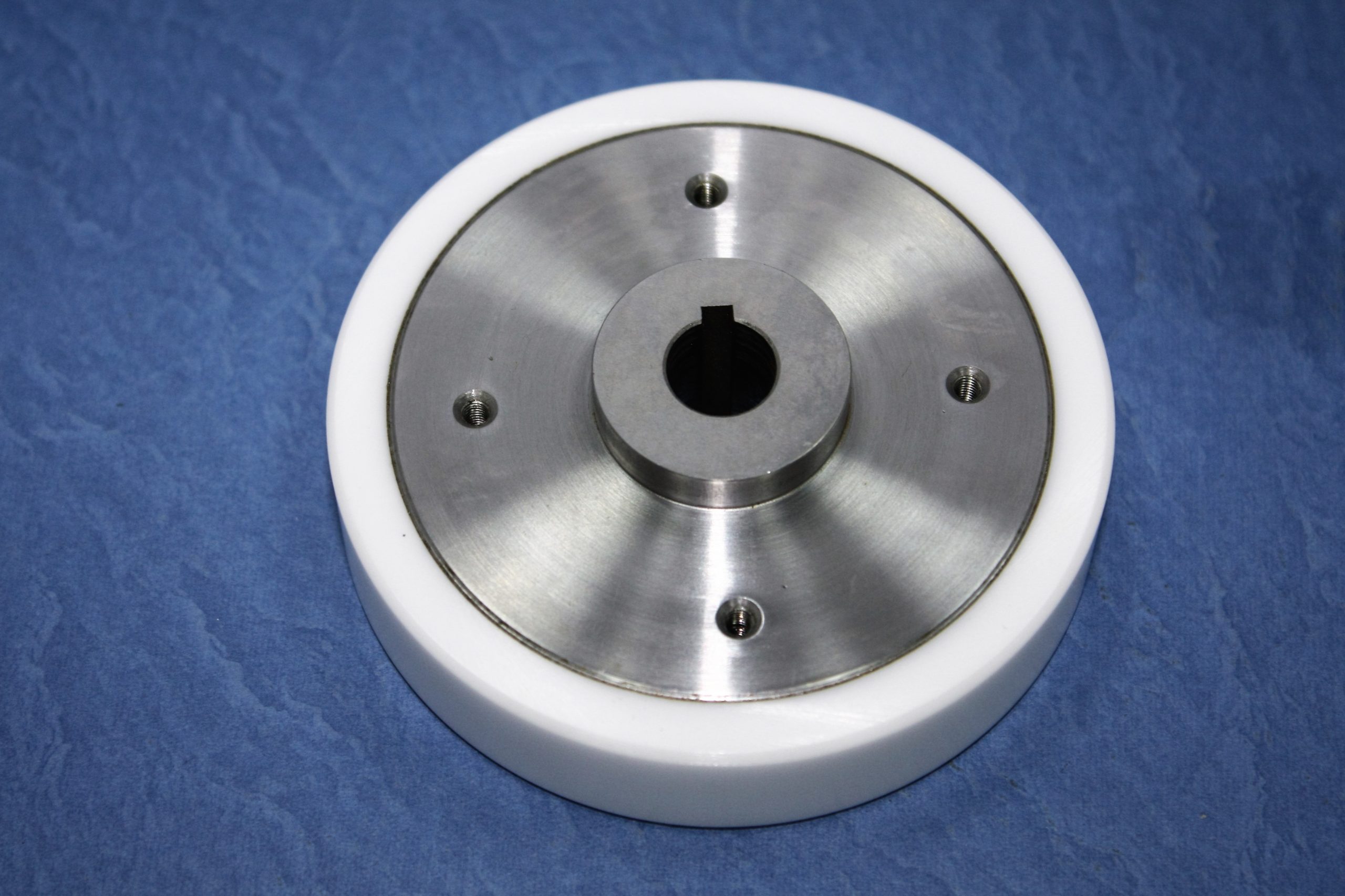

 | F413 | Feed Section | 陶瓷出線主輪 Feed Roller(Ceramic) 80D×11×24t | DWC-W2(Manual) Feed roller | |

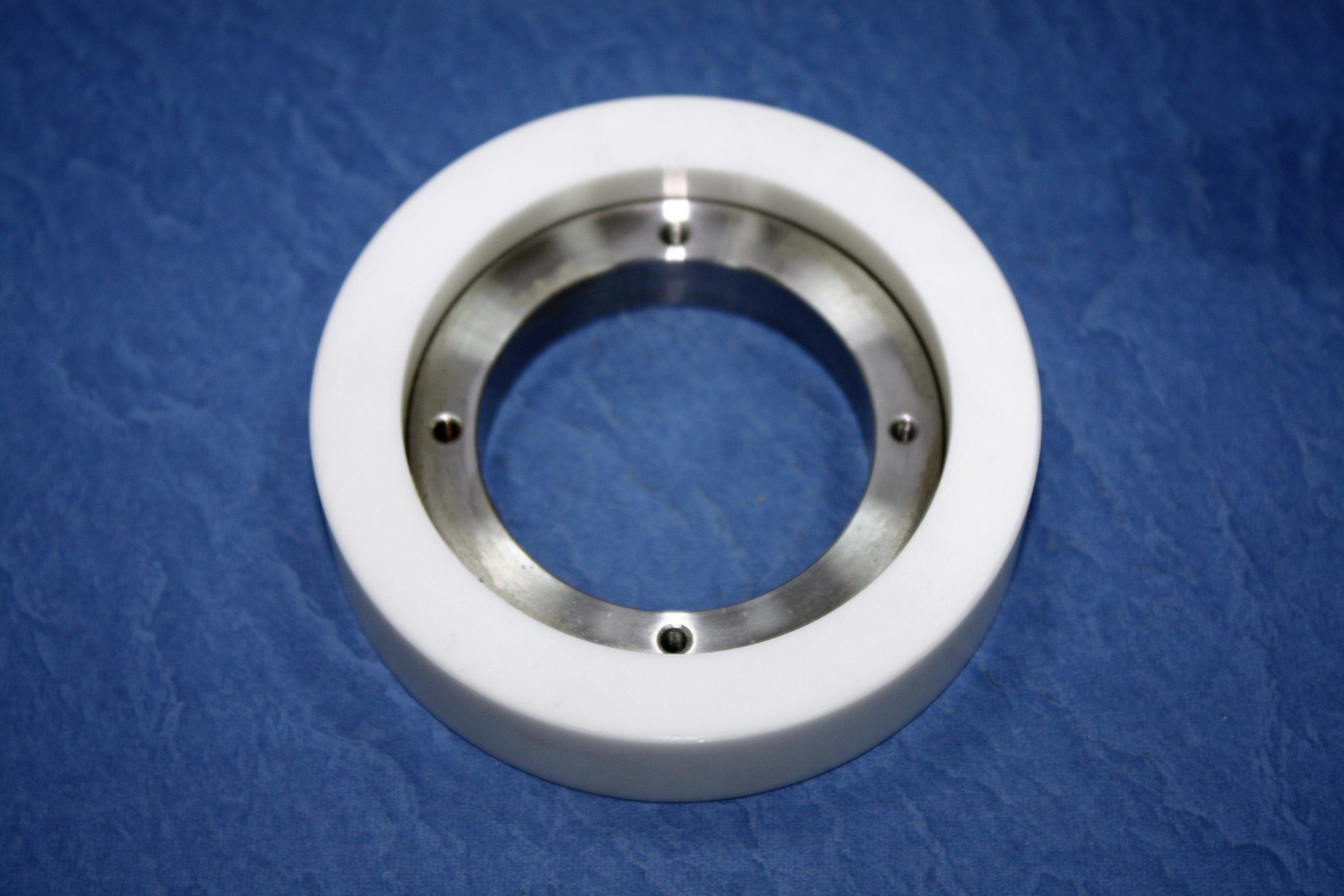

 | F414 | Feed Section | 陶瓷出線主副輪 Pinch Roller(Ceramic) 80D×60×18W | W series | A290-8101-X707 |
 | F415 | Feed Section | 陶瓷出線副輪 Pinch Roller(Ceramic) 80D×47×22W | α-A,B,C,iA,iB,iC series (Manual/AWF) | A290-8112-X382 |

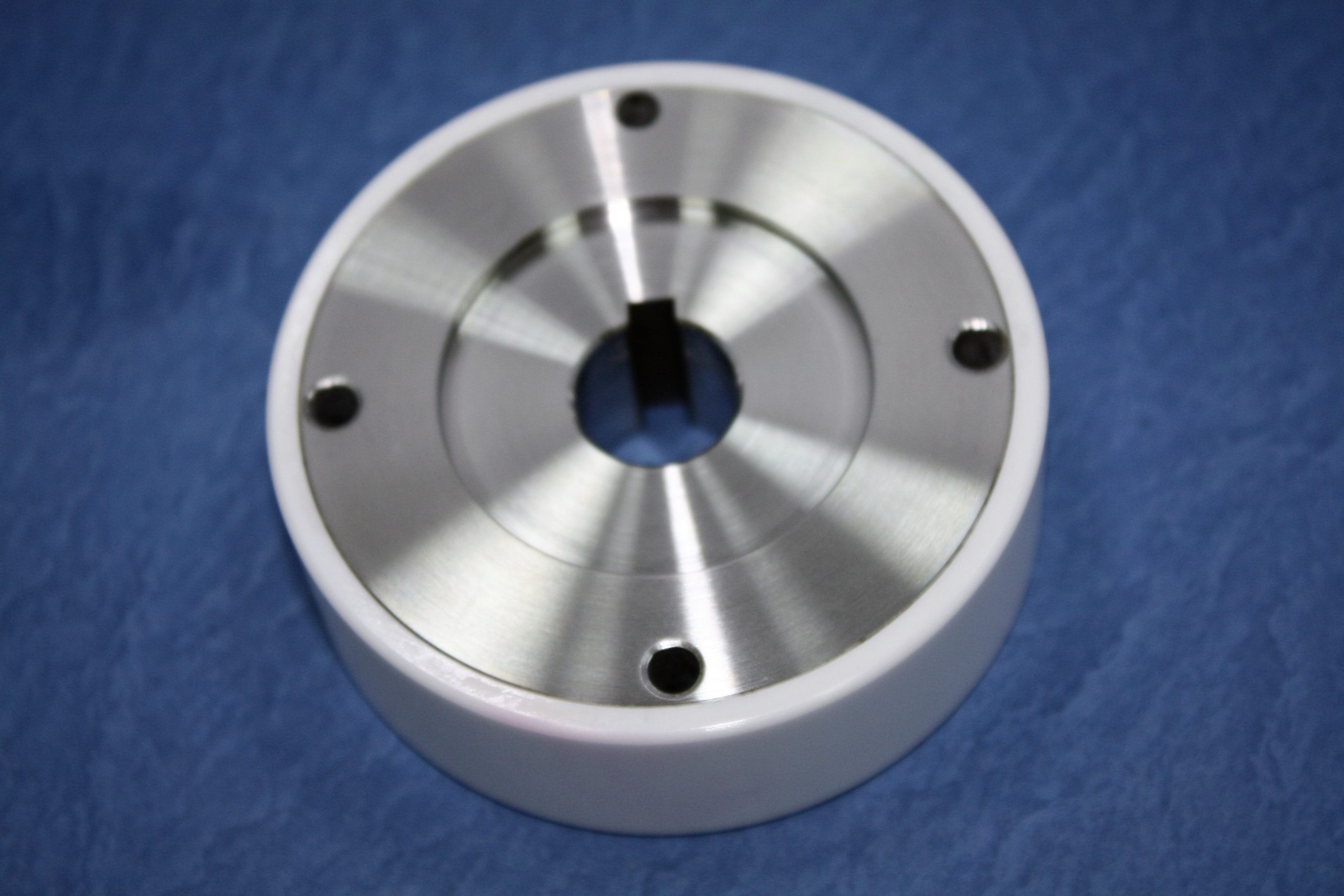

 | F416 | Feed Section | 陶瓷出線主輪 Feed Roller(Ceramic) 80D×17×25W | α-A,B,C,iA,iB,iC series (Manual/AWF) | A290-8112-X383 |

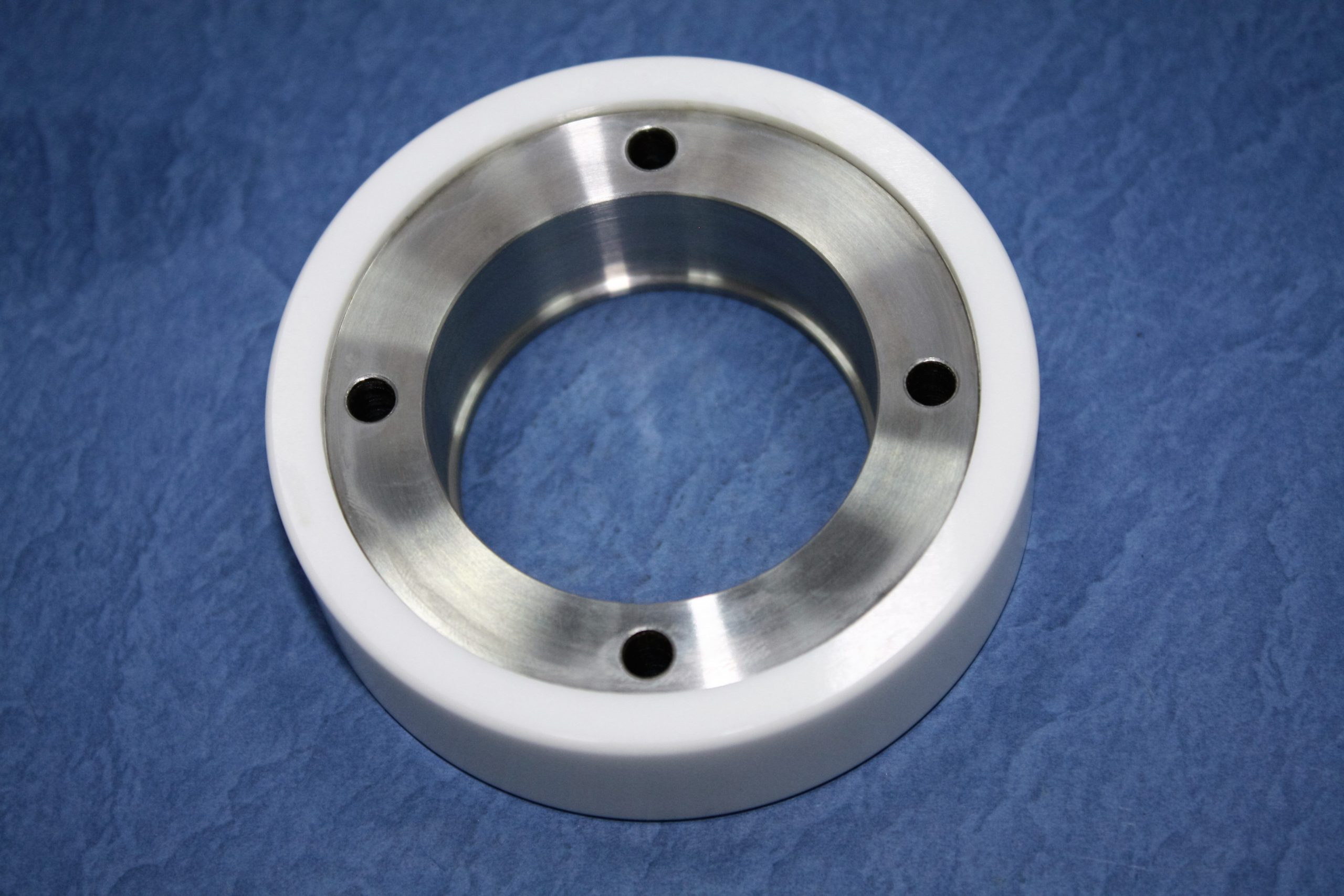

 | F417 | Feed Section | 陶瓷出線副輪 Pinch Roller(Ceramic) 80D×47×22t | DWC- iD,iE,400iA,600iA (Manual/AWT) | A290-8119-X382 |

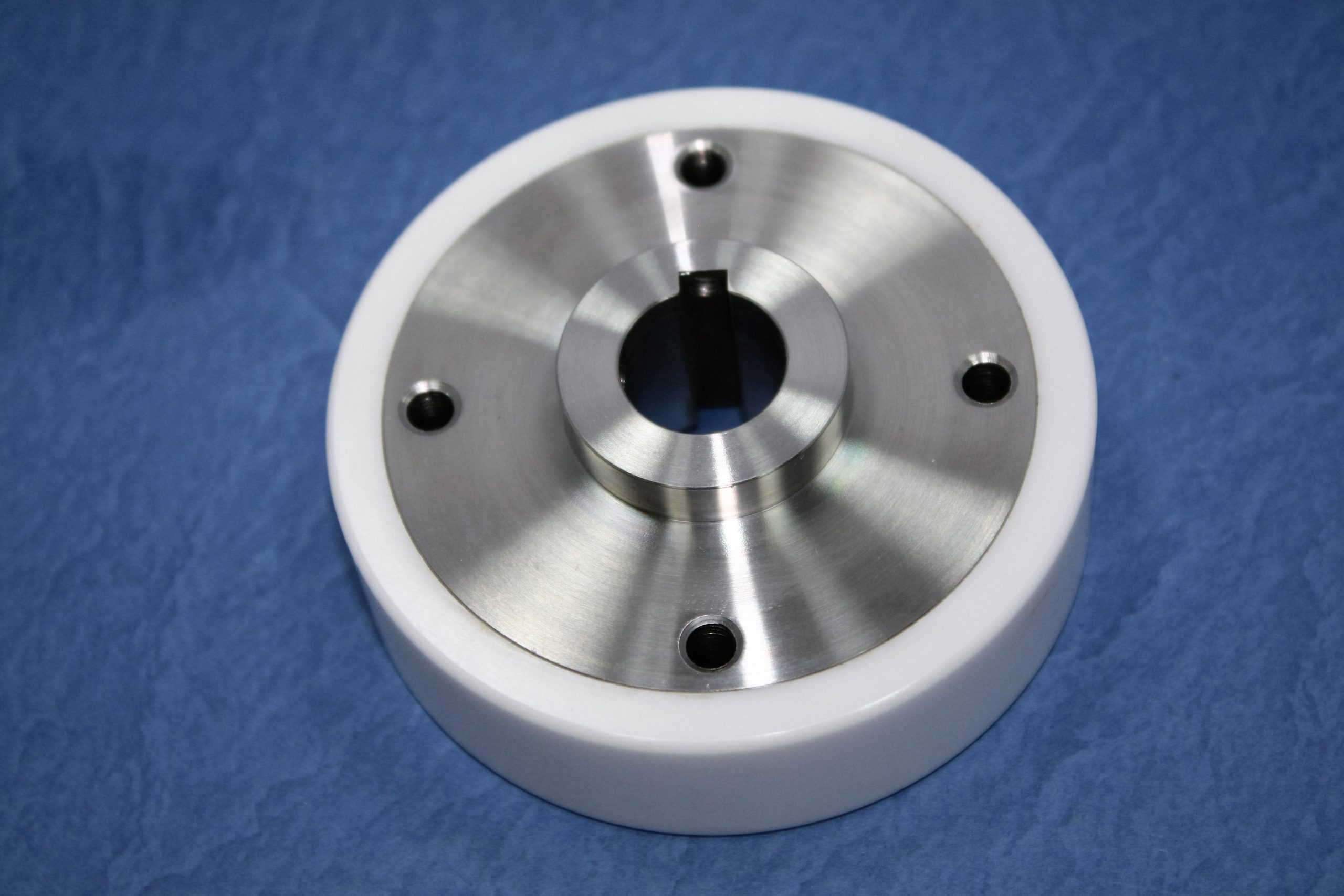

 | F418 | Feed Section | 陶瓷出線主輪 Feed Roller(Ceramic) 80Ø×17×22 | DWC- iD,iE,400iA,600iA (Manual/AWT) | A290-8119-X383 |

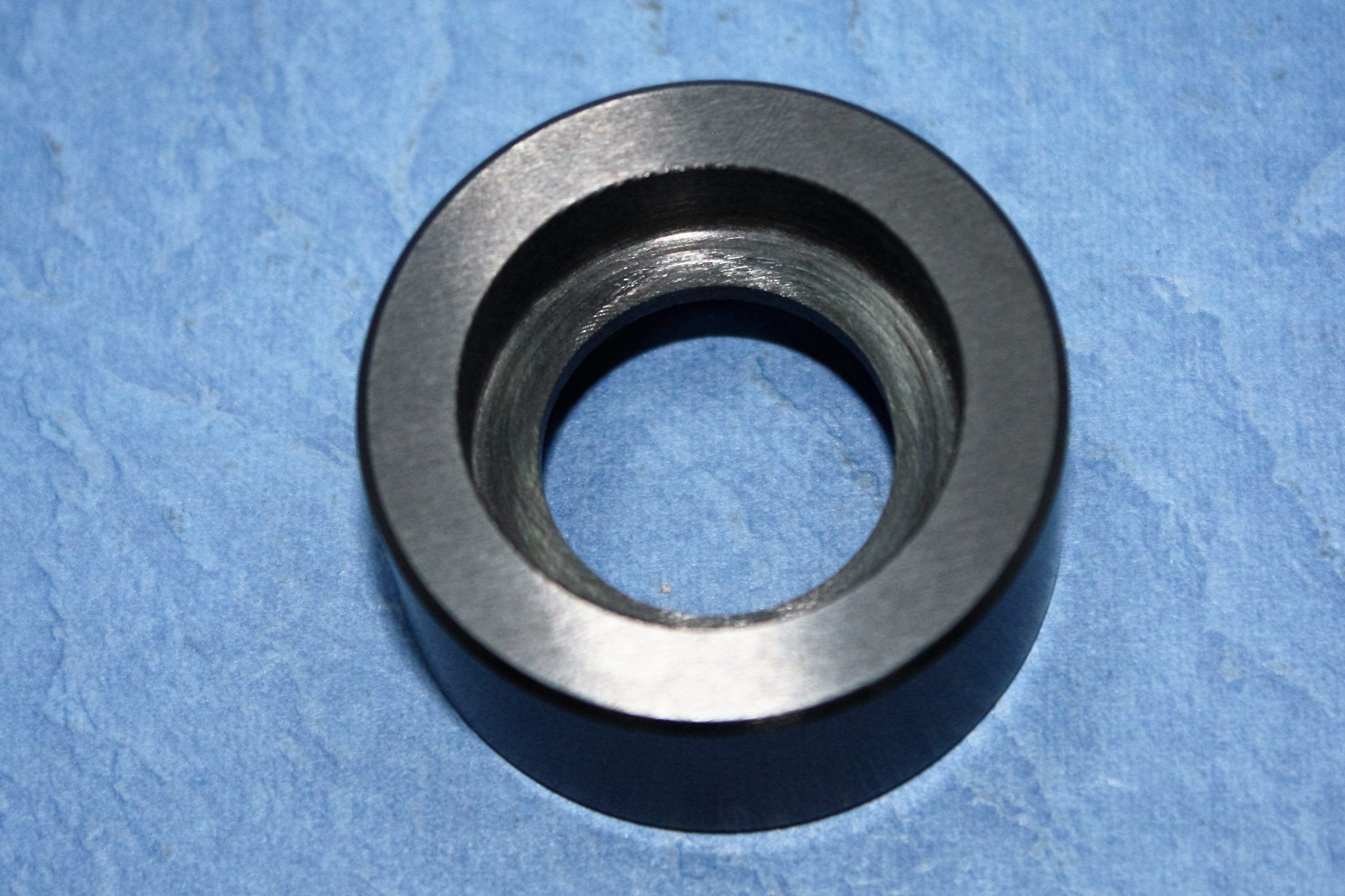

 | F402-1B | Feed Section | 陶瓷出線副輪 Pinch Roller(Ceramic) 40D×20×18W | α-A,B series (Manual/AWF) | A290-8110-Z382 |

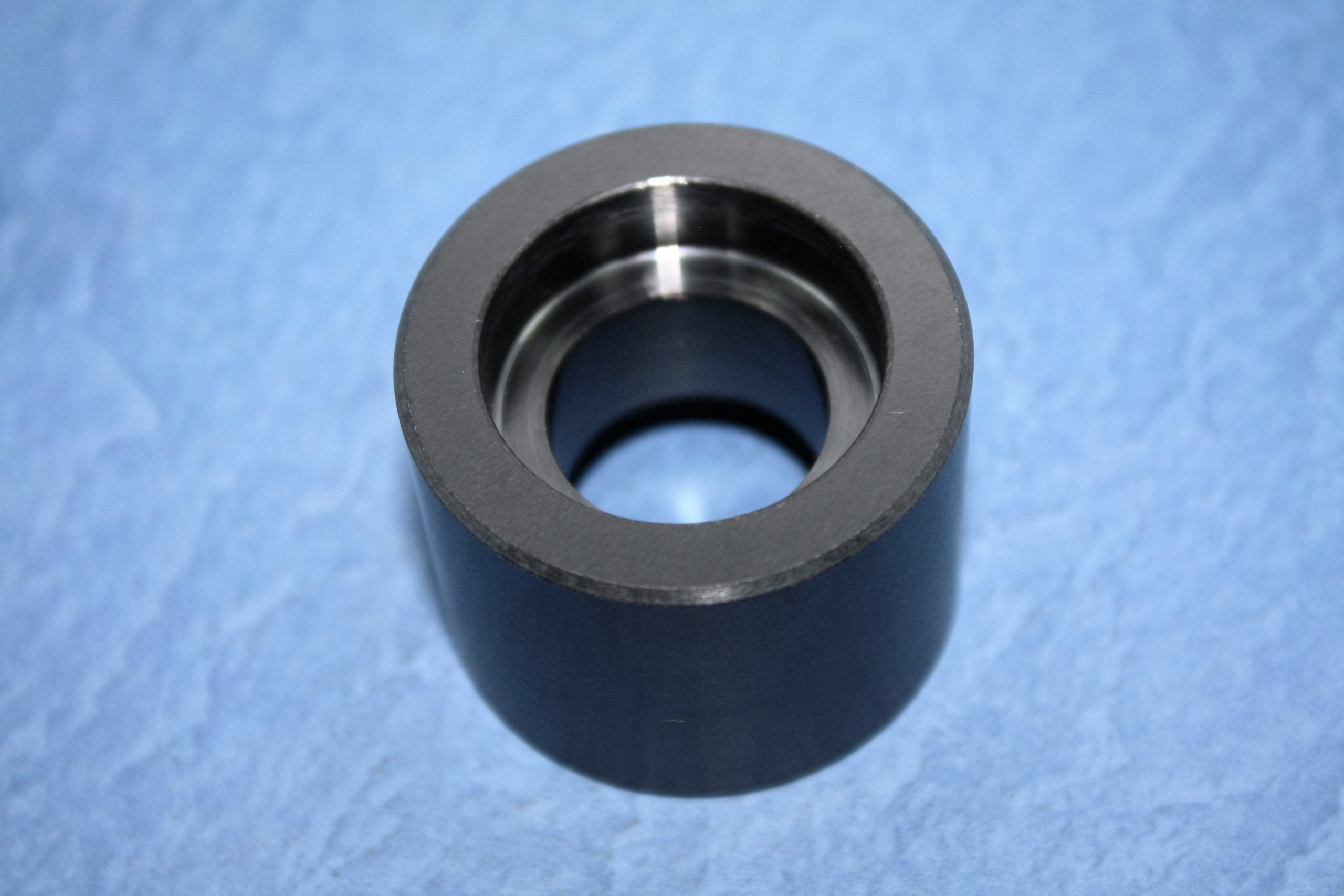

 | F403B | Feed Section | 陶瓷出線副輪 Pinch Roller(Ceramic) 40D×20×30W | α-C series (Manual/AWF) | A290-8110-X382 |

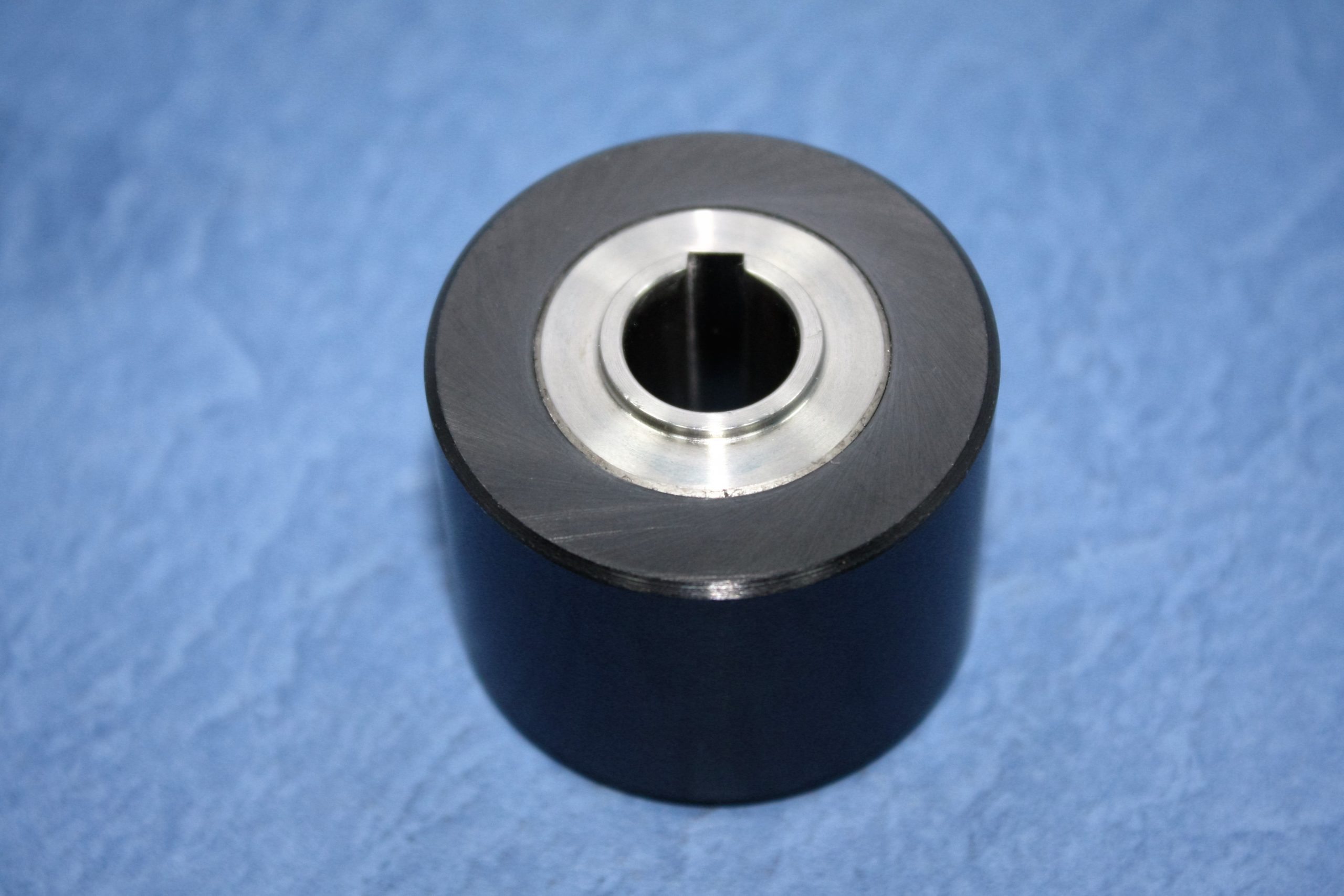

 | F404B | Feed Section | 陶瓷出線主輪 Feed Roller(Ceramic) 40D×12×32W | α-C series (Manual/AWF) | A290-8110-X383 |

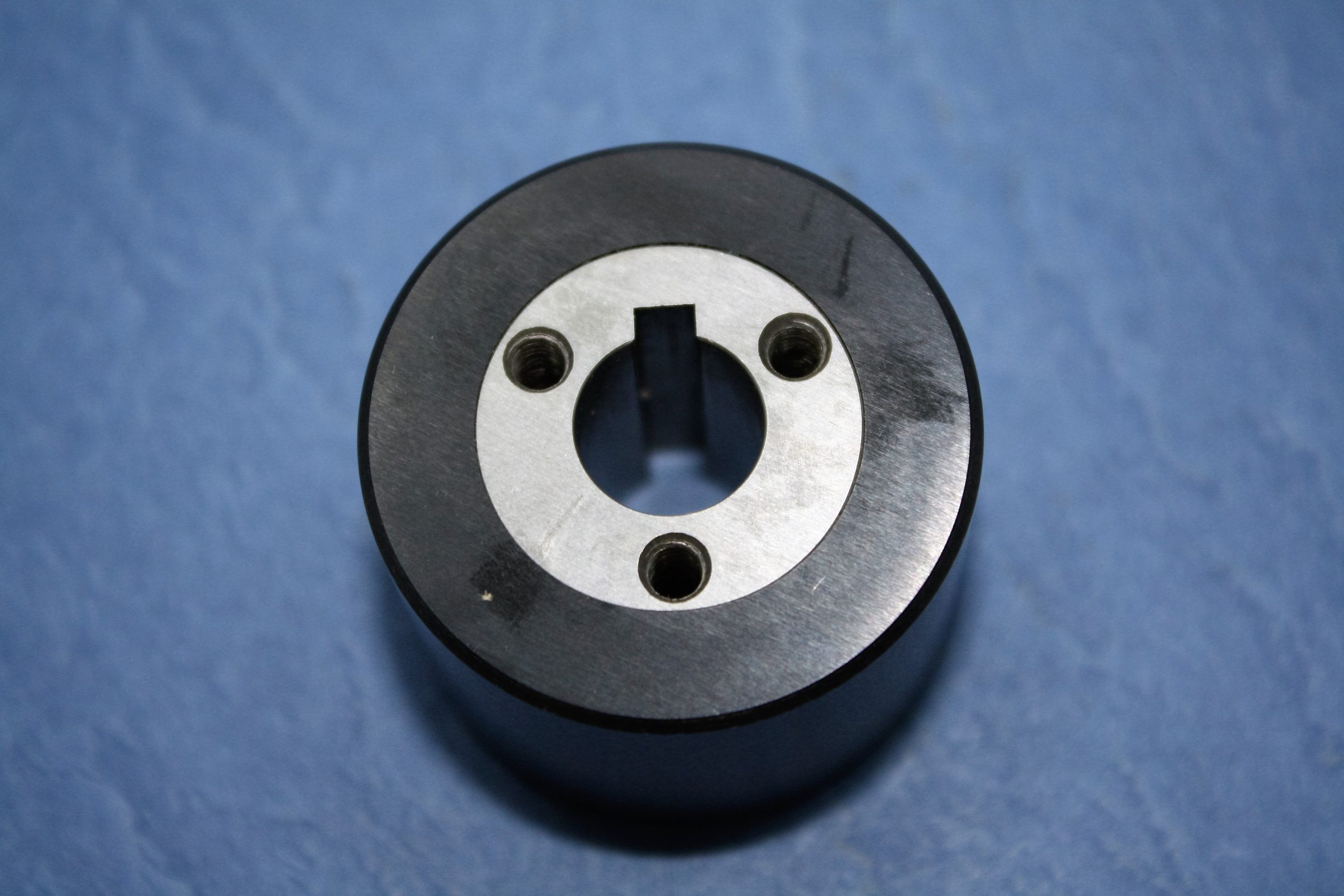

 | F405B | Feed Section | 陶瓷出線主輪 Feed Roller(Ceramic) 40D×12×30W | α-B series (Manual)/AWF | |

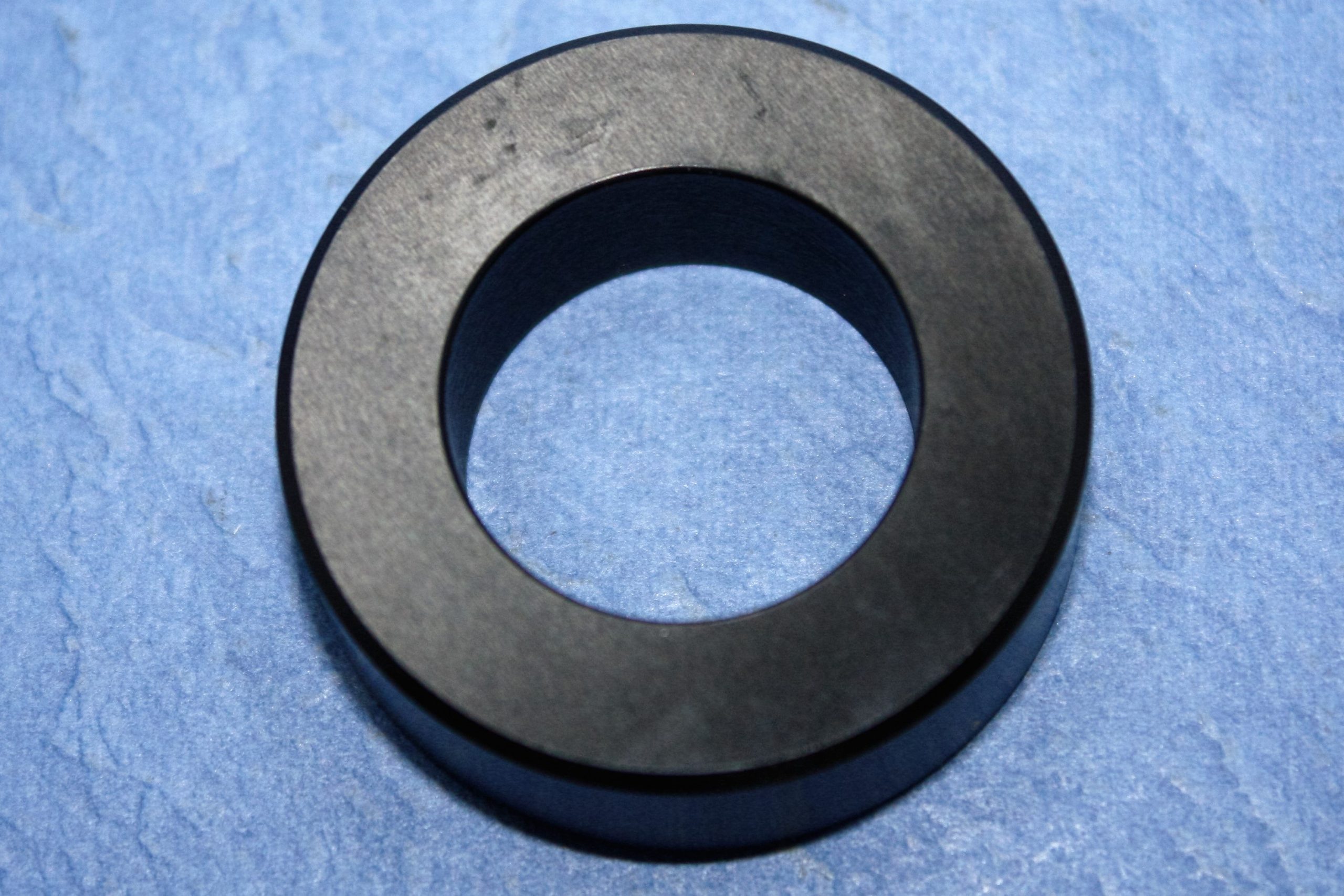

 | F406B | Lower | 下機頭引線輪 Lower Roller(Ceramic) 38Ø×22Ø×12t | α-A,B,C,iA,iB,iC (Manual/AWF) | A290-8101-X765 |

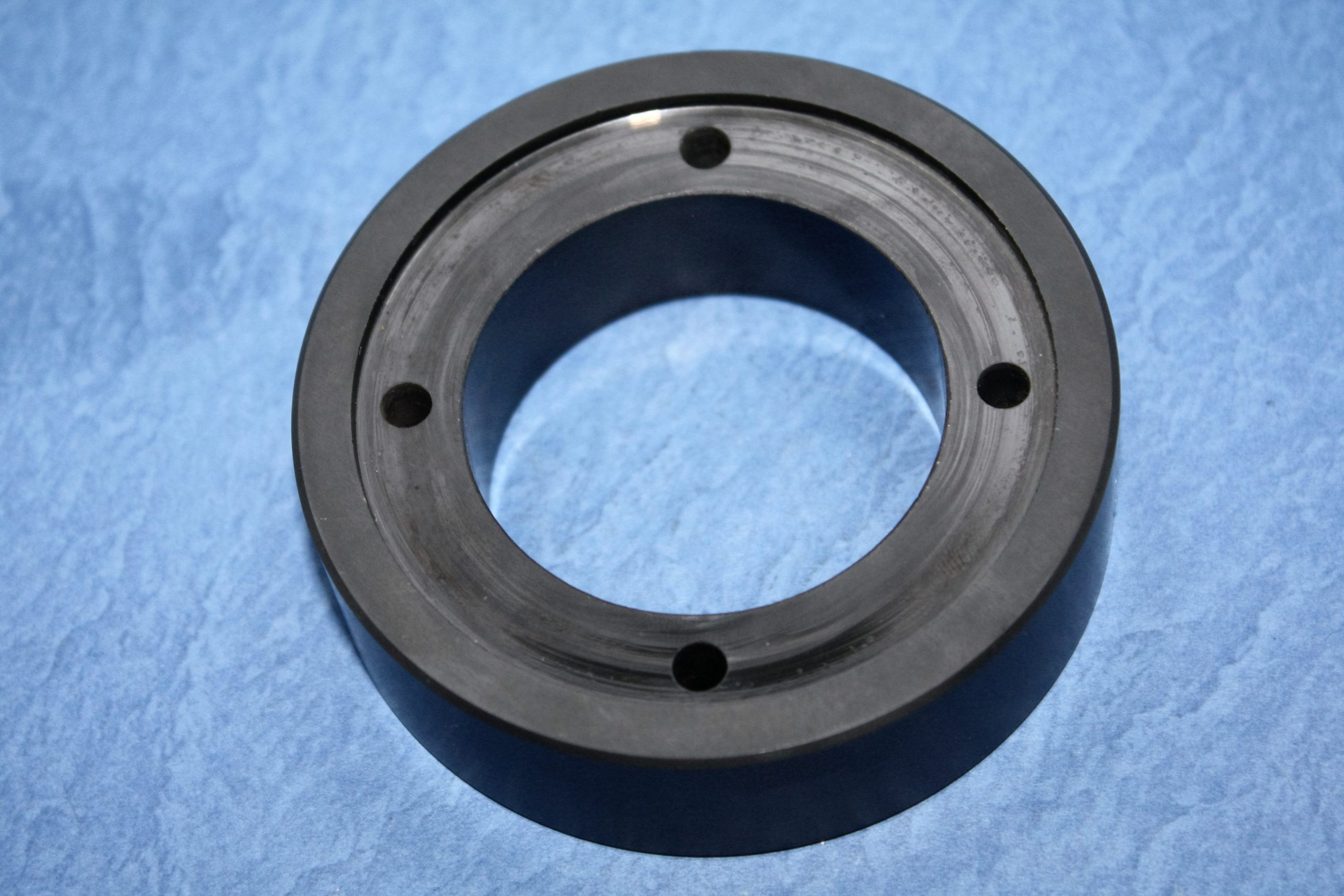

 | F415B | Feed Section | 陶瓷出線副輪 Pinch Roller(Ceramic) 80D×47×22W | α-0iA,0iB 1iA,1iB,1iC (Manual/AWF) | A290-8112-X382 |

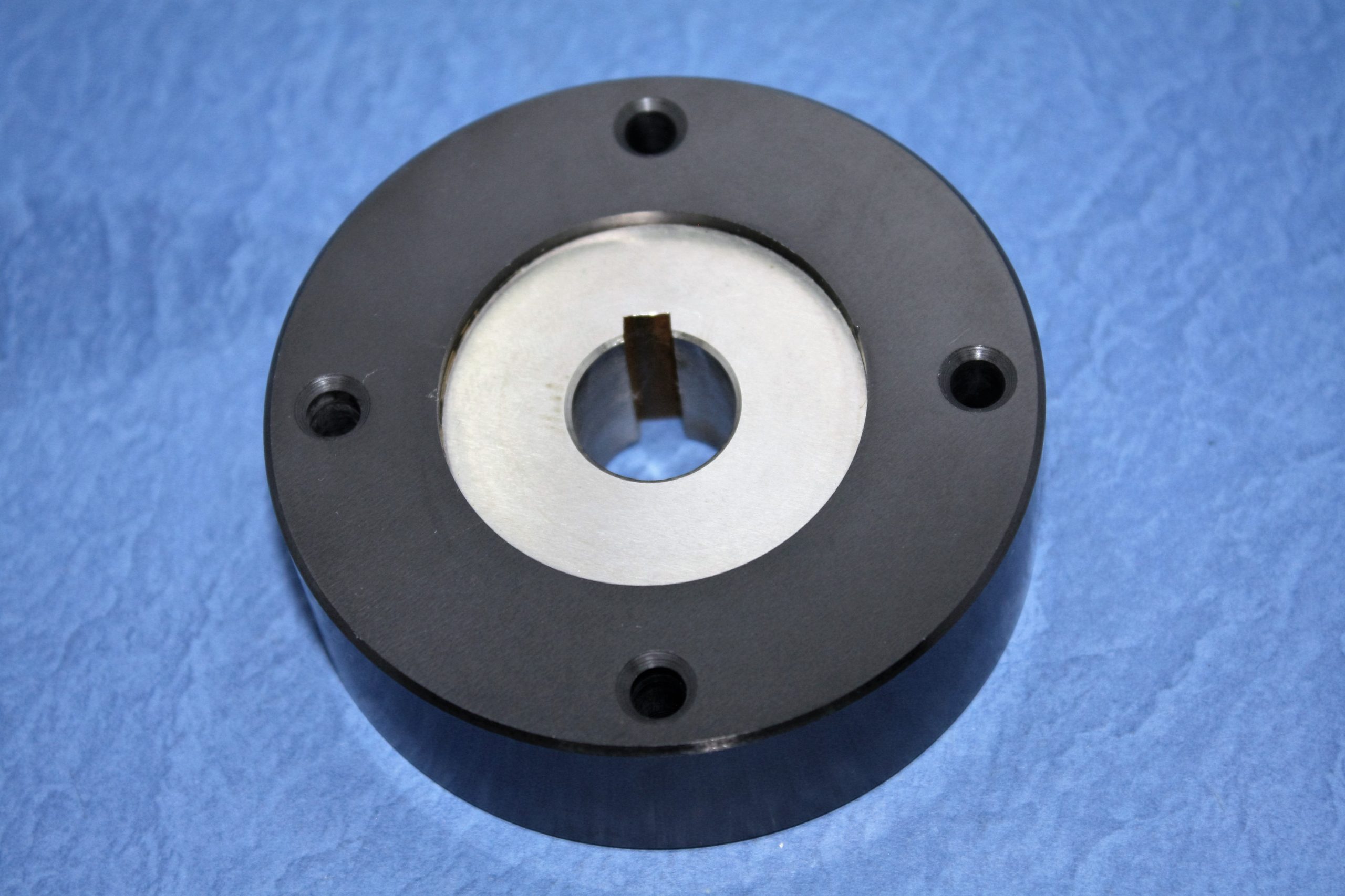

 | F416B | Feed Section | 陶瓷出線主輪 Feed Roller(Ceramic) 80D×17×25W | α-0iA,0iB 1iA,1iB,1iC (Manual/AWF) | A290-8112-X383 |

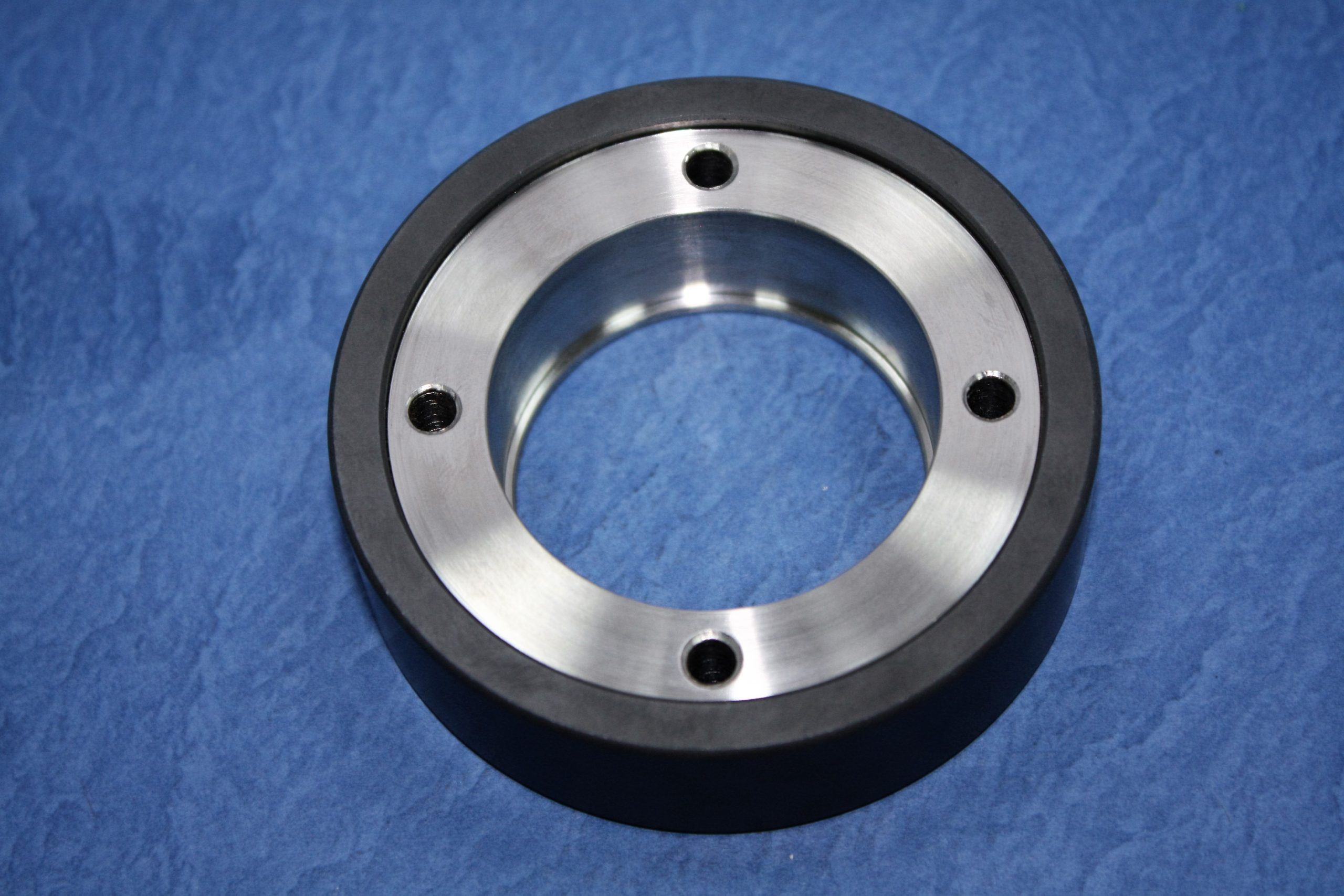

 | F417B | Feed Section | 陶瓷出線副輪 Pinch Roller(Ceramic) 80D×47×22t | DWC- iD,iE,400iA,600iA (Manual/AWT) | A290-8119-X382 |

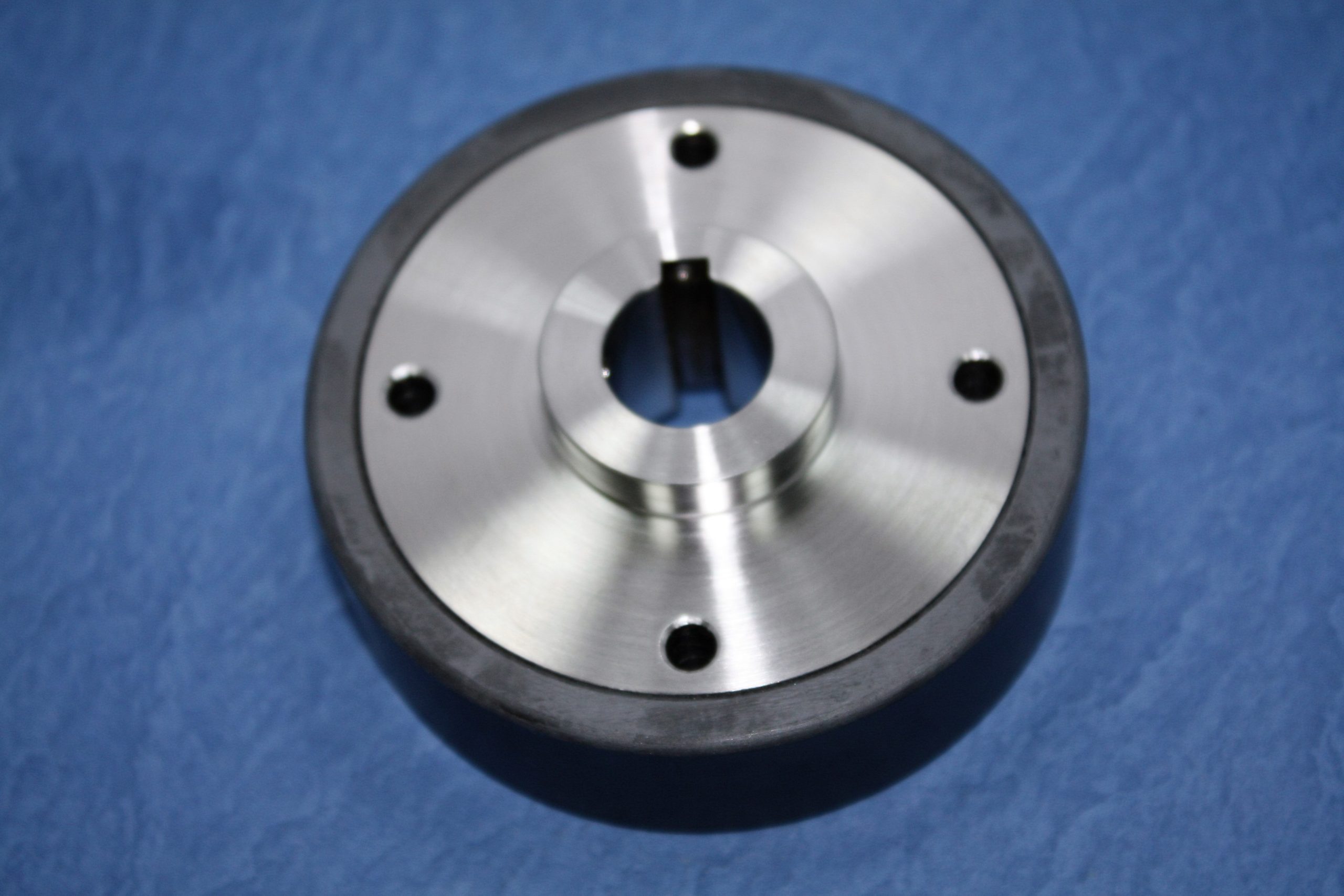

 | F418B | Feed Section | 陶瓷出線主輪 Feed Roller(Ceramic) 80Ø×17×22 | DWC- iD,iE,400iA,600iA (Manual/AWT) | A290-8119-X383 |
 | F419B | Feed Section | 陶瓷出線副輪 Pinch Roller(Ceramic) | CIC | |
 | F420B | Feed Section | 陶瓷出線主輪 Feed Roller(Ceramic) | CIC |
| 圖片 | 編號 | 位置 | 品名尺寸 | 適用機種 | 原廠編號 |
|---|---|---|---|---|---|

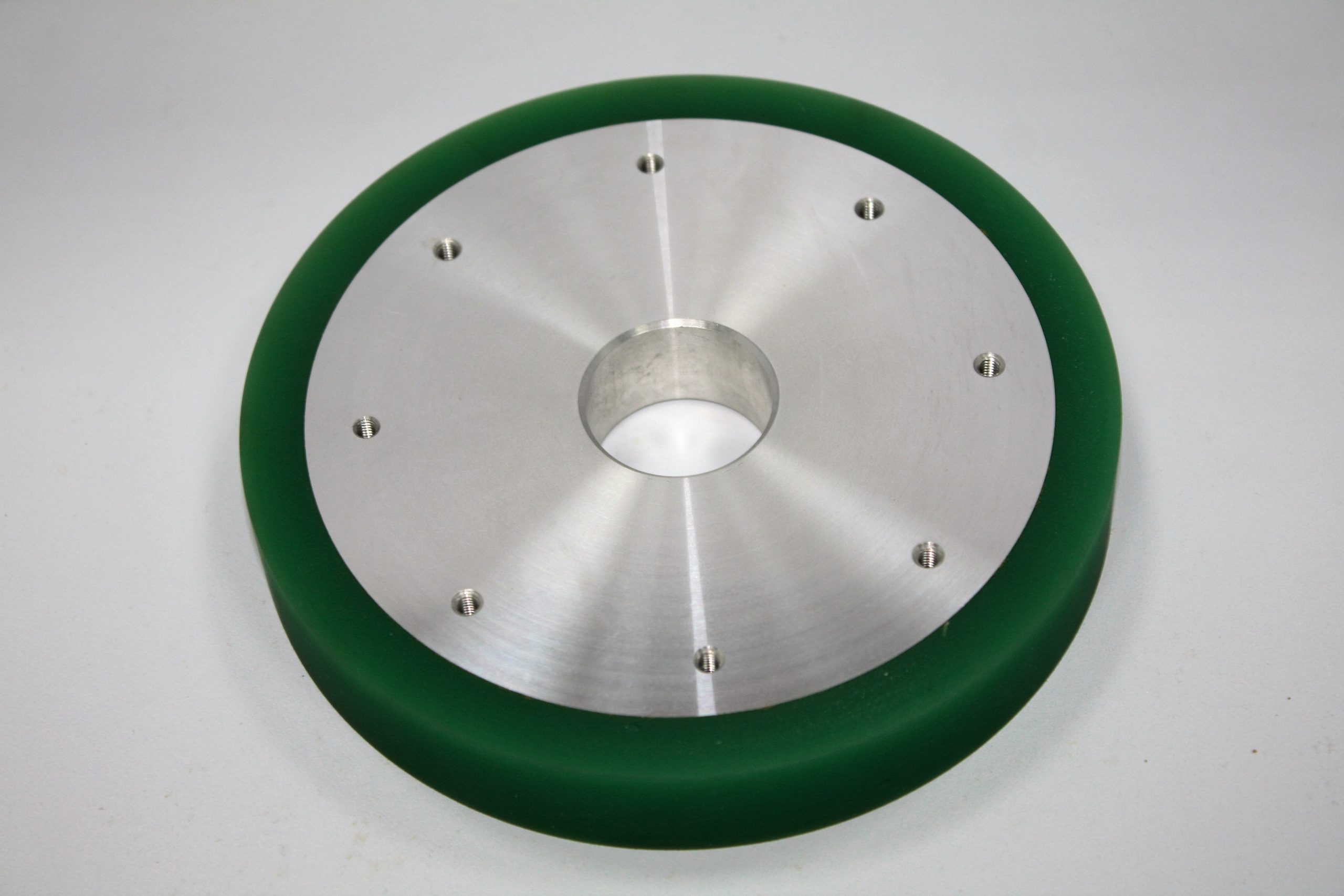

 | F440 | Upper | 張力輪(PU) Brake Roller 140*30*22t | DWC-A,B,C, iA (Manual/AWF) | A290-8101-X371 |

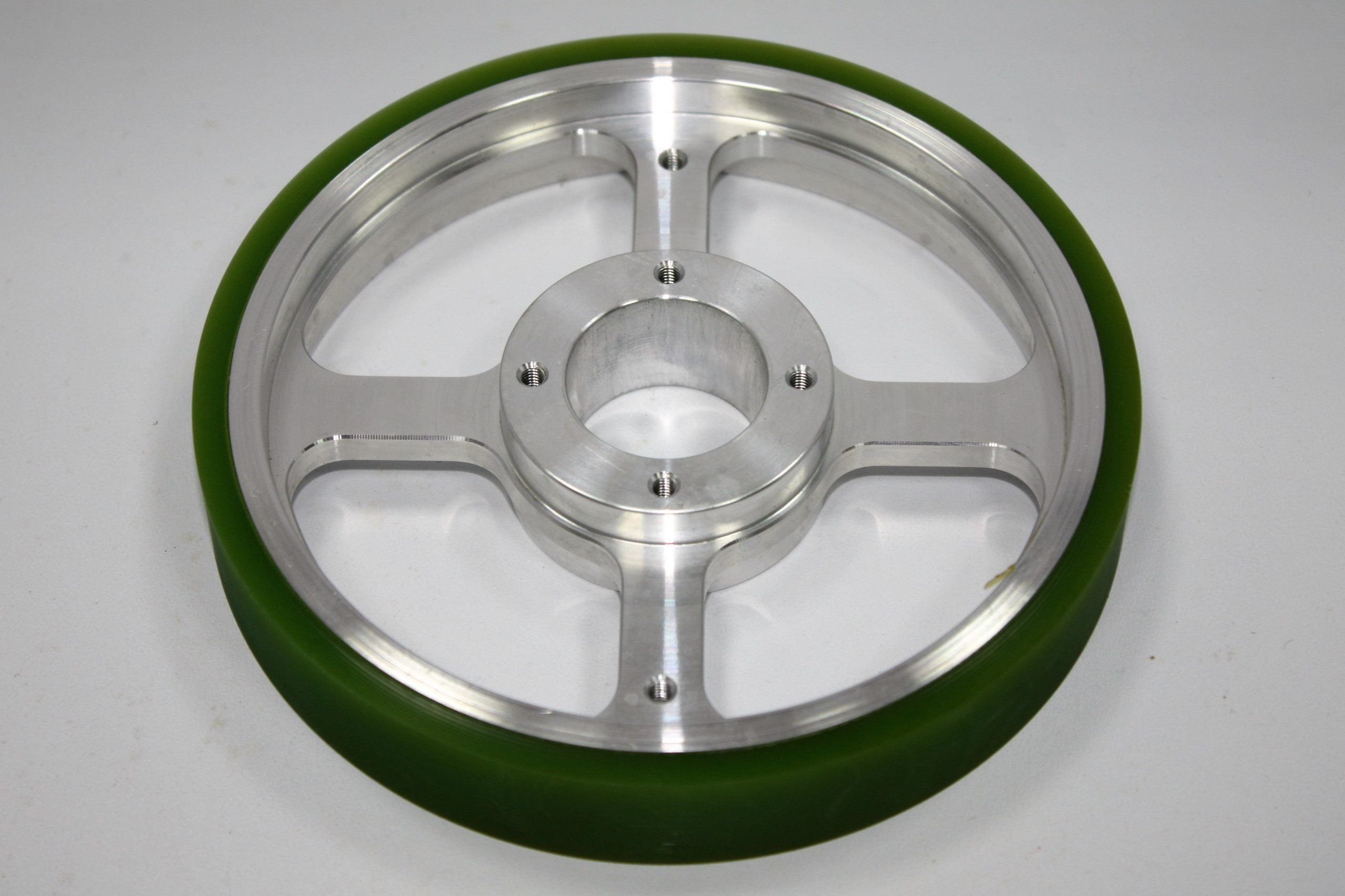

 | F441 | Upper | 張力輪(PU) Brake Roller 140*30*22t | DWC- i B,iC (AWF) | A290-8111-X371 |

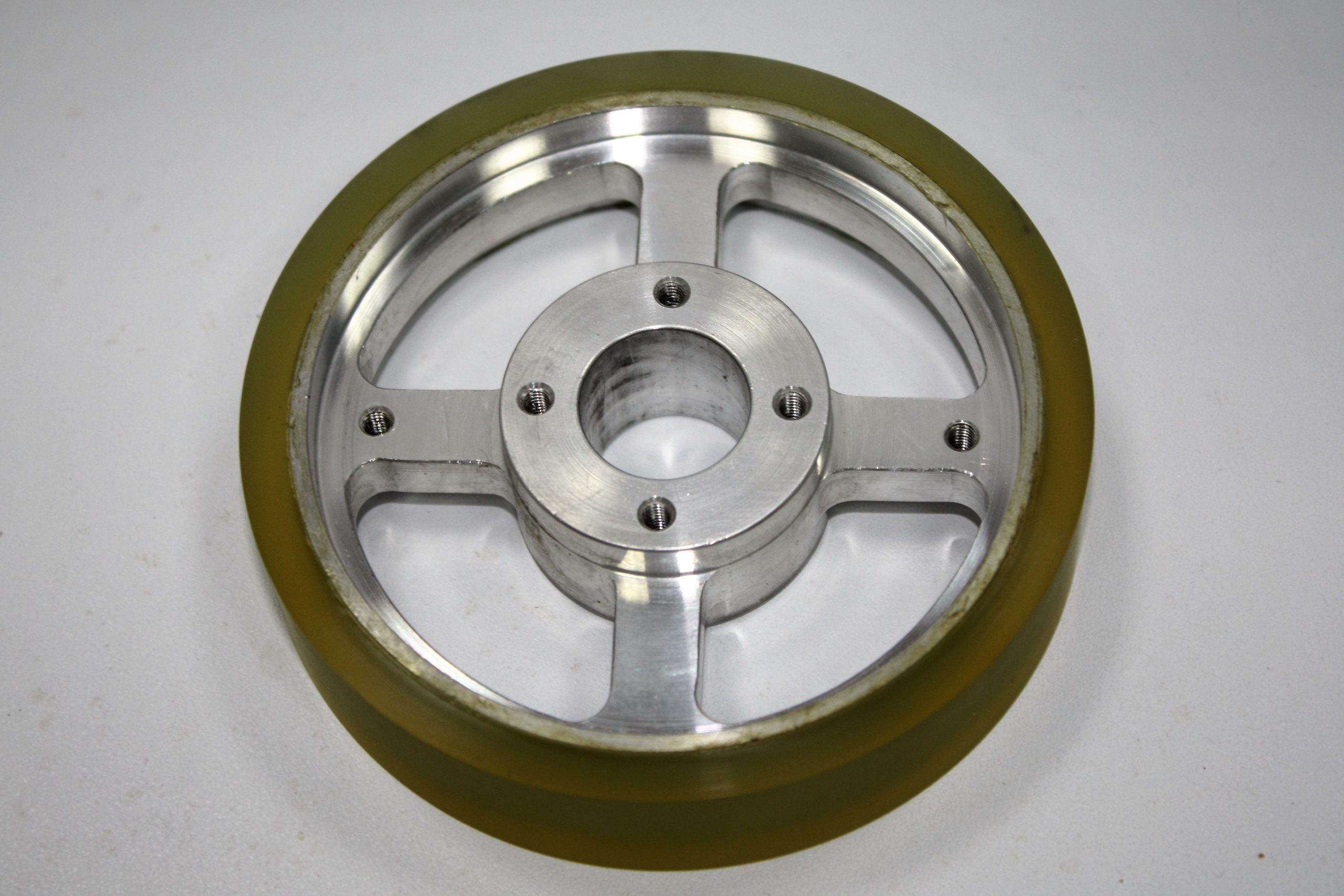

 | F442 | Upper | 張力輪(PU) Brake Roller 100*20*22t | DWC- iD,iE,400iA,600iA (AWF) | A290-8119-X618 |

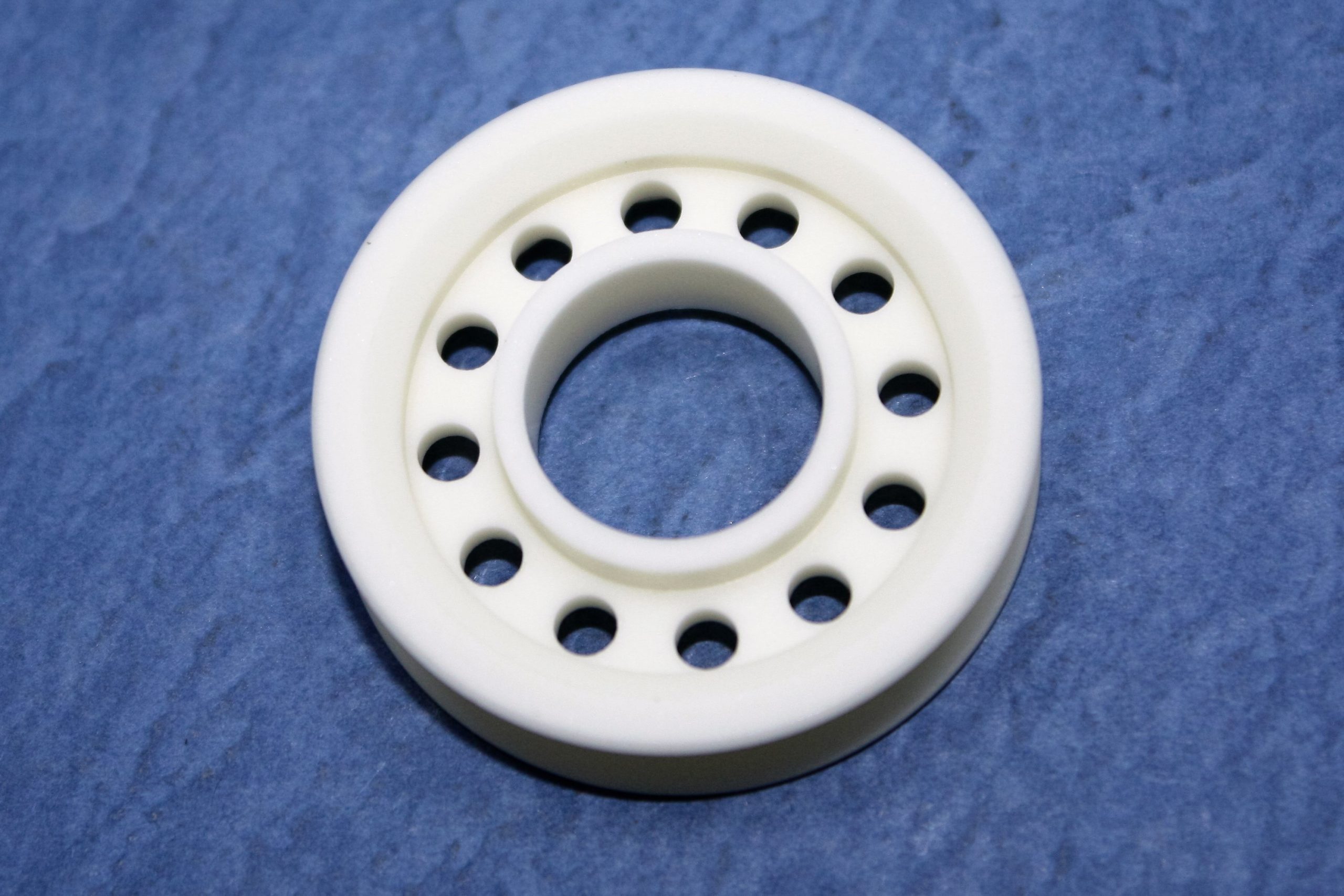

 | F442-1 | Upper | 陶瓷張力惰輪 Detect Roller(Ceramic) 34 Ø*14Ø*8t | DWC- iD,iE,400iA,600iA (AWF) | A290-8119-X625 |
 | F443 | Upper | 張力輪膠圈(PU) Rubber Roller 100*90*22t | DWC-E,K,O,P,Q,T,W | A290-8011-V352 |
 | F444 | Lower | 張力惰輪 Drive Roller 27Ø *14d*22W | DWC-A,B,C, iA,iB,iC,iD, 400iA,600iA (Manual/AWF) | A290-8101-X335 |
| 圖片 | 編號 | 位置 | 品名尺寸 | 適用機種 | 原廠編號 |
|---|---|---|---|---|---|
 | F461 | Lower | 引線輪軸心 Shaft For F401 26mmL | O,P,Q,T,W series (Manual) | A290-8003-X254 |

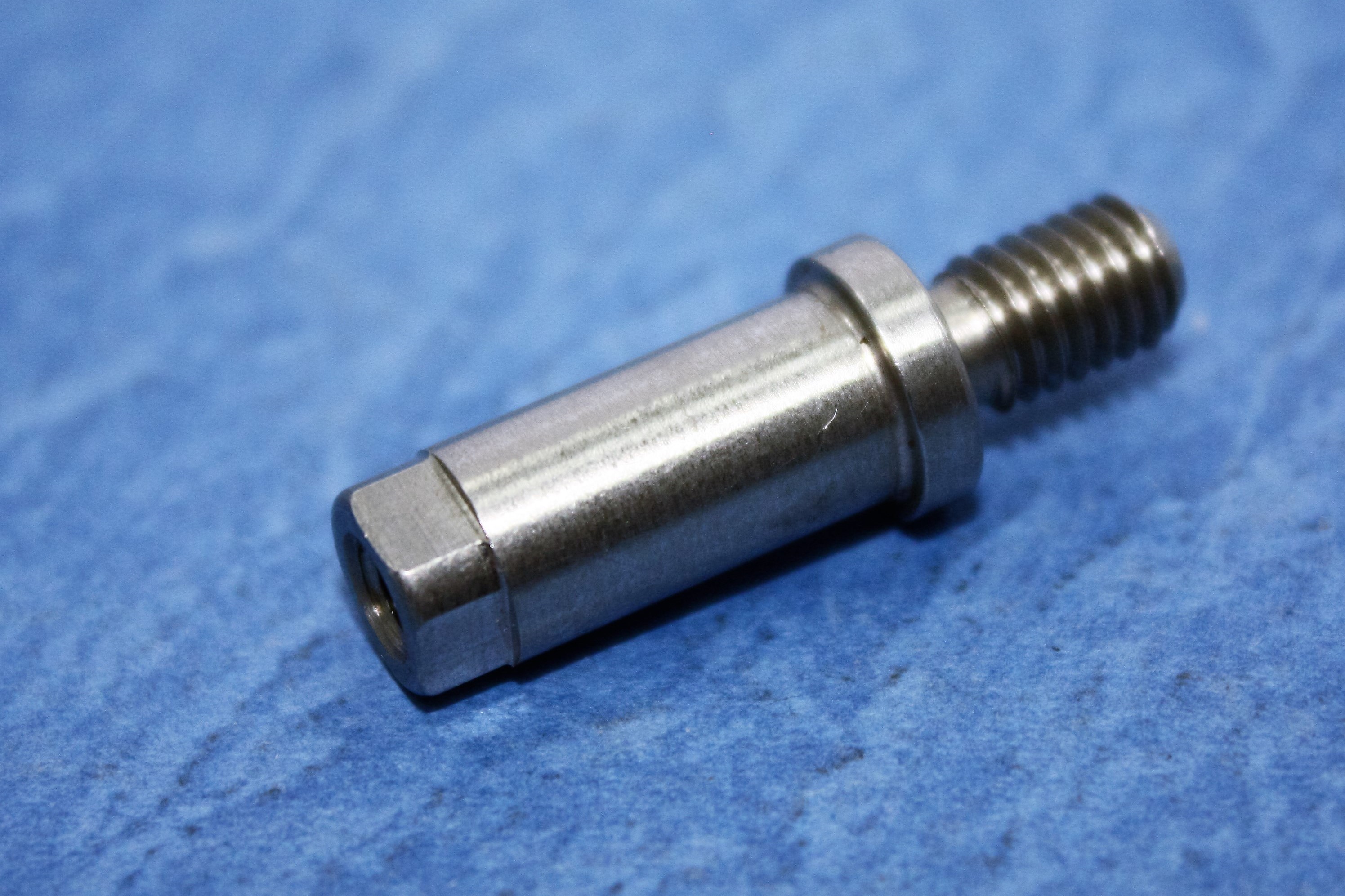

 | F462 | Lower | 引線輪軸心 Shaft For F401 10D*31L | α-A,B series (Manual) | A290-8101-X766 |

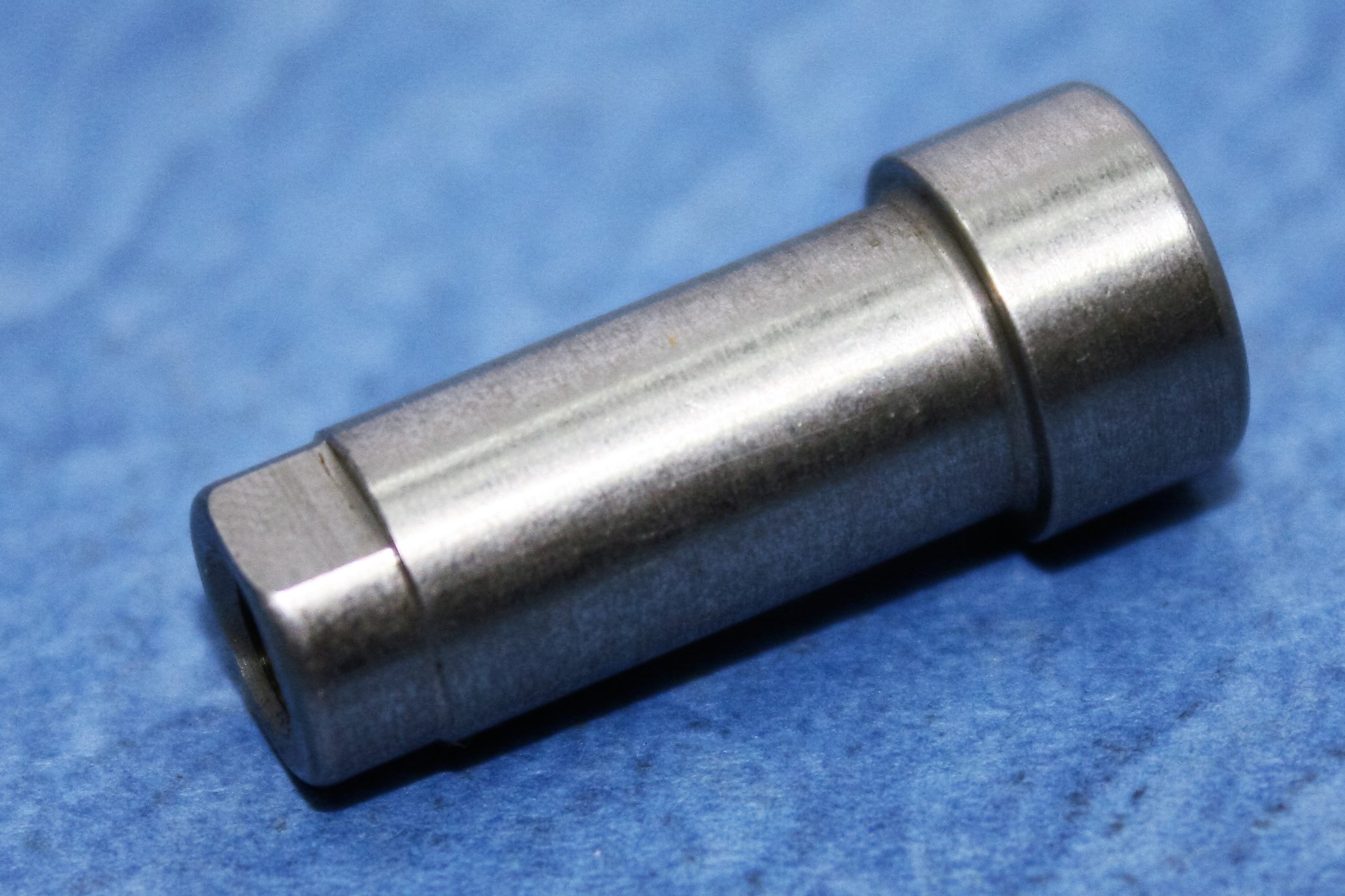

 | F463 | Lower | 引線輪軸心 Shaft For F401 10D*24L | α-C,i,series (Manual) | A290-8110-X766 |

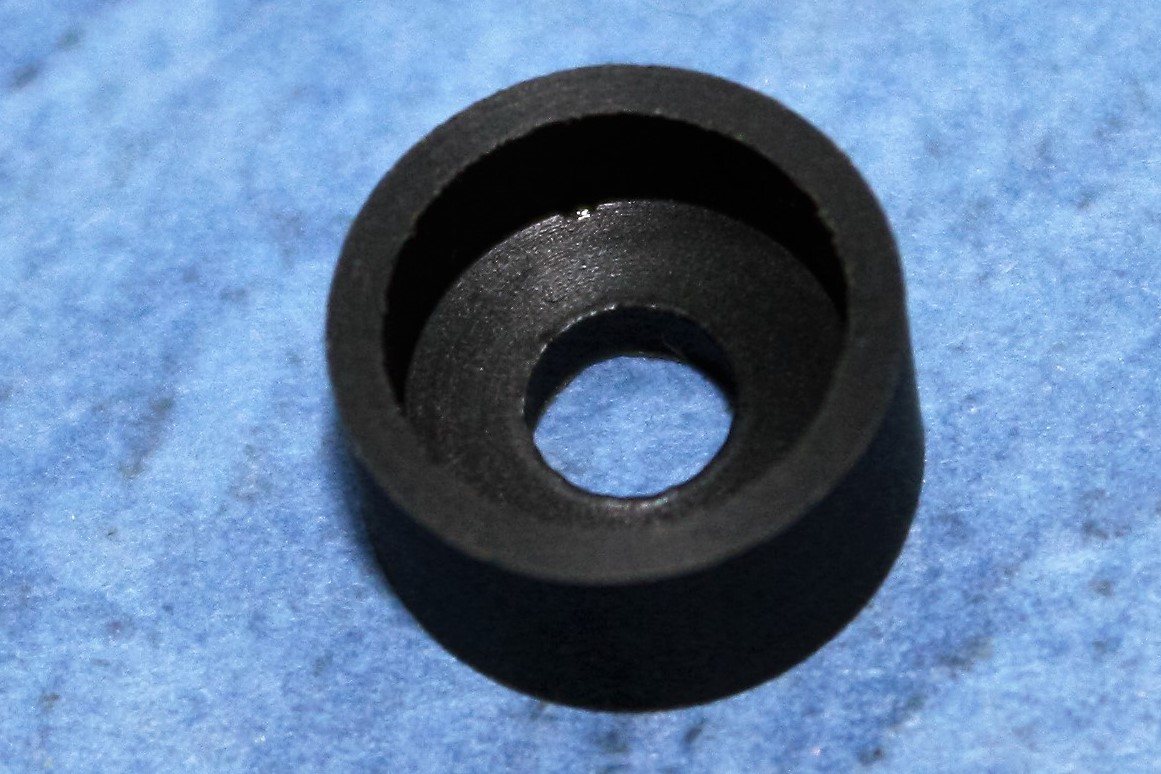

 | F463-1 | Lower | 引線輪軸心外蓋 Cover For Shaft(F463) | DWC-C, iA,iB,iC | A290-8110-X767 |

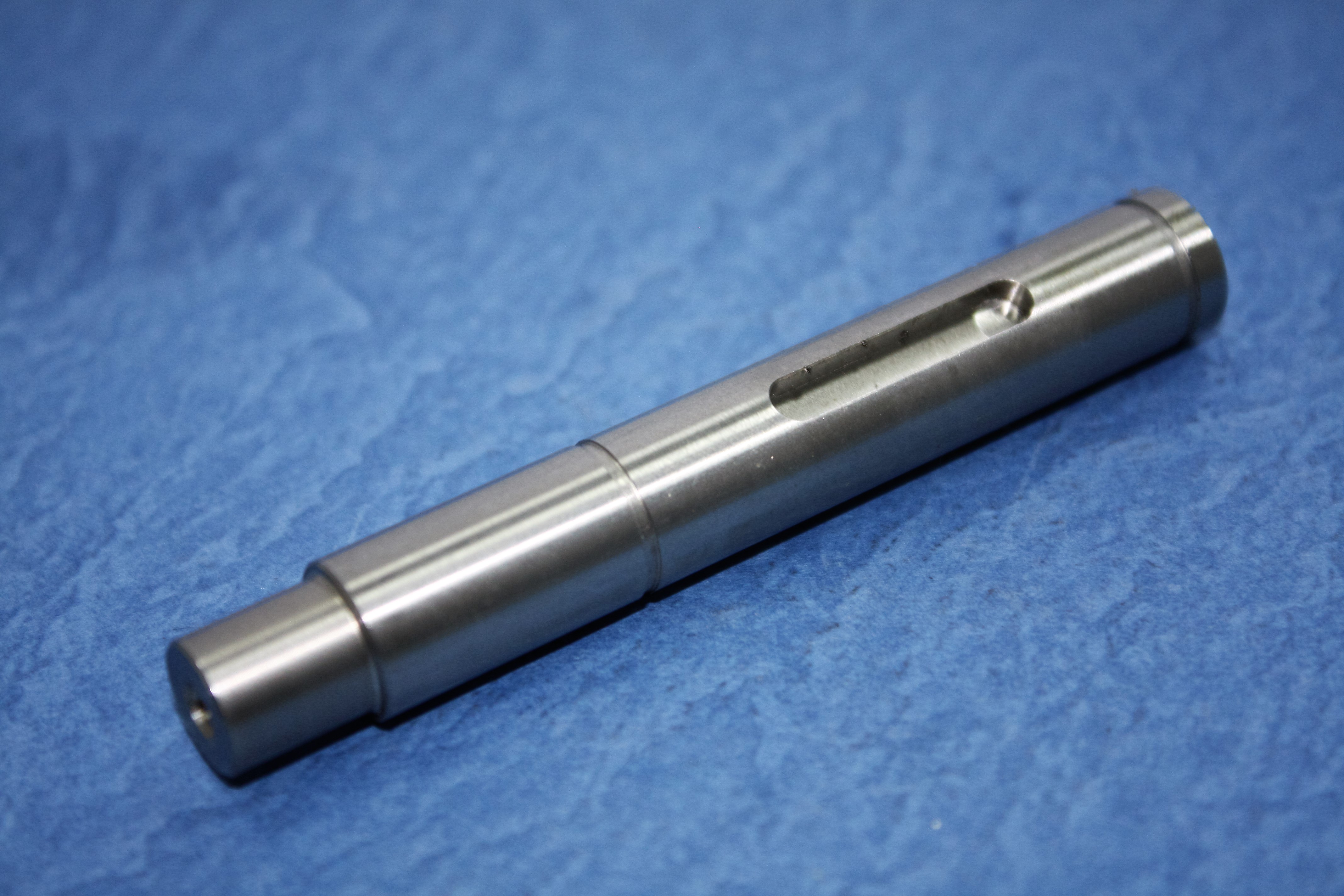

 | F464 | Feed Section | 出線主輪軸心 Shaft 12D×85L | α-C series (Manual) | A290-8110-X373 |

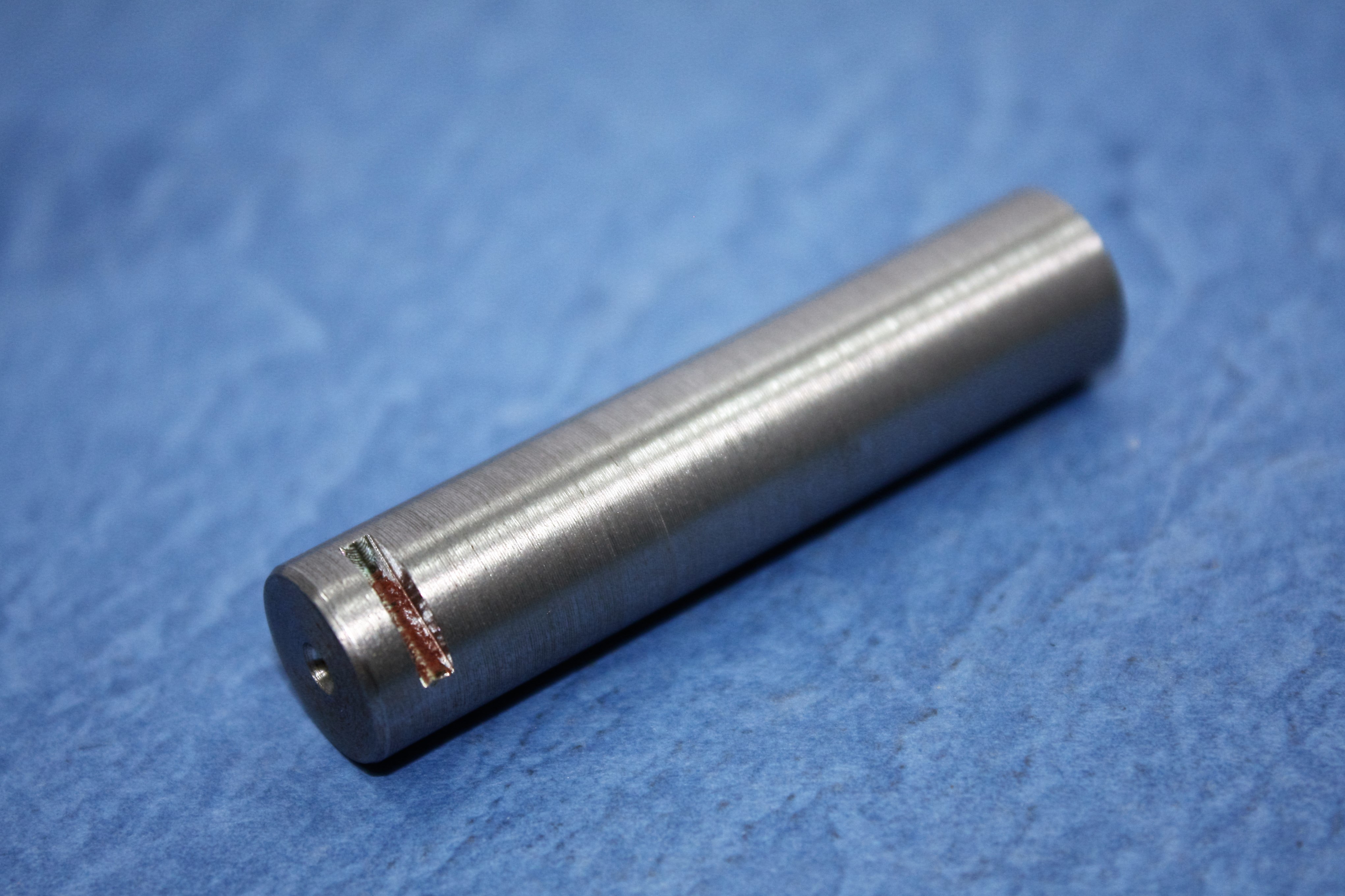

 | F464-2 | Feed Section | 軸心 Shaft 12D × 54L | α-C series (Manual) | |

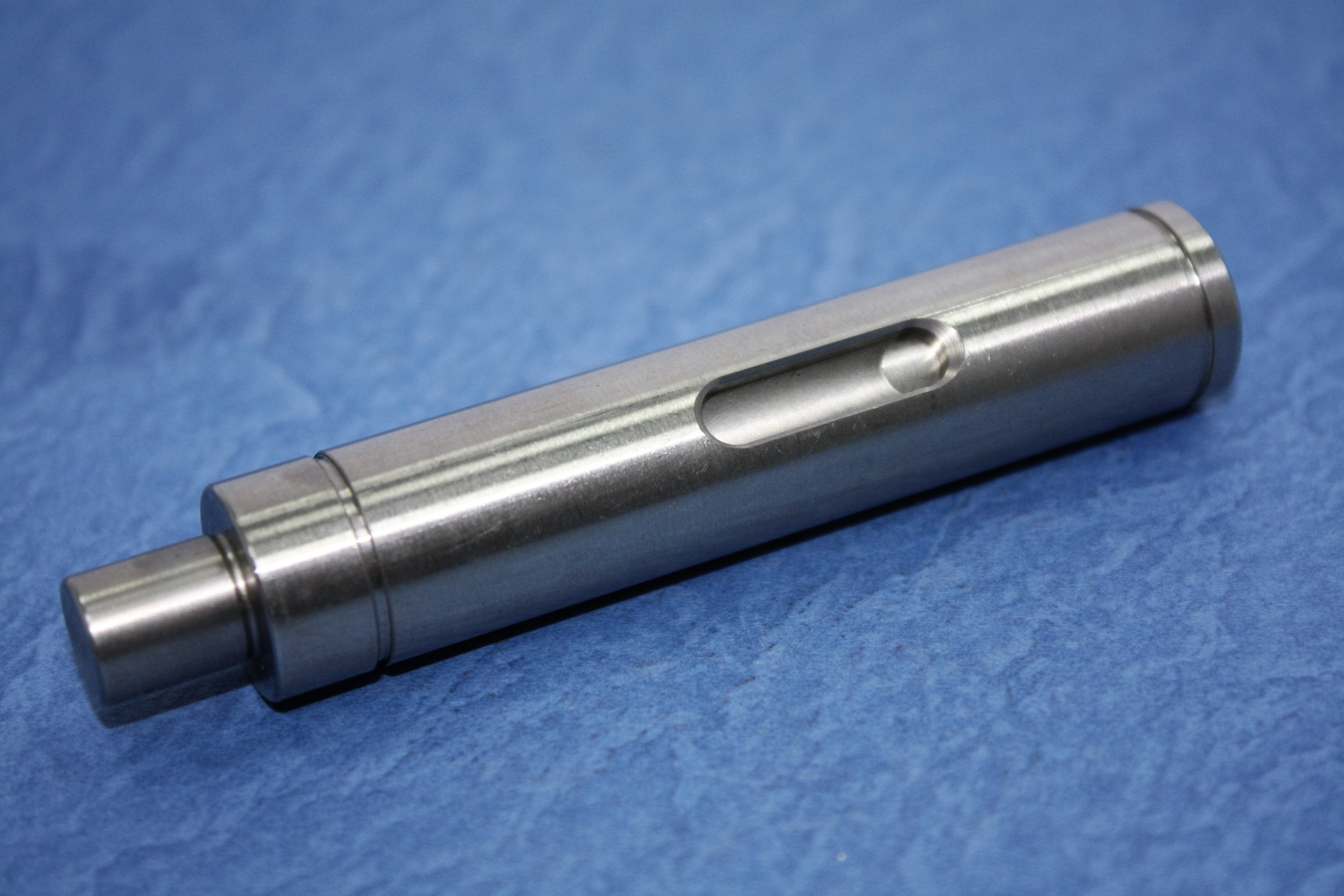

 | F465 | Feed Section | 主出線輪軸心 Shaft For F415 17D×95mmL | DWC-iA,iB,iC (Manual)(AWF) | A290-8112-X373 |

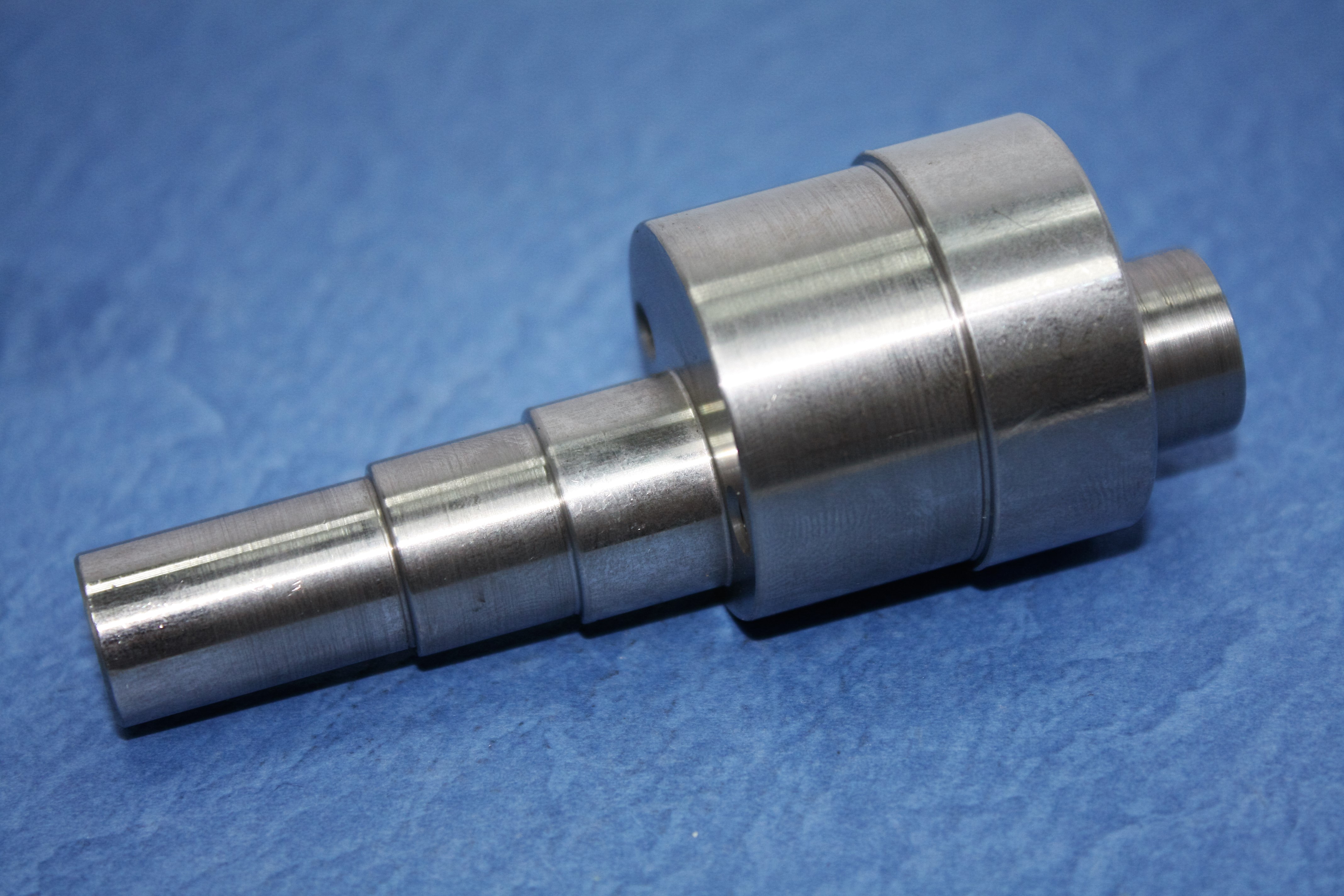

 | F466 | Feed Section | 副出線輪軸心 Shaft For F416 37D×99mmL | DWC-iA,iB,iC (Manual)(AWF) | A290-8112-X378 |

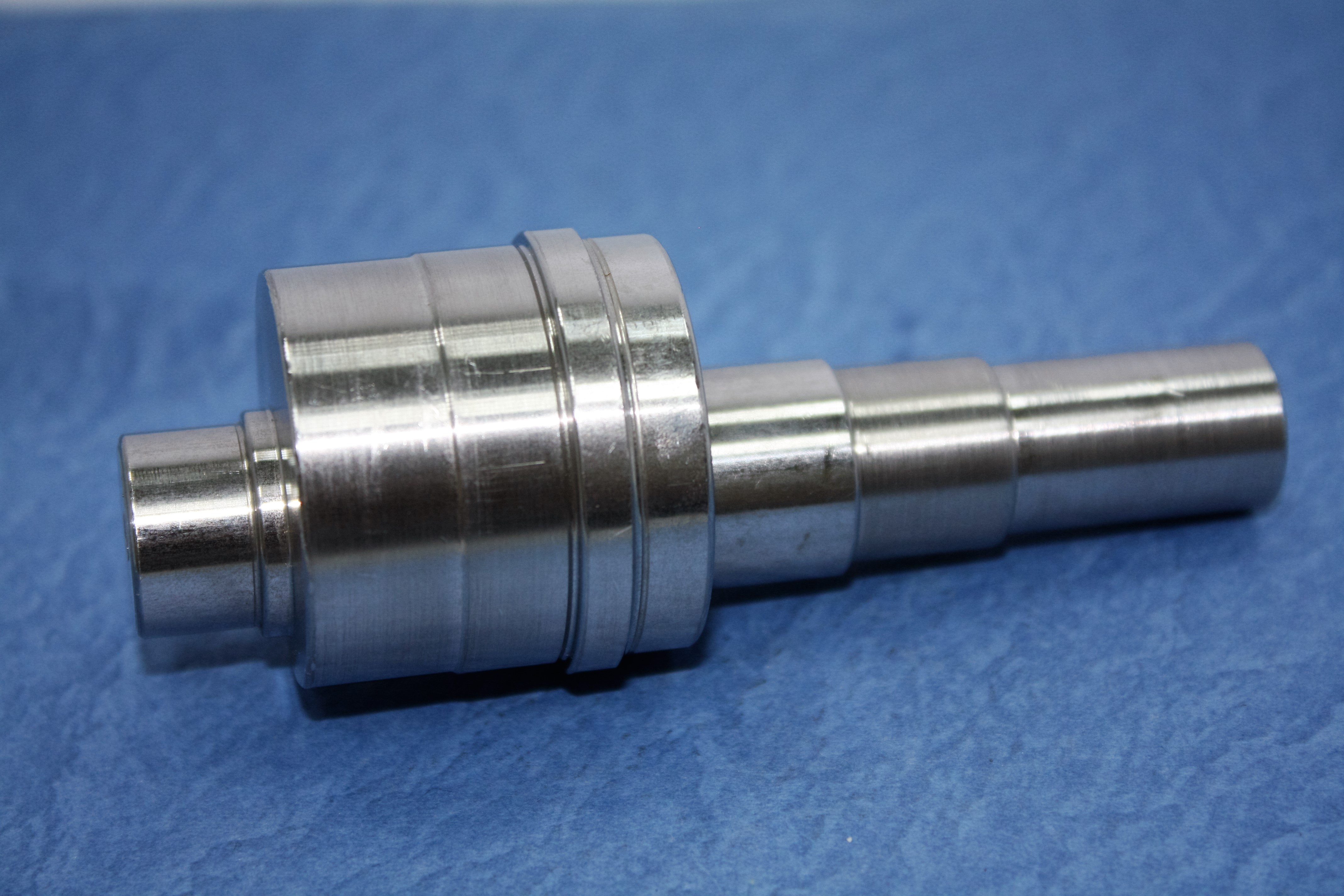

 | F466-1 | Feed Section | 主出線輪軸心 Shaft For F418 17D×95mmL | DWC- iD,iE,600iA,400iA | A290-8119-X378 |

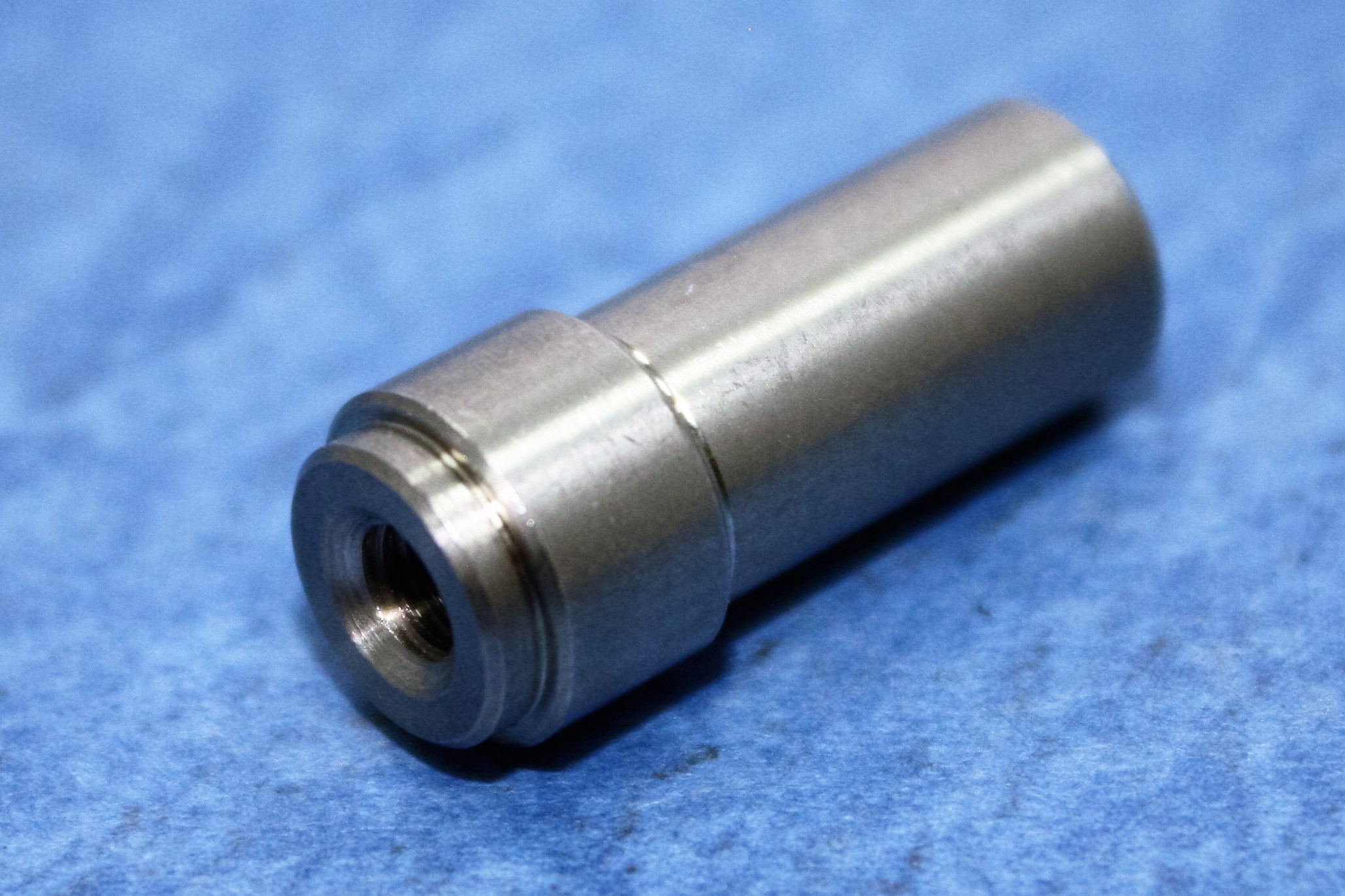

 | F467 | Feed Section | 引線輪軸心 Shaft For F407 9.4D*22.2L | DWC- iD,iE,600iA,400iA | A290-8119-X767 |

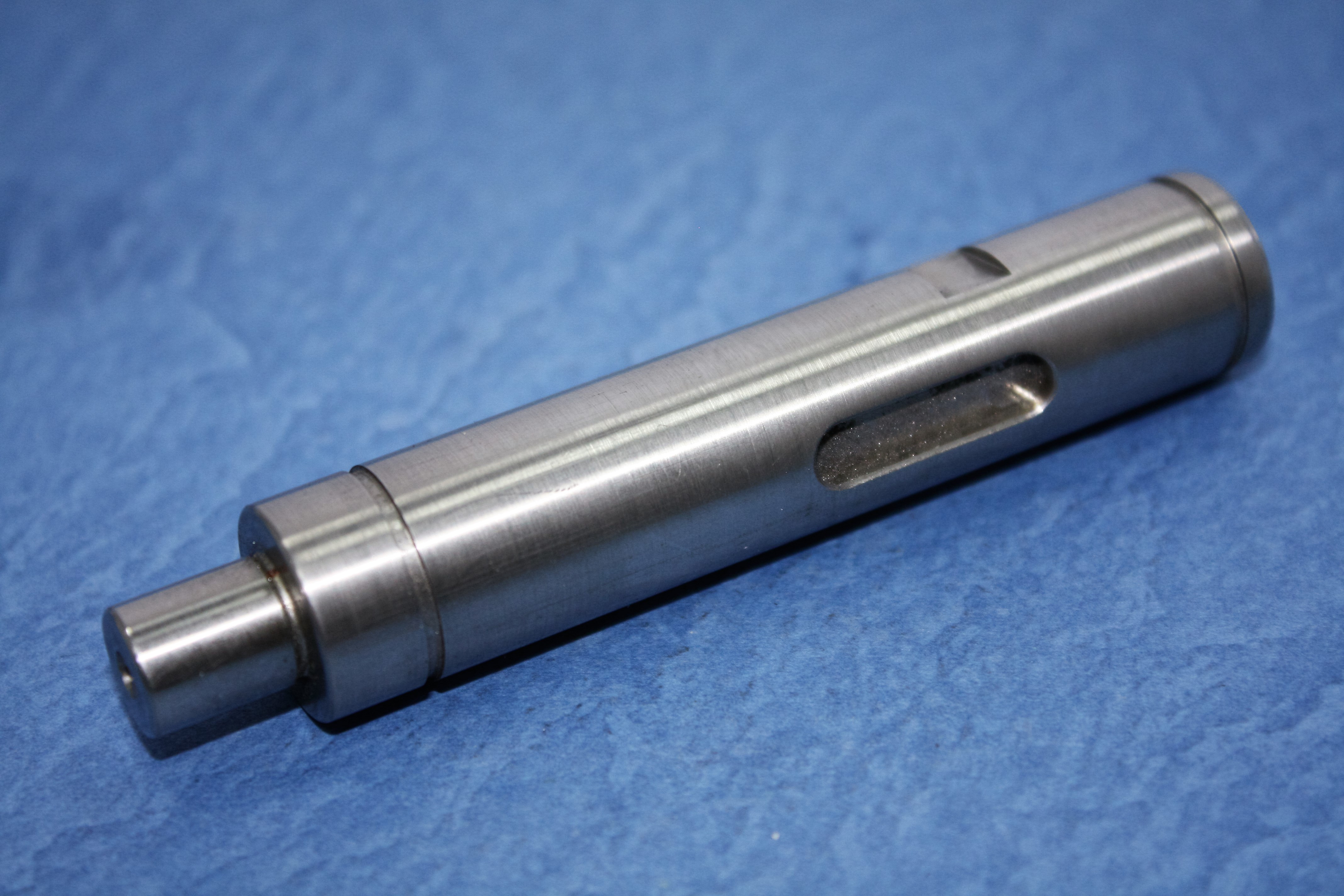

 | F468 | Feed Section | 副出線輪軸心 Shaft For F417 37D×95mmL | DWC- iD,iE,600iA,400iA | A290-8119-X373 |
| 圖片 | 編號 | 位置 | 品名尺寸 | 適用機種 | 原廠編號 |
|---|---|---|---|---|---|

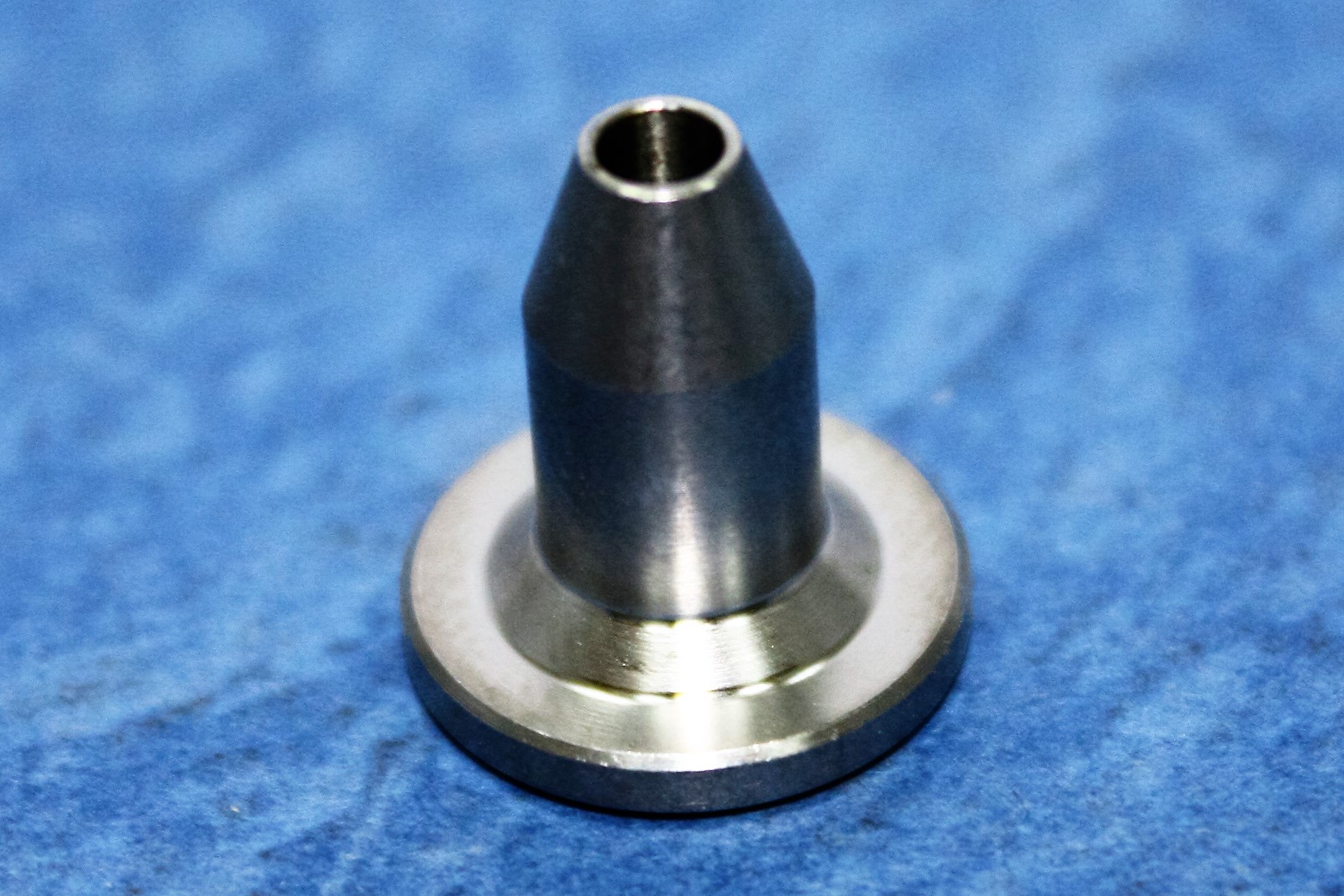

 | F124 | Lower | 輔助眼膜 Jet Nozzle 1.0 | DWC-A,B,C, iA,iB,iC DWC-iD,iE, 400iA,600iA (AWF) | A290-8110-Y774 |

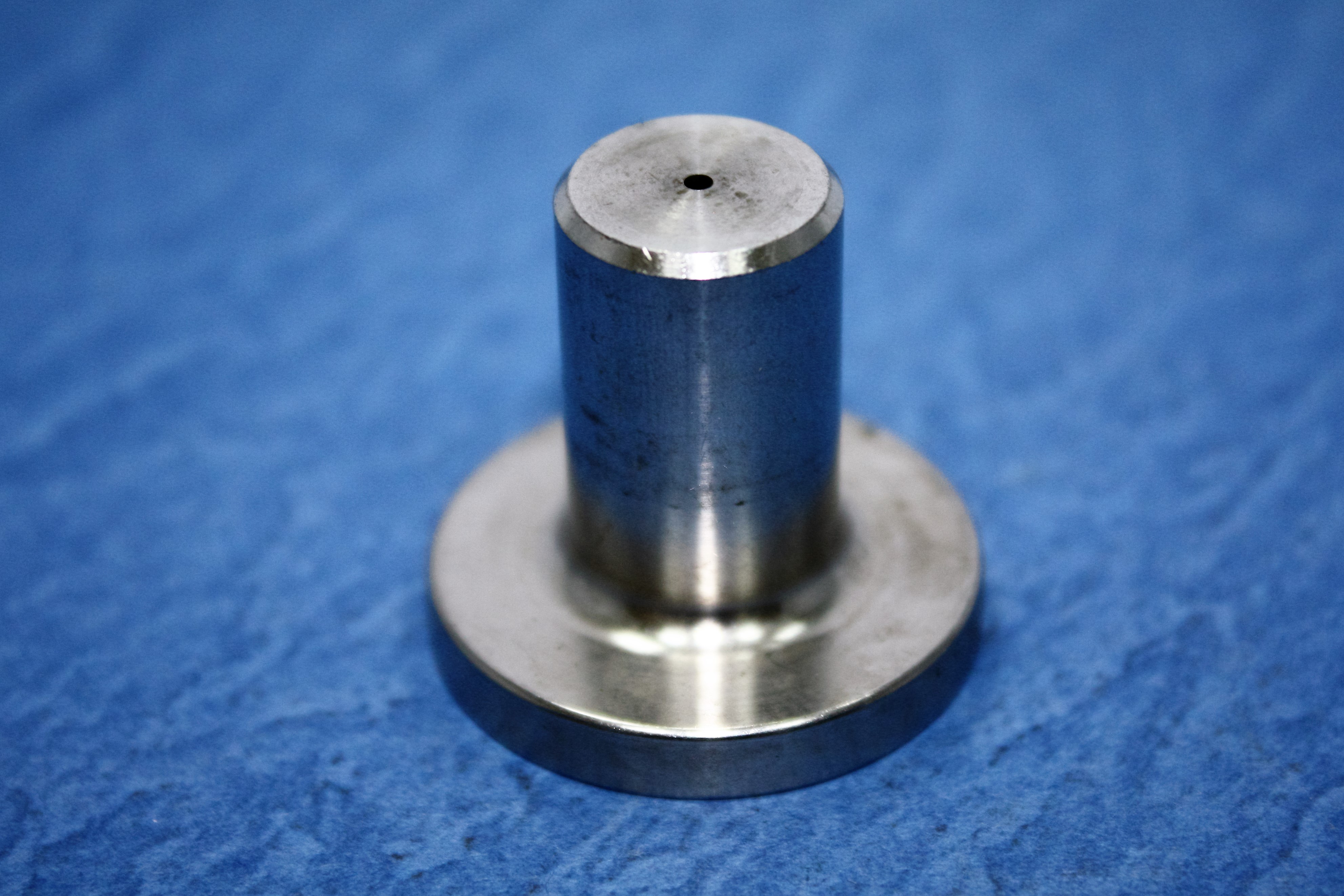

 | F125 | Upper | 輔助噴水頭 Jet Nozzle 0.5Ø 0.8Ø 1.0Ø 1.5Ø | DWC-A,B,C, iA,iB,iC DWC- iD,iE, 400iA,600iA (AWF) | A290-8102-X757 A290-8102-X756 |

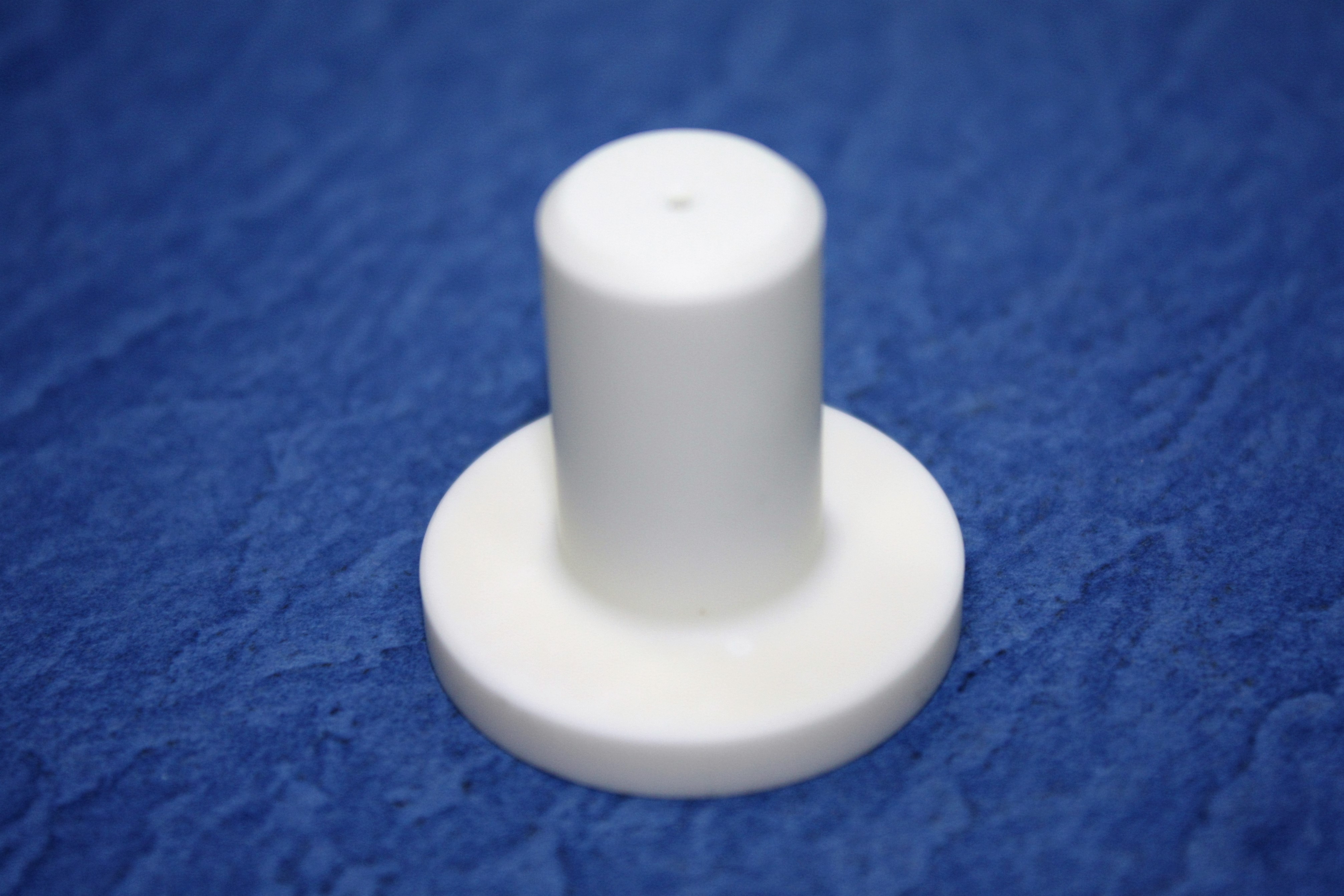

 | F125C | Upper | 輔助噴水頭 全陶瓷(100% Ceramic) Jet Nozzle 0.5Ø 0.8Ø 1.0Ø 1.5Ø | DWC-A,B,C, iA,iB,iC DWC- iD,iE, 400iA,600iA (AWF) | A290-8102-Y757 A290-8102-Y756 |

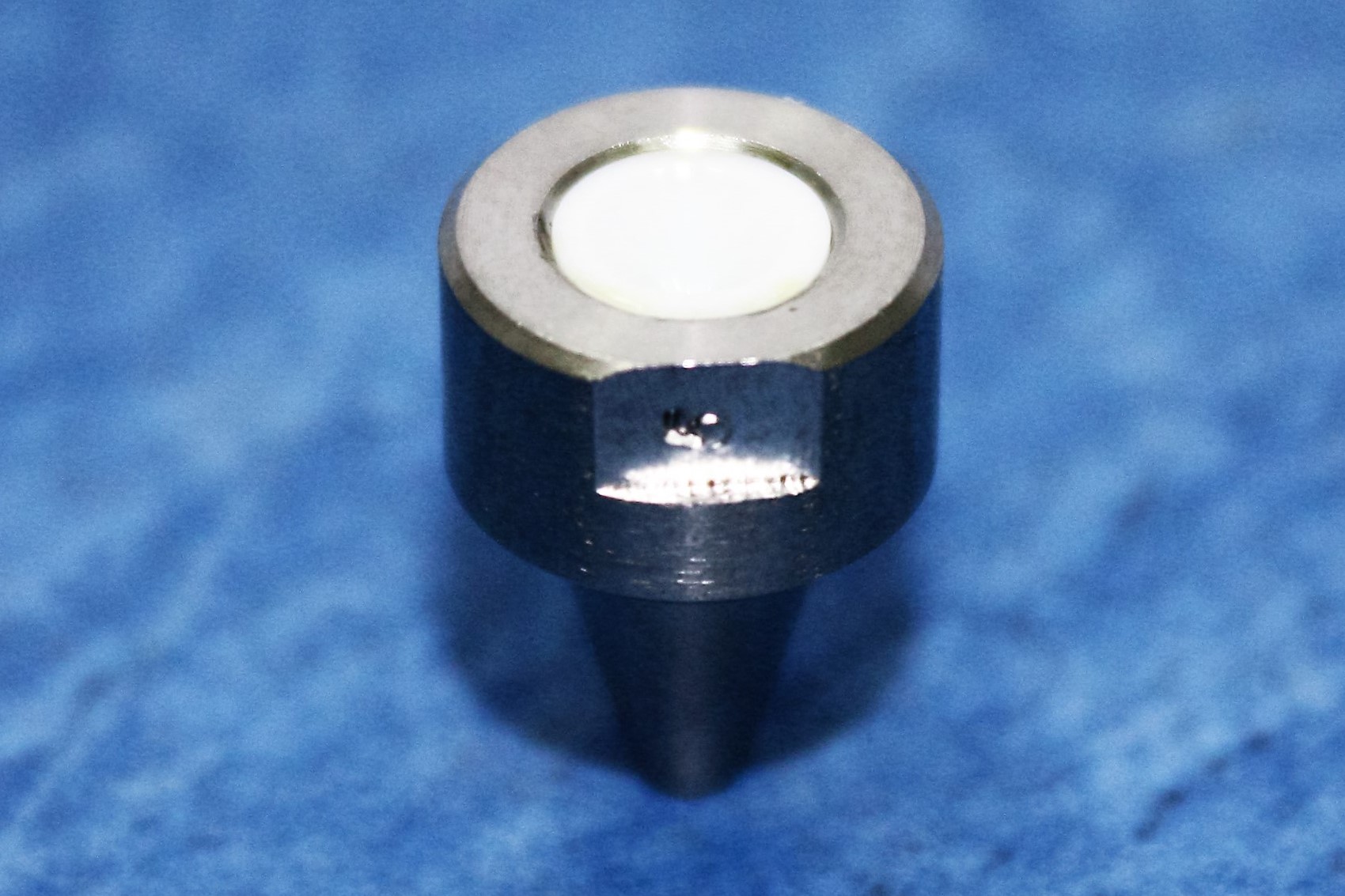

 | F126 | Upper | 輔助眼膜 SUB Die Guide 0.3mm 0.5mm | DWC-A,B,C, iA,iB,iC DWC- iD,iE, 400iA,600iA (AWF) | A290-8104-X620 A290-8102-X620 |

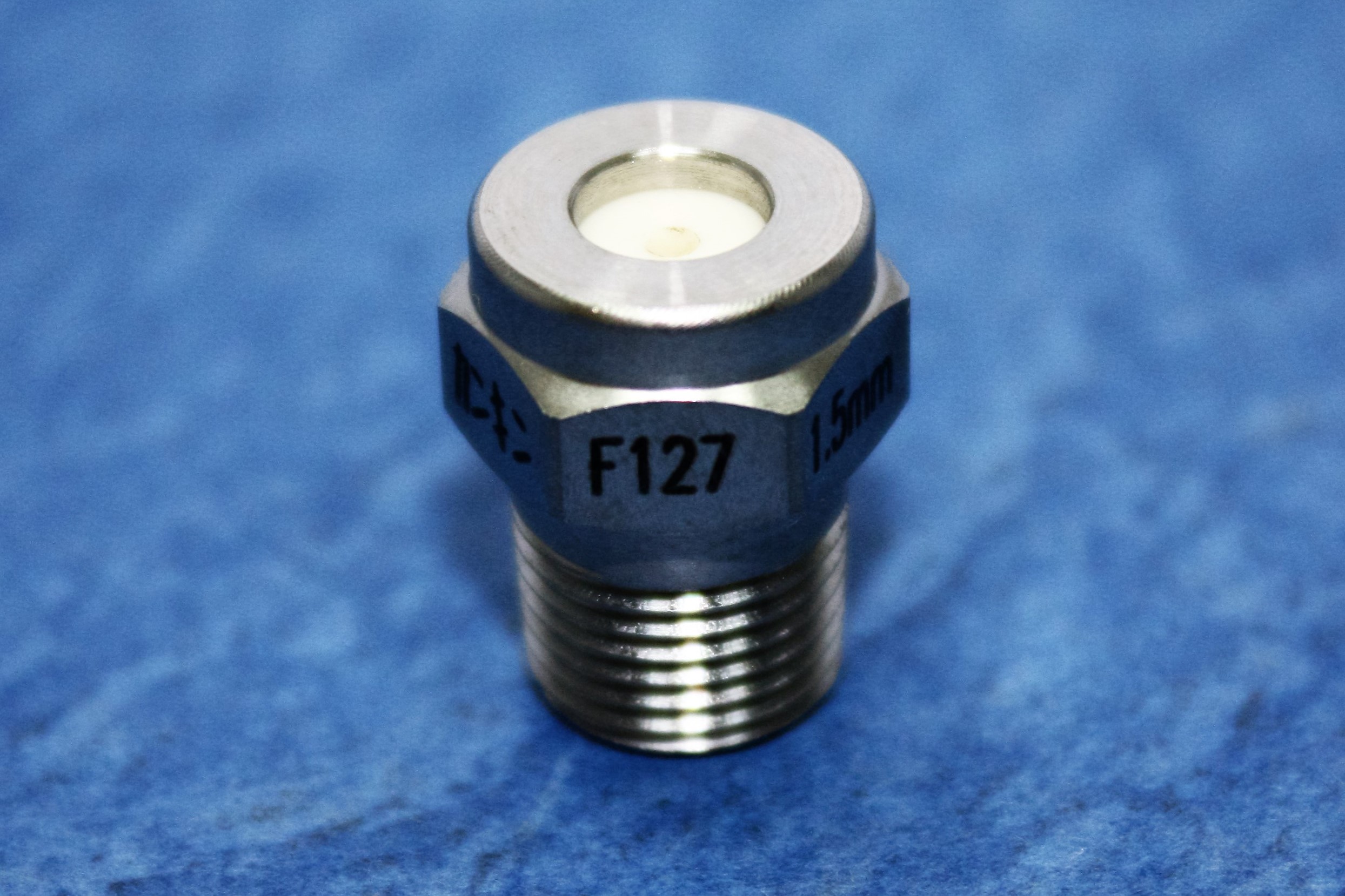

 | F127 | Upper | 輔助眼膜 SUB Die Guide 1.5mm | DWC-A,B,C, iA,iB,iC DWC- iD,iE, 400iA,600iA (AWF) | A290L-0201-0490 |
 | F128 | Upper | 上輔助沖模導線嘴 SUB Die Guide (Ceramic)1.0 | DWC-A,B,C, iA,iB,iC DWC- iD,iE, 400iA,600iA (AWF) | A290-8116-X726 |
 | F451-4 | Feed Section | 控水導線嘴 End Head For Leading Wire 14Ø*5*5t | DWC-iA,iB,iC,iD,iE 600iA,400iA,800iA (Manual)/AWF | A290-8112-X394 |
 | F451-5 | Feed Section | 線徑刻出線壓力度座 93.2*40*30 | DWC-iC,iD,iE 600iA,400iA (Manual)/AWF | |

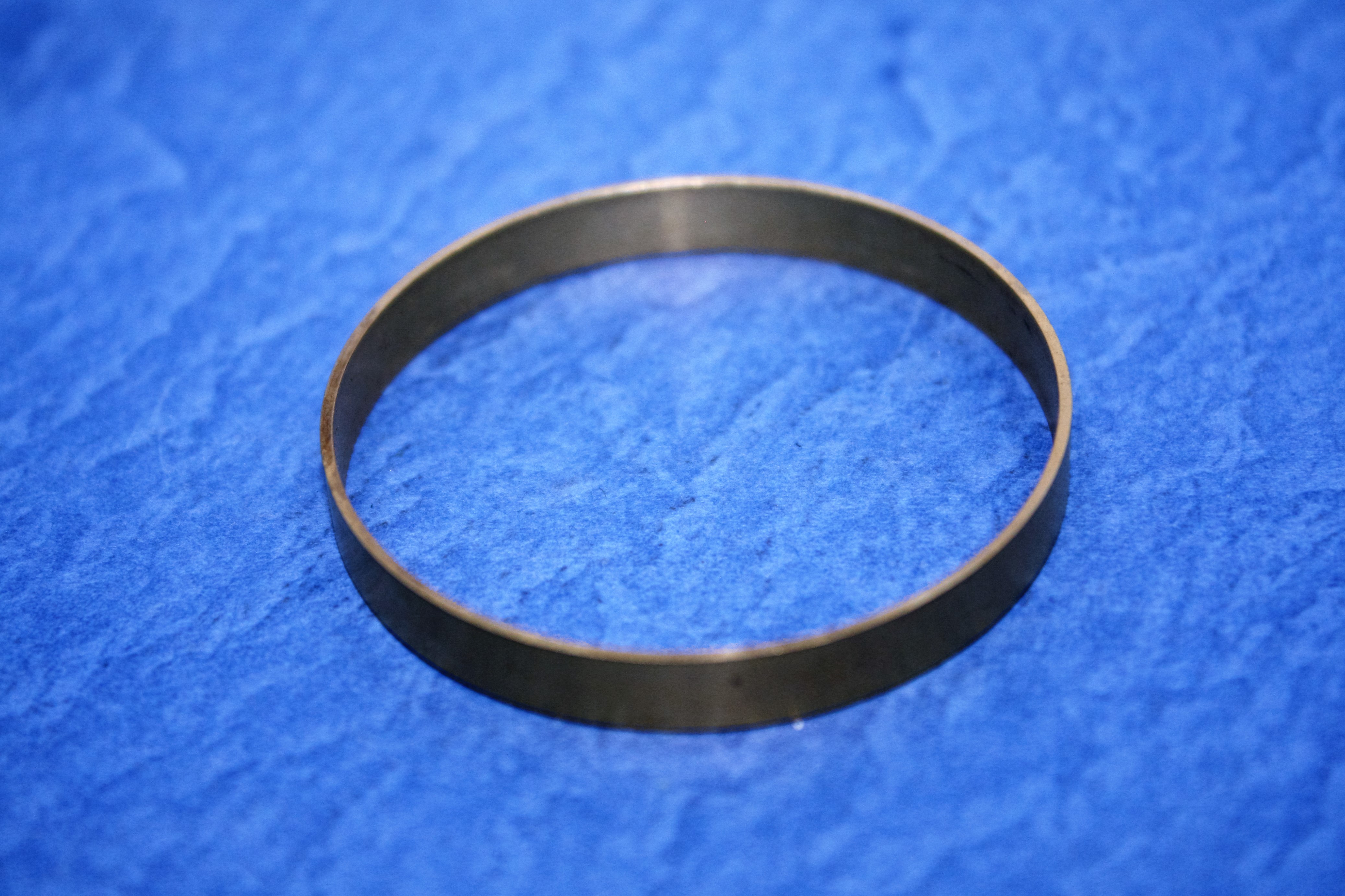

 | F471 | 出線輪副軸用間隔環 Brass Spacer Ring 47D×6L | DWC-iA~iC | A290-8112-X374 | |

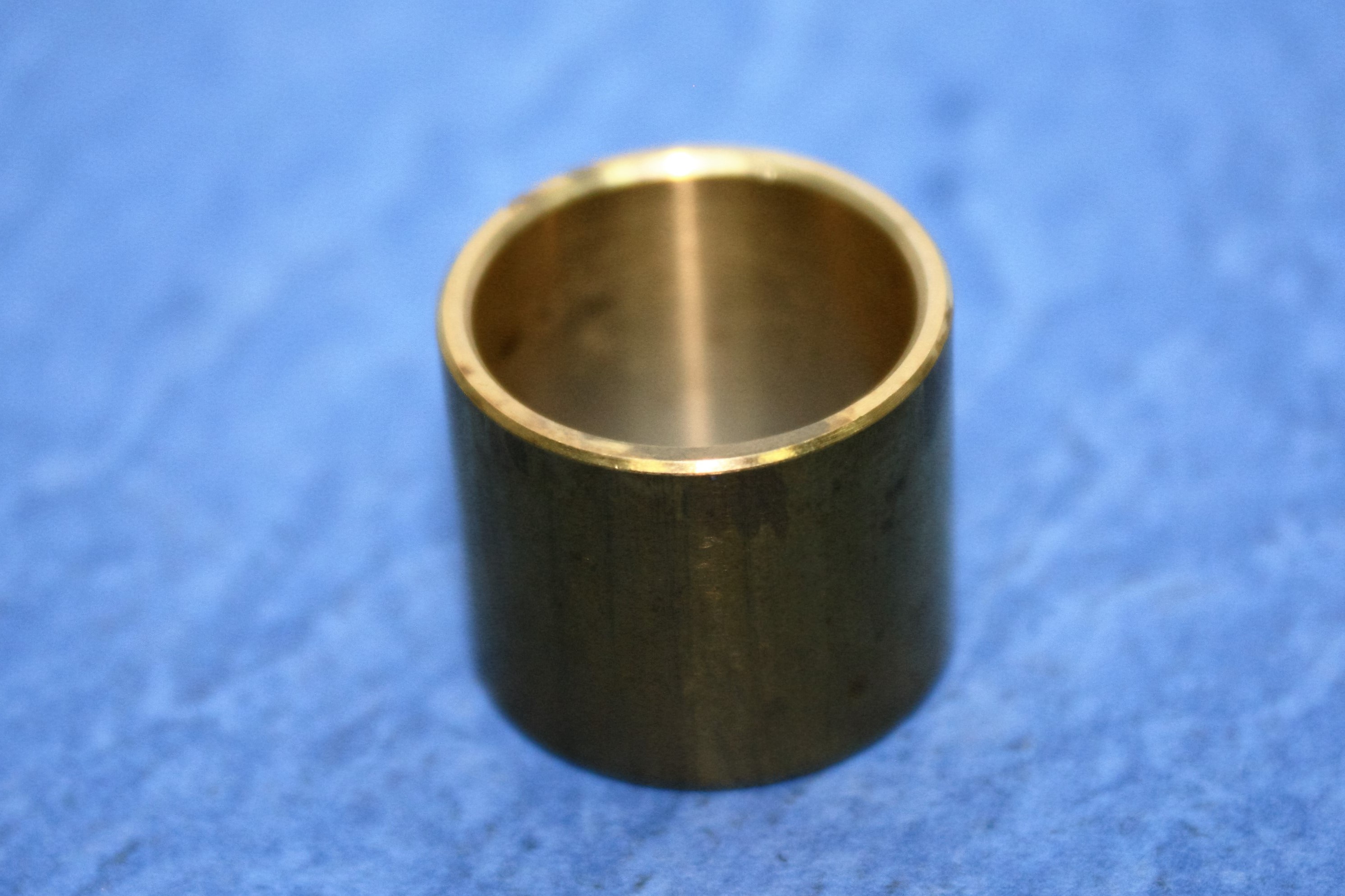

 | F472 | 出線輪主軸用間隔環 Brass Spacer Ring 20D×11.5L | DWC-iA~iC | A290-8112-X375 | |

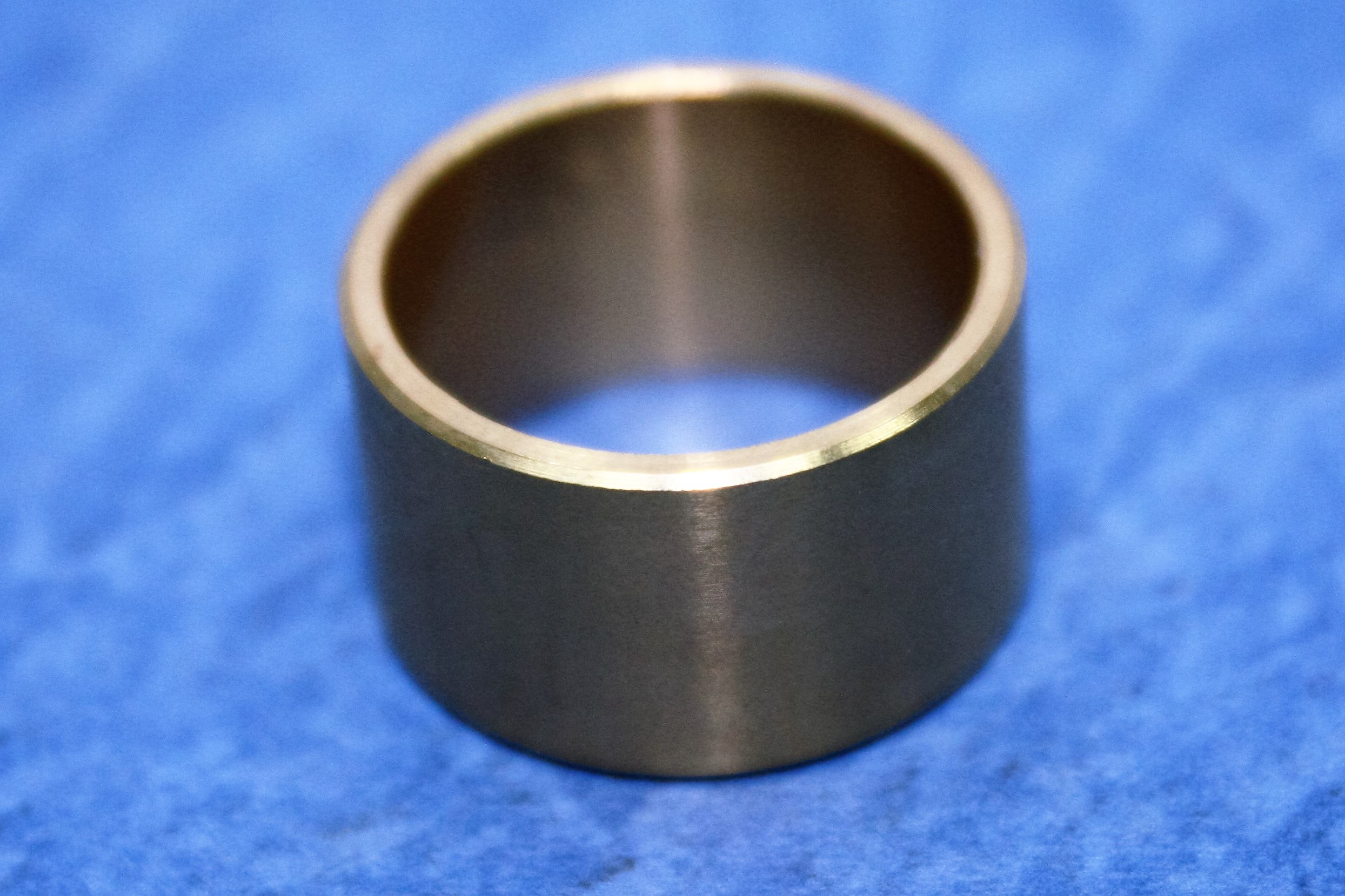

 | F473 | 軸心用間隔環 Spacer 20D*17H | DWC-iD,iE,600iA,400iA (Manual)AWF | A290-8119-X374 | |

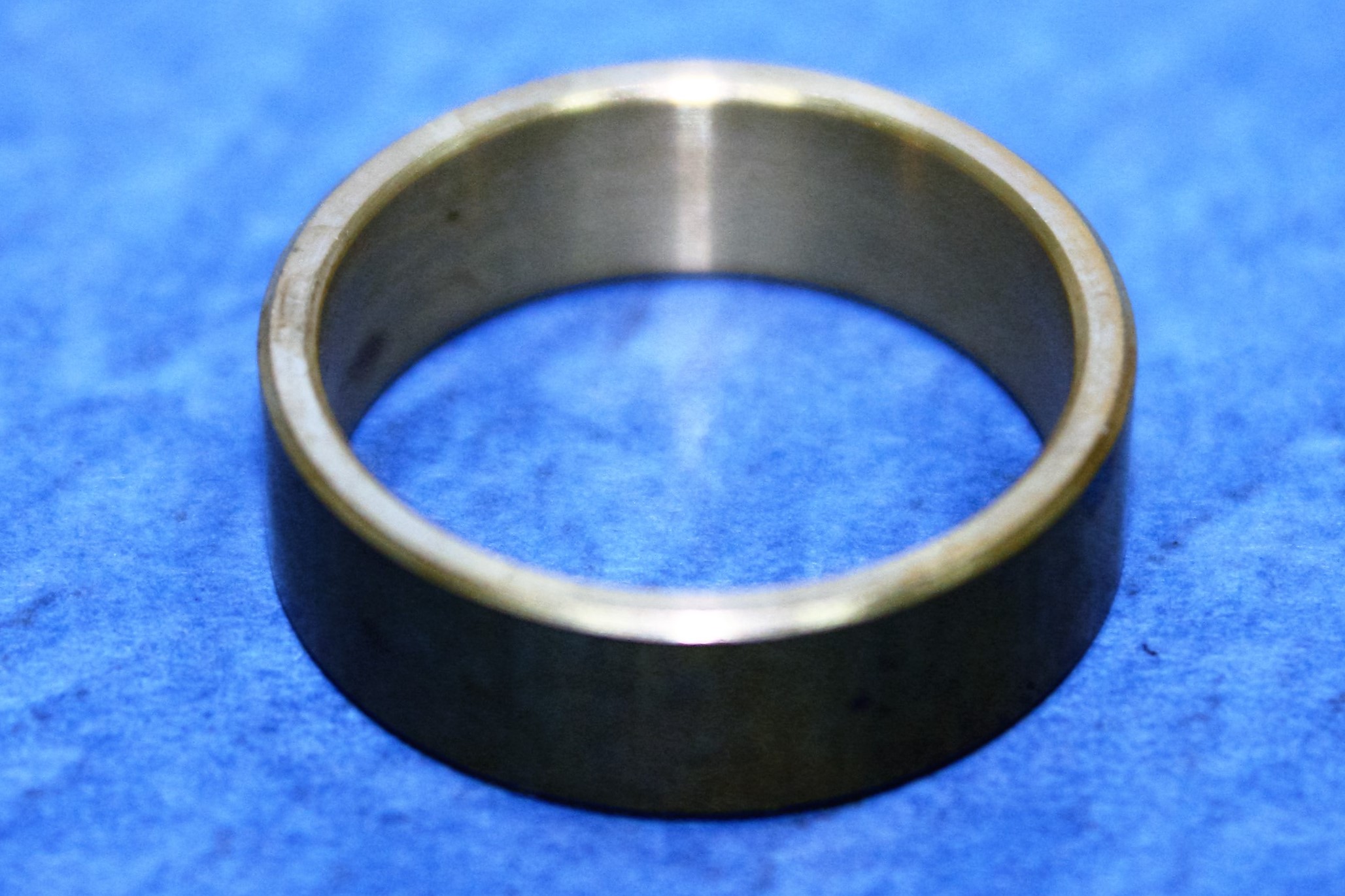

 | F474 | 軸心用間隔環 Spacer 20D*6H | DWC-iD,iE,600iA,400iA (Manual)AWF | A290-8119-X375 | |

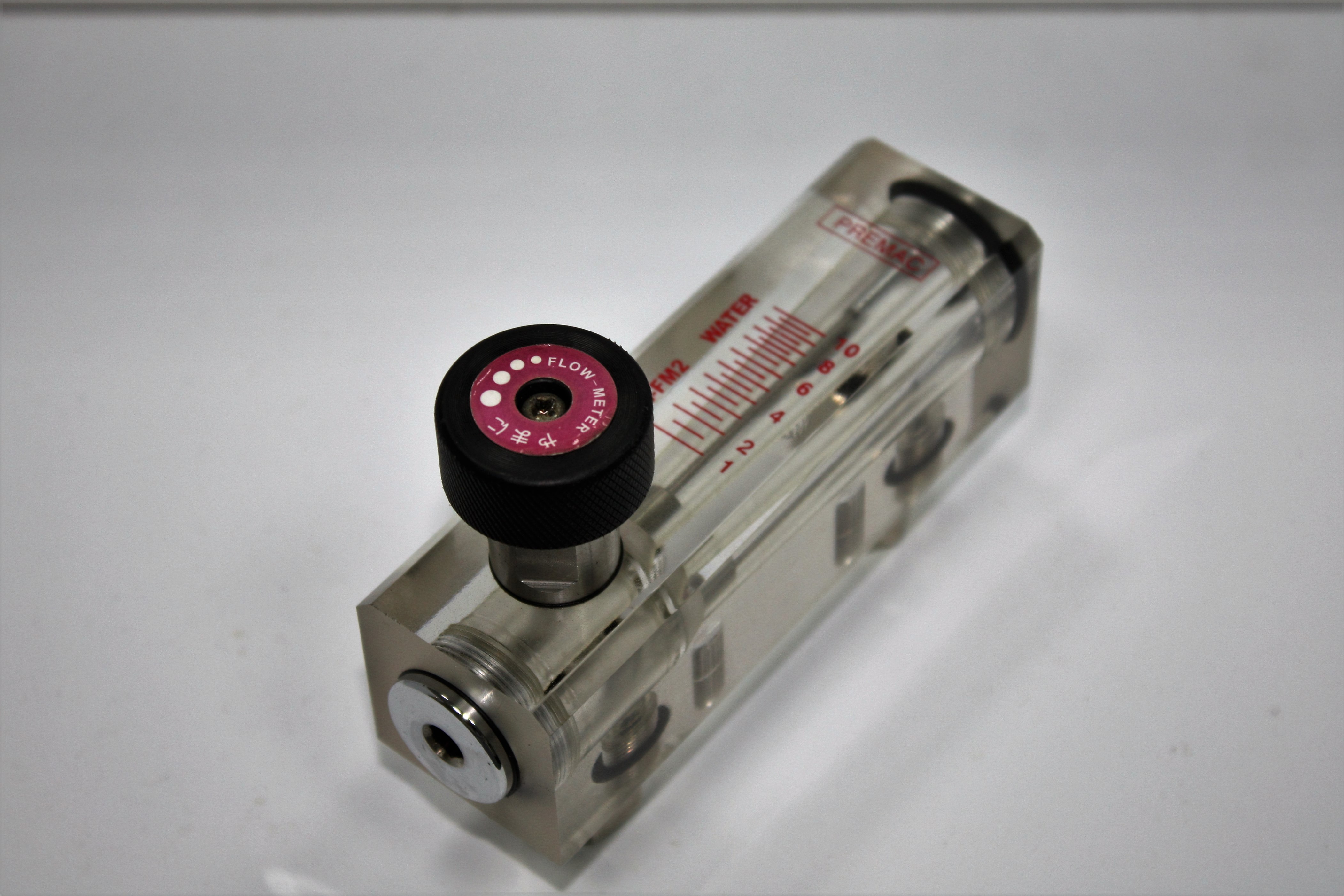

 | Z041 | Lower | 流量計 Flow Meter | Any Machines | S801D824P01 |
 | F490 | Lower | 下旋臂檔水軸封 Seal section V-Packing 115D*87*14 | DWC-A,B,C,iA,iB,iC (Manual/AWF) | A98L-0001-0972 |

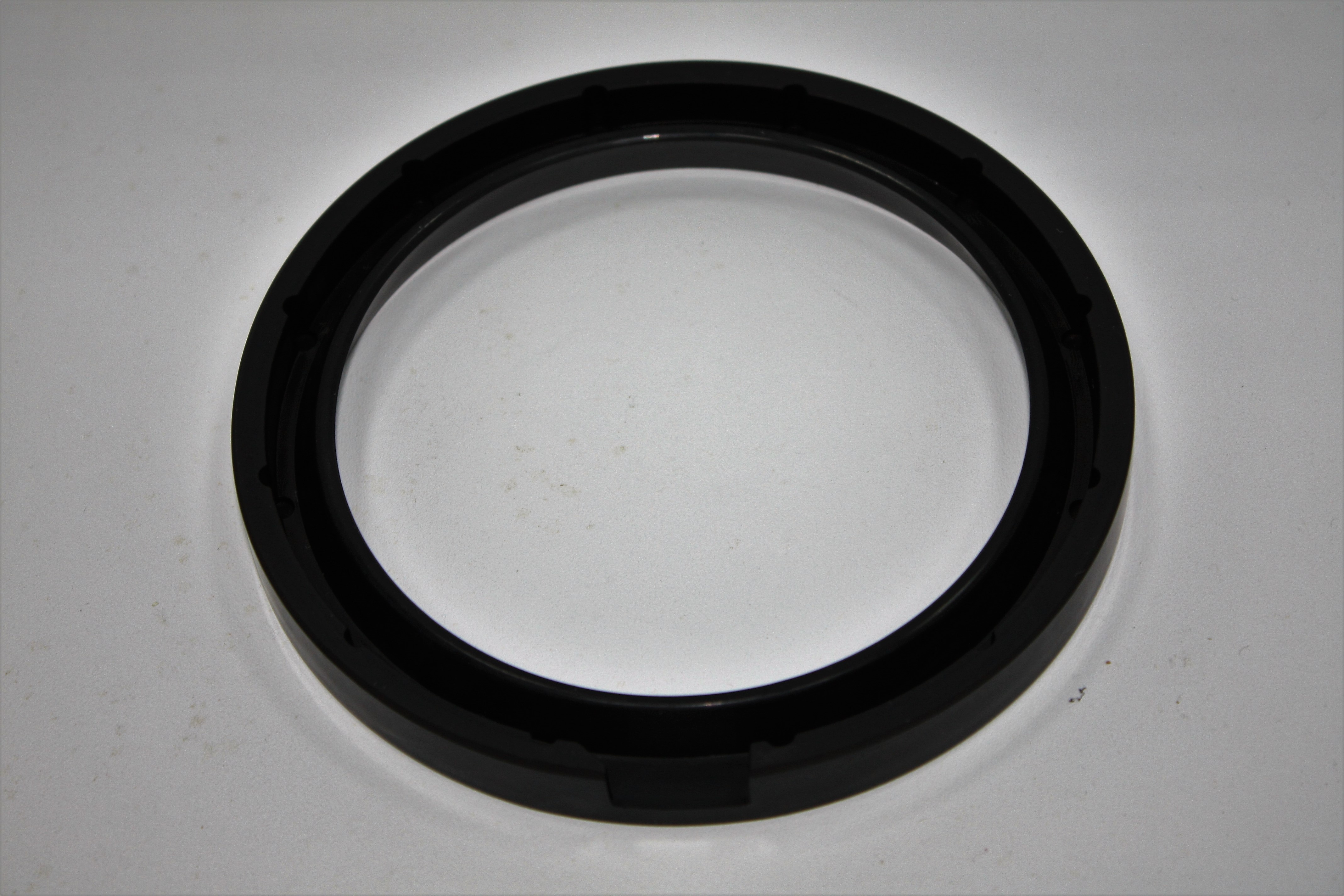

 | F491 | Lower | 下旋臂檔水軸封 Seal section V-Packing 140D*110*15 | DWC-A,B,C,iA,iB,iC (Manual/AWF) | A98L-0001-0973 |

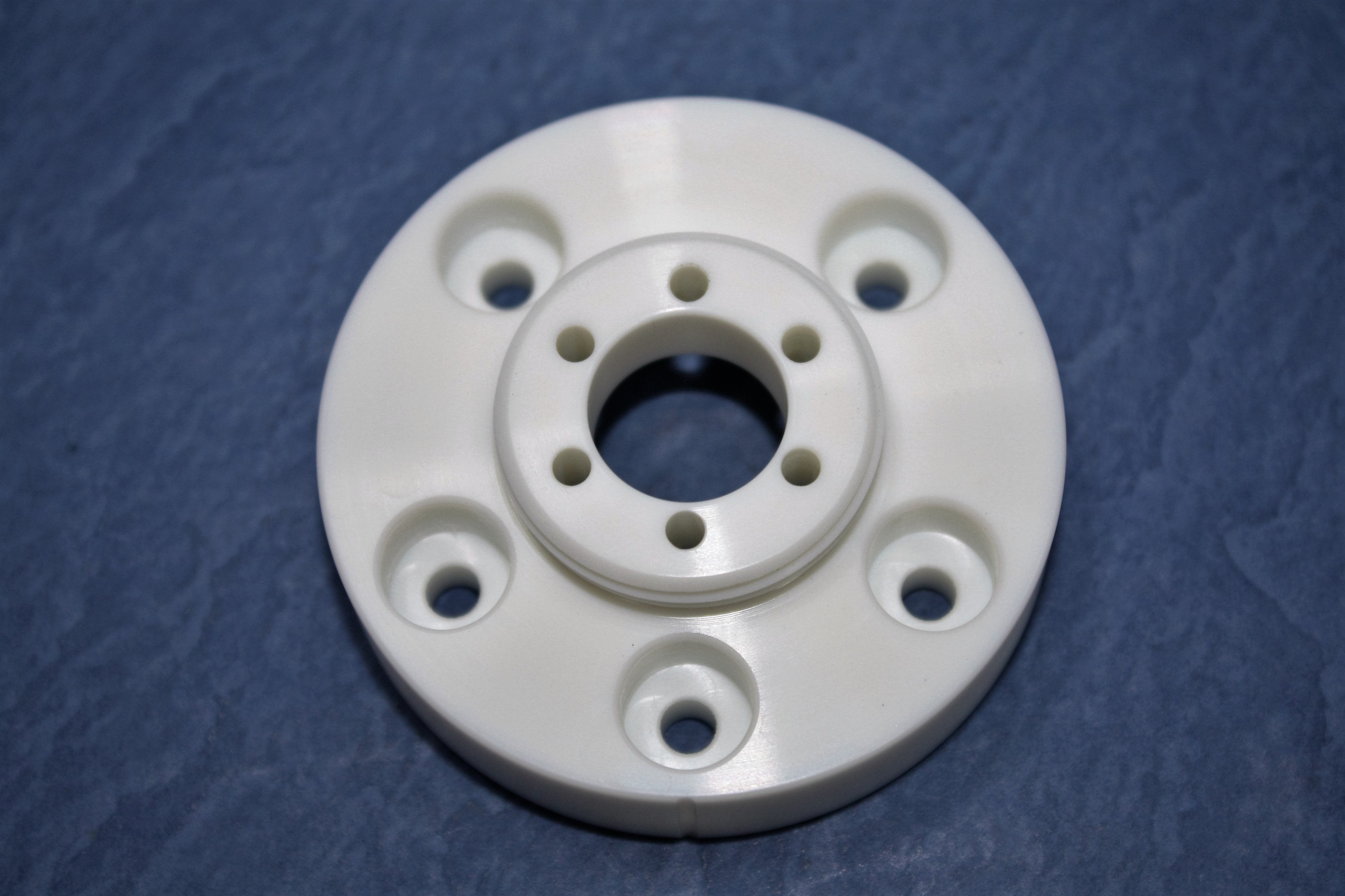

 | F275 | Upper | 上噴水頭座 5孔 Nozzle Holder 58D×19 | DWC-C,iA,iB,iC,iD (Manual) | A290-8110-Y723 |
 | F530 | Feed Section | 出線馬達 DC GEARED MOTOR DC12V | DWC-α-B SS32G-H3RLN A90L-0001-0404#M | |

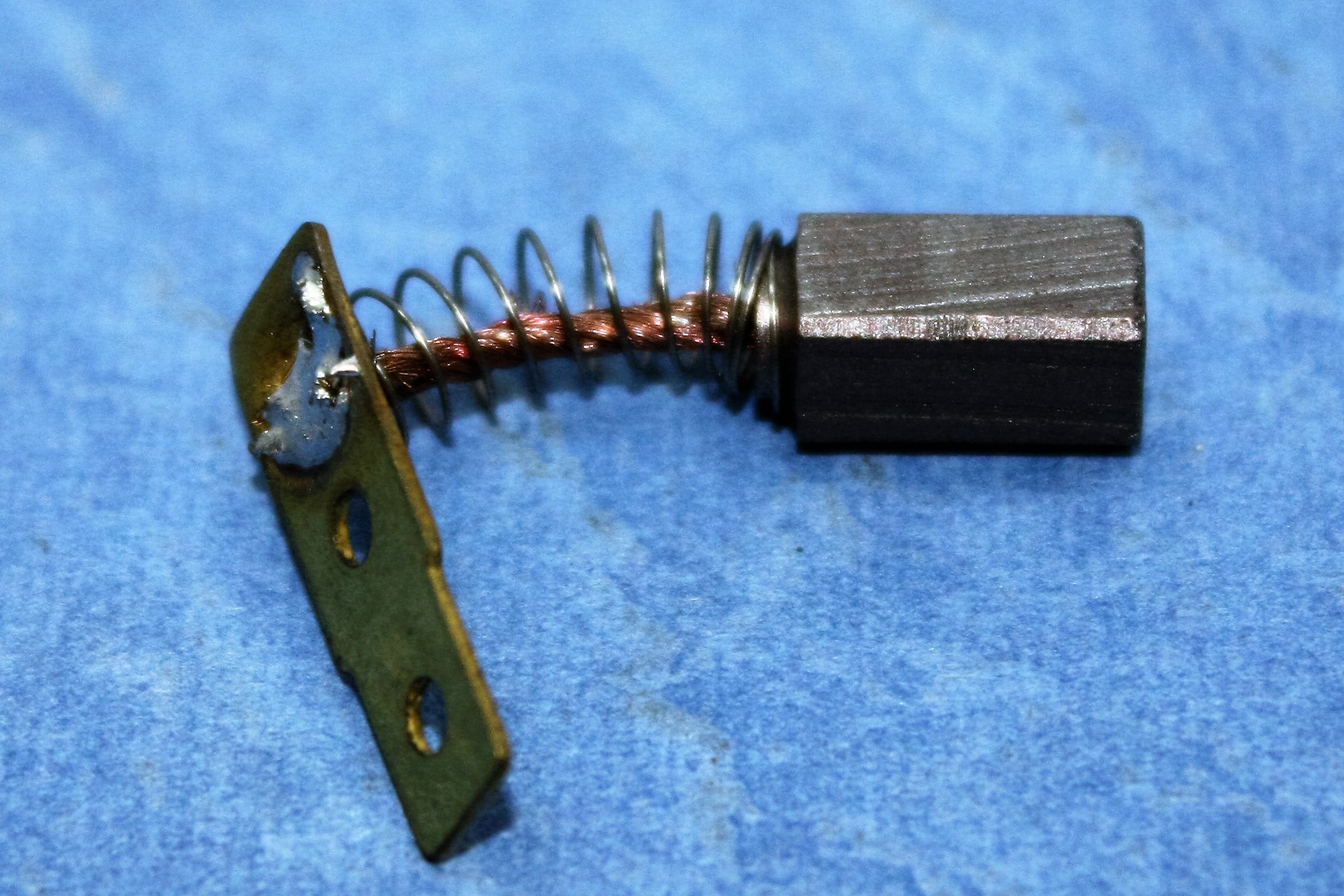

 | F530A | Feed Section | 馬達碳刷 MOTOR BRUSH For F531 | DWC-α-B | |
 | F531 | Feed Section | 出線馬達 DC GEARED MOTOR&A Gear Box DC12V | DWC- α -C, iA,iB,iC,iD A90L-0001-0468#256 8DG25FFB-Gear Box | |

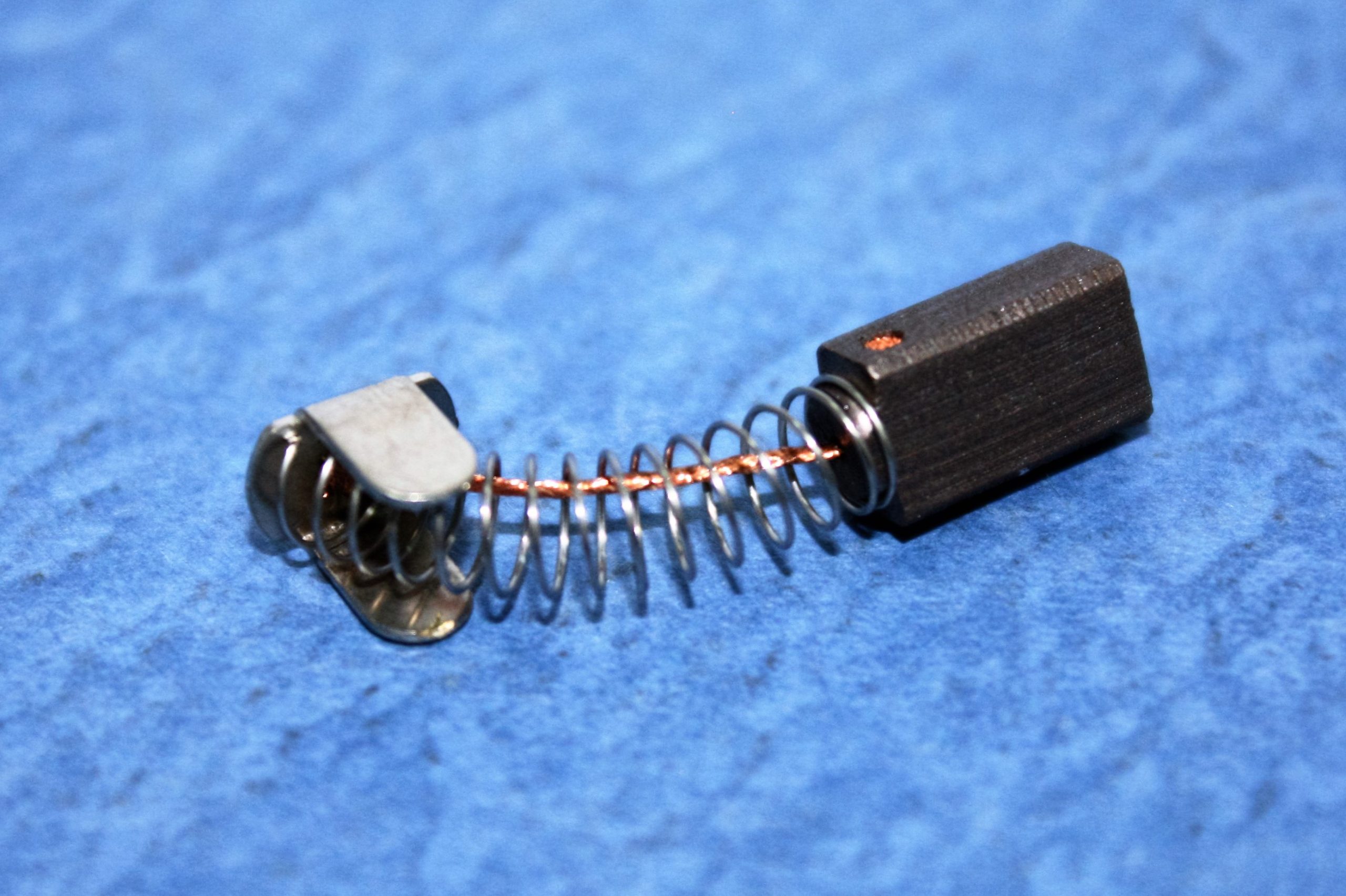

 | F531A | Feed Section | 馬達碳刷 MOTOR BRUSH For F531 | DWC-α-C,iA,iB,iC,iD | |
 | F583 | 下眼膜固定座 | |||

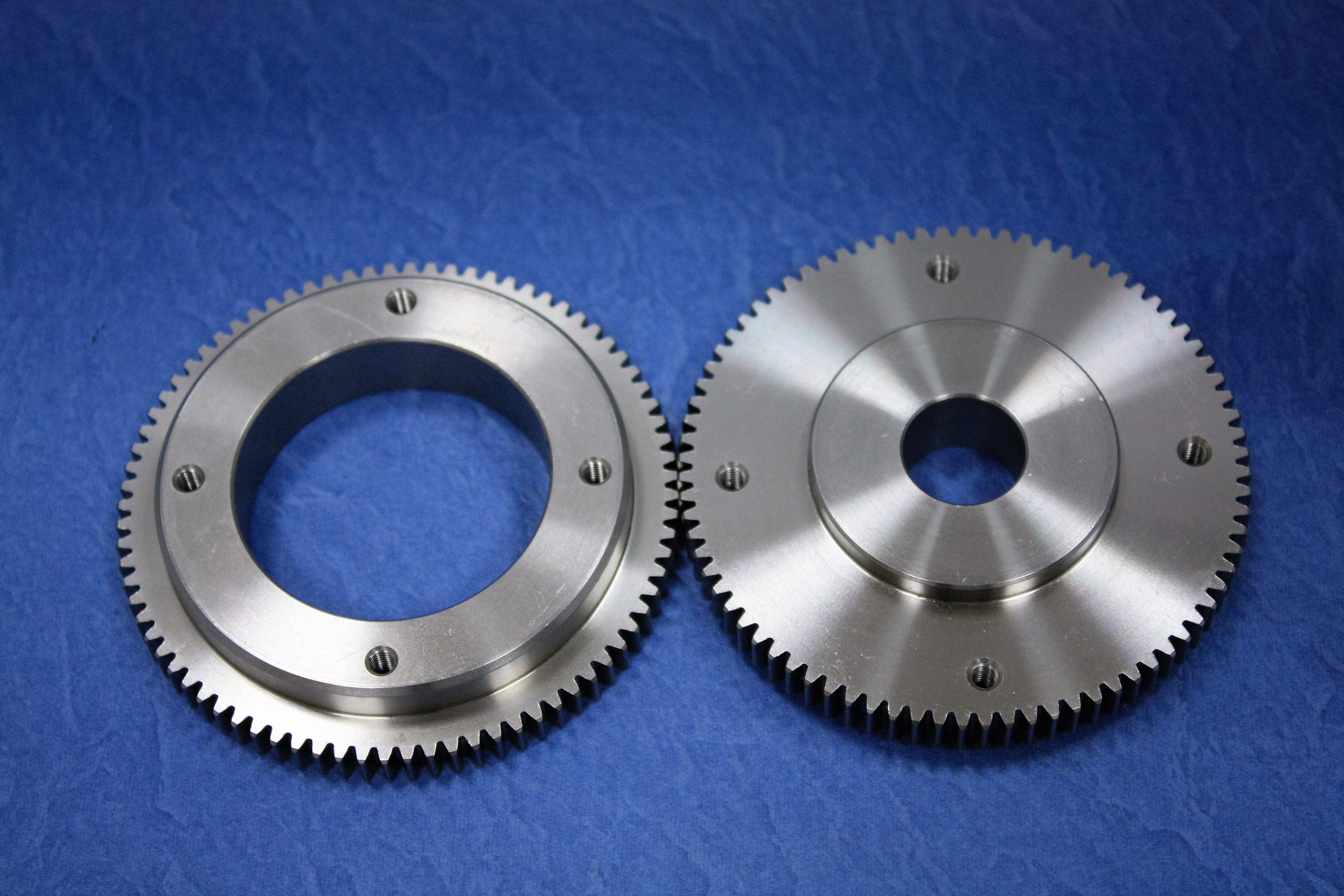

 | F480SET | Lower | 出線輪齒輪組 Roller Gear Feed Roller Gear Ø82*15t Ø82*14.5t | DWC-iA,iB,iC,iD | A290-8112-X362 A290-8112-X363 |
 | F481 | 防止線繞裝置 CERAMIC GEAR Ø82*15t FEED ROLLER GEAR Ø82*14.5t | DWC-iA,iB,iC,iD | A290-8112-X391 | |

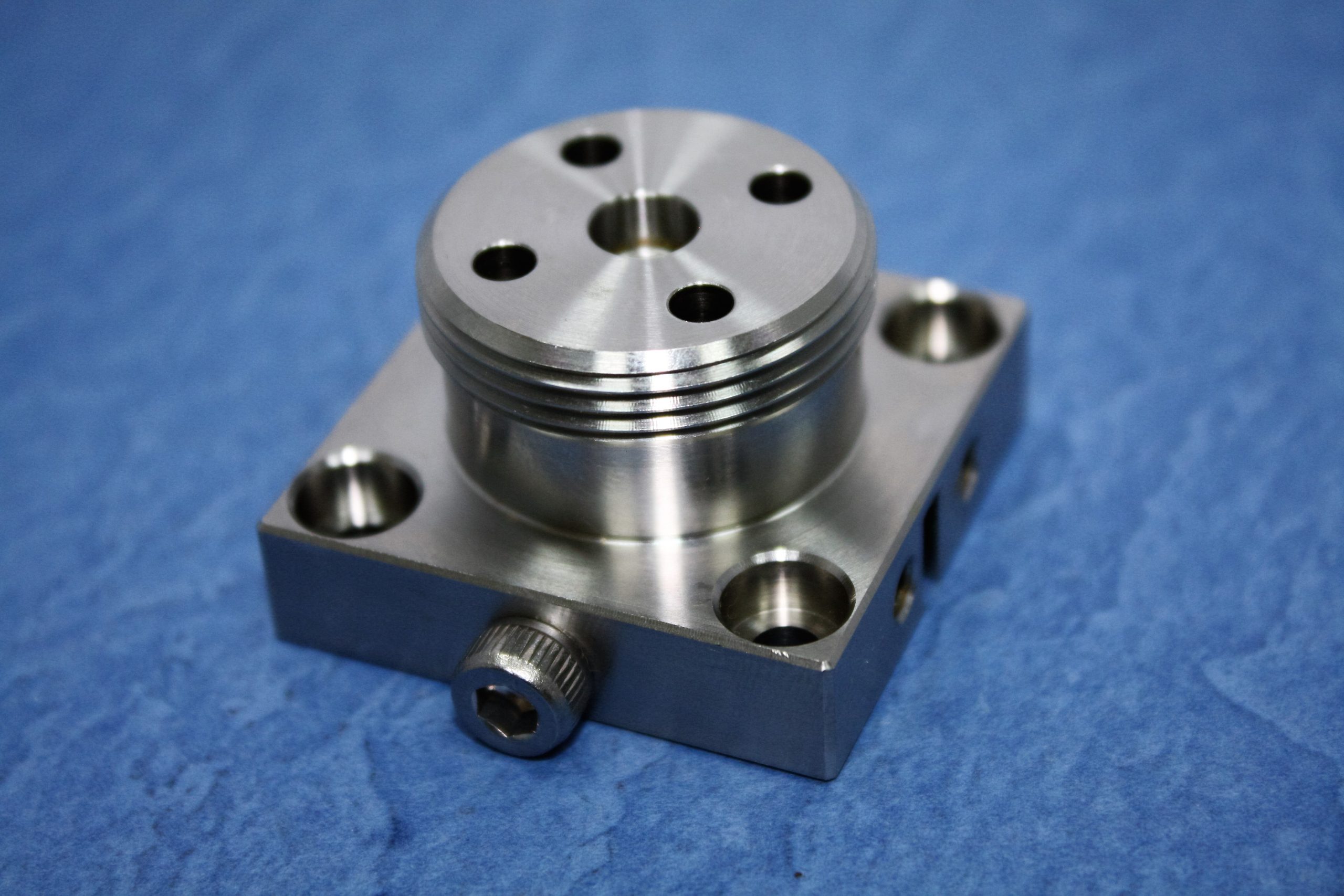

 | F851 | Upper&Lower | 上下眼膜座 Guide Base 40*40*25t | DWC-A,B series (Manual/AWF) | A290-8103-X762 |

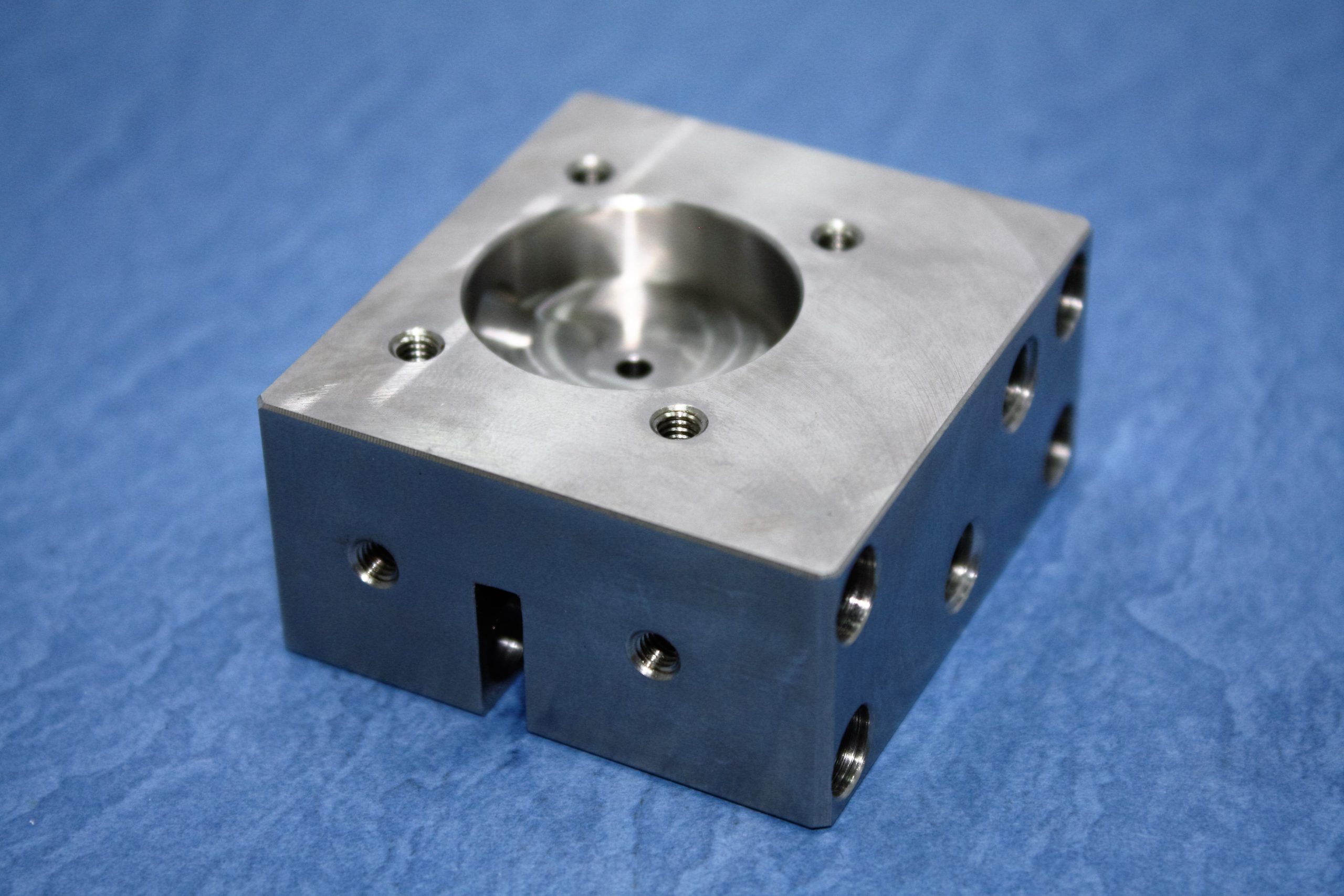

 | F852 | Upper | 上機頭眼膜座 Die Block 55*51*26t | DWC- i series (Manual) | A290-8111-X751 |

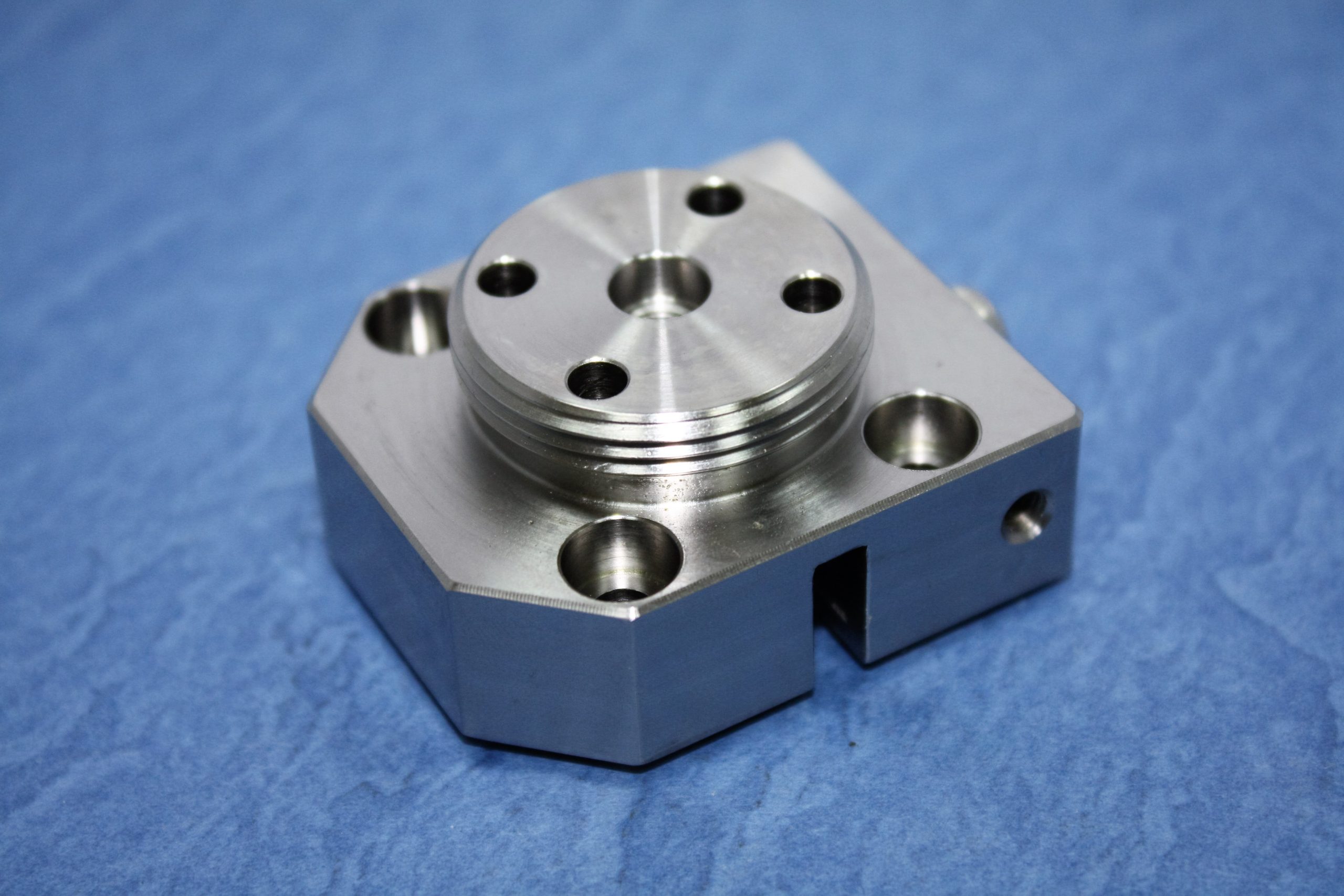

 | F853 | Lower | 下眼膜座 Guide Base 46*40*24.5t | DWC-C(Manual) DWC-iA,iB,iC (AWF) | A290-8110-X762 |
 | F853iD | Lower | 下眼膜座 Guide Base For F323 46*40*24.5t | DWC- iD 前期(Early) | |

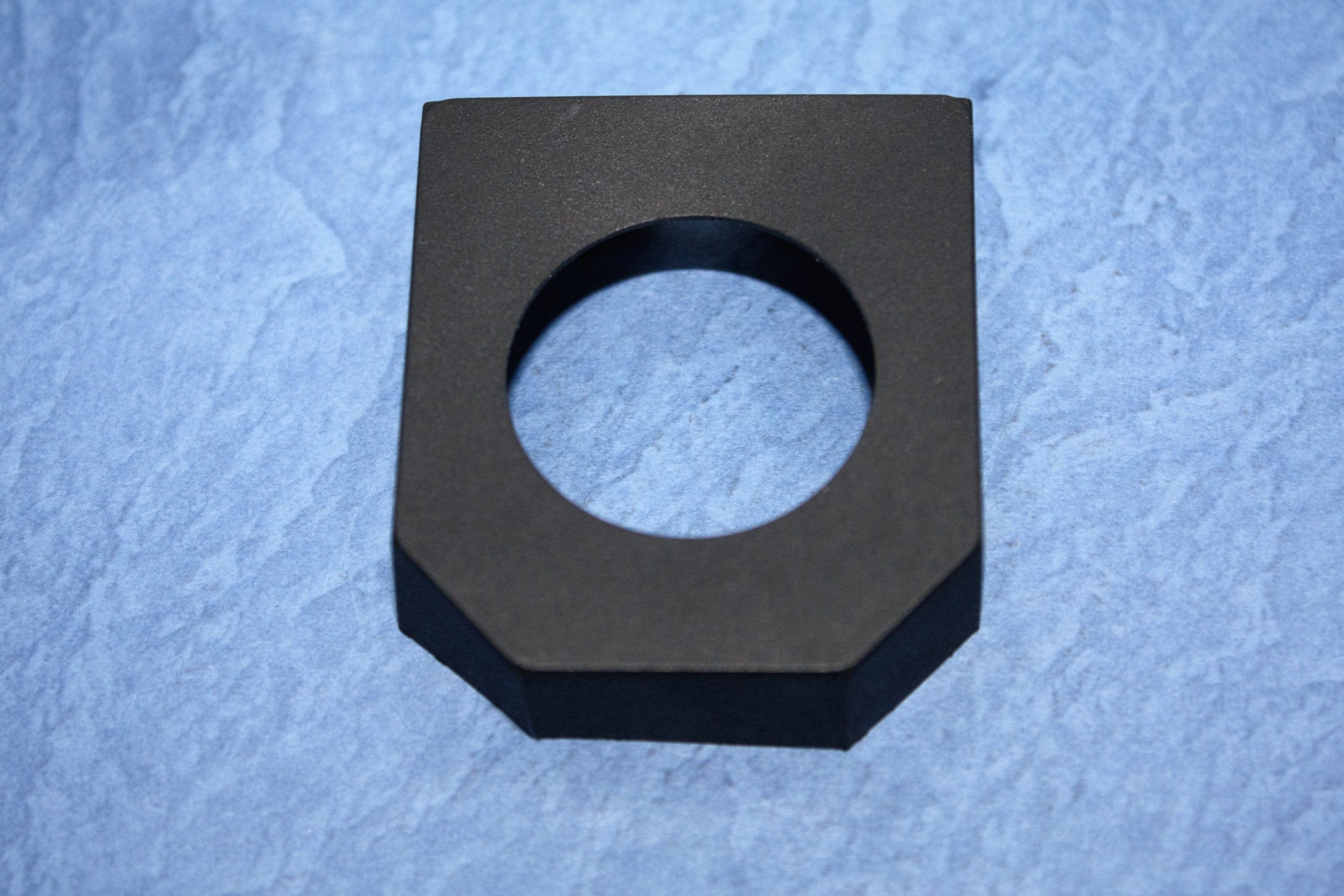

 | F853-1 | Lower | 下眼膜橡膠套 Base Cover For F853 | α-C,iA,iB,iC series (Manual/AWF) | A290-8110-X767 |

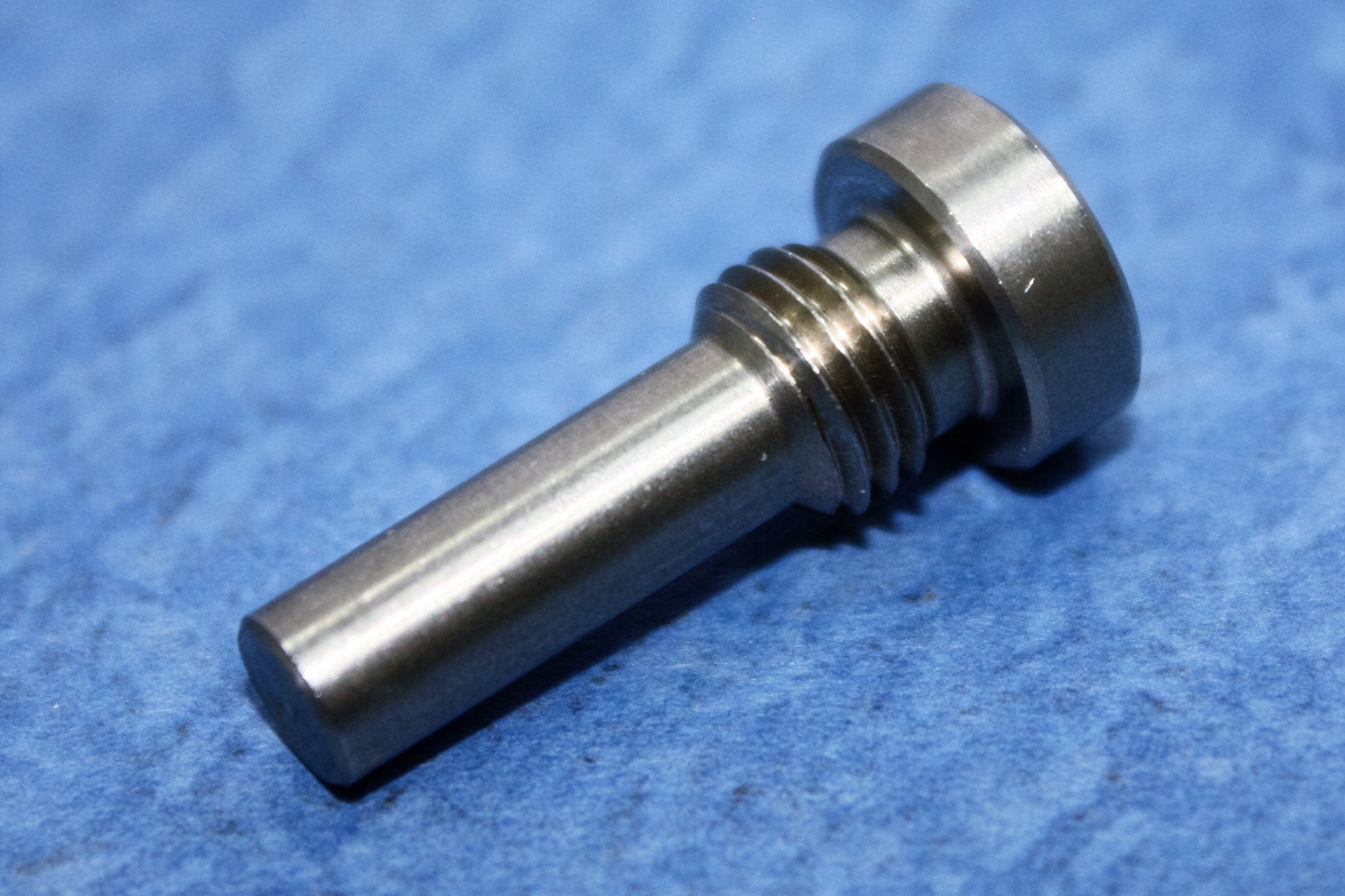

 | F853-2 | Lower | 給電板固定螺絲 Set Screw L:26mm | DWC-C(Manual) DWC- iA,iB,iC ( AWF) | A290-8112-X752 |

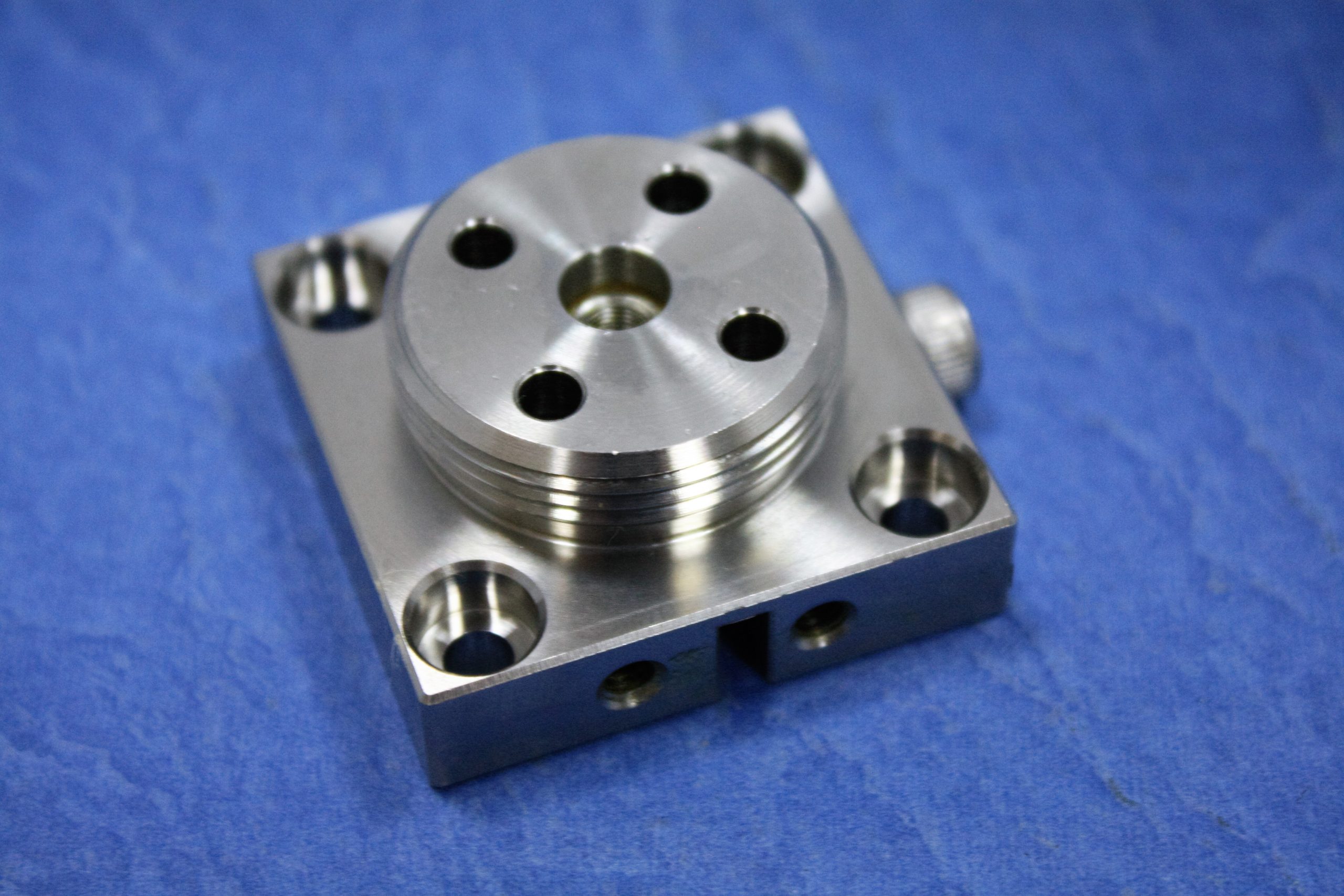

 | F854 | Lower | 下機頭眼膜座 Guide Base 40*40*19t | α-B series (AWF) | A290-8102-X762 |
 | F855 | Upper | 上機頭眼膜座 Die Block 70*55*27t | α-C,iA,iB,iC series (Manual/AWF) | A290-8110-X751 |

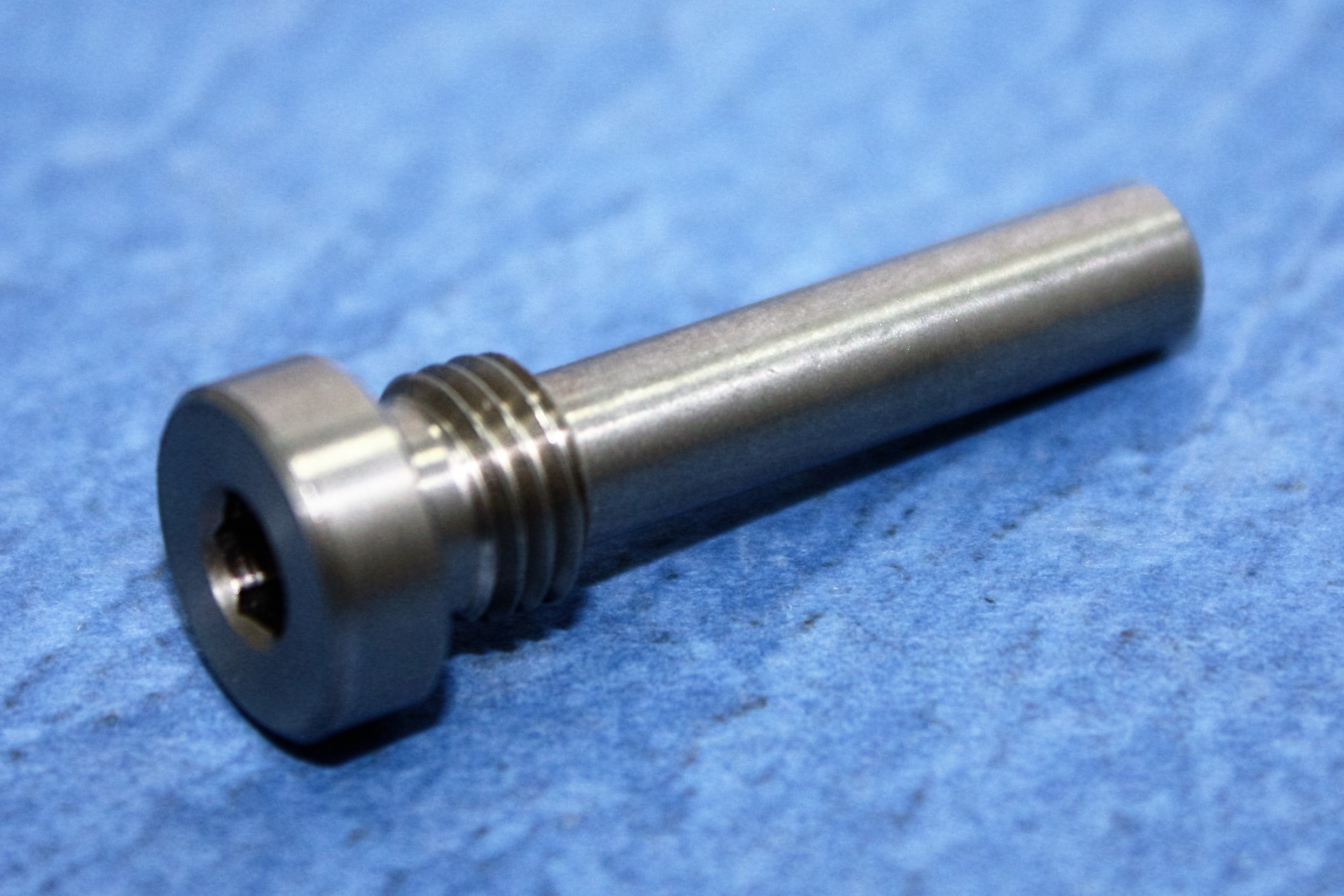

 | F855-1 | Upper | 上給電板固定螺絲 Set Screw L:34mm For F855 | α-C,iA,iB,iC series (Manual/AWF) | A290-8110-X751 |

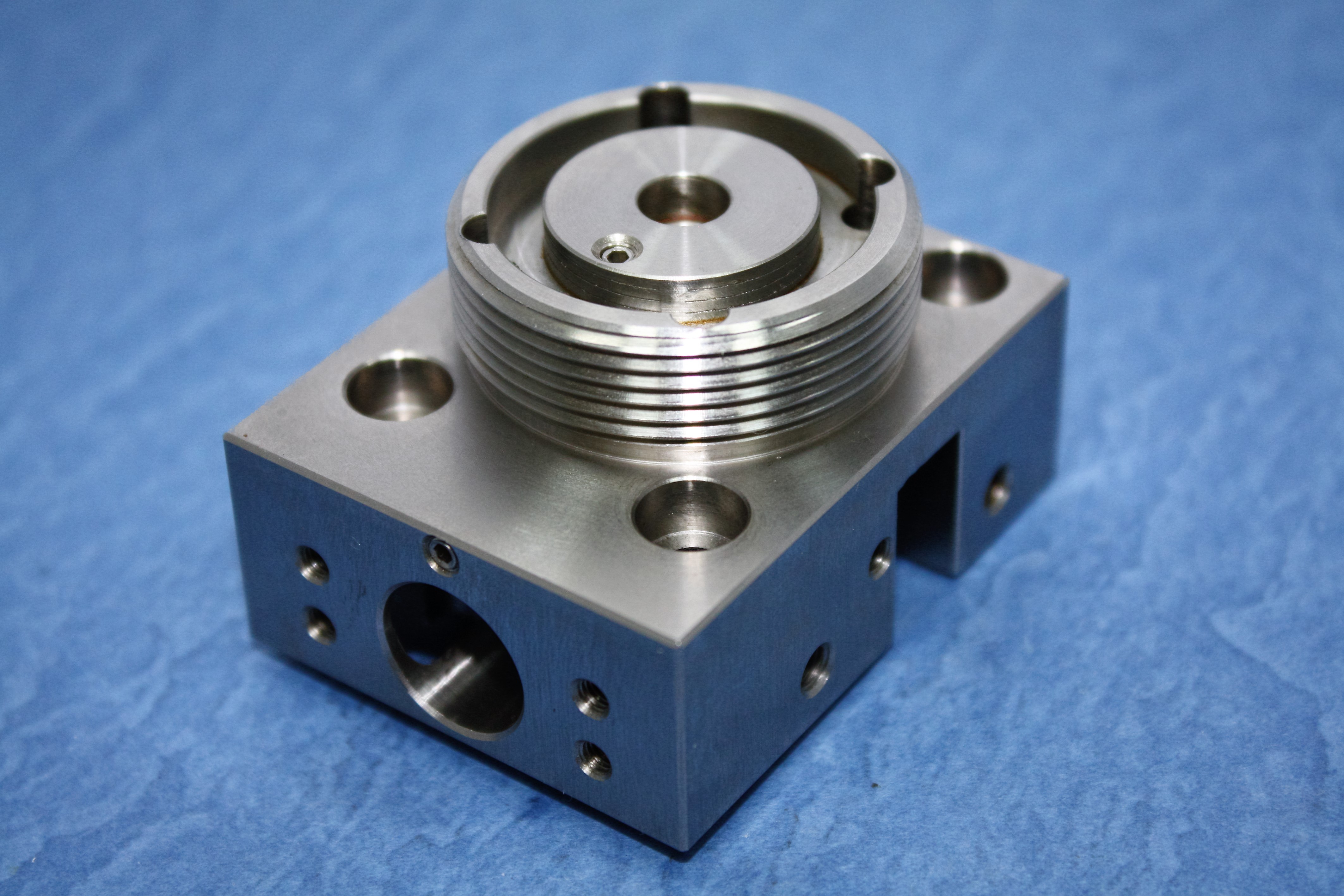

 | F856 | Lower | 下機頭眼膜座 Guide Base 42*53*32 | α-iD,iE,400iA,600iA (AWF) | A290-8120-X763 |

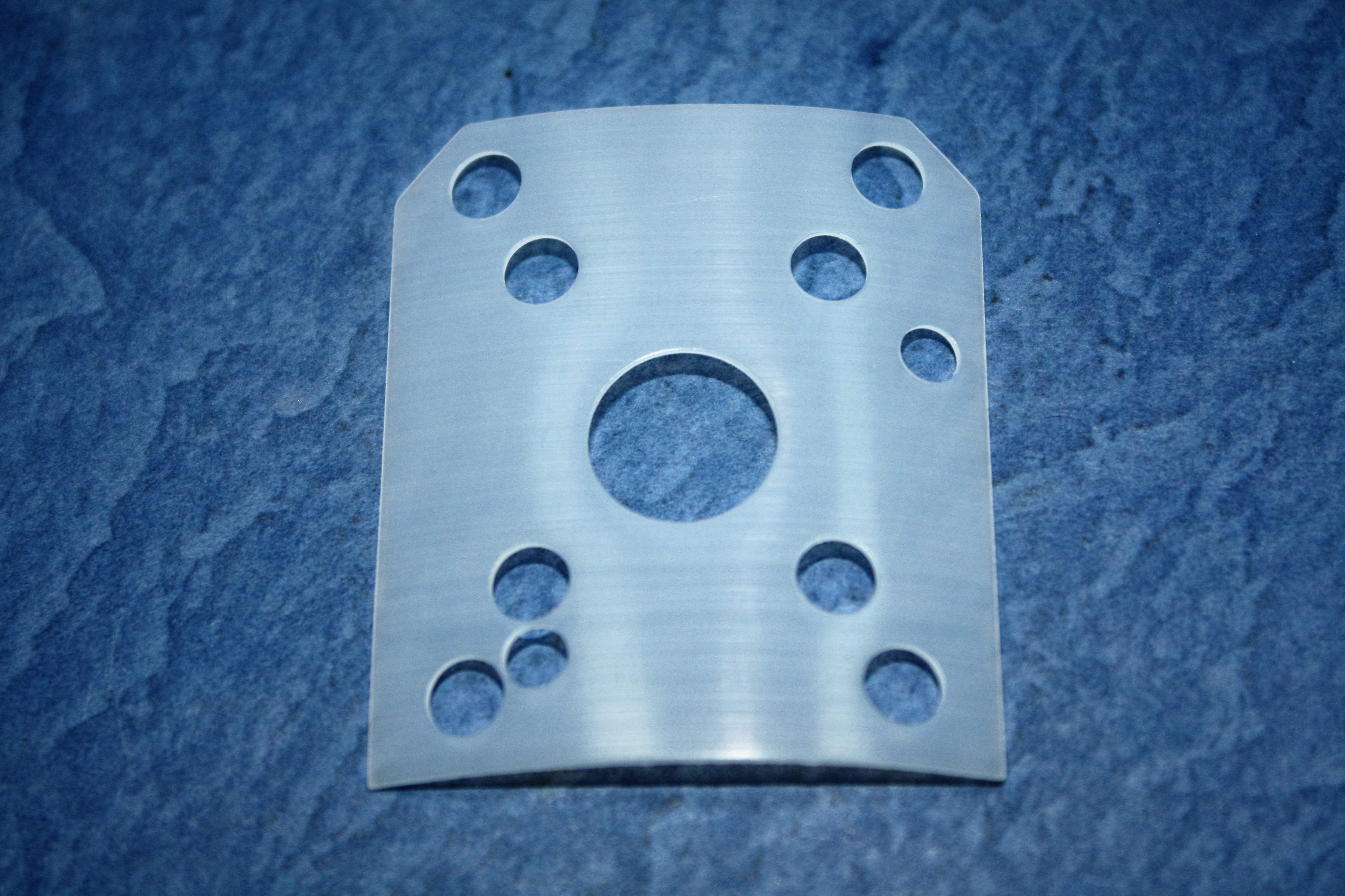

 | F856-1 | Lower | 下機頭絕緣墊片 Lnsulating Sheet 40*46.2*0.5t | DWC-iD,iE,400iA,600iA,C800iA(AWF) | A290-8117-X764 |
 | F856-2 | Lower | 給電板貼面塊 Power Feed Contact Seat for F856 9*42*16.5t | DWC-iD,iE,400iA,600iA,C800iA(AWF) | A290-8123-Z770 |
 | F856-4 | Lower | L型入水管接頭 Water PipeFitting For F856 M3*2.6mm*5t | DWC-iD,iE,600iA,iB,400iA,iB,800iA,iB, series(AWF) | A97L-0203-0464 #FTL4M3 |
| F856-4A | Lower | L型入水管接頭 Water PipeFitting For F856 M3*3.5mm*5t | DWC-iD,iE,600iA,iB,400iA,iB,800iA,iB, series(AWF) | A97L-0203-0464 #FTL4M3 |
 | F856-5 | Lower | T型入水管接頭 Water PipeFitting For F864C M5-3.5mm | DWC-iD,iE,600iA,iB,400iA,iB,800iA,iB, series(AWF) | A97L-0203-0464 #FTL4M5 |
| F856-5A | Lower | T型入水管接頭 Water PipeFitting For F864C M5-2.6mm | DWC-iD,iE,600iA,iB,400iA,iB,800iA,iB, series(AWF) | |
 | F856-7 | Lower | 入水管接頭 Elbow screw joint For F856 O 4*M5 | DWC-iD,iE,600iA,iB,400iA,iB,800iA,iB, series(AWF) | A97L-0203-0464 #FCL4M5 |

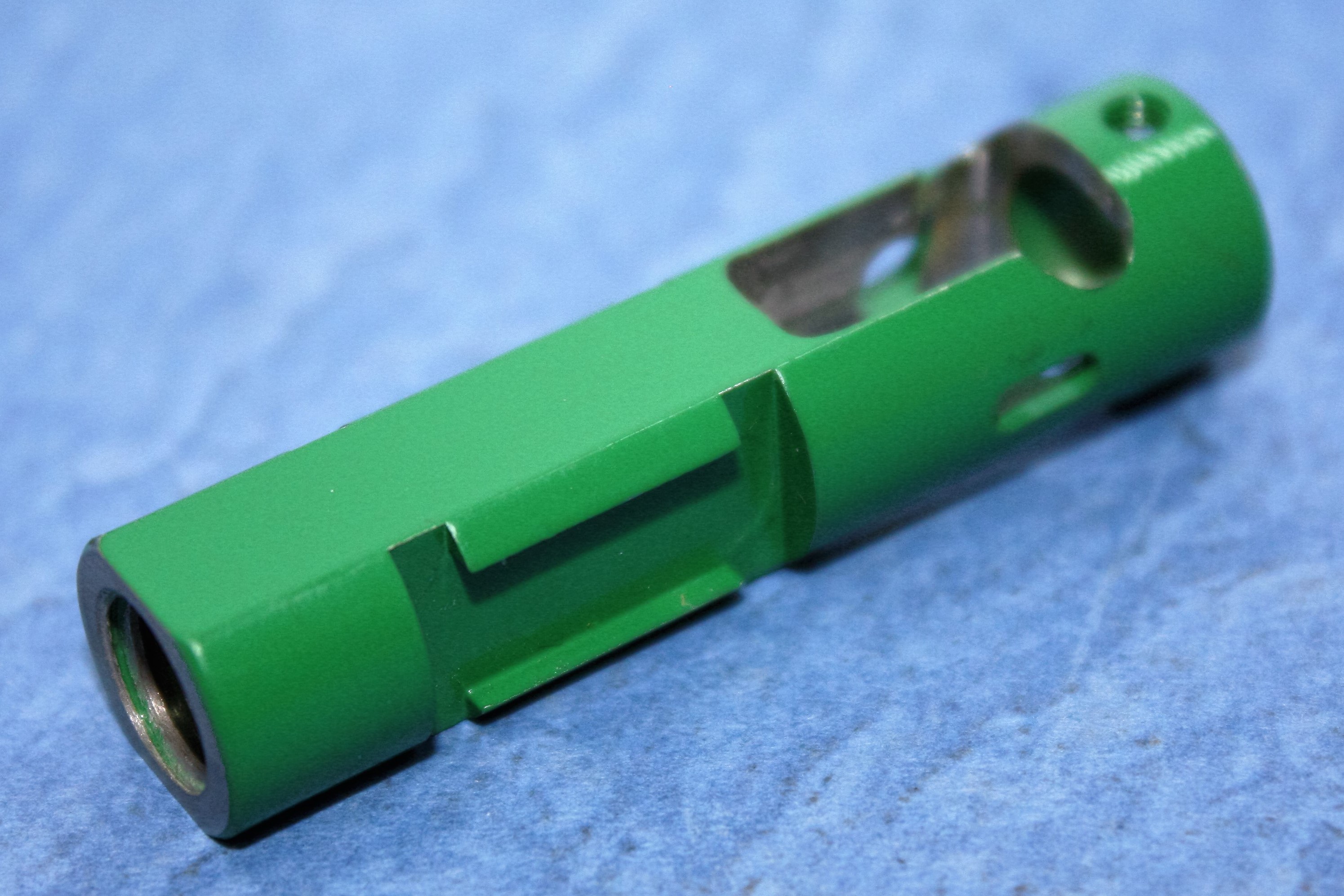

 | F857 | Lower | 下給電板固定軸心Electrode Holder 48mmL | DWC-iD,iE,600iA,iB,800iA,iB series(AWF) | A290-8120-Z781 |
 | F857A | Lower | 下給電板固定軸心Electrode Holder 45.8mmL | DWC-400iA,iB series(AWF) | A290-8119-Z781 |

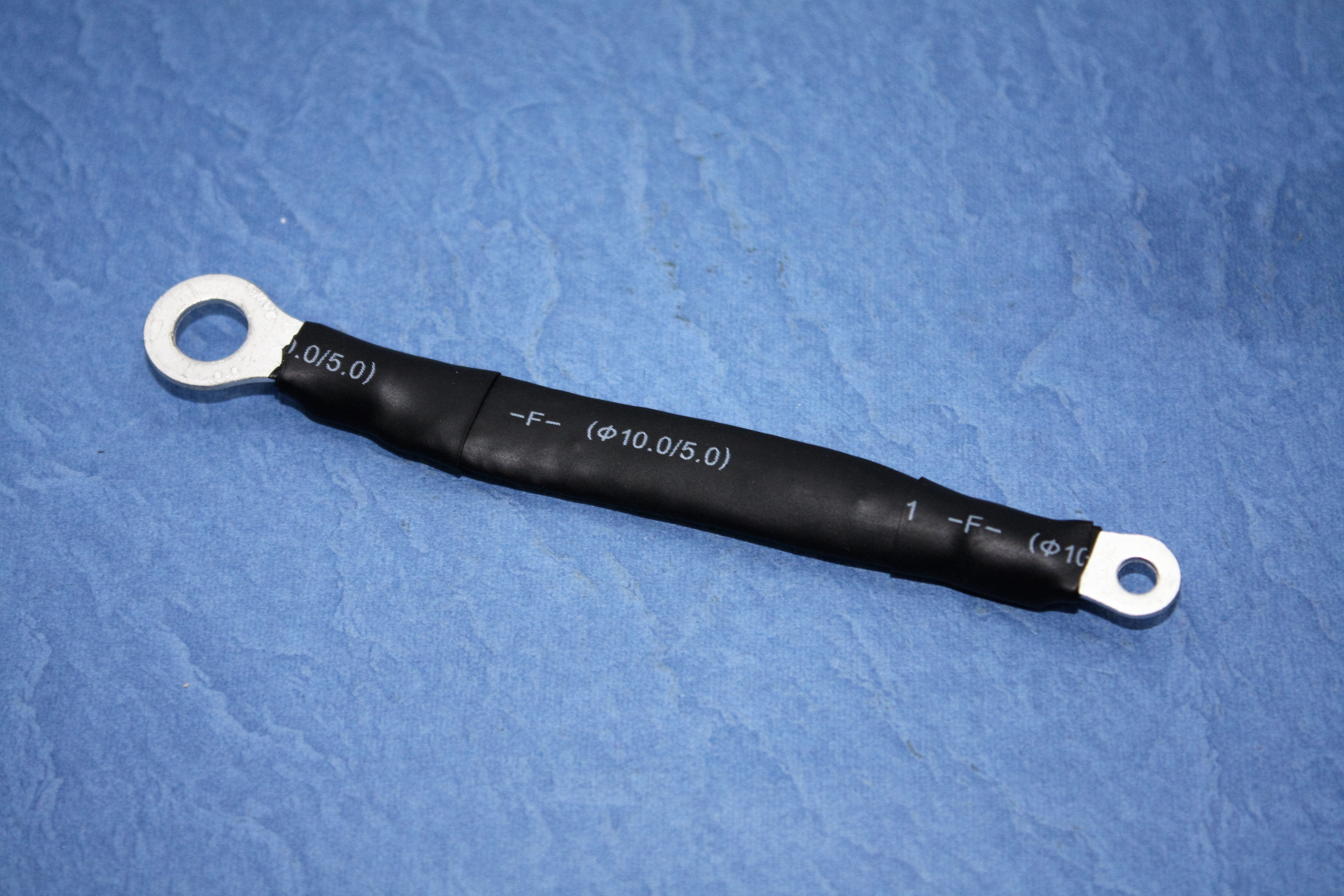

 | F857-1 | Lower | 下給電板導電線 CABLE L:105mm For F857 | DWC-iD,iE,600iA,iB,400iA,iB,800iA,iB, series(AWF) | A660-8017-T650 |

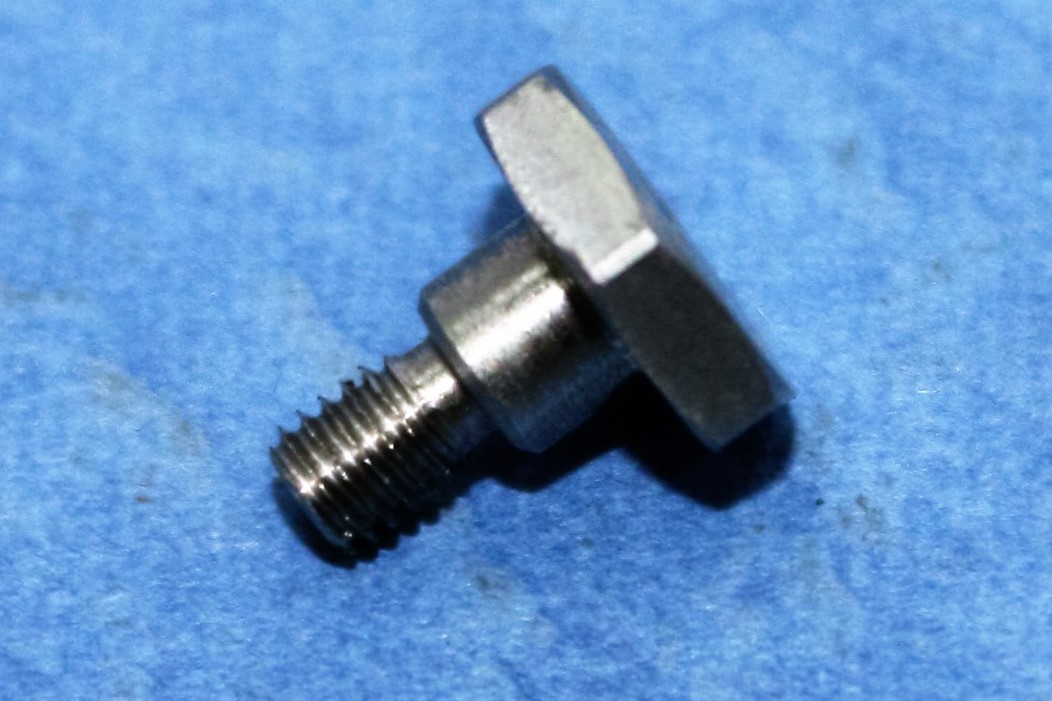

 | F857-2 | Lower | 固定螺絲 Slide Screw L:10mm | DWC-iD,iE,600iA,iB,400iA,iB,800iA,iB, series(AWF) | A290-8119-X739 |

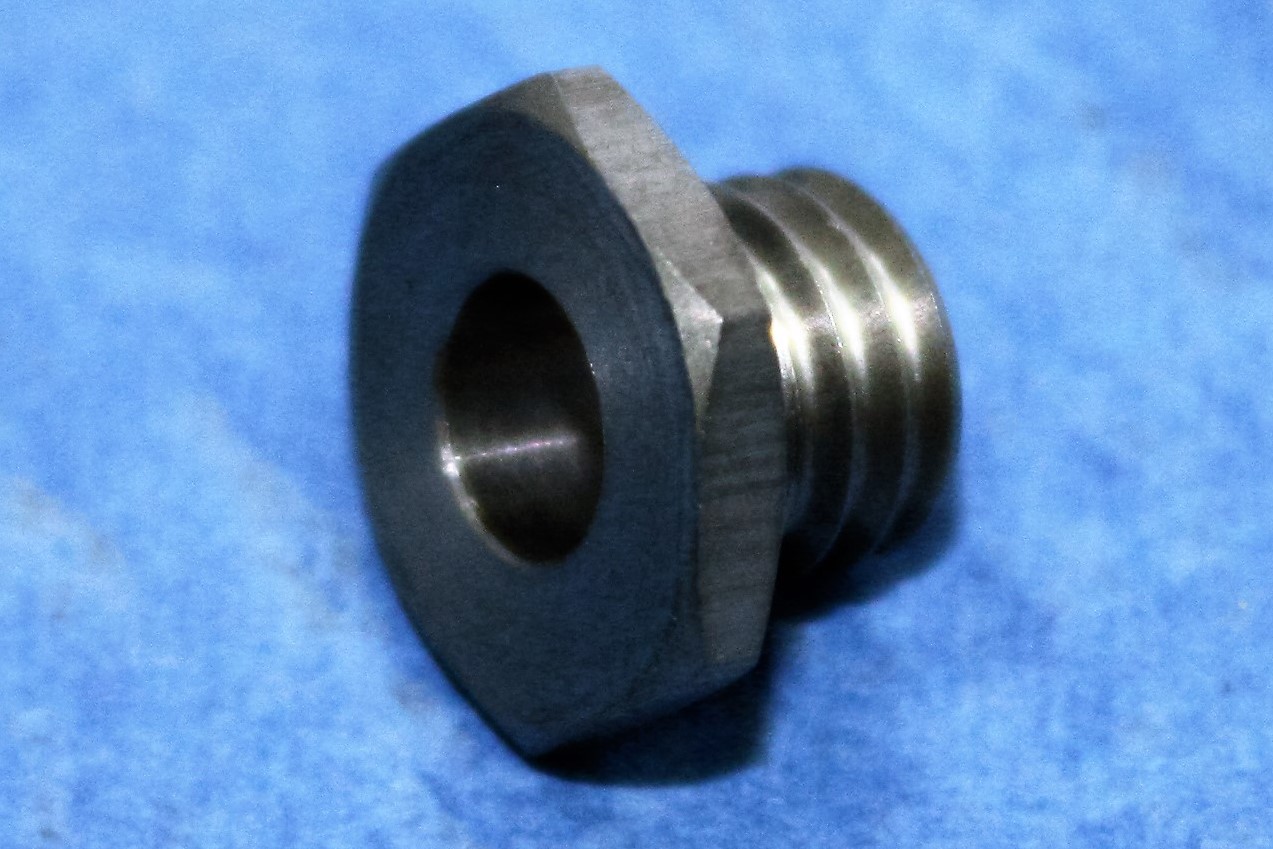

 | F857-3 | Lower | 下給電板電線固定螺絲 Bolt L:10mm For F857-1 | DWC-iD,iE,600iA,iB,400iA,iB,800iA,iB, series(AWF) | A290-8123-Z772 |

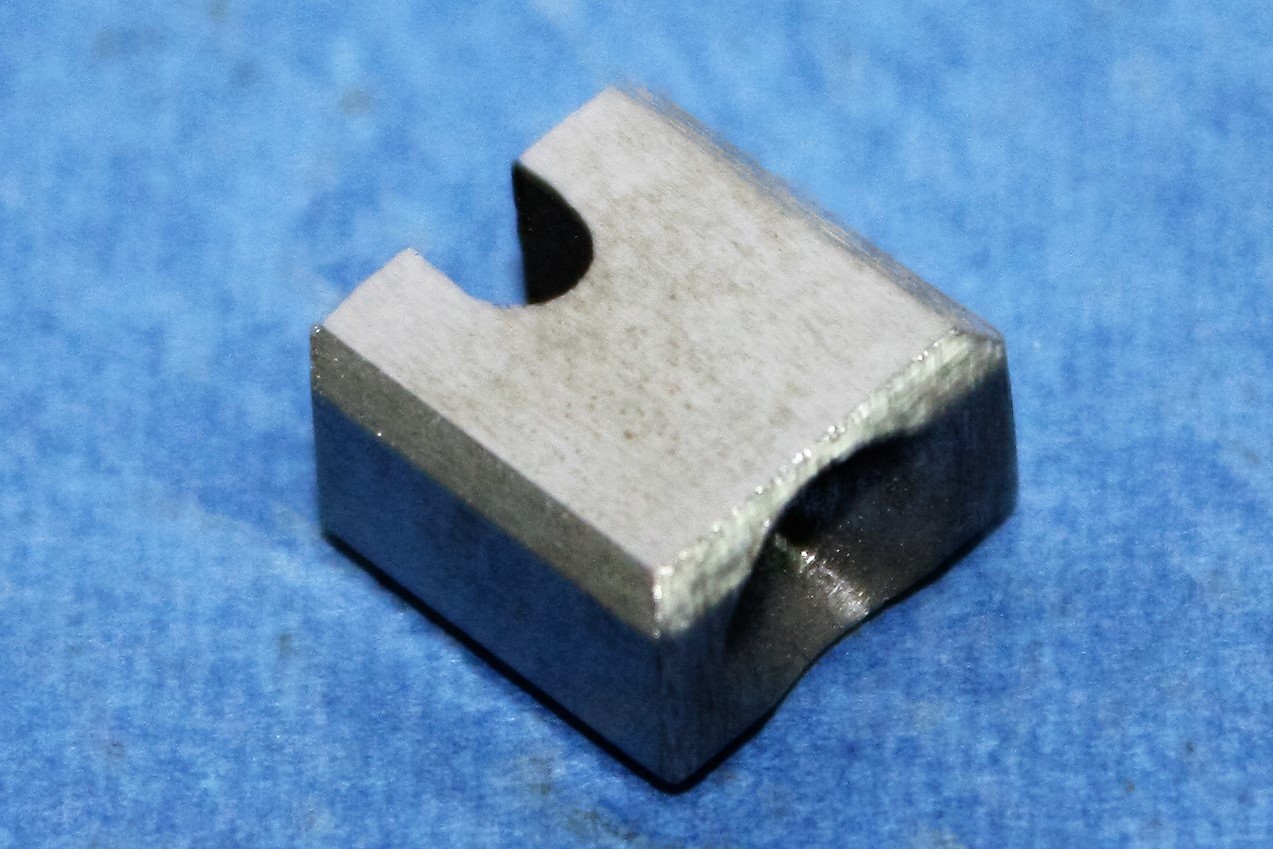

 | F857-4 | Lower | 下給電板固定塊 For F857 10.3*9.9*6 | DWC-iD,iE,600iA,iB,400iA,iB,800iA,iB, series(AWF) | |

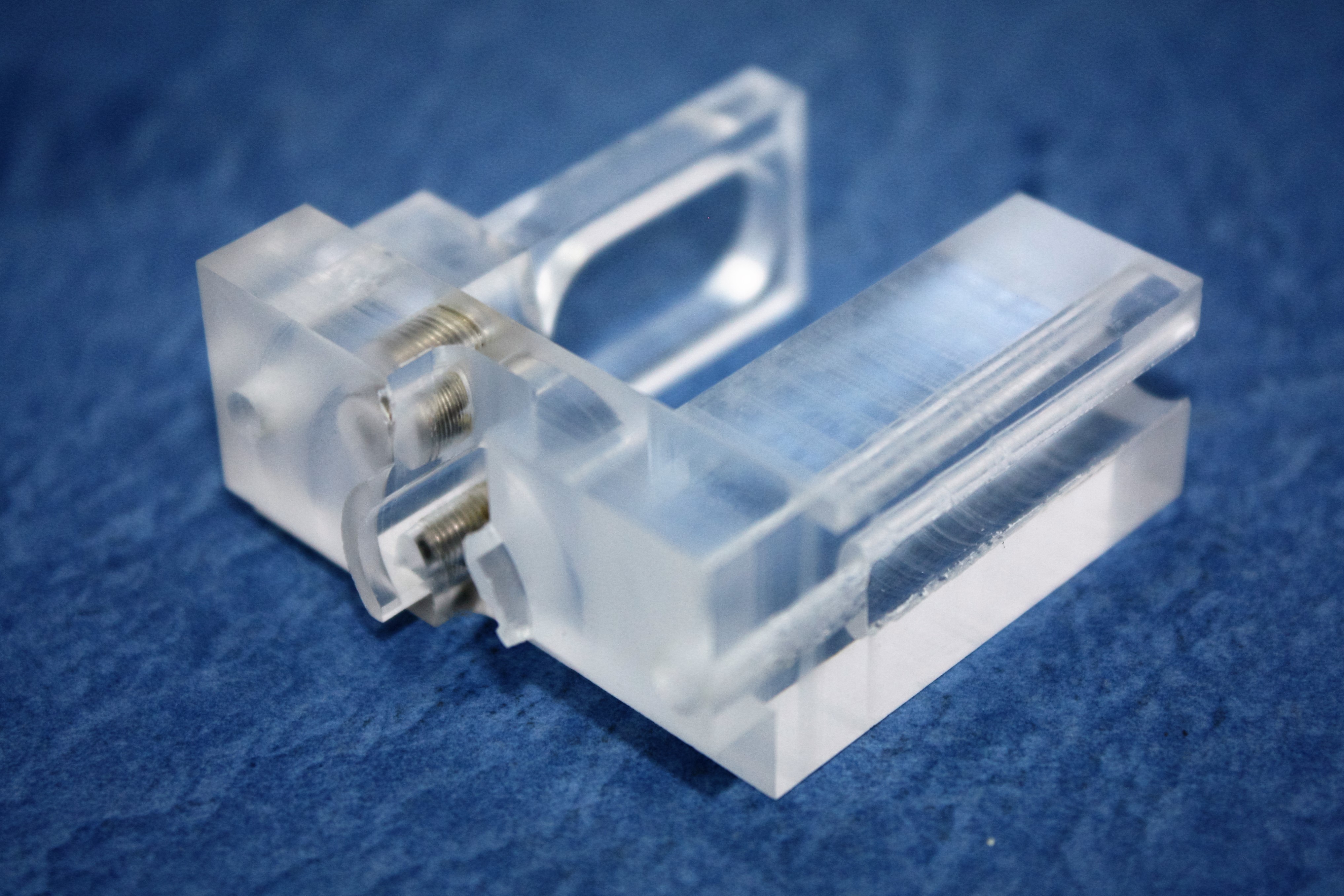

 | F858 | Lower | 氣壓缸固定座 Cylinder Base 42*45*20t | DWC-iD,iE,400iA,600iA (AWF) | A290-8120-Z783 |
 | F859 | Upper | 上機頭眼膜座 Die Block 70*55*31t | DWC-iD,iE,600iA,iB,400iA.iB,800iA.iB series(AWF) | A290-8116-Y751+ A290-8116-Y752 |
 | F859A | Upper | 上眼膜固定底座 Die Holder 31*9.5t | DWC-iD,iE,600iA,iB,400iA.iB,800iA.iB series(AWF) | A290-8116-Y755 |
 | F860 | Lower | 下機頭收線輪弧 Lower Guide Block 69*51*20t | α-C,iA,iB,iC series (Manual/AWF) | A290-8110-X770 |

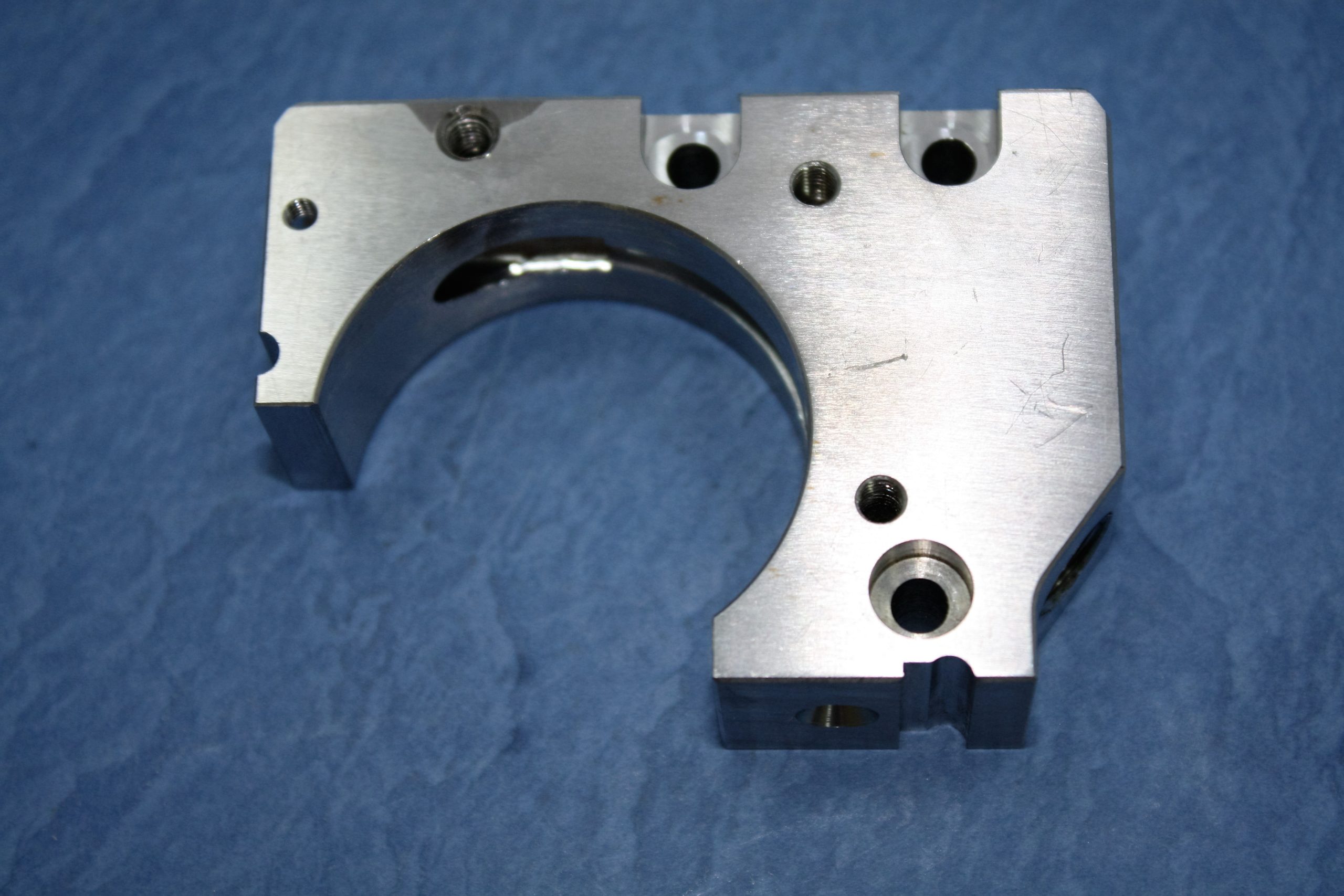

 | F860-1 | Lower | 下收線輪弧蓋板 Cover For Lower Roller Block 60*66*16t | DWC-C,i series | A290-8110-Y780 |

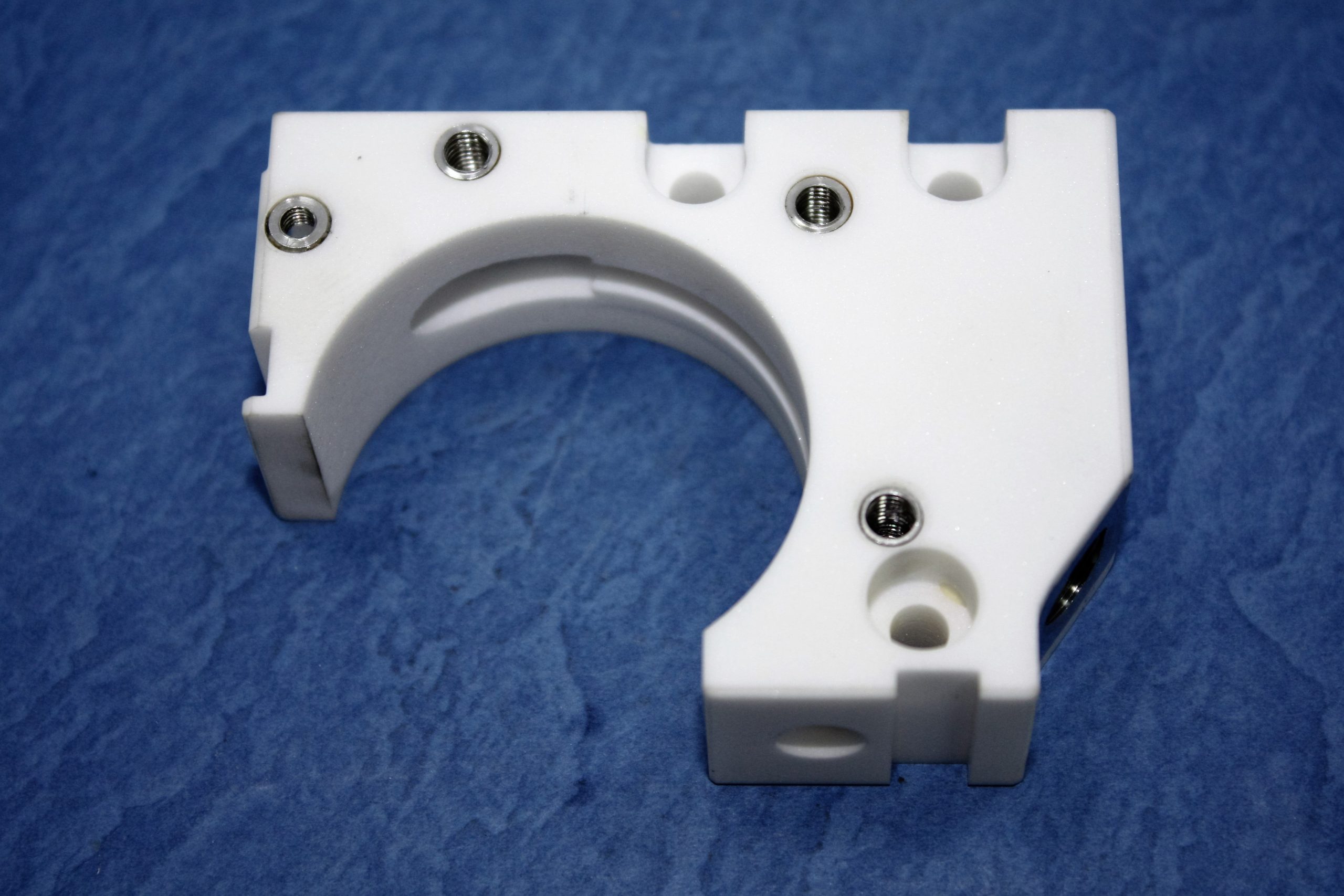

 | F860C | Lower | 陶瓷收線輪弧(Ceramic) Lower Guide Block 69*51*20t | α-C,iA,iB,iC series (Manual/AWF) | A290-8110-X770 |

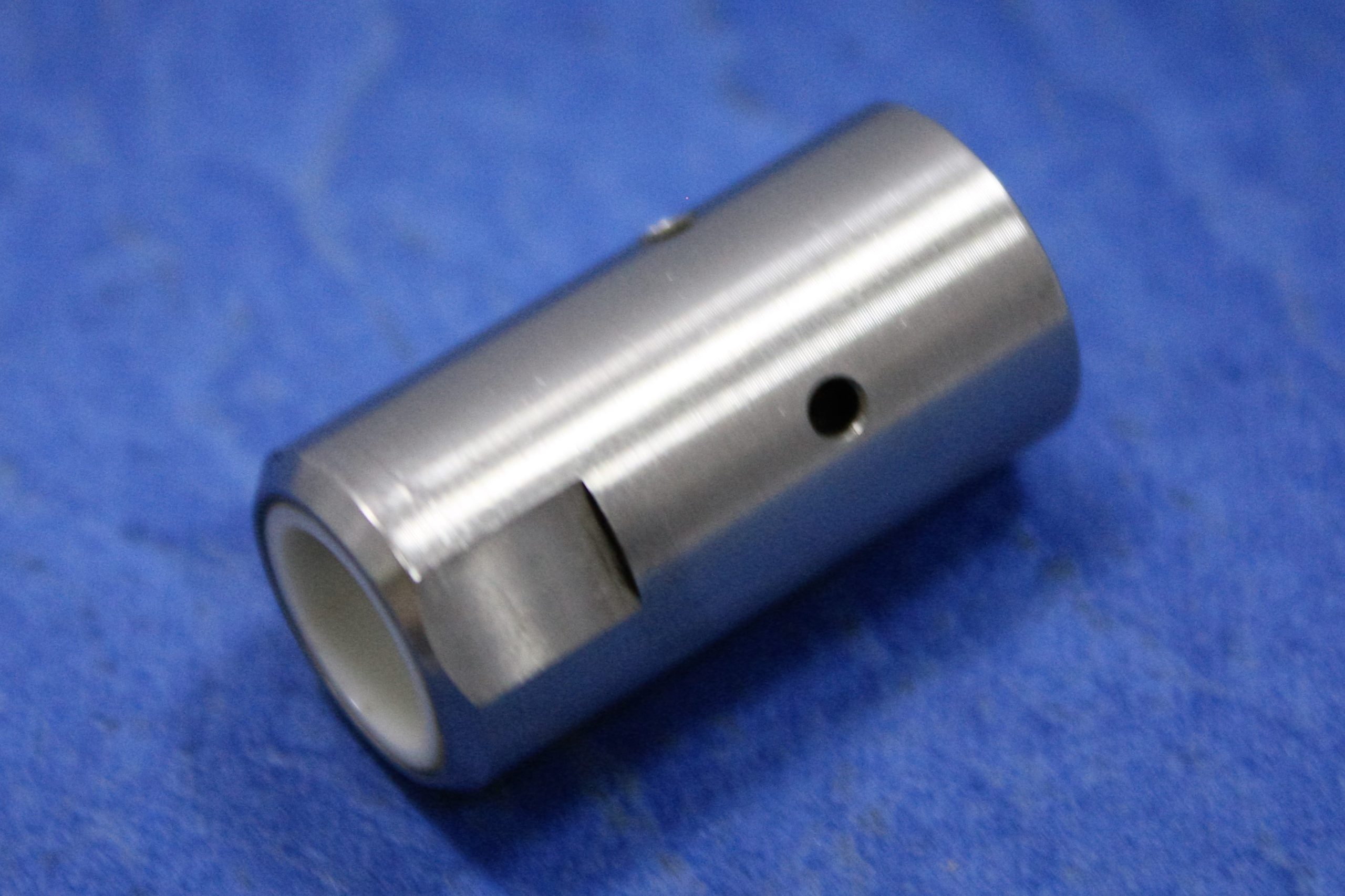

 | F860-2 | Lower | 下機頭出線管導引頭 End Head For Leading Wire To Rollers 14D*27.5L | α-C,iA,iB,iC series (Manual/AWF) | |

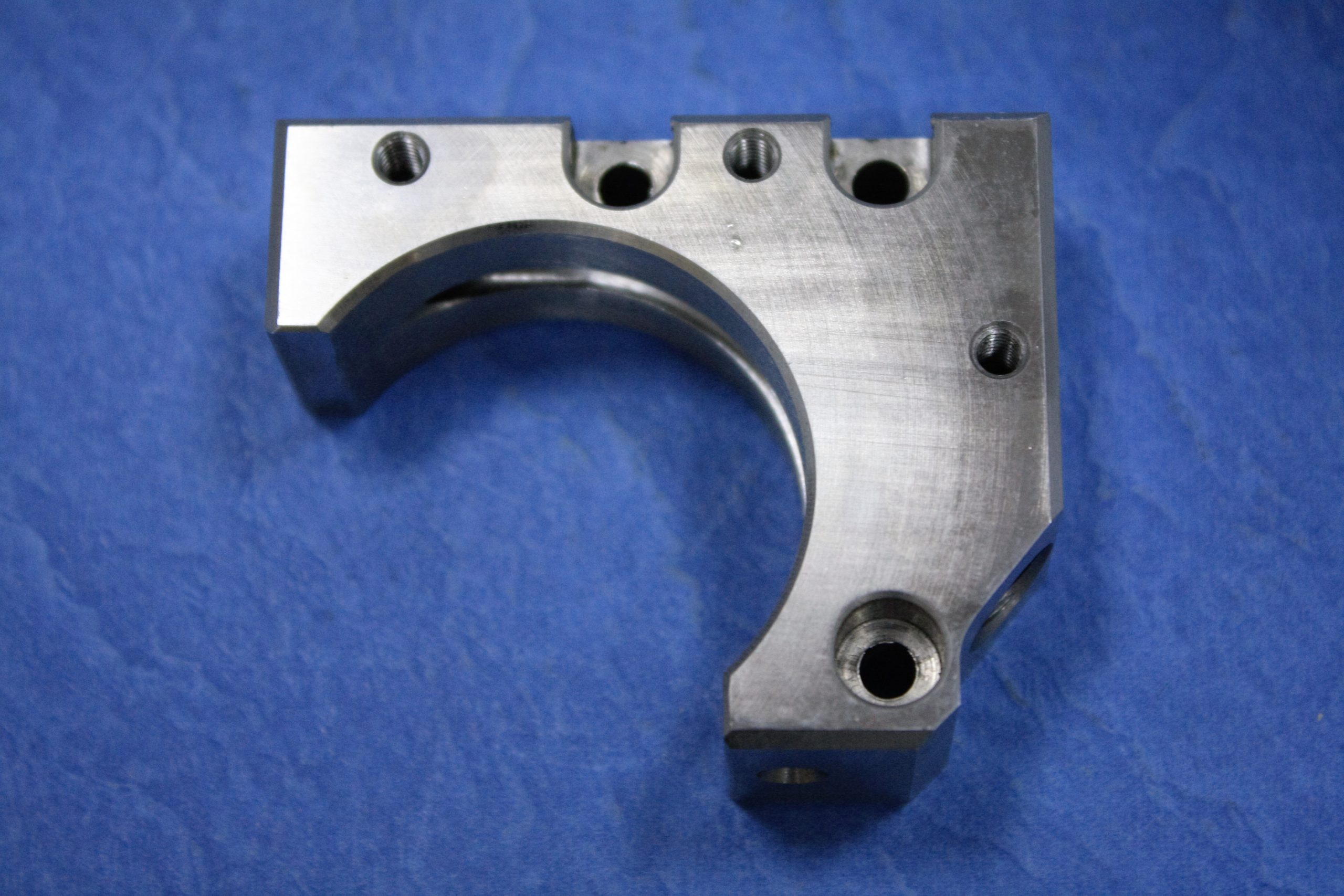

 | F861 | Lower | 下機頭收線輪弧 Lower Roller Block(SUS) 59*50*20t | α-1A,1B | |

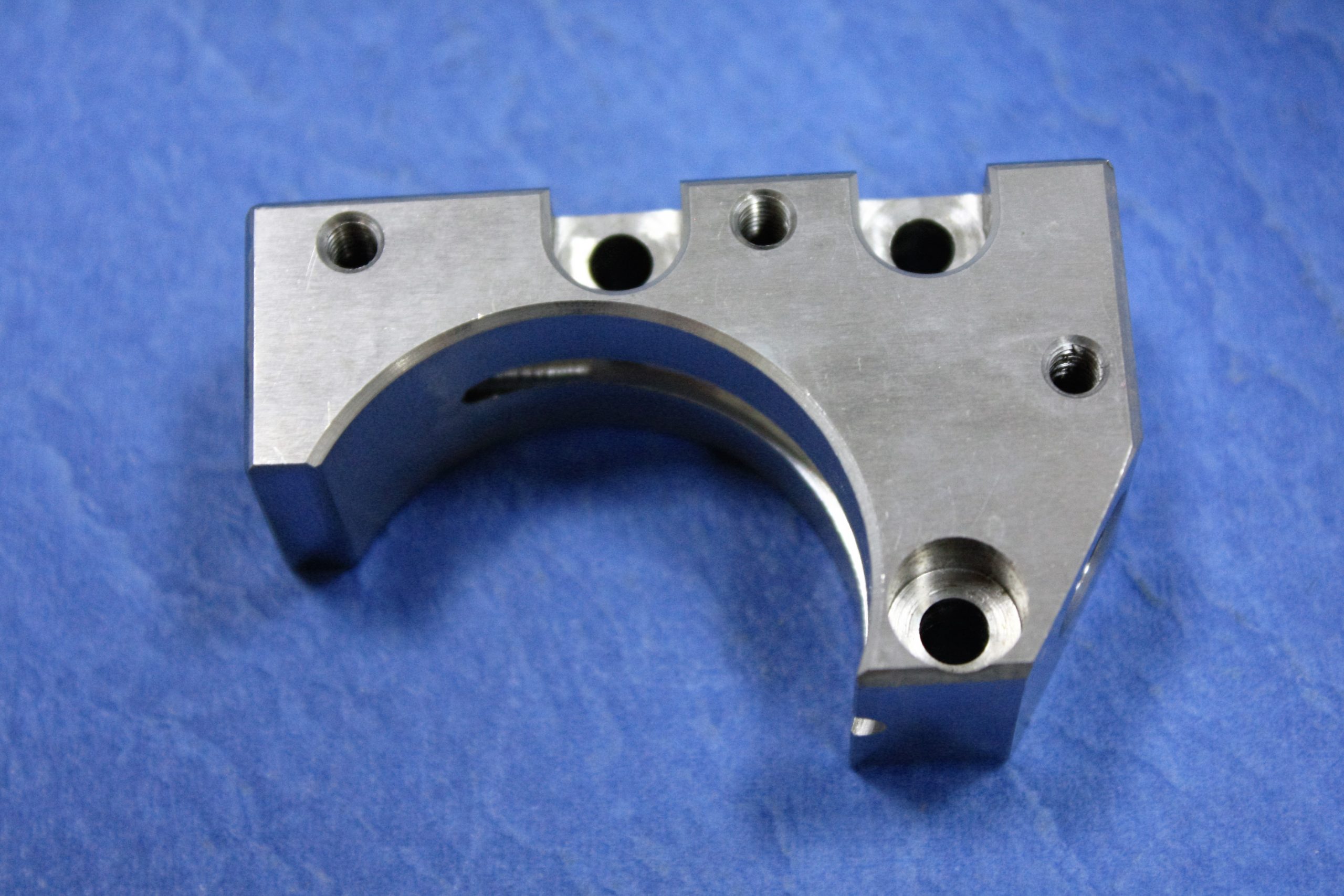

 | F862 | Lower | 下機頭收線輪弧 Lower Roller Block(SUS) 59*37*20t | α-A,B,C series | A290-8102-X770 |

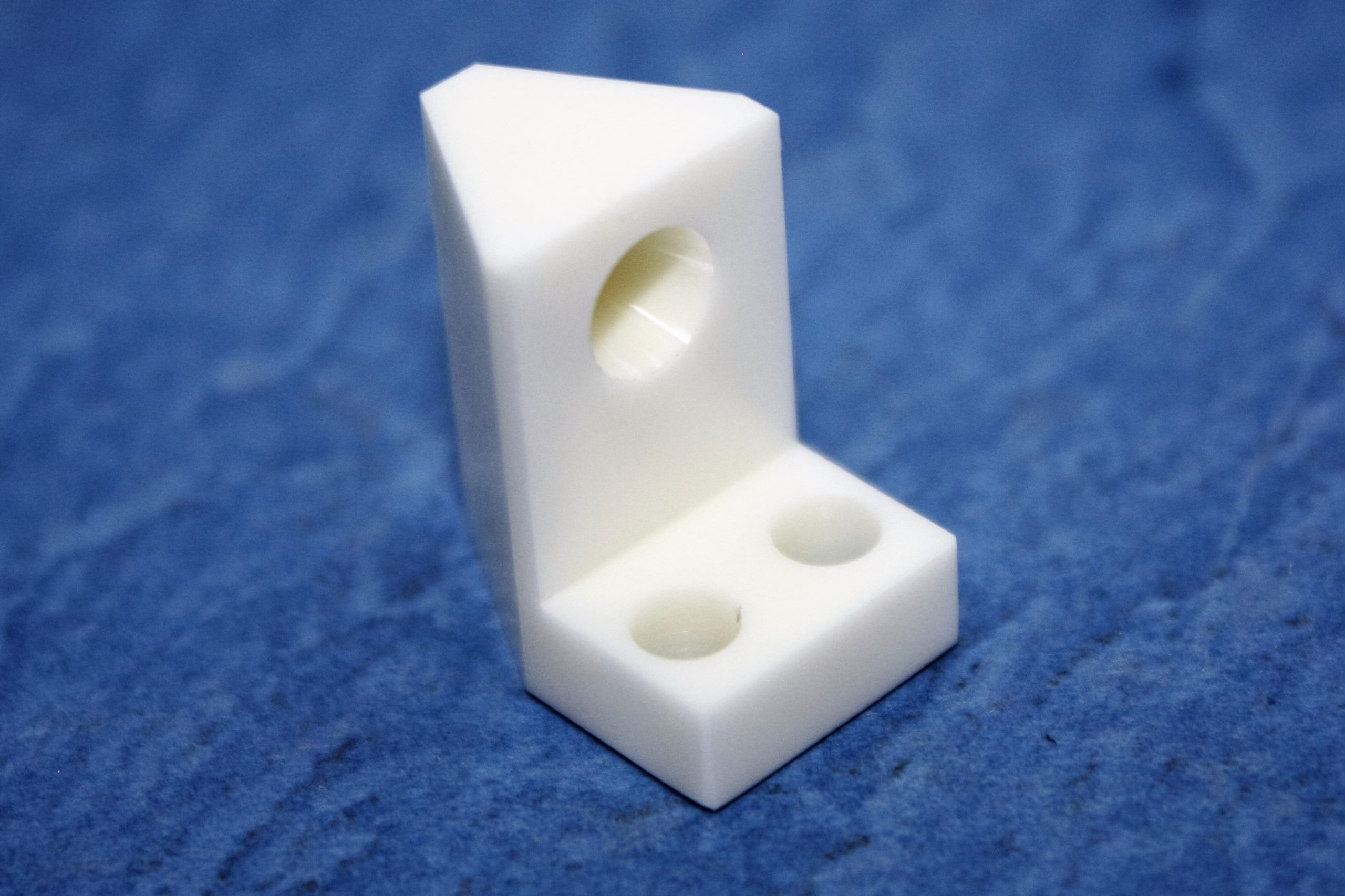

 | F5103 | Feed Section | 末端支撐塊 Feed Guide 13W×20L×19H | α-A,B (Manual/AWF) | A290-8101-X394 |

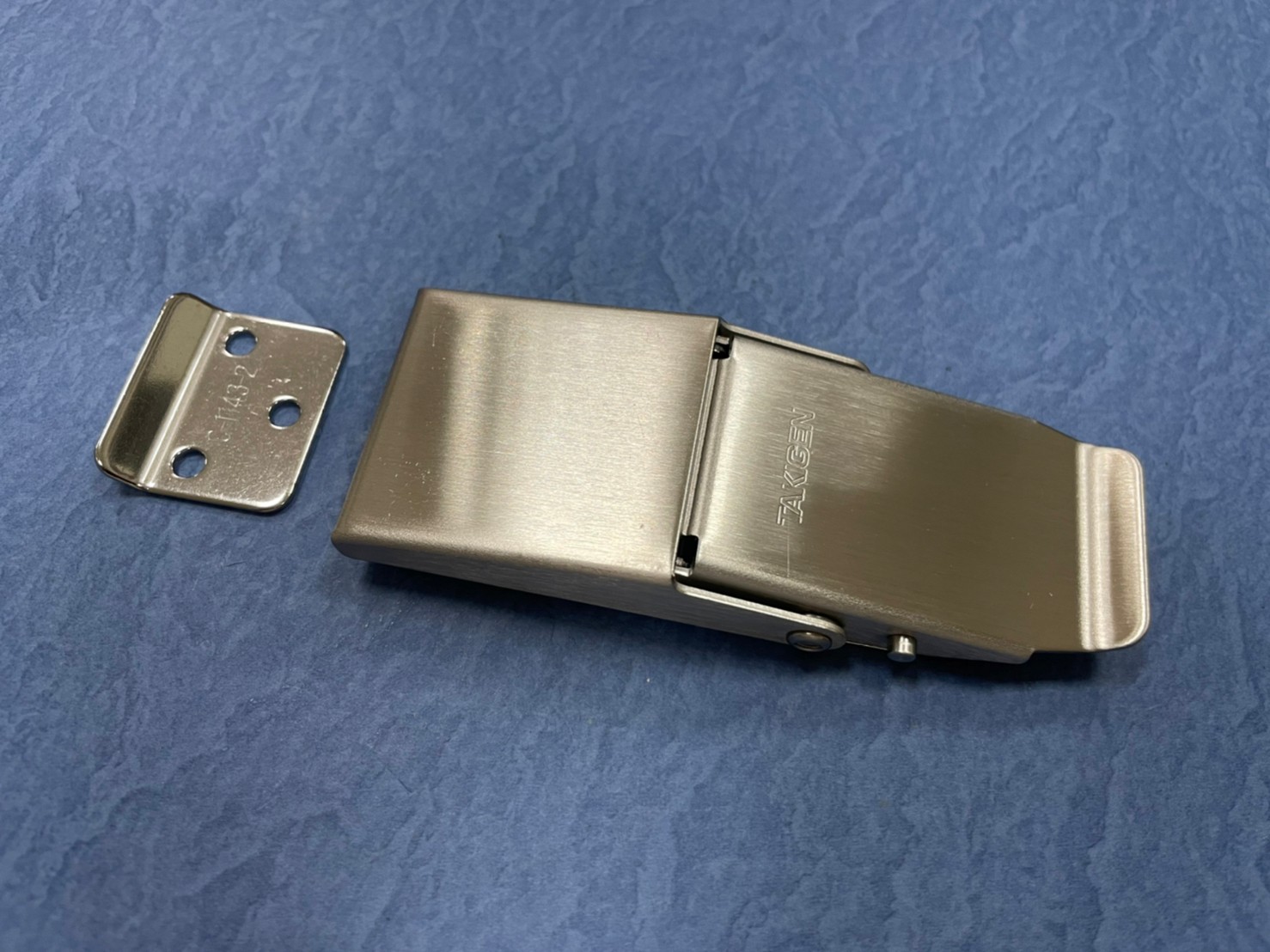

 | TA03 | 水箱扣環 | |||

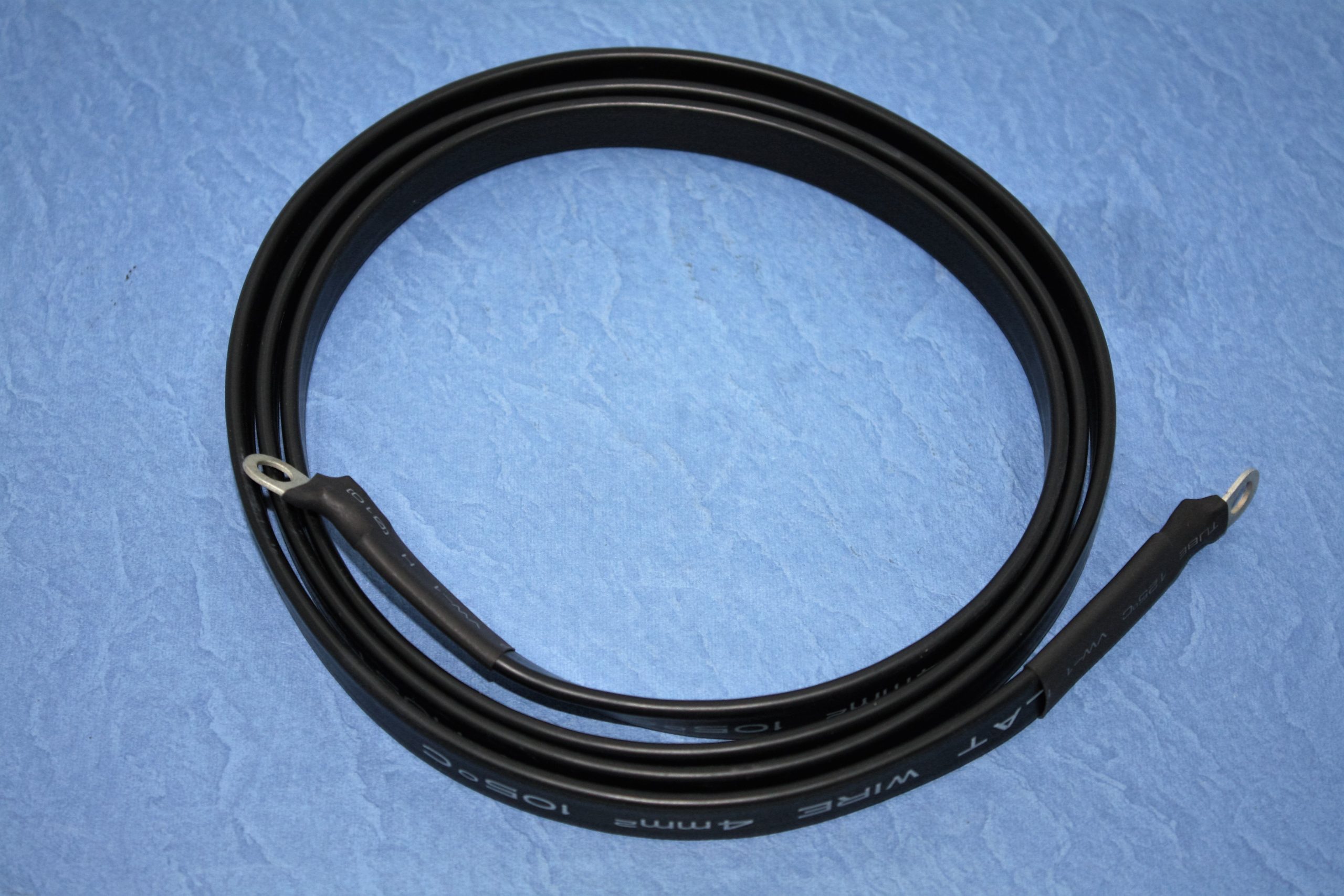

 | F01 | Lower | 接地線 Ground Wire | O,P,Q,R,T,W series α-A,B,C series | |
| F01 i | Lower | 接地線 Ground Wire L:0.6M 1M | α-iA,iB,iC series L:0.6M,1M iD,iE,400iA,600iA L:0.9M,1.2M,1.5M | |

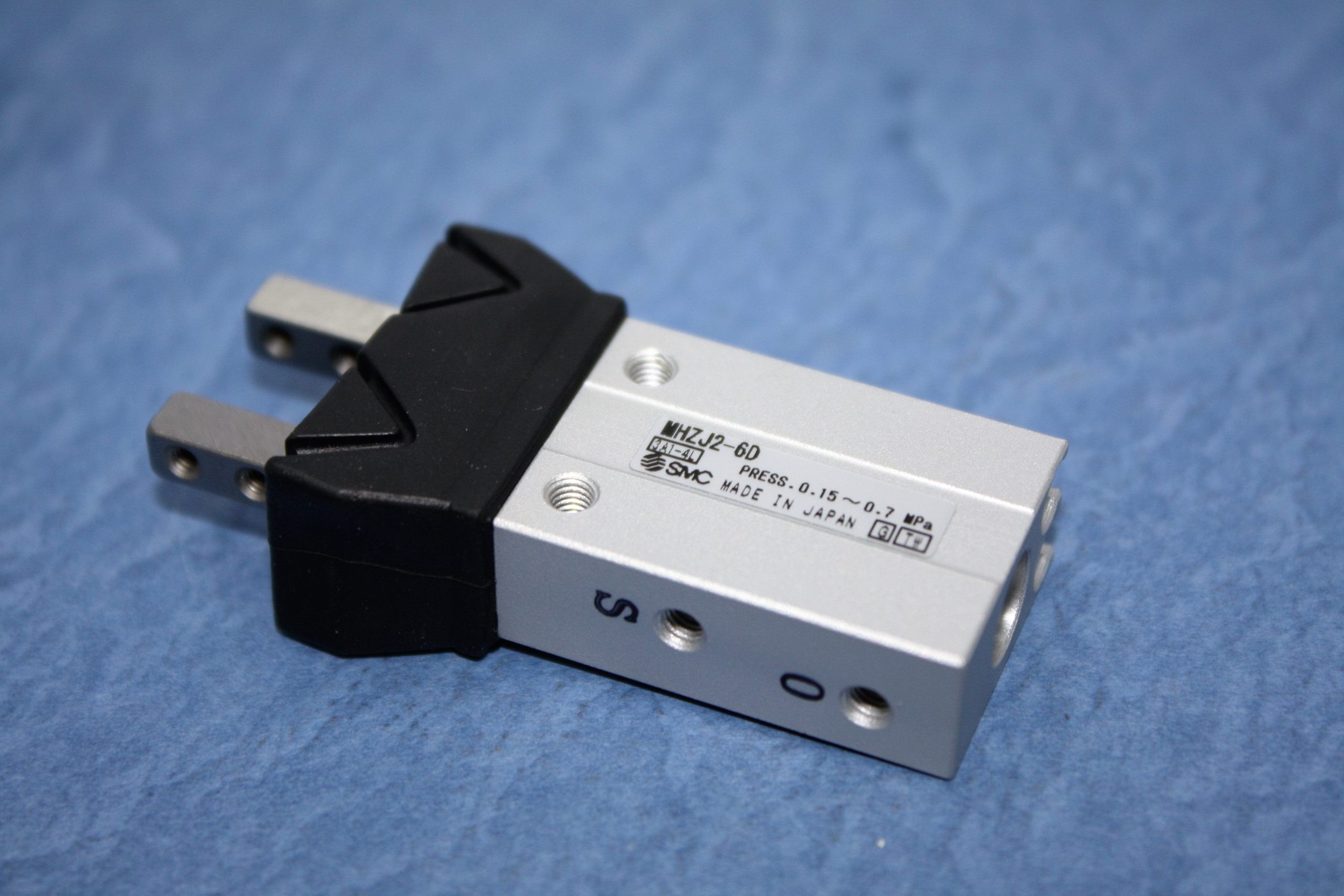

 | F02 | Upper | 附防塵套夾爪缸 AIR CYLINDER | α- iA,iB,iC series iD,iE,400iA,600iA (AWF) | A290-8112-X656 |

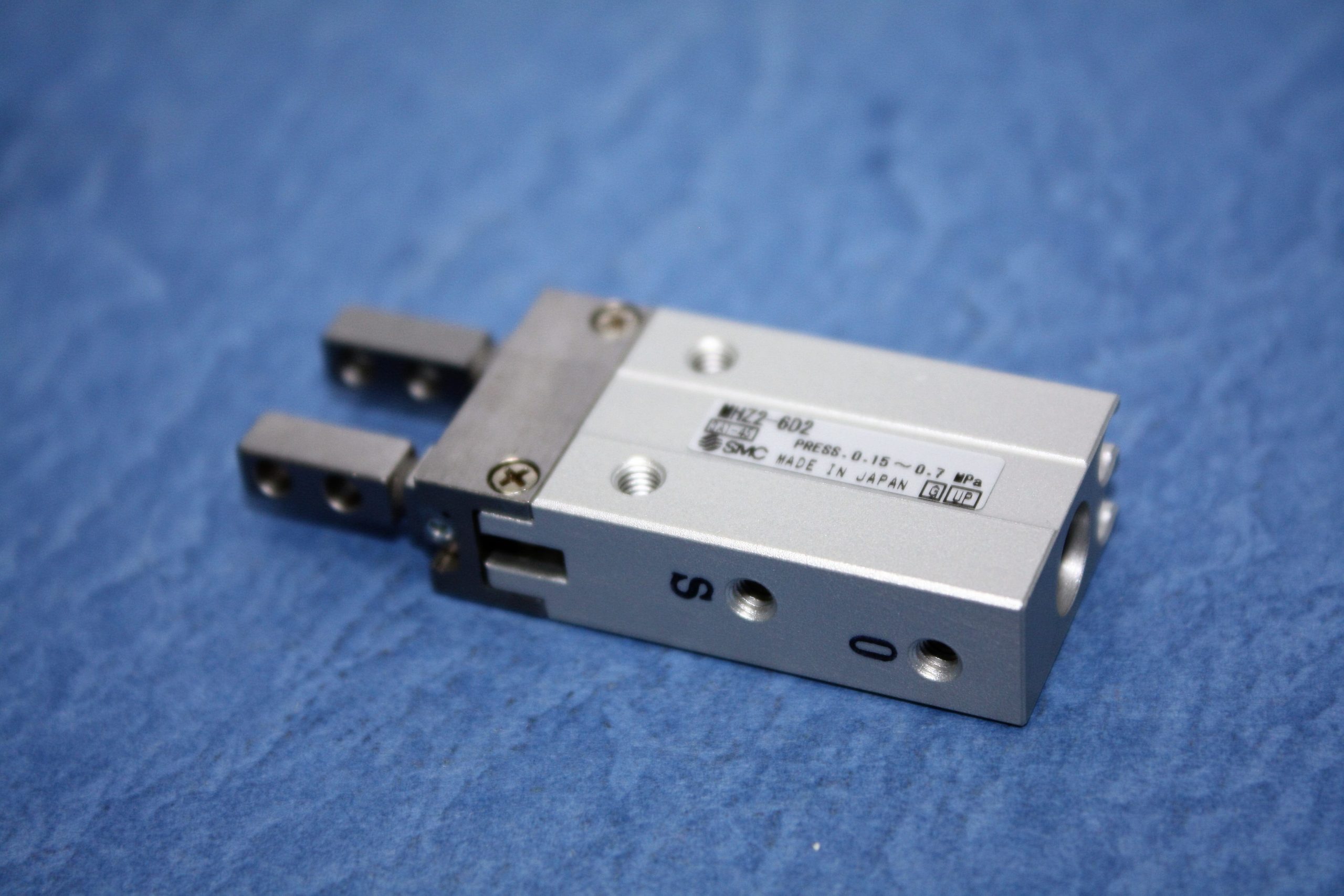

 | F02-1 | Upper | 夾爪缸 AIR CYLINDER | α- iA,iB,iC series iD,iE,400iA,600iA (AWF) | |

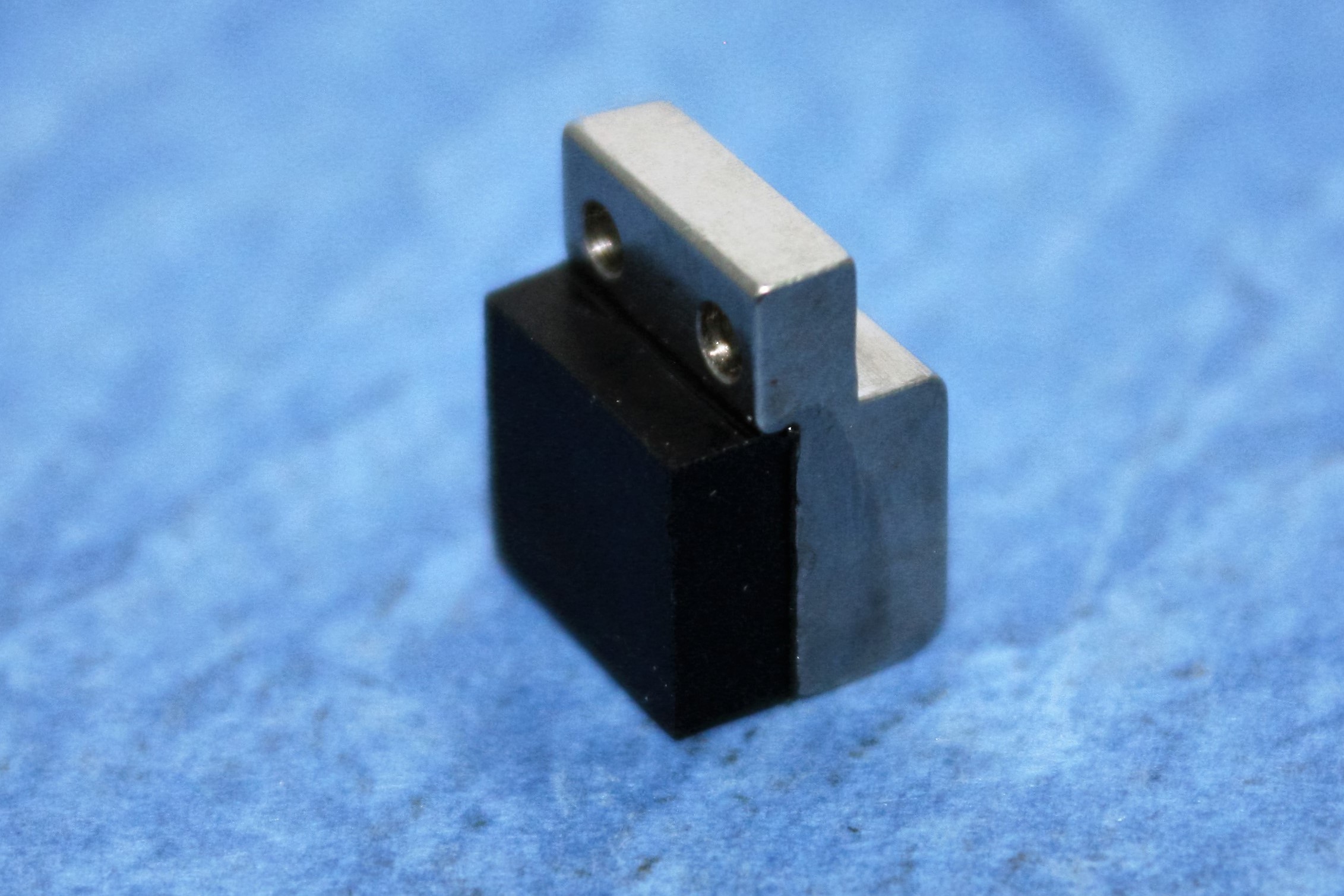

 | F03 | Upper | 自動穿線橡膠夾塊 CHUCK2 13.5 × 10 × 8.8t | α - iA,iB,iC series (AWF) | A290-8116-Y756 |

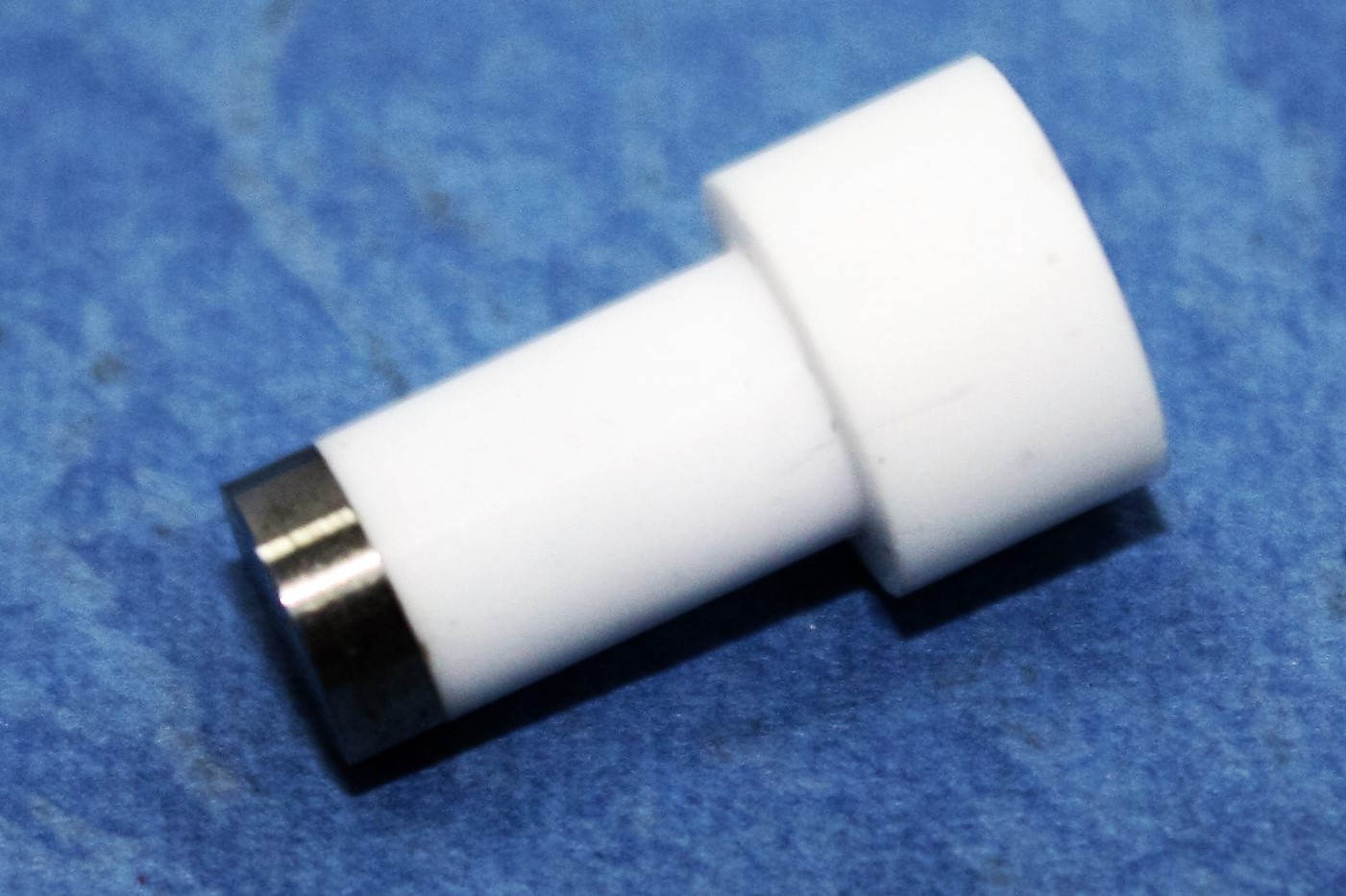

 | F04 | Upper | 滑動銷(陶瓷+鎢鋼)(Ceramic+TC) 6×9×17L | α- iC series iD,iE,400iA,600iA (AWF) | A290-8116-Y756 |
 | F05 | Upper | 犧牲電極 Terminal Electrode 6 ×6×10 | α - iA,iB,iC series (AWF) | A290-8102-X657 |

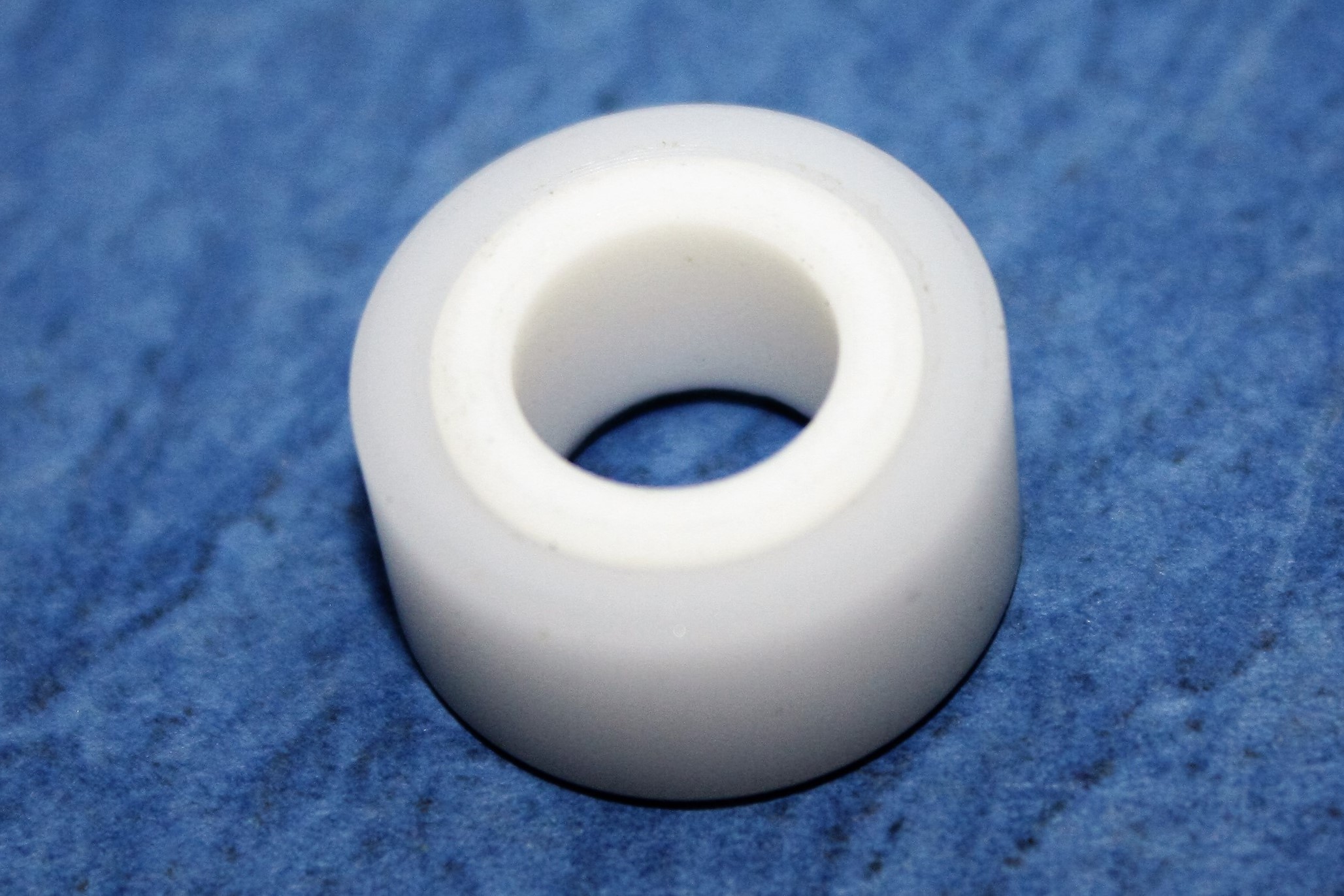

 | F06 | 塑膠軸承下旋臂後滑板用 Seal 16×8×8t | α-iA | A290-8103-X078 A290-8103-X079 | |

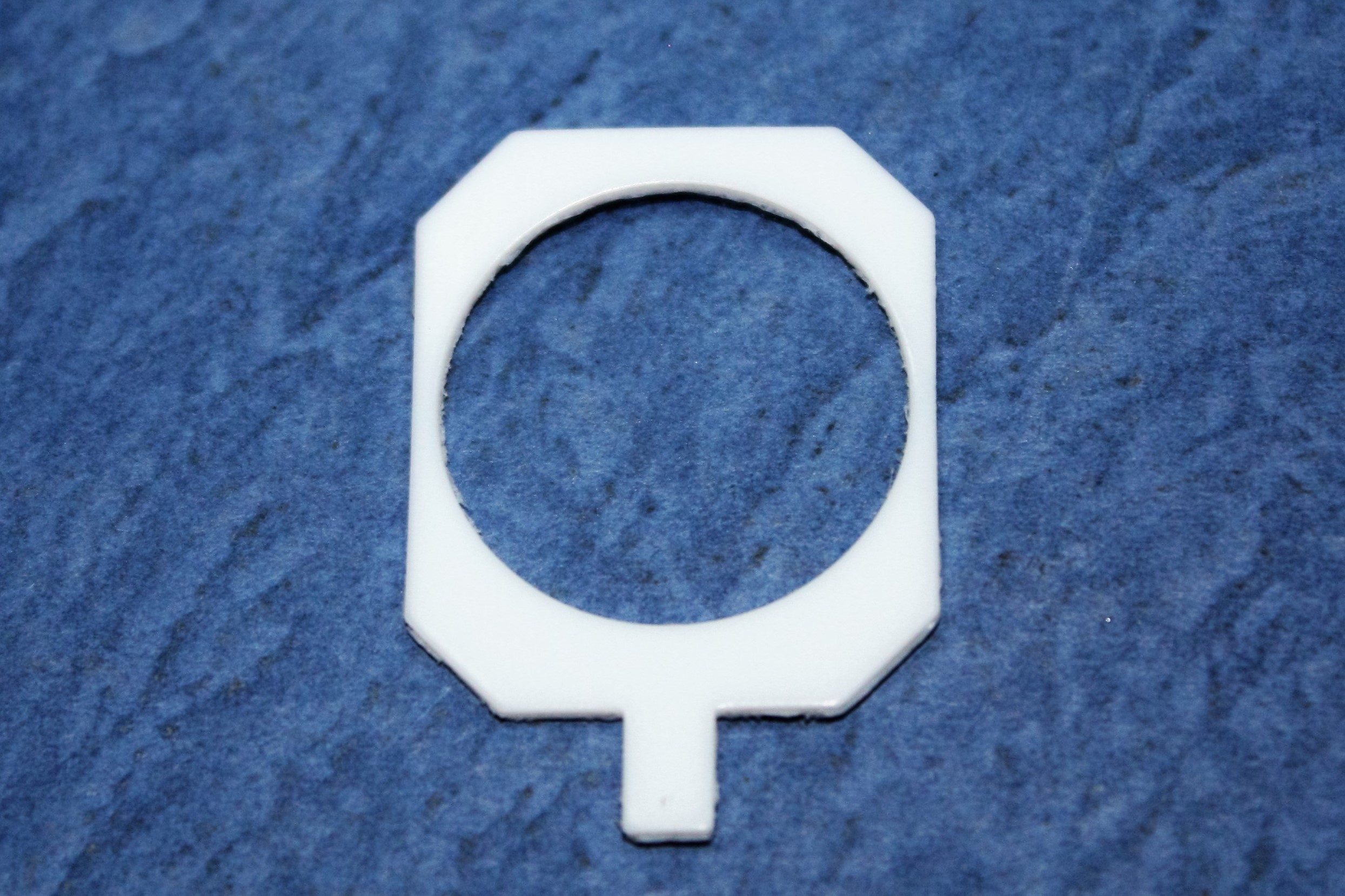

 | F07 | Upper | 滑動墊片 Sub Die Seat 19.3×30×1t | α - iA,iB,iC series (AWF) | A290-8102-X727 |

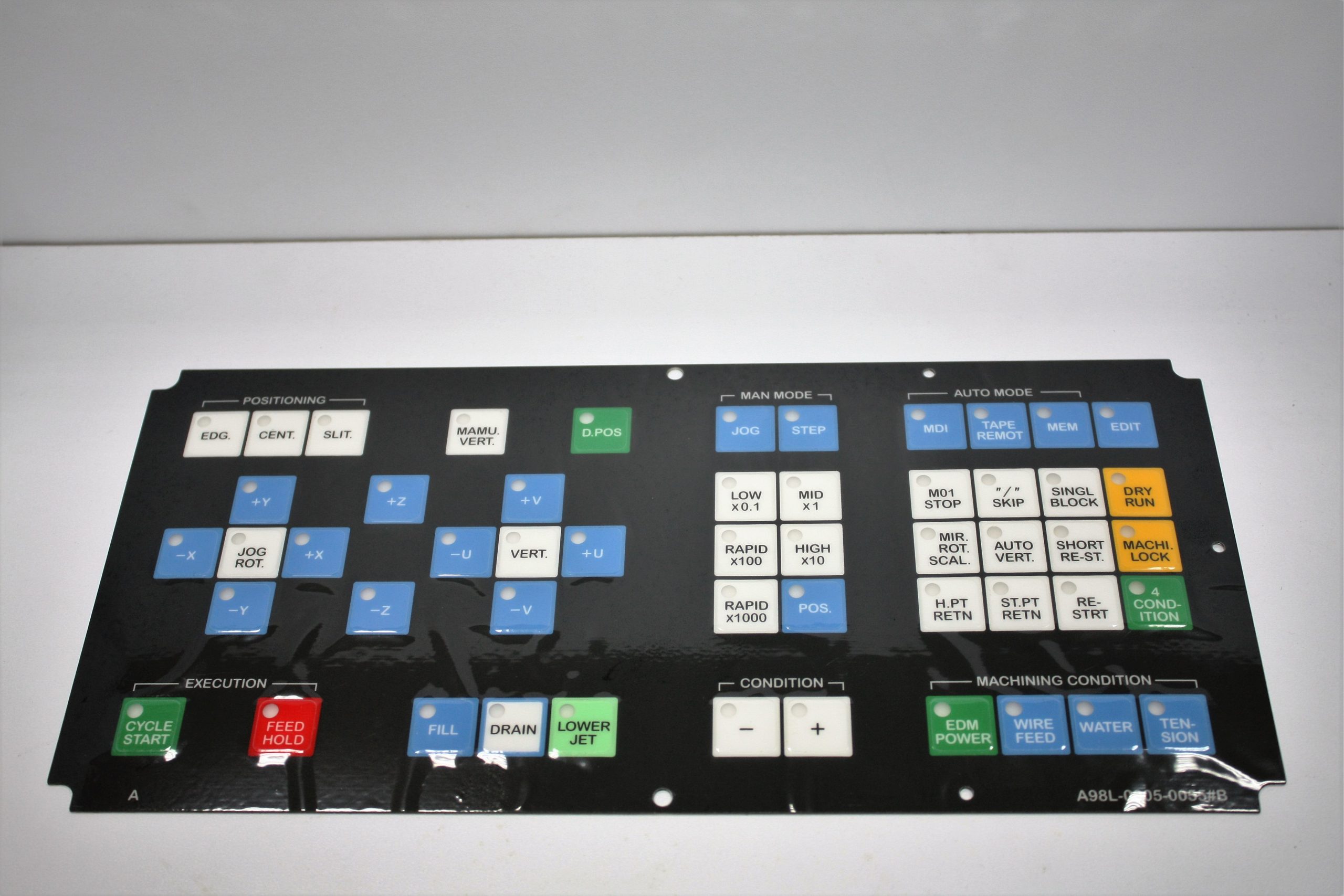

 | F10 | 按鍵面板膠膜 Control Panel Key Sheets | α-A,B,C series (AWF) | A98L-0005-0055#B | |

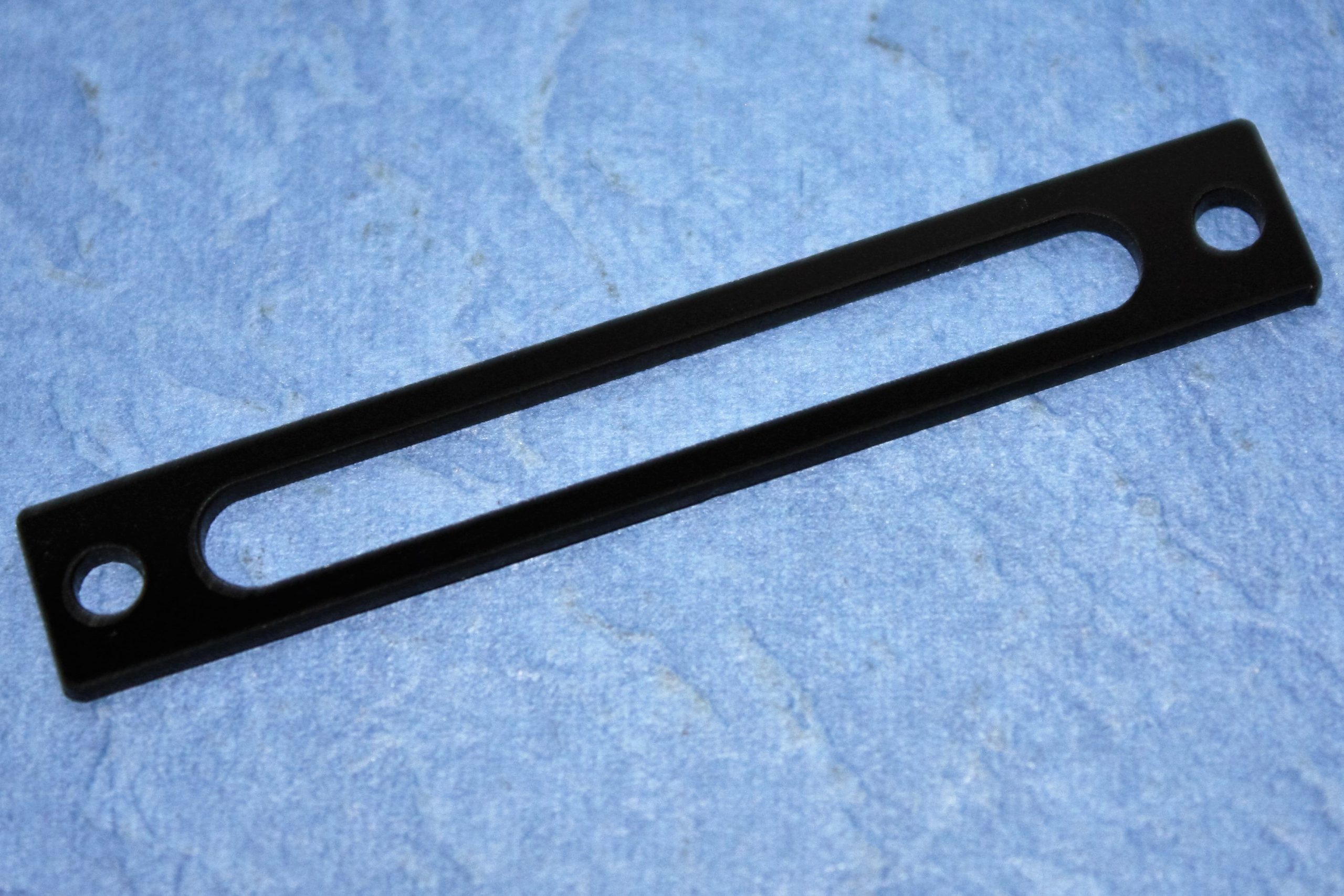

 | F11 | Upper | 滑動定位板 Silde Plaet 61.5*9.8*1.5t | α - iA,iB,iC series (AWF) | A290-8102-X738 |

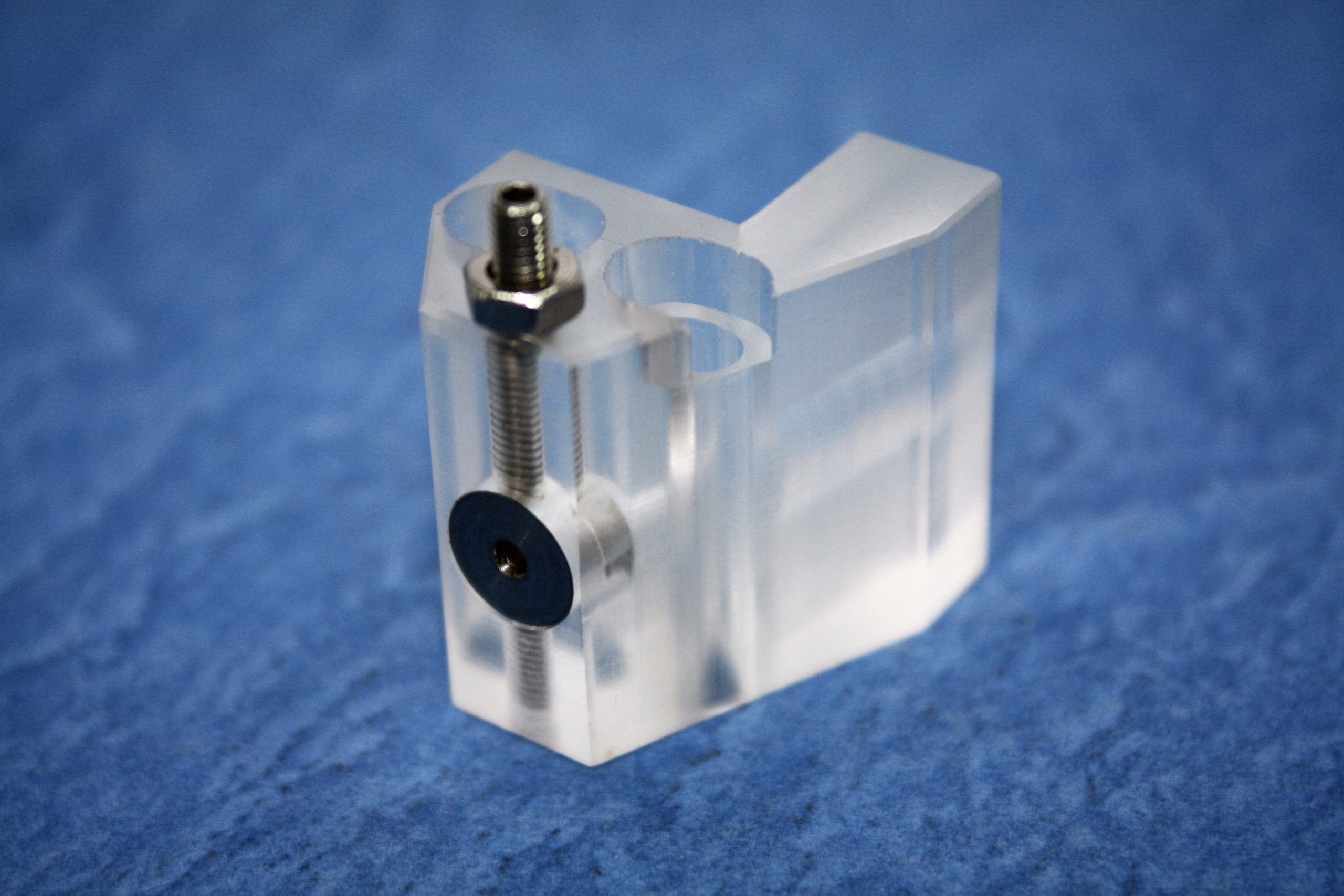

 | F12 | Upper | 上壓克力導線座 Block 26.1*23*25t | α - iA,iB,iC series (AWF) | A290-8104-X612 |

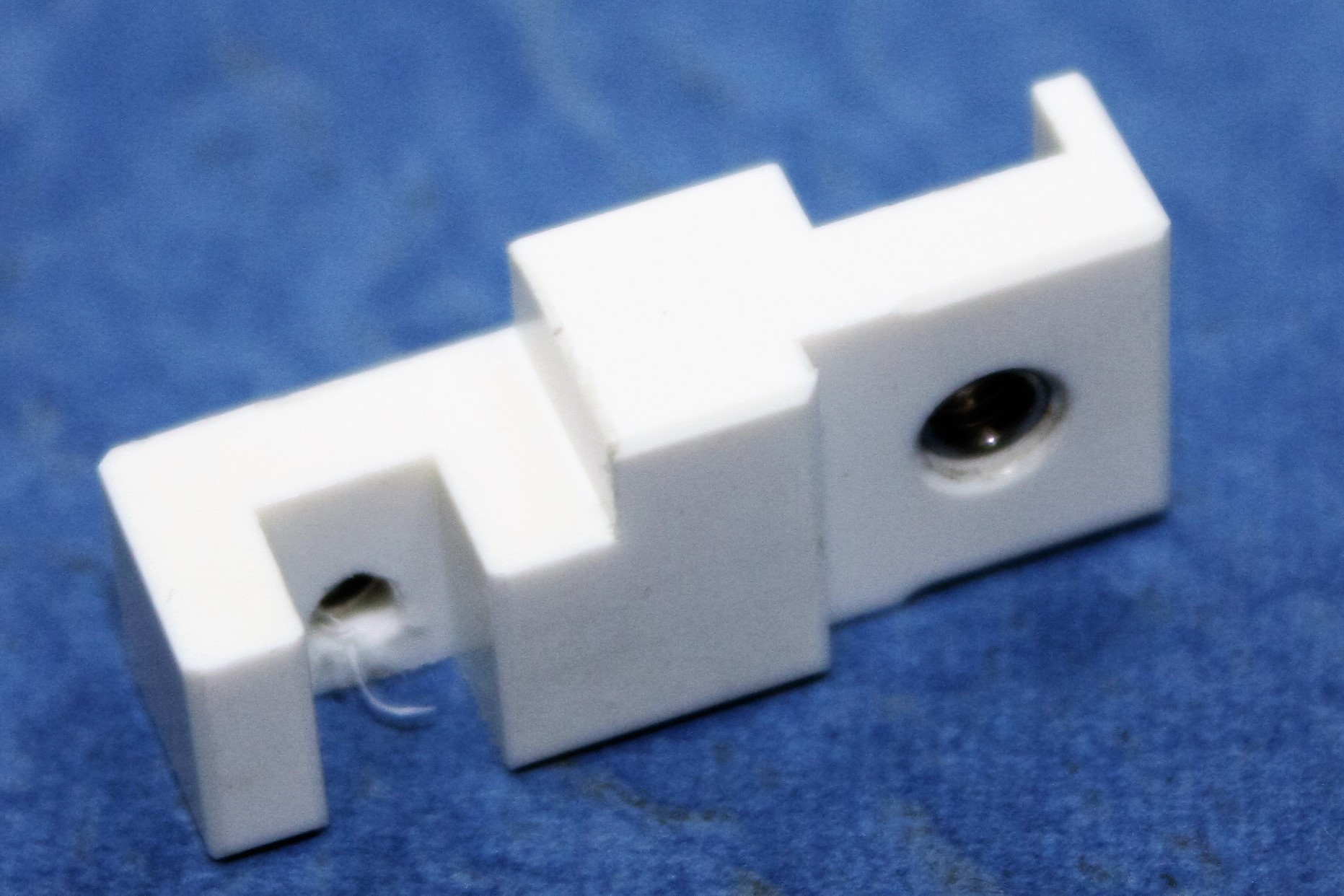

 | F13 | Upper | AWF上夾線座 CHUCK 2(Finger) 10*24*7t | DWC- iD,iE,400iA,600iA (AWF) | A290-8119-X691 |
 | F13A | Upper | AWF上夾線座 CHUCK 2(Finger) 10*14*4.7t | DWC- iD,iE,400iA,600iA (AWF) | A290-8119-X691 |

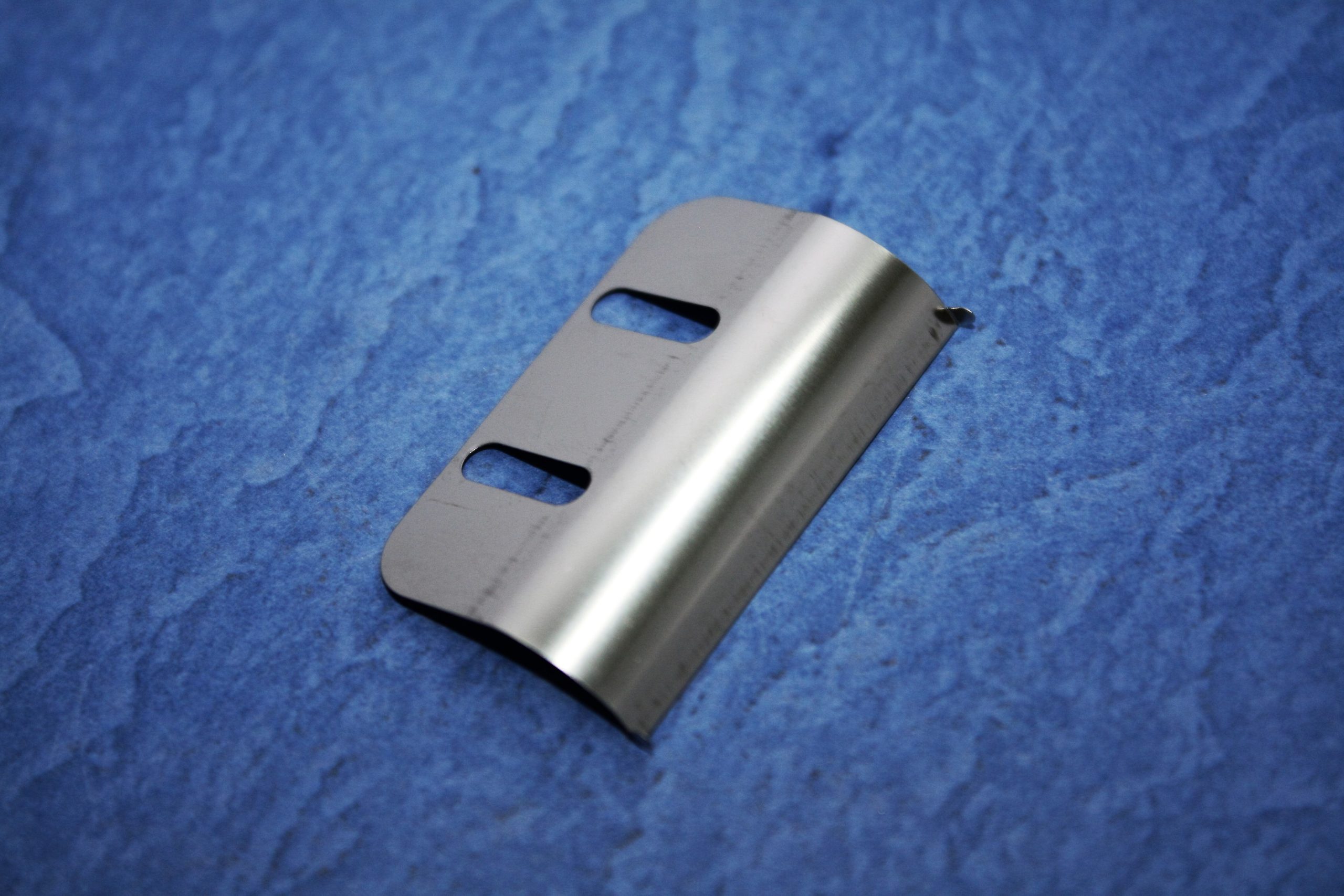

 | F14 | Upper | AWT熔線片 Cutter Spring 23.8*38*0.1t | DWC- iA,iB,iC series α-iD,iE,400iA,600iA (AWF) | A290-8102-X684 |

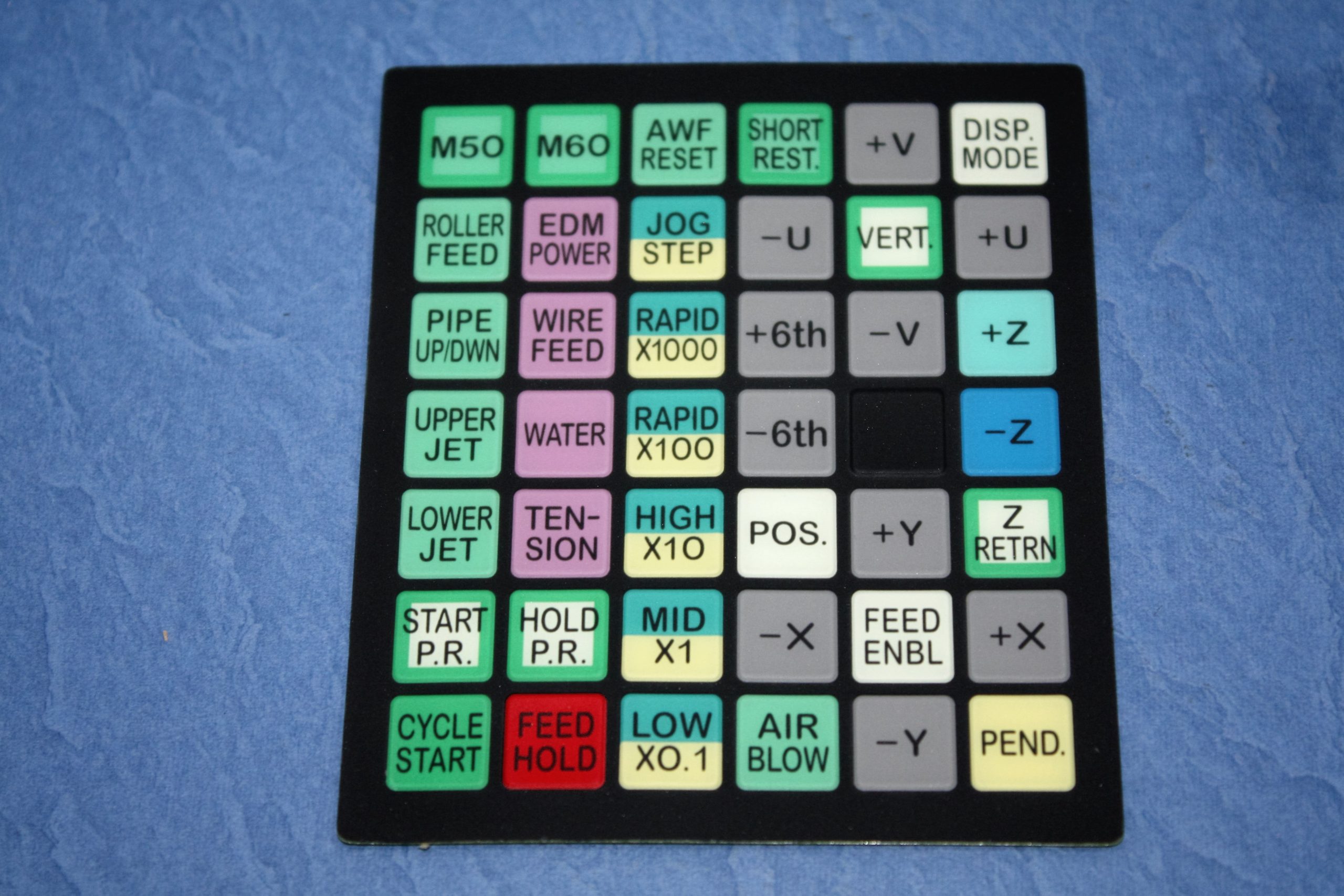

 | F15 | 手動控制盒面板膠膜 Control Panel Key Sheets | α-A,B,C series (AWF) | ||
 | F16 | 手動控制盒面板膠膜 Control Panel Key Sheets | α- iA,iB,iC series (AWF) | ||
 | F19 | 外六角固定螺絲 Slide Screw L:8mm | α- iA,iB,iC series (AWF) | A290-8102-X739 | |
 | F21 | 皮帶齒輪組 Clutch Assy Complete 39.3*24t | A290-8114-V647#com | ||

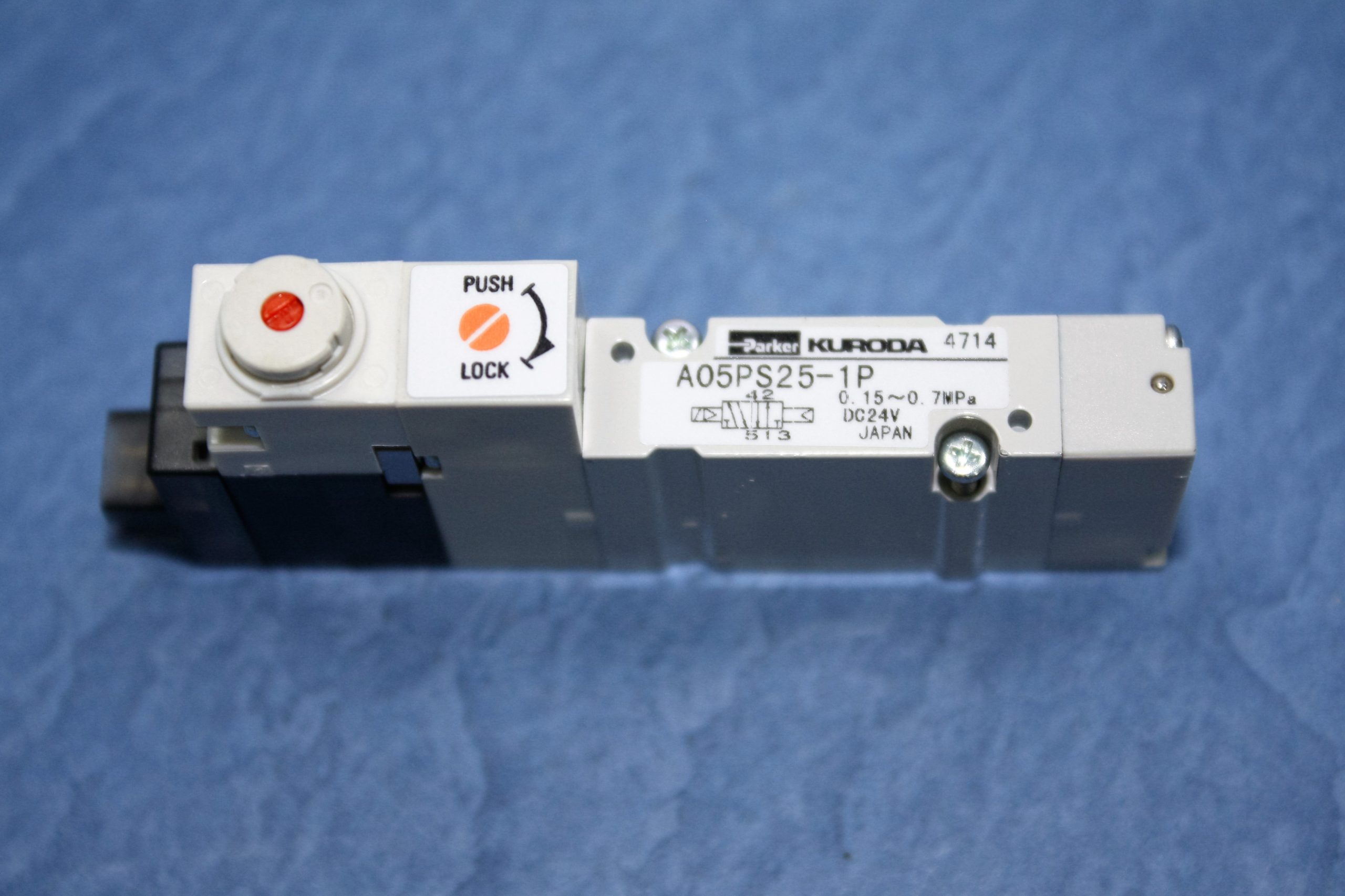

 | F22 | 電磁閥 Solenoid valve A05PS25-4P DC24V | α-A,B,C series (AWF) | A97L-0201-0770-A05PS25 | |
 | F23 | 連軸器 NGK-MOL-20 Coupling 20-6x6 | A97L-0201-0901-20 | ||
| F24 | 連軸器 NGK-MOL-25 Coupling 25-10x10 | A97L-0201-0713-25 | ||
 | F24A | 連軸器 MFL-32C Coupling 32C-10x10 | |||
 | F27 | 管前端噴嘴 Pipe Head | DWC-A,B,C,iA,iB,iC,iD,iE 400,600iA(AWF) | A290-8102-X622 | |
 | F29 | 絕緣墊塊 lsolator 12*16*33 | DWC-A,B,C,iA,iB,iC,iD,iE (AWF) |
| 圖片 | 編號 | 位置 | 品名尺寸 | 適用機種 | 原廠編號 |
|---|---|---|---|---|---|

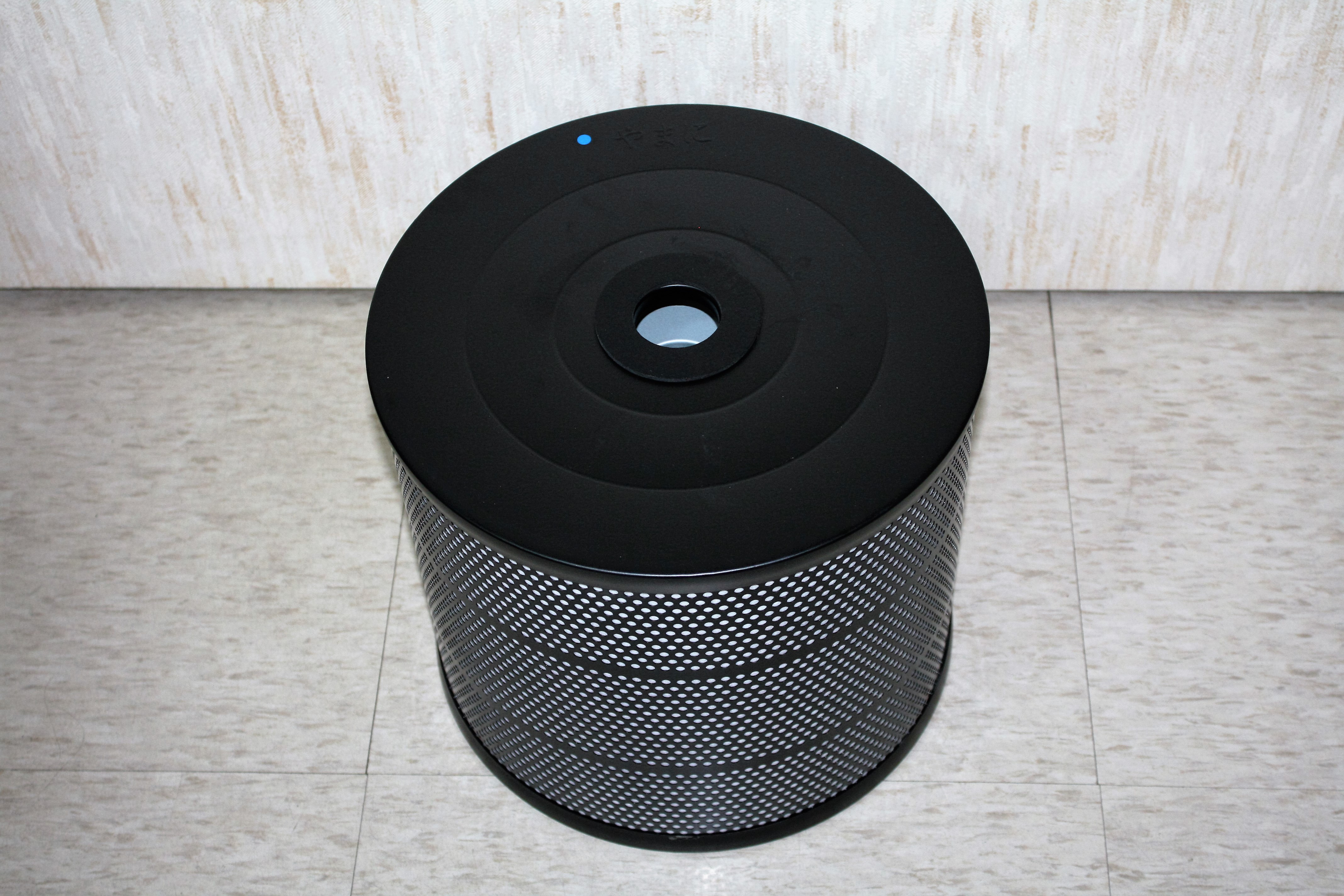

 | SW-340F | Without | 340 × 46 × 300 | DWC-O,P,Q,R,S,T,V DWC-W DWC- α -0A | 5~7u 7~10u |

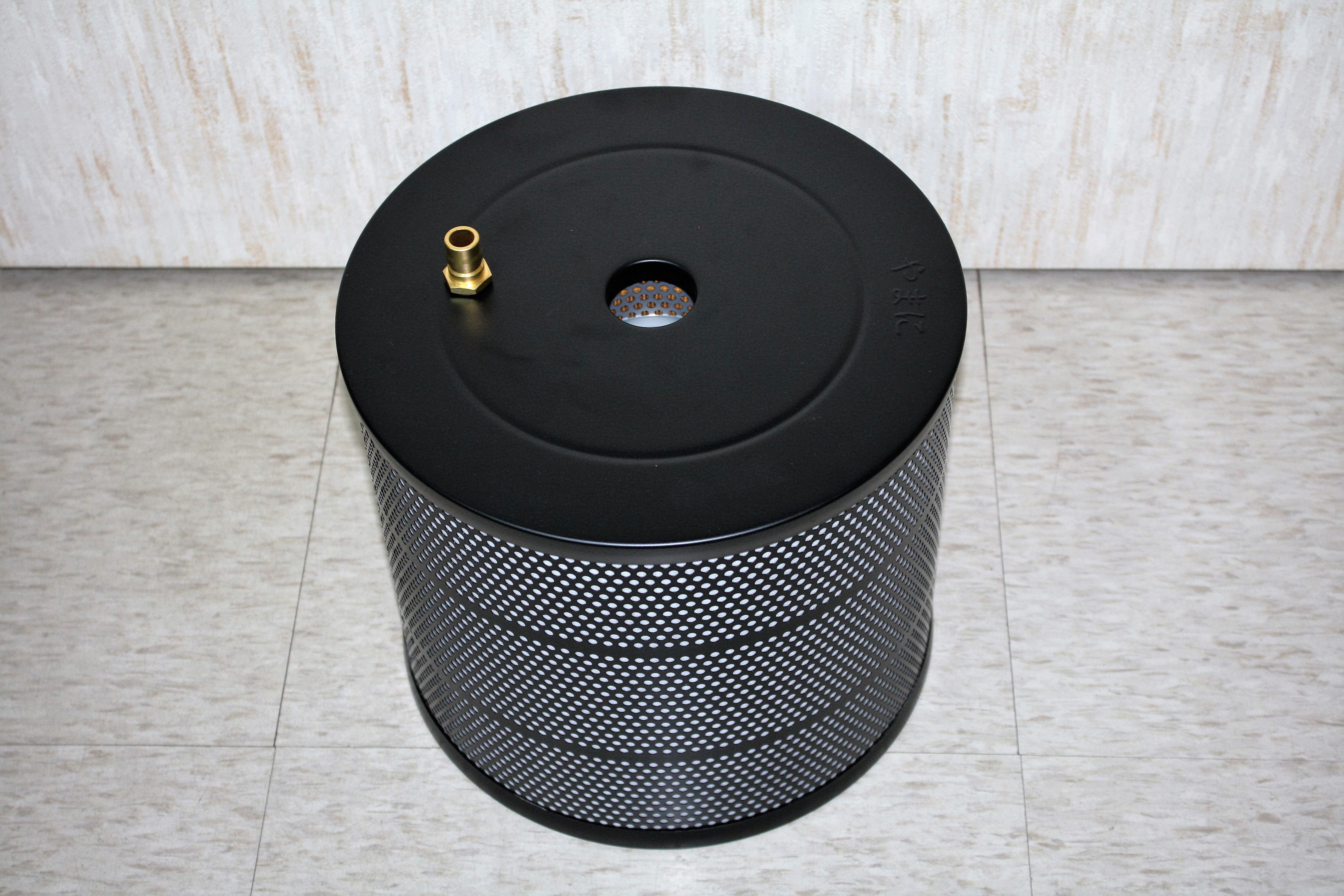

 | SW-340FK | Without | 340 × 46 × 300 | DWC- α - iB,iC | 5~7u 7~10u |

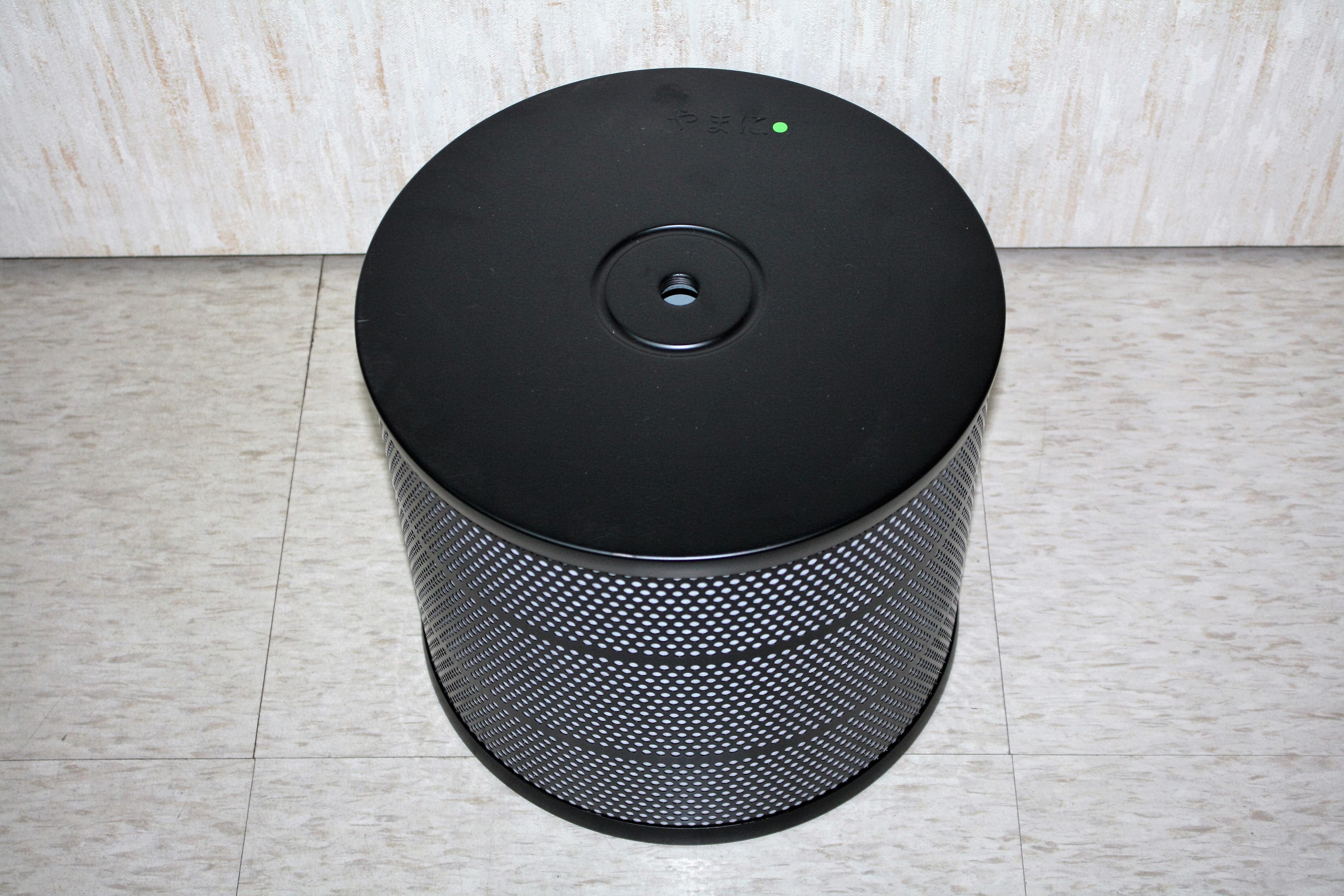

 | SW-340FKM | Without | 340 × 46 × 300 | DWC-O,P,Q,R,S,T,V DWC-W DWC- α A,B,C, α - iA | 5~7u |

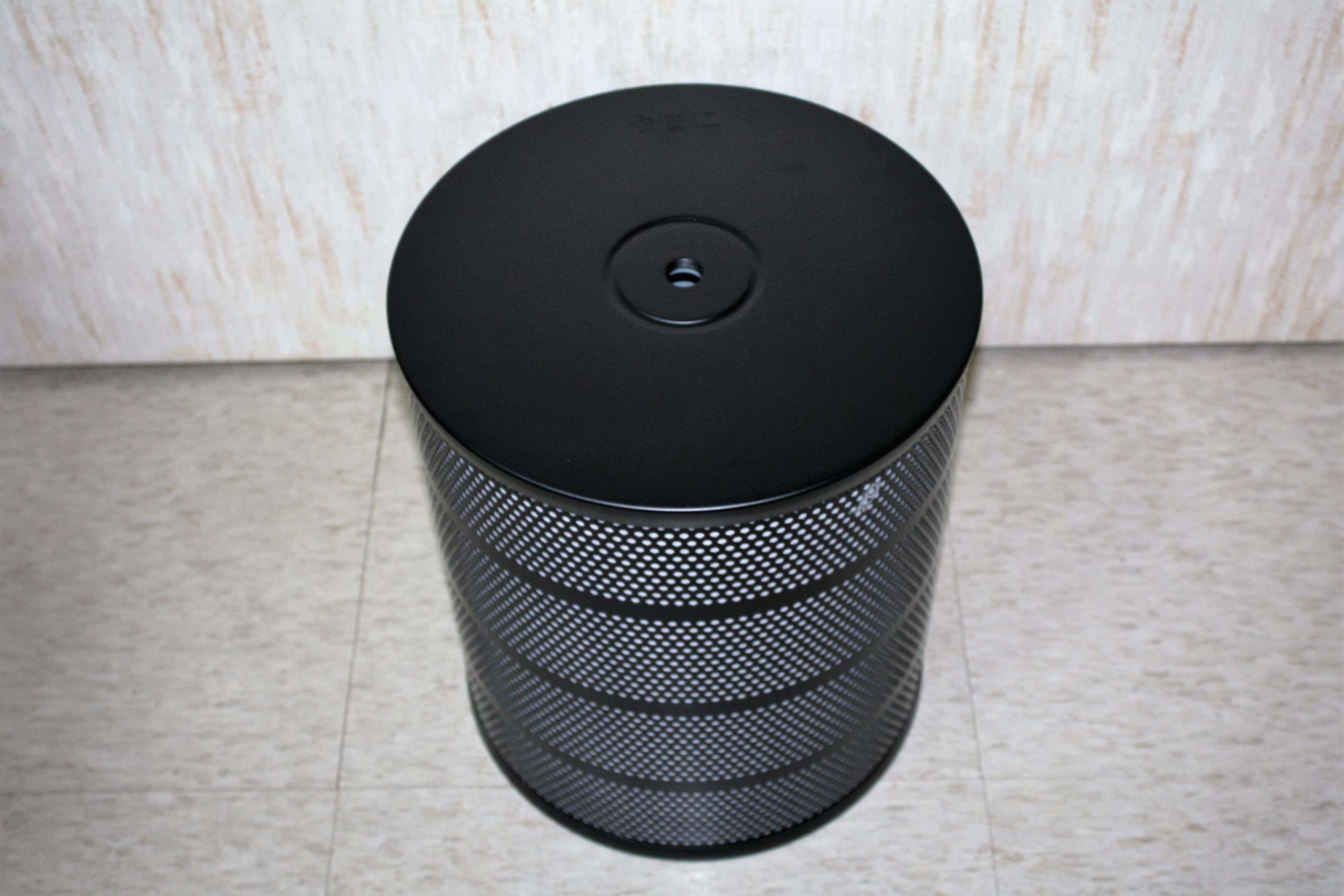

 | SW-340ML | Without | 340 × 46 × 400 | DWC- iD,iE,400iA,600iA | 5u |
