| 圖片 | 編號 | 位置 | 品名尺寸 | 適用機種 | 原廠編號 | |
|---|---|---|---|---|---|---|

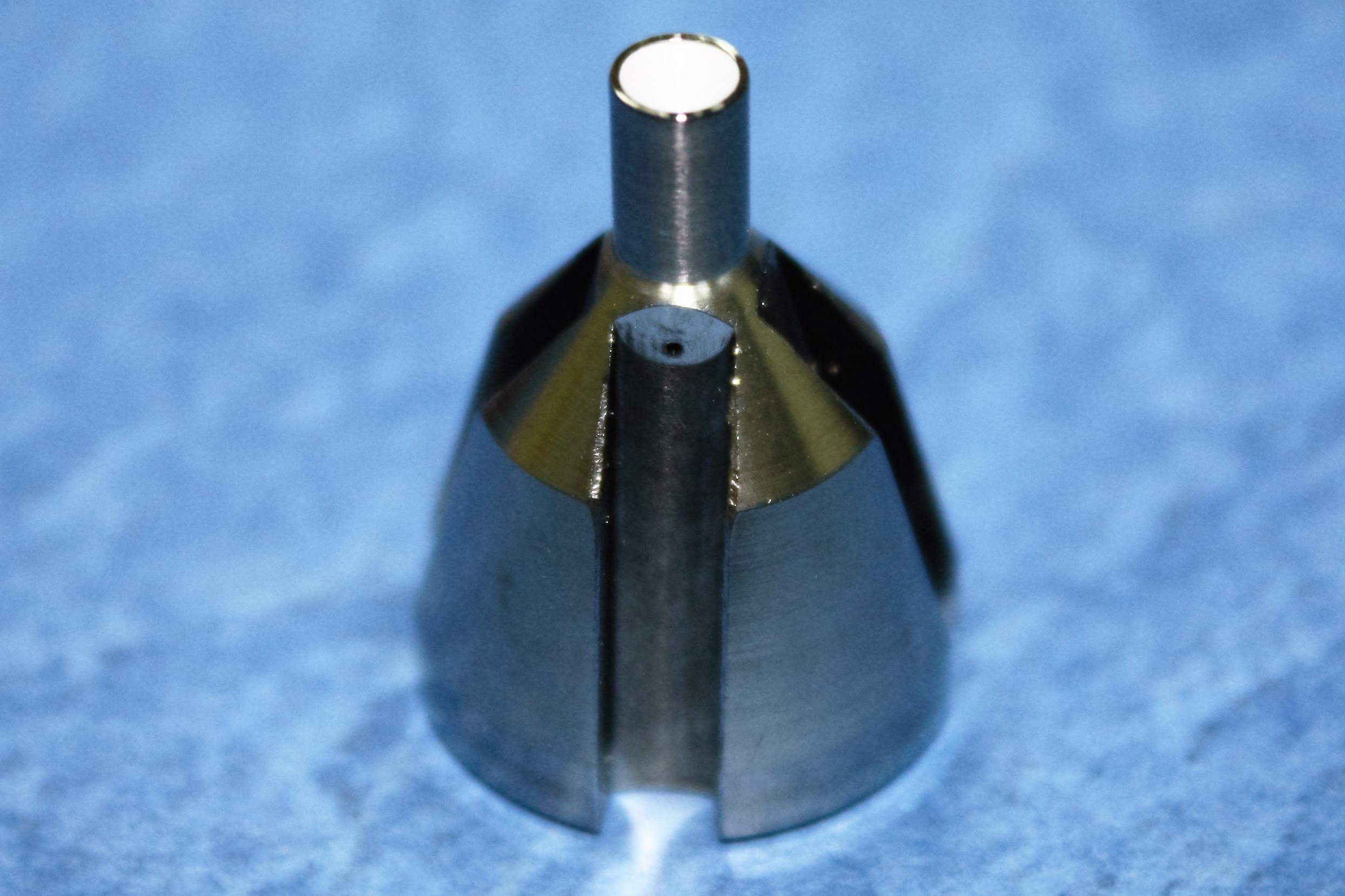

 | M103 | Upper & Lower | 鑽石眼膜 Wire Guide 0.105, 0.155, 0.205, 0.255, 0.305 | DWC-F,F1,G,H,H',H1,HA,C | X052B040G64 X052B040G65 X052B040G66 | |

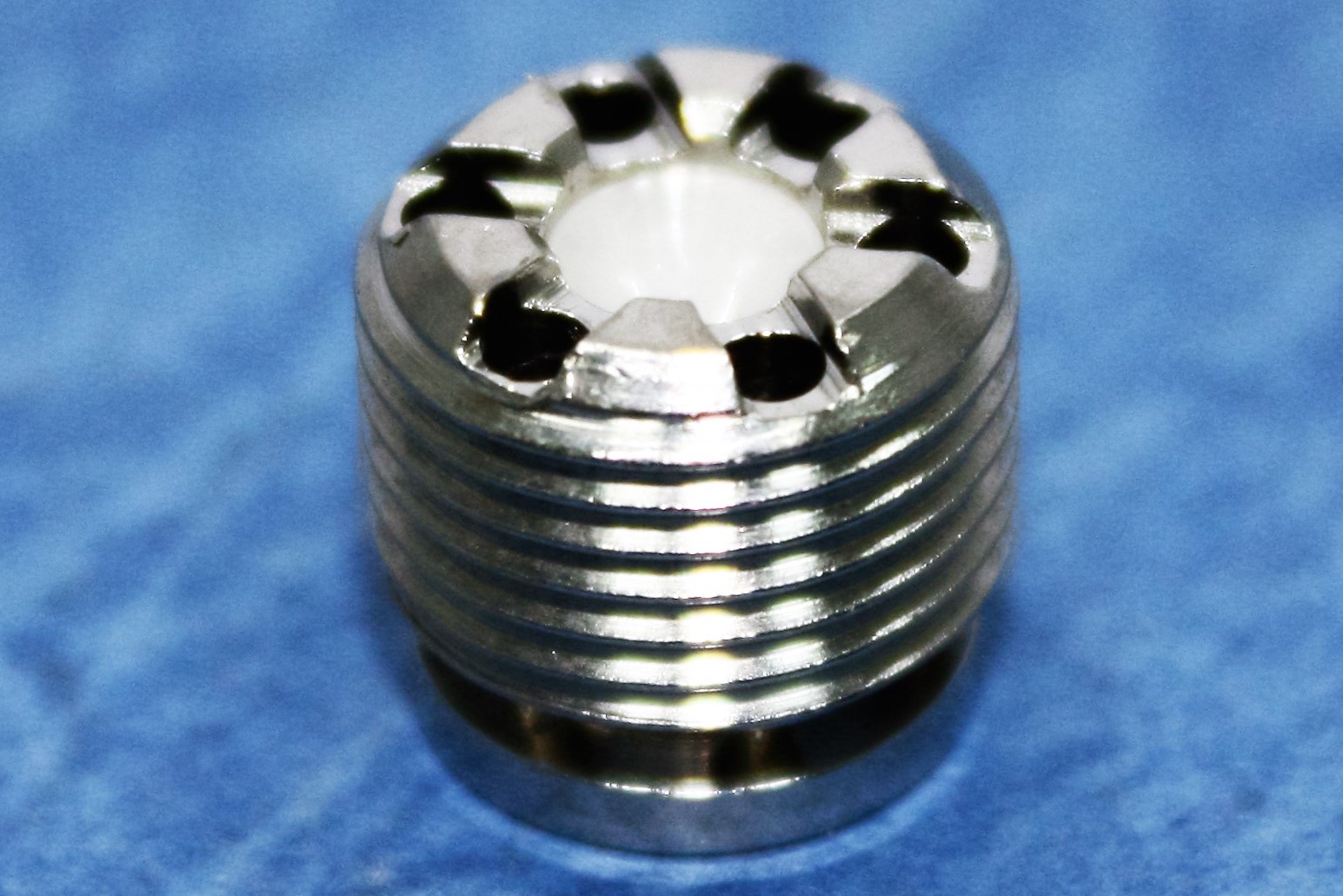

 | M108 | Upper & Lower | 鑽石螺絲 Set Screw 0.4mm L:11mm | DWC-N,F,F1,G | X052B123G53 X052B123G54 X052B123G56 | |

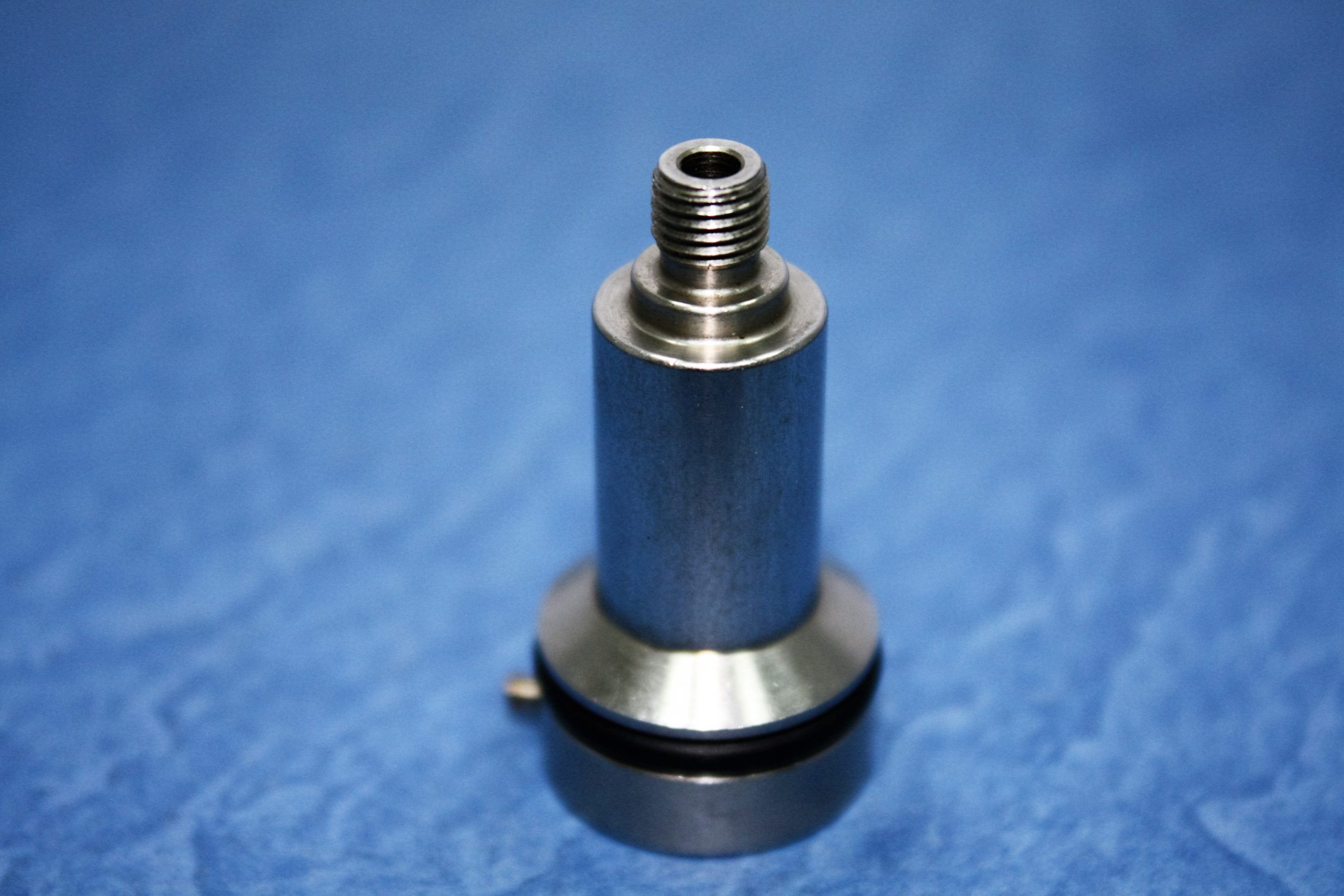

 | M111 | Upper & Lower | 偏心座 不銹鋼 Sub Guide Holder | DWC-G,H,H' ,H1,HA,C,CA | X052B240G52 X052B240G53 X052B240G54 | |

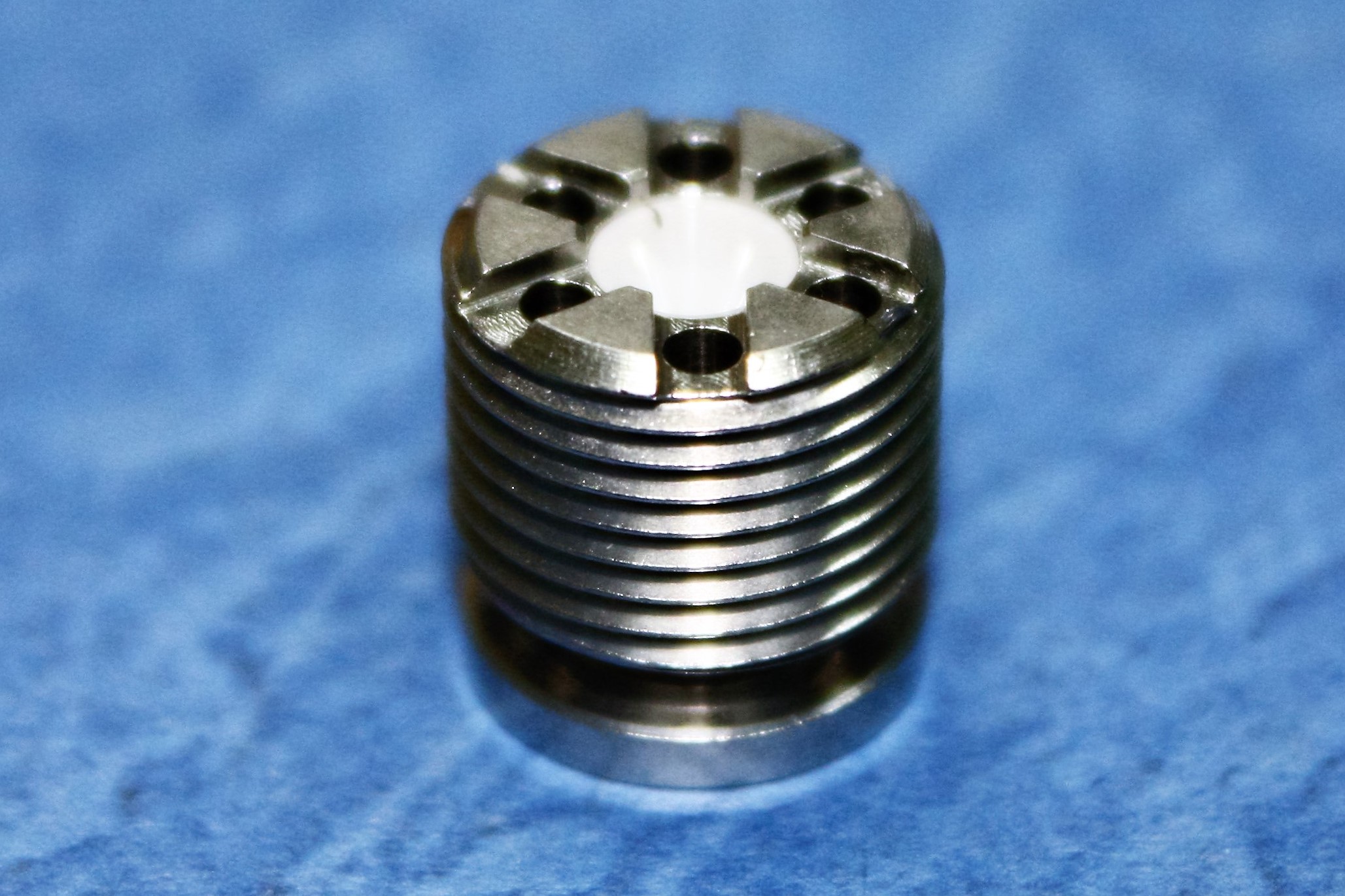

 | M113 | Upper & Lower | 鑽石螺絲 Set Screw 0.4mm L:12.5mm | DWC-H1,HA,SA,SB | X054D162G54 | |
 | M117 | Upper & Lower | 鑽石眼膜 Wire Guide 0.105, 0.155, 0.205, 0.255, 0.305 | DWC-H1,HA,SA,SB(AF1) | X054D171G54 | |

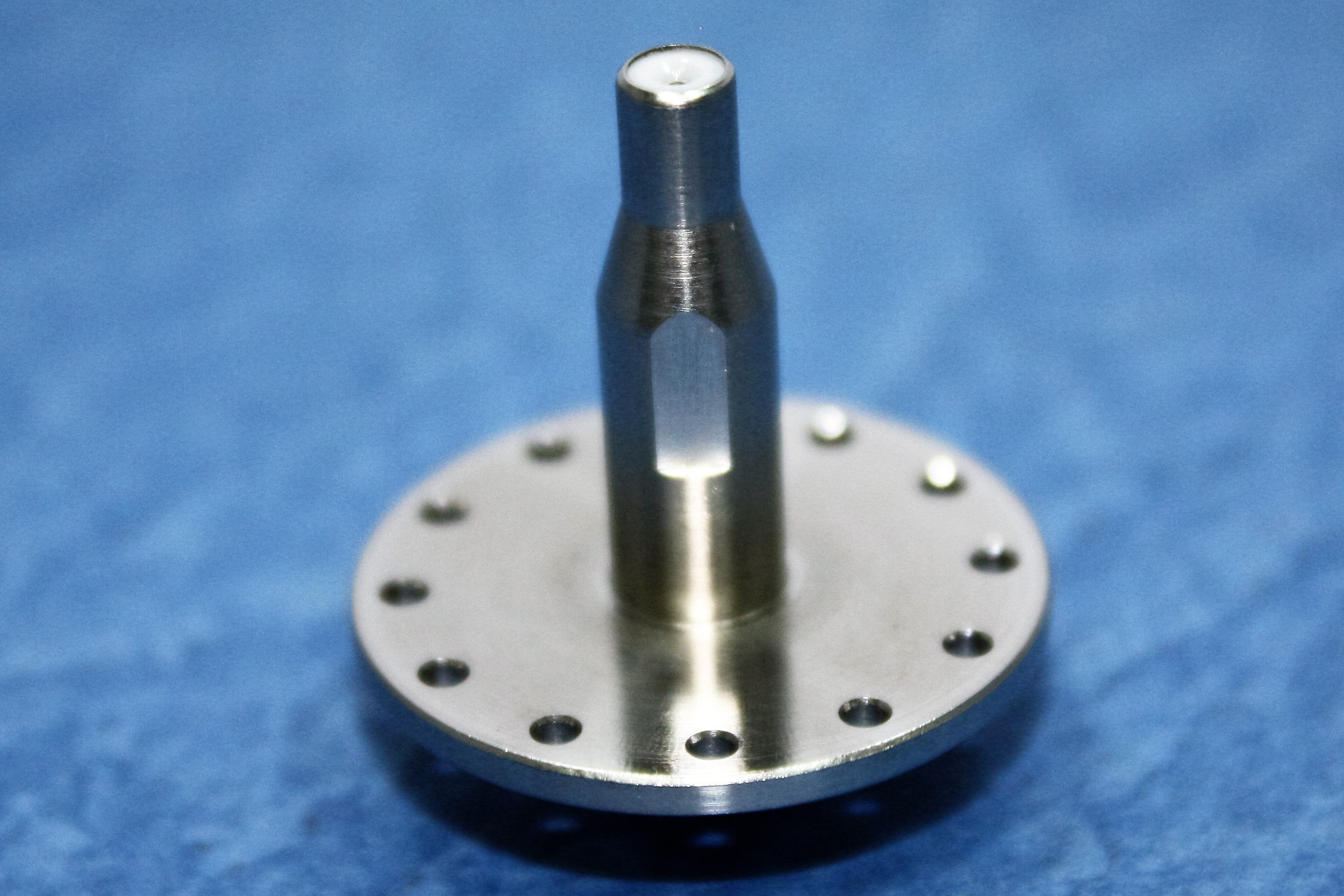

 | M132 | Upper | 鑽石眼膜 Wire Guide 0.105, 0.155, 0.205, 0.255, 0.305 | DWC-HA,SA,SB,SZ,CX,SX, FX,QA,FA,RA (AF2,AF3) | X053B834G53 X053B834G54 X053B834G56 | |
 | M133 | Lower | 鑽石眼膜 Wire Guide 0.105, 0.155, 0.205, 0.255, 0.305 | DWC-HA,SA,SB,SZ,CX,SX, FX,QA,FA,RA (AF2,AF3) | X052B243G61 X052B243G65 X052B243G62 | |
 | M132L | Upper | 鑽石眼膜 廣角45度 Wire Guide 0.105, 0.155, 0.205, 0.255, 0.305 | DWC-HA,SA,SB,SZ,CX,SX, FX,QA,FA,RA (AF2,AF3) | X059D986G51 | |

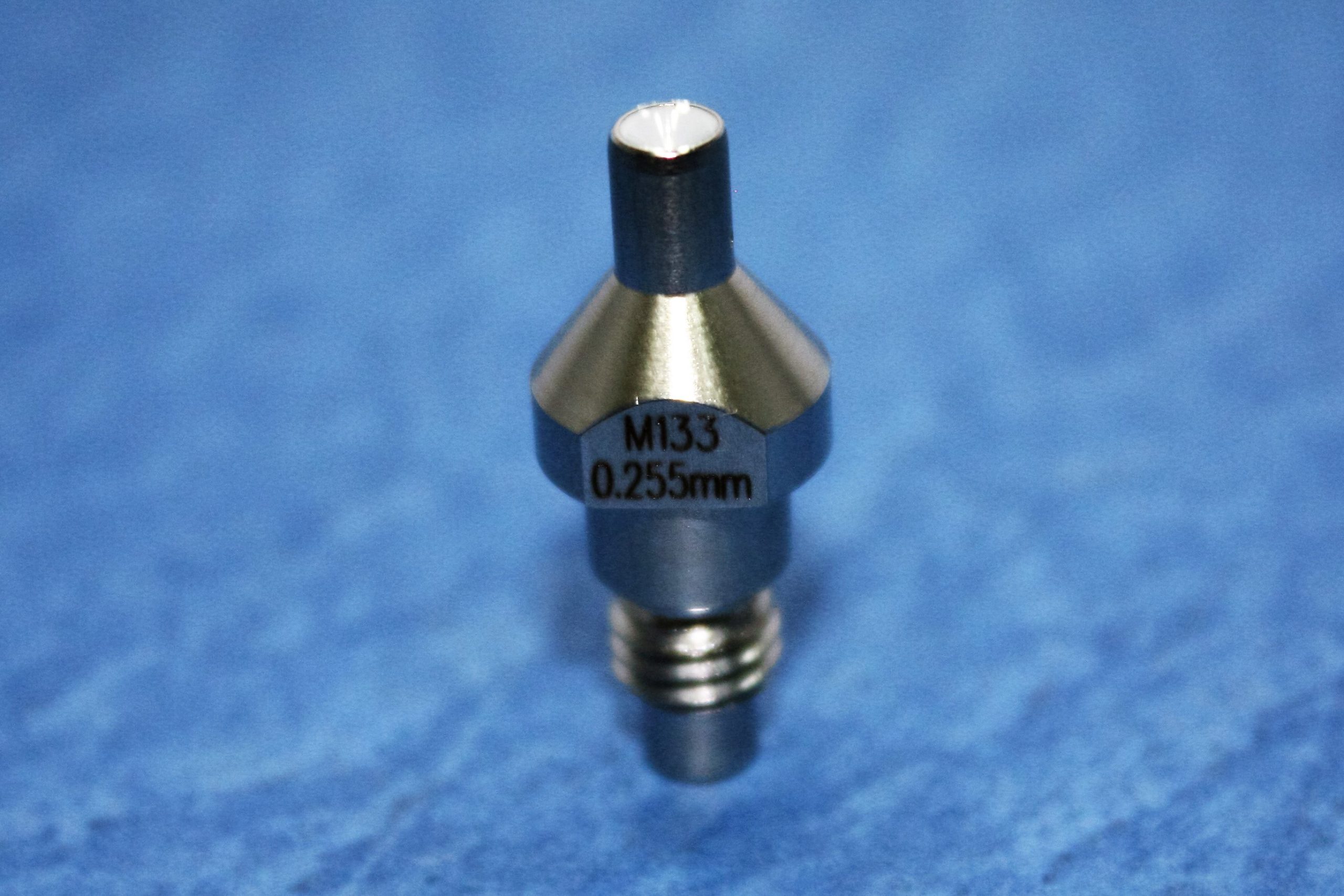

 | M133L | Lower | 鑽石眼膜 廣角45度 Wire Guide 0.105, 0.155, 0.205, 0.255, 0.305 | DWC-HA,SA,SB,SZ,CX,SX, FX,QA,FA,RA (AF2,AF3) | X059D987G51 | |

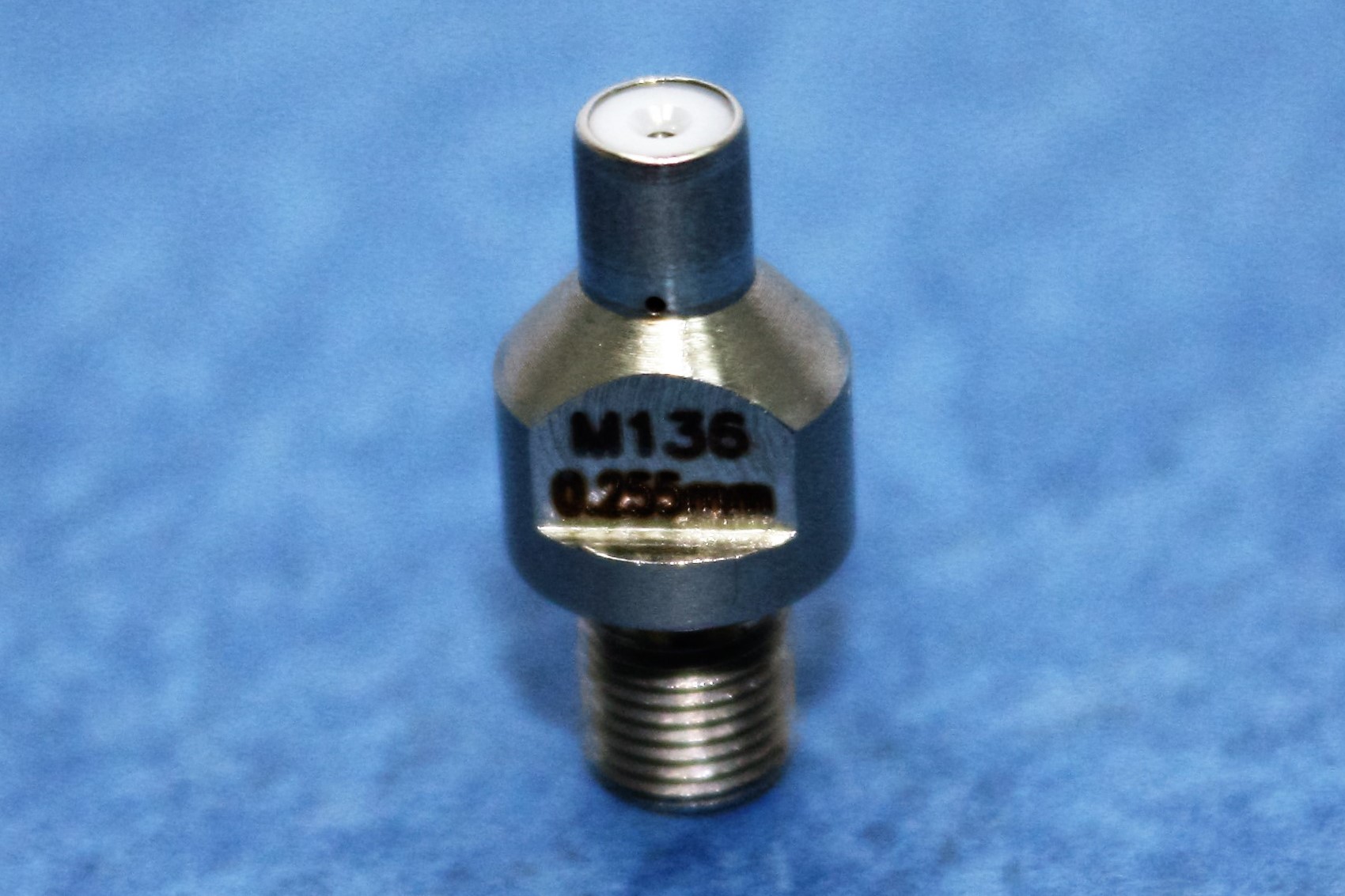

 | M136 | Upper | 鑽石眼膜 Wire Guide 0.105, 0.155, 0.205, 0.255, 0.305 | DWC-MV | X052B627G62 X052B627G63 X052B627G64 X052B627G65 X052B627G66 | |

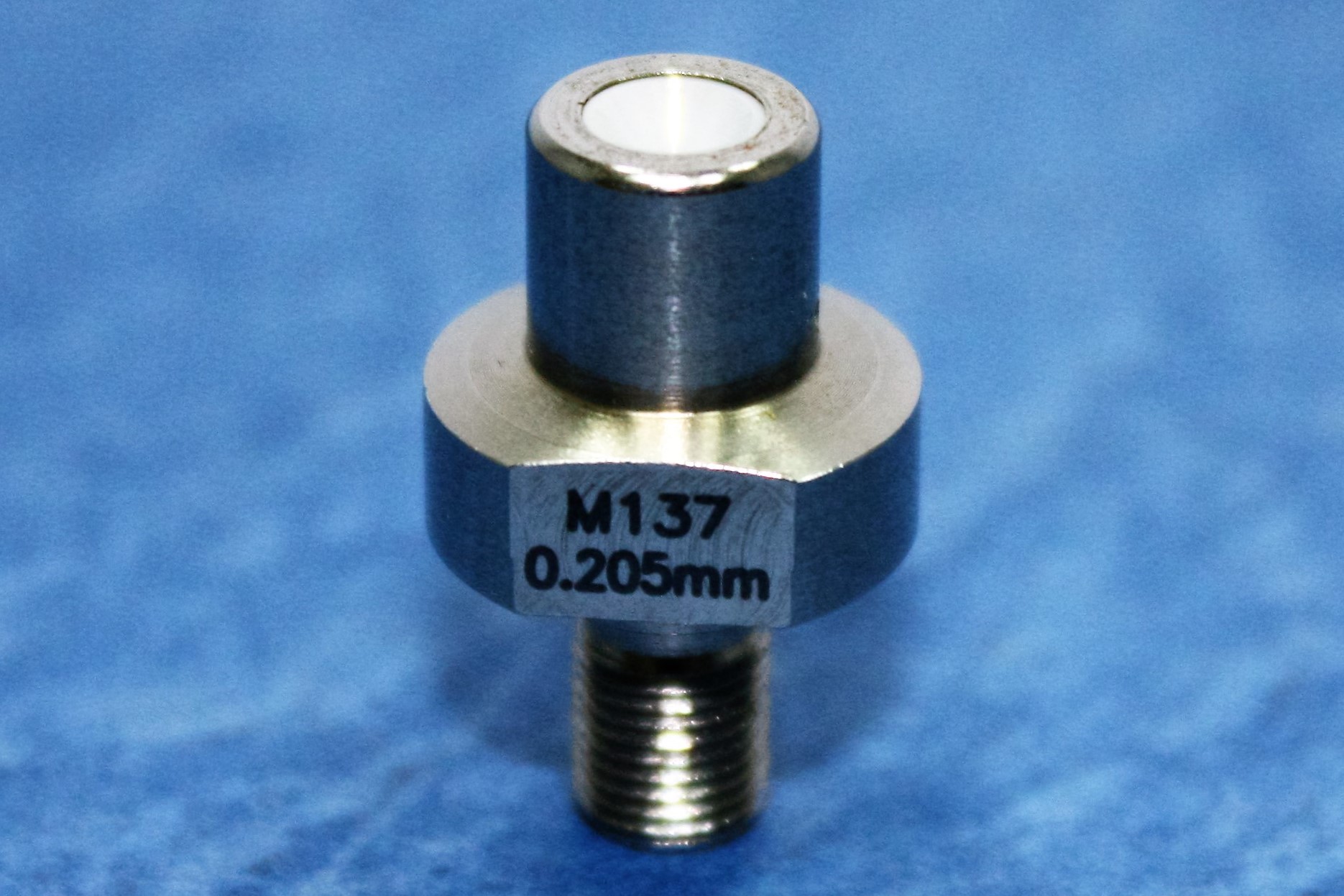

 | M137 | Lower | 鑽石眼膜 Wire Guide 0.105, 0.155, 0.205, 0.255, 0.305 | DWC-MV | X052B627G62 X052B627G63 X052B627G64 X052B627G65 X052B627G66 |
| 圖片 | 編號 | 位置 | 品名尺寸 | 適用機種 | 原廠編號 |
|---|---|---|---|---|---|

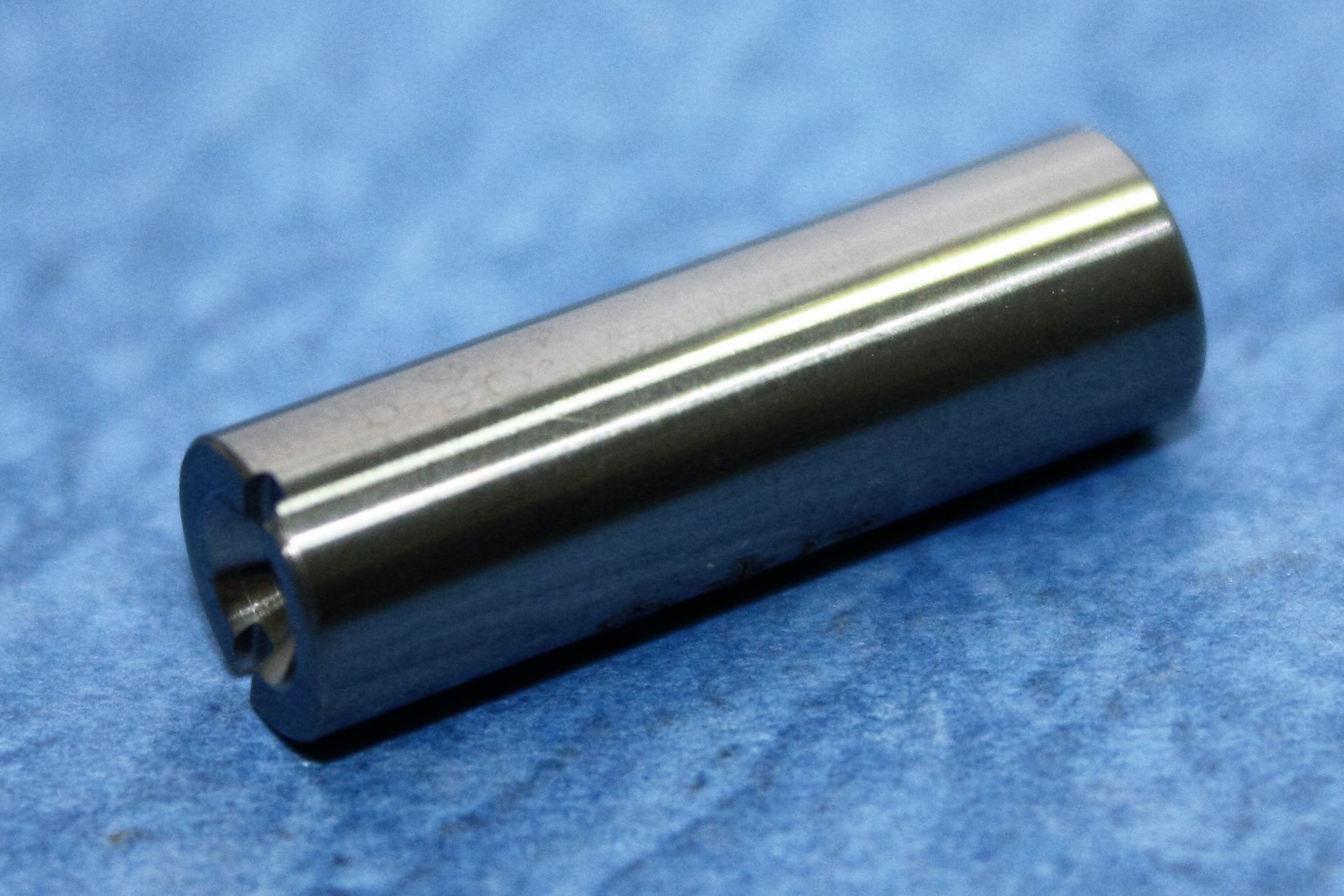

 | M001 | Upper & Lower | 給電板 Power Feed Contact 7Øx22Lx0.7 | DWC-H,H',H1,HA,CR.CA (Manual) | X054D125H03 |

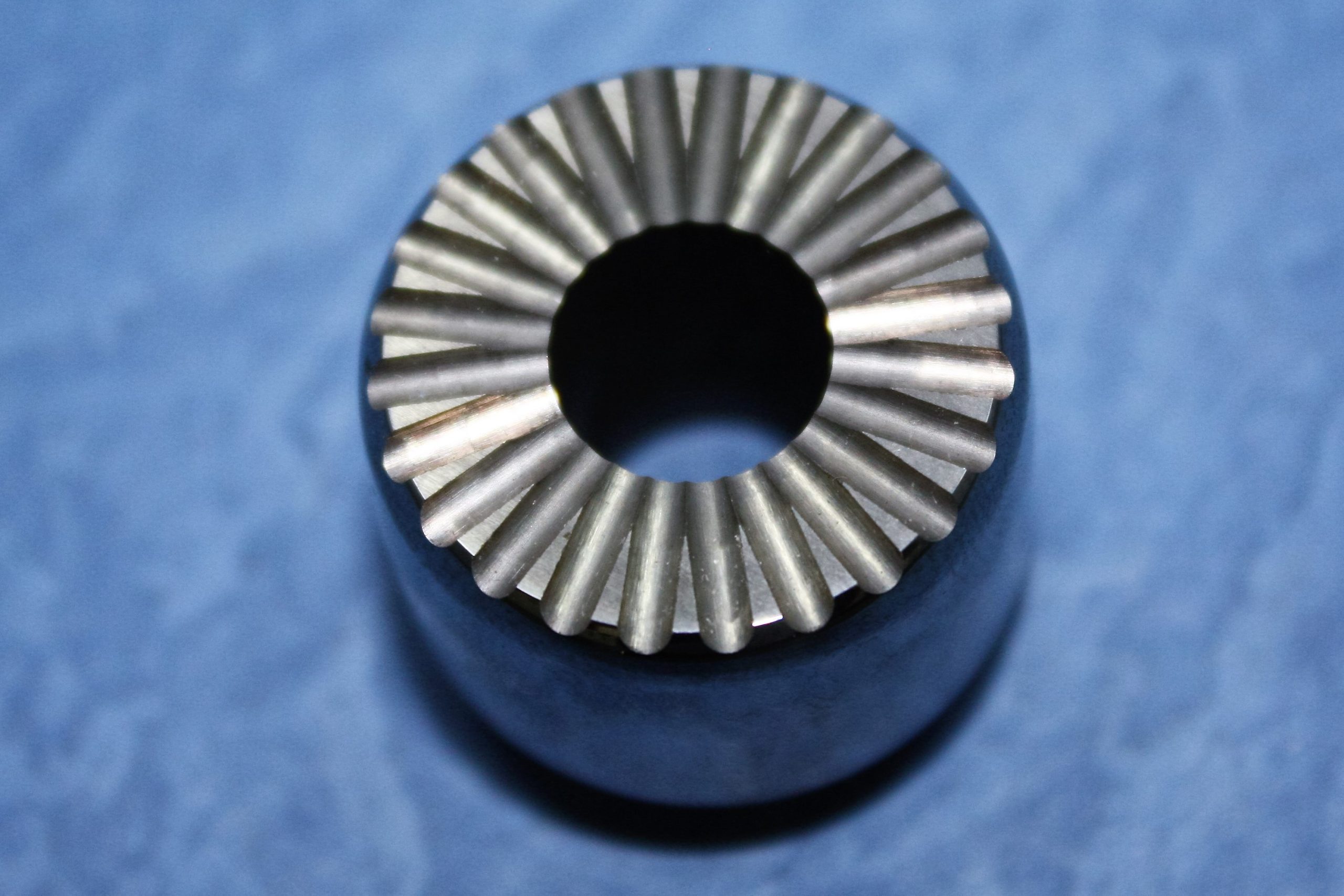

 | M009 | Upper & Lower | 給電板 24溝 Power Feed Contact 24.85mm×20mm | DWC-HA,SZ,SX,CX,FX,QA,RA,FA (AF2,AF3,AT) | X053C432H01 |

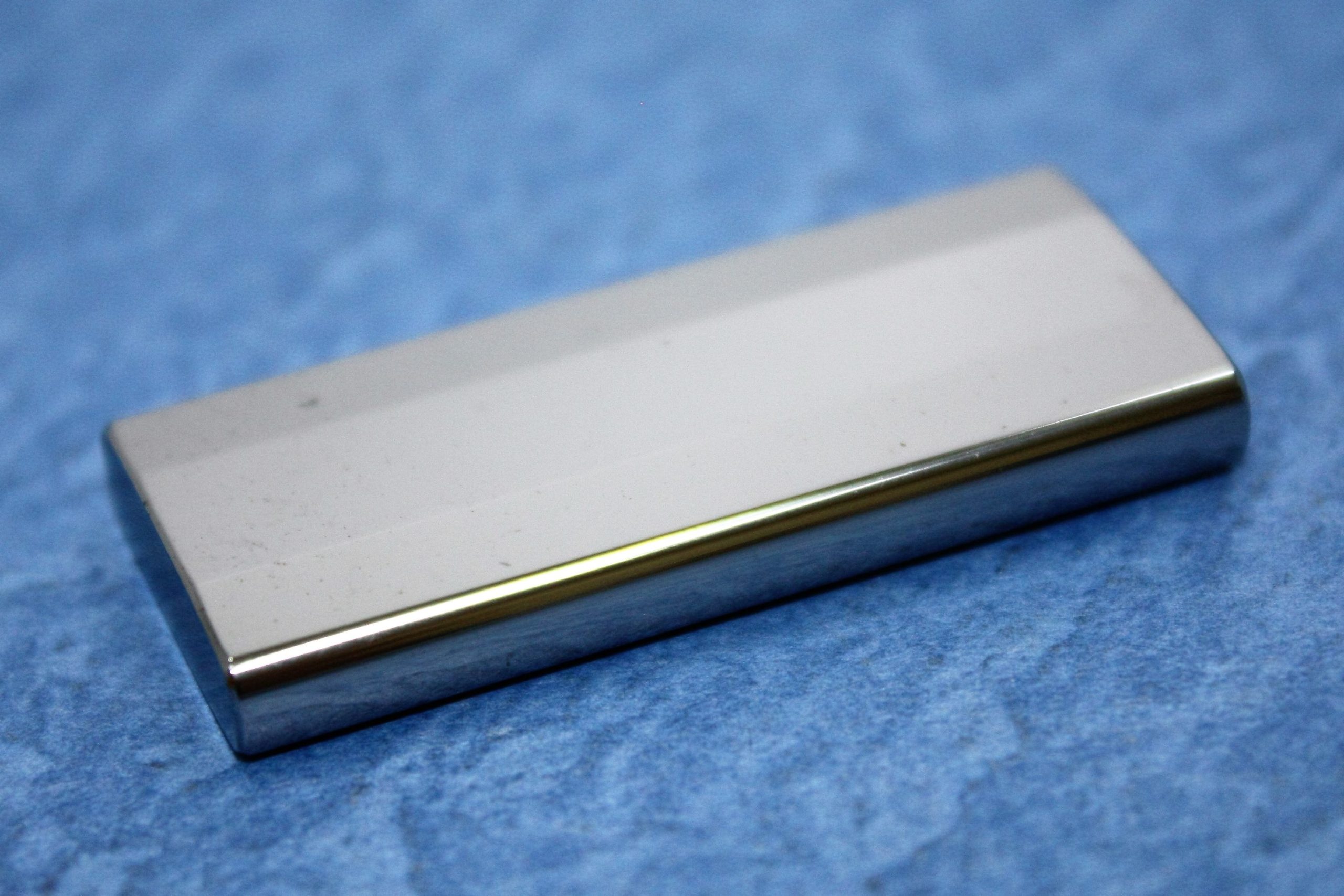

 | MV010 | Upper & Lower | 給電板 Power Feed Contact 40*18*5.2t | DWC-MV | X089D256H01 |
| 圖片 | 編號 | 位置 | 品名尺寸 | 適用機種 | 原廠編號 |
|---|---|---|---|---|---|

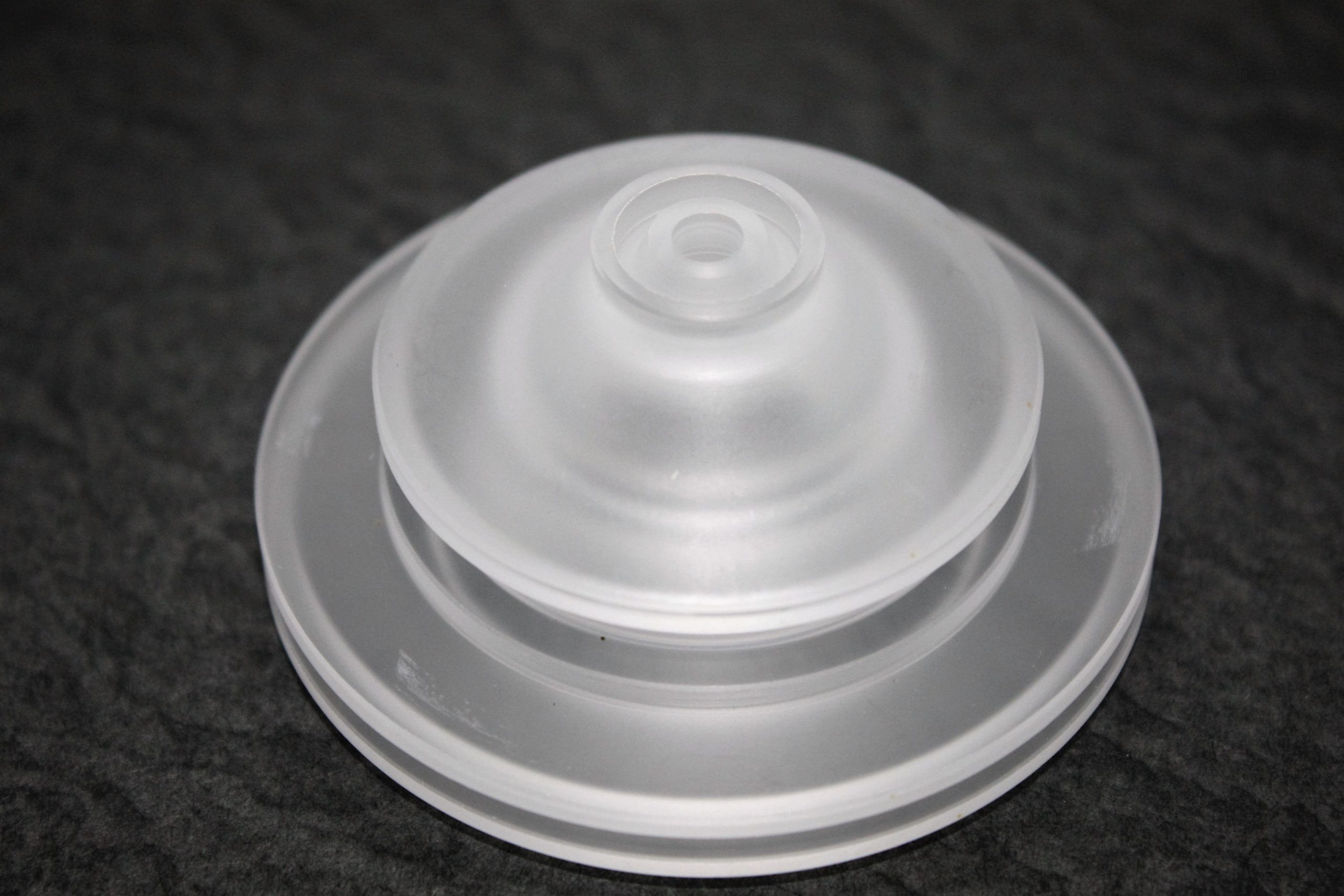

 | M202 | Upper | 上噴水頭有溝4Ø透明 Water Nozzle(Plastic) With Groove | DWC-,F,G,H,H',H1,HA,CR,CA (Manual) | X183C439H01 |
 | M202L | Upper | 上噴水頭 透明 Water Nozzle(extend length) 4 Ø+5/10/15mm | DWC-,F,G,H,H',H1,HA,CR,CA (Manual) | |
 | M202B | Upper | 上噴水頭 透明 平頭 Water Nozzle(Plastic) 4 Ø/6Ø/8Ø/10Ø | DWC-,F,G,H,H',H1,HA,CR,CA (Manual) | X183C439H01 X183C439H02 X183C439H03 |
 | M207A | Lower | 下噴水頭 有溝2 4 Ø 透明 Water Nozzle(Plastic) With Groove | DWC-,F,G,H,H',H1,HA, CR,CA (Manual) | X053C491H01 |
 | M207R | 下水蓋 倒角4 Ø | |||

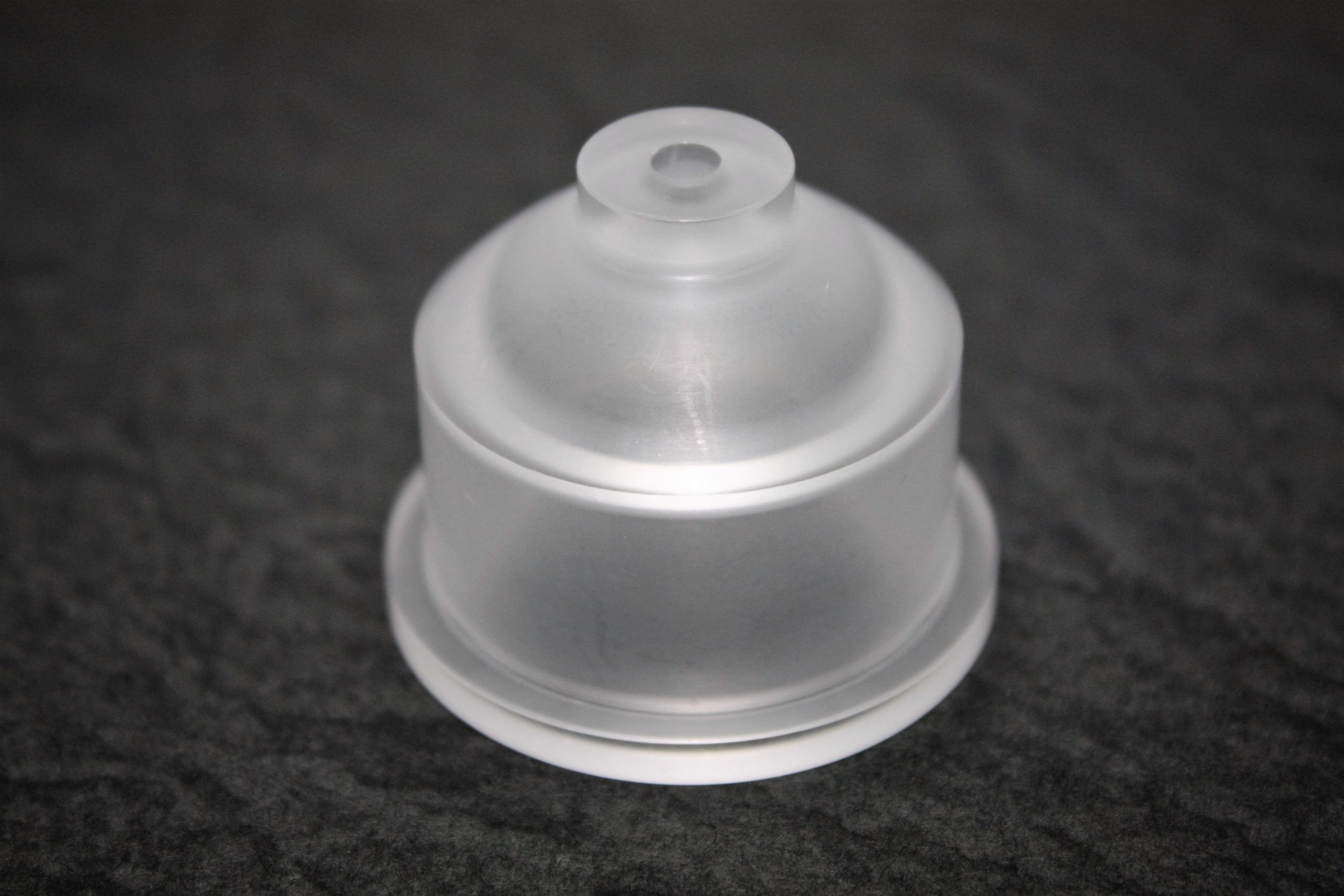

 | M208 | Upper | 上噴水頭 透明 平頭 Water Nozzle(Plastic) 4Ø/6Ø/8Ø/10Ø | DWC-,F,G,H,H',H1,HA, CR,CA (Manual) | |
 | M208L | Upper | 上噴水頭 透明 Water Nozzle (extend length) 4Ø+3/5/10/15mm | DWC-,F,G,H,H',H1,HA, CR,CA (Manual) | |

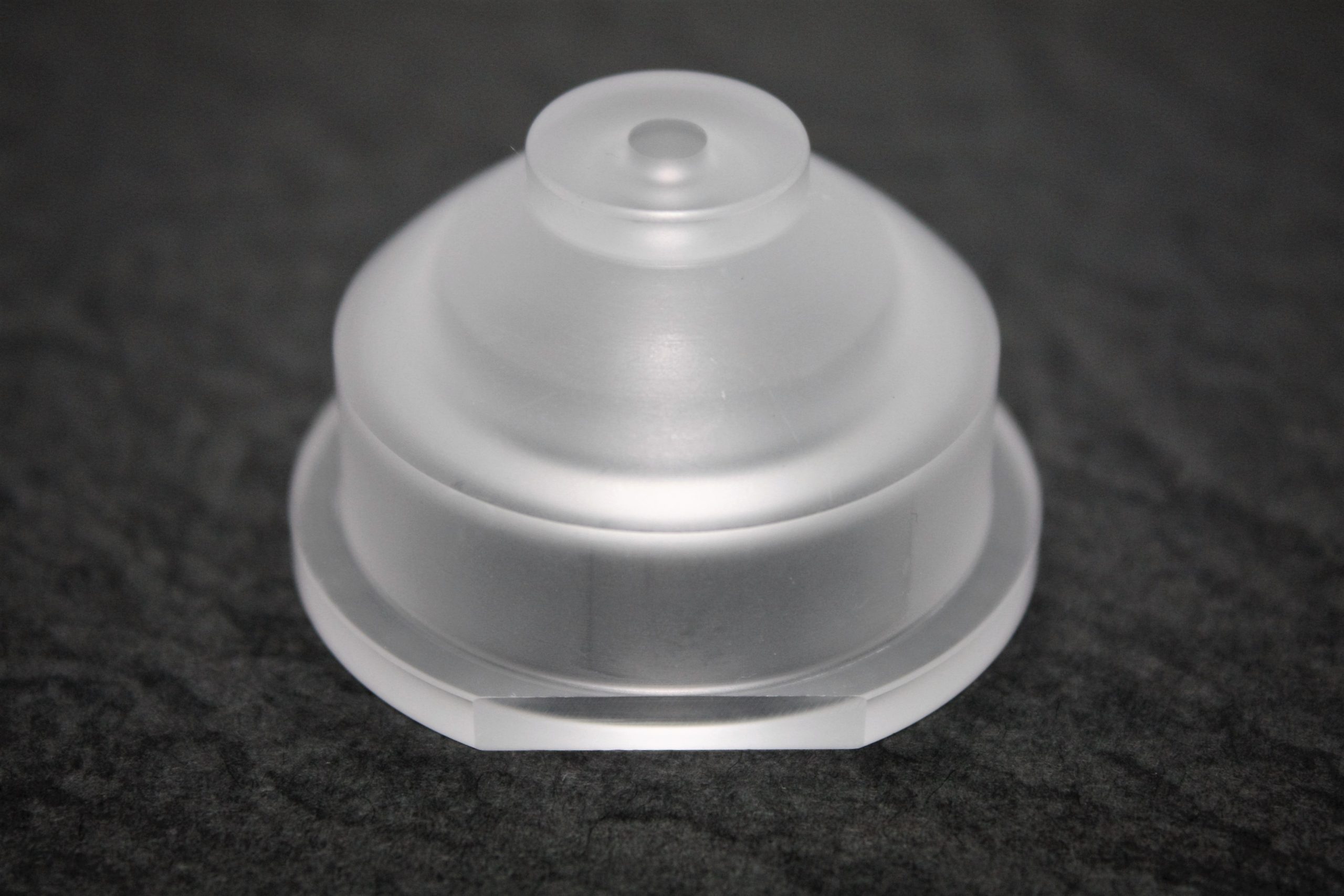

 | M212 | Lower | 下噴水頭 雙切 4Ø~10Ø透明 Water Nozzle(Plastic) | DWC-HA,SZ,SX,CX,FX,QA, RA,FA (AF2,AF3,AT) | |

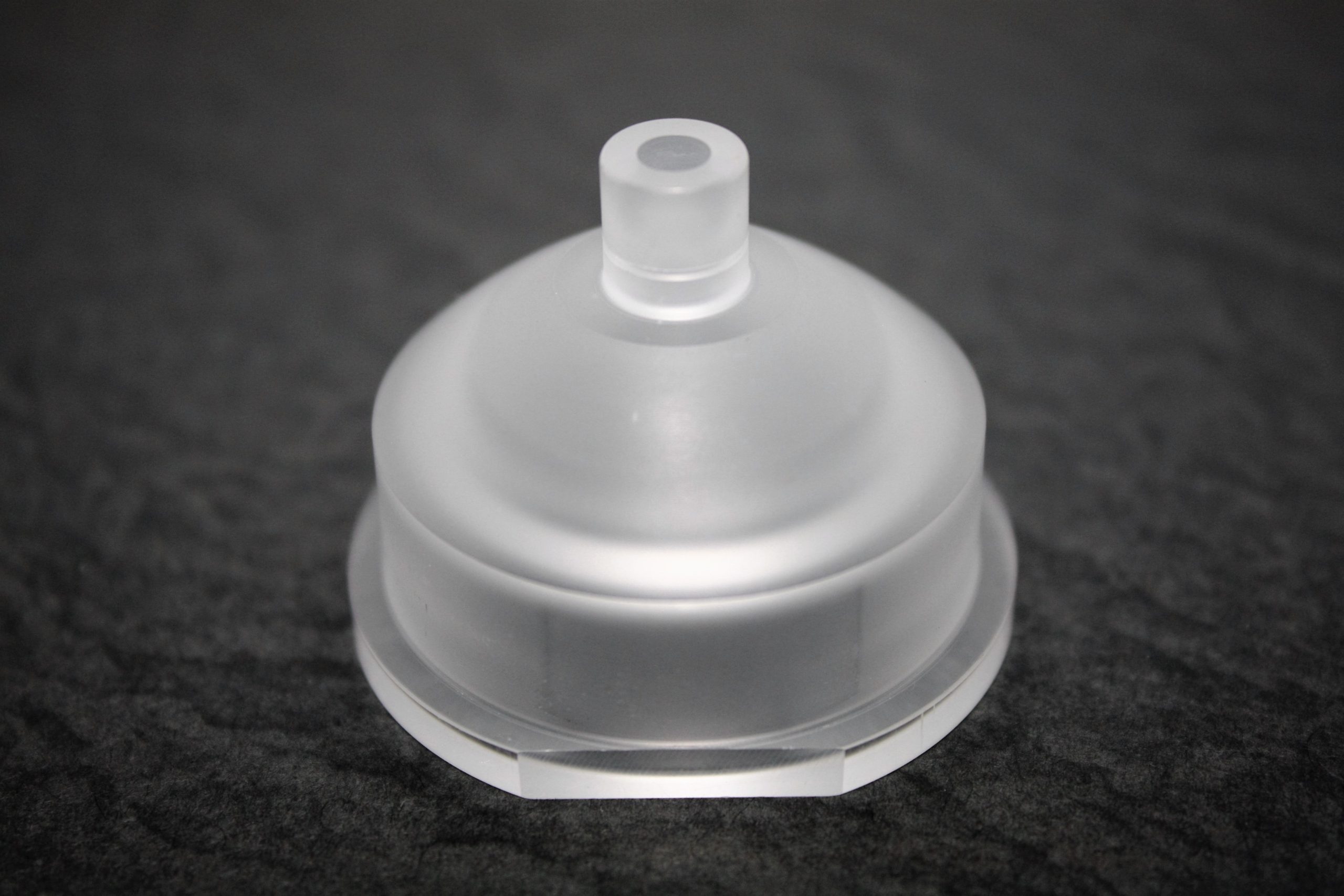

 | M212L | Lower | 下噴水頭 雙切 Water Nozzle(Plastic) 4 Ø+3/5mm | DWC-HA,SZ,SX,CX,FX,QA, RA,FA (AF2,AF3,AT) | |

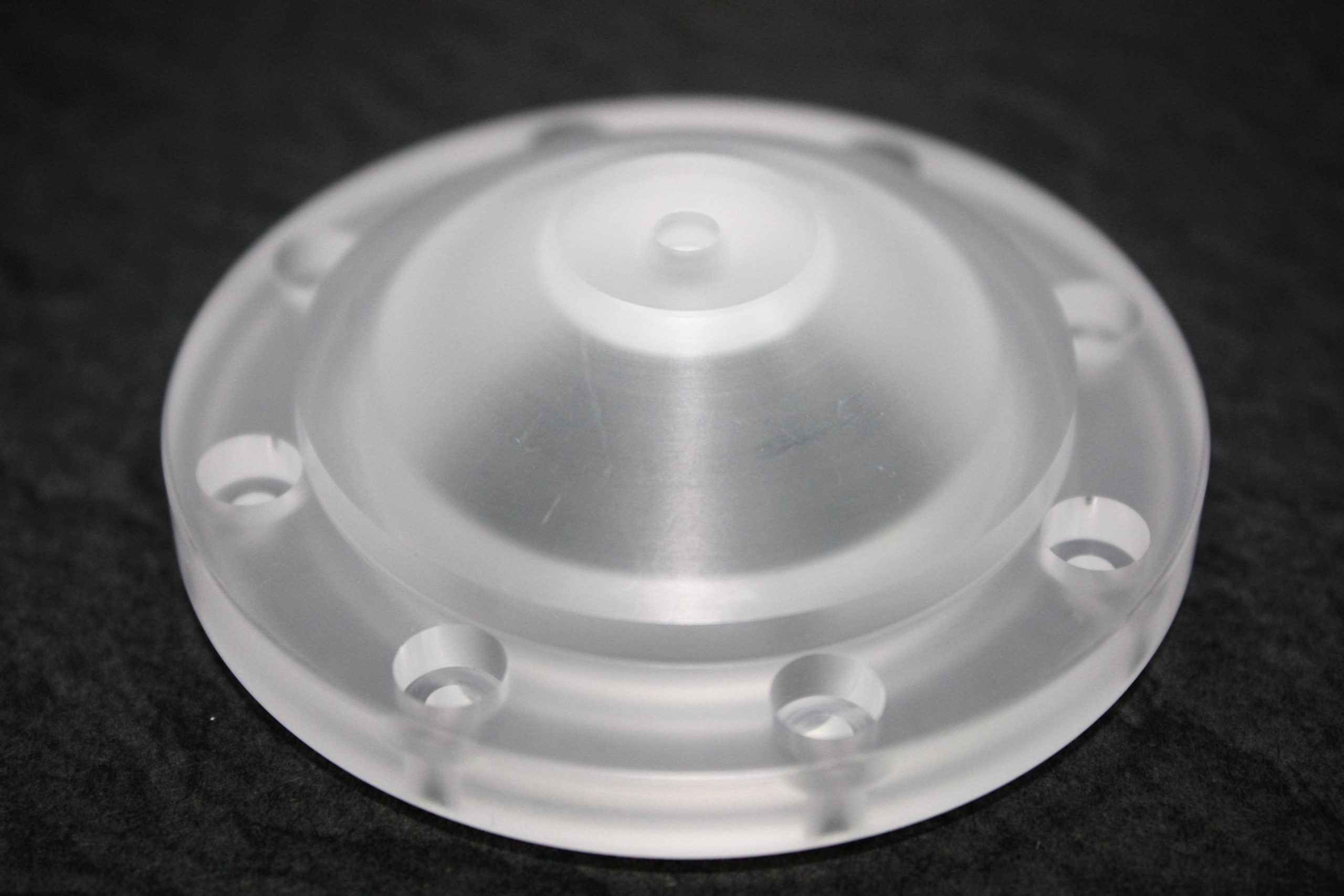

 | M215 | Upper | 上噴水頭 8孔 Water Nozzle 4Ø/8Ø/10Ø | DWC-300HA,CX,FA, FX30, FX-K,QA,RA (AF2,AF3,AT) | X186C793H01 |

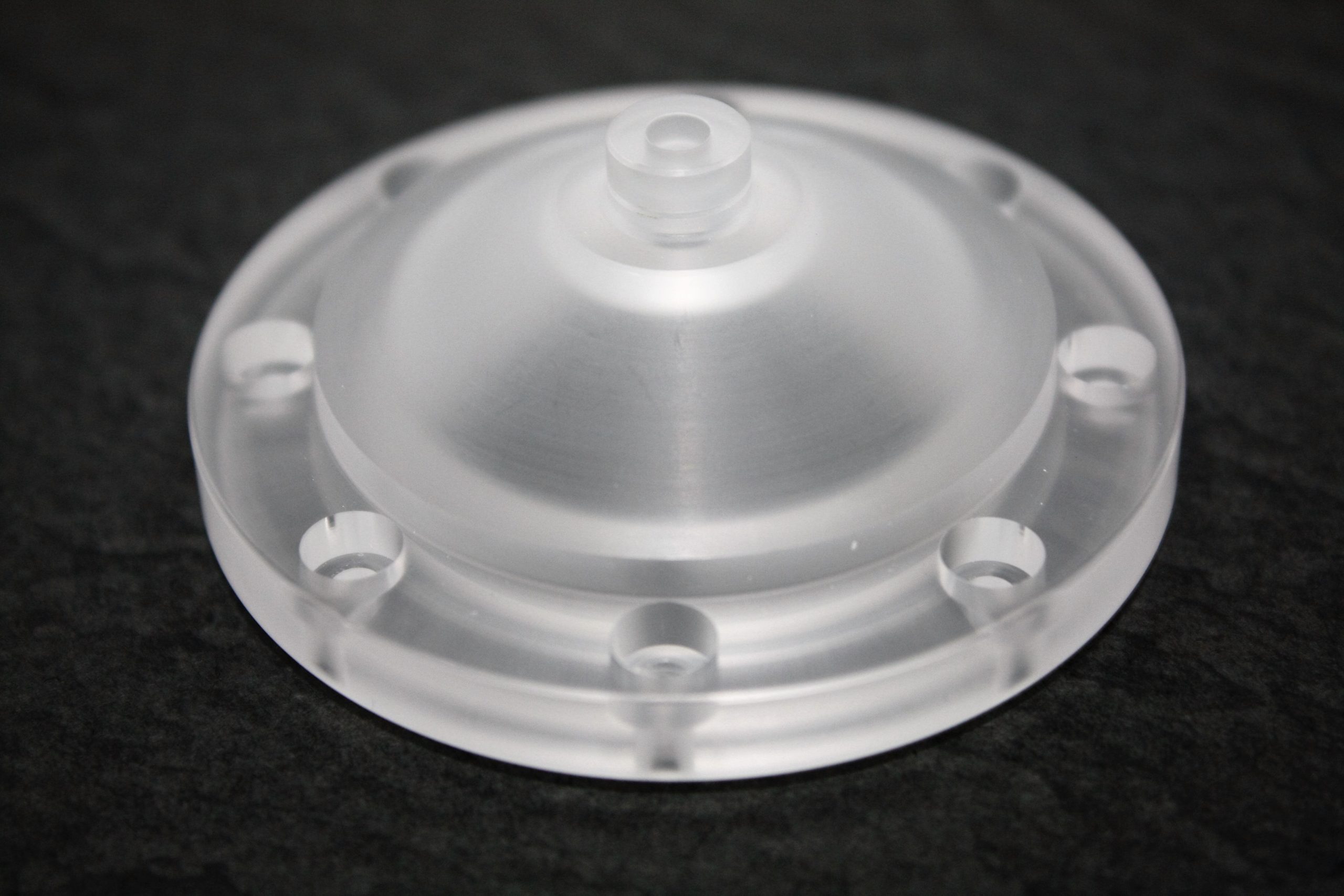

 | M215L | Upper | 上噴水頭 8孔 Water Nozzle(extend length) 4Ø+5/10/15mm | DWC-300HA,CX,FA, FX30, FX-K,QA,RA (AF2,AF3,AT) | |
 | M217L | Upper | 上噴水頭透明(雙切) Water Nozzle(extend length) 4Ø+5/10/15mm | DWC-FX10,FX20 (AF3) | X196C451H01 |

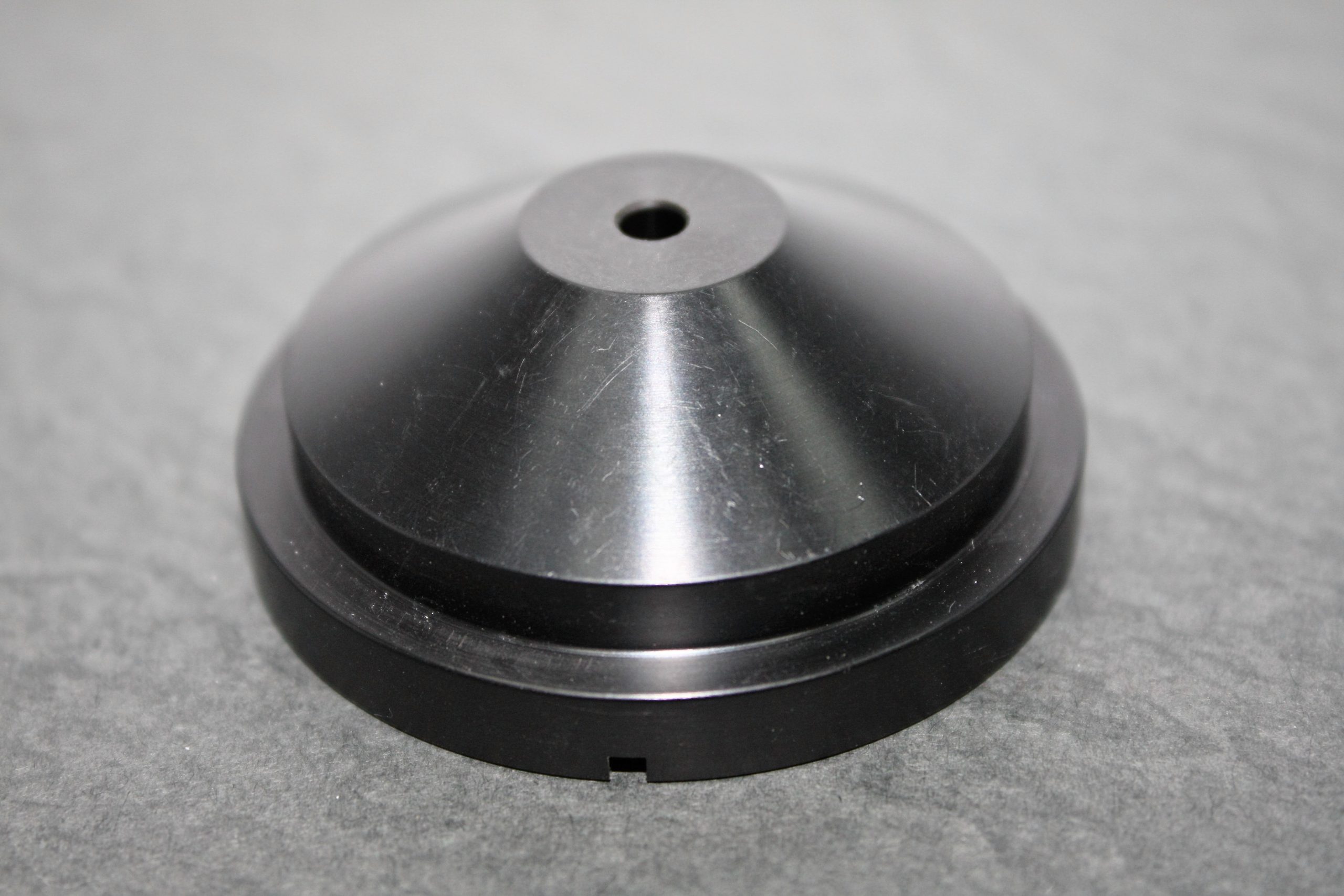

 | M218 | Upper | 上噴水頭 黑色 Water Nozzle 4 Ø/7Ø/10Ø | DWC-MV | X085C155H01 X085C155H02 X085C155H03 |

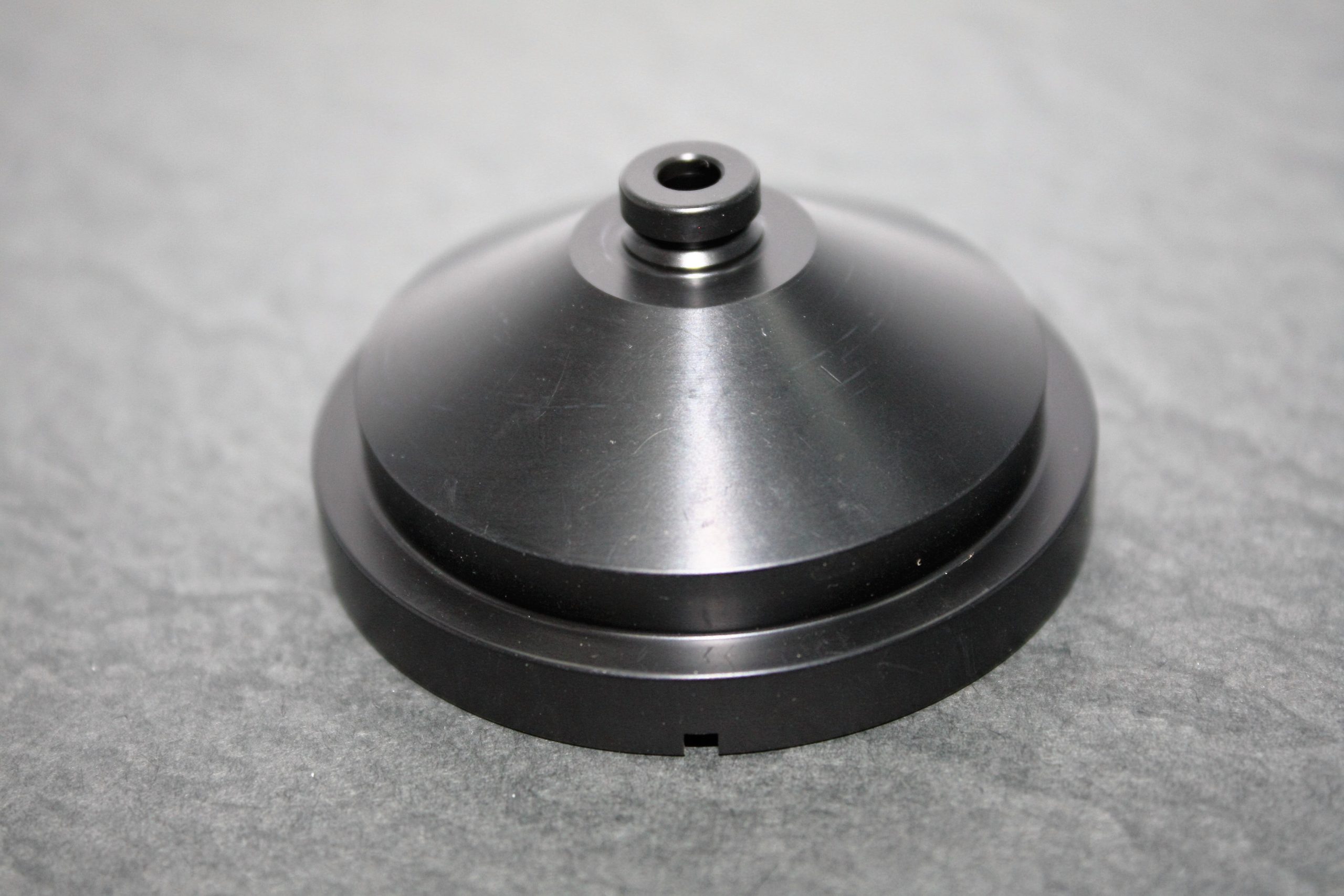

 | M218L | Upper | 上噴水頭 黑色 Water Nozzle (extend length) 4Ø+5/10mm | DWC-MV | |

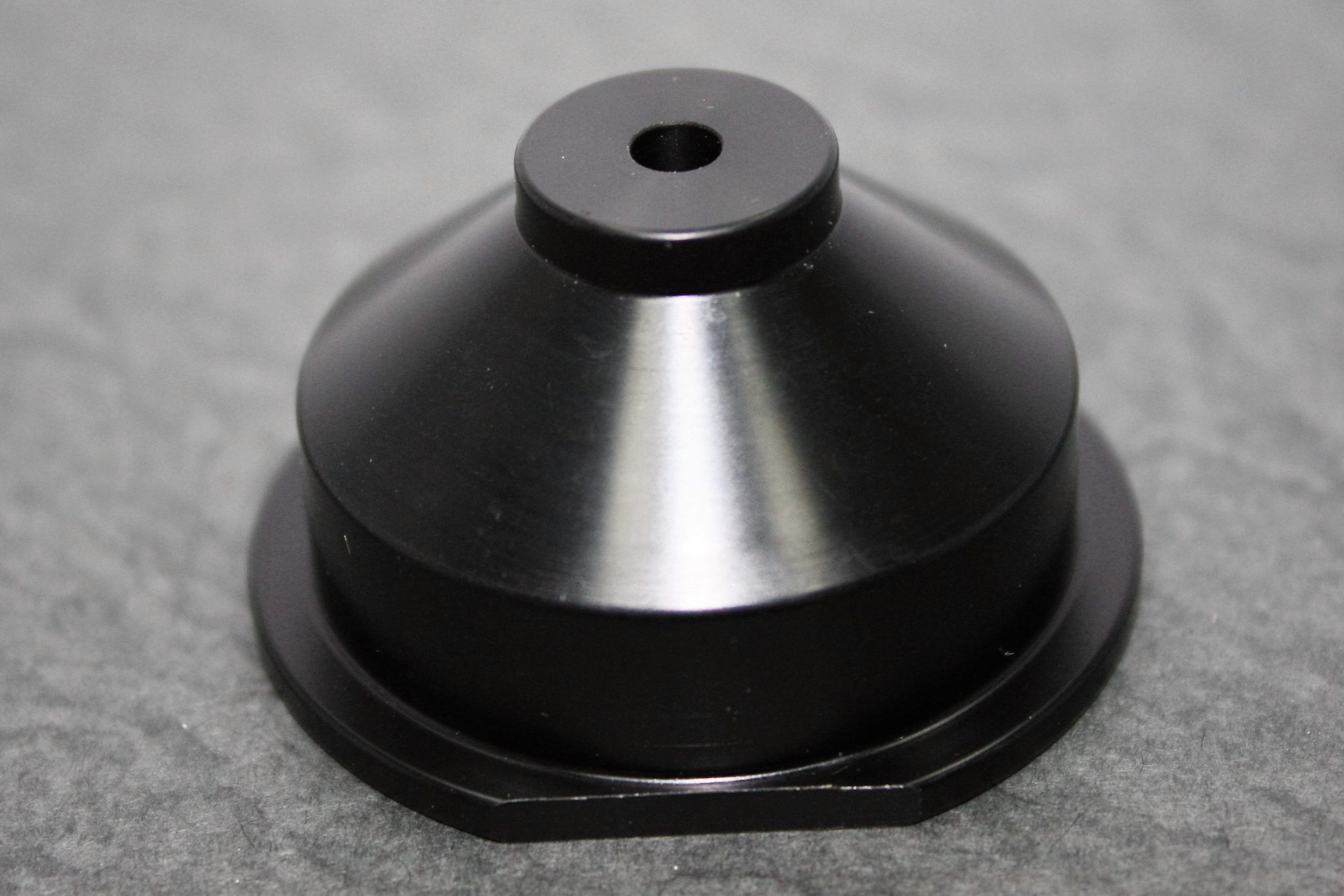

 | M219 | Lower | 下噴水頭 黑色 Water Nozzle 4 Ø/7Ø/10Ø | DWC-MV | X085C131H01 X085C131H02 X085C131H03 |

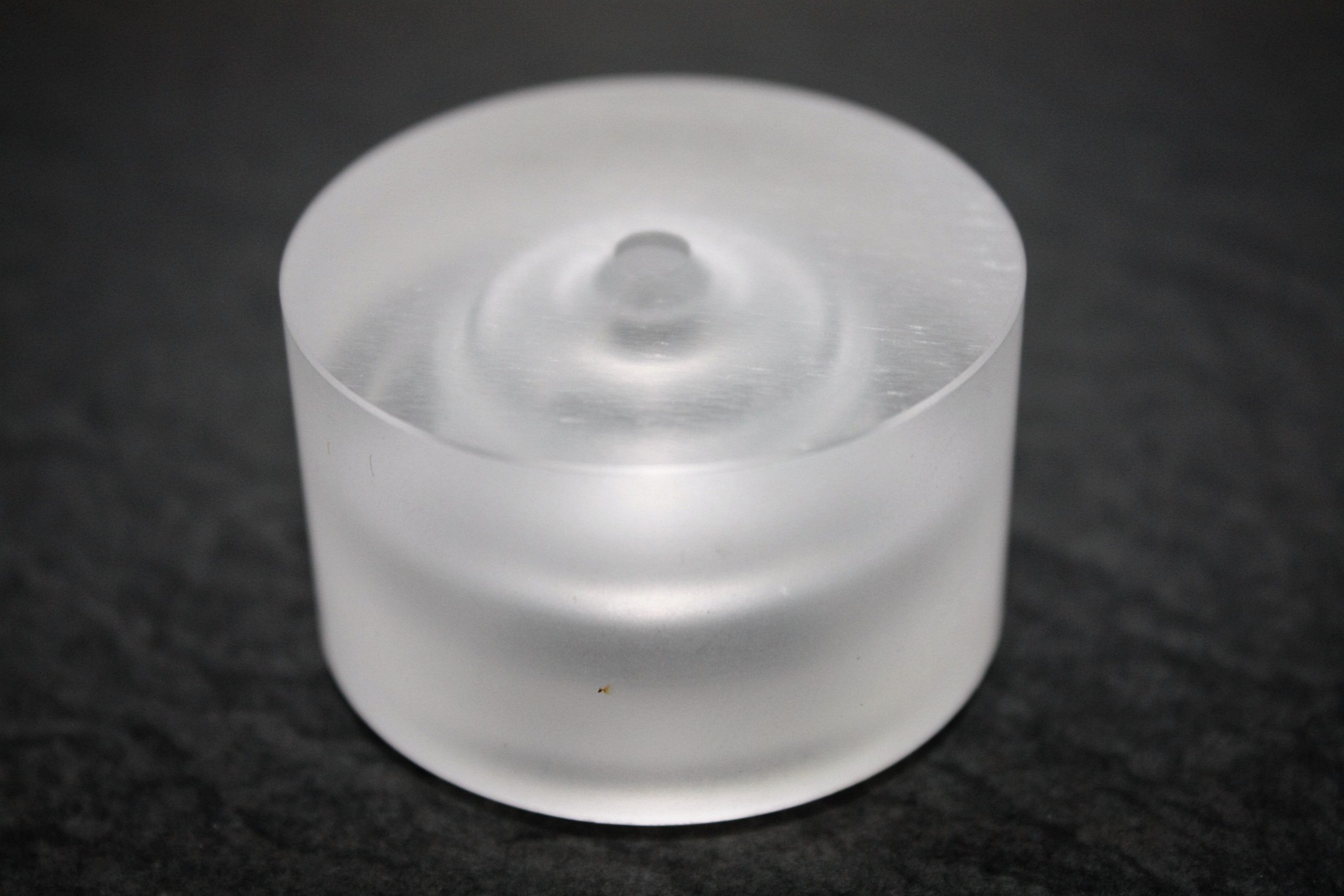

 | M226 | Upper | 上噴水頭 測試用 Water Nozzle For Setting | DWC-H,H',H1,HA | |

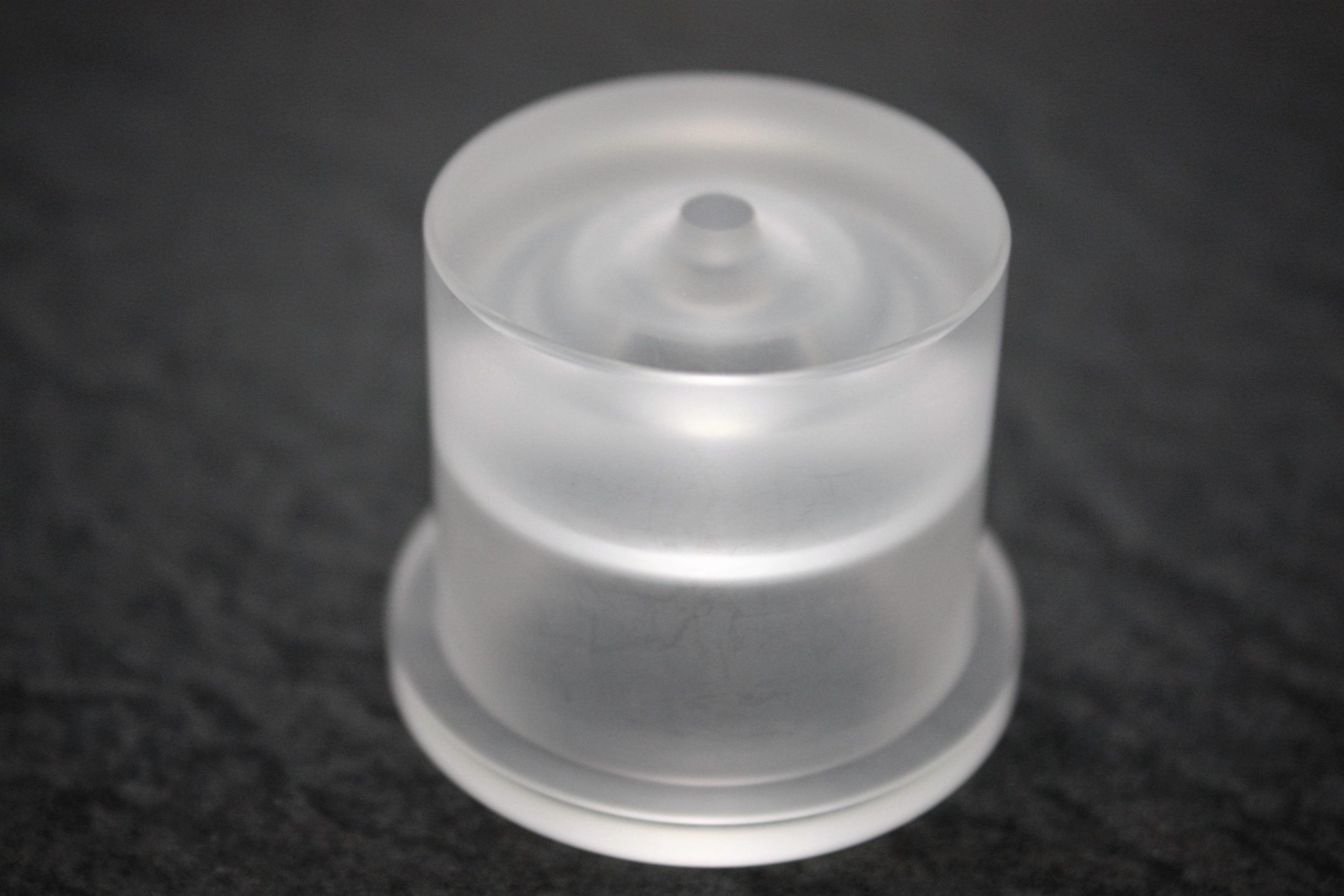

 | M229 | Lower | 下噴水頭 測試用 Water Nozzle For Setting | DWC-H,H',H1,HA | |

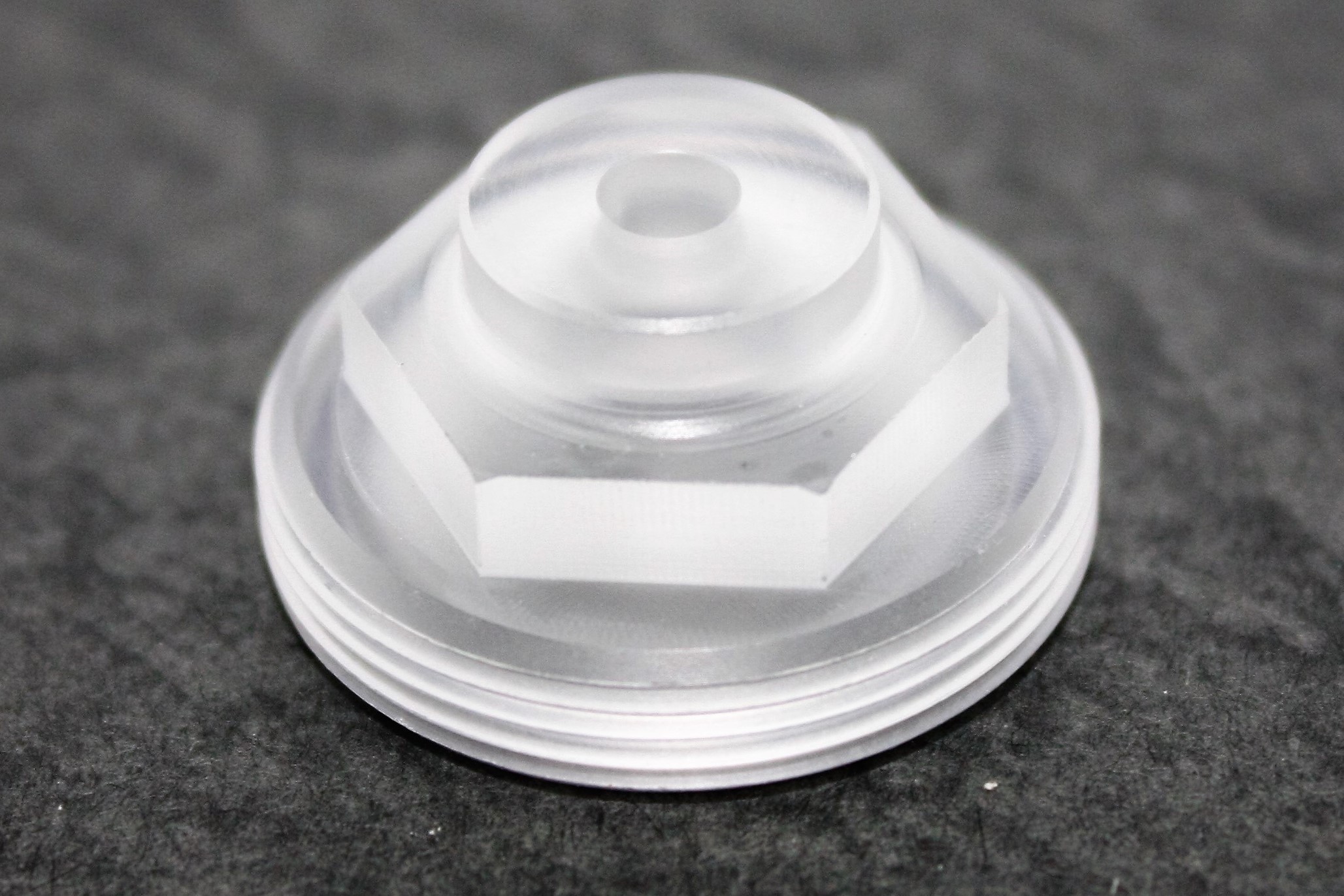

 | M202Y | Upper&Lower | 子噴水頭 平頭 Sectional Water Nozzle(Plastic) 4/6/8Ø | DWC-F1,G,H,H',H1,HA,CA,CR (Manual) | |

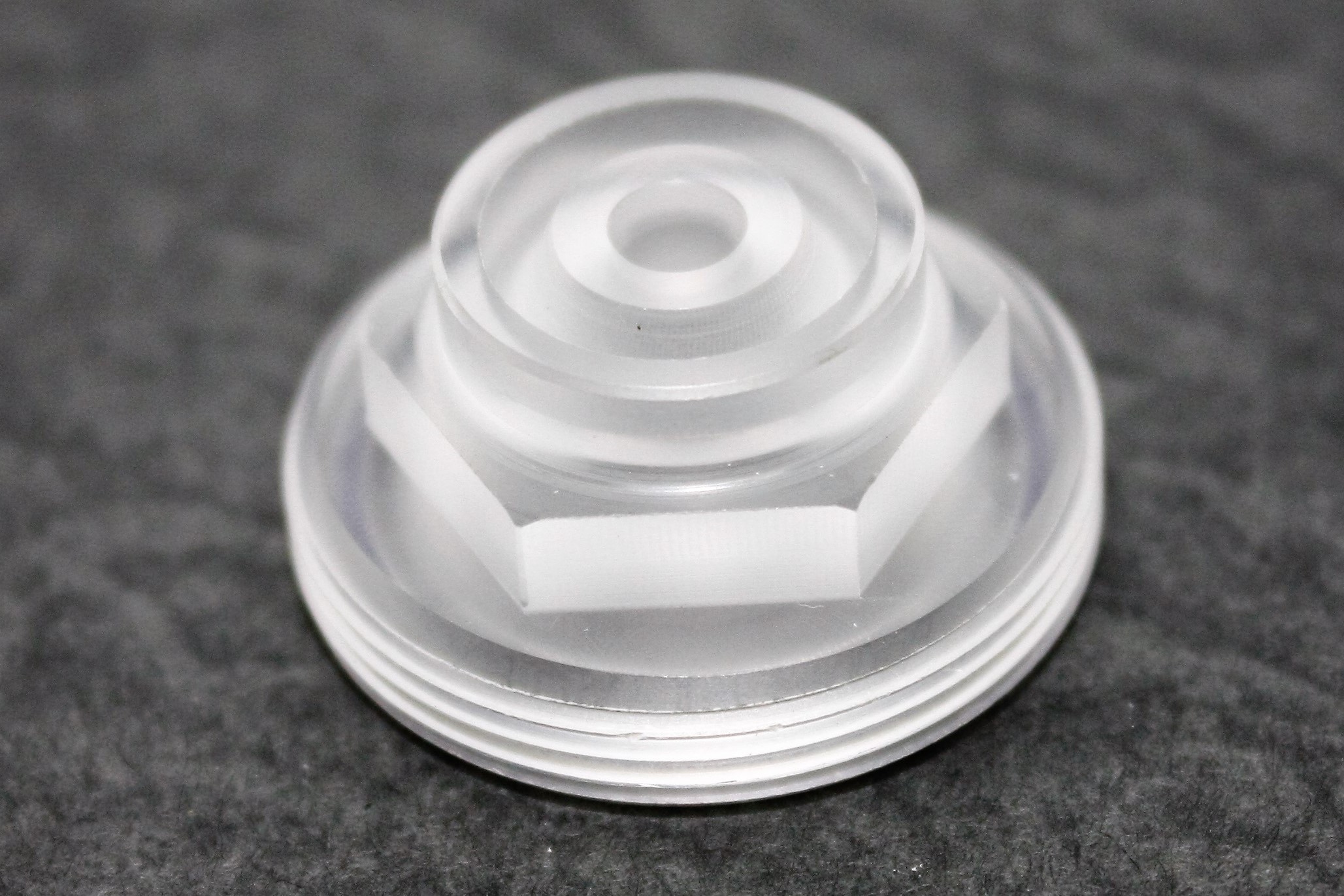

 | M207Y | Upper&Lower | 子噴水頭 有溝4Ø Sectional Water Nozzle(Plastic) With Groove | DWC-F1,G,H,H',H1,HA,CA,CR (Manual) | |

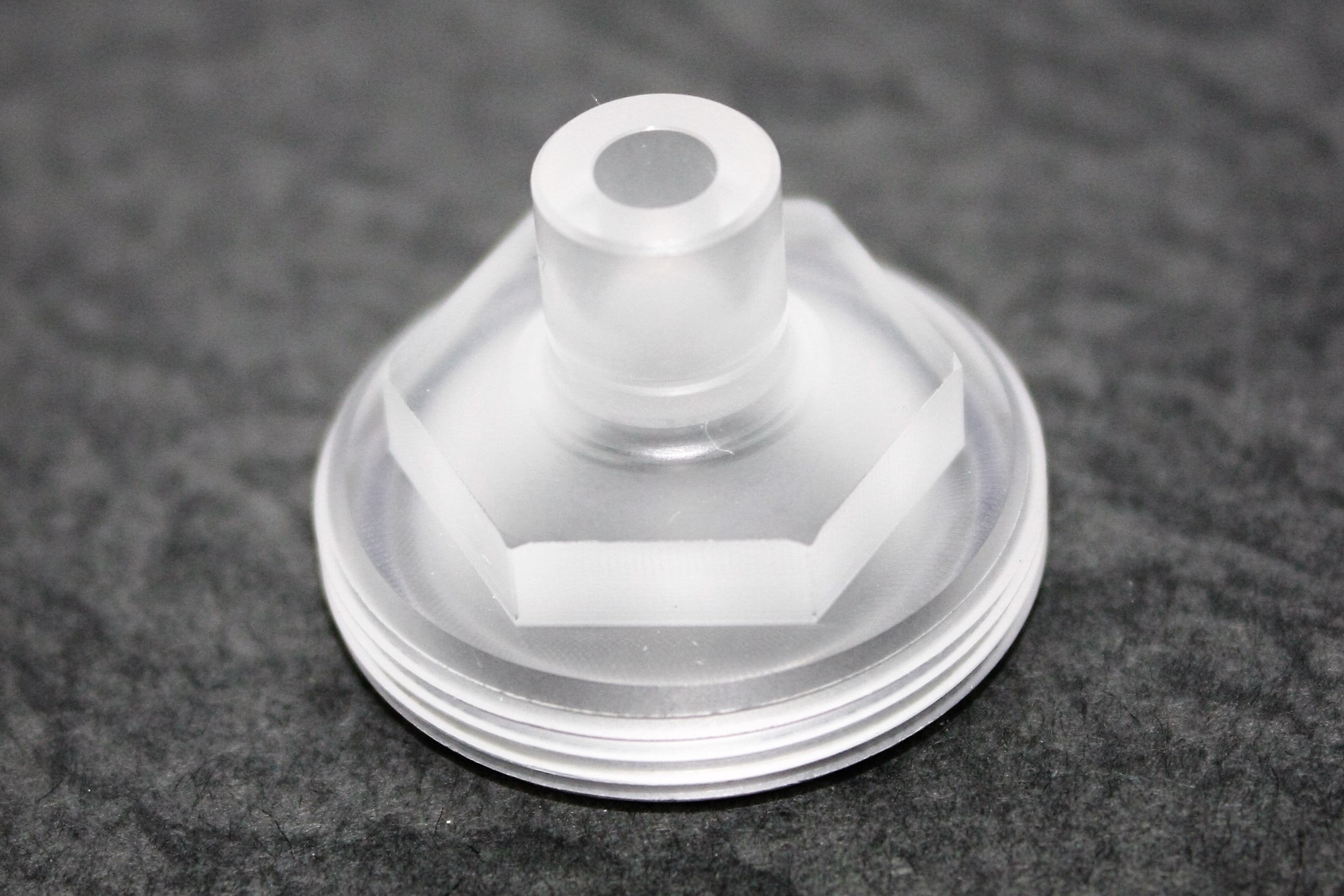

 | M202YL | Upper&Lower | 子噴水頭 Sectional Water Nozzle(Plastic) 4Ø+5/10/15/20mm | DWC-F1,G,H,H',H1,HA,CA,CR (Manual) | |

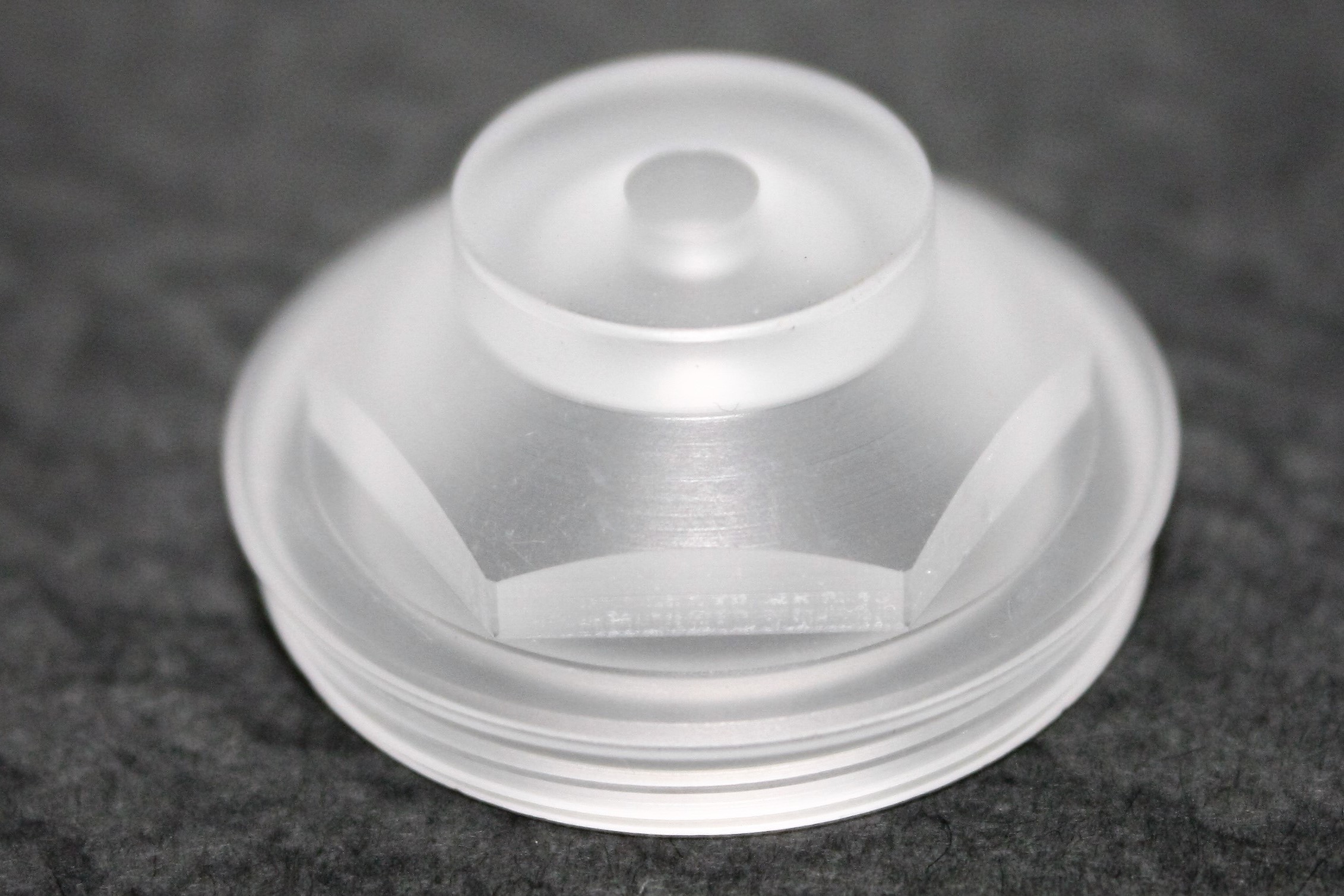

 | M212Y | Lower | 子噴水頭 Sectional Water Nozzle(Plastic) 4/6/8Ø | DWC-300HA,SX,CX,FX,QA, RA,FA (AF2,AF3,AT) | |

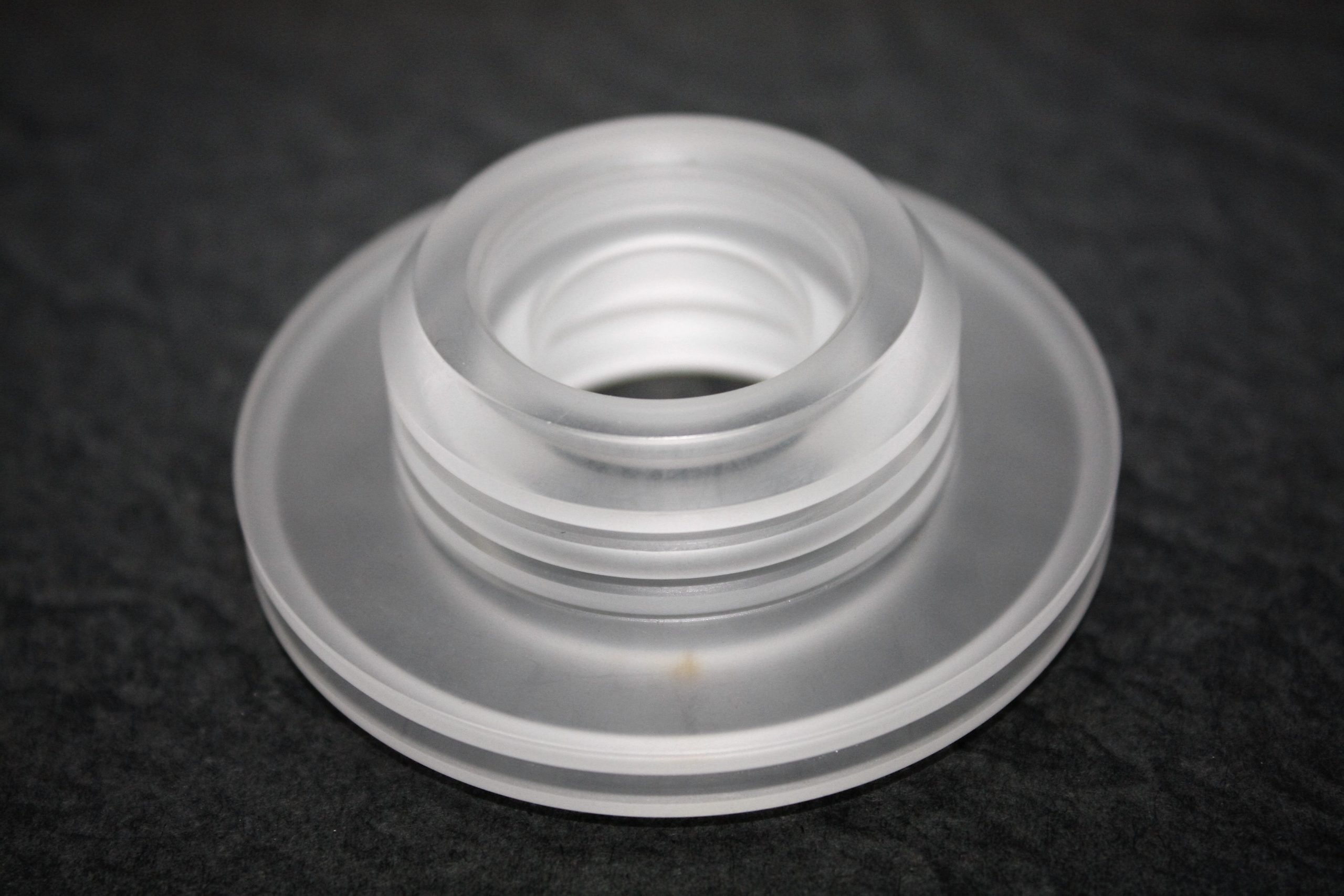

 | M202X | Upper | 子母型噴水頭 上噴座 Sectional Water Nozzle(Plastic) | DWC-F1,G,H,H',H1,HA,CA,CR (Manual) | |
 | M207X | Lower | 子母型噴水頭 下噴座 Sectional Water Nozzle(Plastic) | DWC-F1,G,H,H',H1,HA,CA,CR (Manual) | |

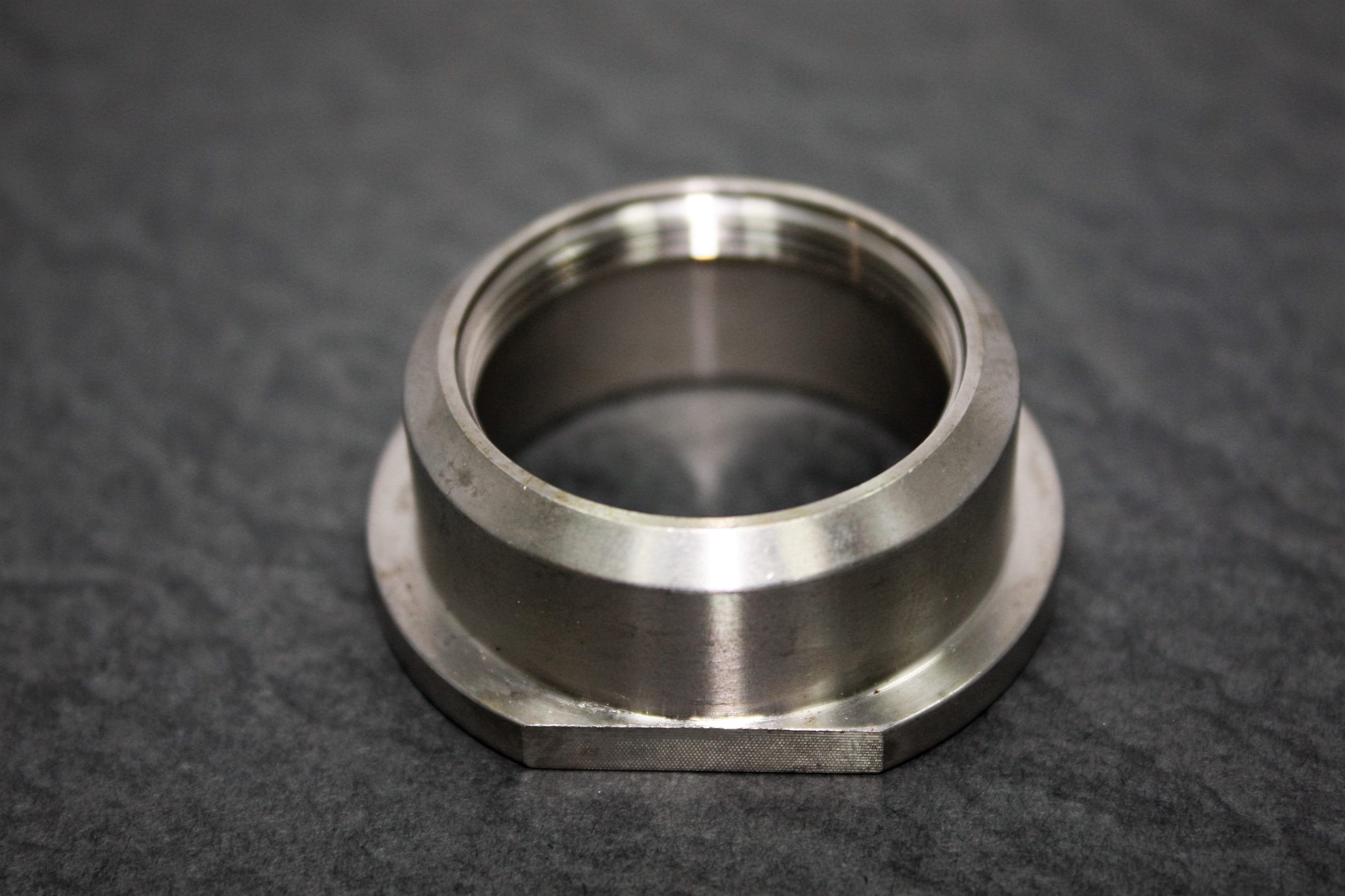

 | M212X | Lower | 子母型噴水頭 下母座 Sectional Water Nozzle Base(SUS) | DWC-300HA,SX,CX,FX,QA, RA,FA (AF2,AF3,AT) | |

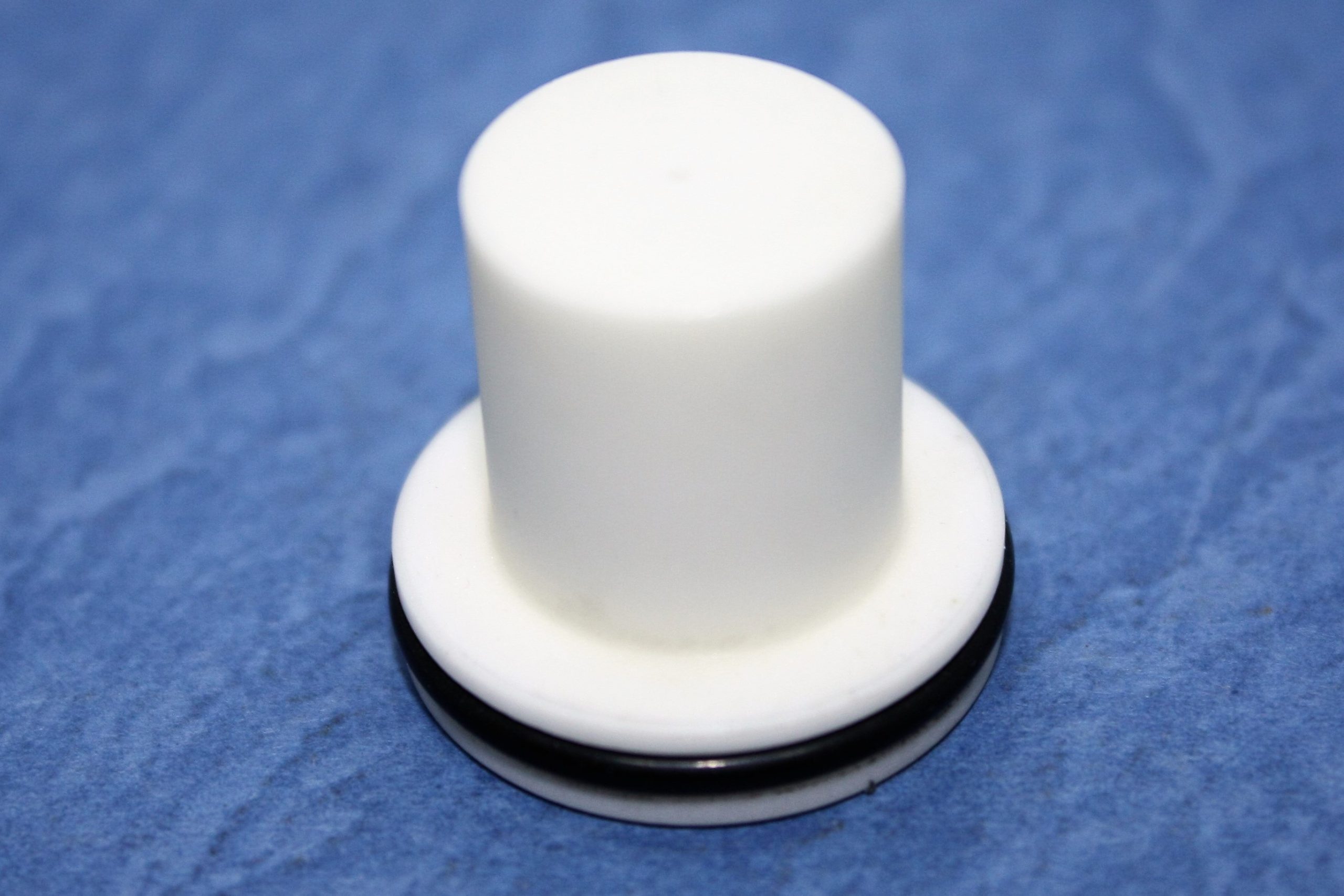

 | M129C | Upper | 輔助噴水頭 陶瓷 Jet Nozzle(Ceramic) 0.5/0.7/1.0/1.5/2.0Ø | DWC-HA,SX,CX,FX,QA,RA,FA (AF2,AF3,AT) | X054D826H06 X058D054H08 X054D826H02 |
 | M129 | Upper | 輔助噴水頭 Jet Nozzle (SUS+Ceramic) 0.5/0.7/1.0/1.5/2.0Ø | DWC-HA,SX,CX,FX,QA,RA,FA (AF2,AF3,AT) | X054D826H06 X058D054H08 X054D826H02 |

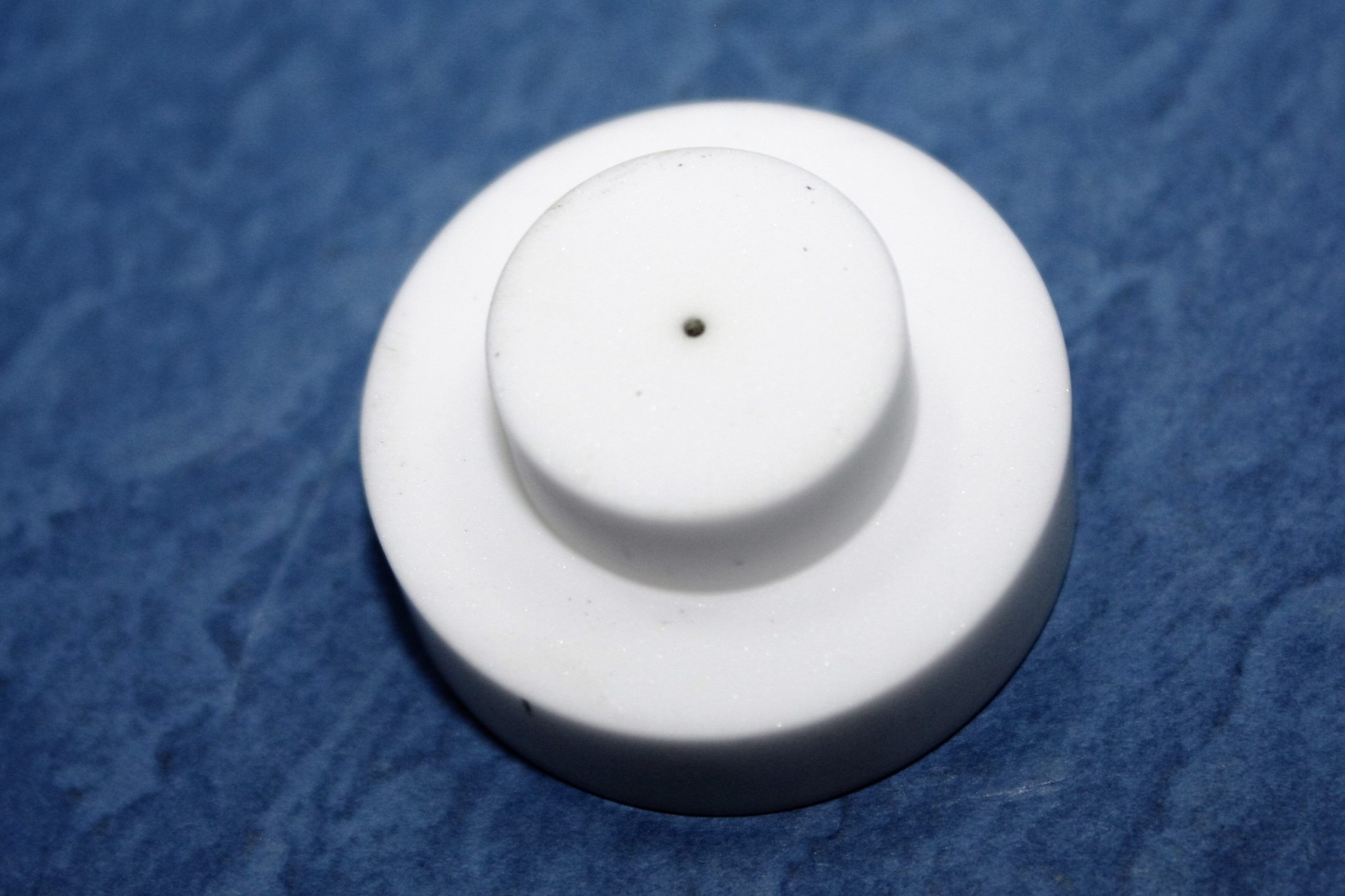

 | M130C | Upper | 陶瓷噴水頭 Jet Nozzle 0.5/0.7/1.0/1.5Ø | DWC-MV 0.5/0.7/1.0/1.5Ø | X089D300H01 X089D300H02 X089D300H03 X089D279H01 |
| 圖片 | 編號 | 位置 | 品名尺寸 | 適用機種 | 原廠編號 |
|---|---|---|---|---|---|

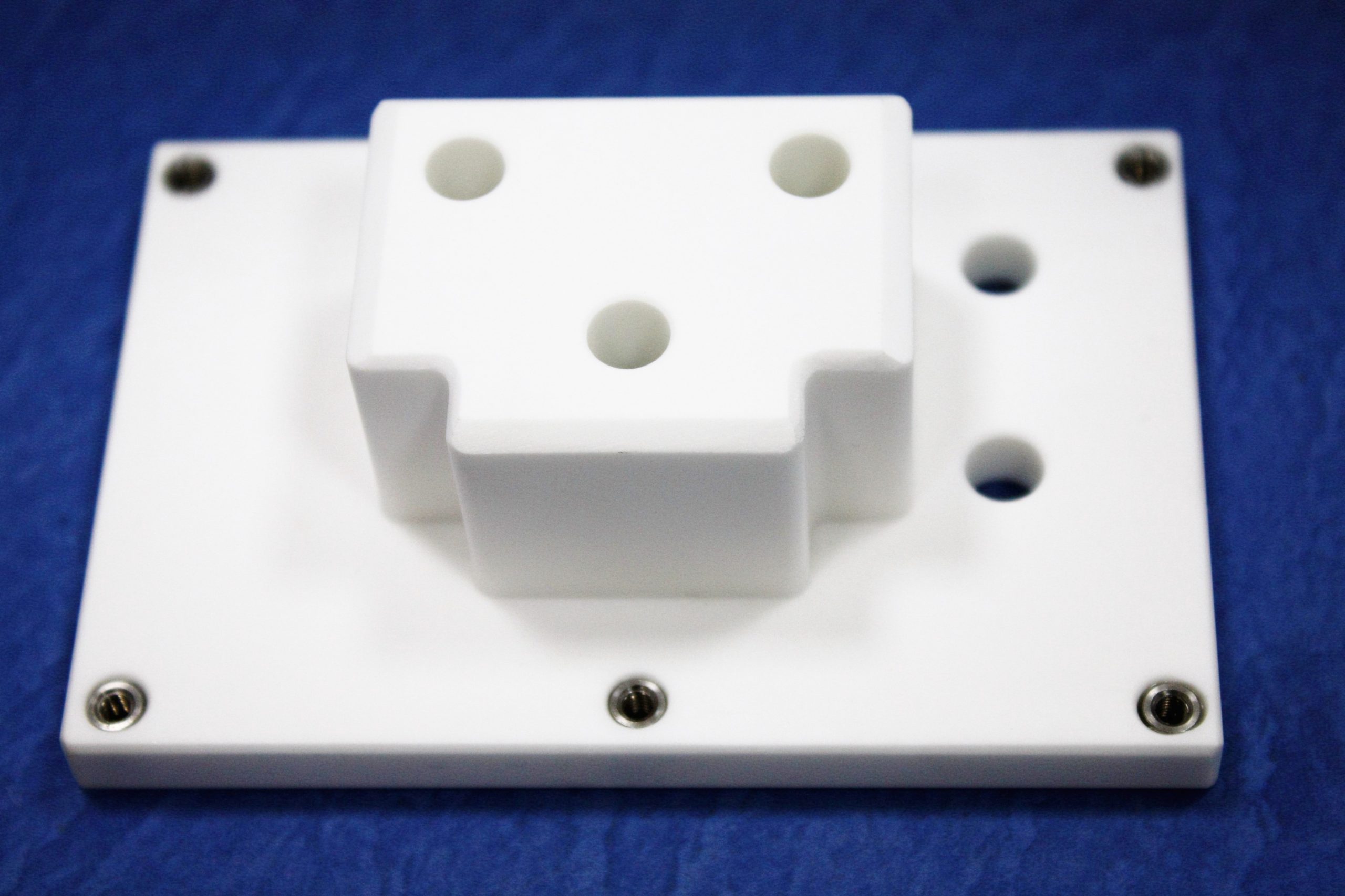

 | M301 | Upper | 上絕緣板 Lsolator Plate 68×100×33mm | DWC-F1,G,H,H',H1,HA,CR,CA (Manual) | X053C162H01 |

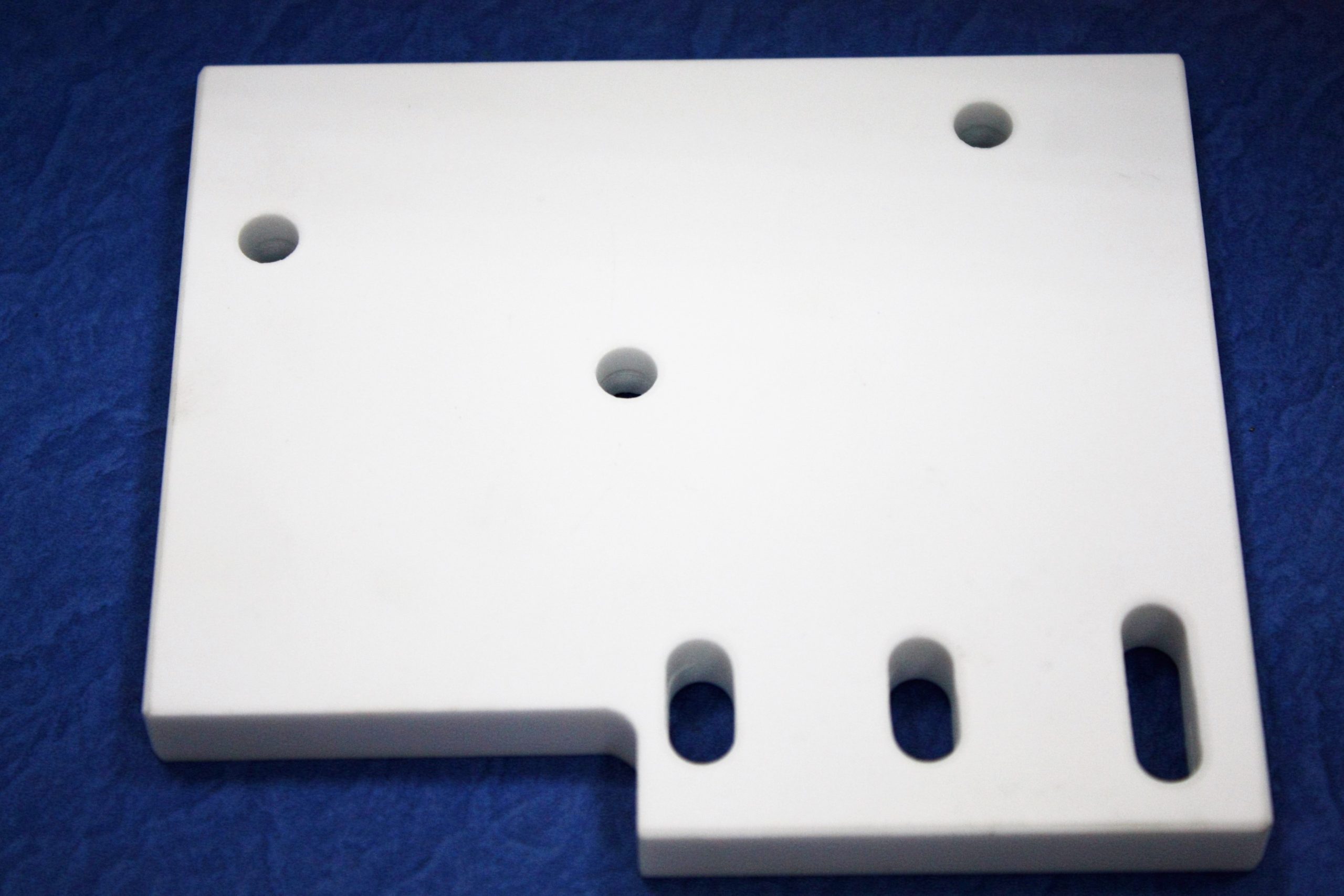

 | M302 | Lower | 下絕緣板 Lsolator Plate 120×105×11mm | DWC-F1,G,H,H' (Manual) | X054D185G51 |

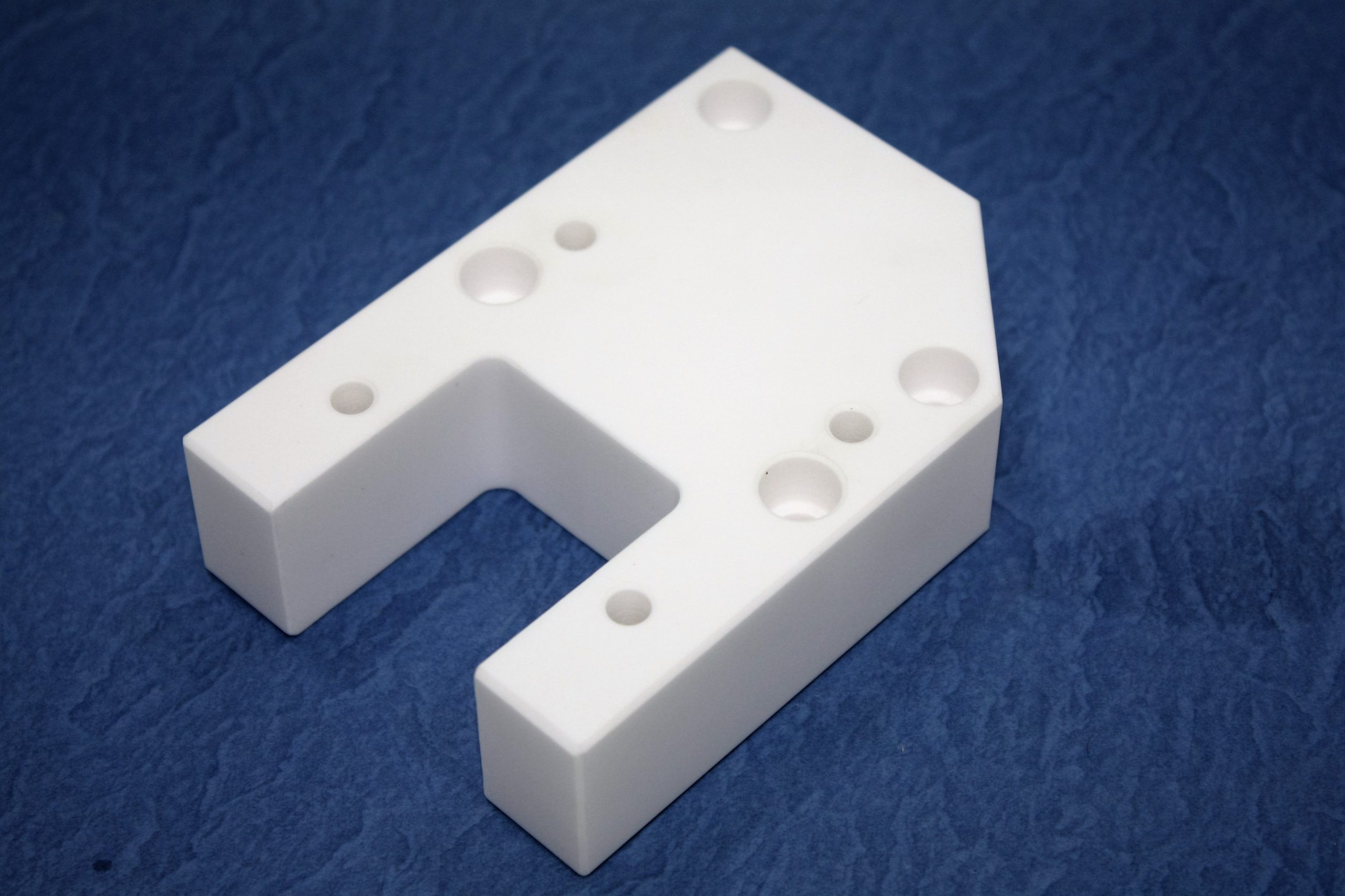

 | M305 | Lower | 下絕緣板 Lsolator Plate 113 × 80×30mm | DWC-110/200/300 H1,HA,CR,CA(Manual/AF) | X053C443H01 |

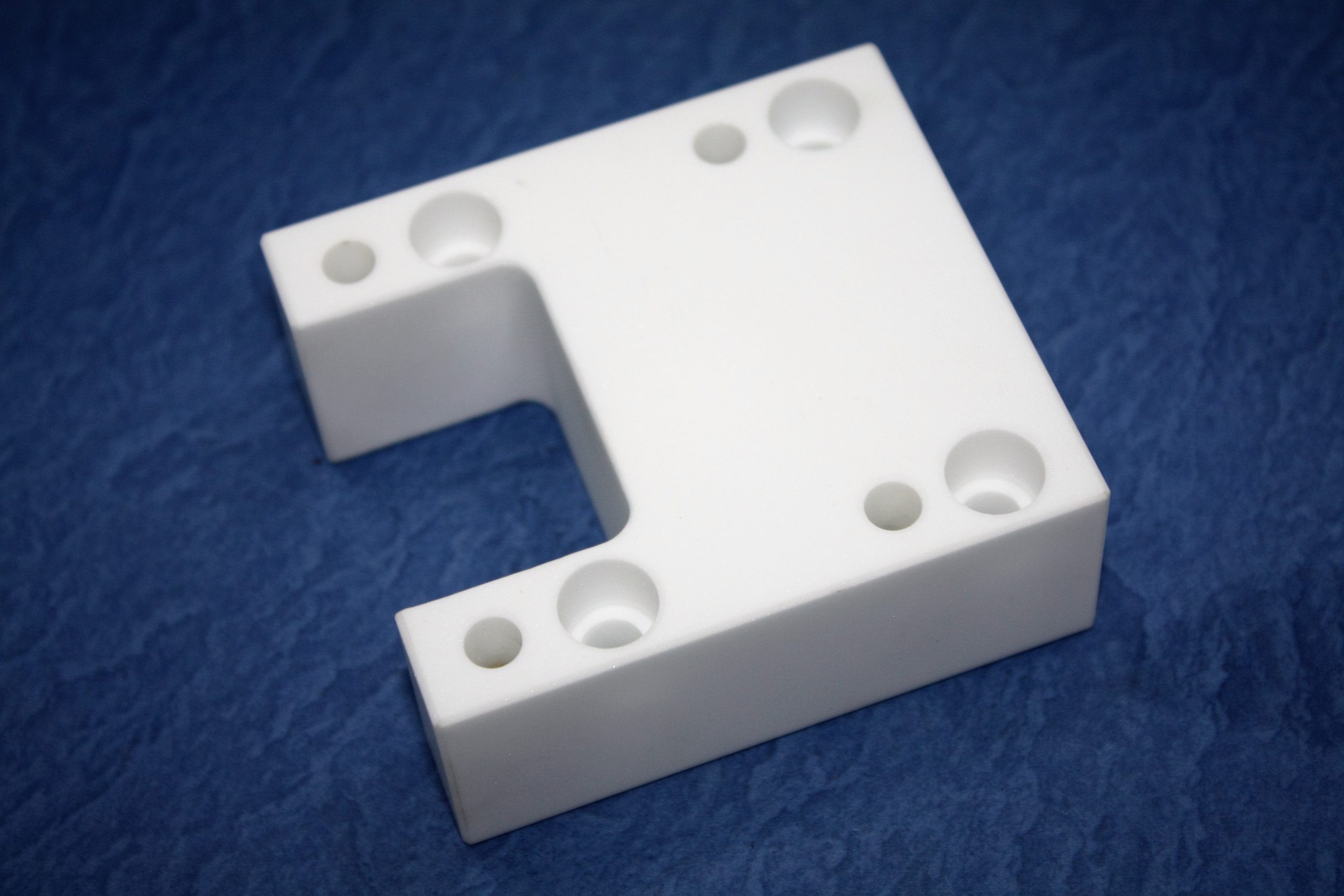

 | M306 | Lower | 下絕緣板 Lsolator Plate 78×70×30mm | DWC-90H1,90HA,90C,90CR,90CA (Manual/AF) | X053C314H01 |
 | M307 | Lower | 下絕緣板 Lsolator Plate 114 Ø×15mm | DWC-SX,CX (AF2,AF3) | X056C110G51 |
 | M308 | Lower | 下絕緣板 Lsolator Plate 114Ø×20mm | DWC-FX1,FX10 (Manual/AF) | X056C273G51 |

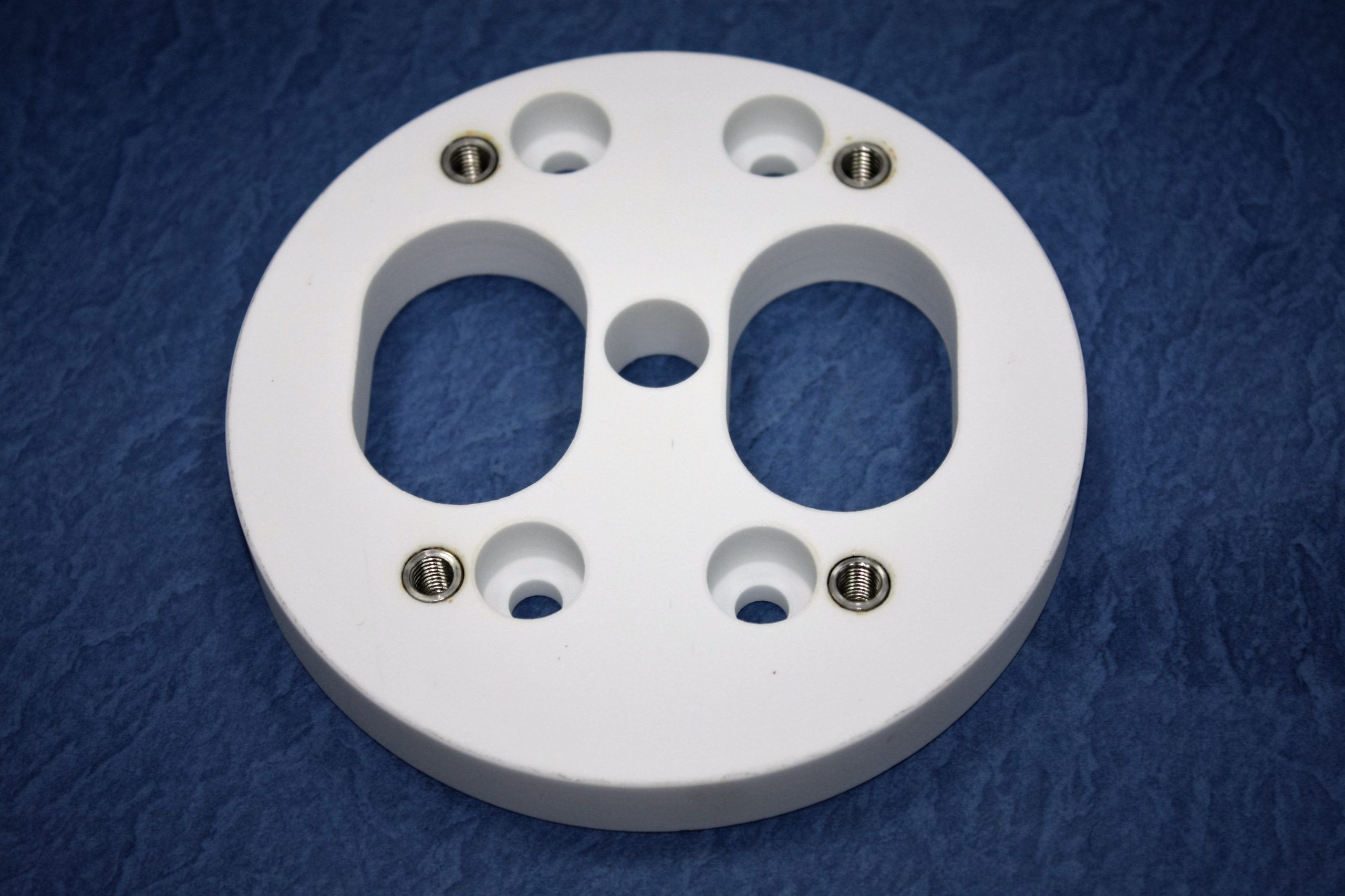

 | M309 | Lower | 下絕緣板 Lsolator Plate 125Ø×20mm | DWC-FX20,FX30,FA2,FA20 (Manual/AF) | X056C356G52 |

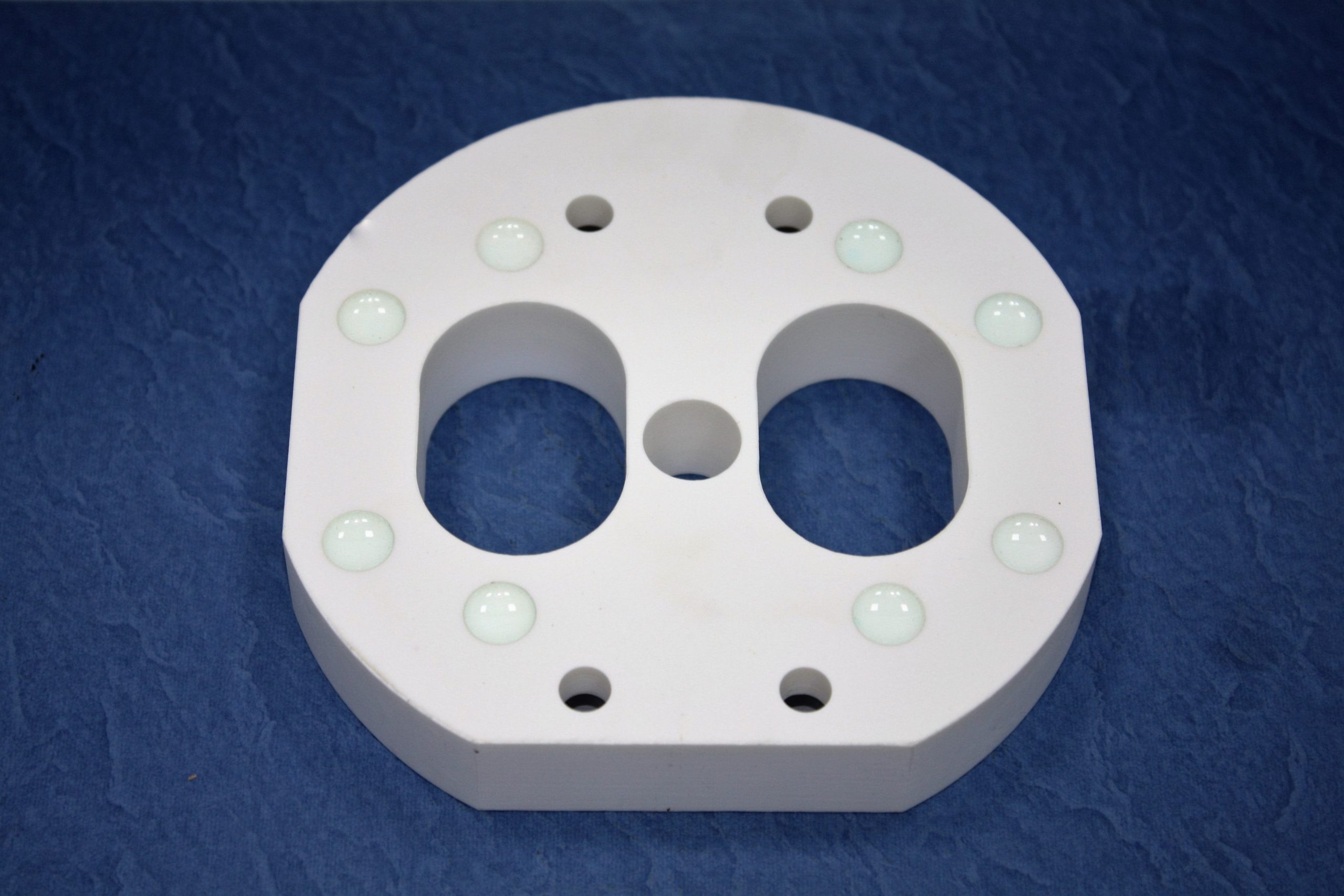

 | M310 | Lower | 下絕緣板 Lsolator Plate 117Ø×20mm | DWC-FA10,20,30 FA-10S,FA20S, FA-30V,BA8,BA24 | X056C968G51 X056C356G53 X055C778G51 |

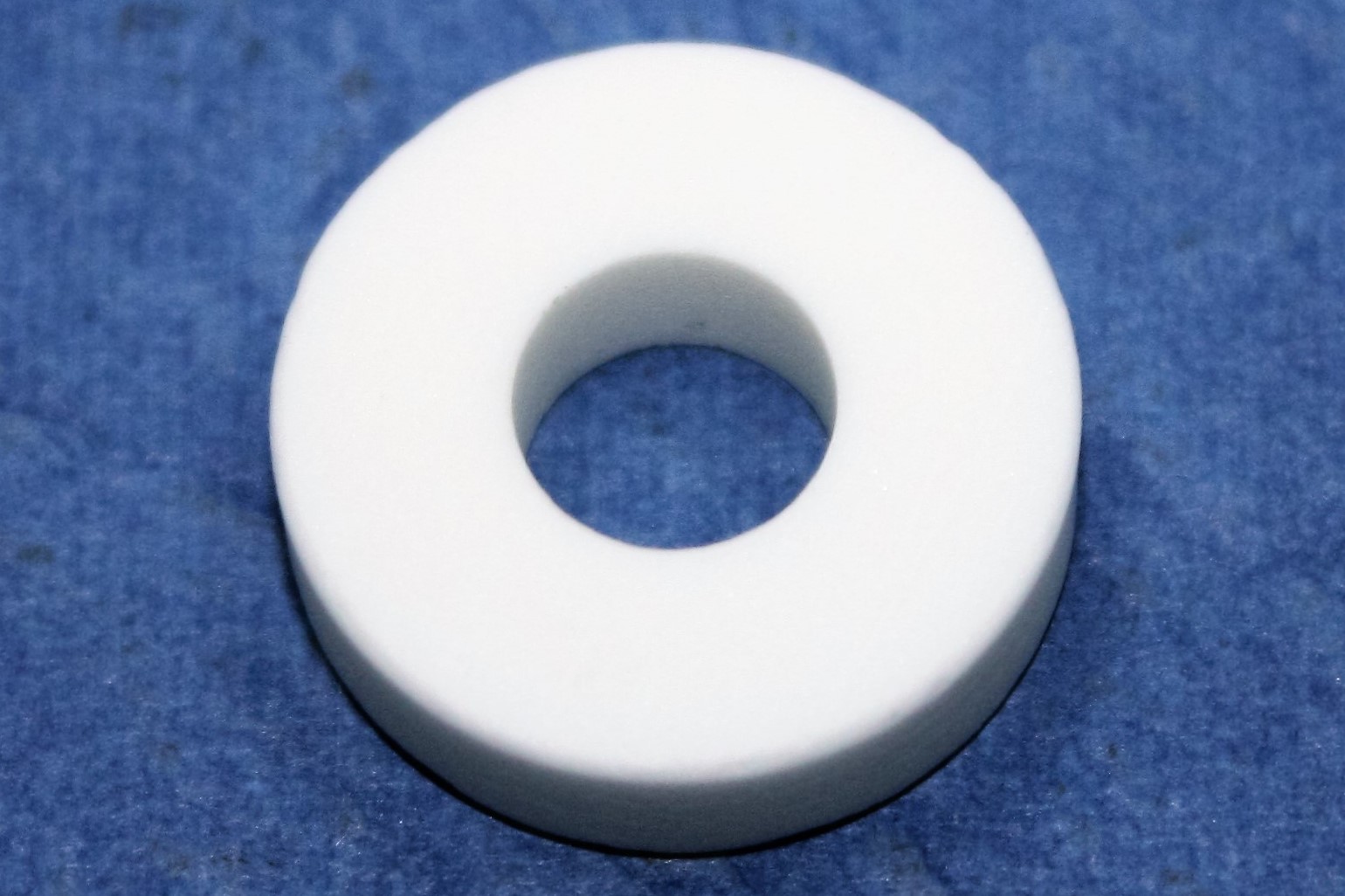

 | M311 | Upper | 上部陶瓷絕緣板 Lsolator Plate 18Ø*7Ø*5t | DWC-FA,FA-S | |

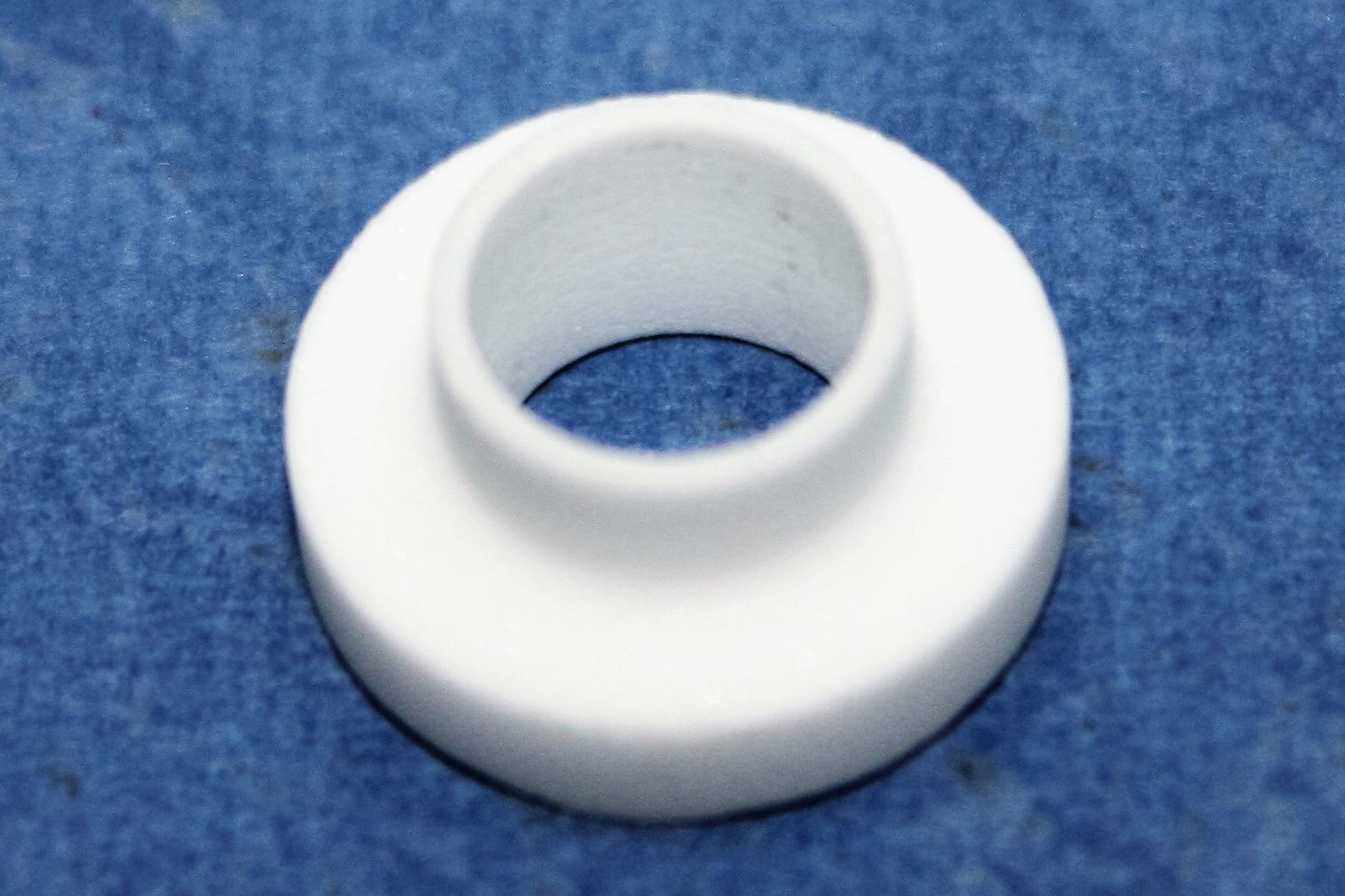

 | M311-1 | Upper | 上部陶瓷絕緣板 Lsolator Plate 13Ø*6.5Ø*6t | DWC-FA,FA-S | |

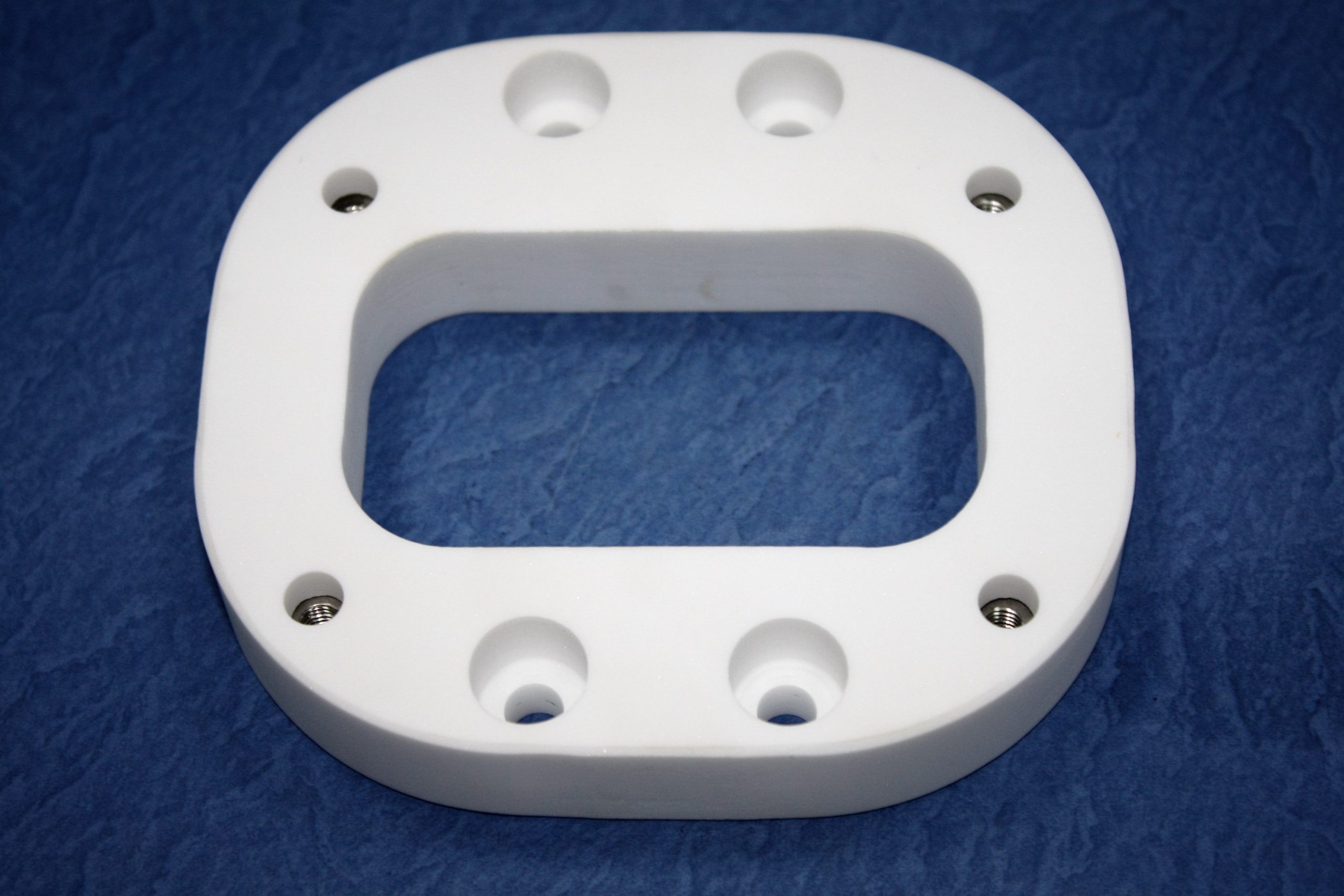

 | M312 | Lower | 下部陶瓷絕緣板 Lsolator Plate 117Ø*106Ø*20t | DWC-MV | X085C130G51 |

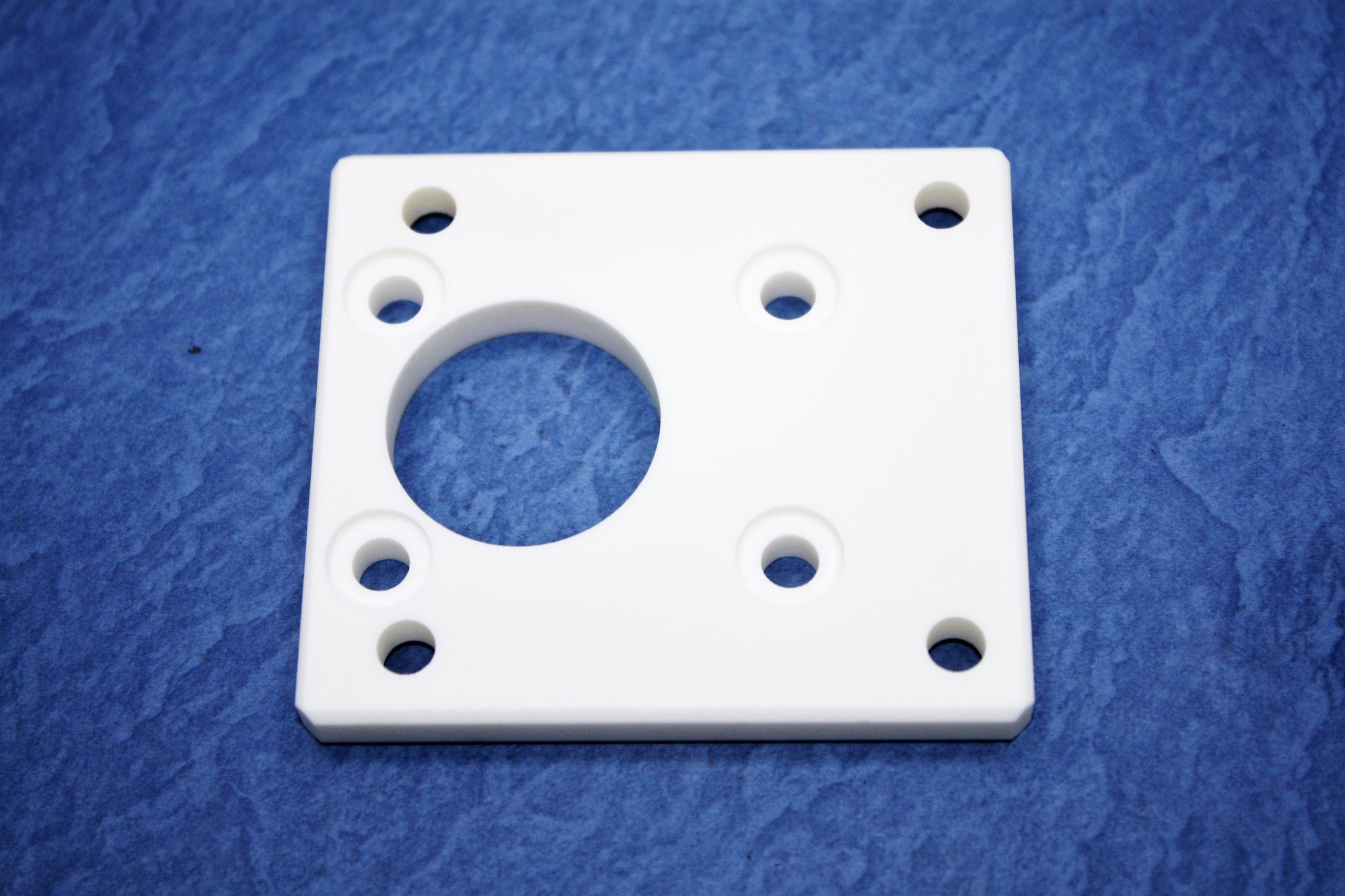

 | M313 | Lower | 下部陶瓷絕緣板 Lsolator Plate 67*60*6.8t | DWC-MV | X089D225H01 |
| 圖片 | 編號 | 位置 | 品名尺寸 | 適用機種 | 原廠編號 |
|---|---|---|---|---|---|

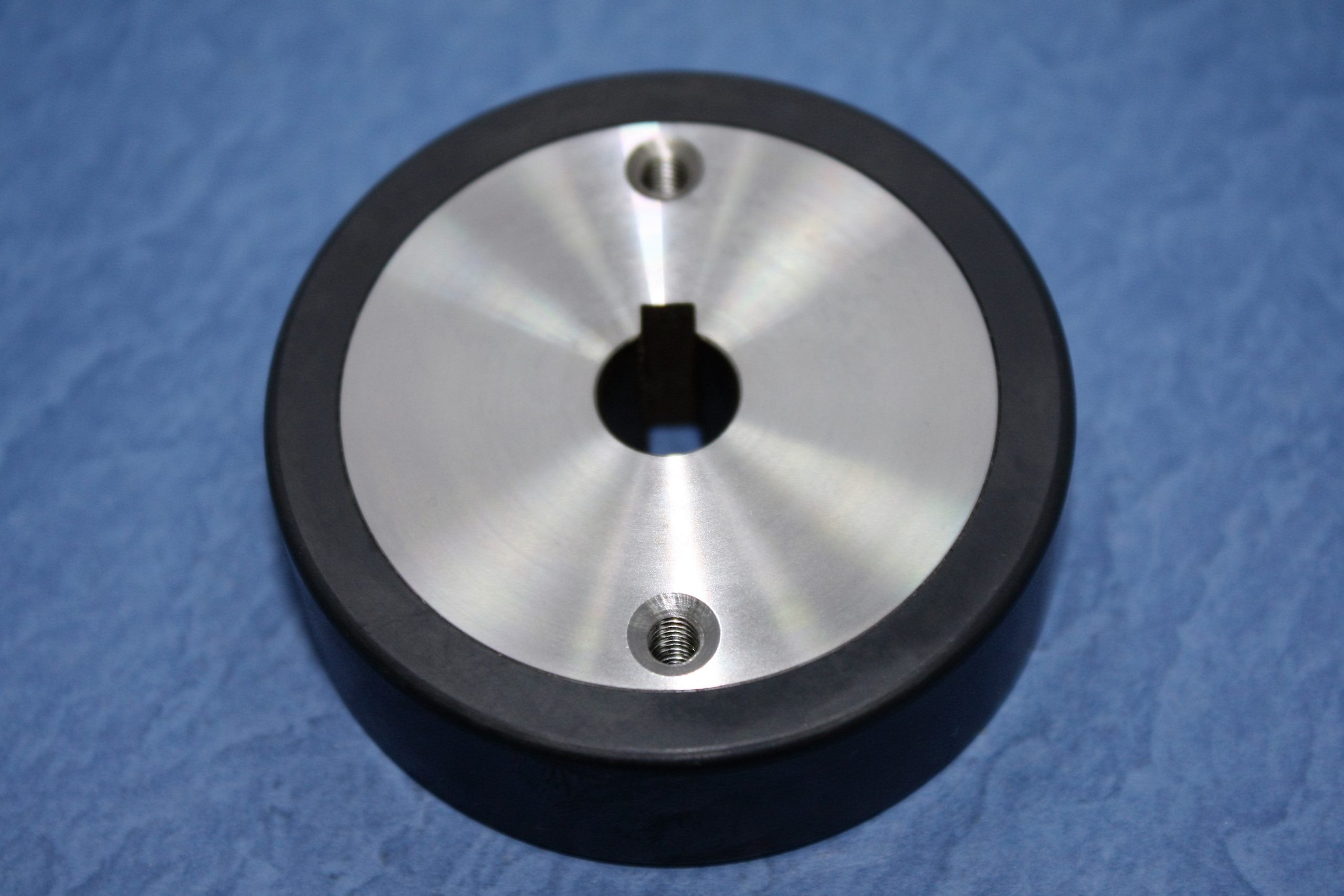

 | M402C | Feed Section | 陶瓷出線輪主軸 Capstan Roller(Ceramic) 57Ø×10Ø×18t | DWC-F,F1,G,H,H',CX (Beginning period) | X054D256G51 X058D077G51 |

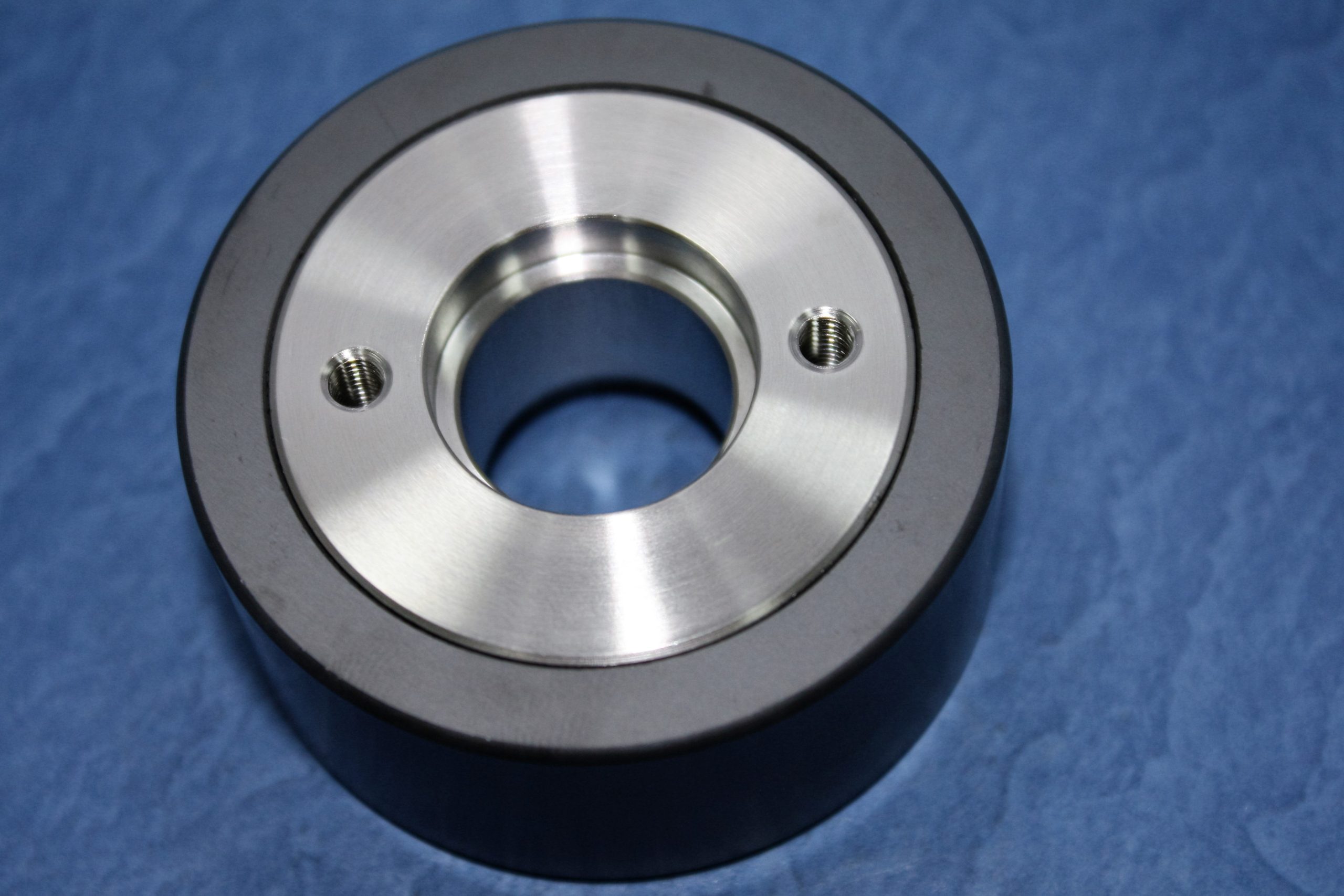

 | M403C | Feed Section | 陶瓷出線輪副軸 Pinch Roller(Ceramic) 57Ø×19Ø×25t | DWC-H1,C,90CR,90CA,SA, FA10 (SK3,AF1,AF2) | X054D413G51 |

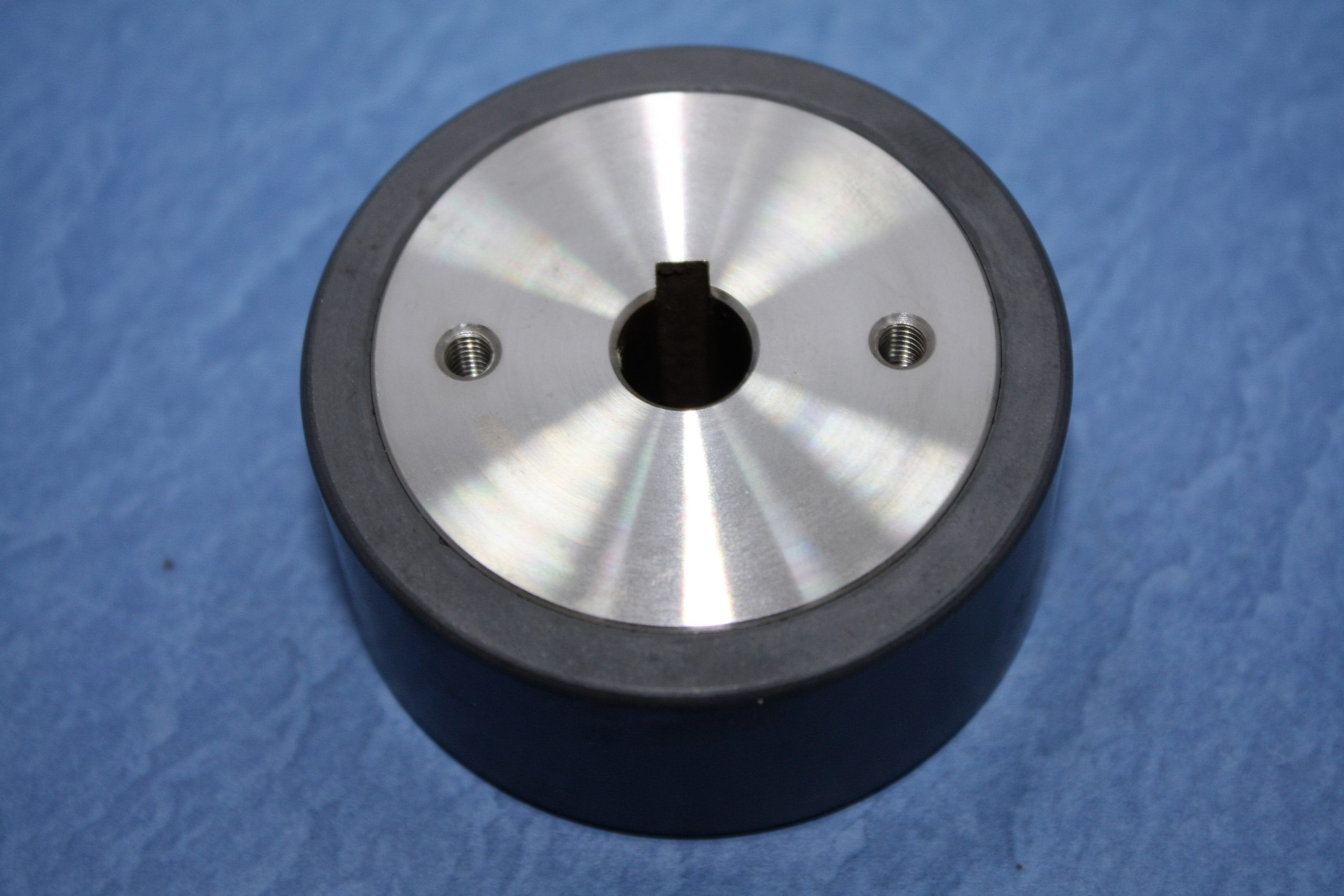

 | M404C | Feed Section | 陶瓷出線輪主軸 Capstan Roller(Ceramic) 57Ø×10Ø×25t | DWC-H1,C,90CR,90CA,SA,FA10 (SK3,AF1,AF2) | X054D412G51 |

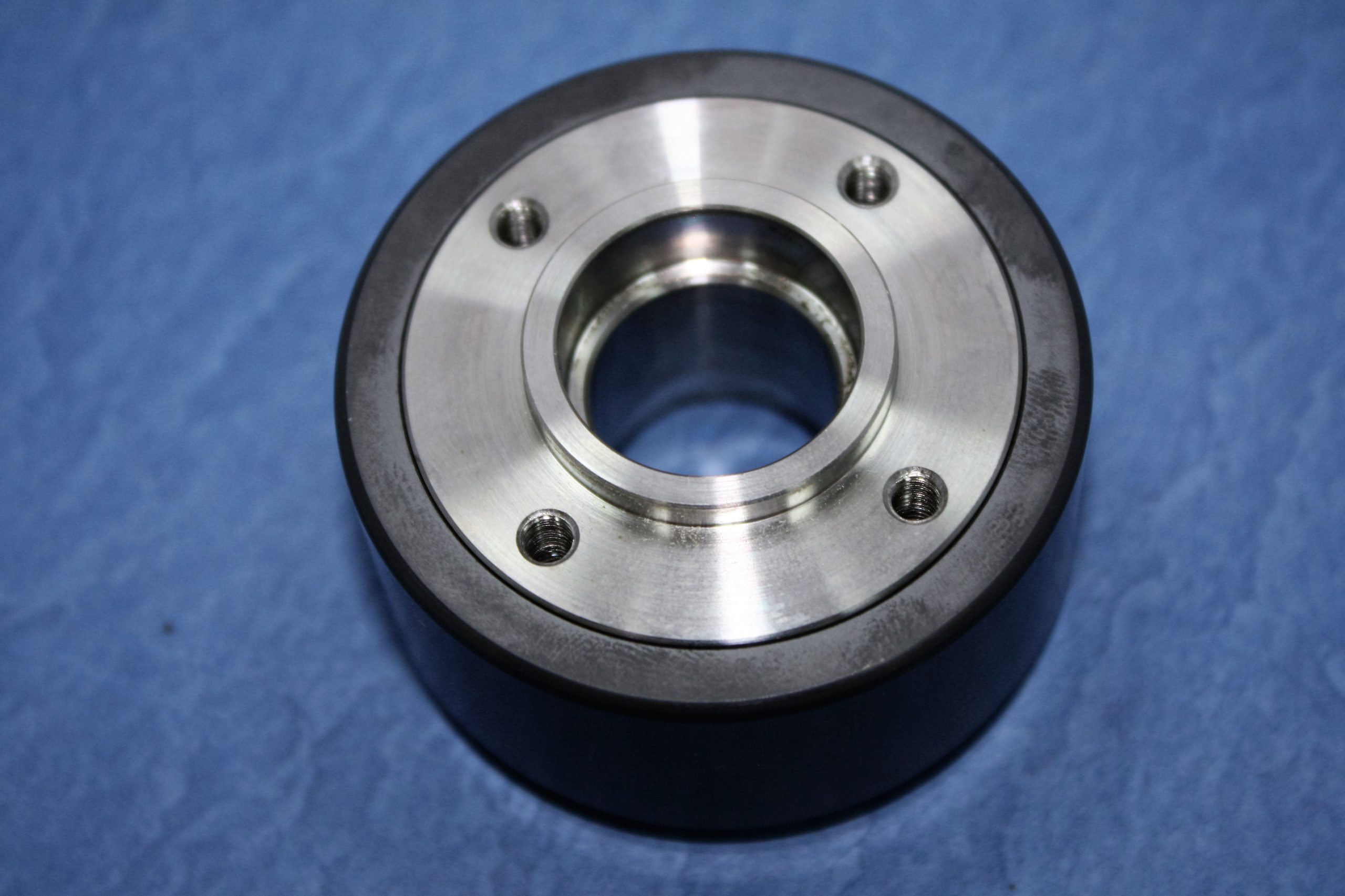

 | M405C | Feed Section | 陶瓷出線輪副軸 Pinch Roller(Ceramic) 57Ø×19Ø×32t | DWC-HA,C,SA,SB,SZ,SX (Manual/AF) | X053C779G51 |

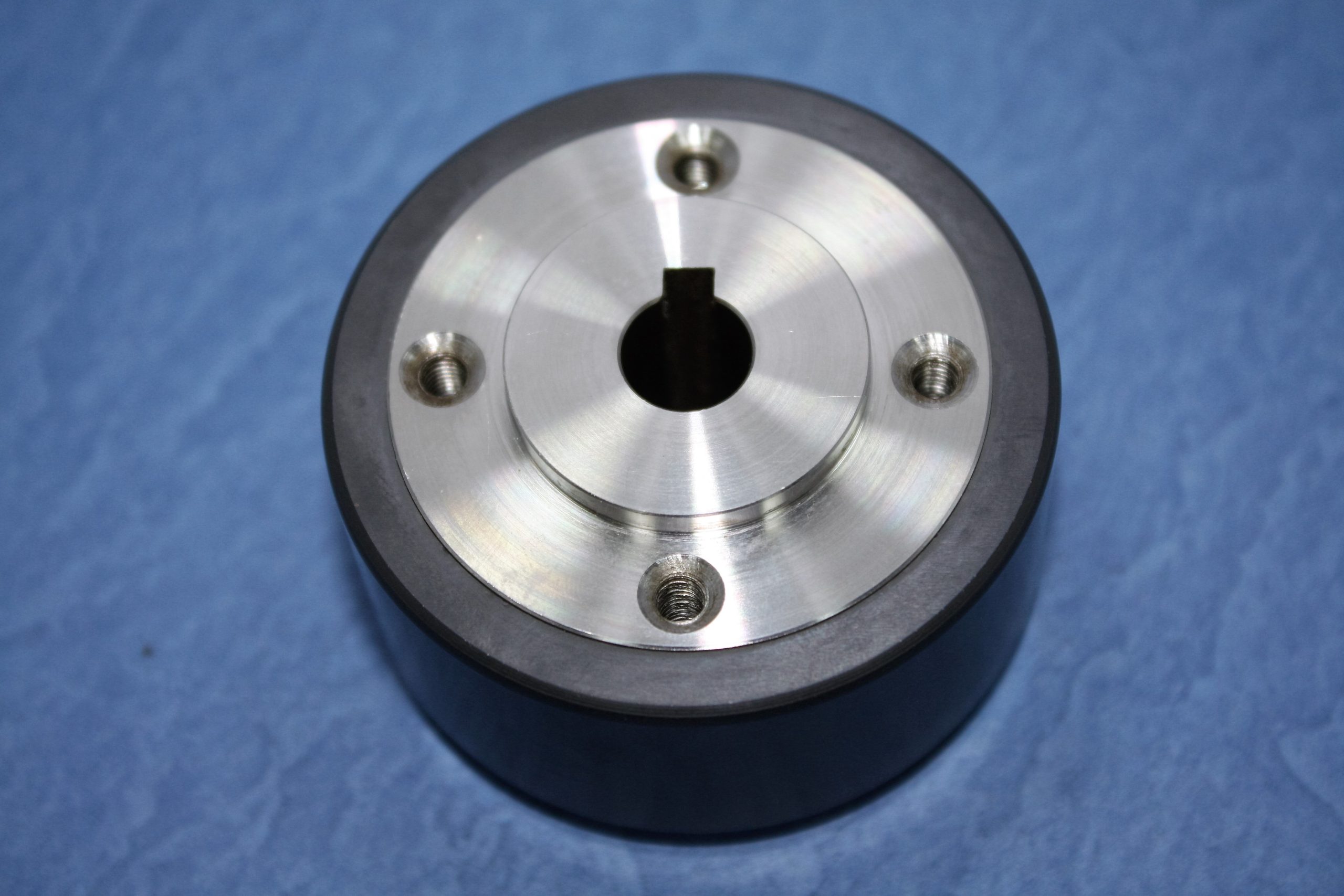

 | M406C | Feed Section | 陶瓷出線輪主軸 Capstan Roller(Ceramic) 57Ø×10Ø×32t | DWC-HA,C,SA,SB,SZ,SX (Manual/AF) | X053C778G51 |

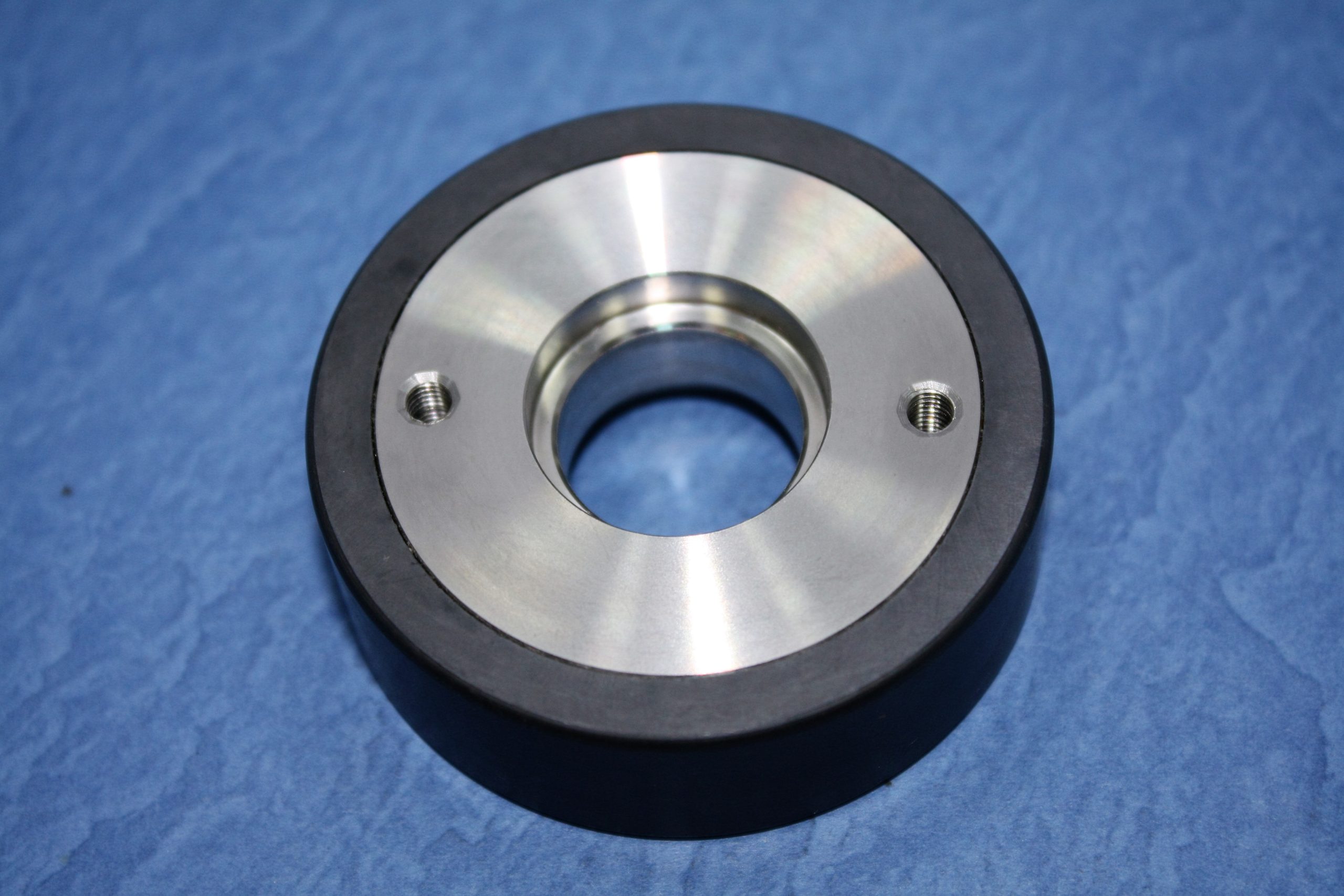

 | M407C | Feed Section | 陶瓷出線輪副軸 Pinch Roller(Ceramic) 57Ø×19Ø×18t | DWC-F,F1,G,H,H',CX (Beginning period) FX,RA,QA (Manual/AF) | X054D257F51 X058D078G51 X058D340G51 |

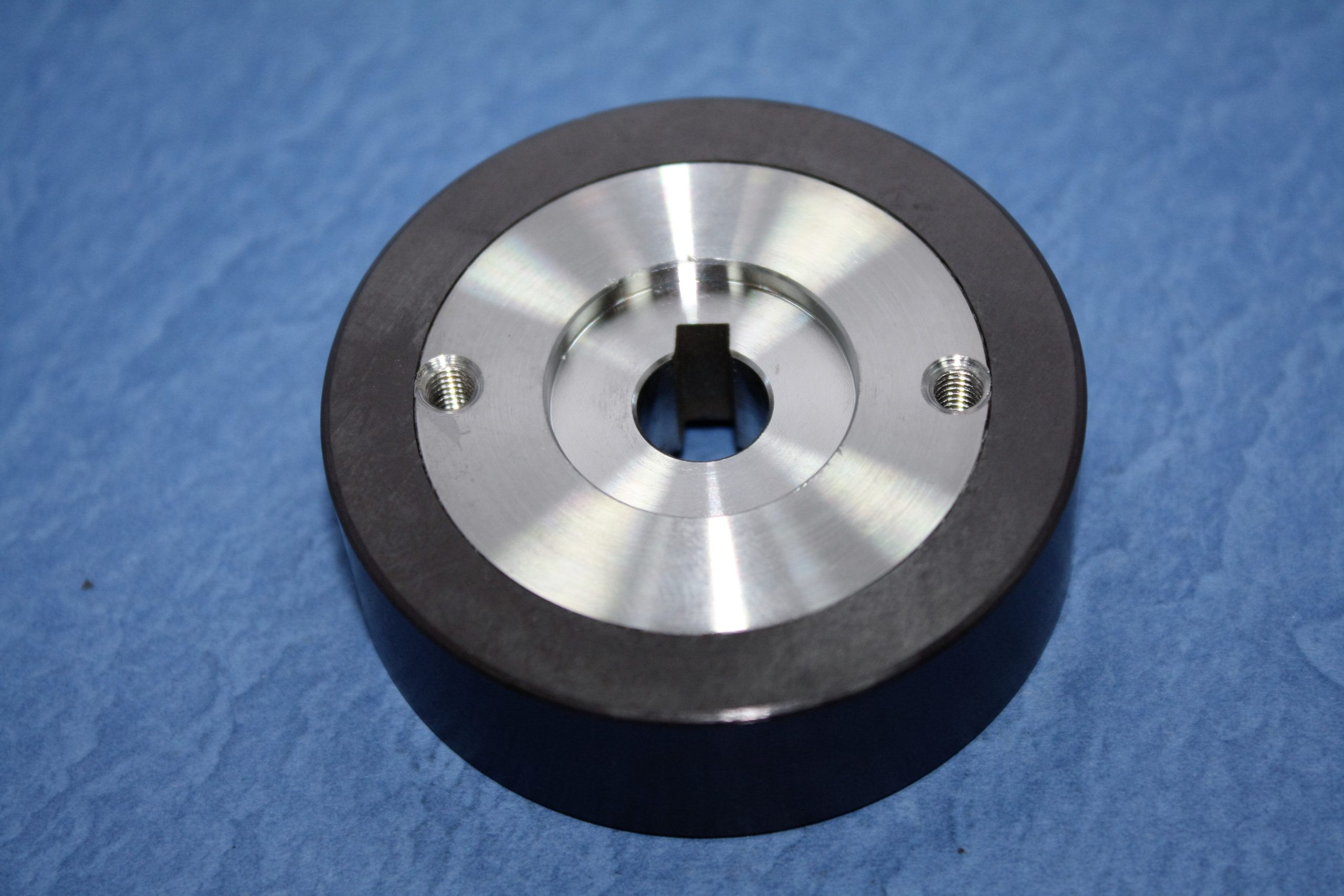

 | M408C | Feed Section | 陶瓷出線輪主輪 Capstan Roller(Ceramic) 57Ø×10Ø×18t | DWC-FX,QA,RA (Manual/AF) | X058D339G51 |

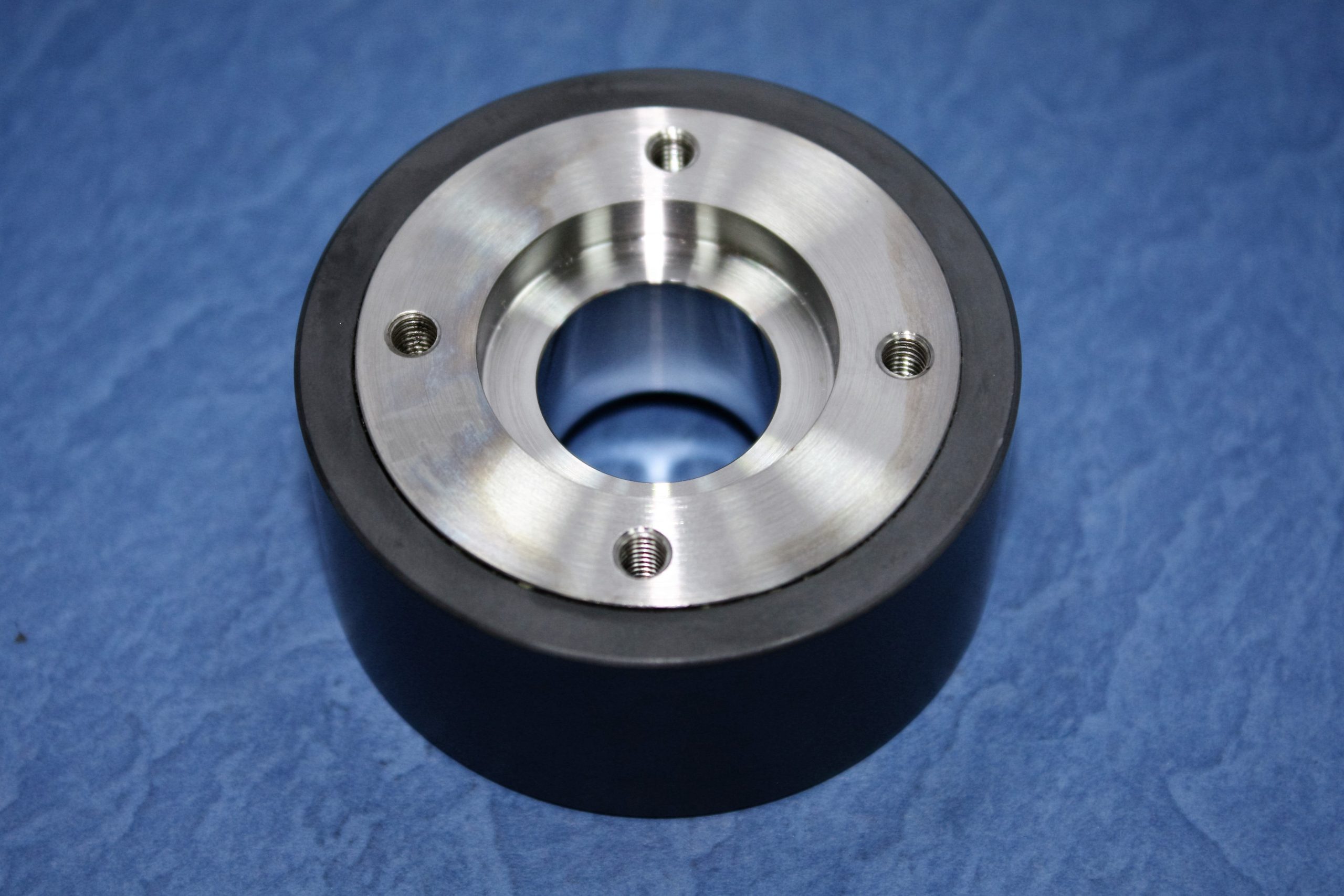

 | M409C | Feed Section | 陶瓷出線輪副軸 Pinch Roller(Ceramic) 57Ø×19Ø×25t | DWC-FA,RA | X055C008G51 |

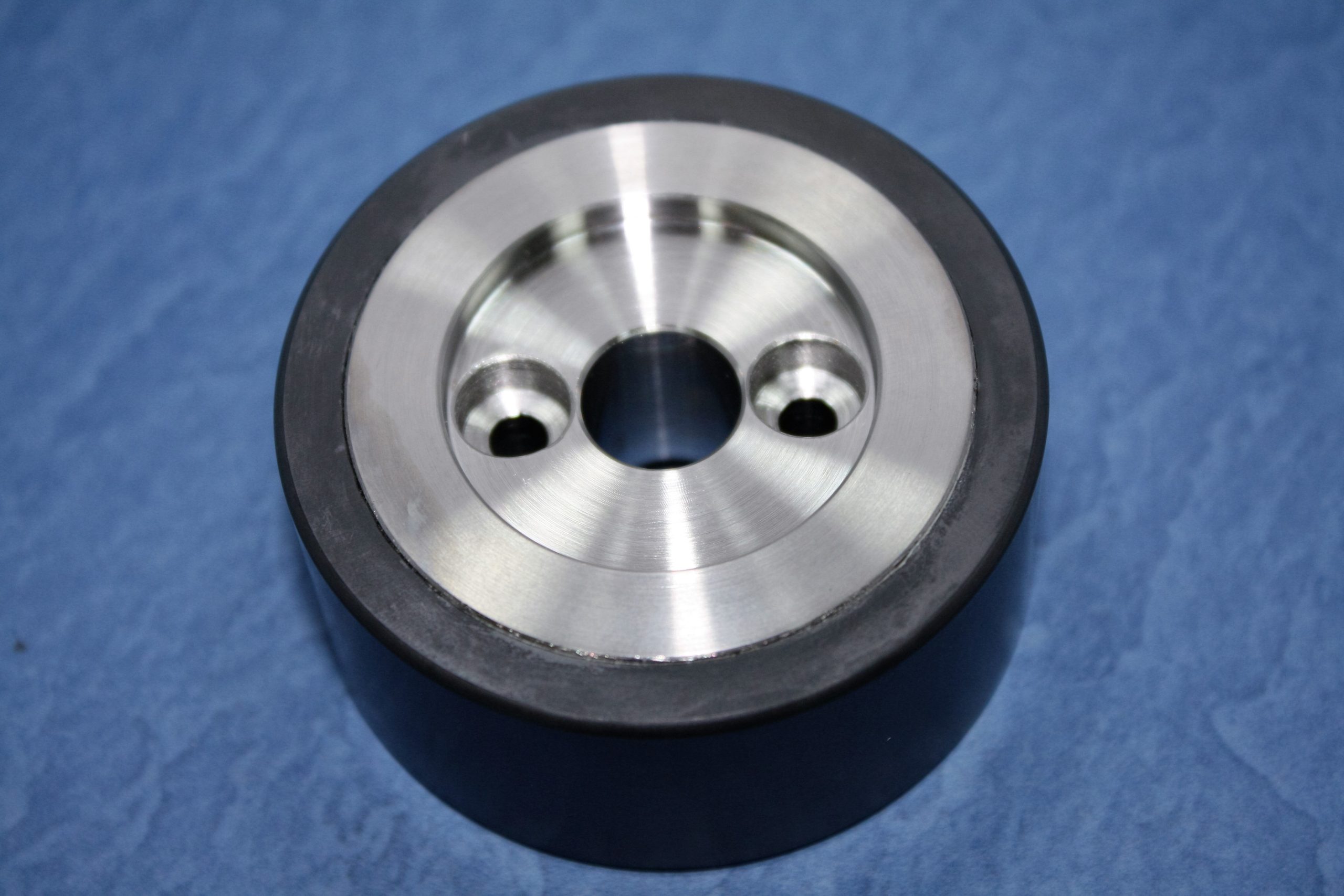

 | M410C | Feed Section | 陶瓷出線輪主輪 Capstan Roller(Ceramic) 57 Ø× 12Ø×25t | DWC-FA,RA | X055C009G51 |

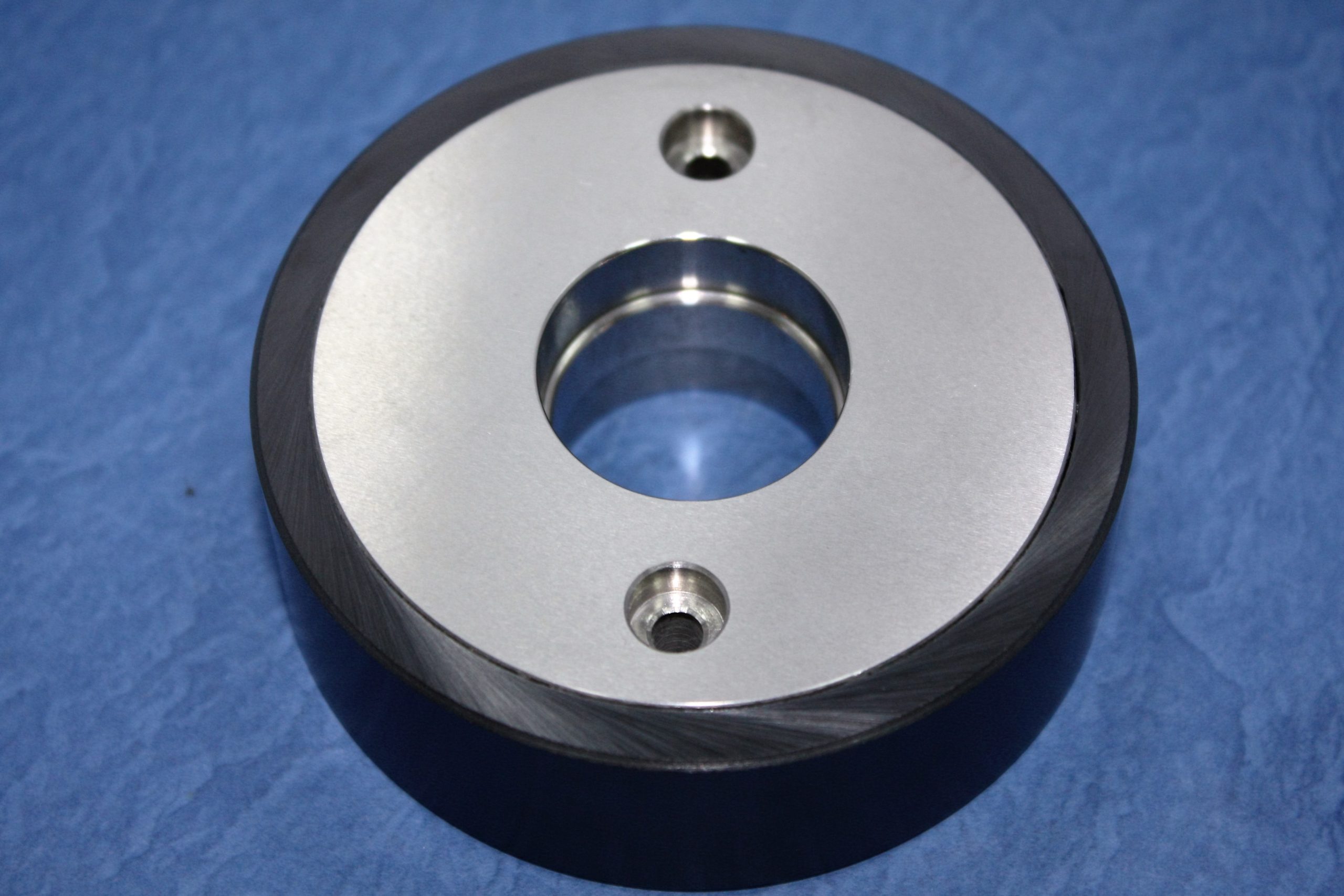

 | M411C | Feed Section | 陶瓷出線輪副軸 Pinch Roller(Ceramic) 80Ø×28Ø×25t | DWC-FA(S),BA,MV | X055C663G51 |

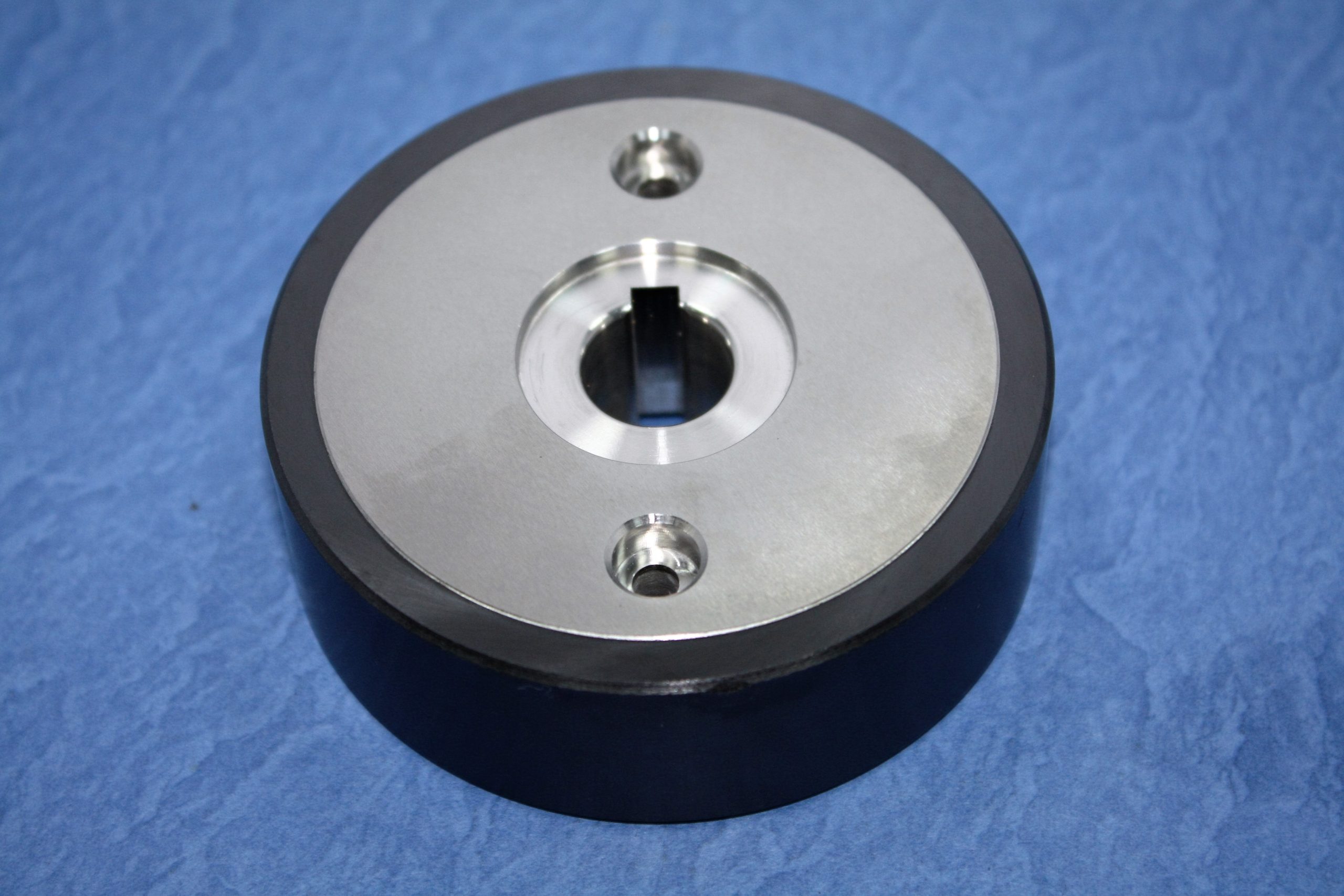

 | M412C | Feed Section | 陶瓷出線輪主軸 Capstan Roller(Ceramic) 80Ø×15Ø×25t | DWC-FA(S),BA,MV | X055C662G51 |

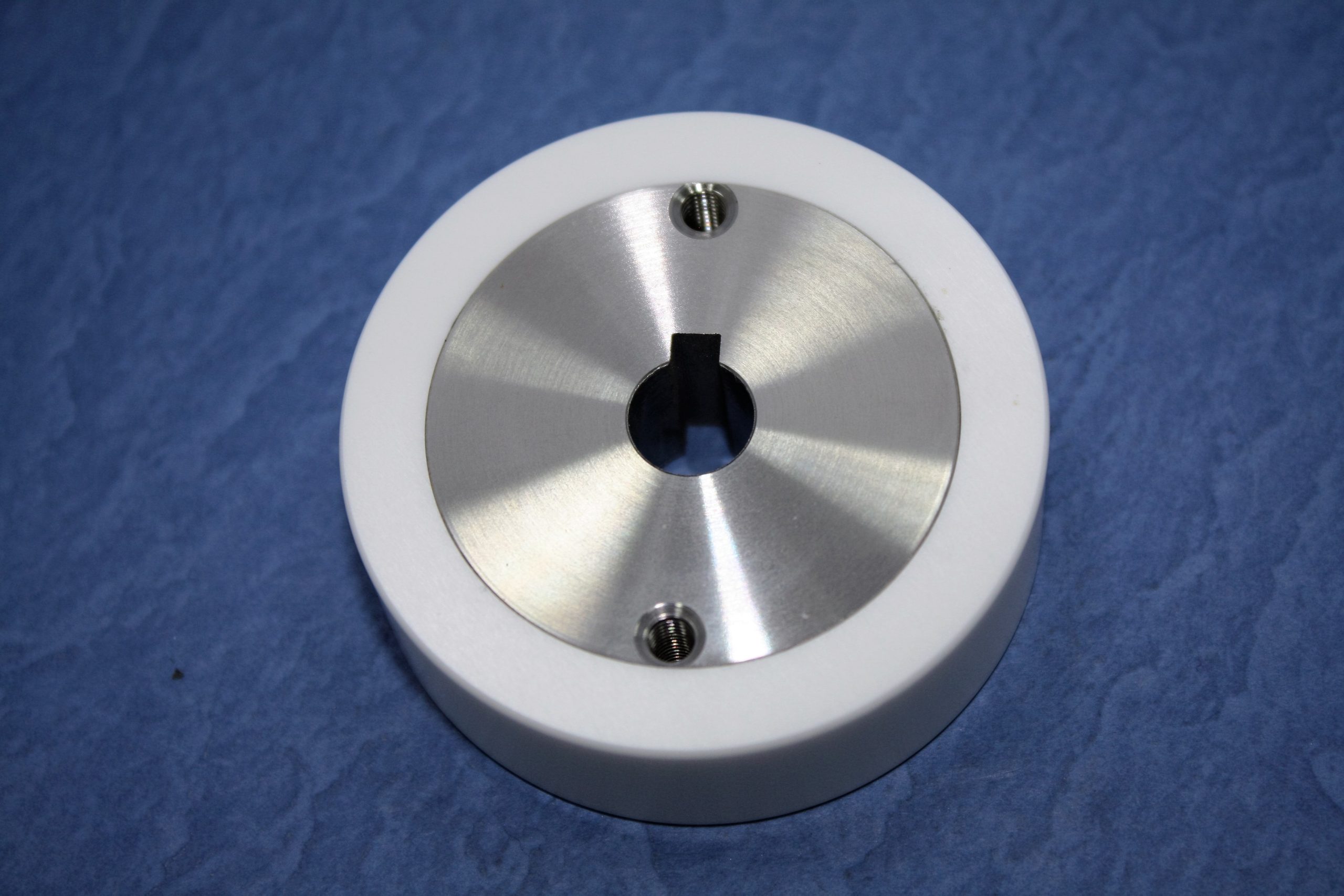

 | M402 | Feed Section | 陶瓷出線輪主軸 Capstan Roller(Ceramic) 57Ø×10Ø×18t | DWC-F,F1,G,H,H',CX (Beginning period) | X054D256G51 X058D077G51 |

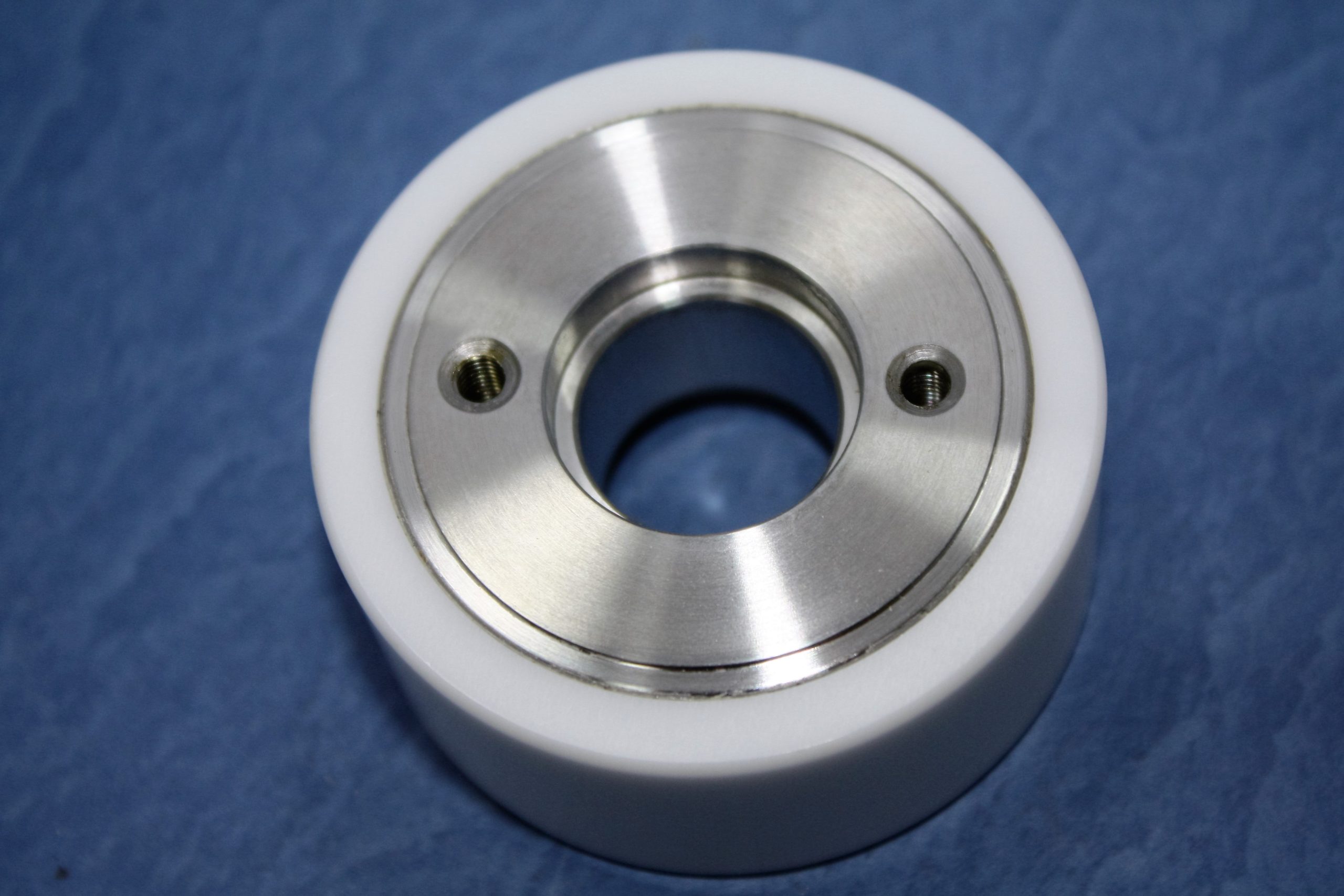

 | M403 | Feed Section | 陶瓷出線輪副軸 Pinch Roller(Ceramic) 57Ø×19Ø×25t | DWC-H1,C,90CR,90CA,SA, FA10 (SK3,AF1,AF2) | X054D413G51 |
 | M404 | Feed Section | 陶瓷出線輪主軸 Capstan Roller(Ceramic) 57Ø×10Ø×25t | DWC-H1,C,90CR,90CA,SA,FA10 (SK3,AF1,AF2) | X054D412G51 |

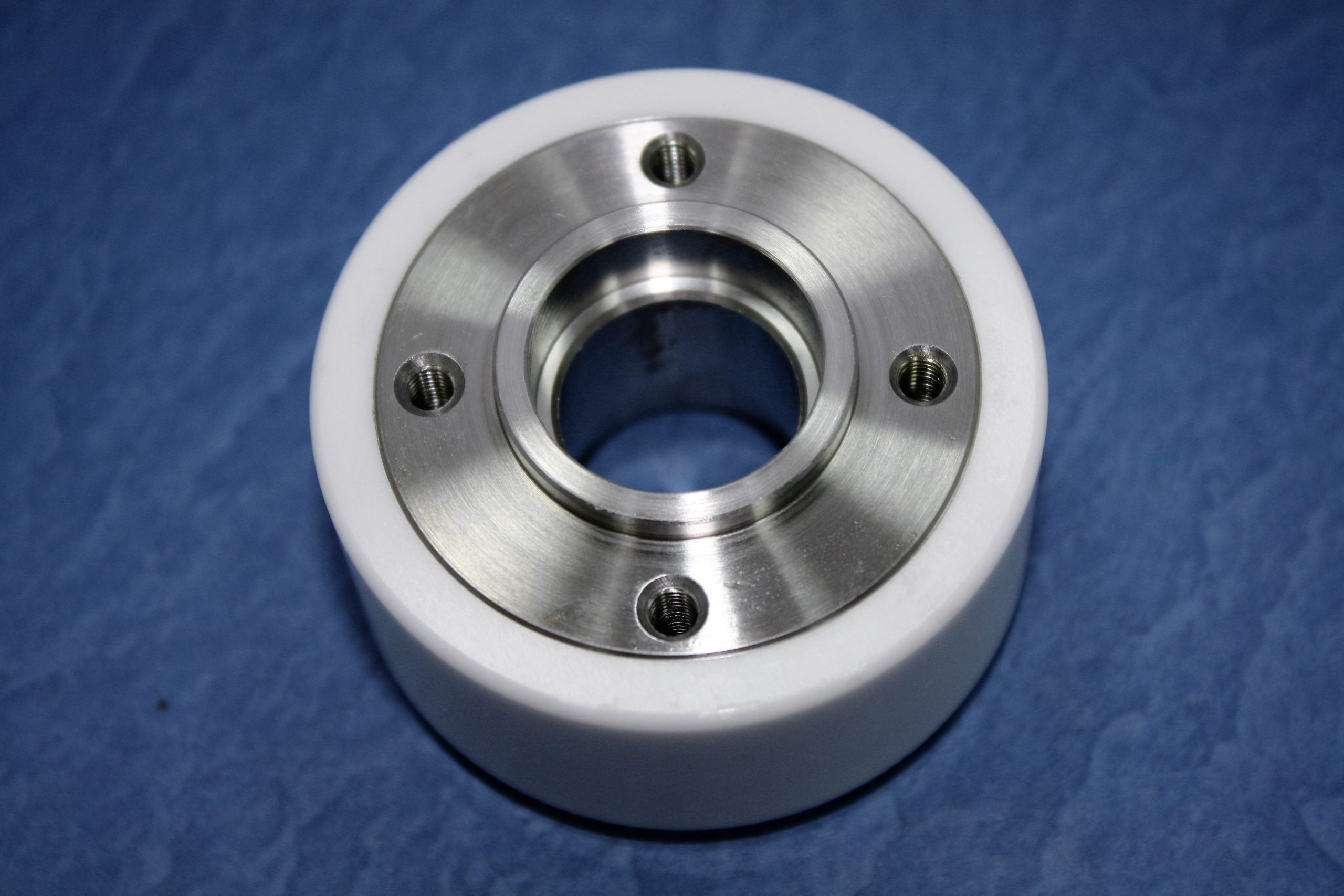

 | M405 | Feed Section | 陶瓷出線輪副軸 Pinch Roller(Ceramic) 57Ø×19Ø×32t | DWC-HA,C,SA,SB,SZ,SX (Manual/AF) | X053C779G51 |

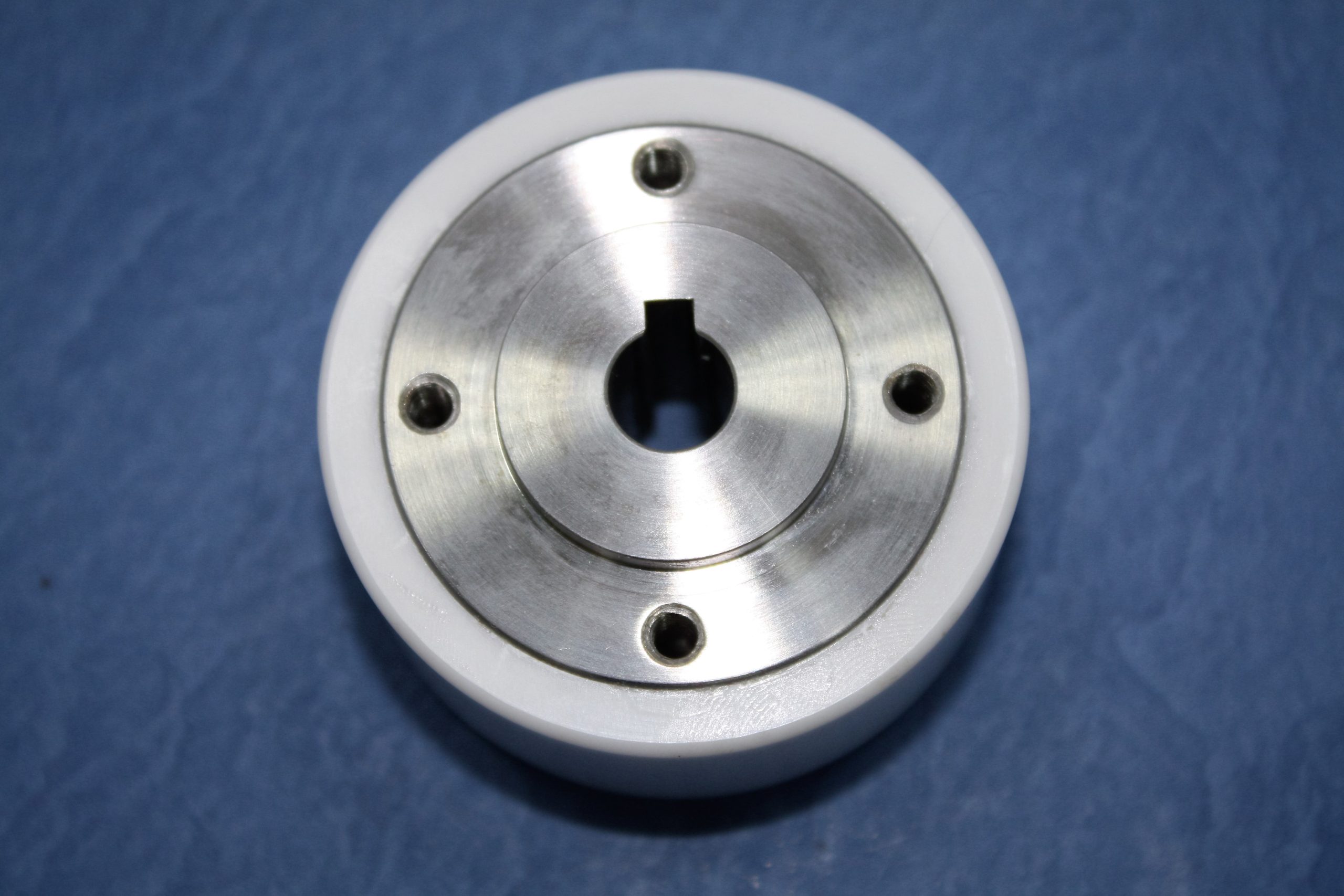

 | M406 | Feed Section | 陶瓷出線輪主軸 Capstan Roller(Ceramic) 57Ø×10Ø×32t | DWC-HA,C,SA,SB,SZ,SX (Manual/AF) | X053C778G51 |

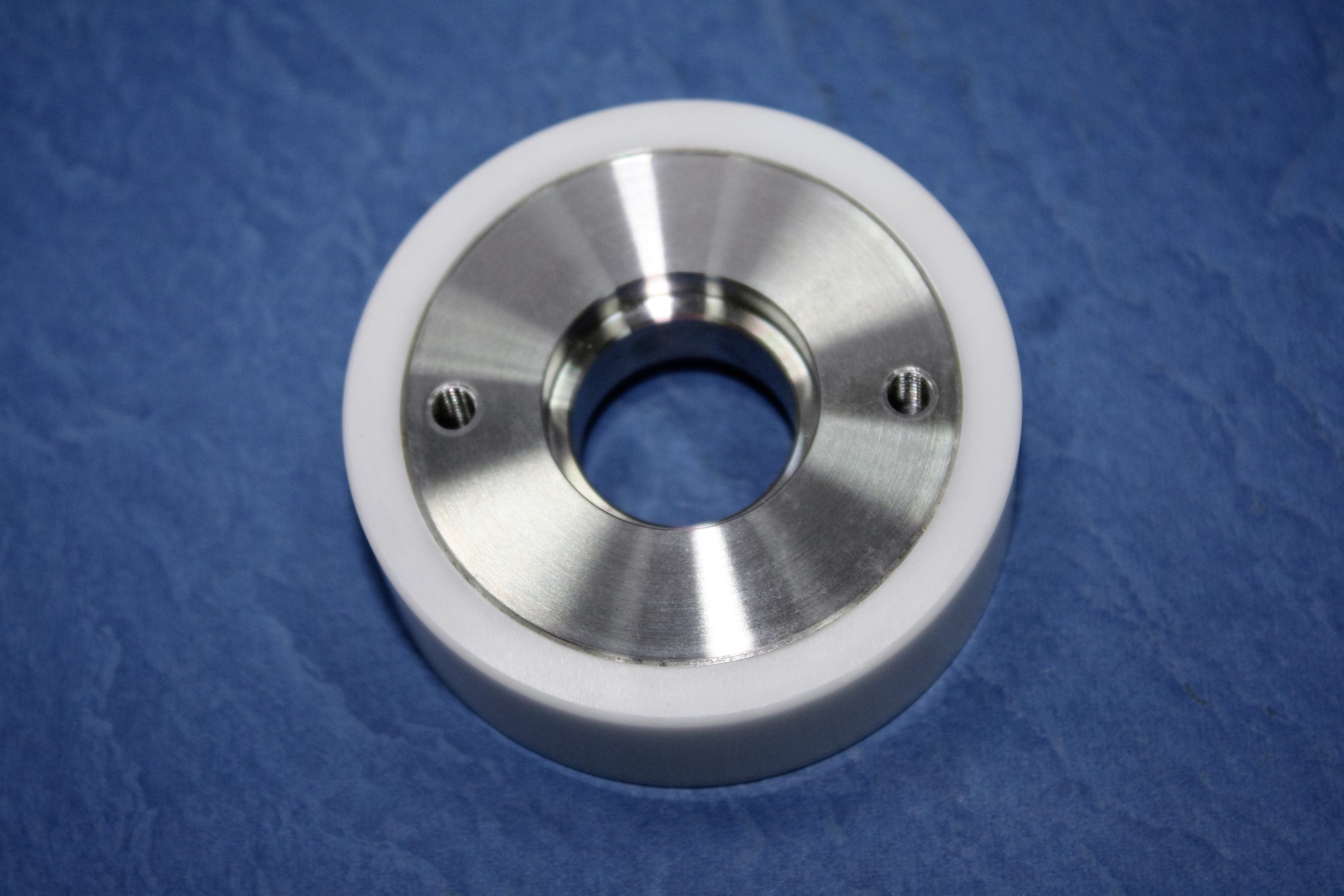

 | M407 | Feed Section | 陶瓷出線輪副軸 Pinch Roller(Ceramic) 57Ø×19Ø×18t | DWC-F,F1,G,H,H',CX (Beginning period) FX,RA,QA (Manual/AF) | X054D257F51 X058D078G51 X058D340G51 |

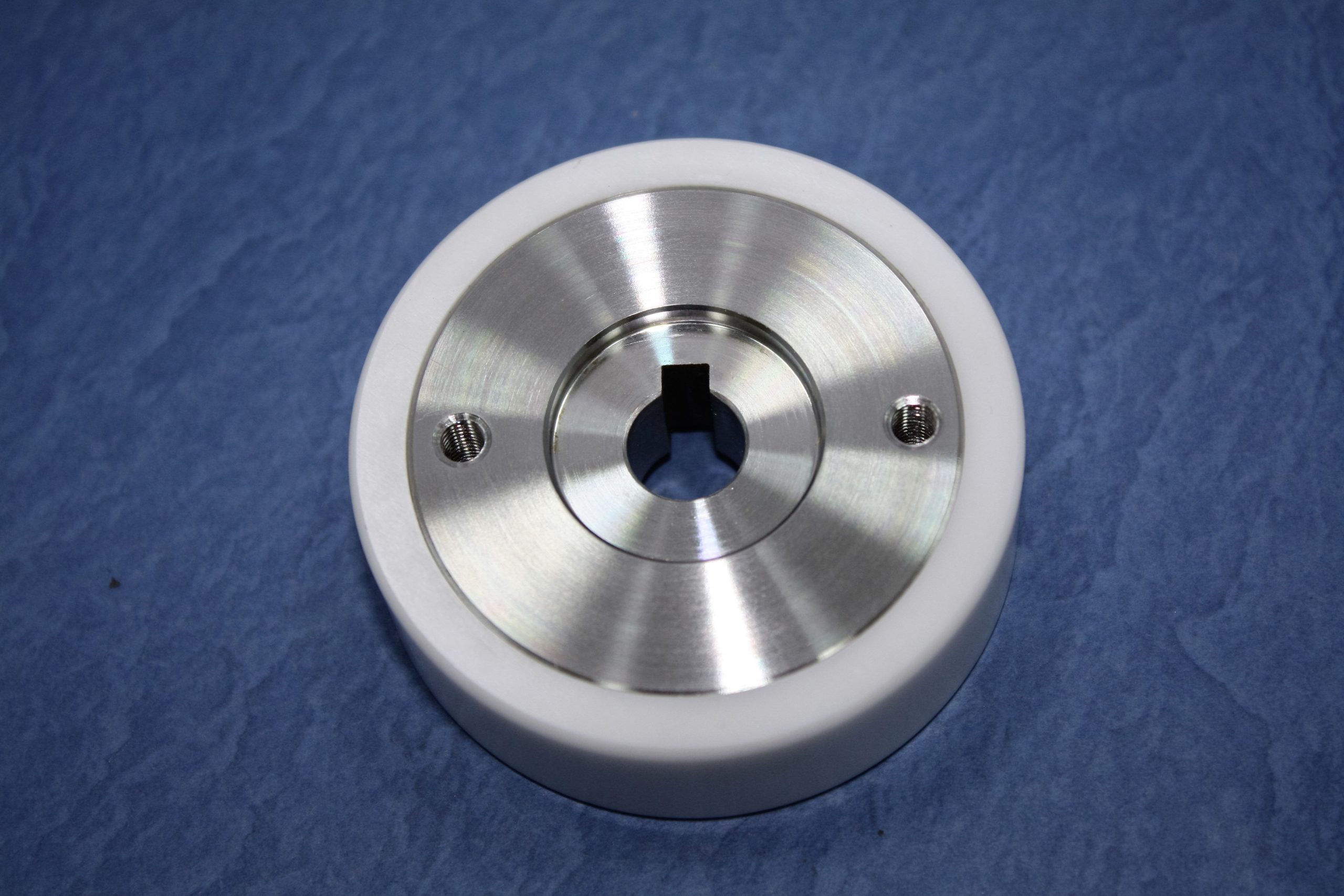

 | M408 | Feed Section | 陶瓷出線輪主軸 Capstan Roller(Ceramic) 57Ø×10Ø×18t | DWC-FX,QA,RA (Manual/AF) | X058D339G51 |
 | M409 | Feed Section | 陶瓷出線輪副軸 Pinch Roller(Ceramic) 57Ø×19Ø×25t | DWC-FA,RA | X055C008G51 |

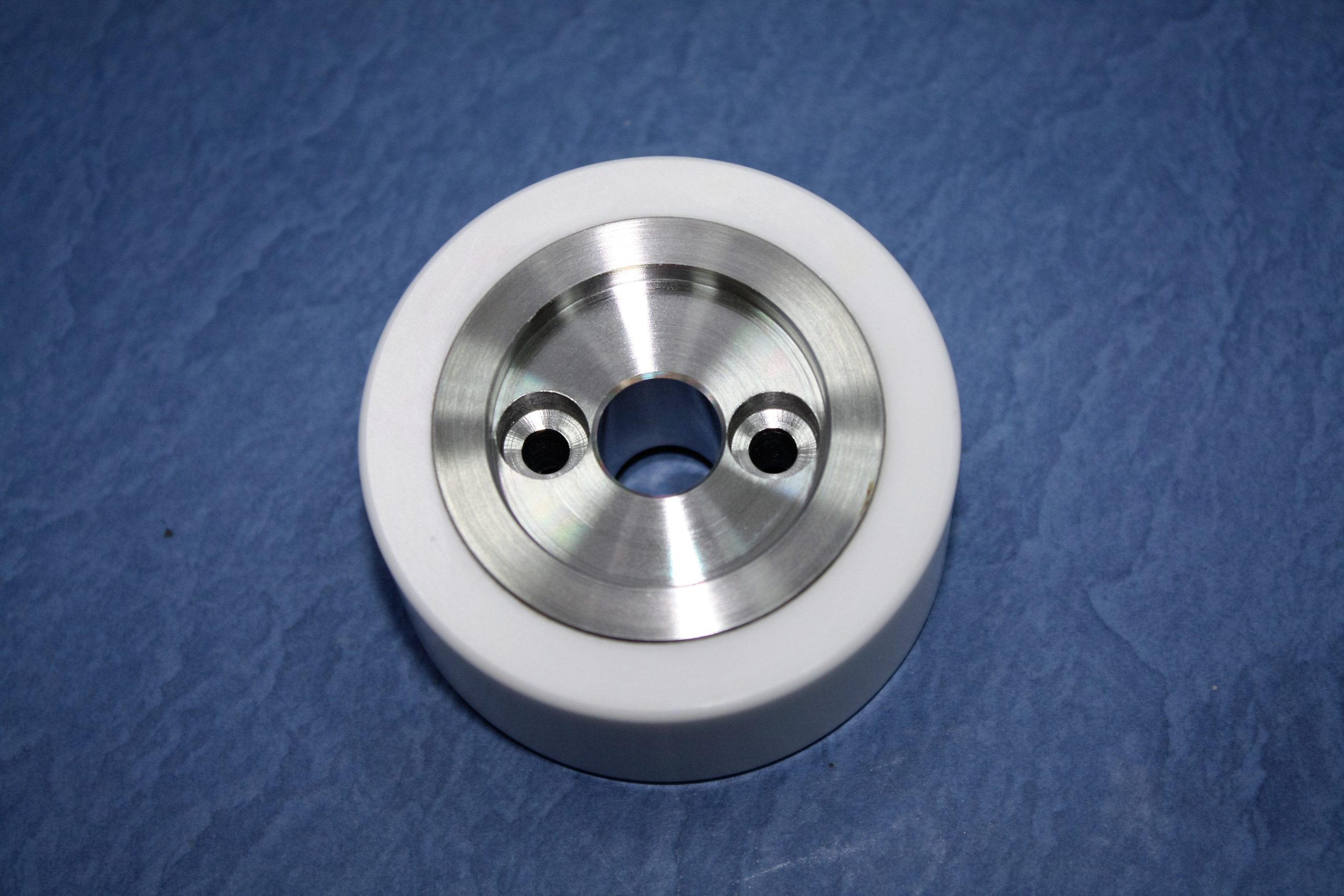

 | M410 | Feed Section | 陶瓷出線輪主軸 Capstan Roller(Ceramic) 57Ø×12Ø×25t | DWC-FA,RA | X055C009G51 |

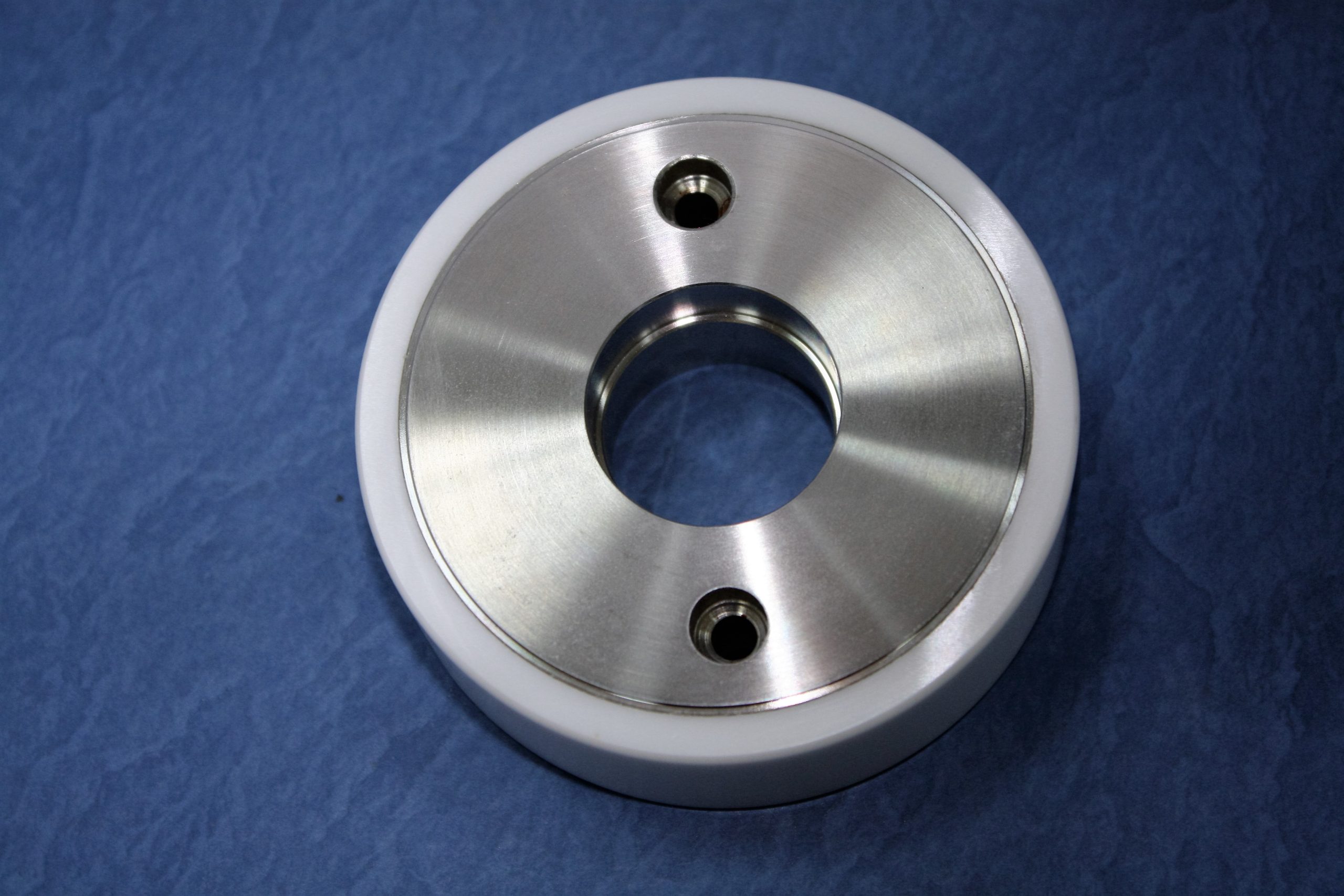

 | M411 | Feed Section | 陶瓷出線輪副軸 Pinch Roller(Ceramic) 80Ø×28Ø×25t | DWC-FA(S),BA,MV | X055C663G51 |

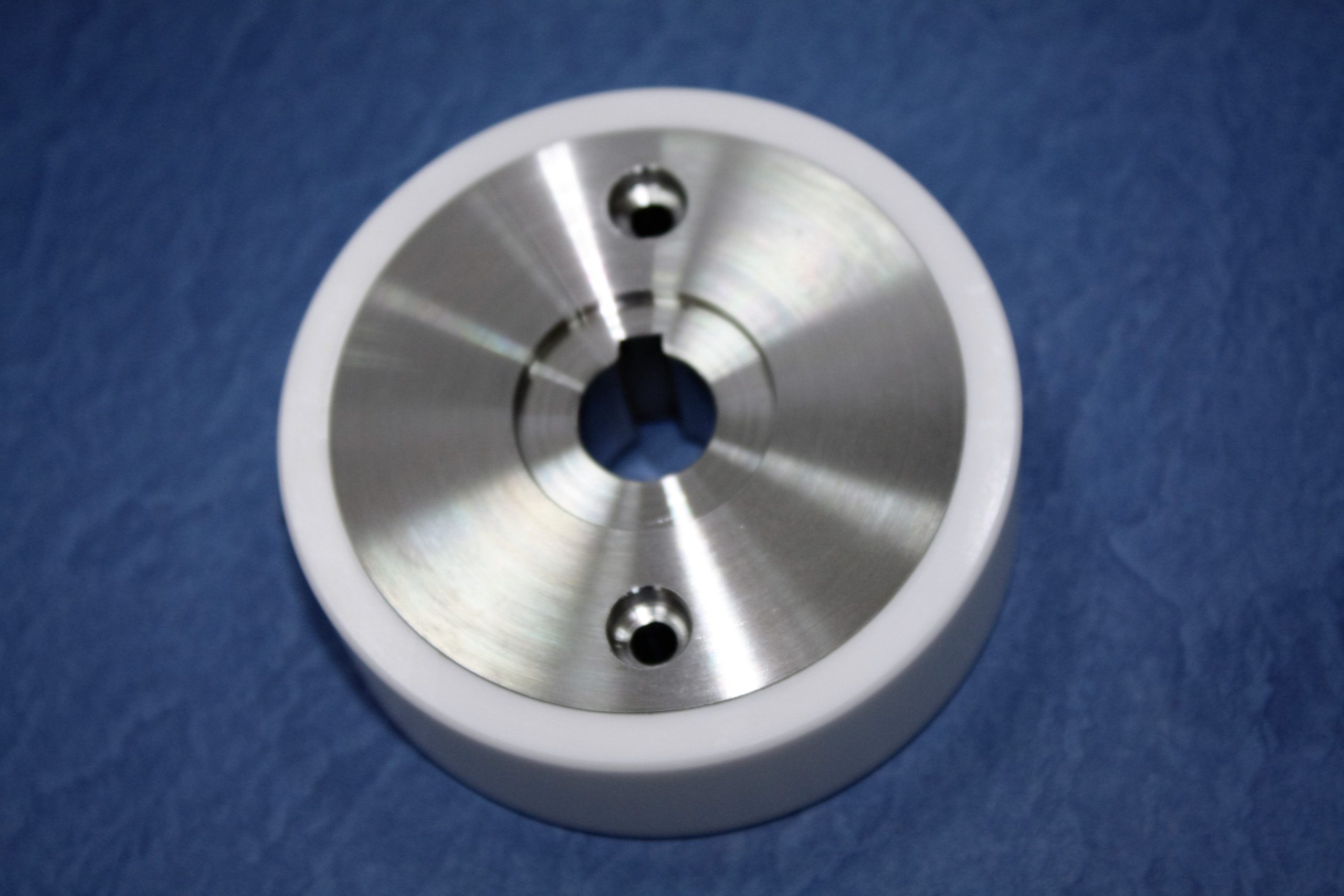

 | M412 | Feed Section | 陶瓷出線輪主軸 Capstan Roller(Ceramic) 80Ø×15Ø×25t | DWC-FA(S),BA,MV | X055C662G51 |
| 圖片 | 編號 | 位置 | 品名尺寸 | 適用機種 | 原廠編號 |
|---|---|---|---|---|---|

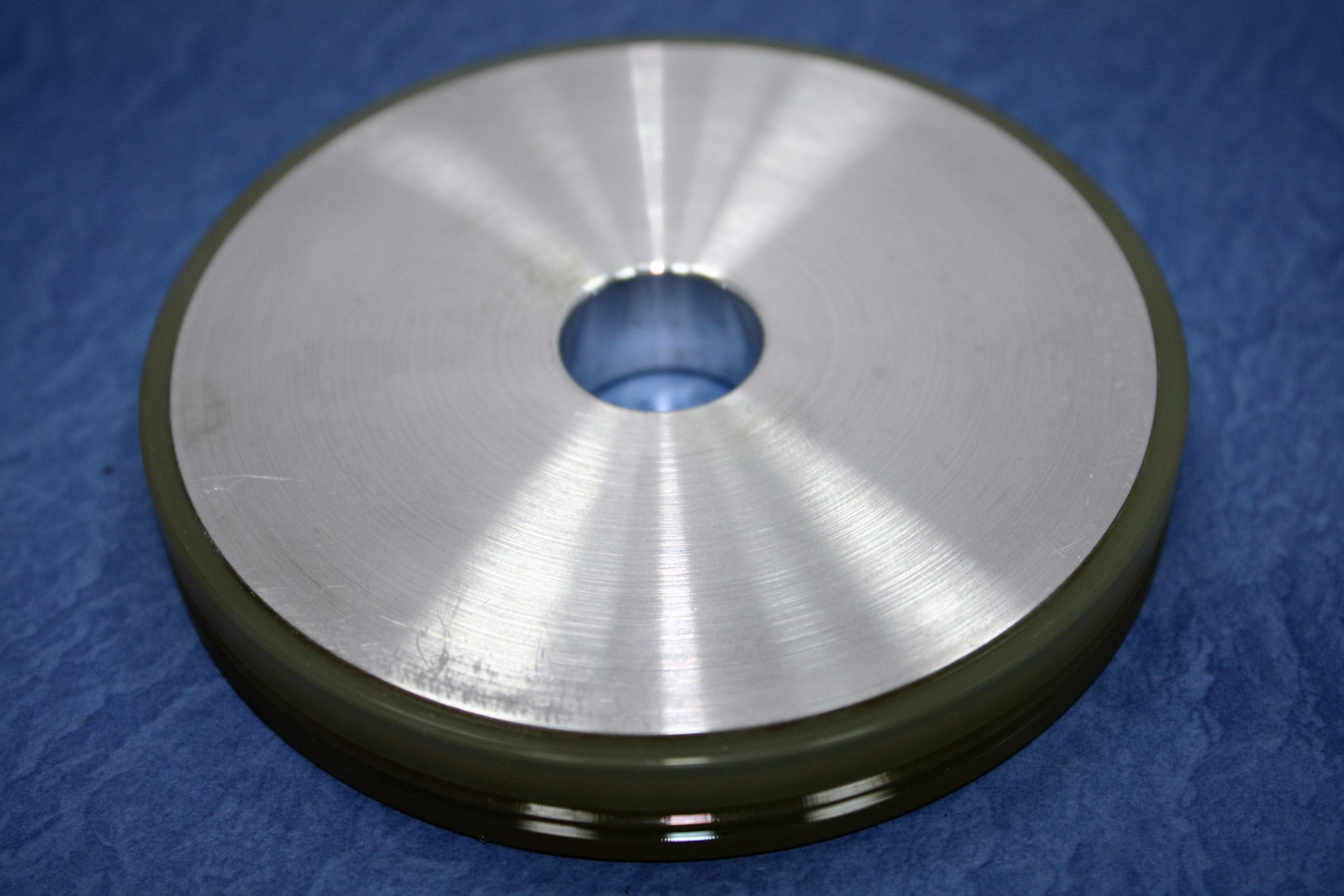

 | M440-1 | Upper | 張力輪(優力膠) Urethane Tension Roller 103Ø×20Ø | DWC-F,G,H,H',H1,HA,CR,CA | |

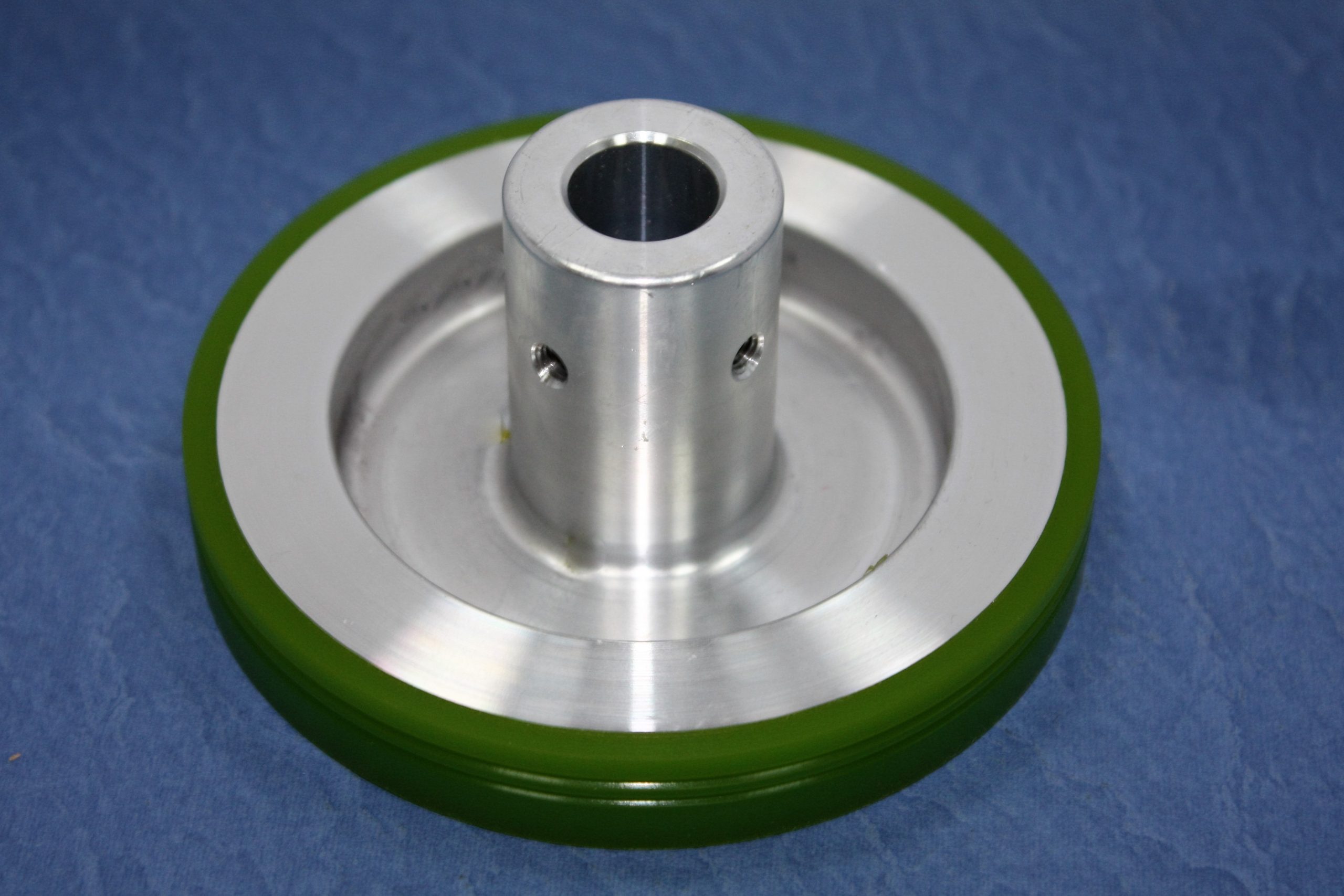

 | M440-2 | Upper | 張力輪(優力膠) Urethane Tension Roller 113 Ø×16×47mmL | DWC-SX,CX,FX,FX-K | X193C196G51 |

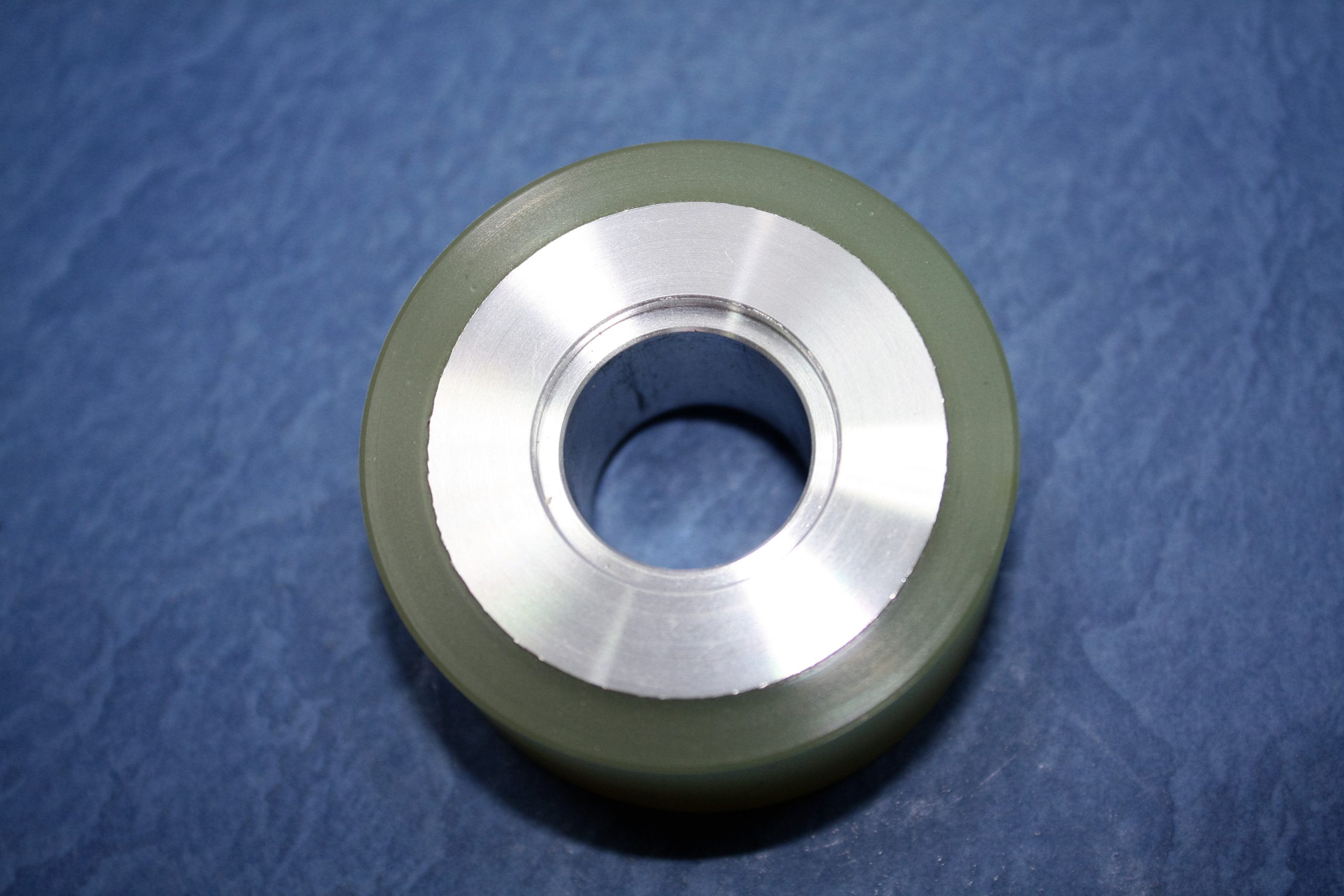

 | M440-3 | Upper | 張力惰輪(優力膠) 50D Urethane Tension Roller 50Ø×16×47mmL | DWC-FA,RA,QA | X058D912G51 |
 | M440-4 | Upper | 張力輪(優力膠) Urethane Tension Roller 113Ø×16×35mmL | DWC-SX | |

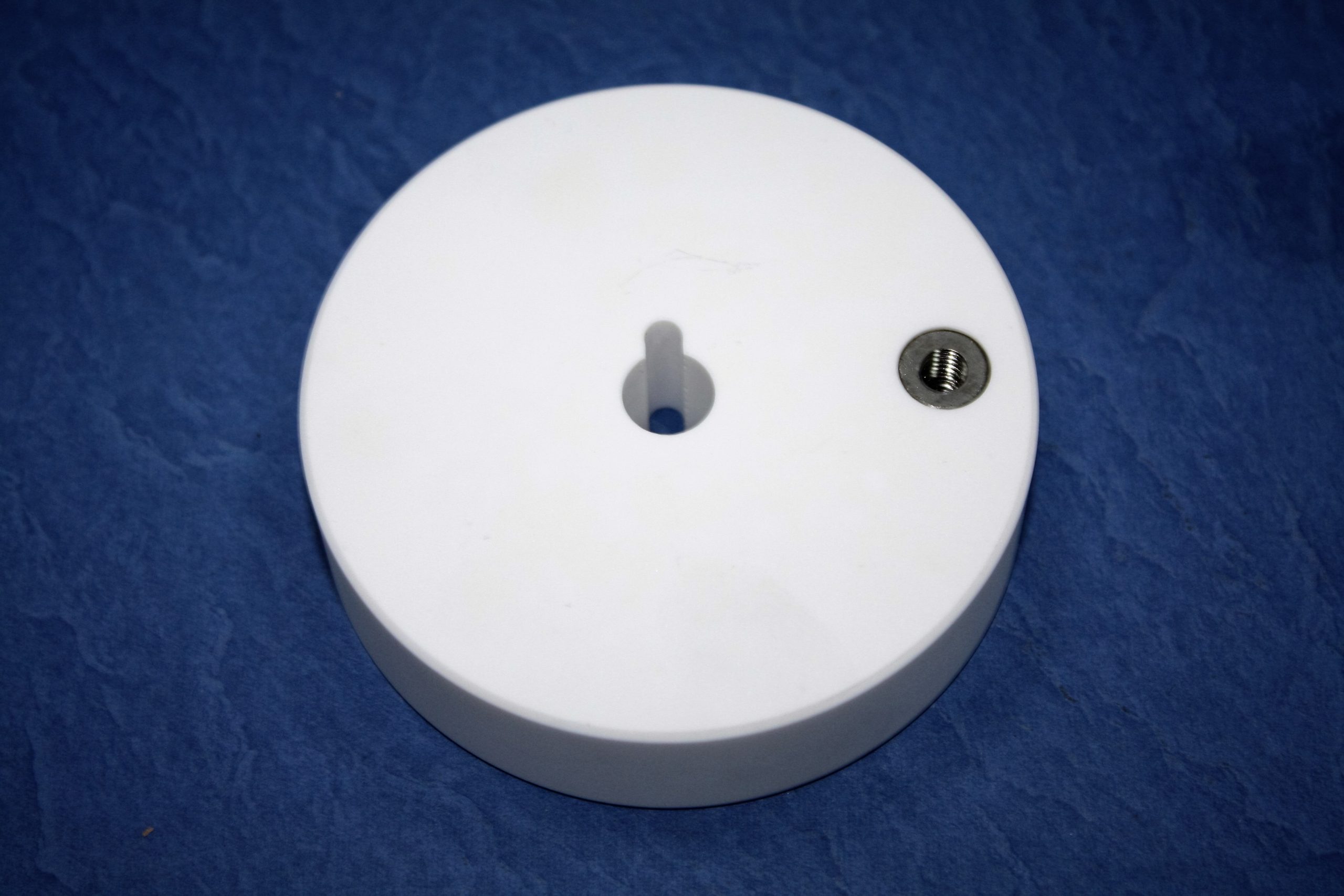

 | M440-5 | Upper | 陶瓷張力輪 Urethane Tension Roller(Ceamic) 80Ø×10Ø×22t | DWC-FA10S,FA20S (Manual/AF) | X056C851G51 |

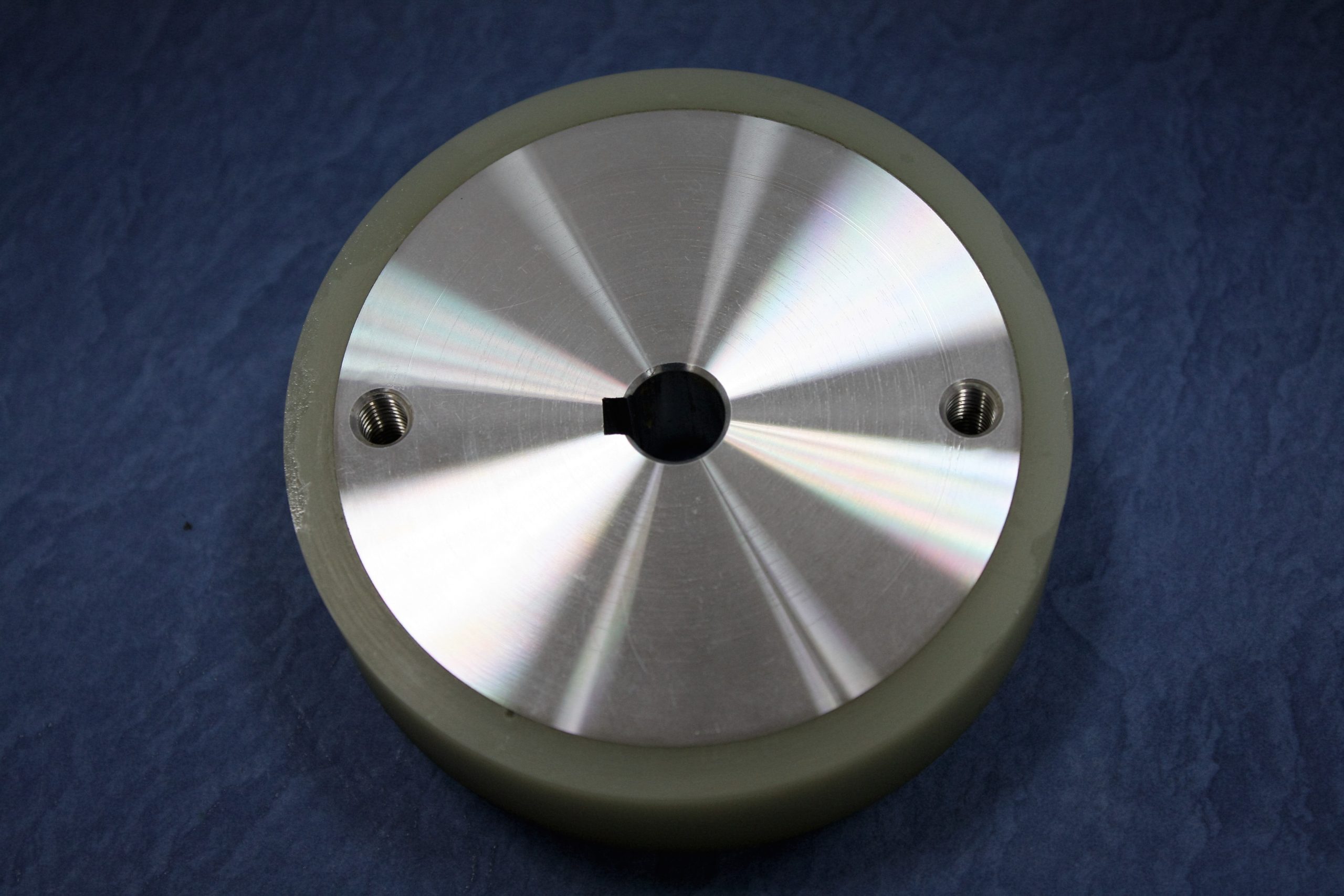

 | M440-6 | Upper | 張力惰輪(優力膠) Urethane Tension Roller 80Ø×10Ø×22t | DWC-MV | X089D051G51 |

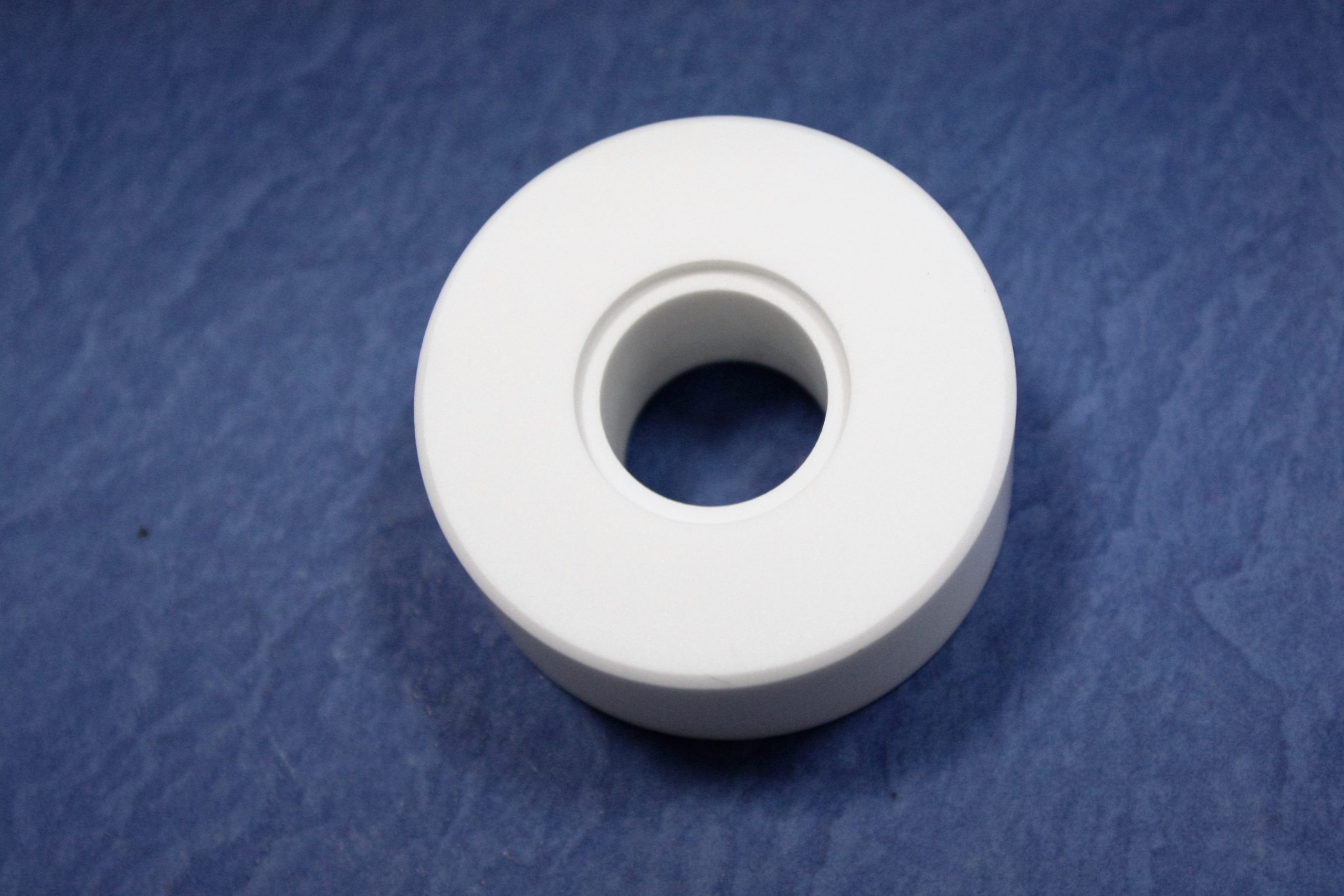

 | M440-7 | Upper | 陶瓷張力輪(Ceramic) Urethane Tension Roller 50Ø×19Ø×22t | DWC-MV | X088D301H02 |
| 圖片 | 編號 | 位置 | 品名尺寸 | 適用機種 | 原廠編號 |
|---|---|---|---|---|---|

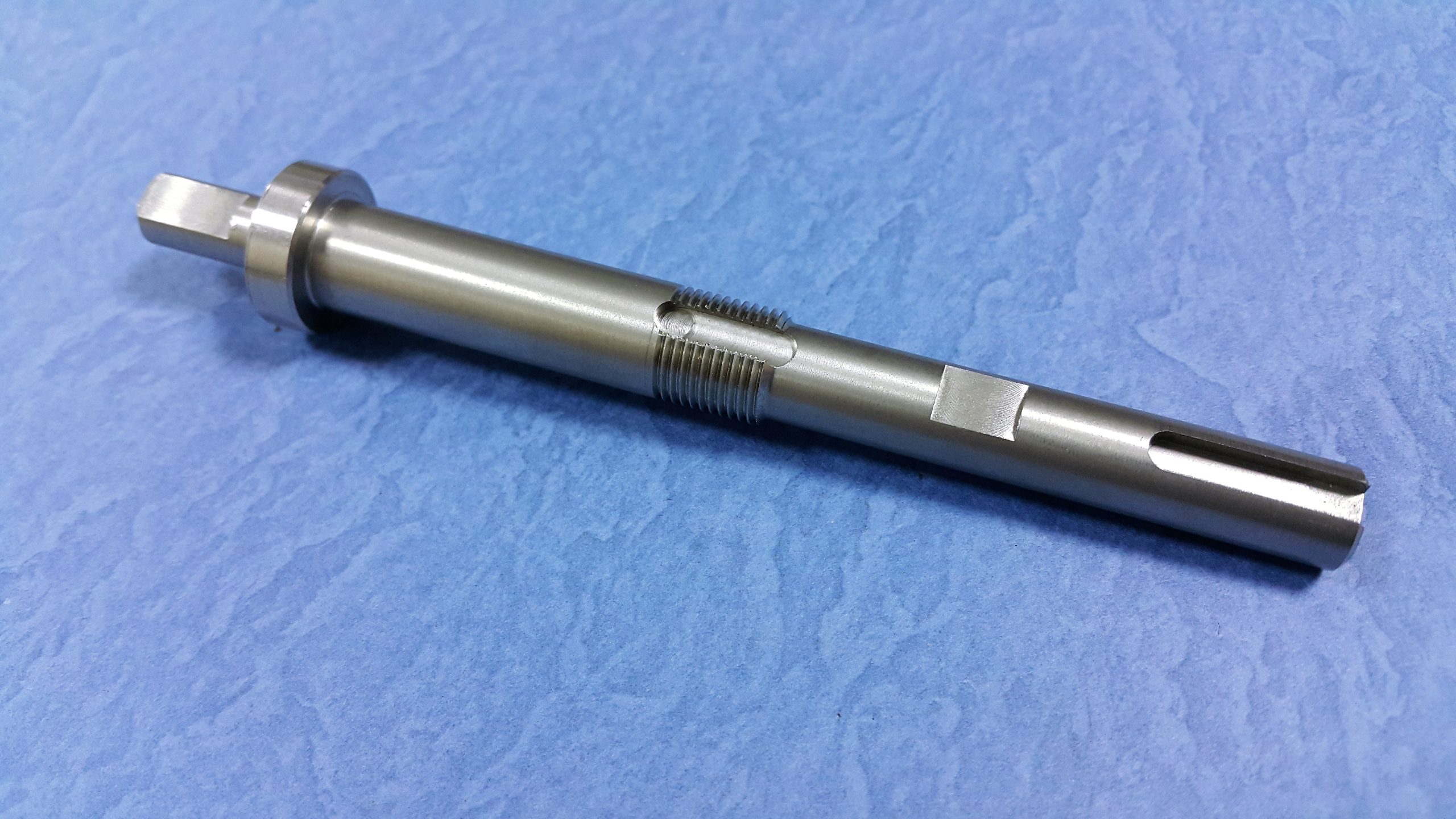

 | M462-1 | Feed Section | 主出線輪軸心 Shaft For M402C 126mmL×12Ø | DWC-F,F1,G,H,H' (SK1,SK2) | |

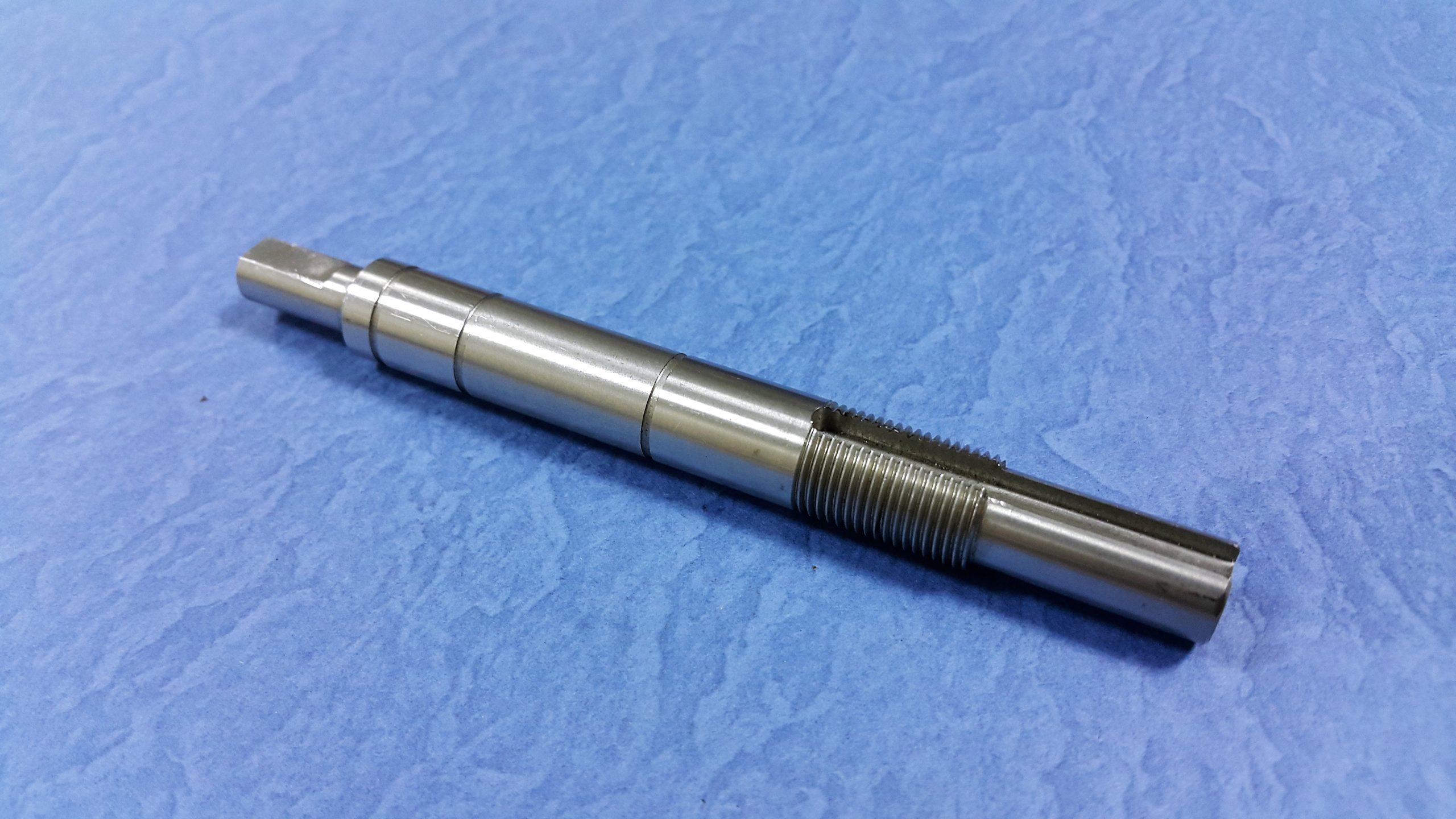

 | M462-2 | Feed Section | 主出線輪軸心 S haft For M404C 112mmL×12Ø | DWC-H1,SZ,C,SB,SA (SK3,AF1,AF2) | |

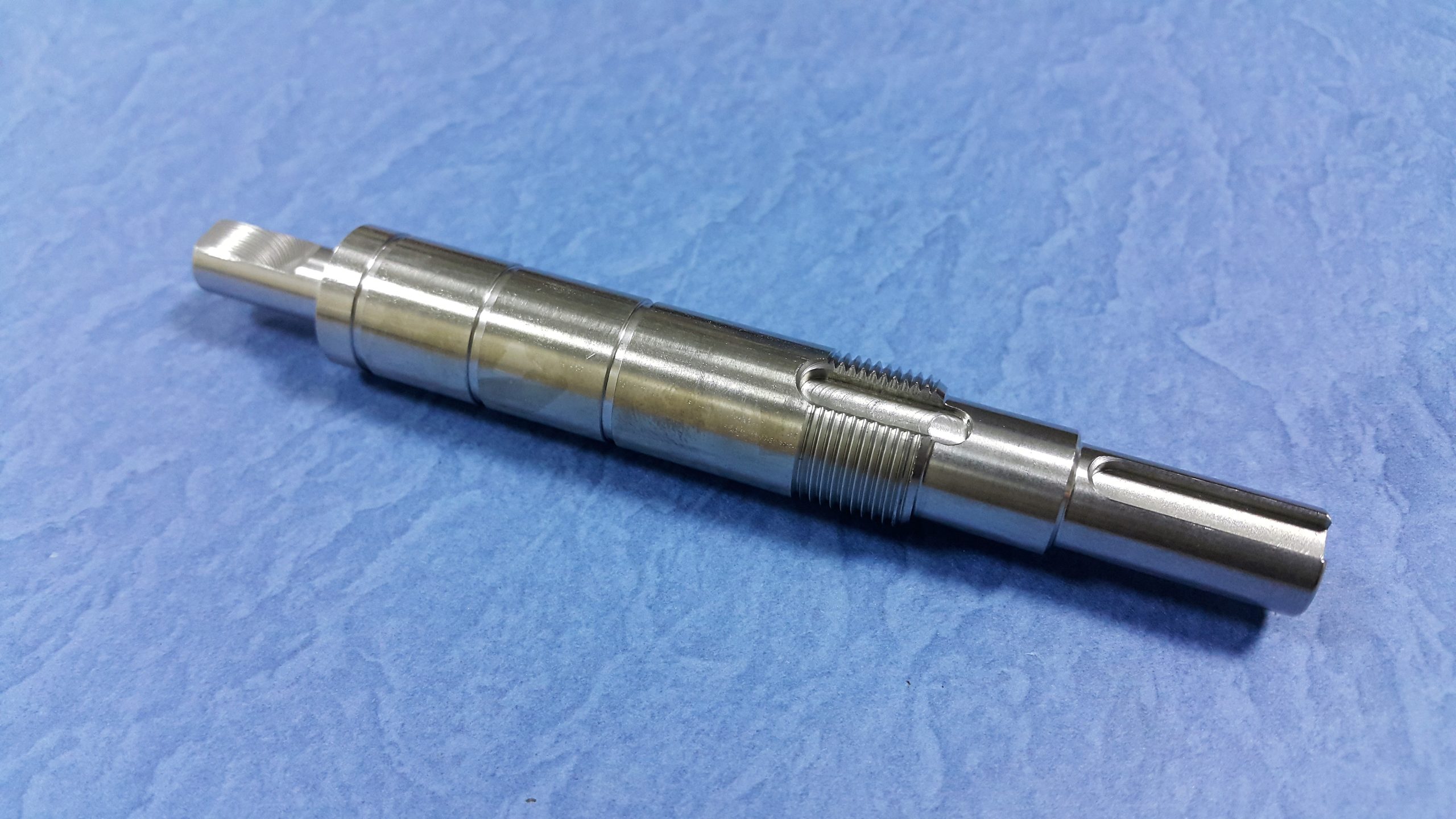

 | M462-3 | Feed Section | 主出線輪軸心 Shaft For M406C 112mmL×15Ø | DWC-HA早期 DWC-HA(HA-Early Period) | |

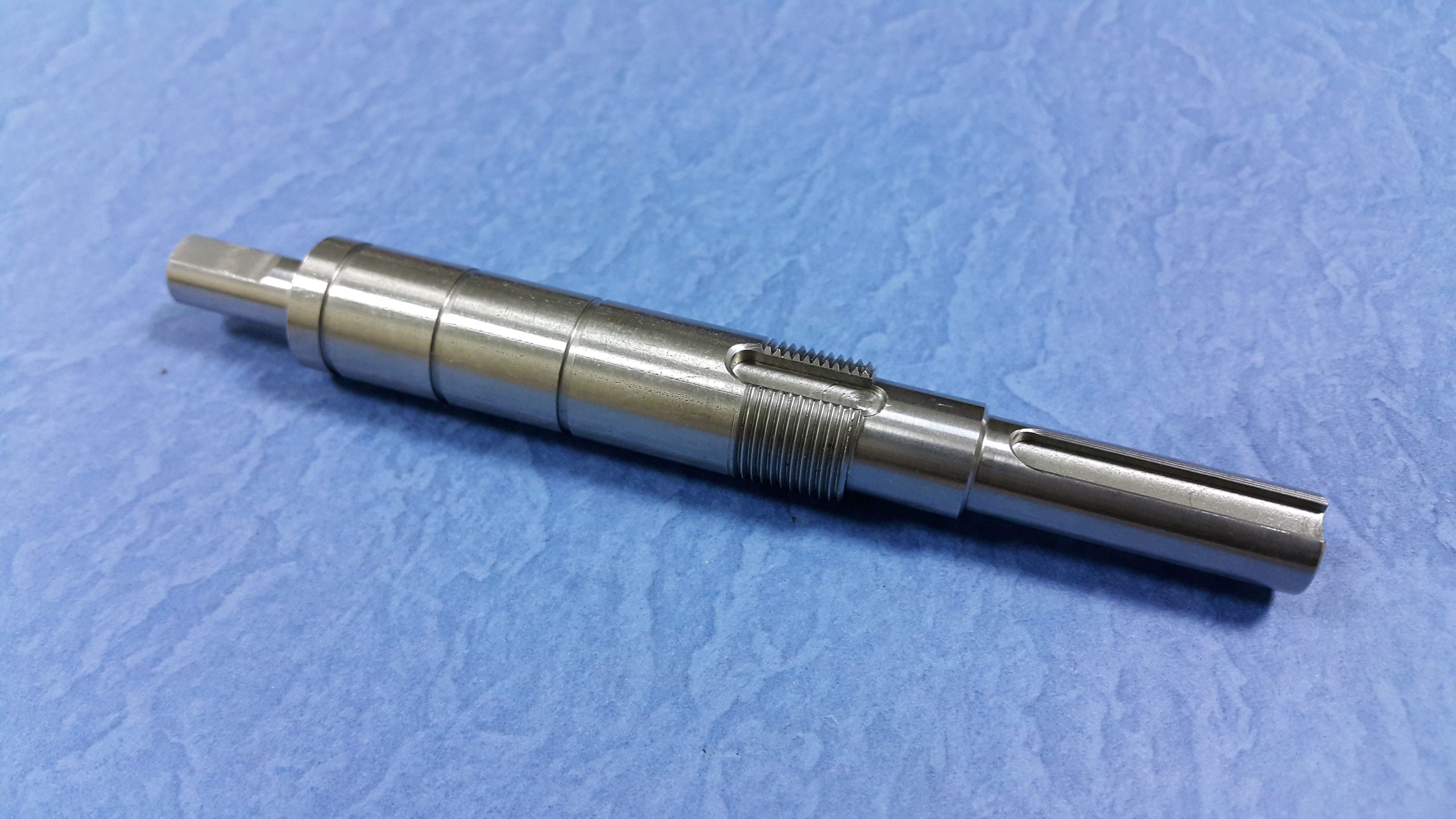

 | M462-4 | Feed Section | 主出線輪軸心 Shaft For M406C 121mmL×15Ø | DWC-HA後期 (HA-late period) | |

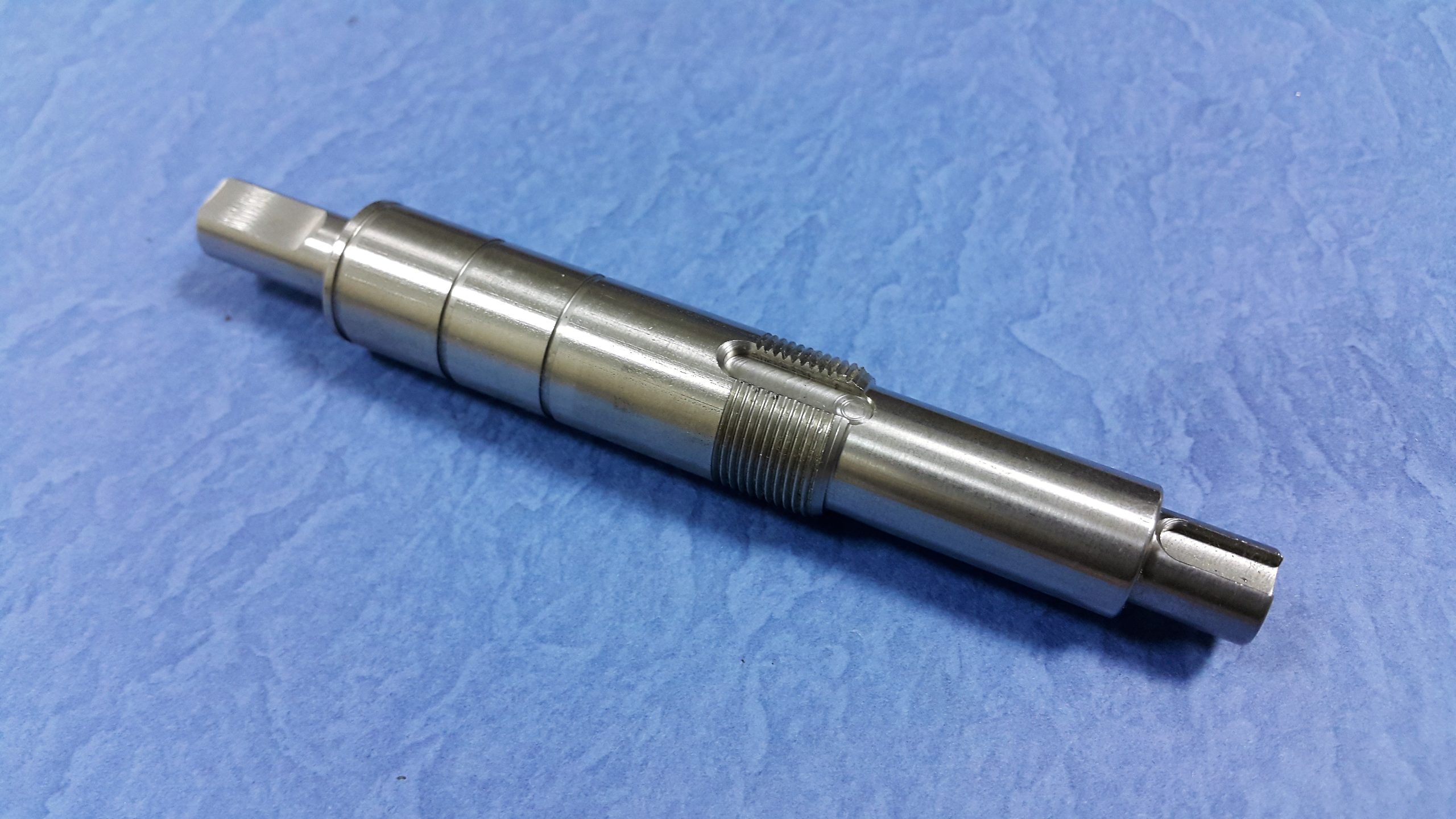

 | M462-5 | Feed Section | 主出線輪軸心 Shaft For M408C 121mmL×17Ø | 新200HA(New-200HA) | X205C499H01 |
 | M462-6 | Feed Section | 主出線輪軸心 Shaft For M409C 123mmL×17Ø | DWC-FX | |

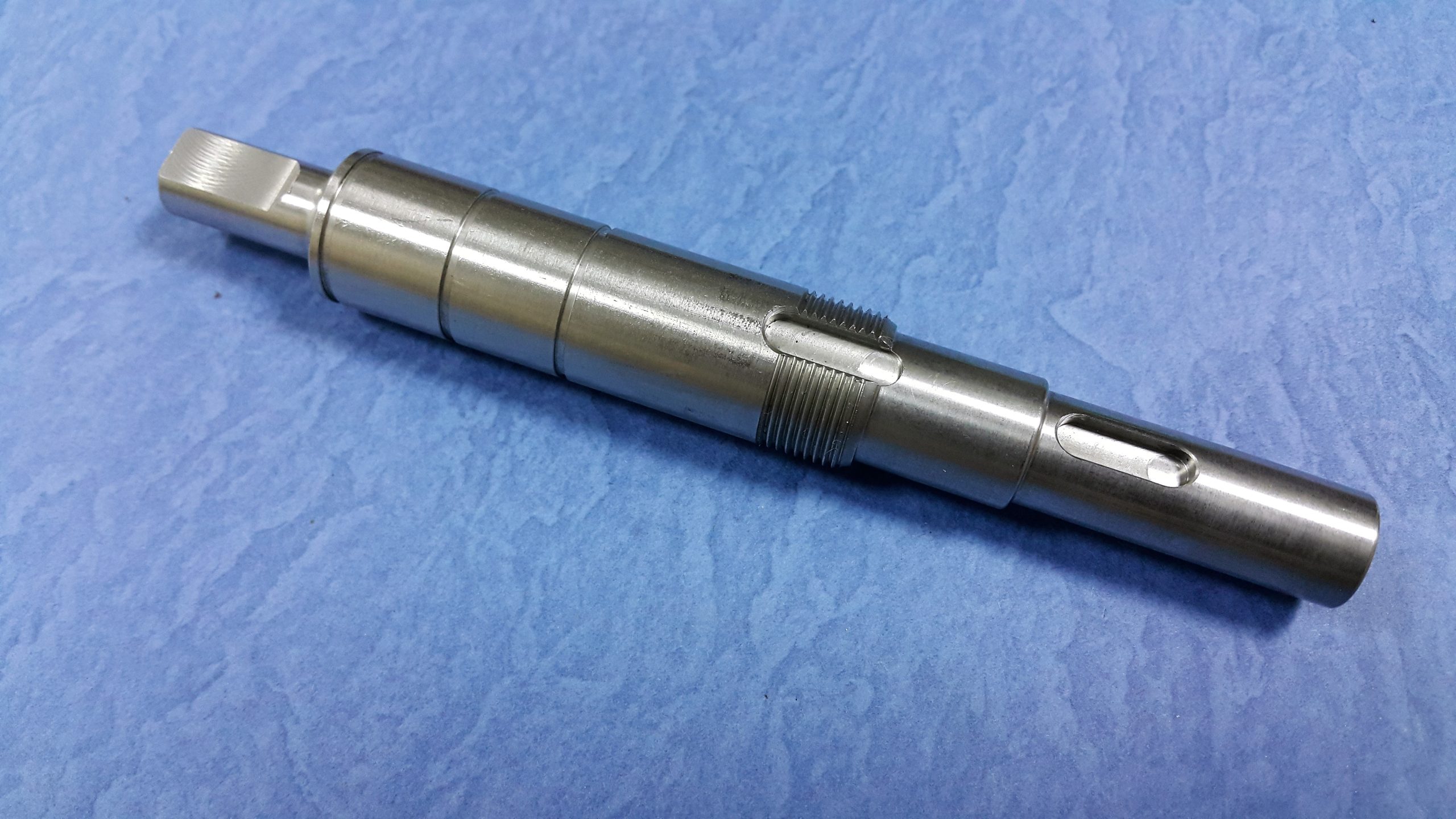

 | M462-7 | Feed Section | 主出線輪軸心 Shaft For M409C 129mmL×17Ø | DWC-FA,RA | |

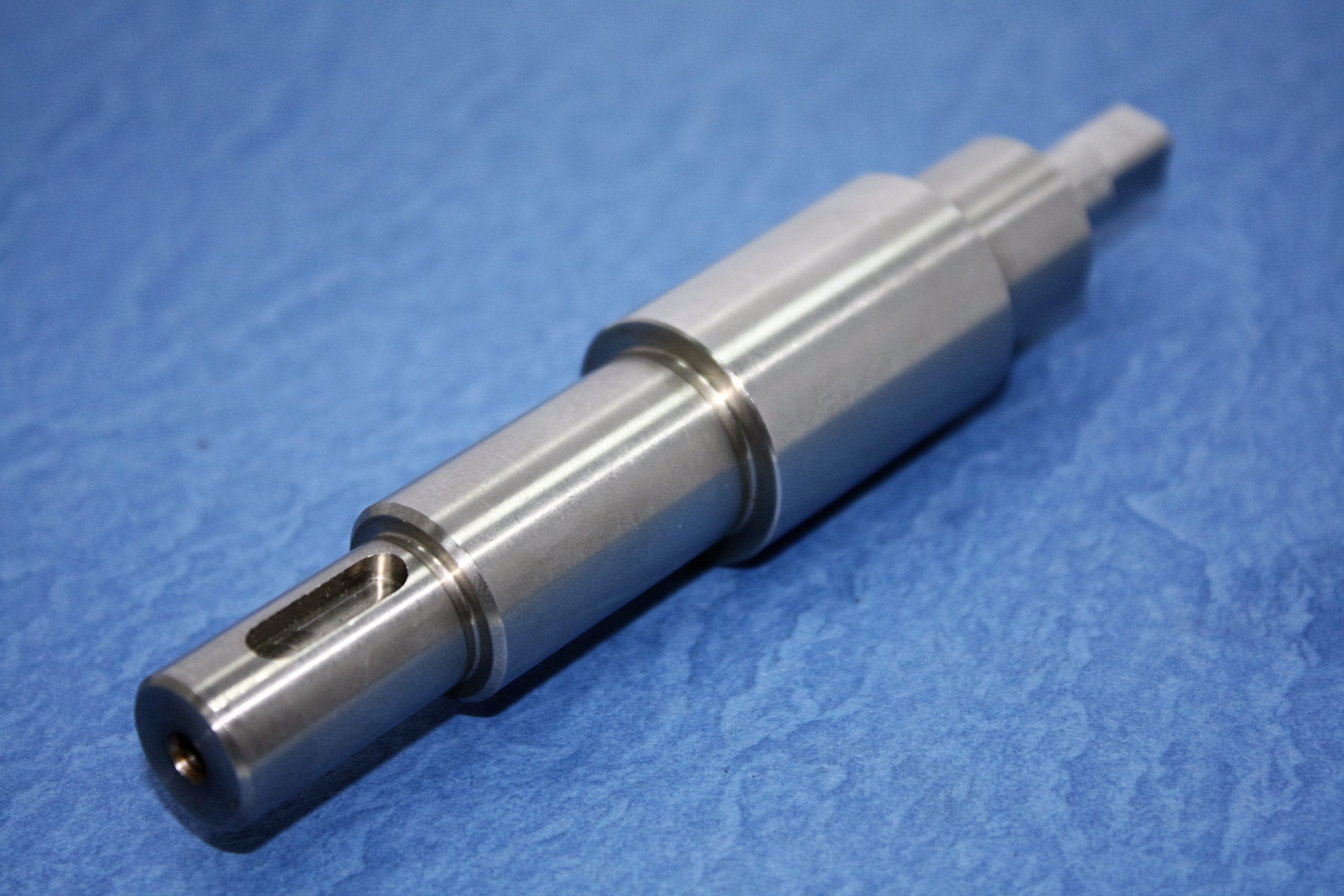

 | M462-9 | Feed Section | 主出線輪軸心 Shaft For 136.3mmL×26Ø | DWC-MV,BA | X255C008H01 |

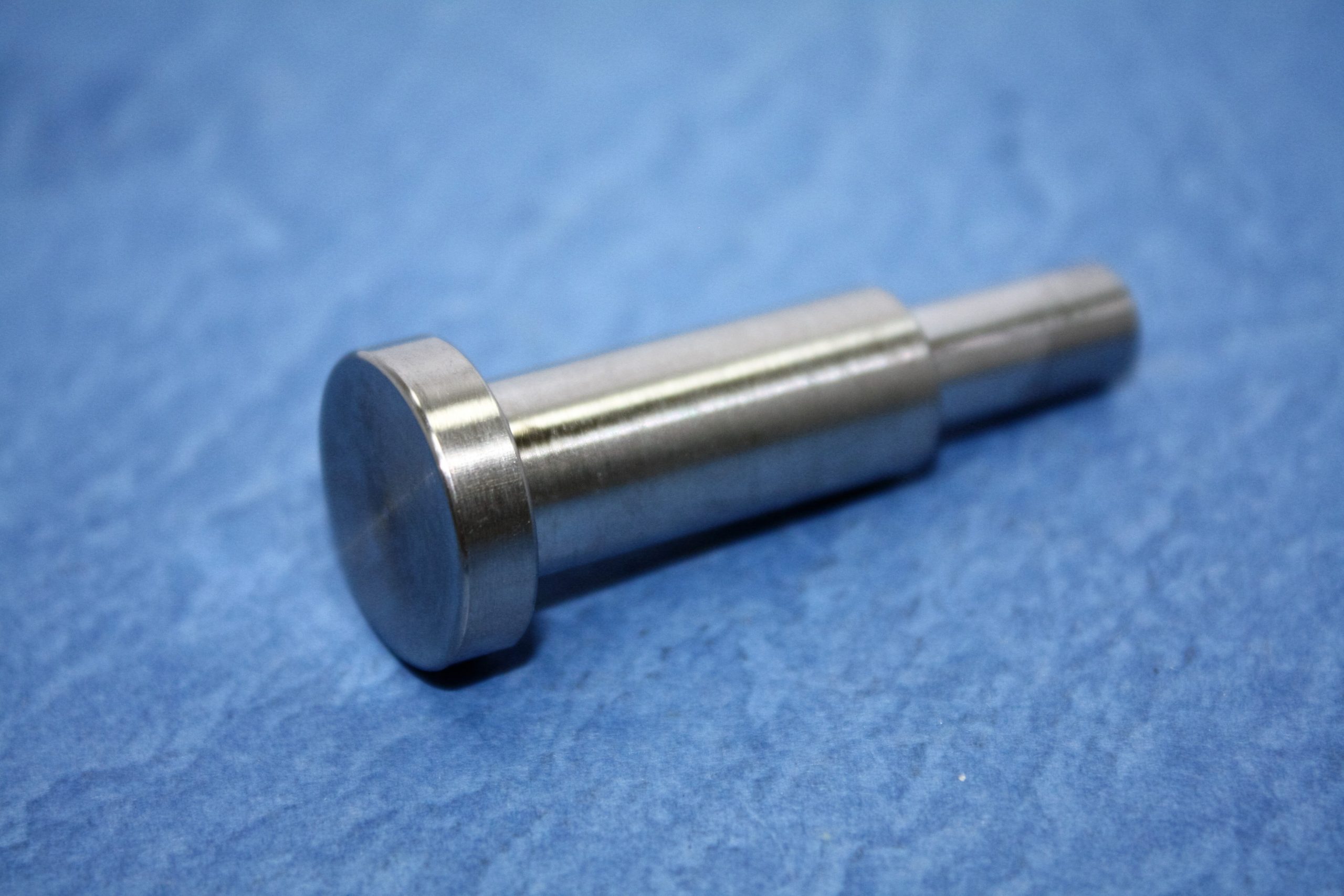

 | M518 | Feed Section | 副出線輪軸心 52L×19Ø | DWC-HA | |

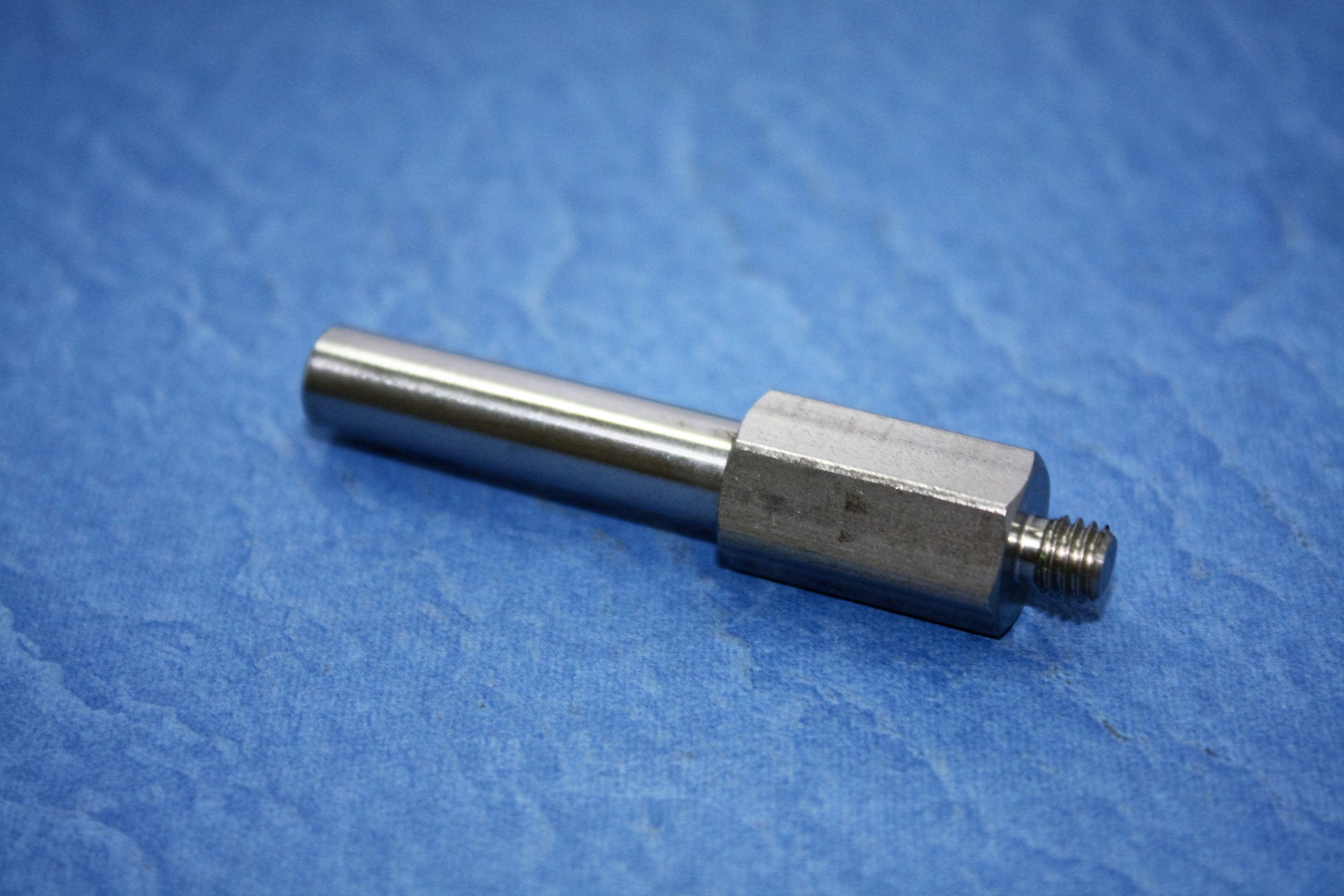

 | M519 | Feed Section | 軸心 12×62 | ||
 | M520 | Feed Section | 軸心 16×69 | ||

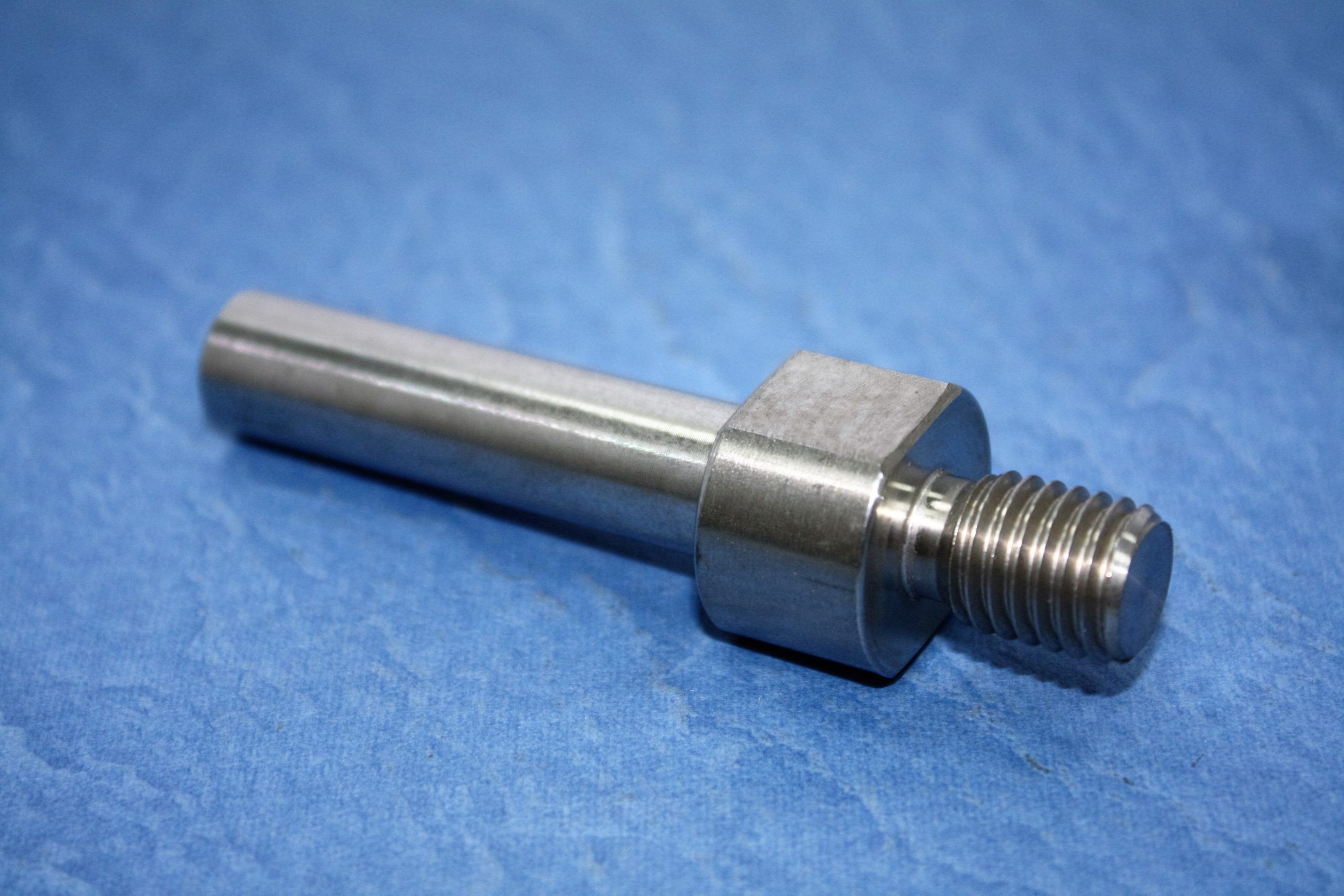

 | M521 | Feed Section | 軸心 22×80 |
| 圖片 | 編號 | 位置 | 品名尺寸 | 適用機種 | 原廠編號 |
|---|---|---|---|---|---|
 | M452-1 | Upper | 上機頭 Die Guide Holder 56×59×30t | DWC-F1,G,H,H',H1,HA,C,CA | X176C706H02 Not lncluding Connecter |

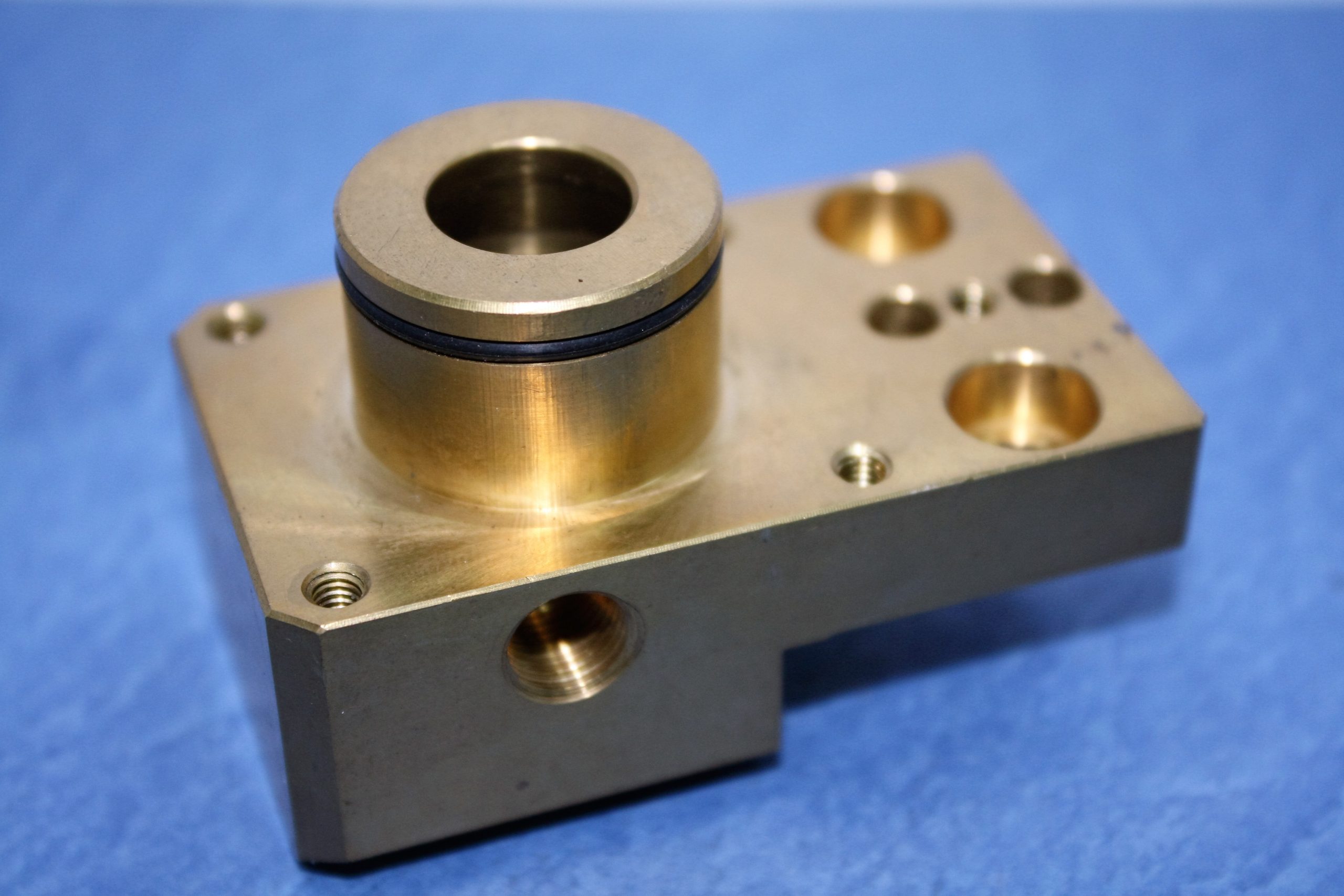

 | M453-1 | Lower | 下眼膜座 Die Guide Holder 69×40×43t | DWC-F1,G,H,H' | X176C610H01 |

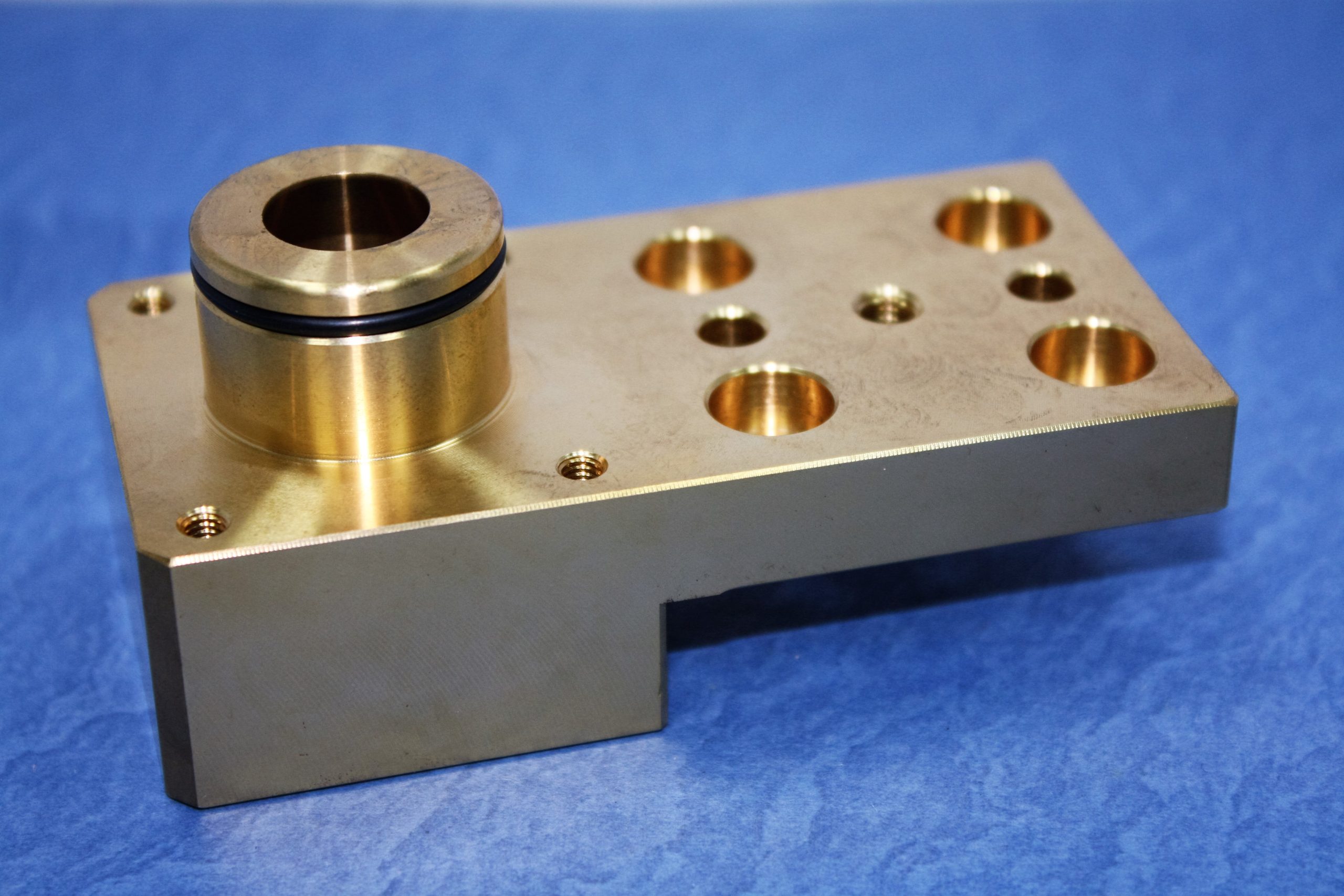

 | M454 | Lower | 下眼膜座 Die Guide Holder 96×48×43t | DWC-H1,HA,C,CR,CA | X177B046H03 |

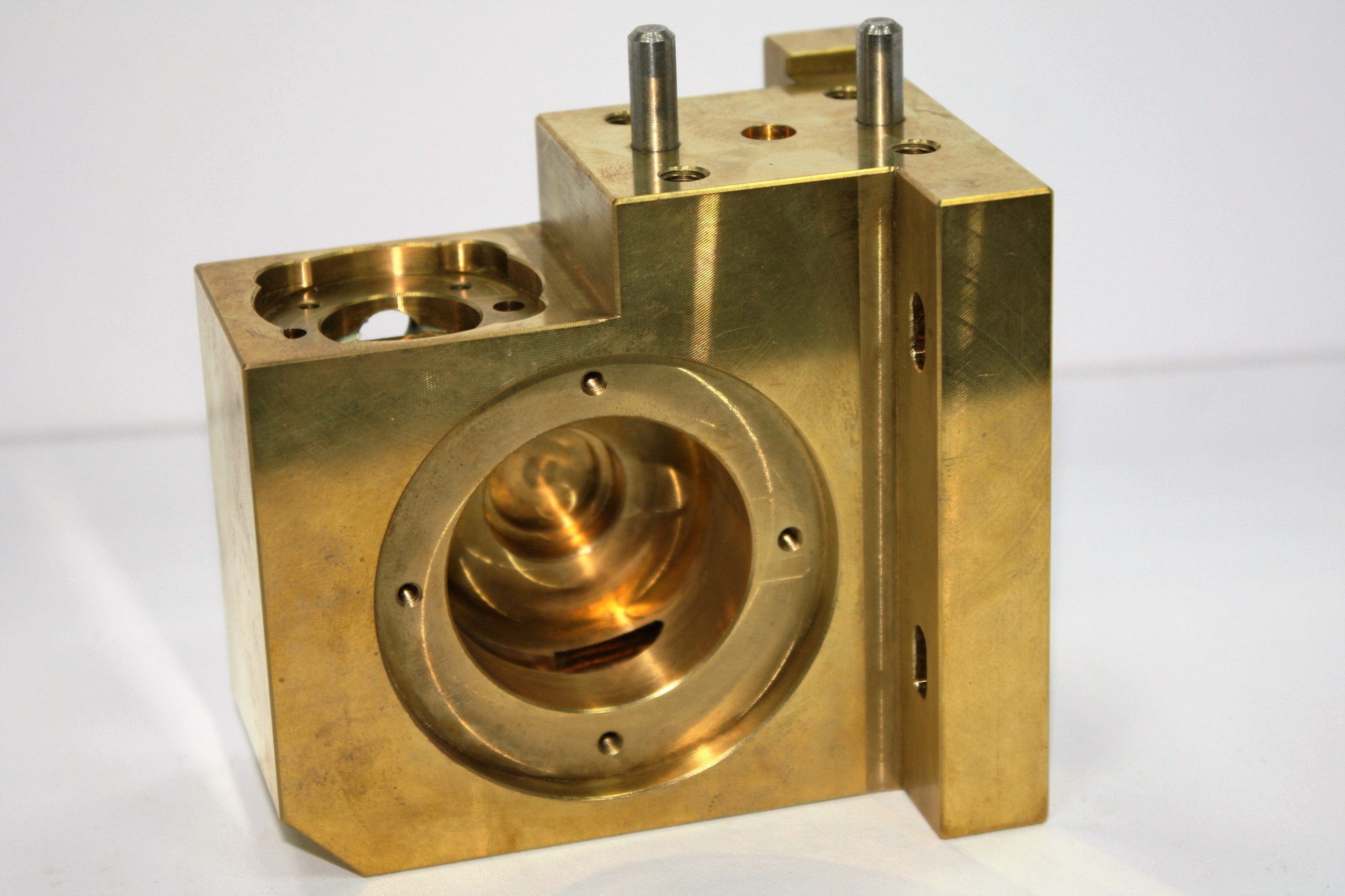

 | M459 | Lower | 下滾輪座 Roller Block | DWC-H1,HA | X177B713H02 |

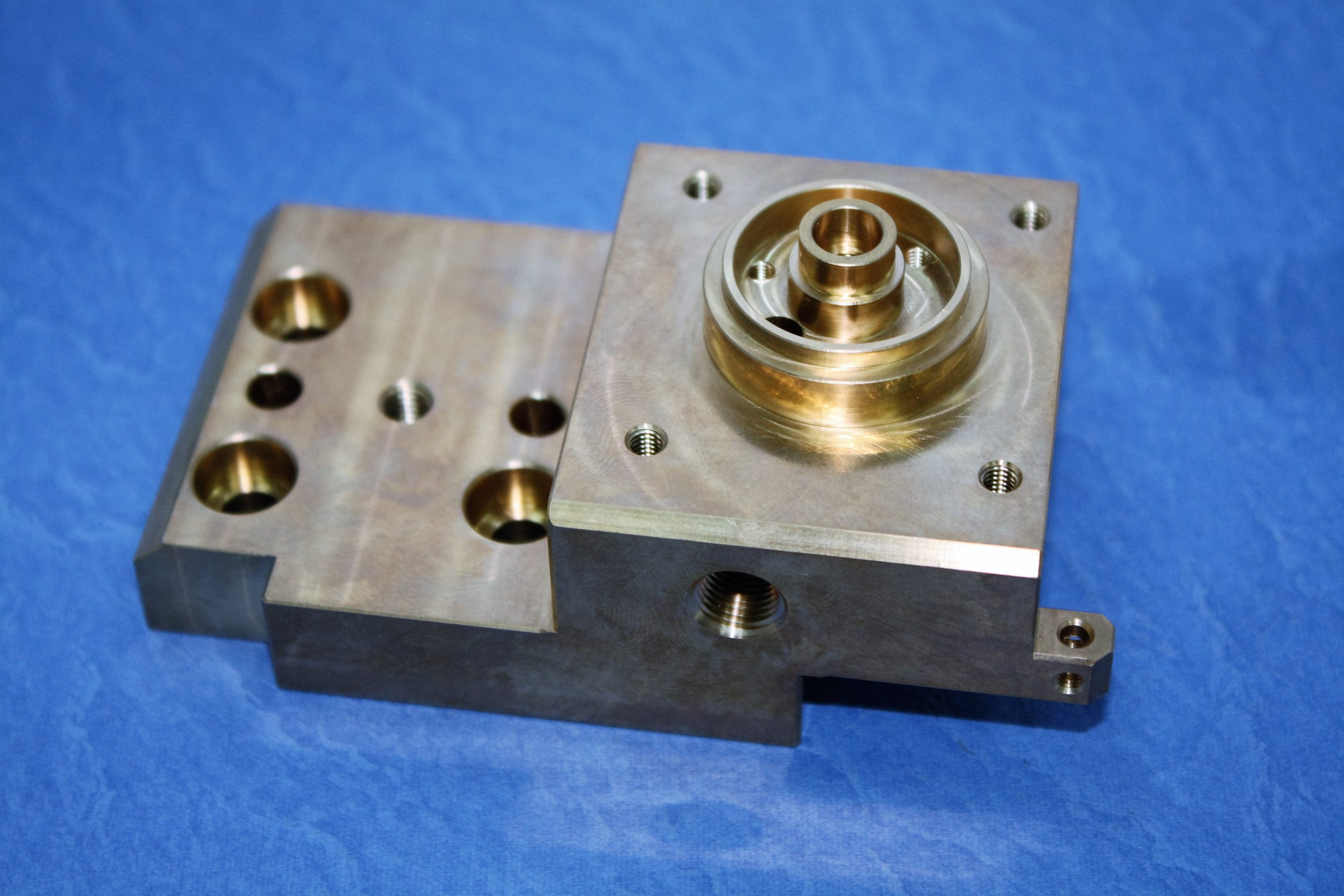

 | M851 | Lower | 下眼膜座 Die Guide Holder | DWC-CX,FX,FK,SX | X182B995H01 |

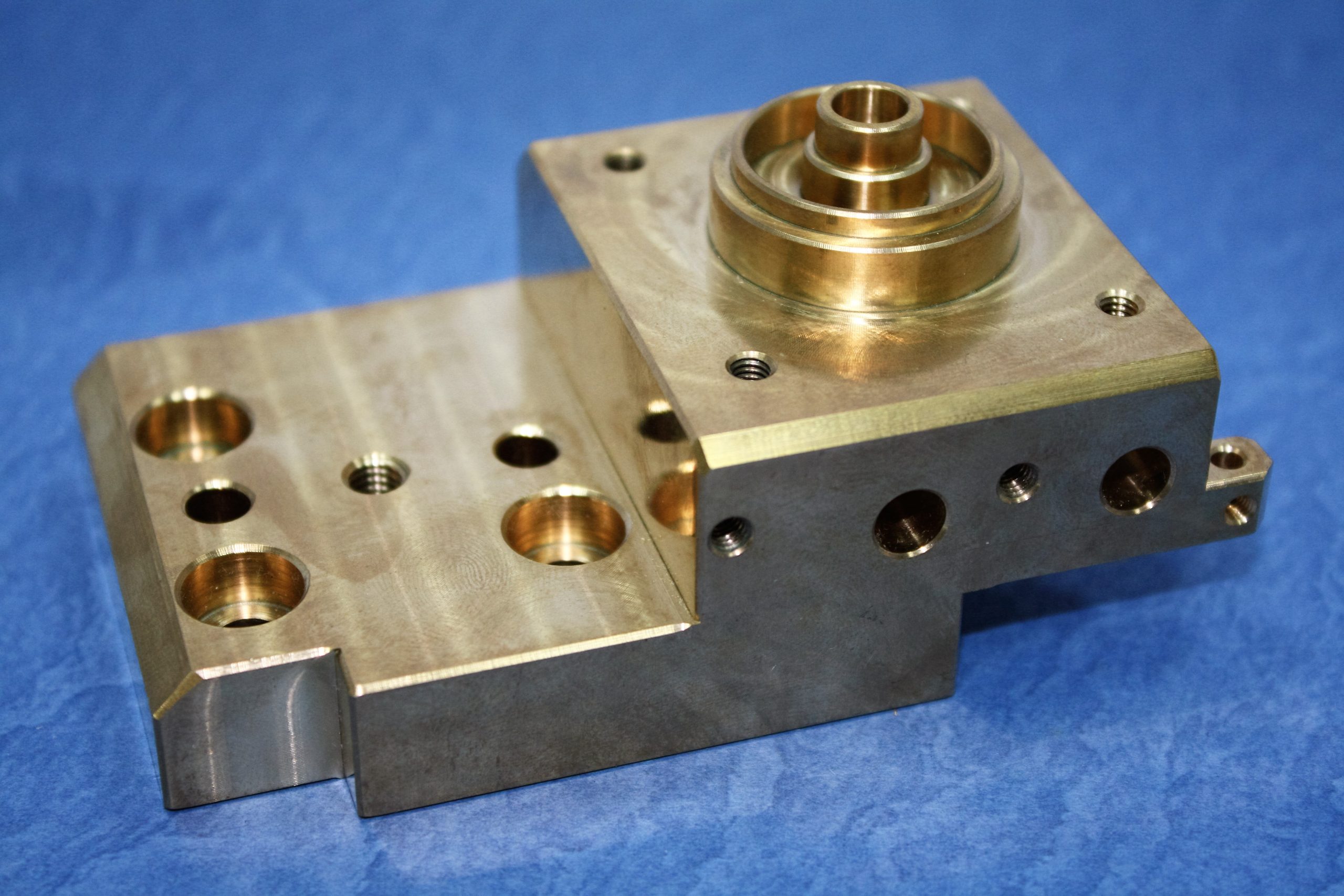

 | M852 | Lower | 下眼膜座 Die Guide Holder | DWC-FA | X187B621H01 |

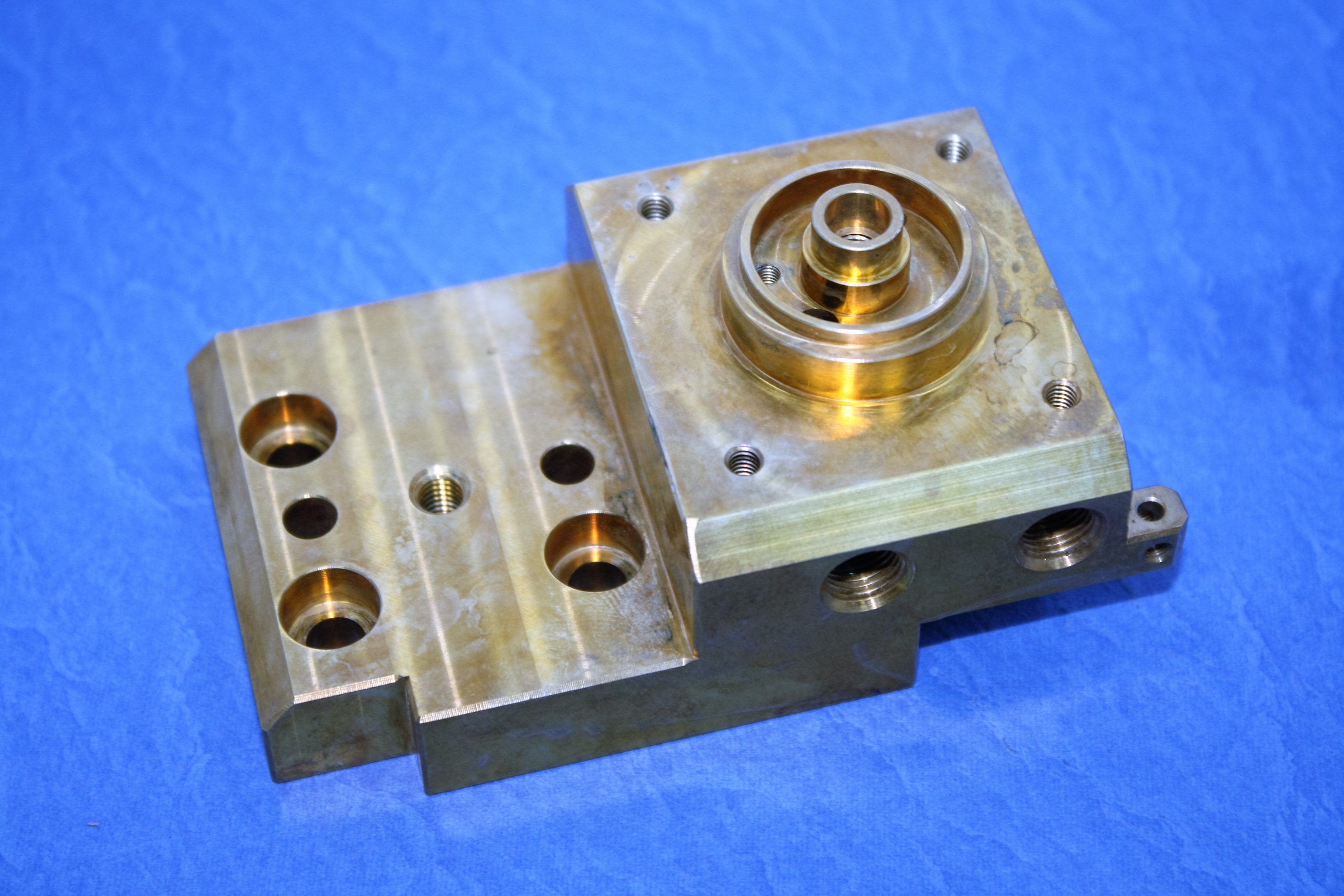

 | M853 | Lower | 下眼膜座 Die Guide Holder | DWC-RA | X182B684H01 |

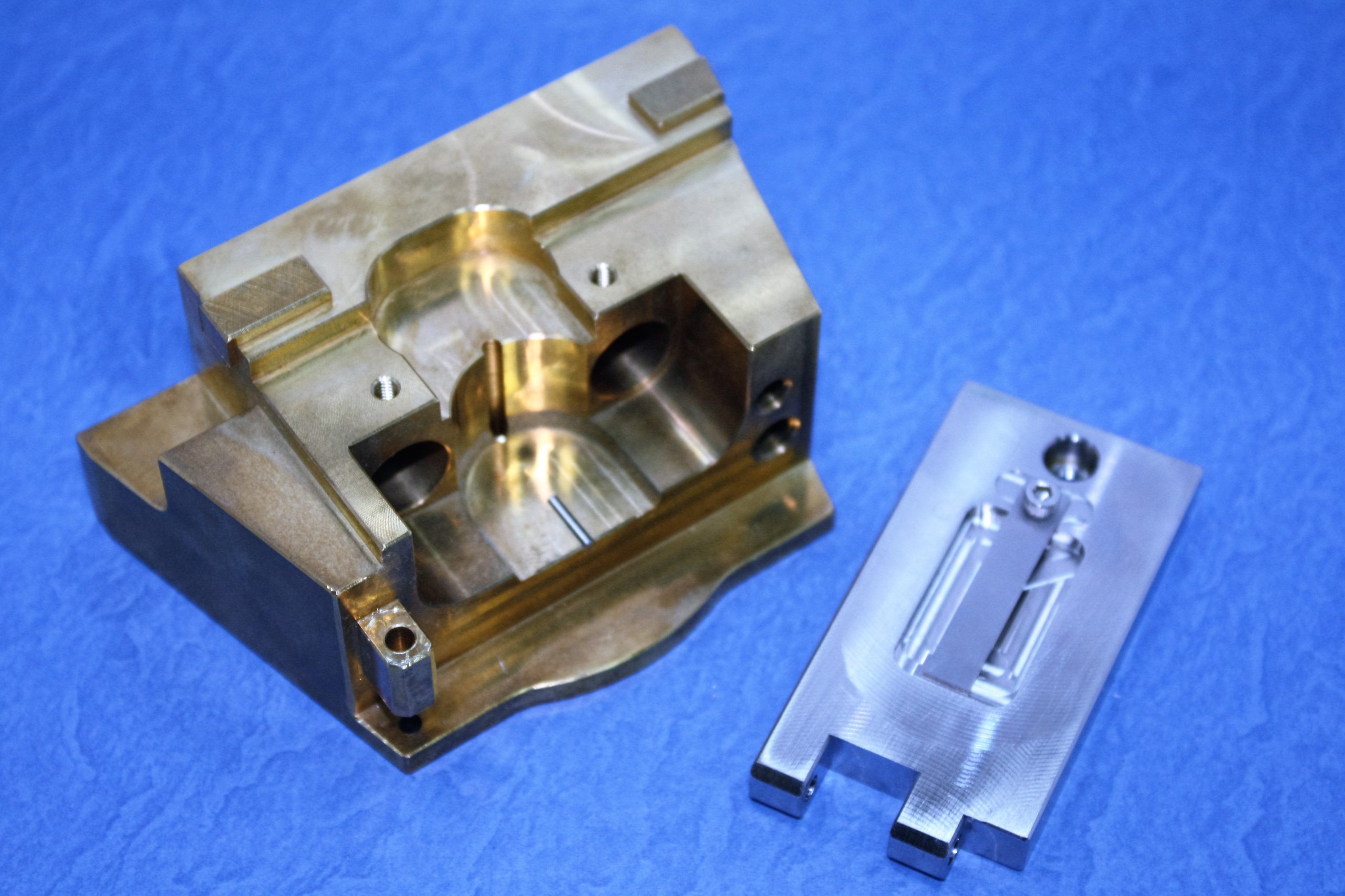

 | M854 | Upper | 上機頭眼膜座 Die Guide Holder 105W×65L×45 | DWC-FX10,FX20 | X182B893H01 |
 | M855 | Upper | 上機頭眼膜座 Die Guide Holder 80W×69L×47 | DWC-FX-K,QA | X187B284H01 |

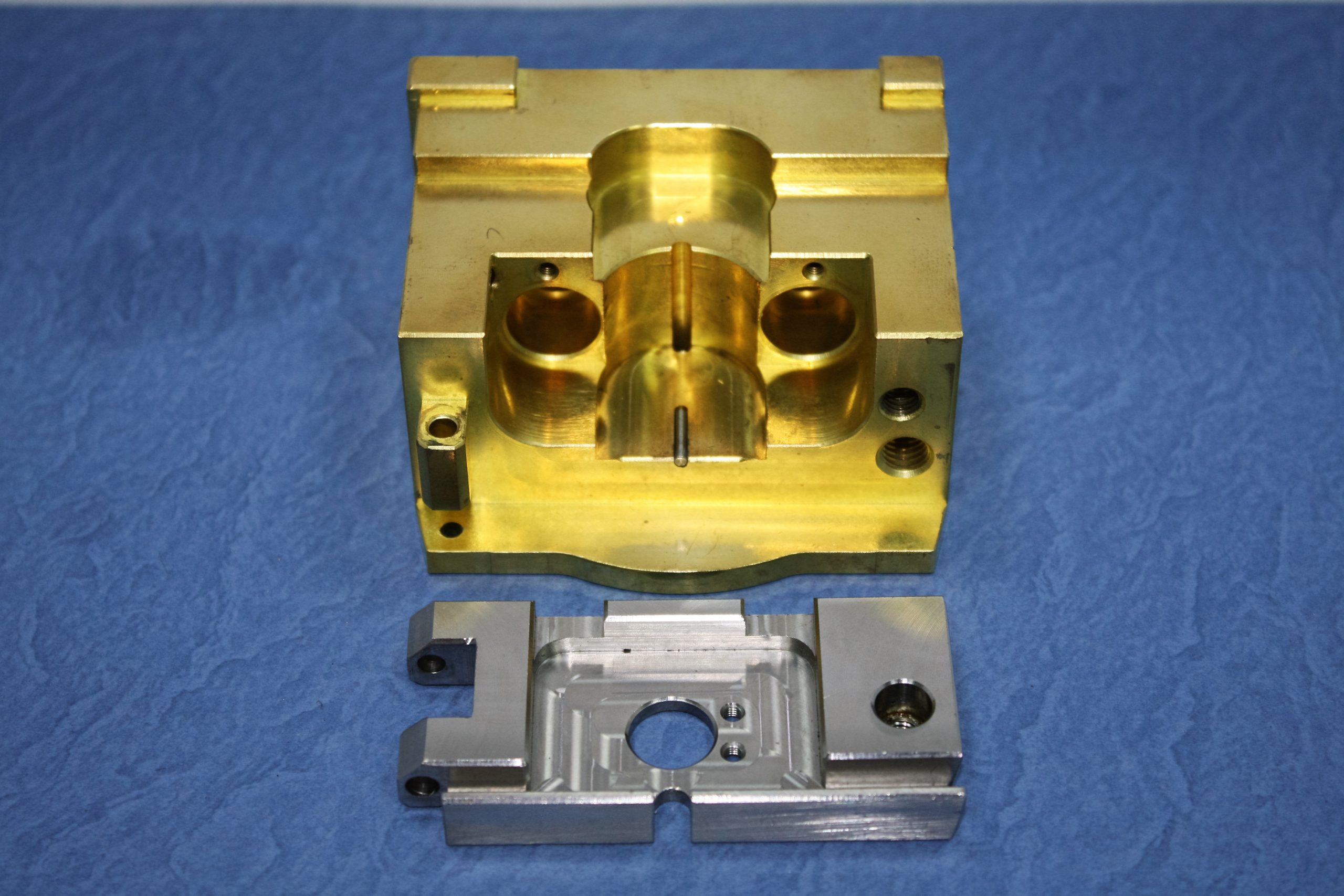

 | M856 | Upper | 上機頭眼膜座 Die Guide Holder 80W×69L×47 | DWC-FA,FA-S | X187B580H02 |

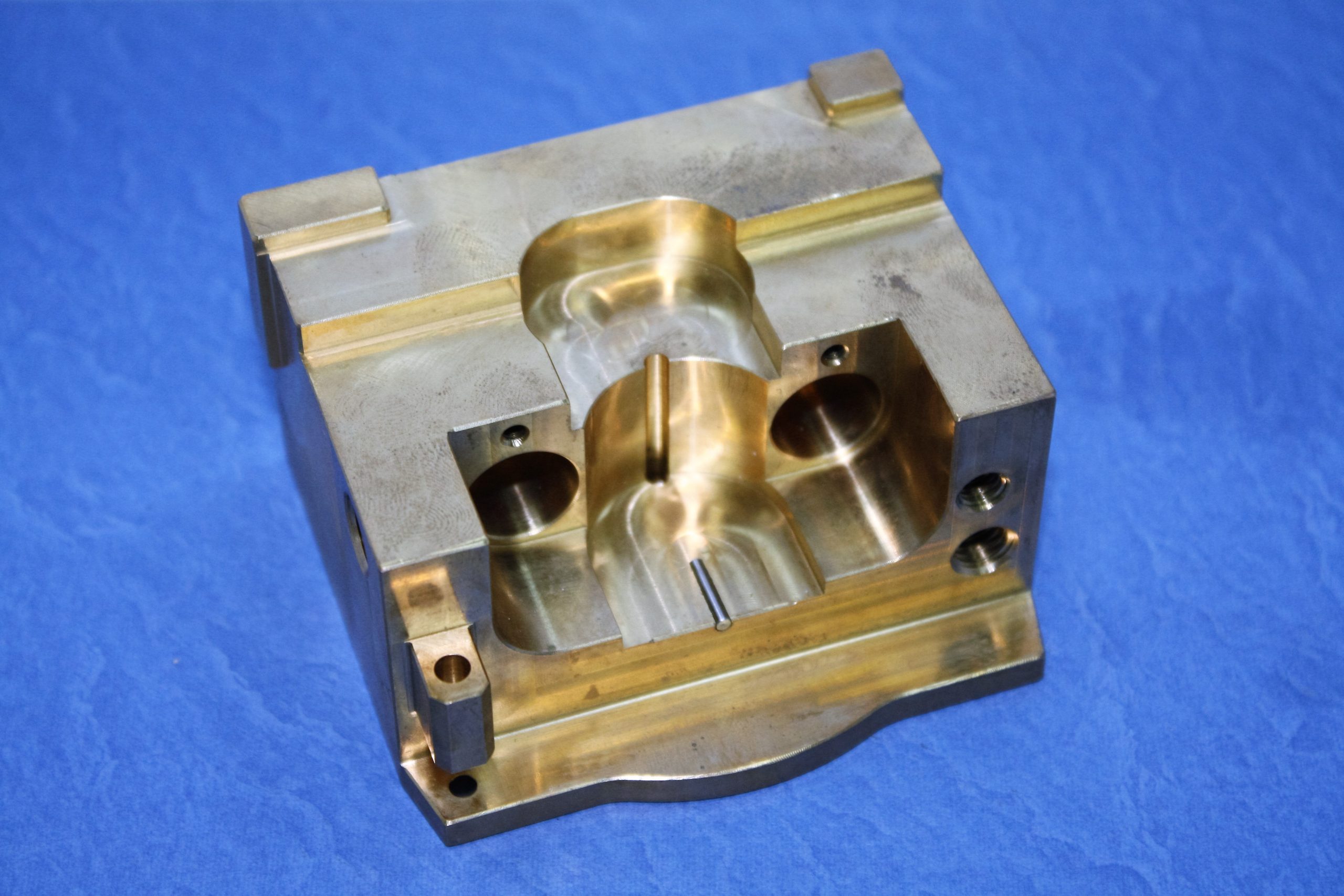

 | M857 | Upper | 上機頭眼膜座 Die Guide Holder 80W×69L×47 | DWC-RA90 | |

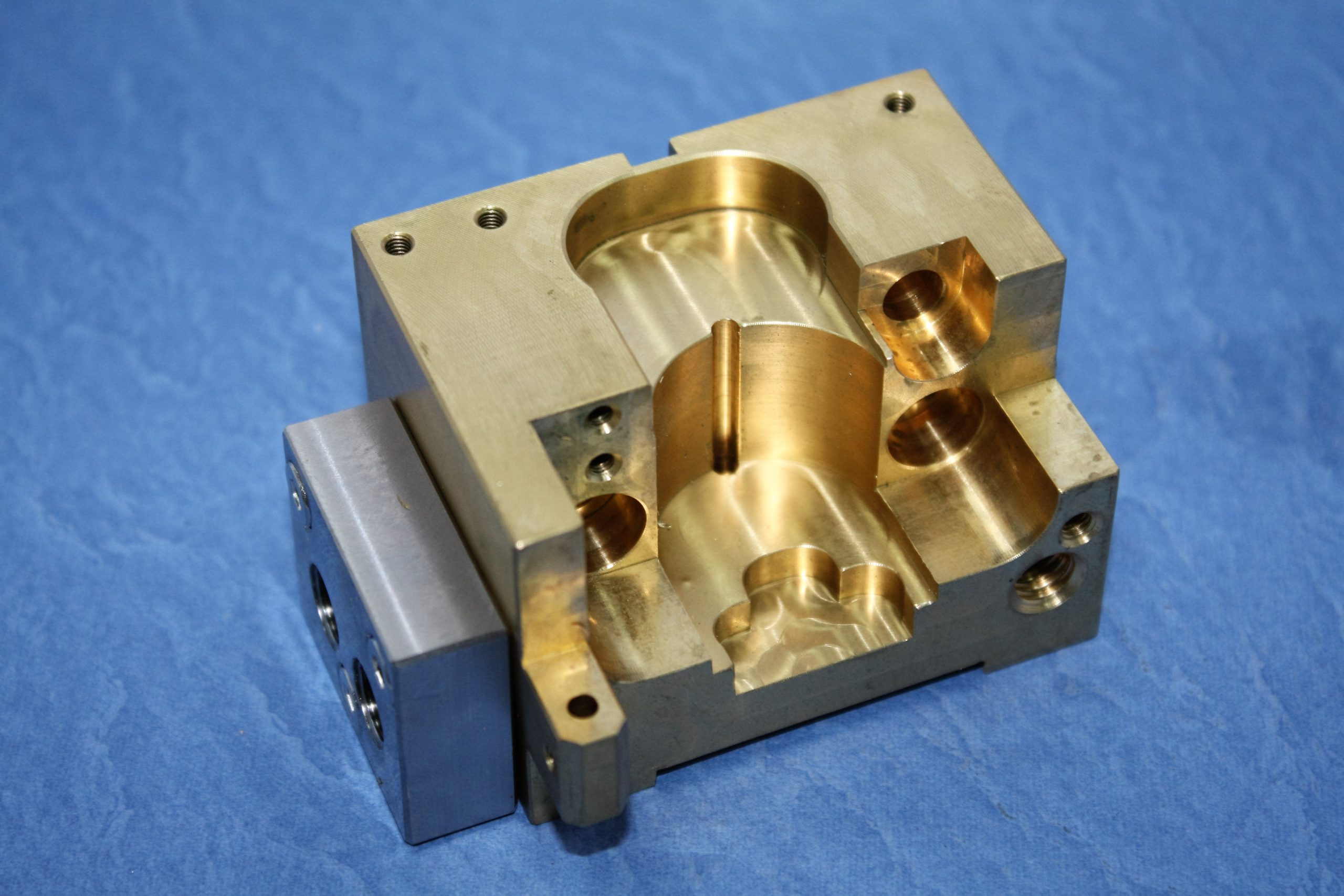

 | M858 | Upper | 上機頭 Upper Die Block 65W×51.5L×74 | DWC-CX,SX | X182B598H01 |
 | M860 | Lower | 下滾輪座 Roller Block For M4210 roller | DWC-FX-K,FX | X181A735G51 |

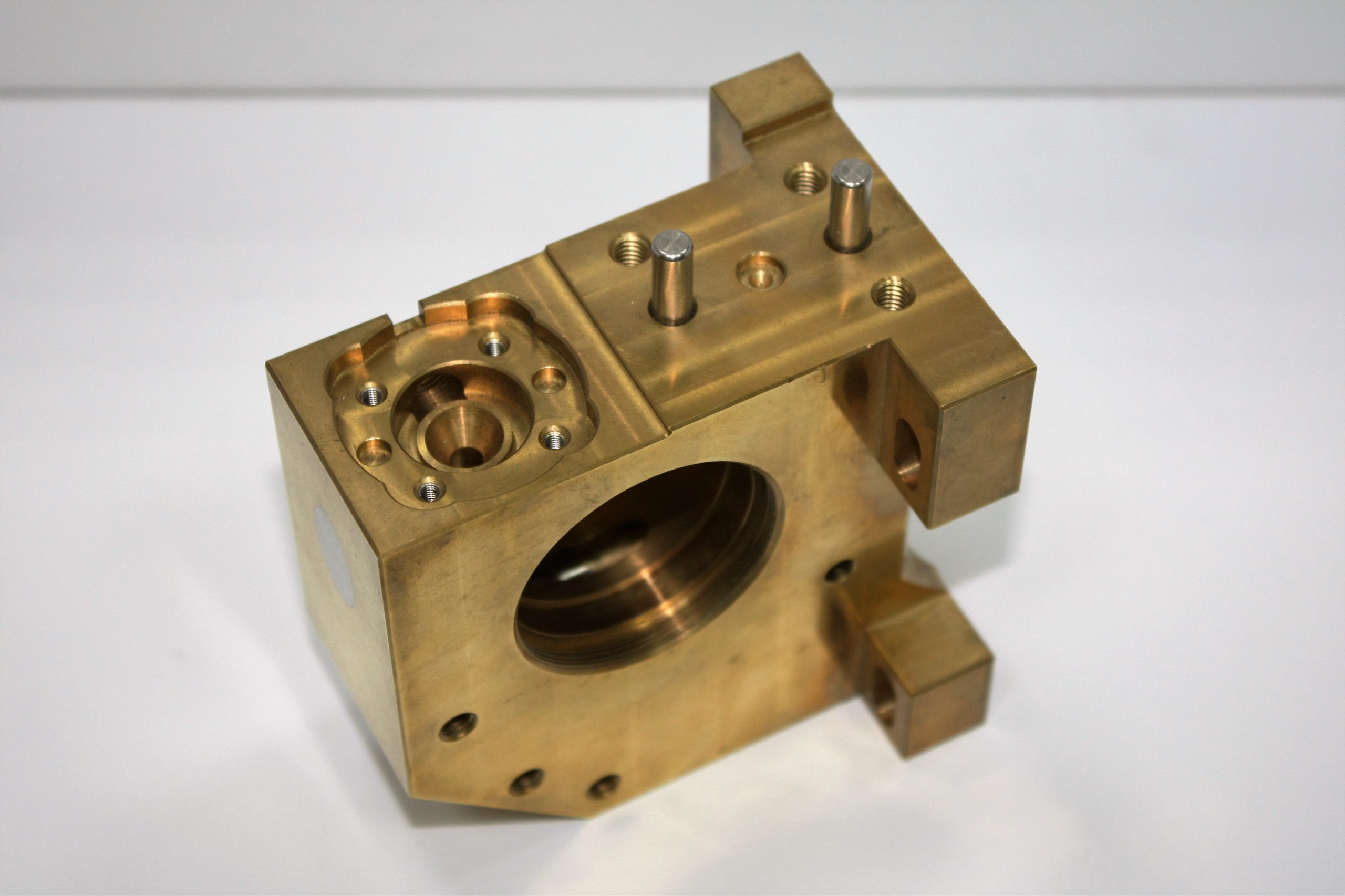

 | M861 | Lower | 下滾輪座 Roller Block For M4211 roller | DWC-FA | X181A354G51 |
 | M862 | Lower | 下滾輪座 Roller Block For M456C roller | DWC-SX,CX,SZ | X181A280G51 |

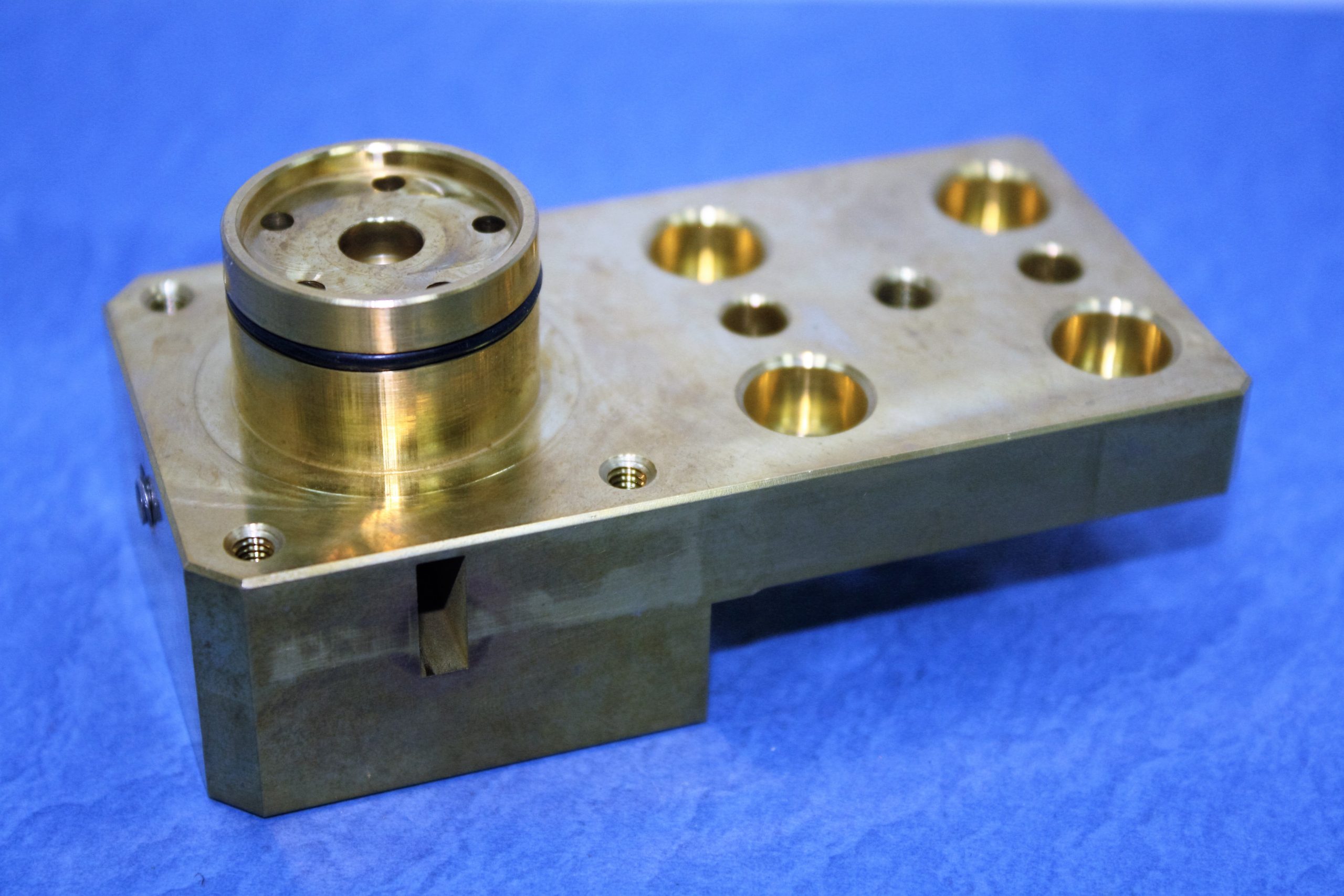

 | M454X | Lower | 改良式下眼膜座 Die Guide Holder | DWC-HA,H1,C,CR,CA | X177B046 |

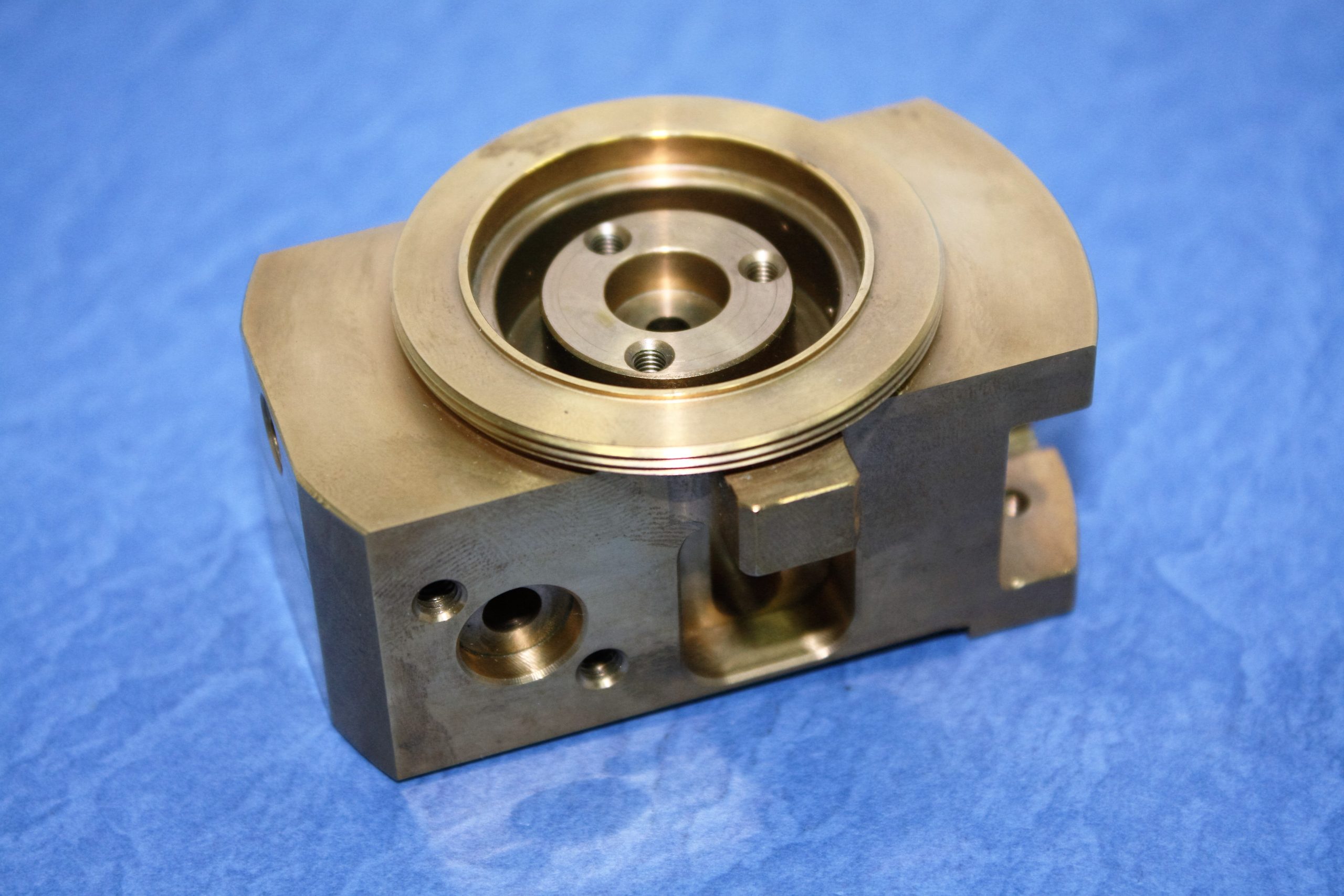

 | MV851 | Lower | MV下機頭給電子座 Power Feed Holder 68.5*51*35.2t | DWC-MV |
| 圖片 | 編號 | 位置 | 品名尺寸 | 適用機種 | 原廠編號 |
|---|---|---|---|---|---|

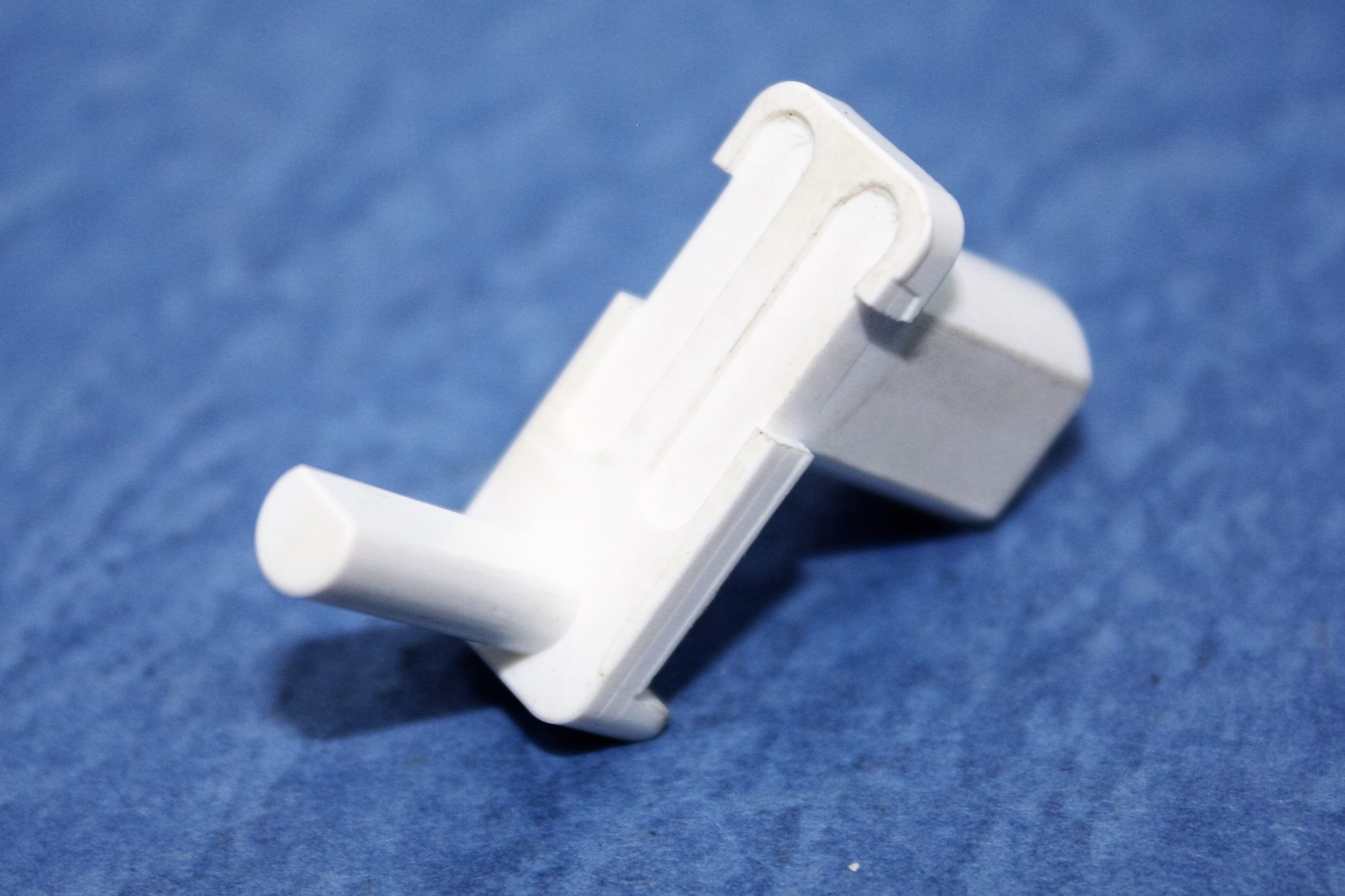

 | M009-1 | Upper | 給電板連動把手 Power Feed Contact Opener For M009 | DWC-FA,FA10S,FA20S,FA30S,FA-V575 | |
 | M123 | Upper&Lower | 鑽石眼膜裝卸工具 Wire Guider Opener For M132,M133 | DWC-HA,SZ,SX,FX,RA,FA (AF2,AF3,AT) | |

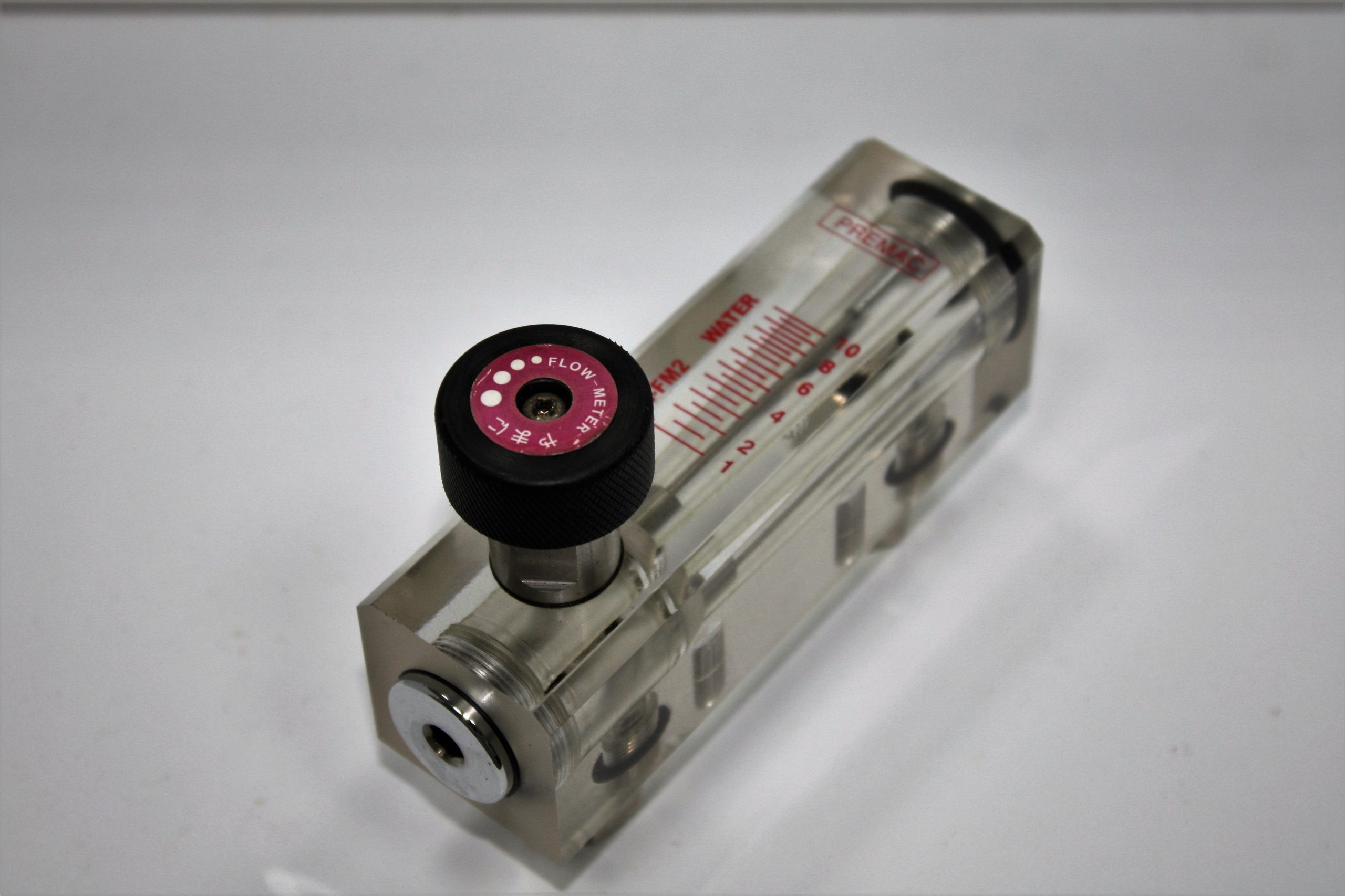

 | Z041 | 流量計 Flow Meter | Any Machines | S801D824P01 | |

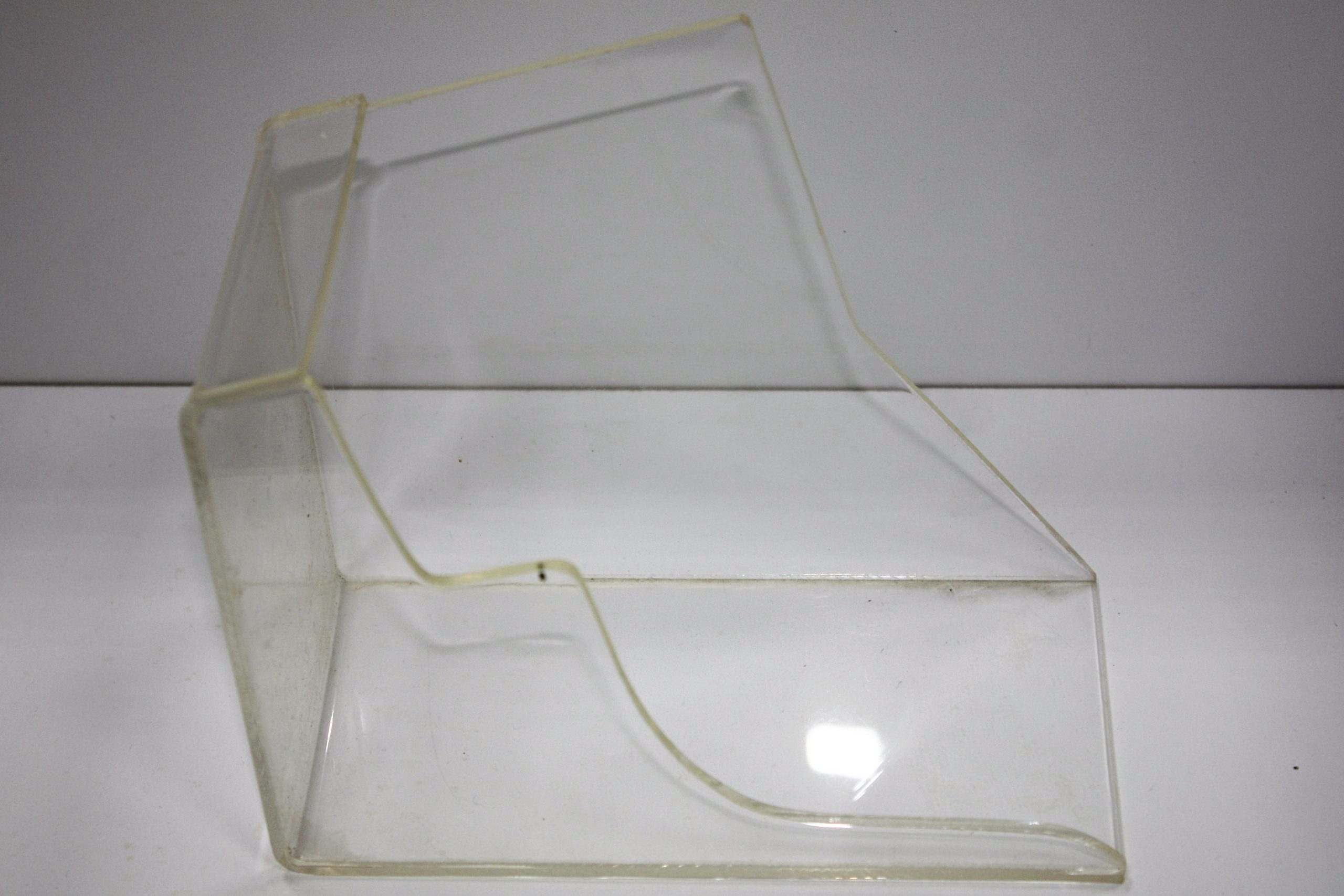

 | M01 | 出線輪防水壓克力罩 PLASTIC COVER | DWC-H',H1,HA | ||

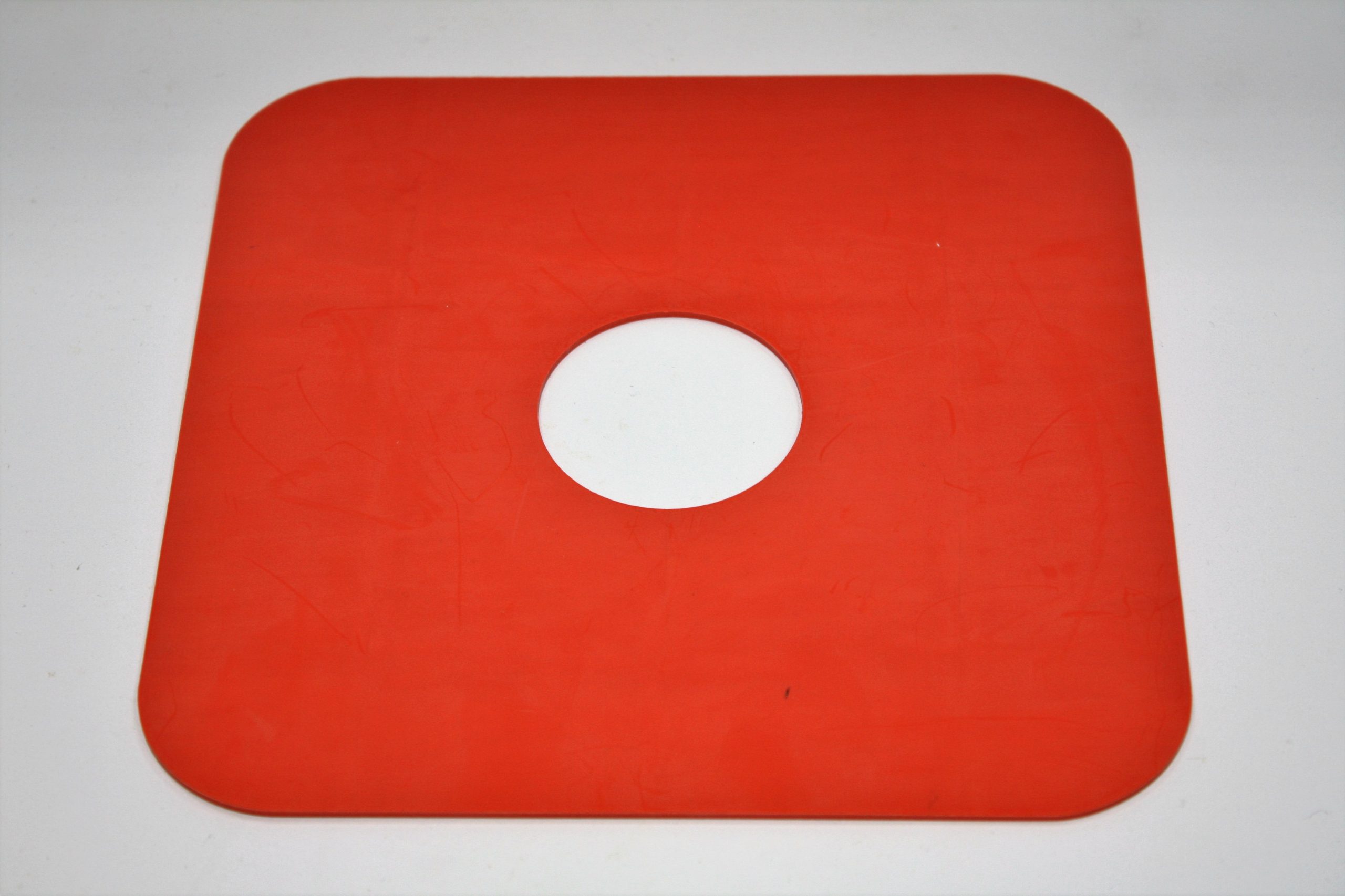

 | W001 | Upper | 遮水膠片 Water Cover 55Ø For Nozzle M202 series | DWC-F,G,H,H',H1,HA | |

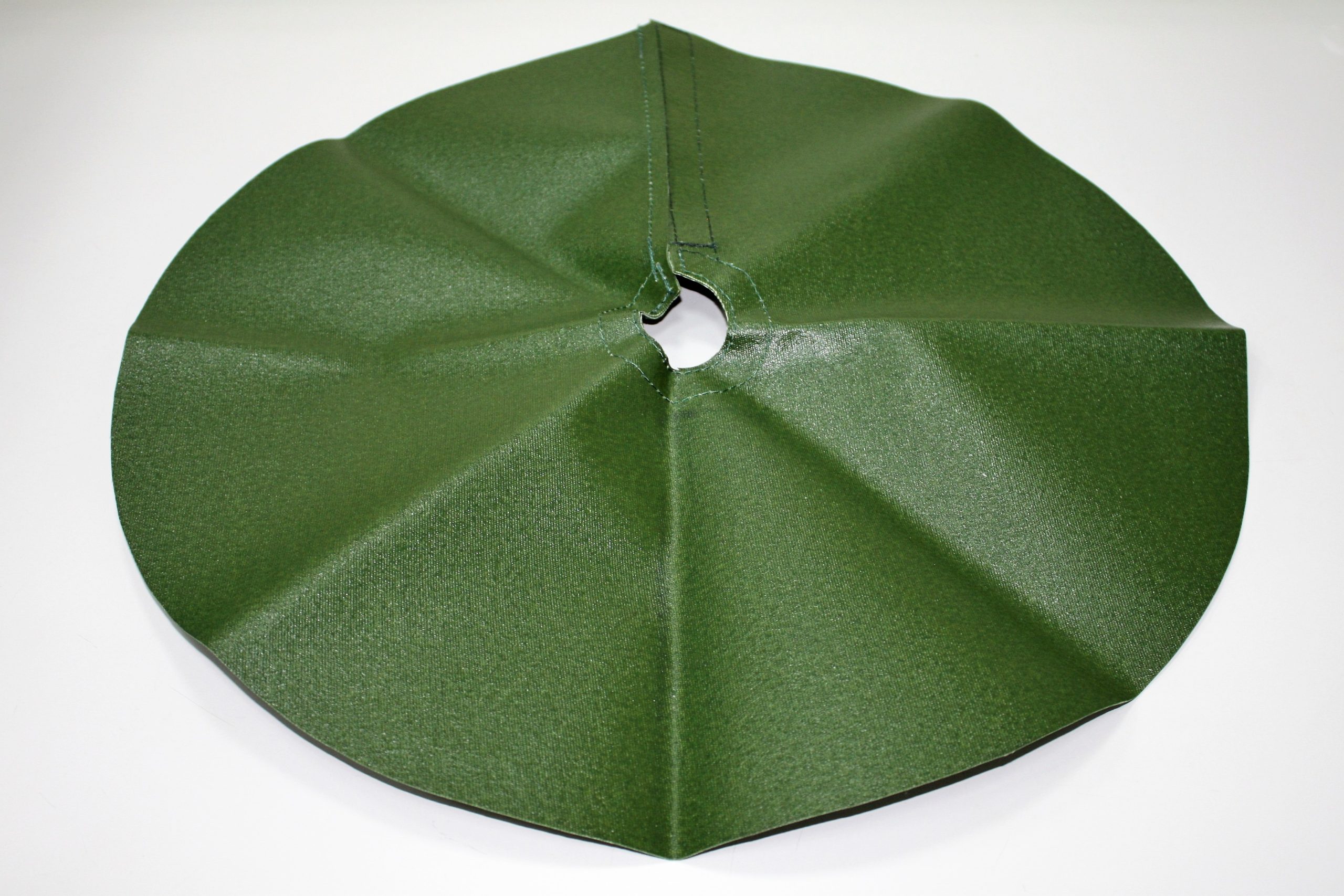

 | W004 | 遮水膠片 Water Cover | Any Machines | ||

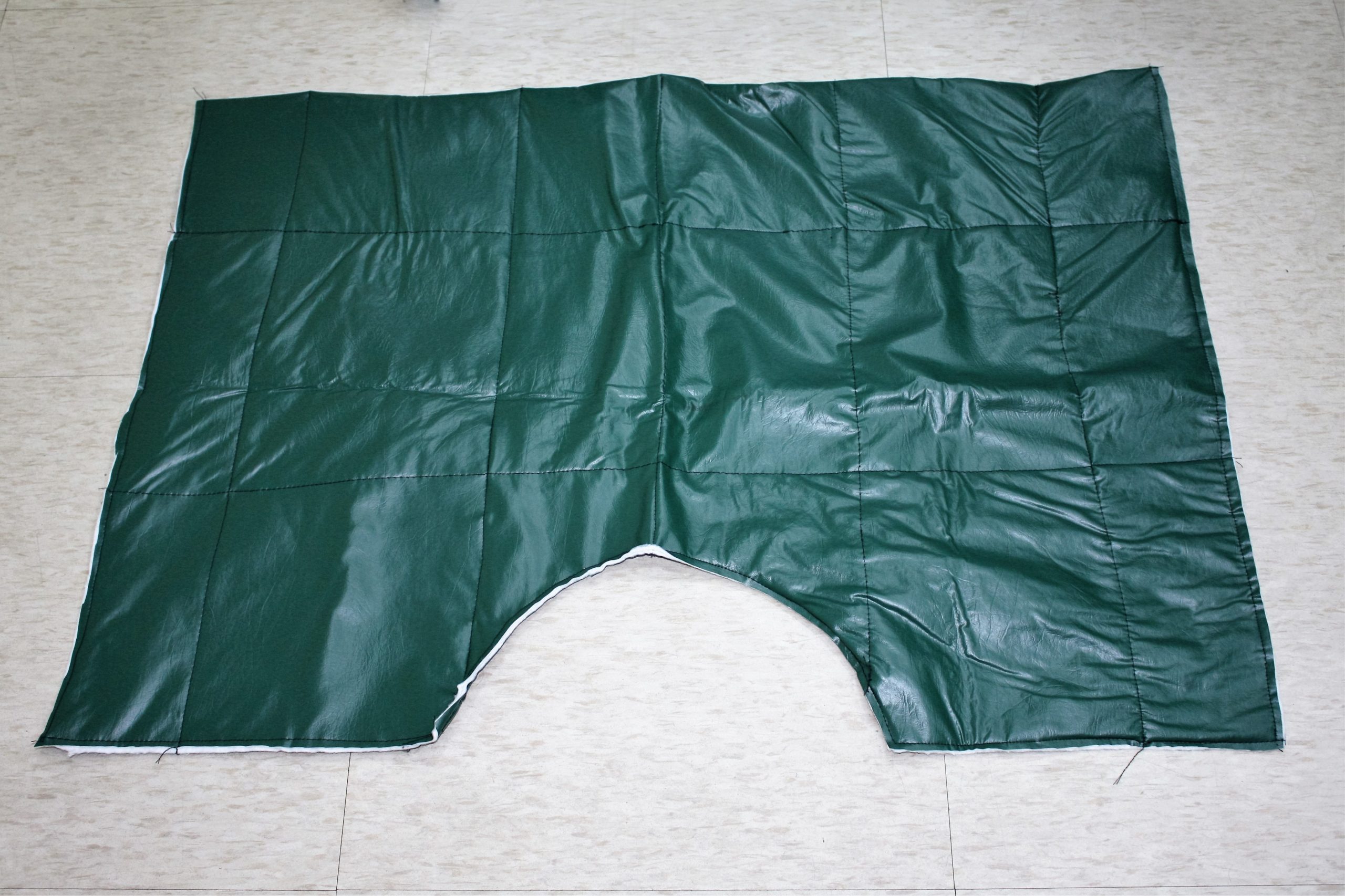

 | W005 | 遮水膠片 Water Cover | DWC-F,H1,HA,RA | ||

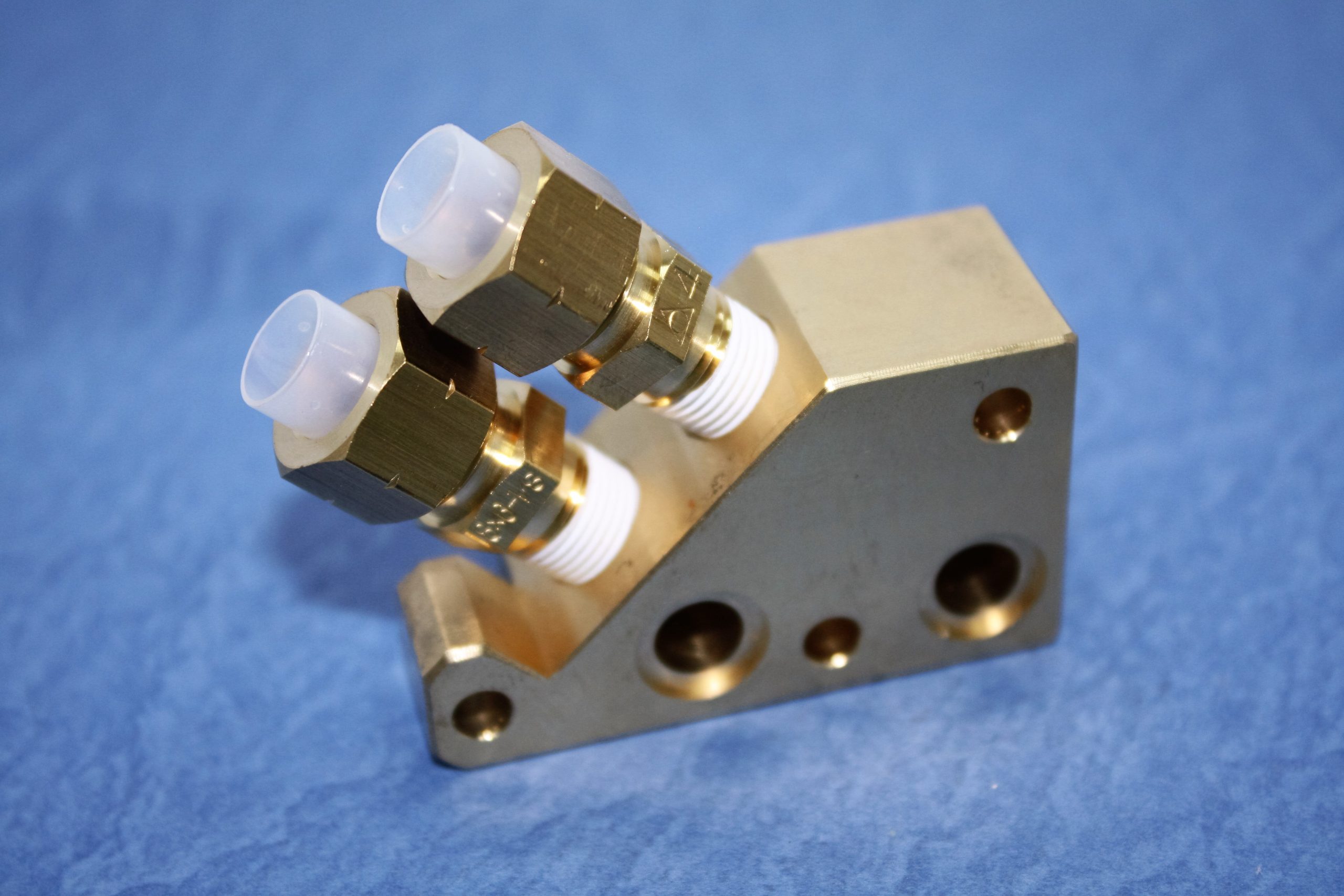

 | M852-1N | Lower | 下眼膜座用入水管座 Block For Pipe Fitting For 852 50*29*19t | DWC-FA,FA-S RA200,FA10.20V | X268D658H01 |

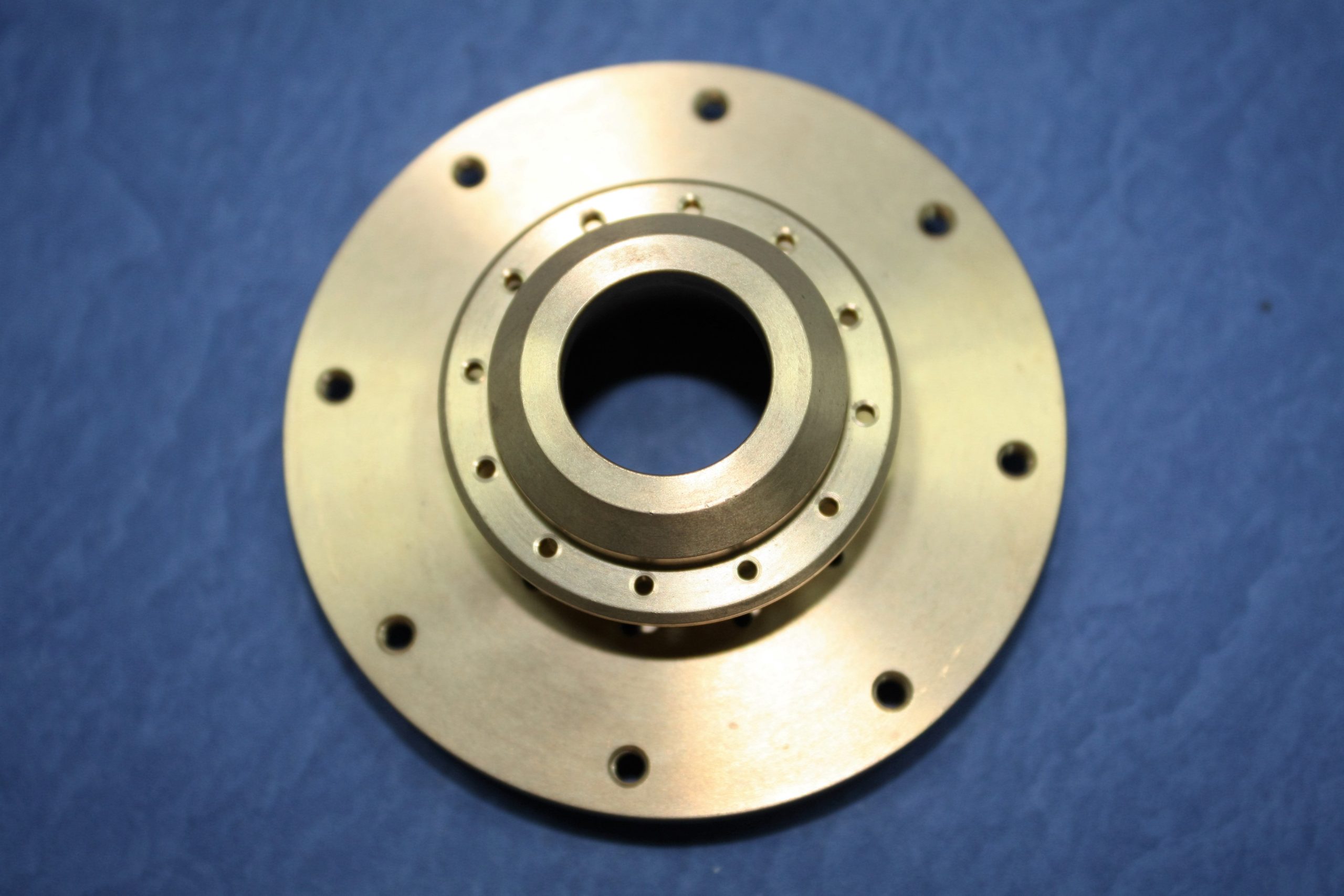

 | M216-1 | Upper | 噴水頭連接銅環(8孔) 黃銅63D Nozzle Holder(Brass)63Ø | DWC-HA,SX,CX,FX30 (AF2,AF3,AT) | X182B458H02 |

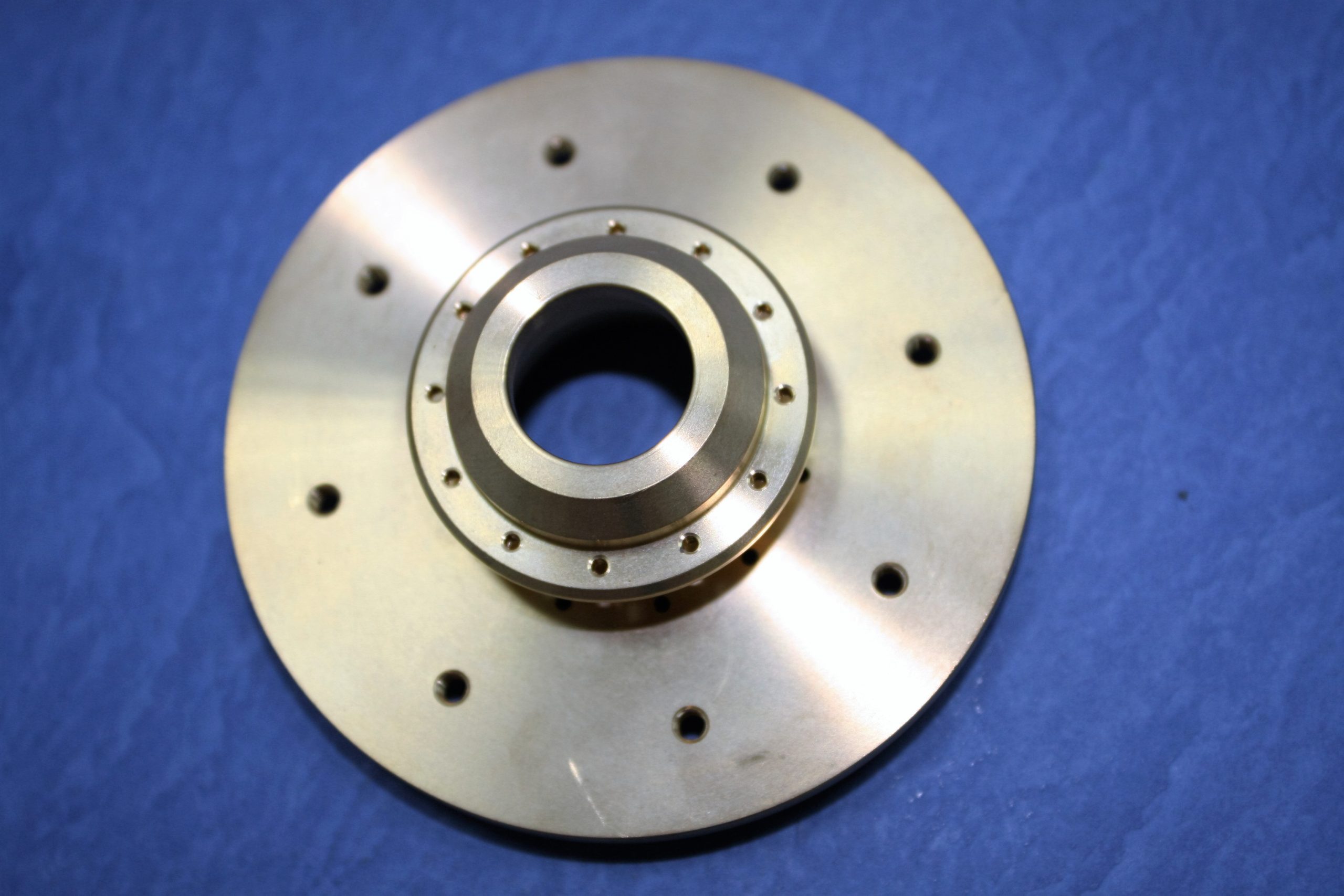

 | M216-2 | Upper | 噴水頭連接銅環(8孔)黃銅73D Nozzle Holder(Brass)73Ø | DWC-FX-K,QA,RA,FA (AF2,AF3,AT) | X193C450H01 |

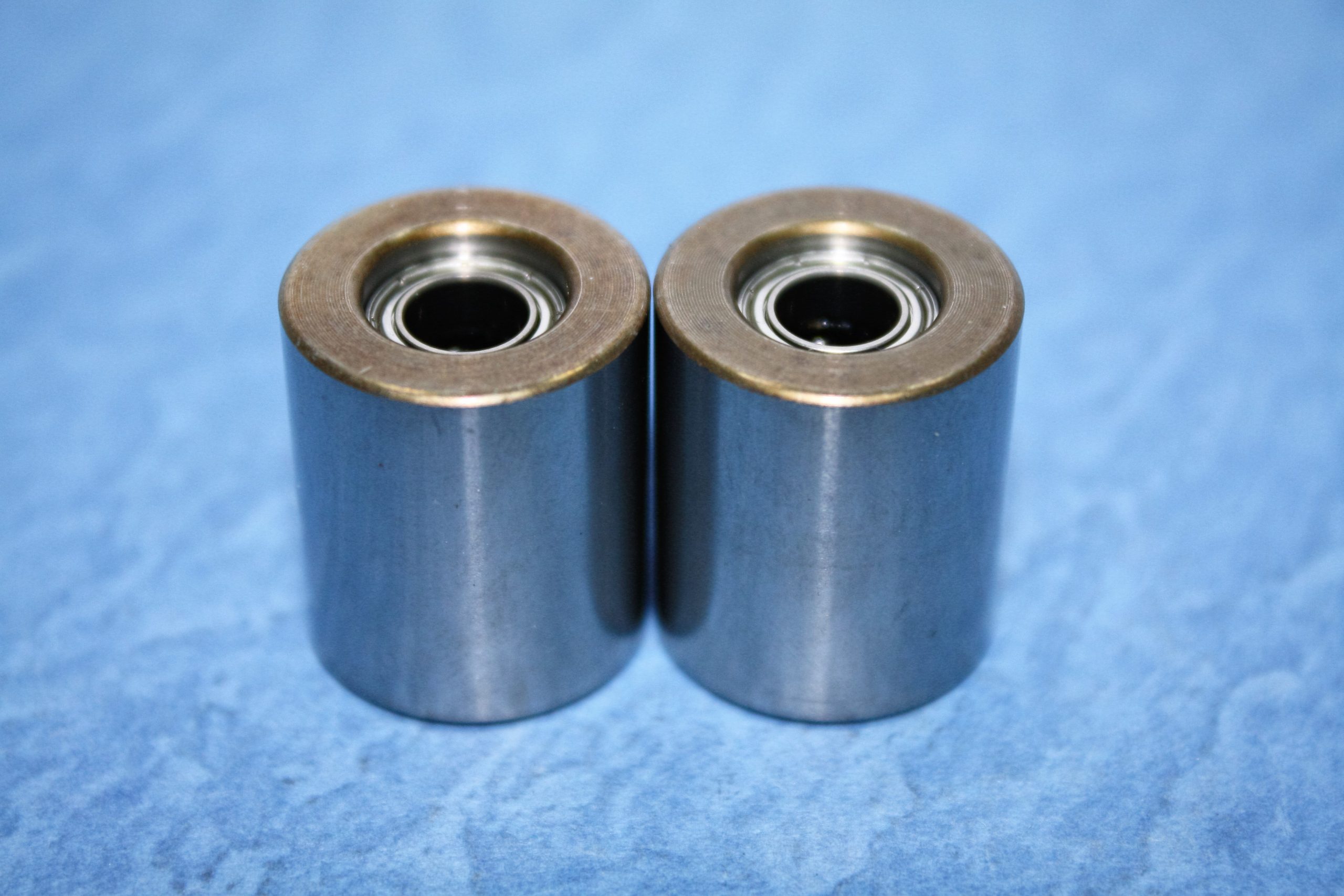

 | M463 | Upper (Right) (Left) | 上部夾線輪 Pinch Roller Set 14*10*18 | DWC-FA | X269D013G52 |

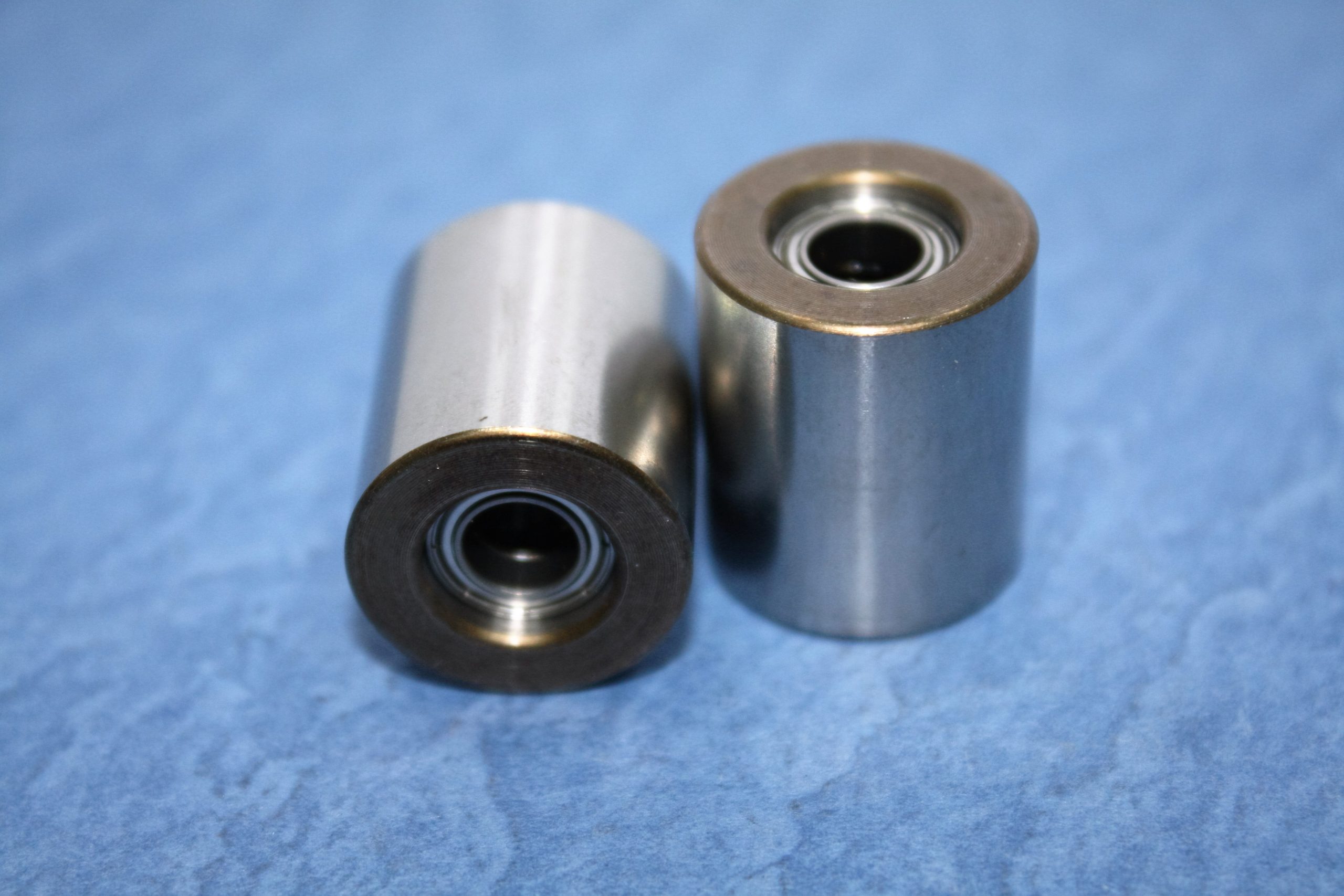

 | M463S | Upper (Right) (Left) | 上部夾線輪 Pinch Roller Set 18*10*21 | DWC-FA-S.BA | X269D013G52 |

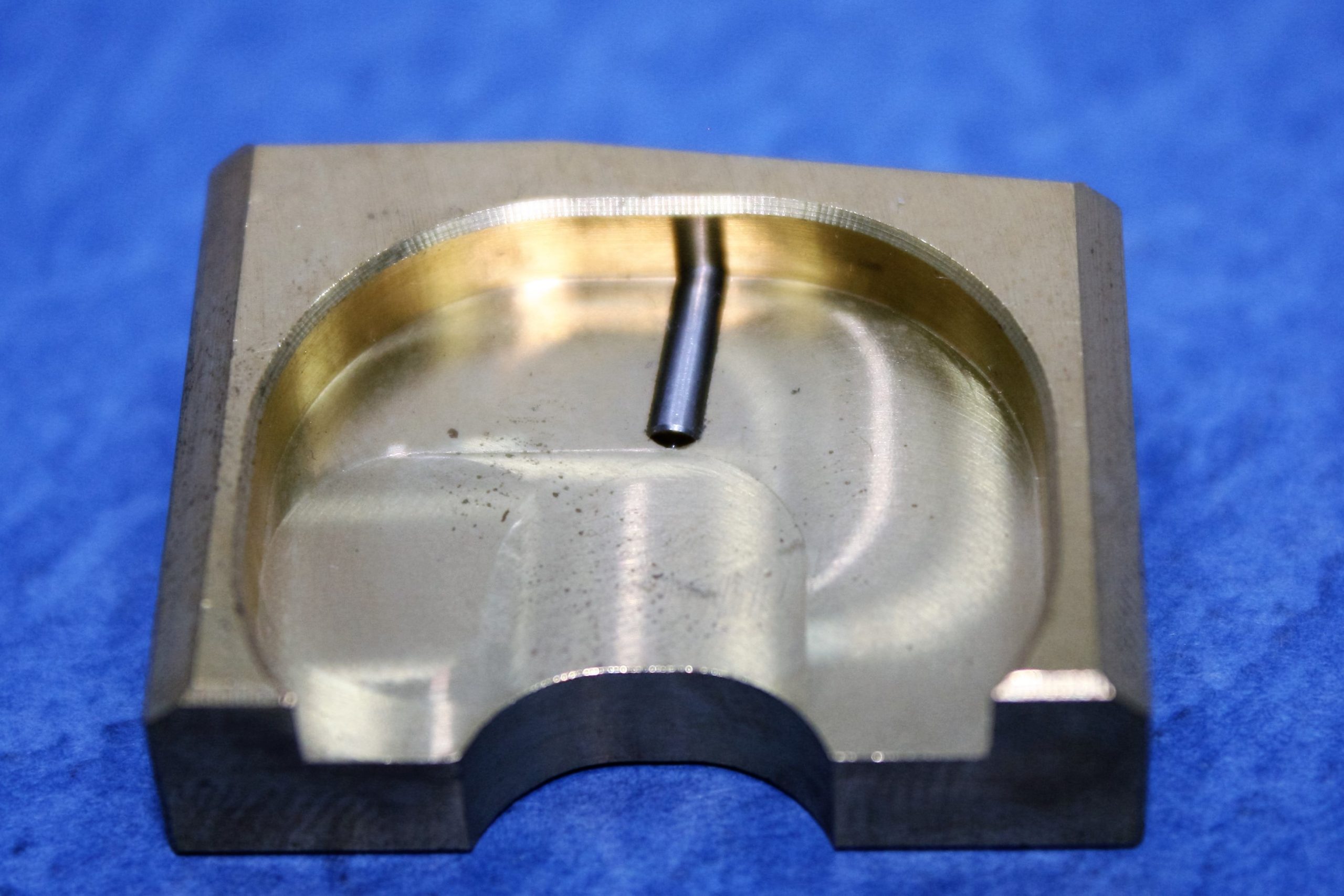

 | M470 | Lower | 給電板固定墊 Power Feed Holder For M009 | DWC-HA,SA,SB,SZ,SX,CX,FX,QA,RA,FA | X209D212H01 |

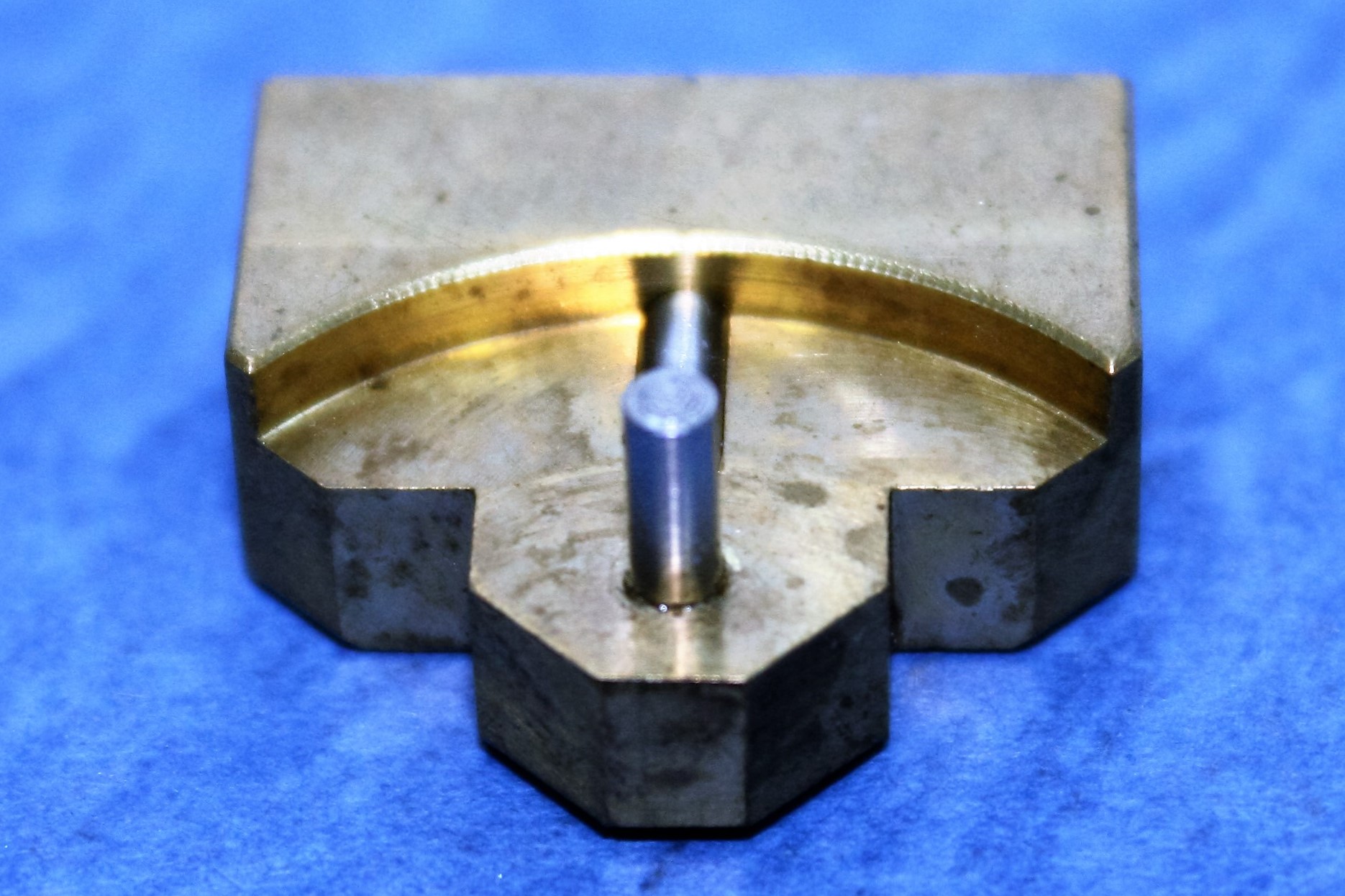

 | M471 | Upper | 給電板固定墊 Power Feed Holder For M009 | DWC-HA,SA,SB,SZ,SX,CX,FX,QA,RA,FA | X208D405H01 |
 | M472 | Lower | 給電板固定墊 Power Feed Holder For M009 | DWC-FA10S,20S | |

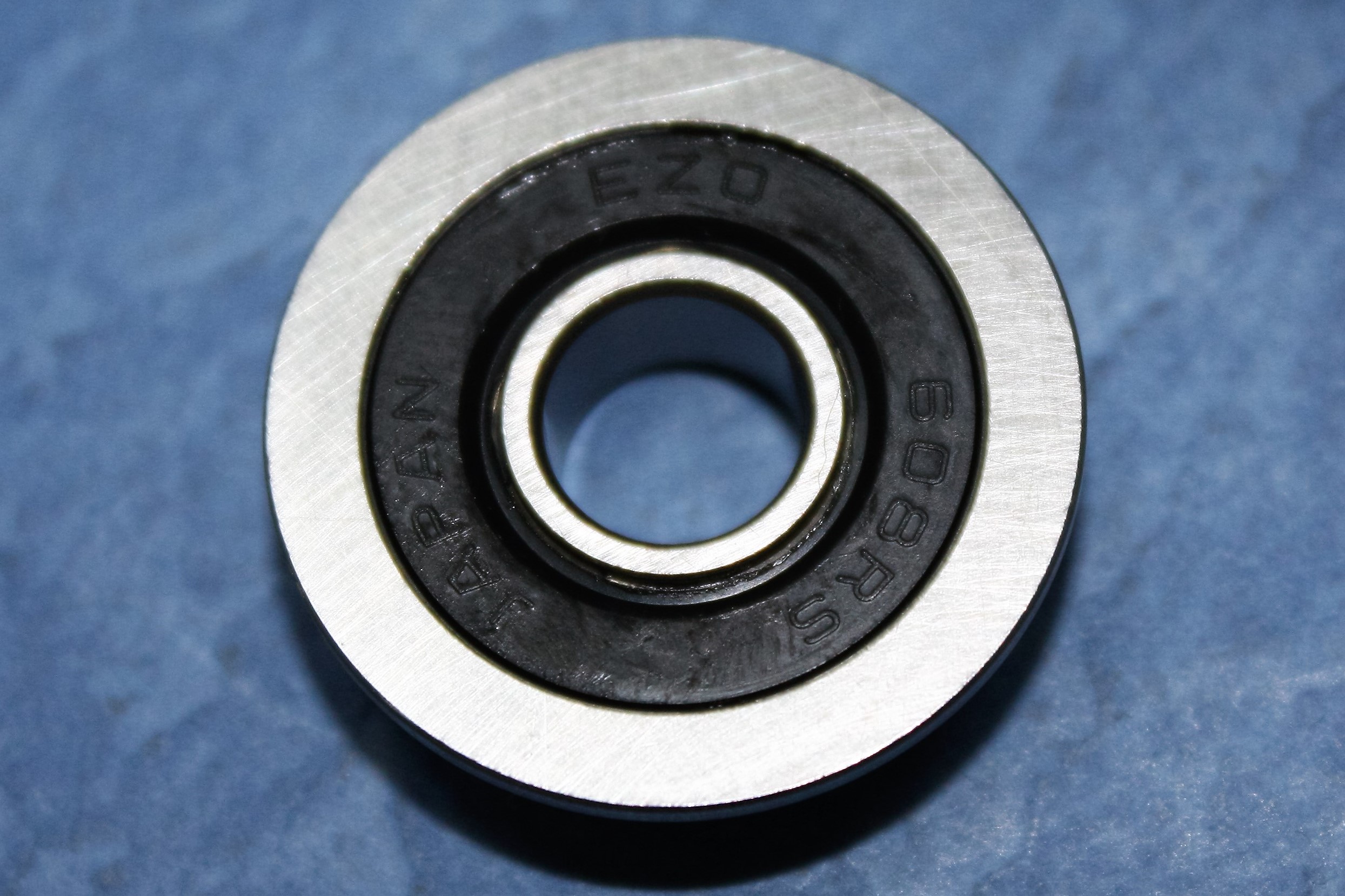

 | M422 | 不銹鋼軸承 F608D BEARINGS(SUS) For M421 Lower Roller | DWC-FA,RA | P840F000P67 | |

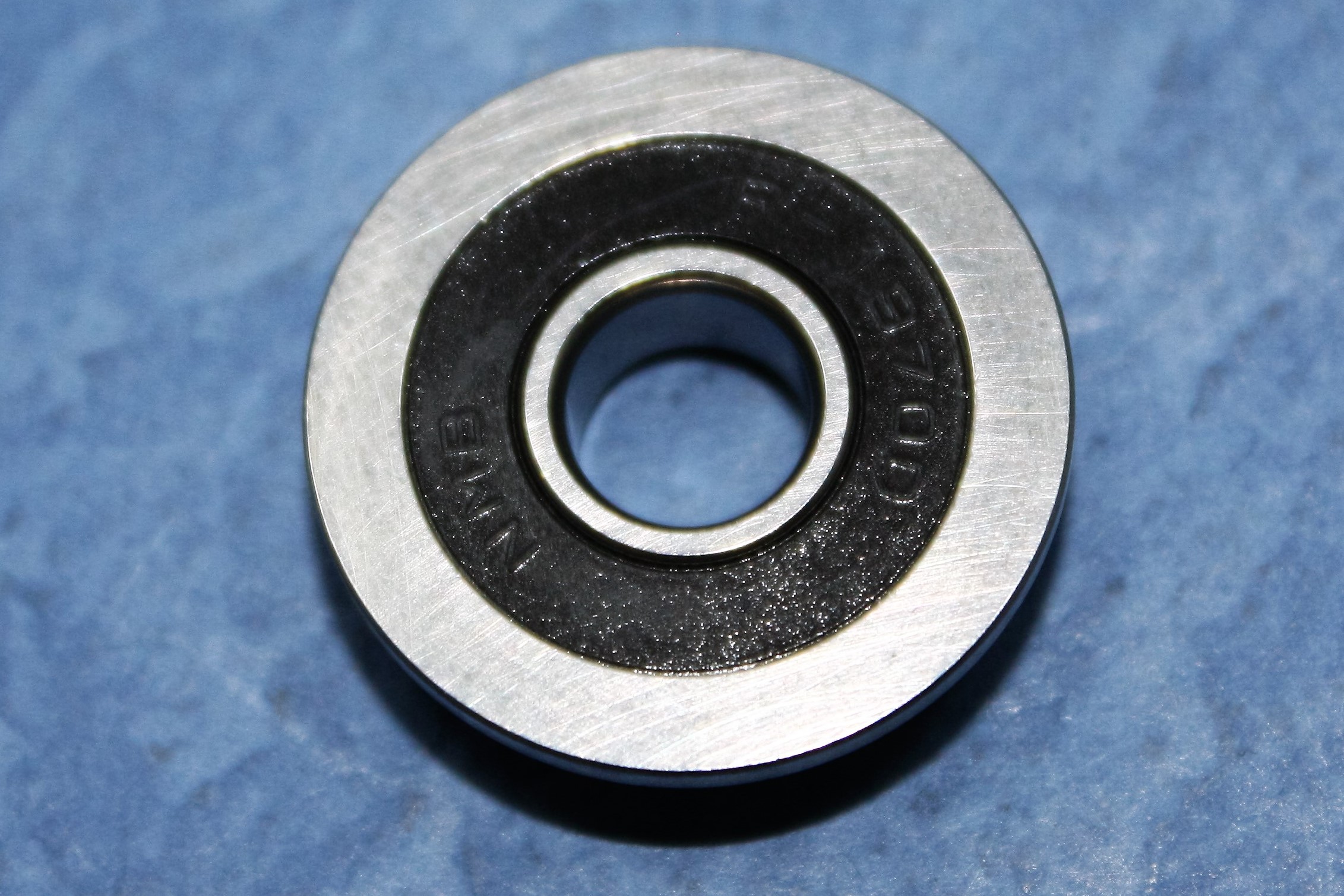

 | M457 Ø 7 | 不銹鋼軸承 NMB1970 BEARINGS(SUS) For M456C Lower Roller | DWC-HA,C,SA,SB,SZ,SX DWC-F,F1,G,H,H' | S859N319P33 | |

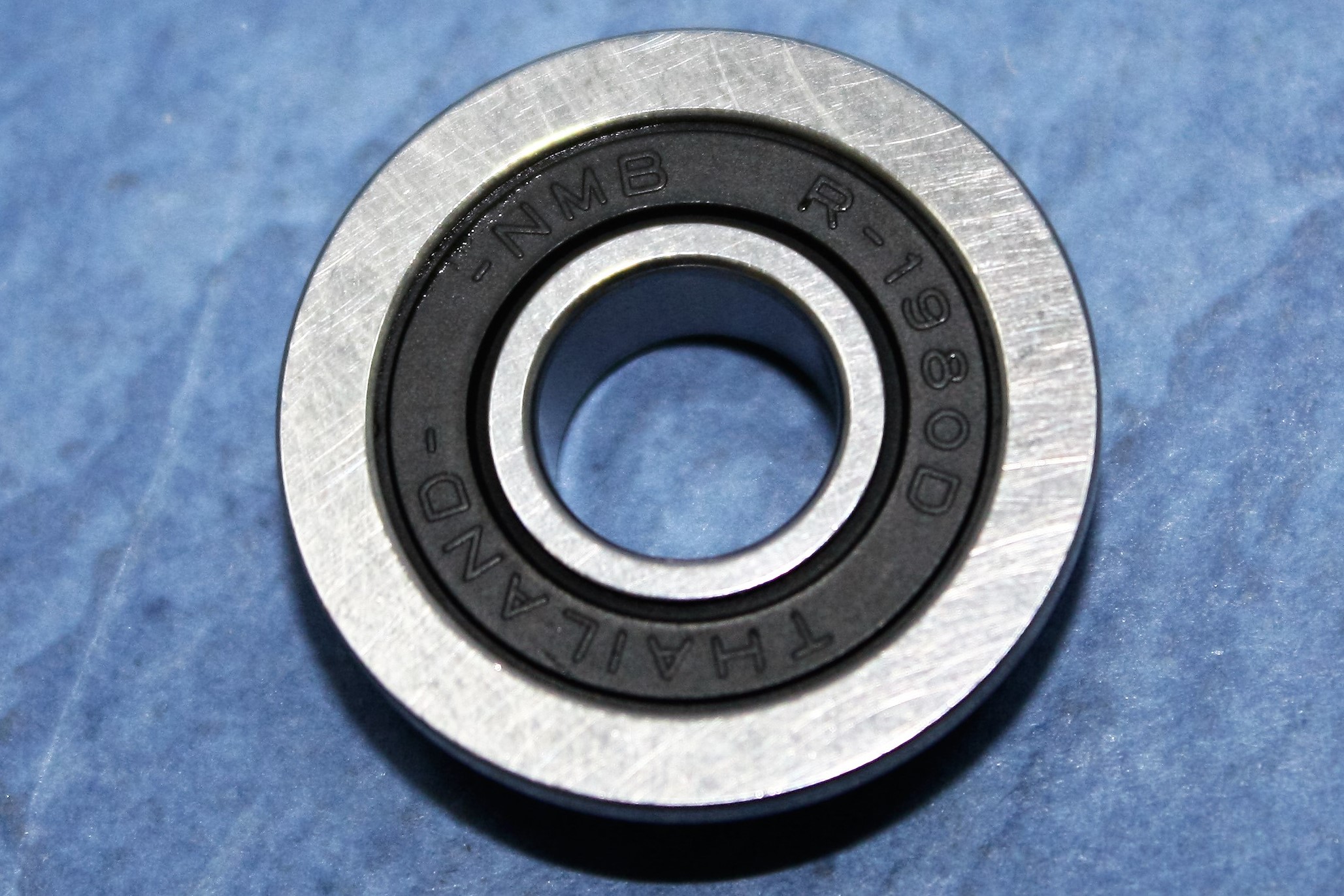

 | M458 Ø 8 | 不銹鋼軸承 NMB1980 BEARINGS(SUS) For Pinch Roller (Ceramic) | DWC-F,F1,G,H,H' DWC-HA,C,SA,SB,SZ,SX DWC-FX,QA,RA,FA | S859N319P31 | |

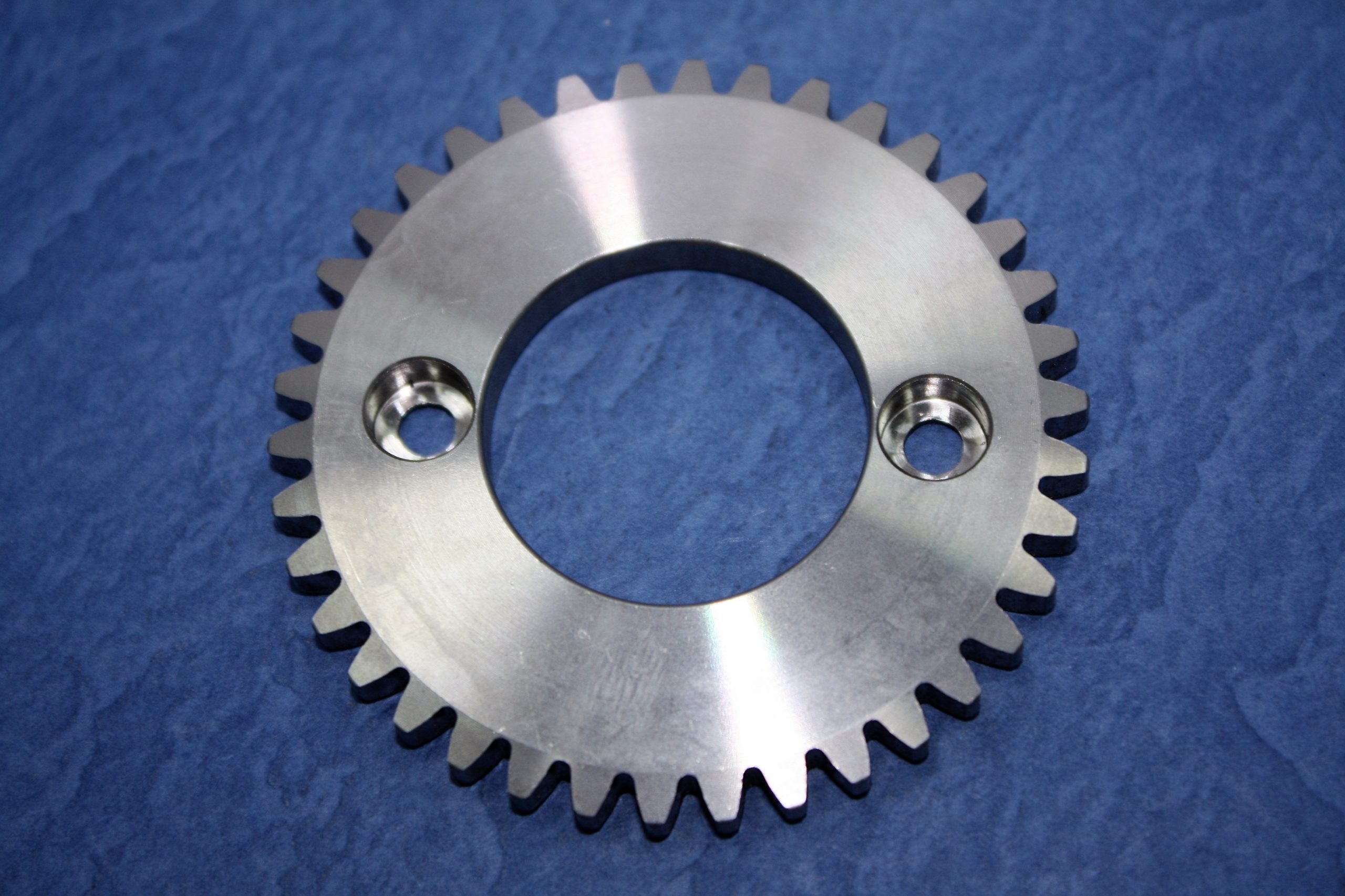

 | M420 | Feed Section | 齒輪(粗) Gear Plate(Rough) | DWC-C,HA,SA,SB,SZ,SX,RA, FA | X054D257G51 |
 | M420-1 | Feed Section | 齒輪(細) Gear Plate(Fine) | DWC-FX | X058D501H01 |

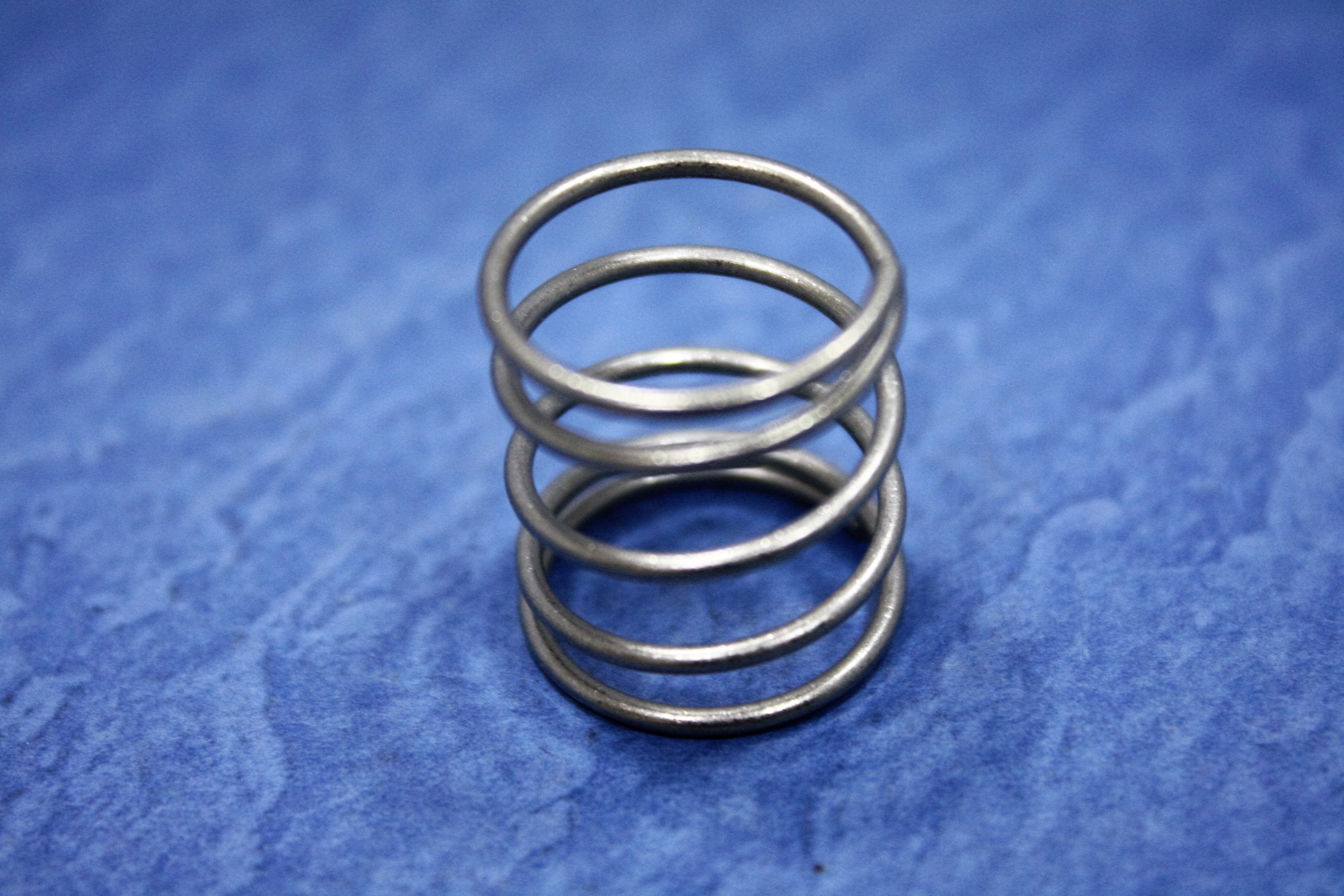

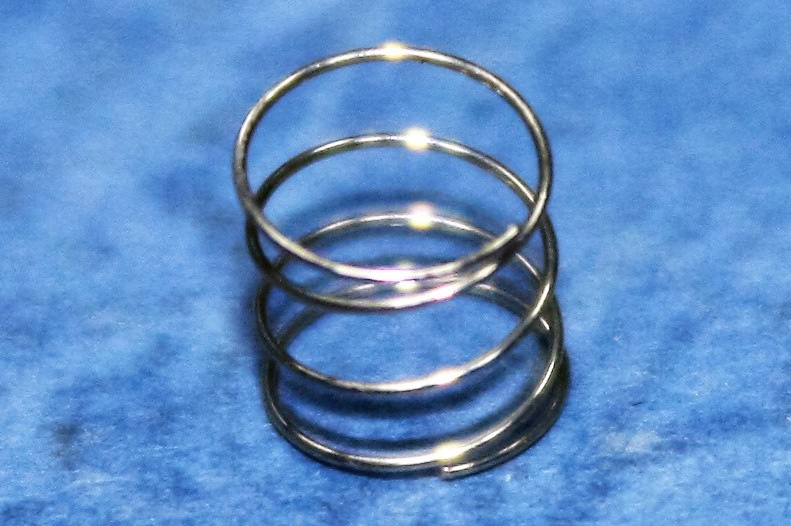

 | M212-1 | Lower | 不銹鋼彈簧 SUS SPRING FOR M212 Water Nozzle | DWC-CX,FX,FA,RA,QA | |
 | M129-1 | Upper | 不銹鋼彈簧 SUS SPRING FOR M219C Jet Nozzle | DWC-FX,FA,SX,QA | |

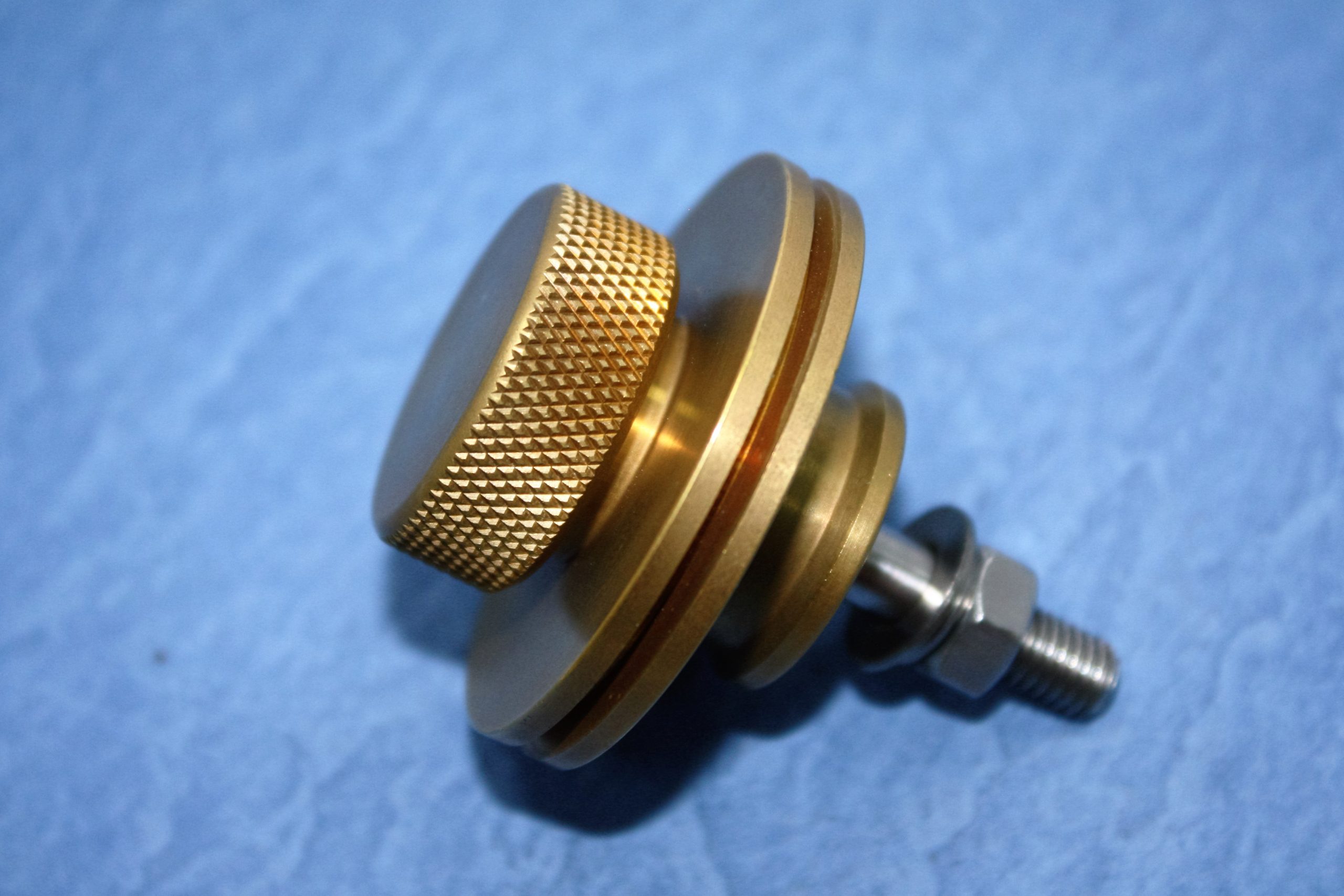

 | M455 | Lower | 下機頭引線輪 整組 Pully B WITH Shaft,Pully,BEARINGS AND Cap Screw | DWC-F,F1,G,H,H' | X602B845G51 |

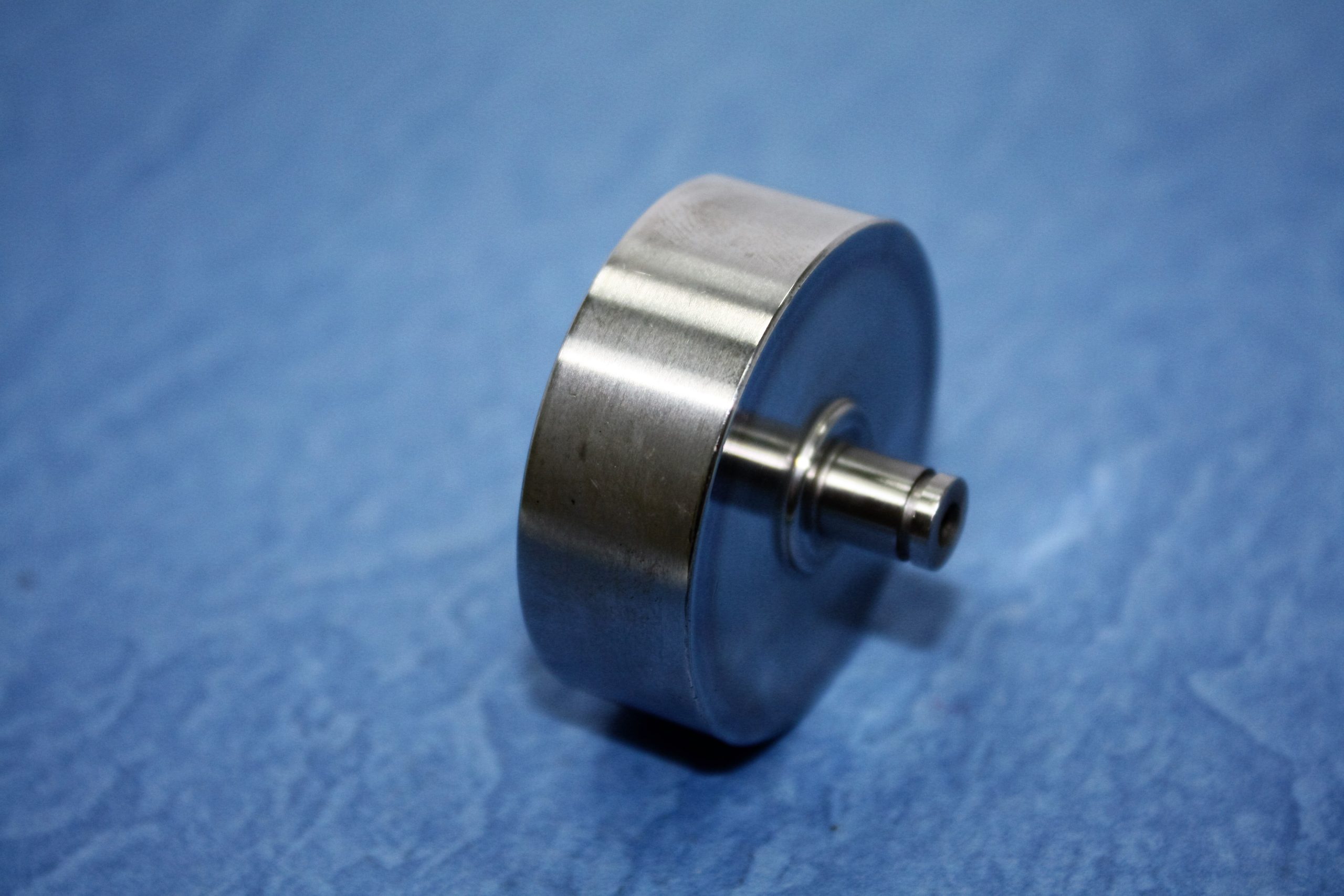

 | M456 | Lower | 下機頭引線輪 不銹鋼 Lower Roller(SUS)40Ø | DWC-HA,H1,SX,CX,CA | X183C442H01 |

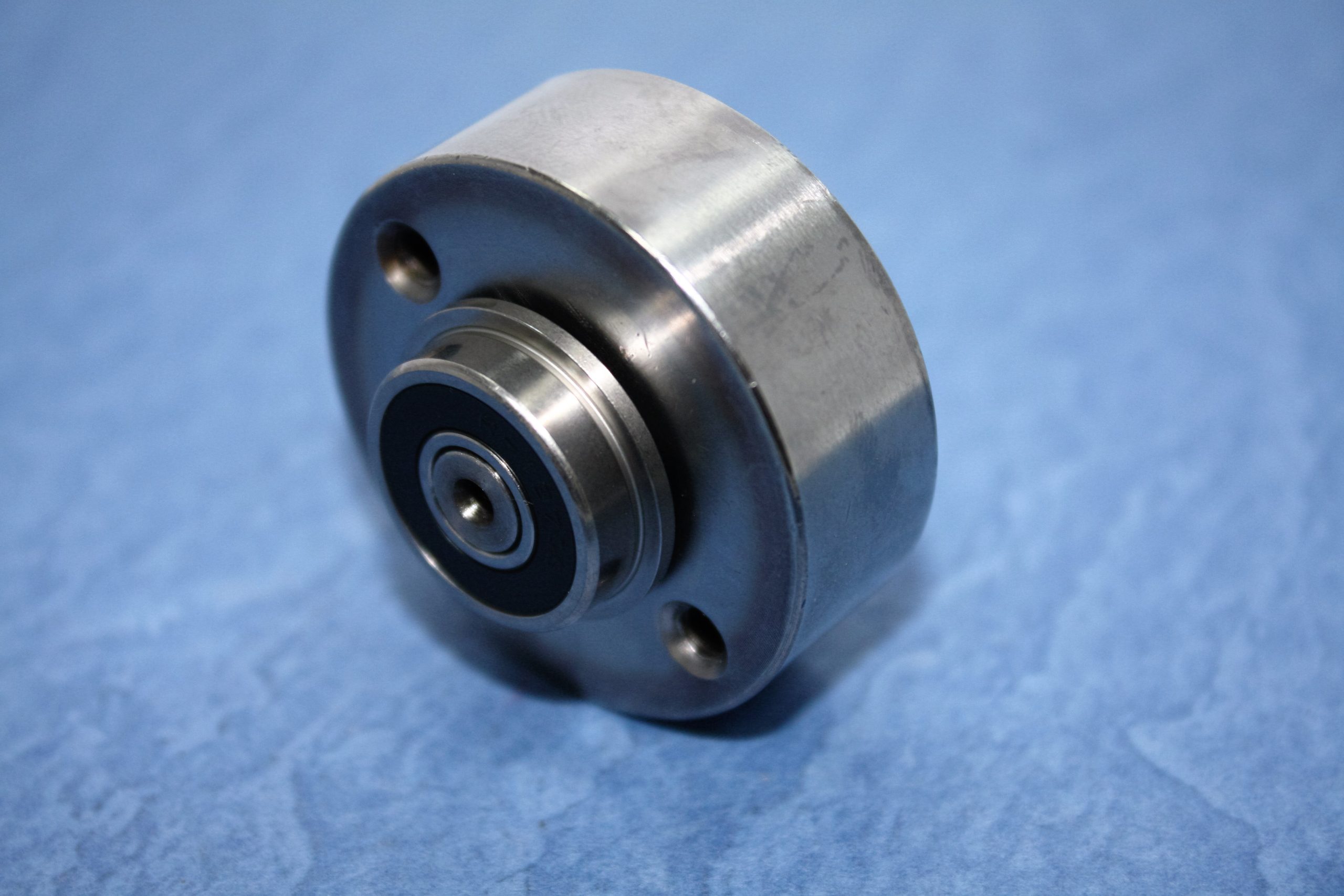

 | M456-1 | Lower | 下機頭不銹鋼引線輪 含軸承 Lower Roller with Bearings(SUS) | DWC-HA,H1,SX,CX,CA | X183C442H01 |

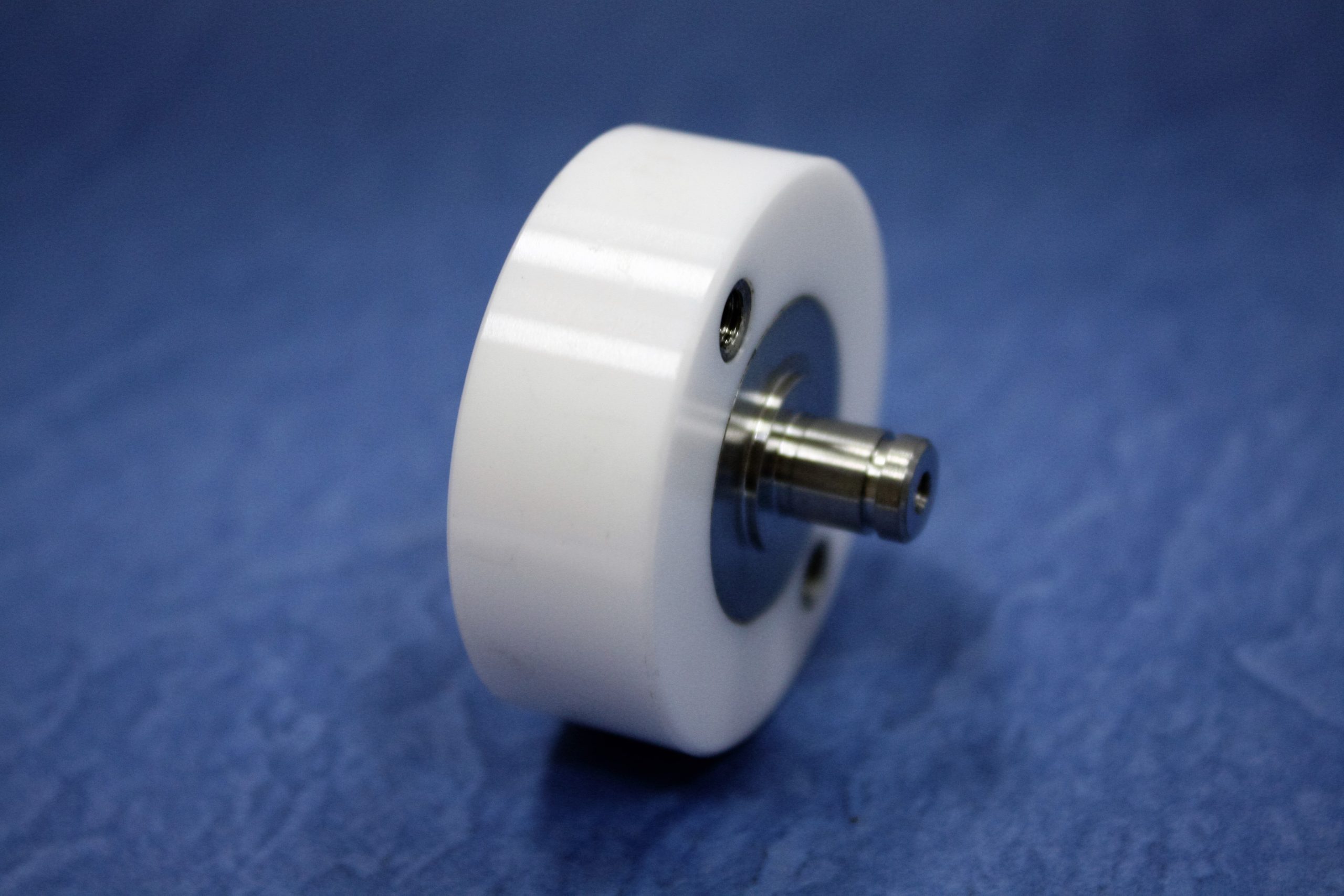

 | M456C | Lower | 下機頭引線輪 陶瓷 Lower Roller(Ceramic) 40Ø | DWC-HA,H1,SX,CX,CA | X183C442H01 |
 | M456C-1 | Lower | 下機頭陶瓷引線輪 含軸承 Lower Roller with Bearings(Ceramic) | DWC-HA,H1,SX,CX,CA | X183C442H01 |
 | M4211 | Lower | 下機頭引線輪整組 含F608H軸承 Lower Roller Set Shaft,Roller and F608H Bearings | DWC-FA | |

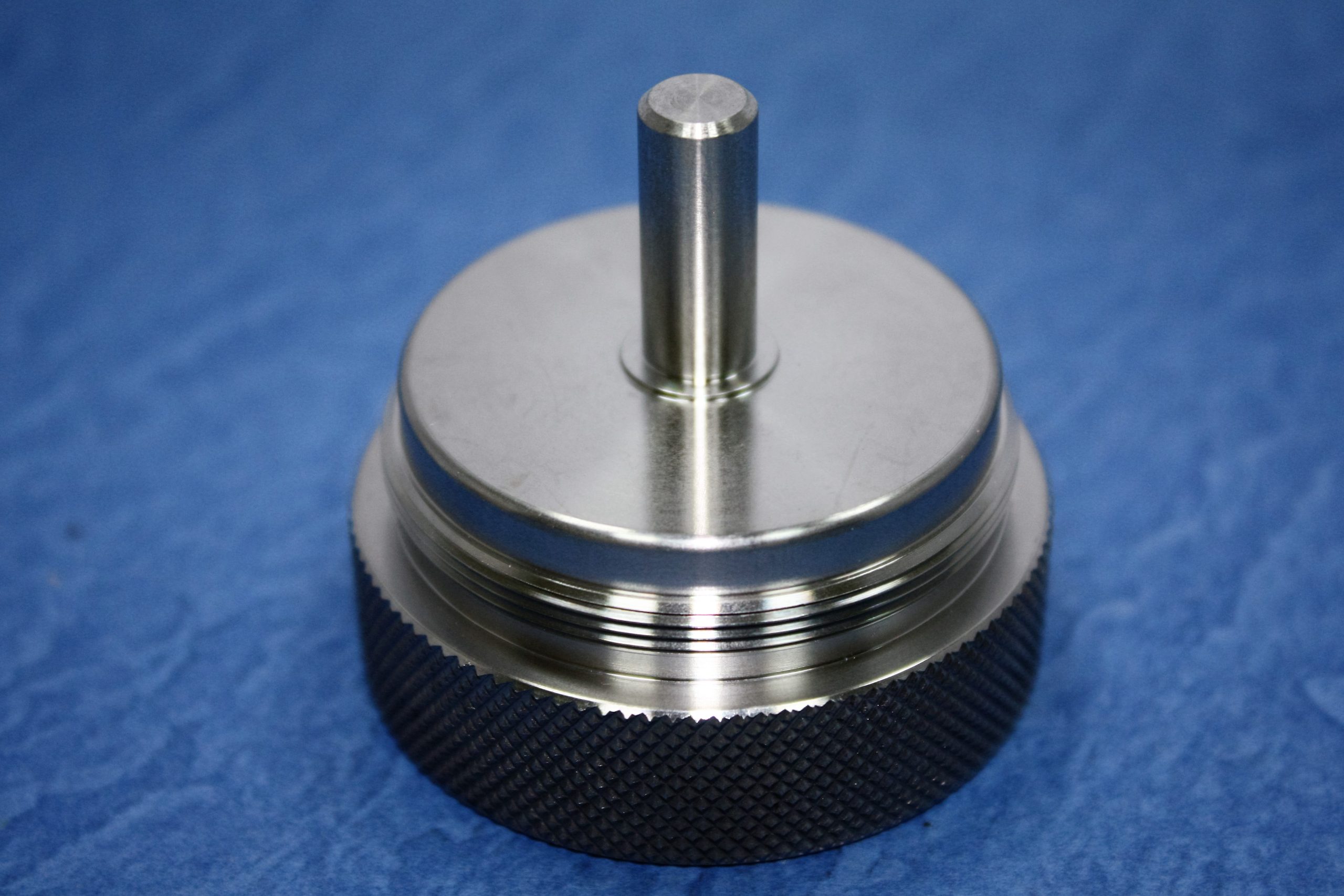

 | M458-2 | Lower | 下機頭引線輪軸心 Lowwer Roller Shaft For M861 Roller Block | DWC-FA | |

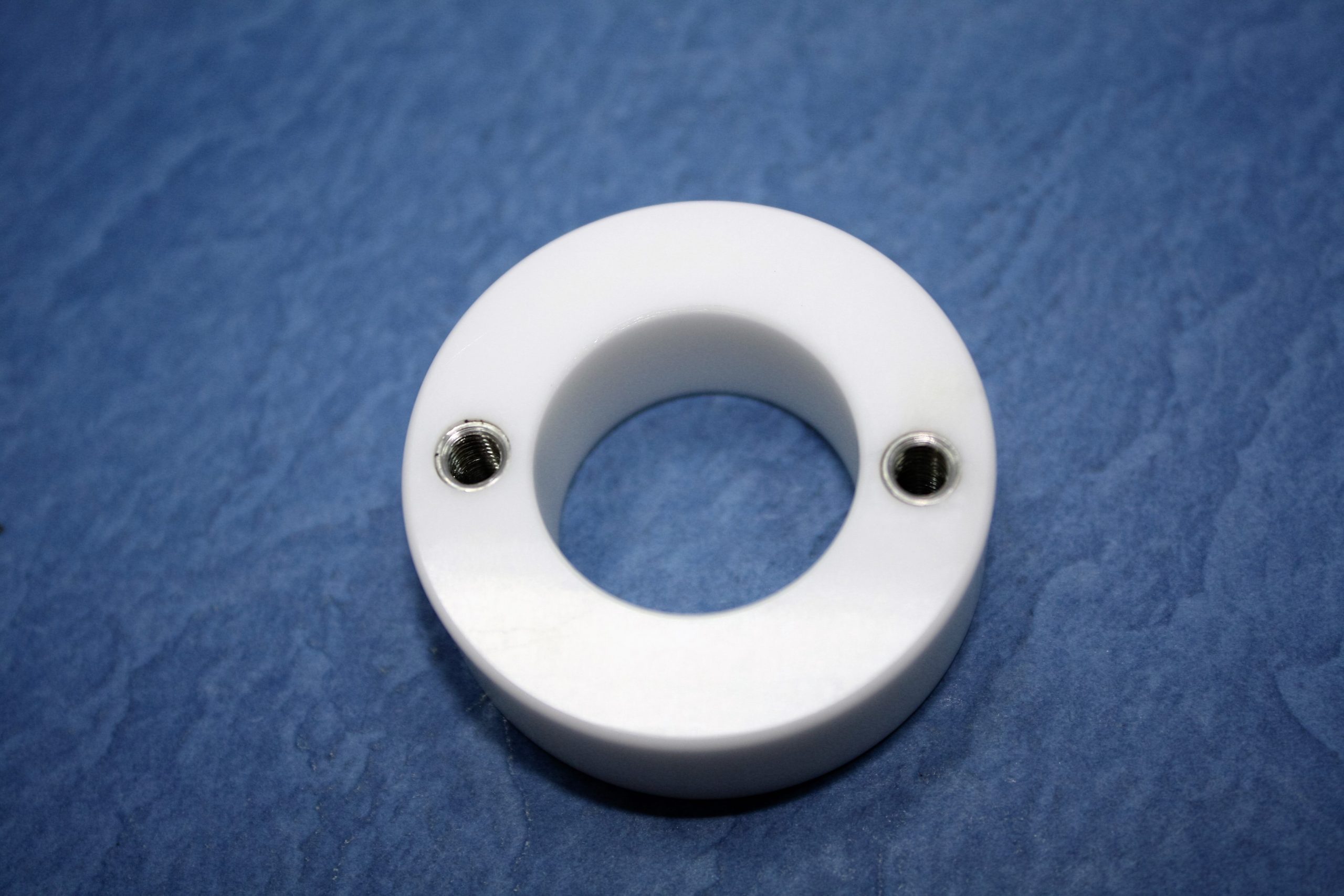

 | M421C | Lower | 下機頭引線輪 陶瓷(M421C) Lower Roller(Ceramic) 40Ø× 22Ø×14t | DWC-FX-K,QA,RA,FA | X203C607H03 |
| MV406C | Lower | 下機頭引線輪 陶瓷 Lower Roller(Ceramic) 46Ø×25Ø×16t | DWC-MV | X089D258H01 |

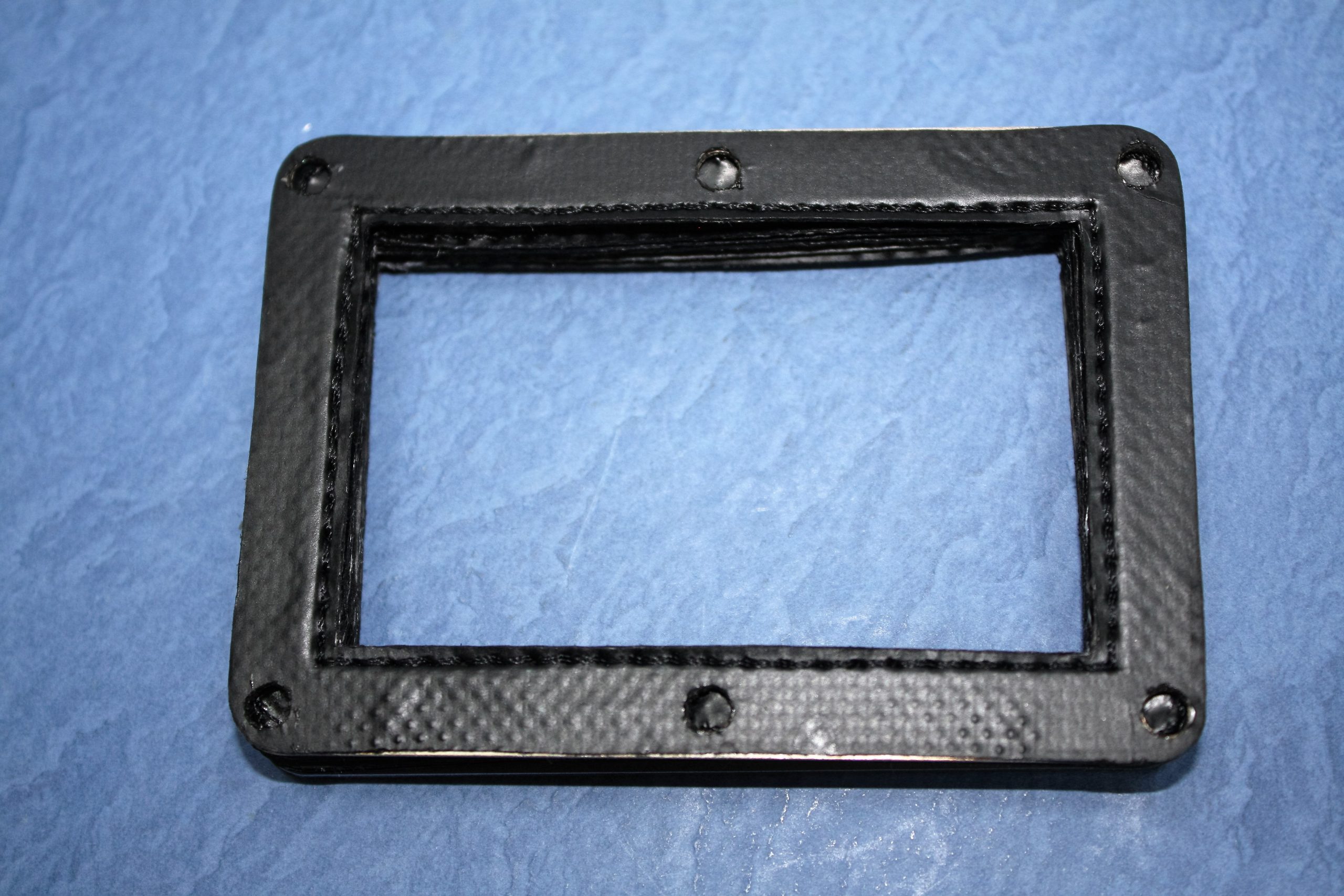

 | M200 | Upper | 上機頭絕緣板用防塵套 Slideway Covers for M301 Lsolator Plate | DWC-F,G,H,H',H1,HA,CR,CA | S684D815P45 |

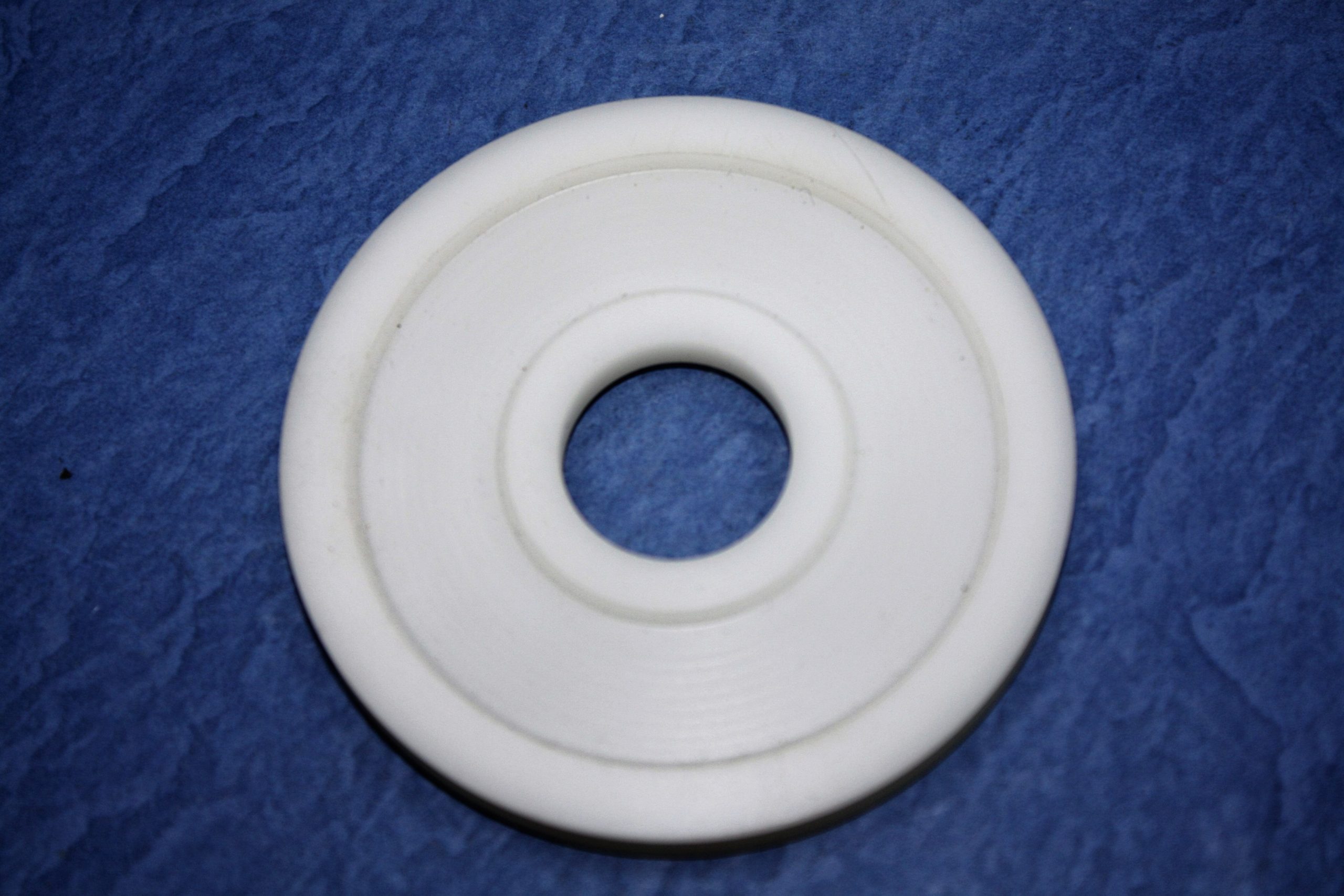

 | M450-1 | 引導線輪 Wire-Pulley 62Ø×6t | DWC-F,G,H,H',H1,HA | ||

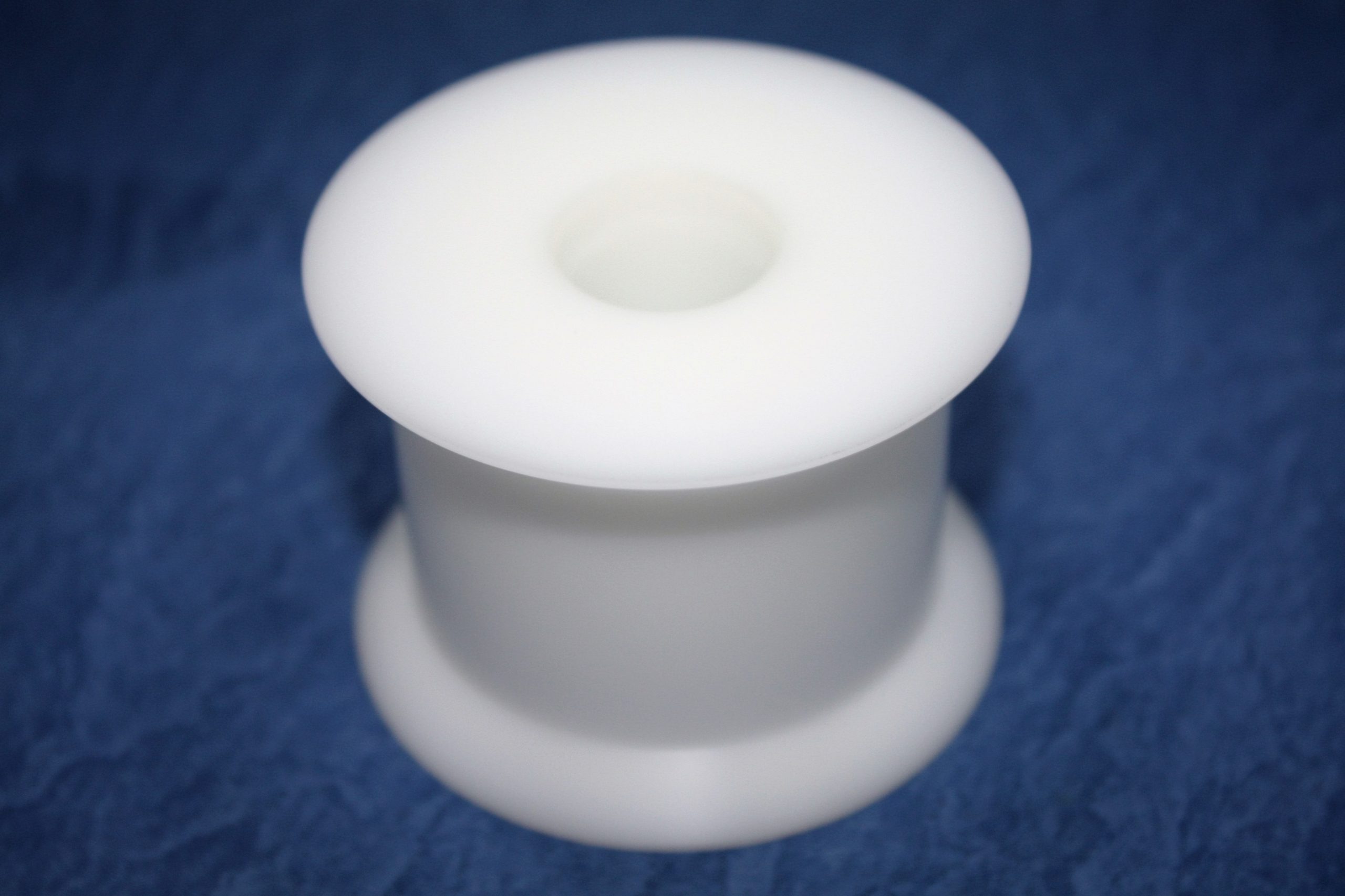

 | M450-2 | 引導線輪 First Wire-Pulley 62.4Ø×44.2 t | DWC-,H',H1,HA | ||
 | M462 | Upper | 逆止輪軸心 Shaft For M461RRS 32.5mmL×10 | DWC-CX,FX,SX(Manual/AF) | |

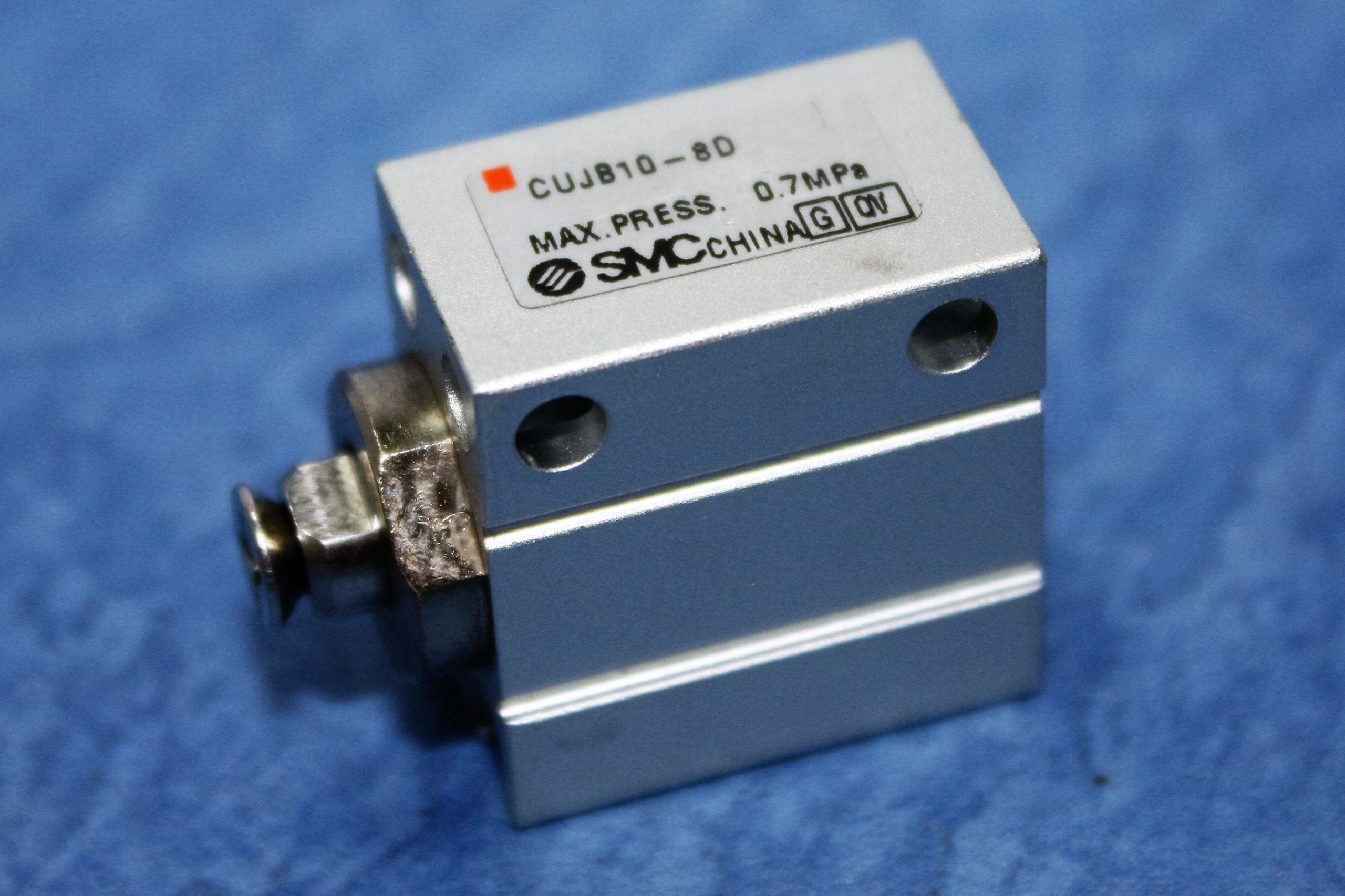

 | M501 | 氣壓缸 6D,8D,10D AIR CYLINDER | DWC-FA,10S,20S | X066C330G51 | |

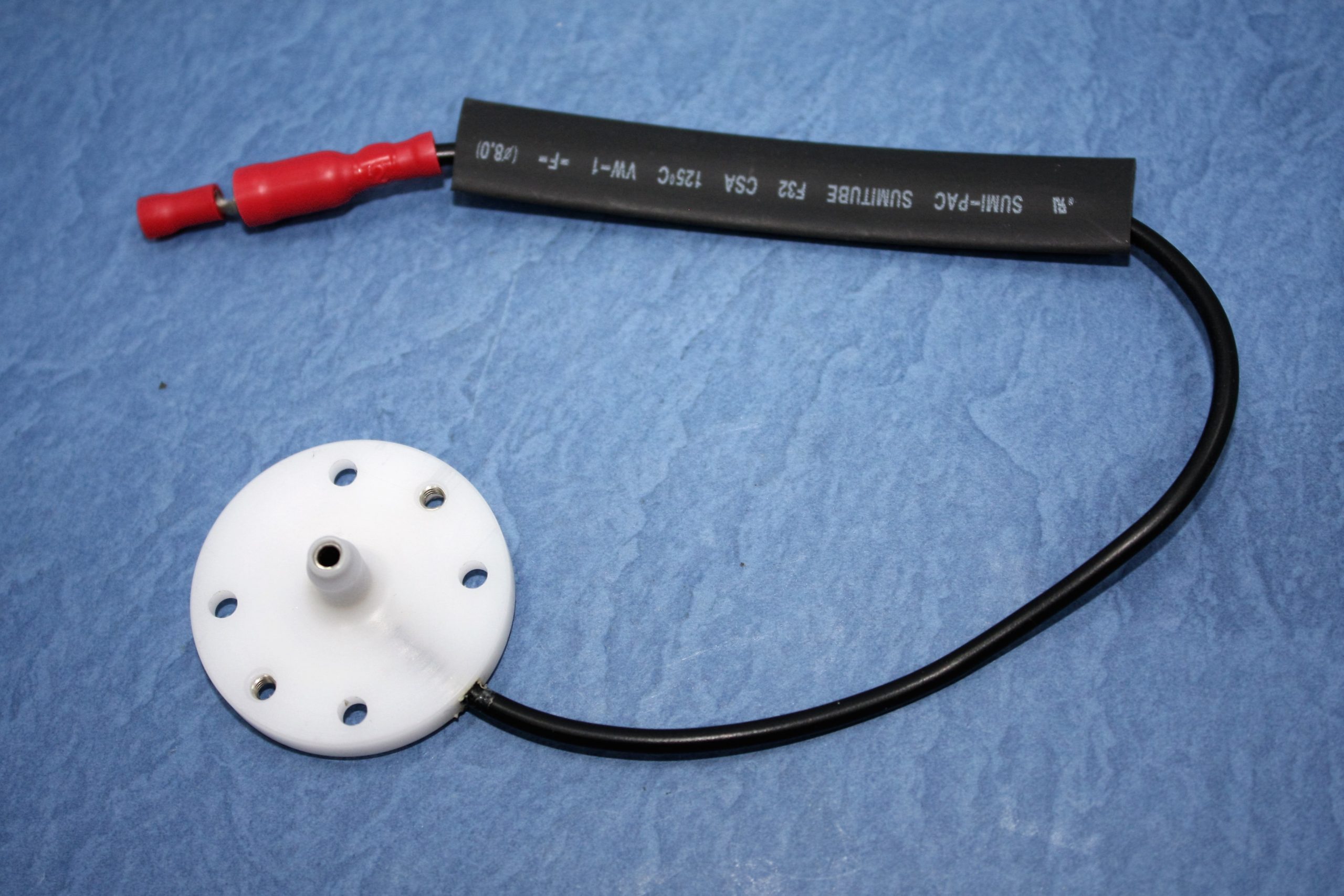

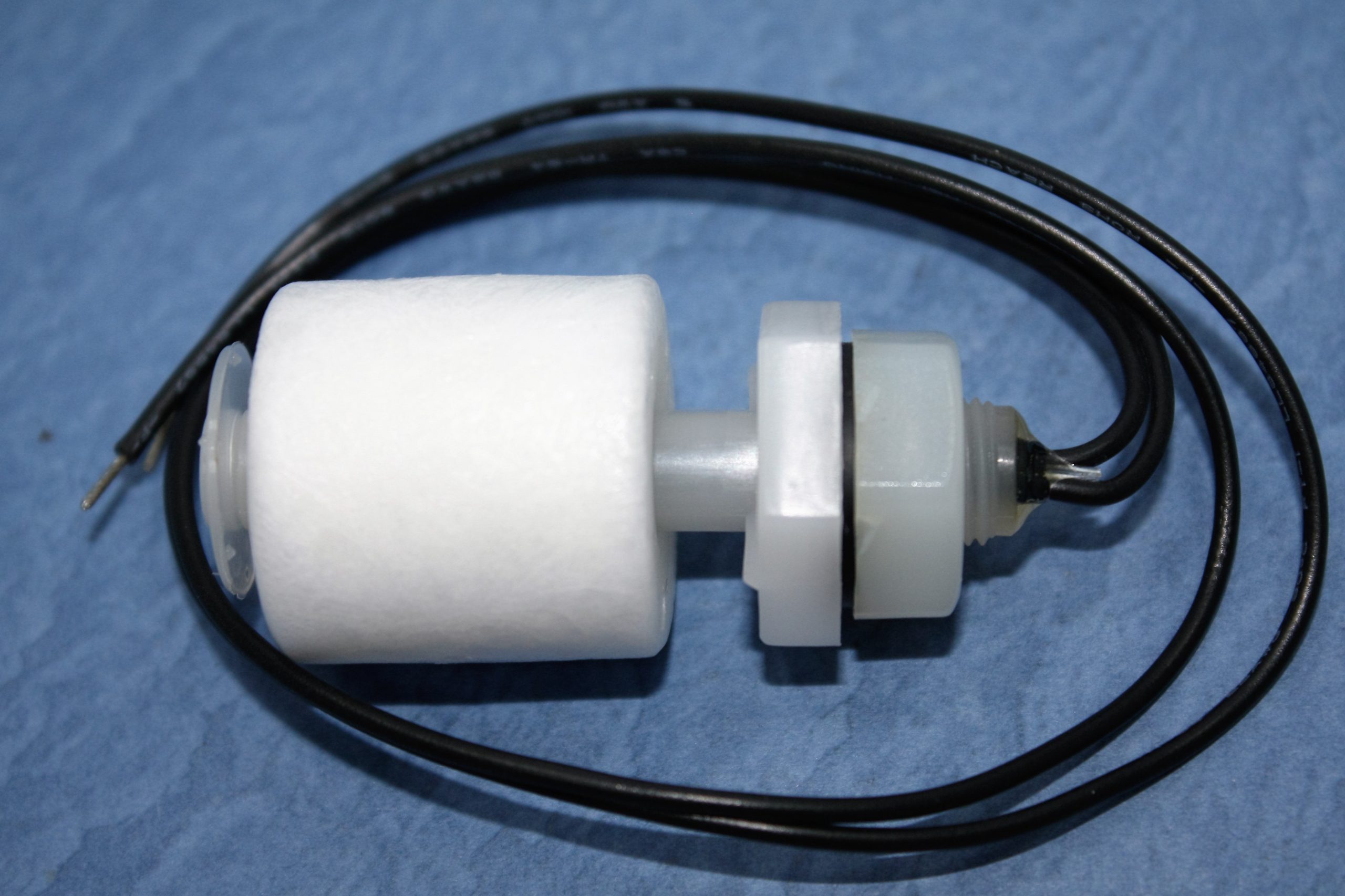

 | M750 | 水位開關 Float Switch | 120mm cable for CX,FX 300mm cable for H1,HA | X651C390G51 | |

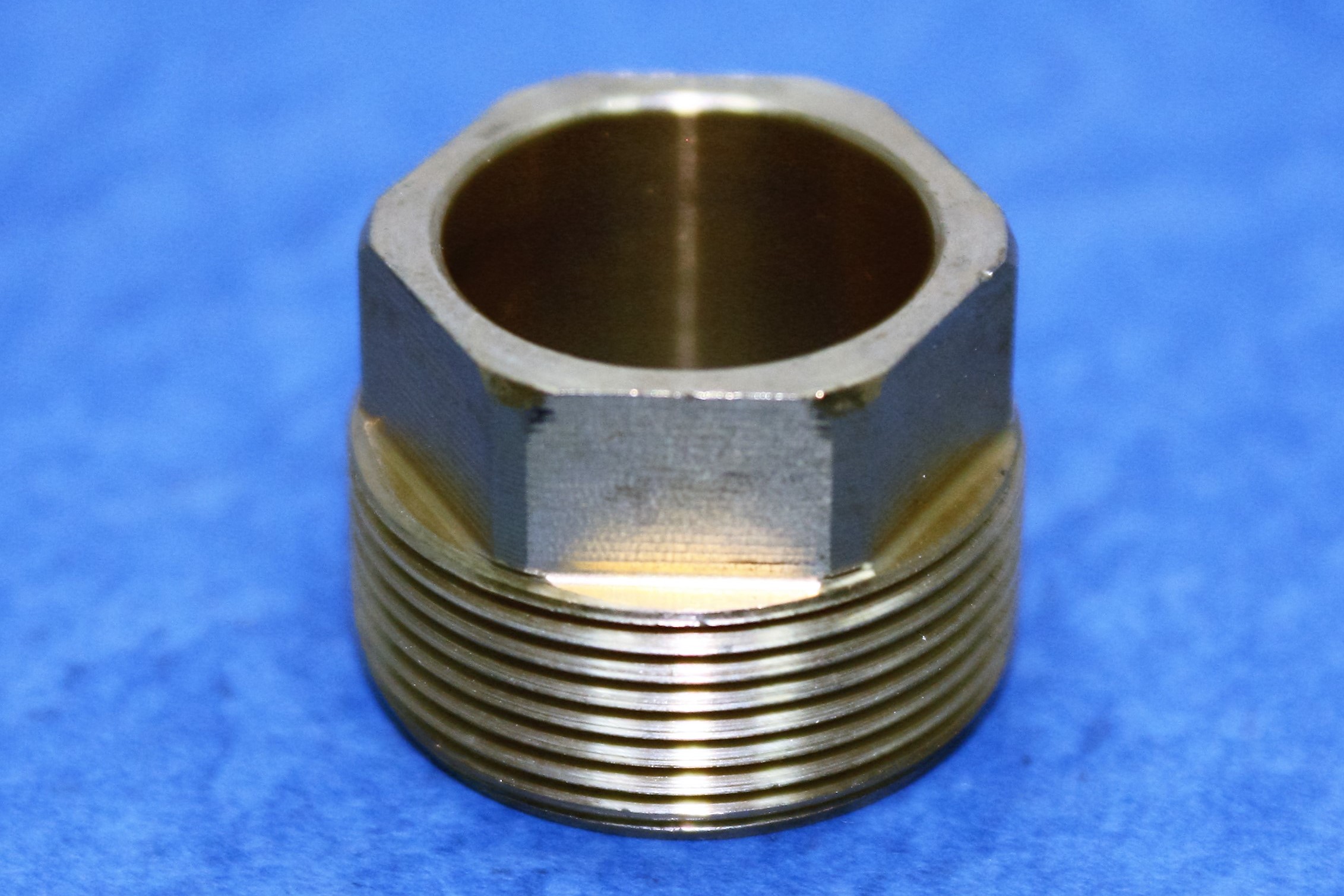

 | M451 | Upper&Lower | 黃銅螺絲 鎖偏心座 Brass Cap Screw For M451-2 | DWC-F,F1,G,H,H',H1,HA,C,CA | X179D323H02 |
 | M453-2 | Lower | 下噴水頭蓋板 43×48mm Nozzle Holder For M453-1 AND M454 | DWC-F1,G,H,H',H1,HA,C,CA | X184D271H06 |

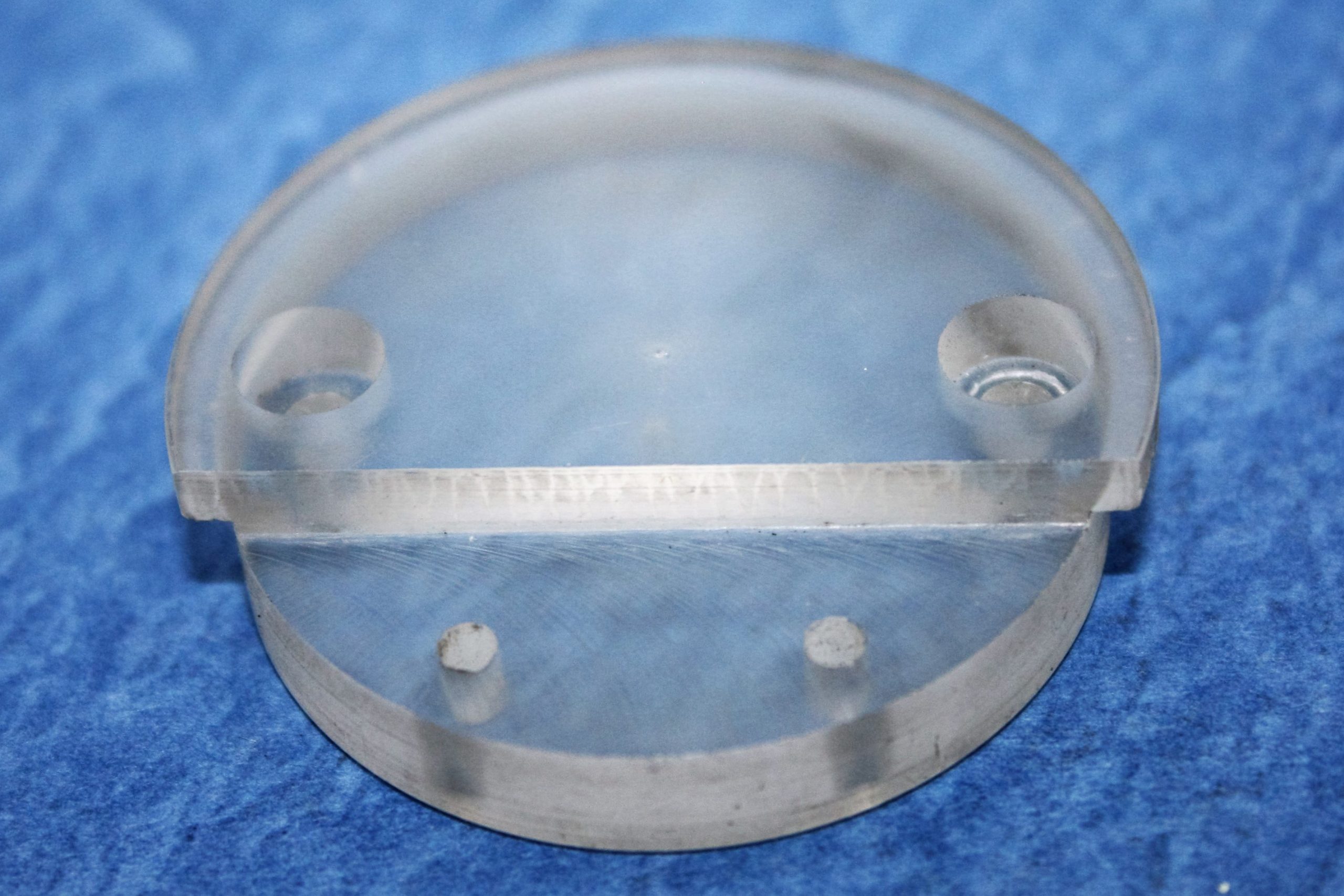

 | M459-1 | Lower | 下滾輪座塑膠蓋 Plastic Cover 42Ø×10t | DWC-H1,HA,SX,CX | X198D777H01 |

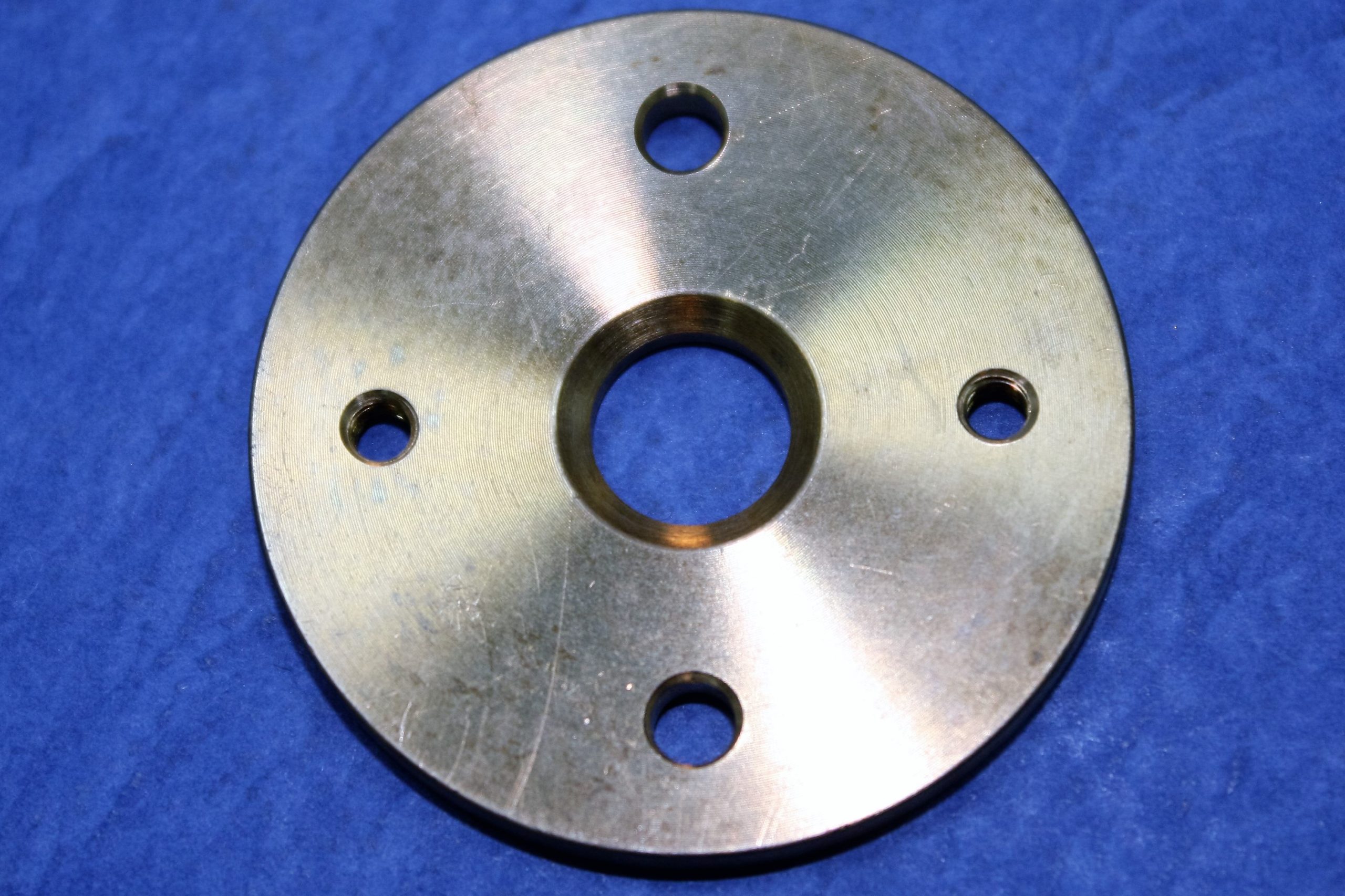

 | M459-2 | Lower | 下滾輪座導管頭平蓋板 40Ø3t Fixing Plate | DWC-H1,HA,FX,SX,CX | X198D619H02 |

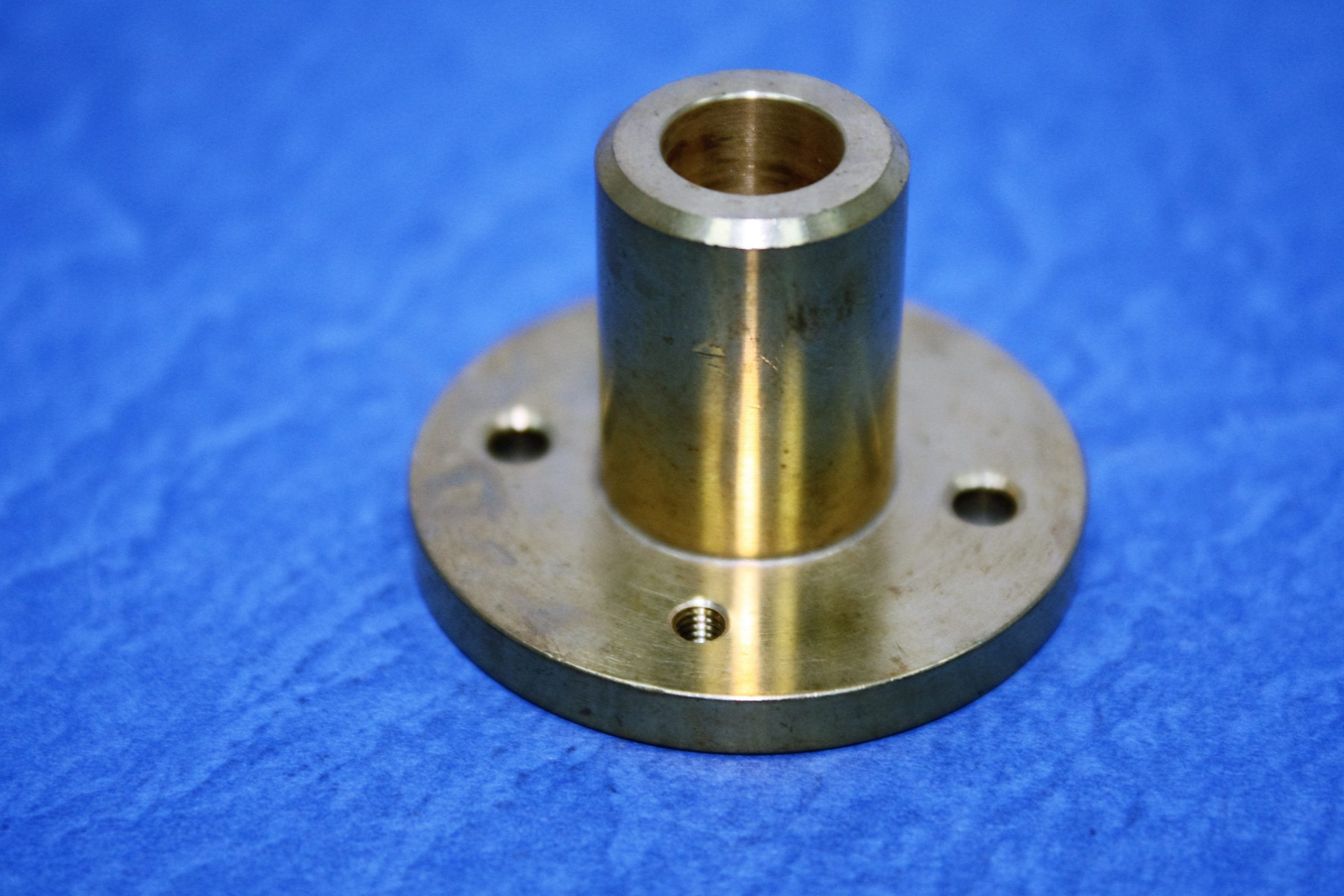

 | M459-3 | Lower | 下滾輪座出線管導頭8Ø Cover H25×37Ø×16Ø | DWC-H1,HA,FX,SX,CX | X198D776H01 |

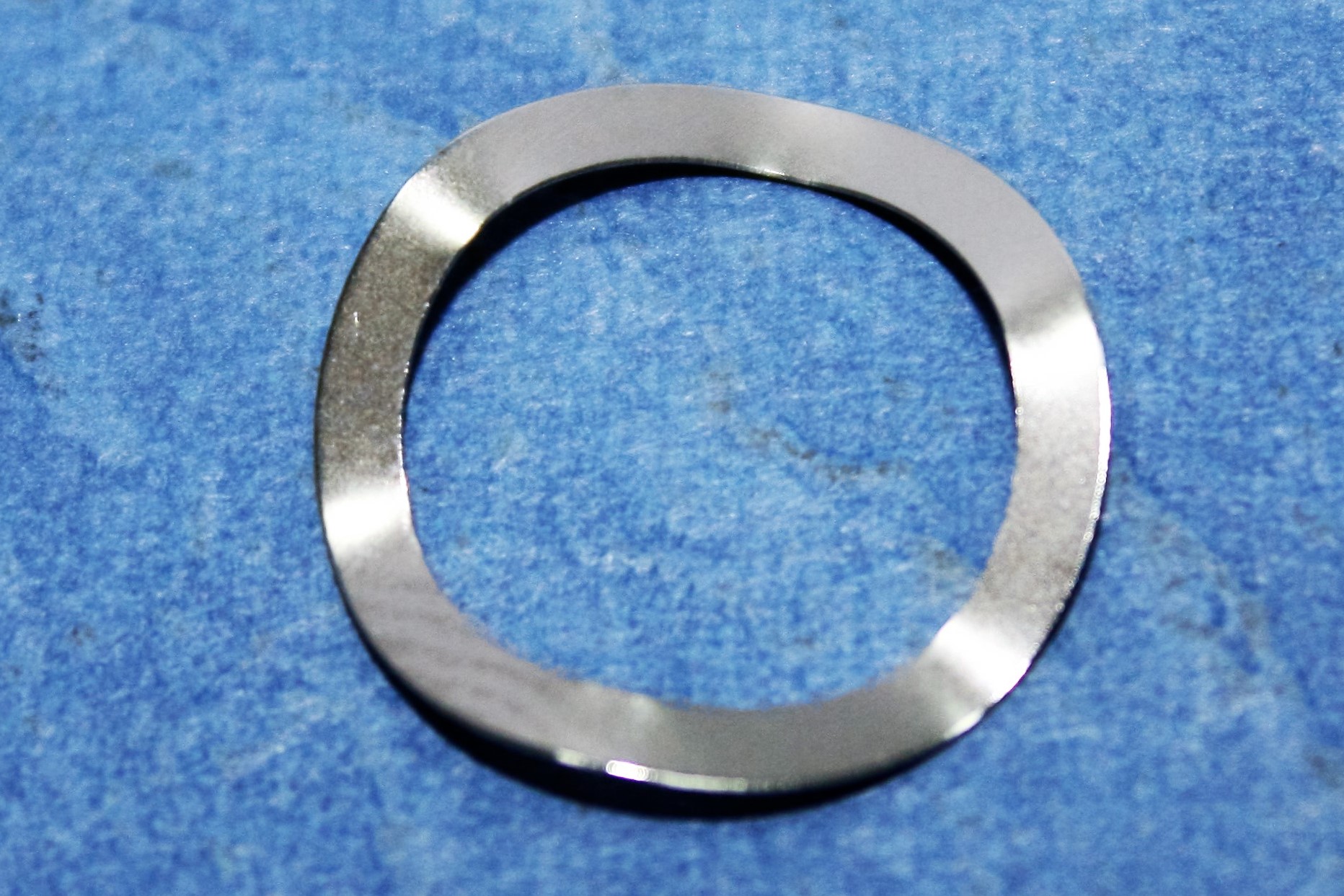

 | M459-4 | Lower | 波浪型彈簧華司 Wave Washer For M4561 16.3D×12.7d | DWC-H1,HA,SA,SB,SZ,SX,CX | S913N313P11 |

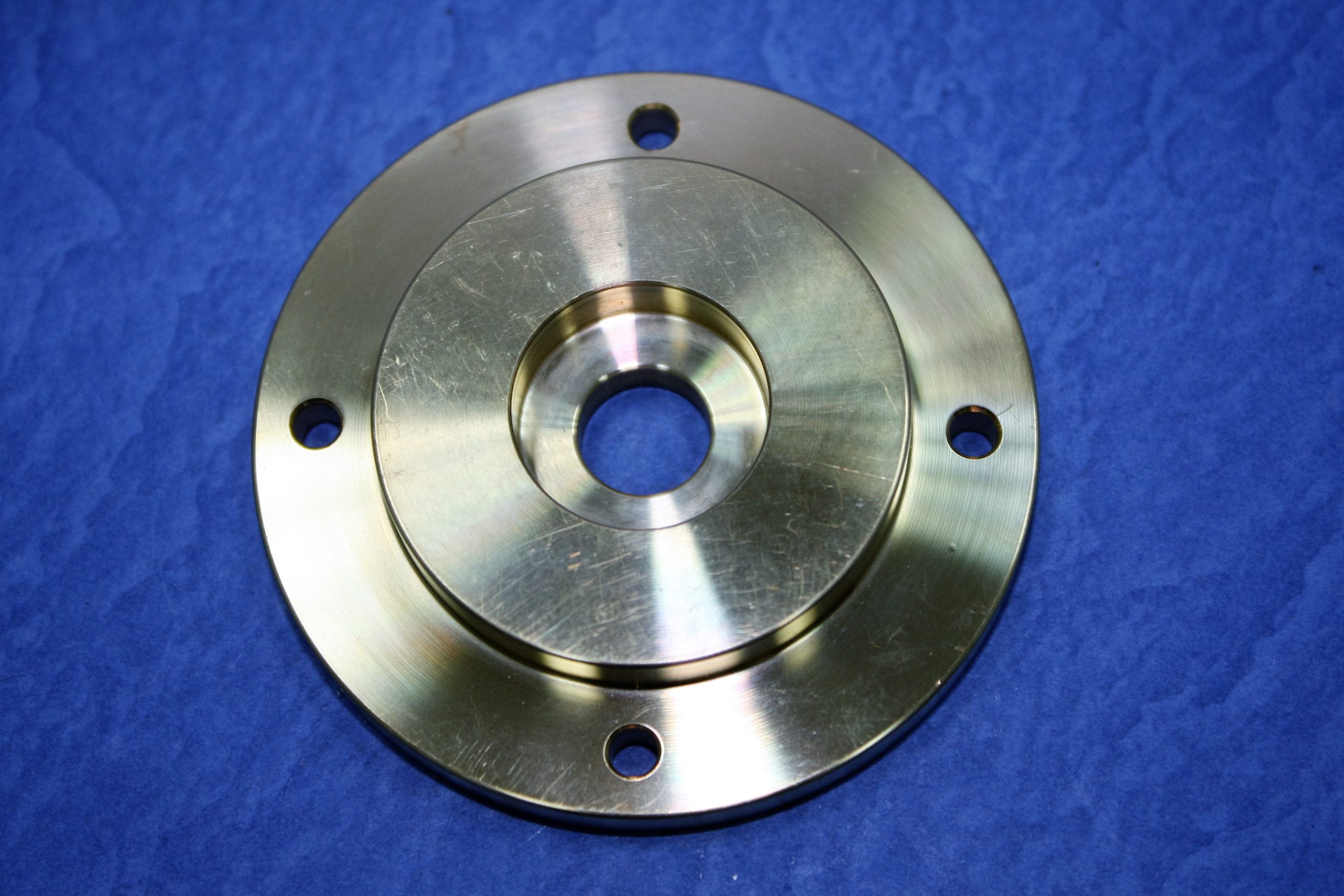

 | M459-6 | Lower | 下滾輪座銅蓋板 Fixing Plate 60Ø×10t | DWC-H1,HA,SX,CX | X208D601H01 |

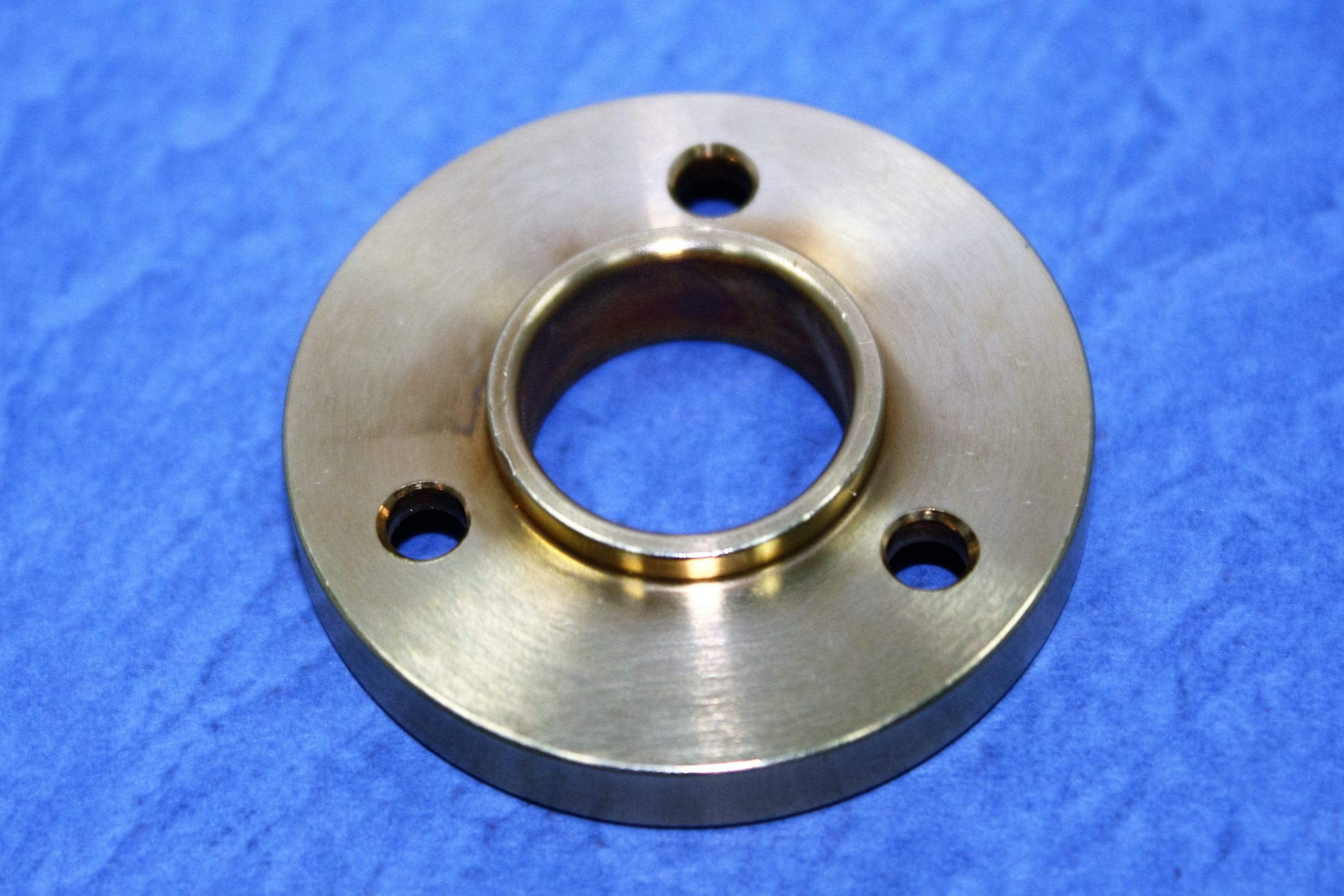

 | M460 | Lower | 下偏心座固定環 黃銅 Clamping For M8504BHA(Brass) | DWC-H1,HA | X189D690H04 |
 | M464 | Lower | 下噴水頭蓋板 46 ×48mm Nozzle Holder(2-PINS) For M851,M852,M853 | DWC-SX,CX,FX,RA,QA,FA | X208D528H01 |

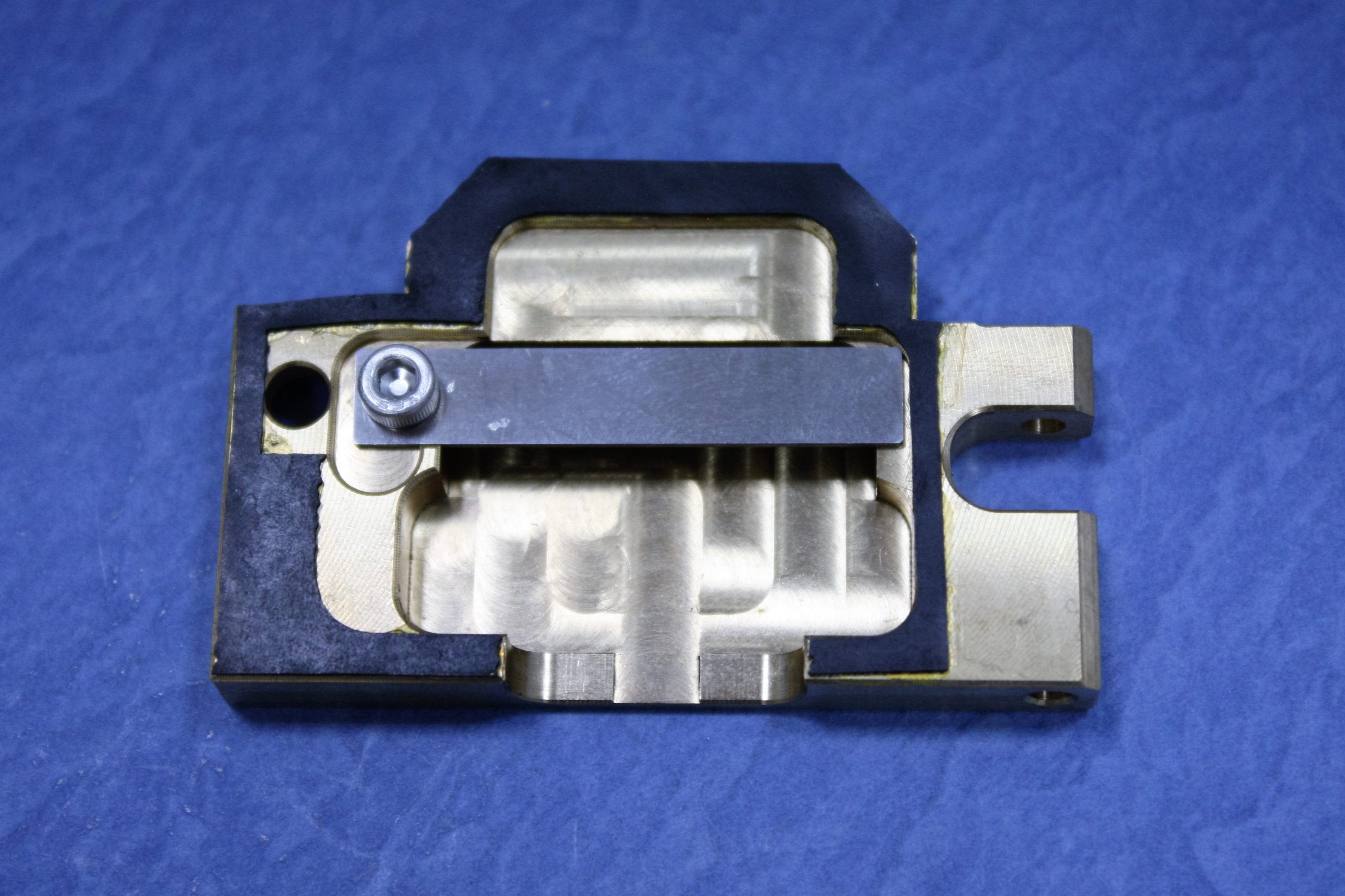

 | M859 | Lower | 下眼膜座門板組合 Die Guide Holder Door Set For M851,M852,M853 | DWC-CX,FX,FX-K DWC-FA,RA | X186C819H01 |
 | M147 | Lower | 下機頭鑽石輔助眼膜板 SIZE:0.4mm GUIDE D | DWC-CX,FX,FX-K | X053C884G52 |

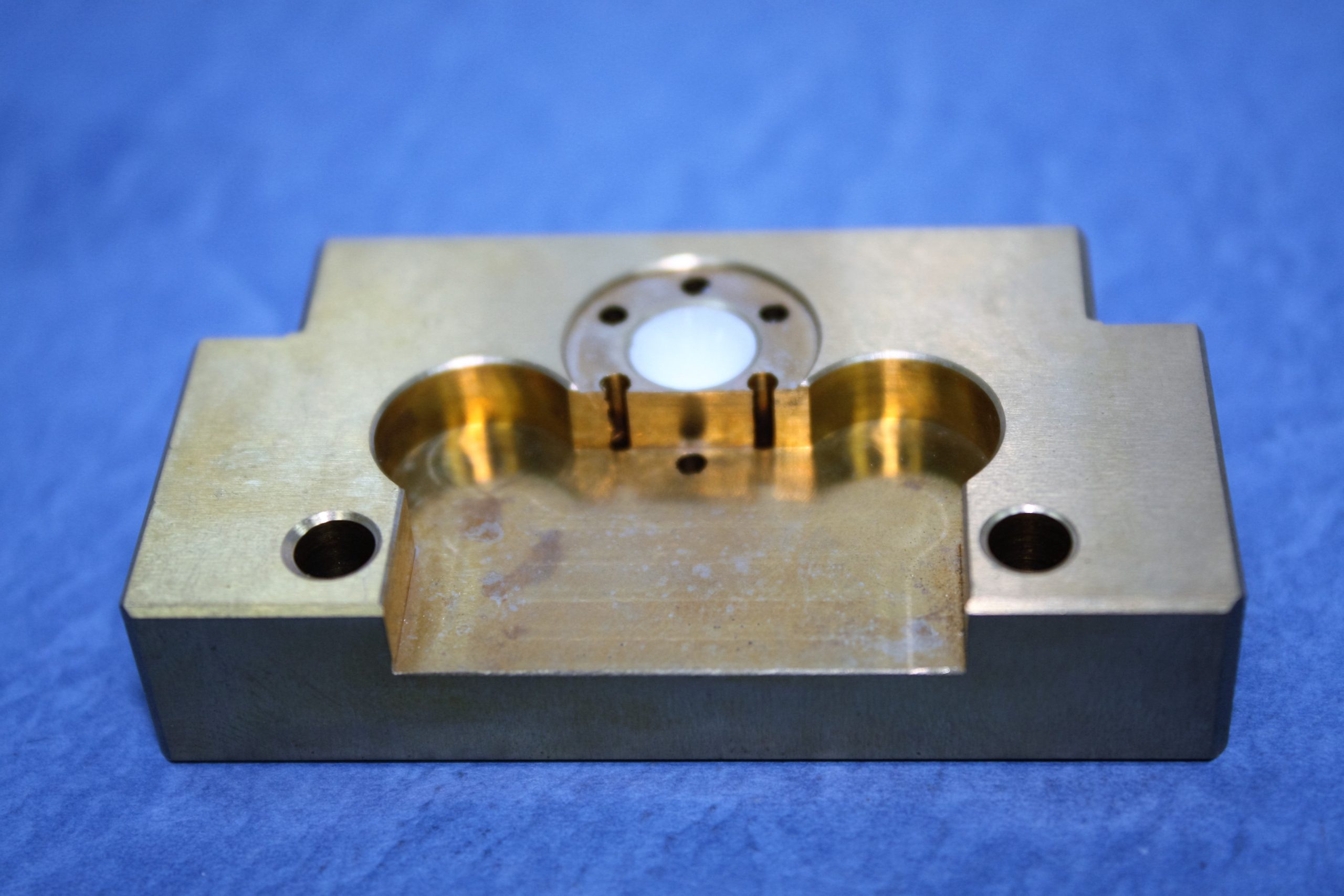

 | M150 | Lower | 下機頭鑽石輔助眼膜板 SIZE:0.8mm GUIDE D | DWC-FA,RA | X053C884G55 |

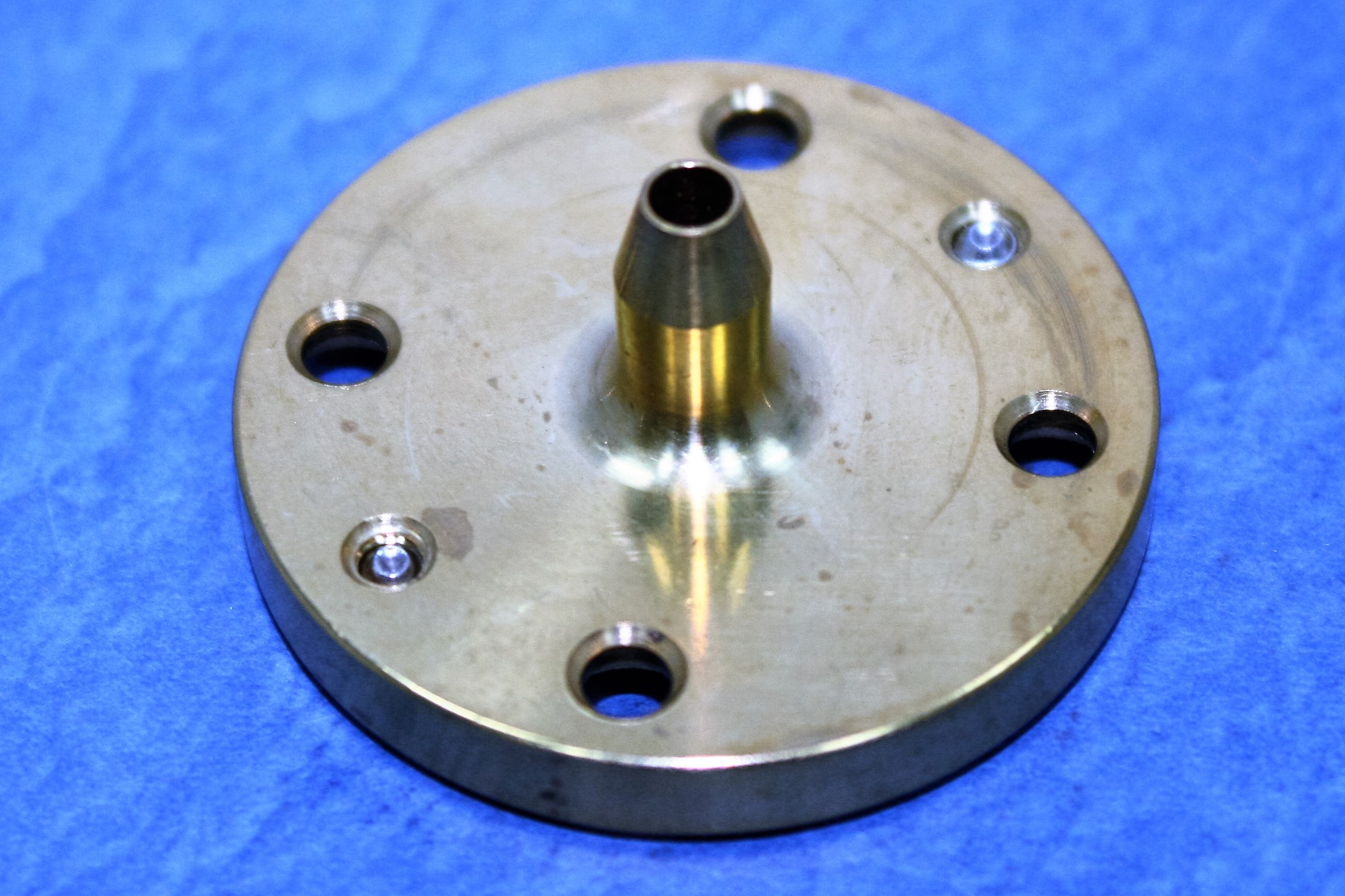

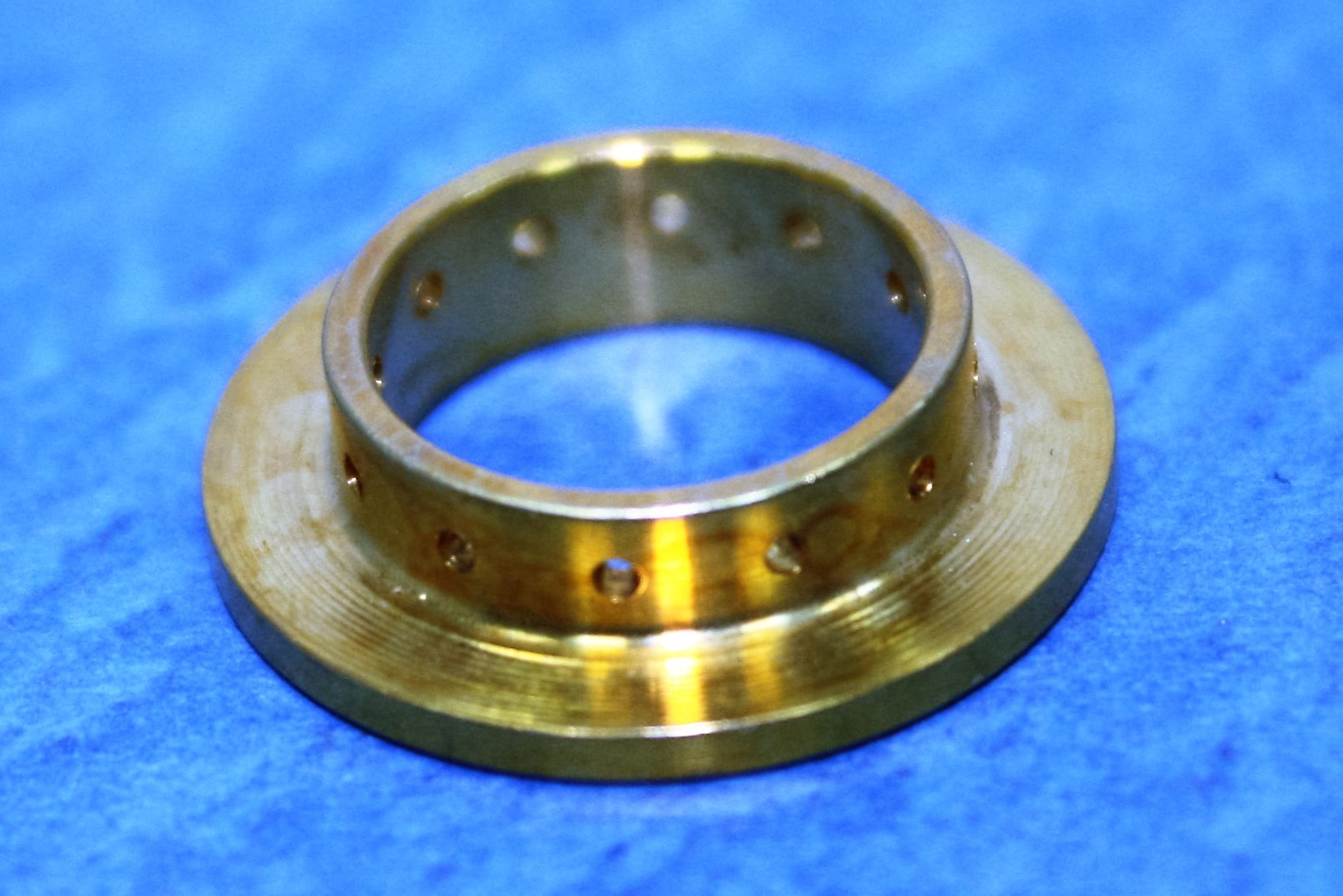

 | M400 | Lower | 水穿線下機頭傘型導線嘴 黃銅 Aspirator(Brass) | DWC-H1,HA(Manual/AF,AF2) | X198D838H01 |
 | M400-1 | Lower | 整流環 水穿線機頭用 Rectifier Ring For M459,M860,M861,M862 | DWC-H',H1,HA,SZ,C,SB,SA,SX,CX,FX | X194D998H02 |
 | M400-2 | Lower | 水穿線下機頭傘型導線嘴 Aspirator (Detctor) Lower Head | DWC-HA,SA,SB,SZ,SX,CX,FX (AF1,AF2/Manual) | X053C829G54(old) X053G920G51A(new) |

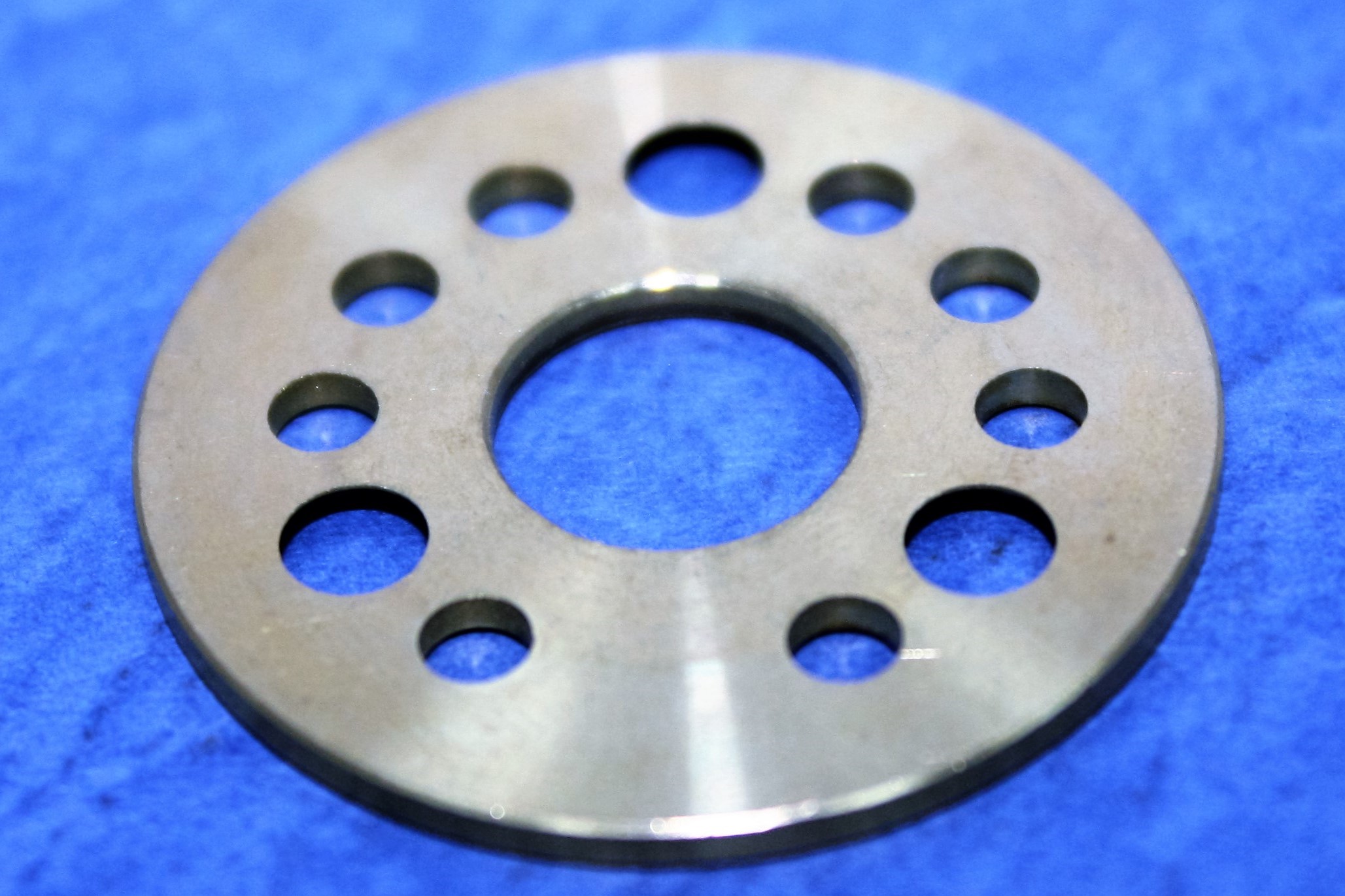

 | M134 | Lower | 整流環 水穿線機頭用 Rectifier Ring For M851,M852,M853 | DWC-FX,CX,SX,FA,QA | X204D293H02 |

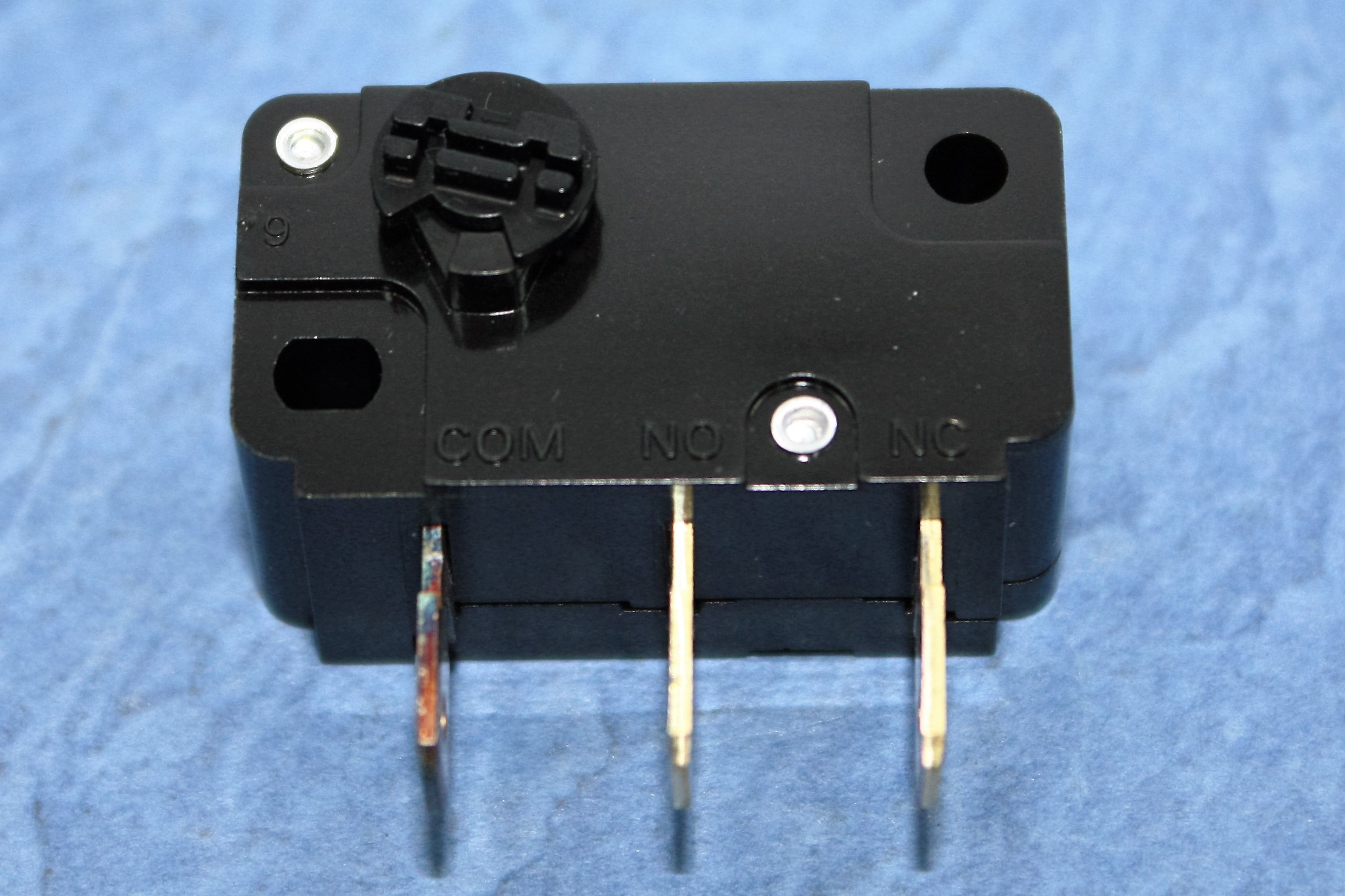

 | M7301 | Upper | 微動開關 順時針 下部用 Wire Break Switch (Clockwise) | DWC-HA,CA | |

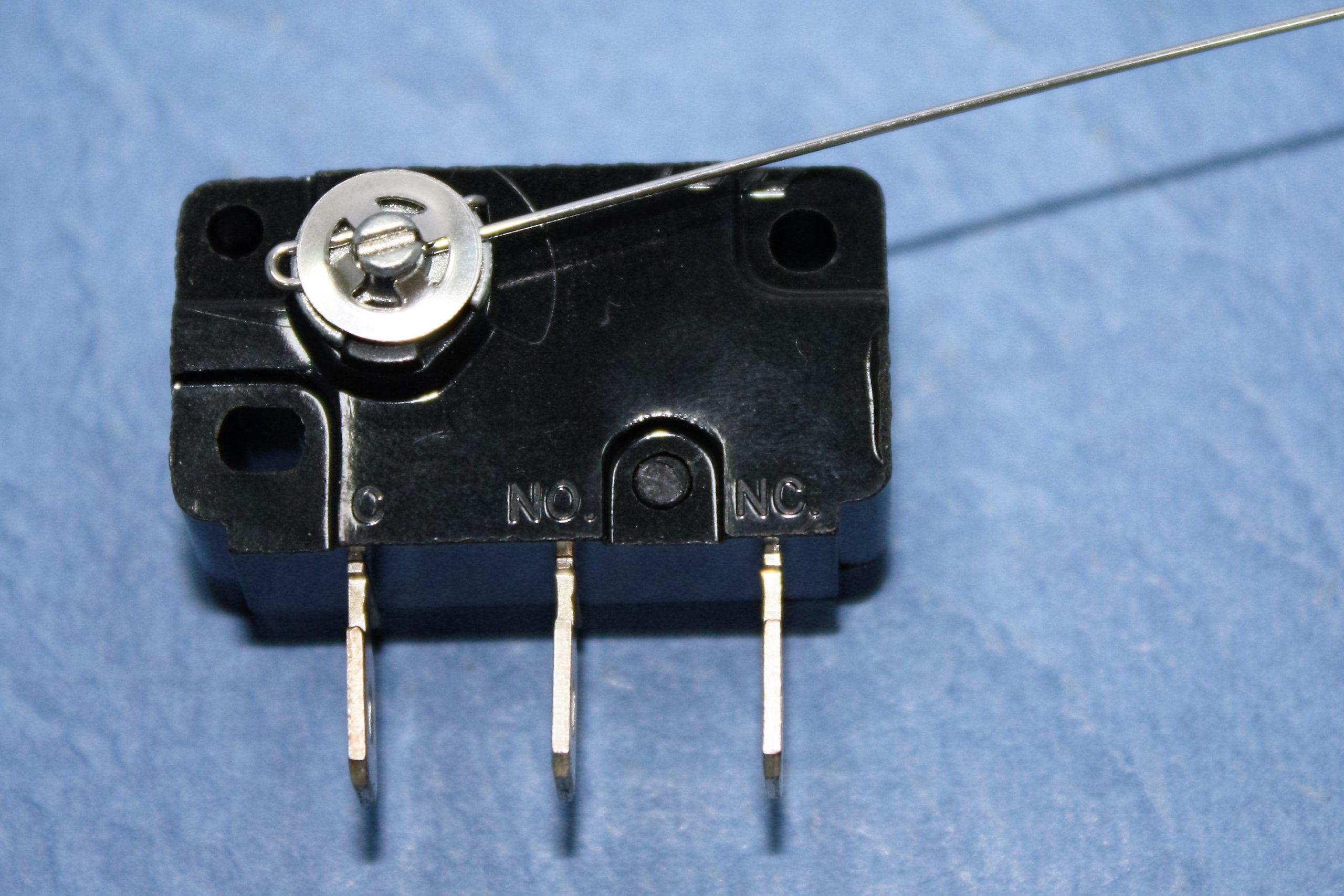

 | M7302 | Upper | 微動開關 順時針 上部用 Wire Break Switch (Counter-Clockwise) | DWC-HA,CA | |

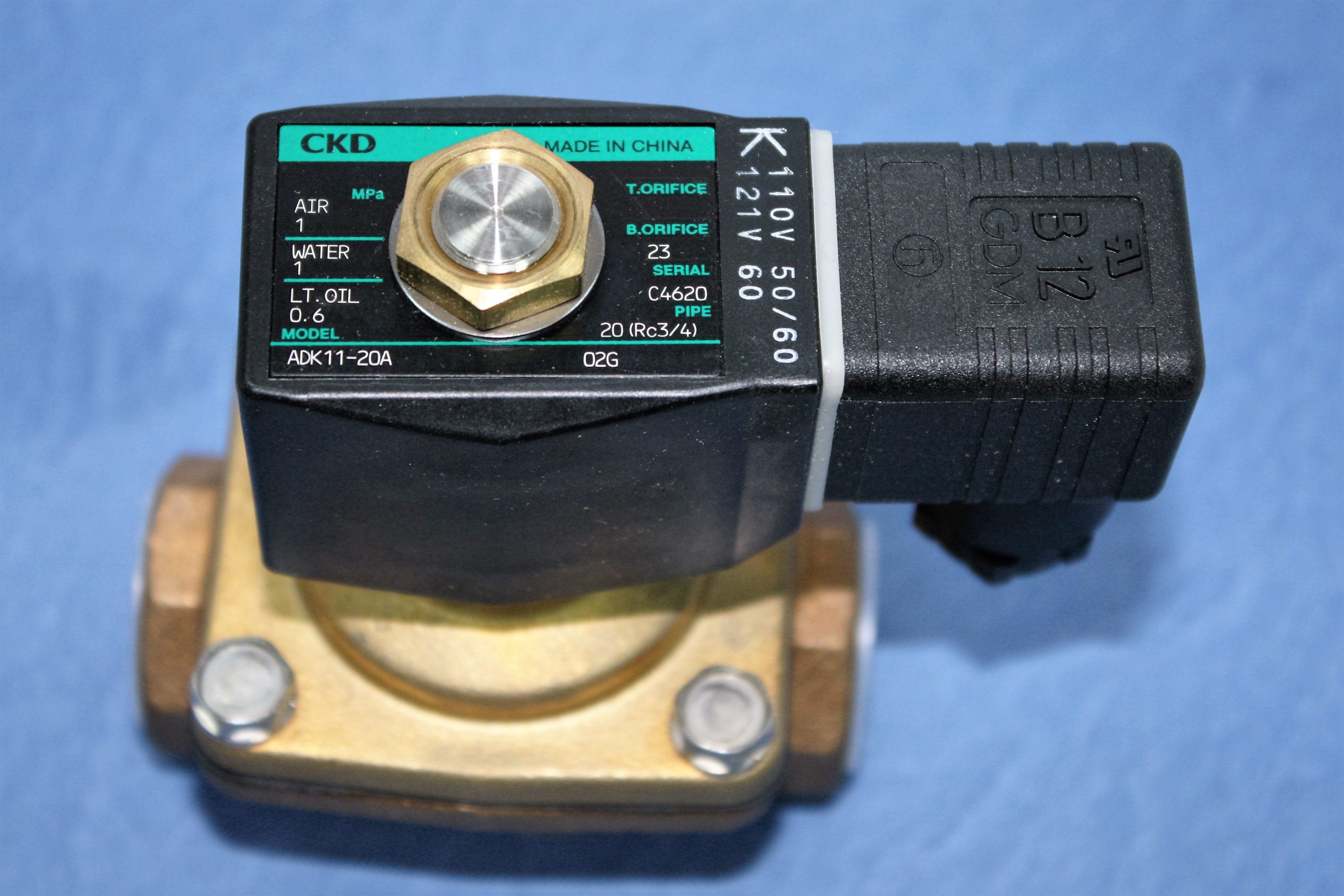

 | M510 | 電磁閥 Solenoid control Valve | |||

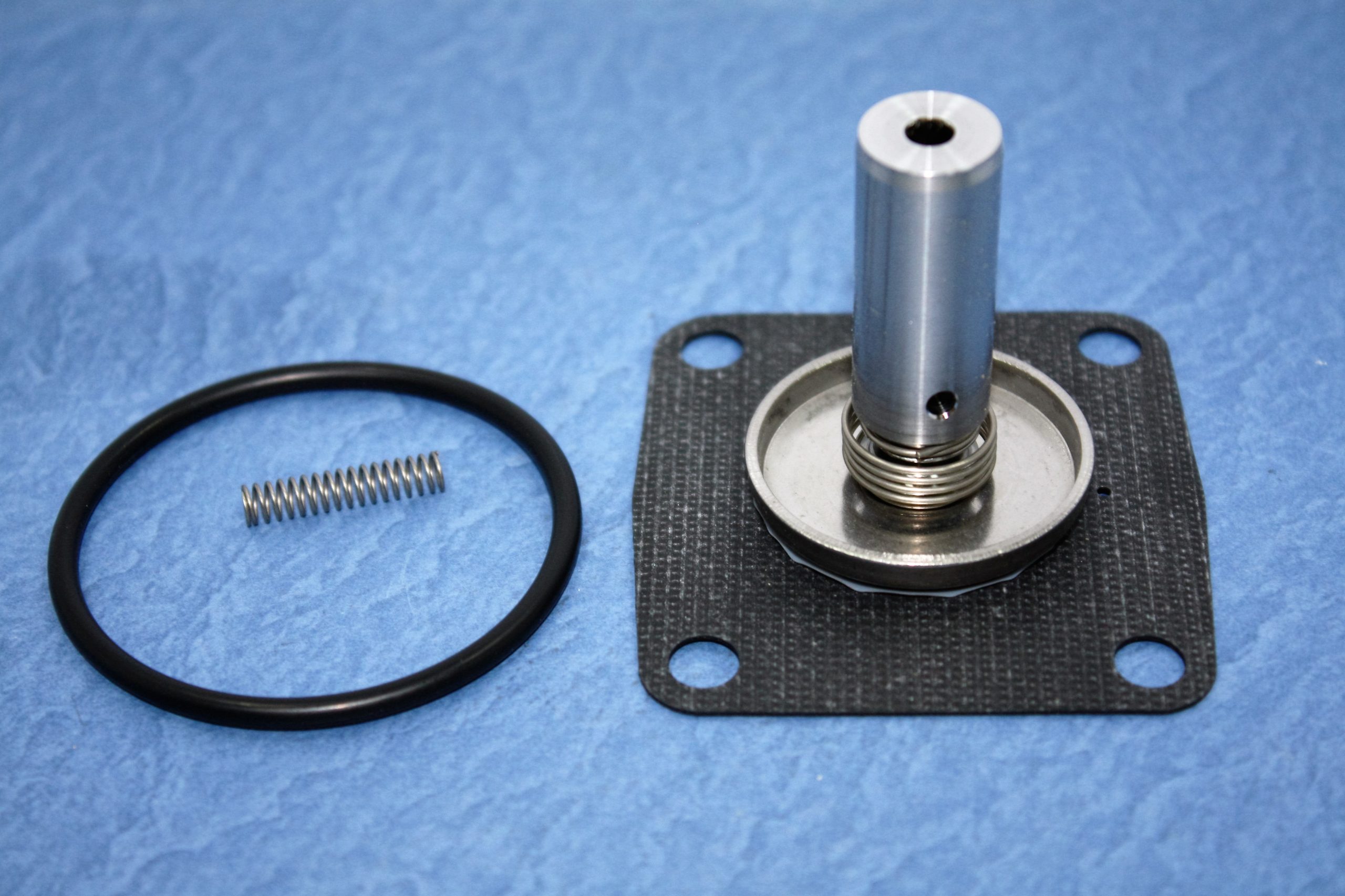

 | M510A | 電磁閥修理包(CKD) SoLENOID Valve-KIT | |||
 | MV851-1 | Lower | 下機頭眼膜座(SUS) Die Guide Holder 31.85*12.2t | DWC-MV | X191A806G52 |
 | MV852 | Lower | 下機頭銅座 | DWC-MV | X256C302H01 (DET8600) |
 | MV463 | Upper | 上噴水頭蓋板 Nozzle Holder 64.5*13.5mm | DWC-MV | |

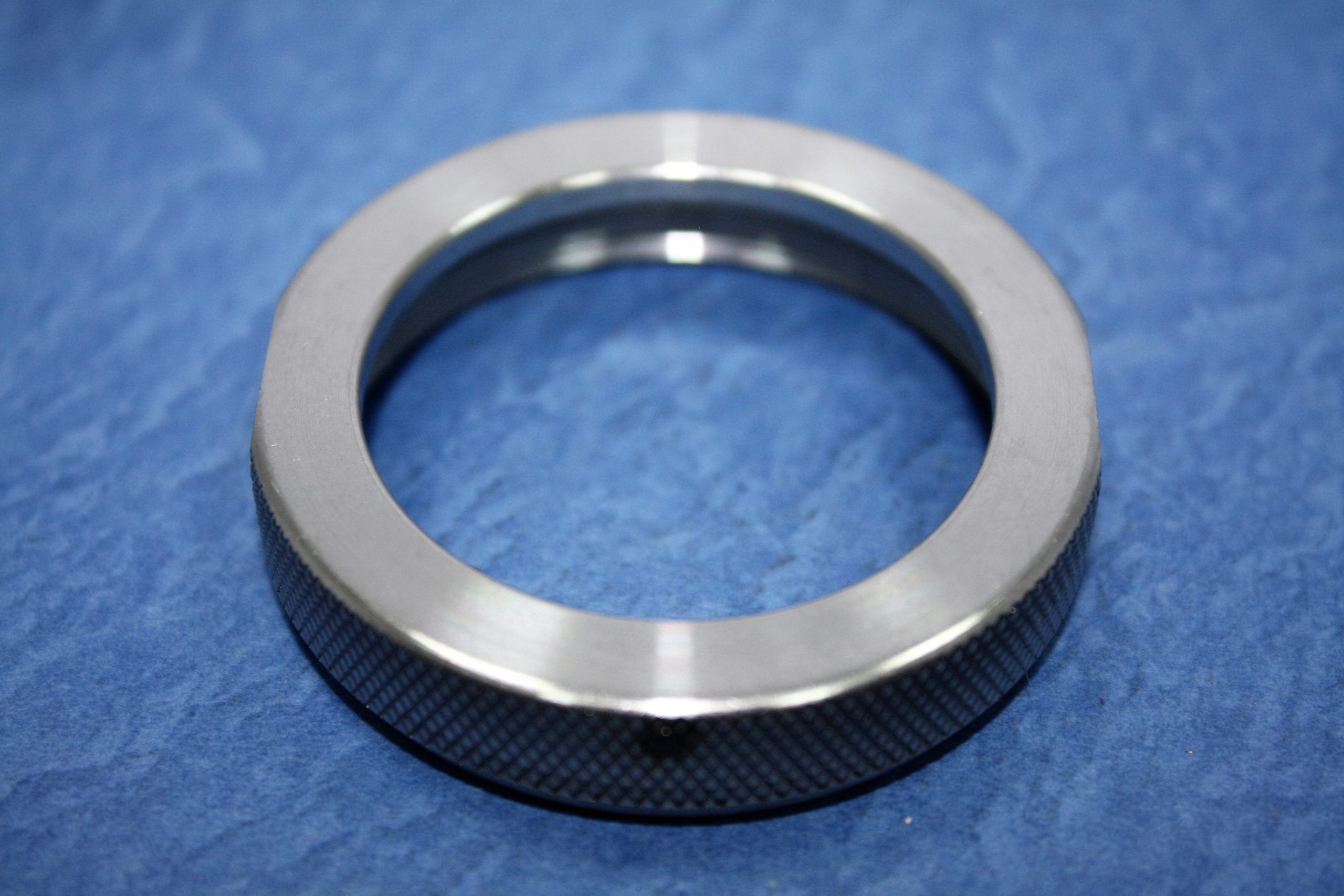

 | MV464 | Lower | 下噴水頭蓋板 Nozzle Holder (2-PINS) 52 *38.3mm | DWC-MV | |
 | MV005-1 | 押棒彈簧 | DWC-MV | ||
 | M5104 | Feed Section | 出線管末端導引頭 Ceramic nozzle 57.5*30 | DWC-FA | X059D299G51 |
 | M5203 | 出線管末端導引頭 Pipe End Head DP53200 | DWC-FA20 | X052B399G51 | |

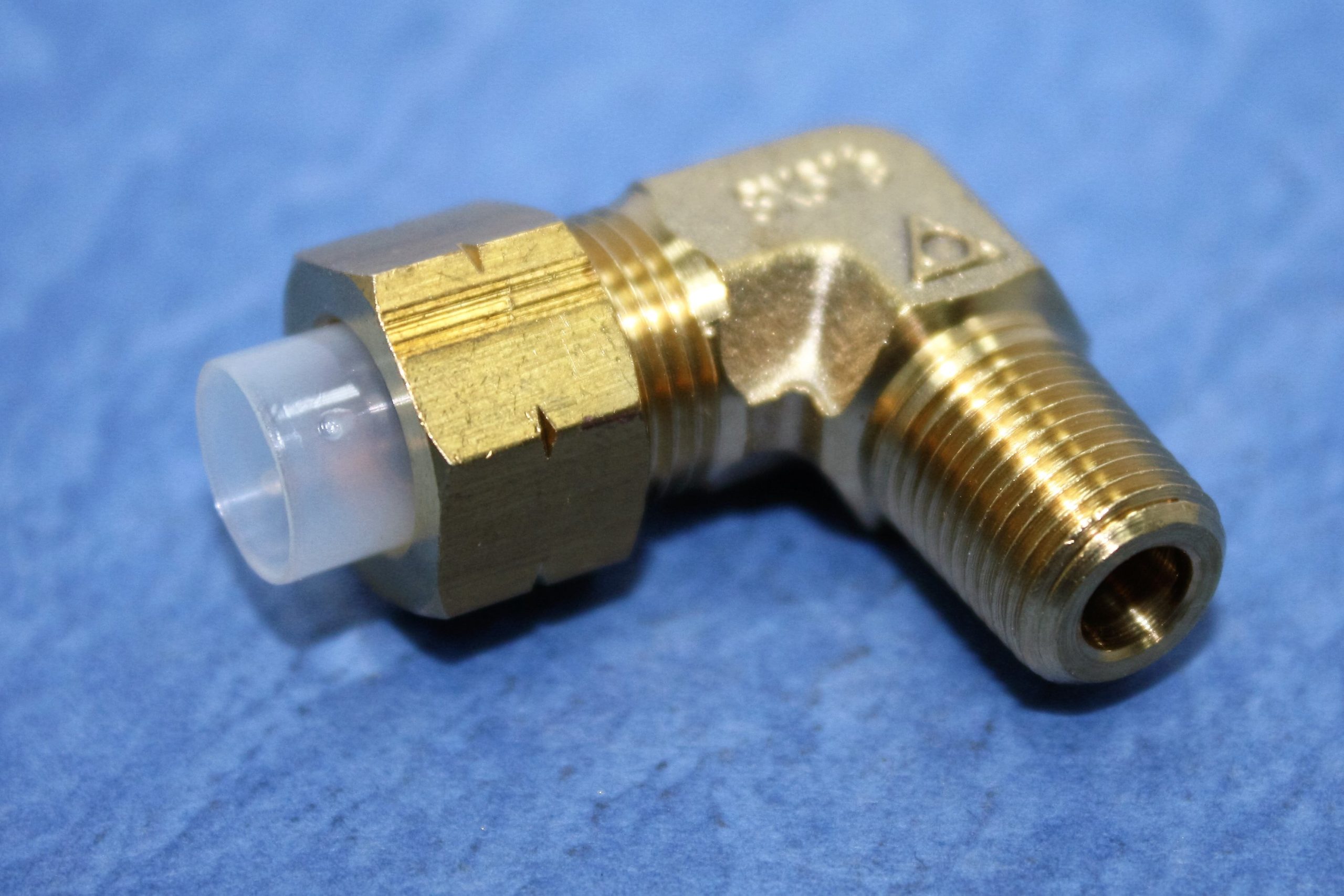

 | K001 | Lower | 入水管接頭L型 Water Pipe Fitting | DWC-H1,HA DWC-FX,CX,SX,FA,QA | |

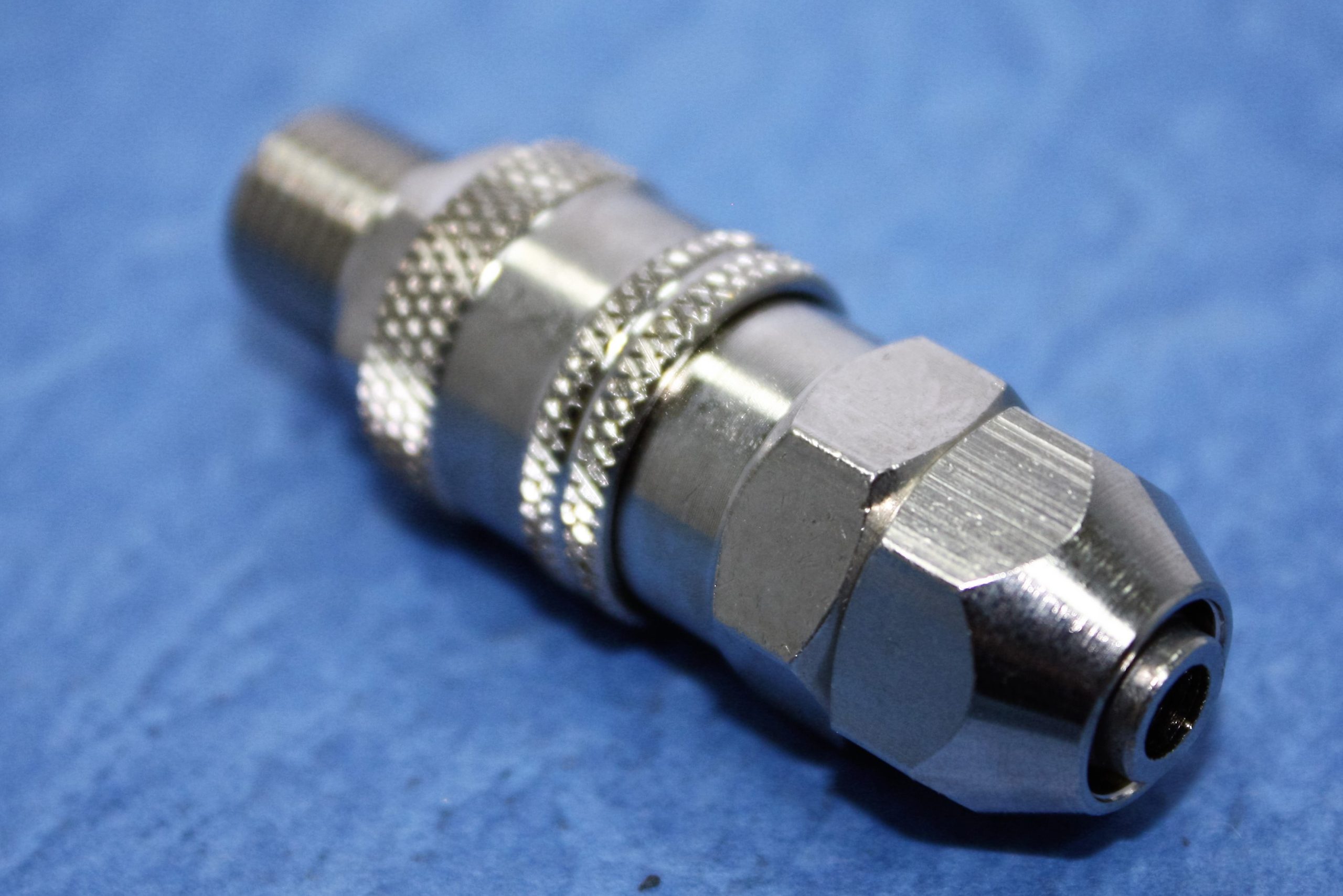

 | K002 | Upper | 快速接頭 閉塞型 Water Pipe Fitting | DWC-F1,G,H,H1,HA DWC-F1,G,H,H' | |

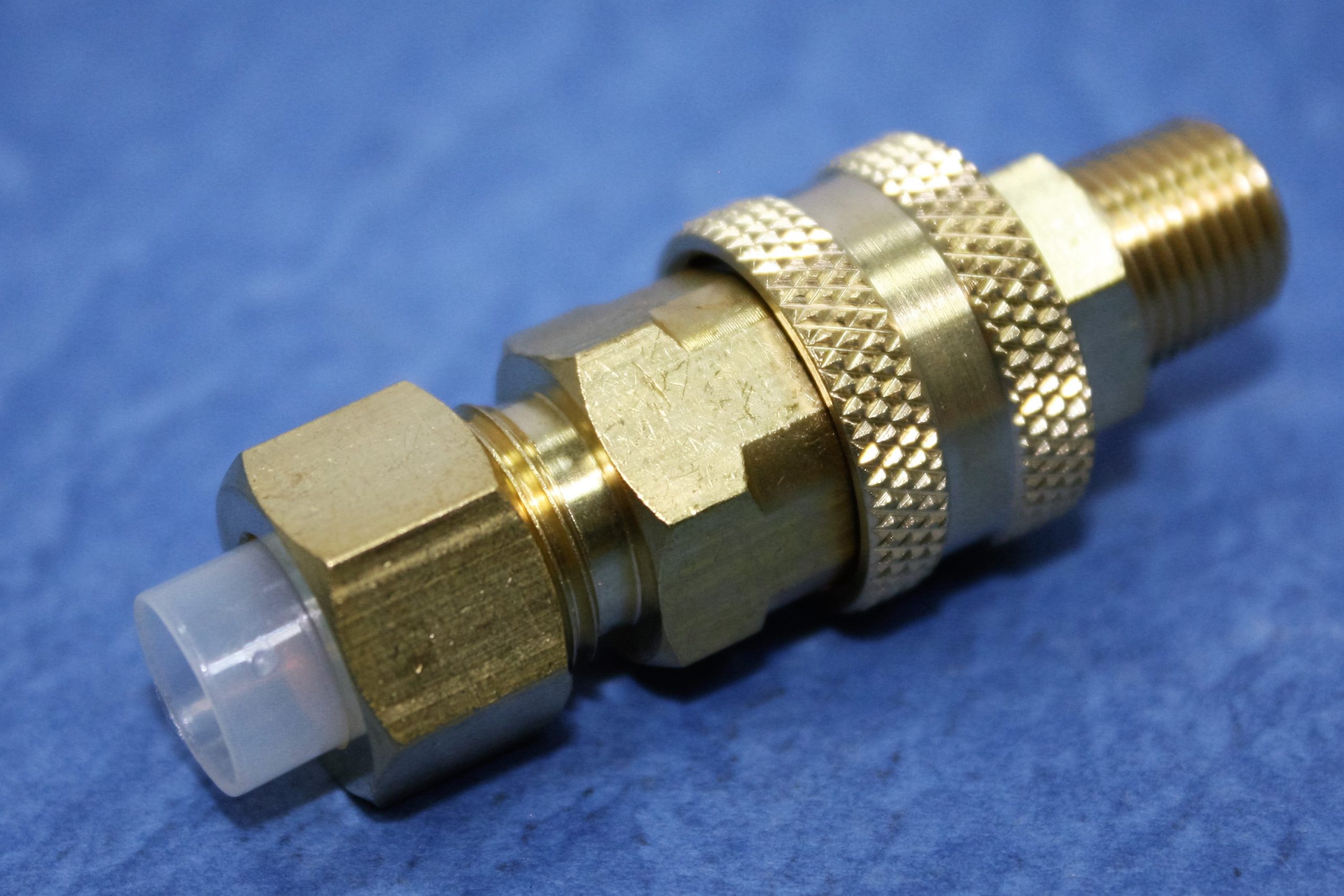

 | K003 | Upper | 快速接頭 貫通型 Water Pipe Fitting | DWC-F1,G,H,H1,HA | |

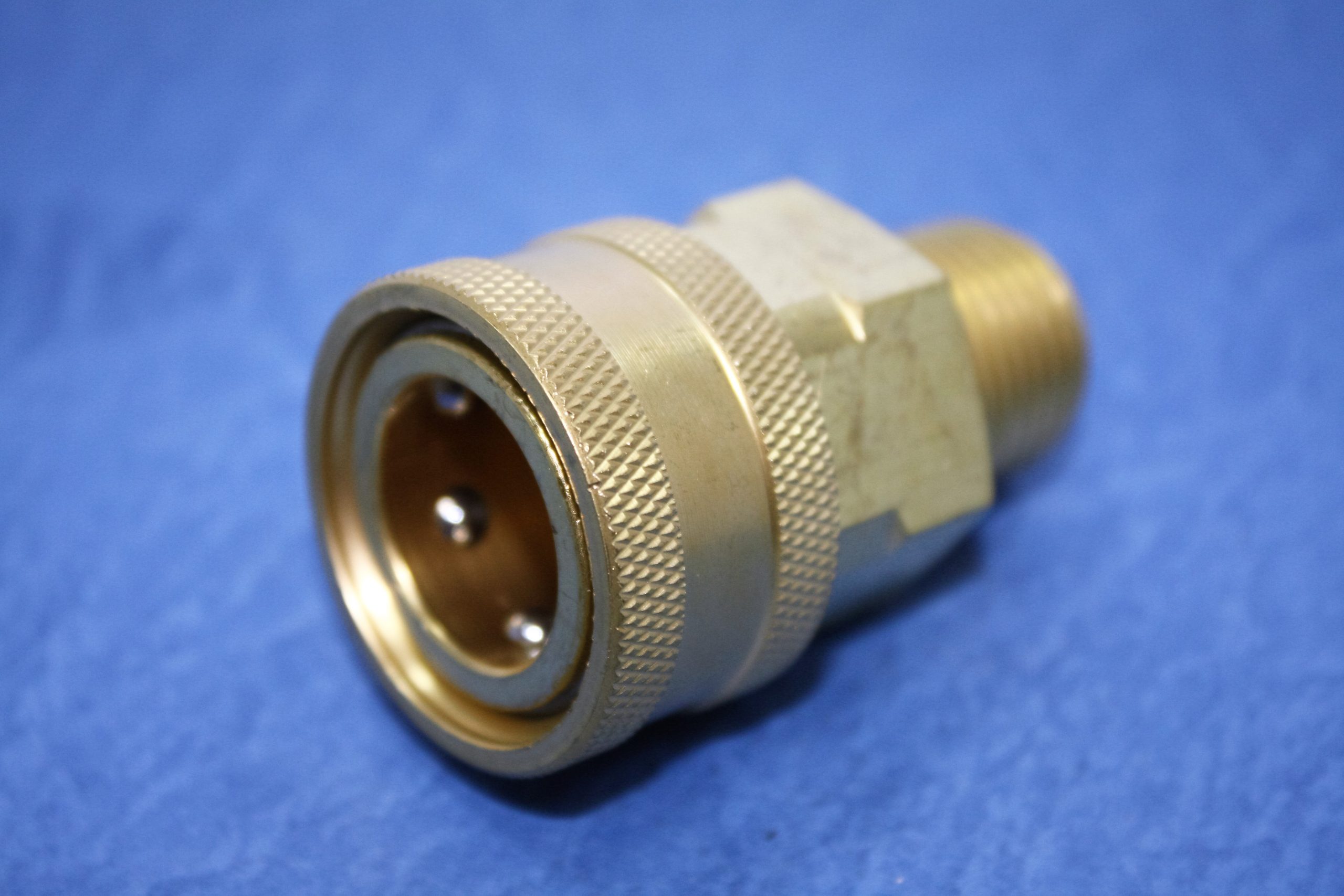

 | K004 | 過濾器用快速接頭 Water Pipe Fitting For Filter | DWC-CX,FX,RA,FA | ||

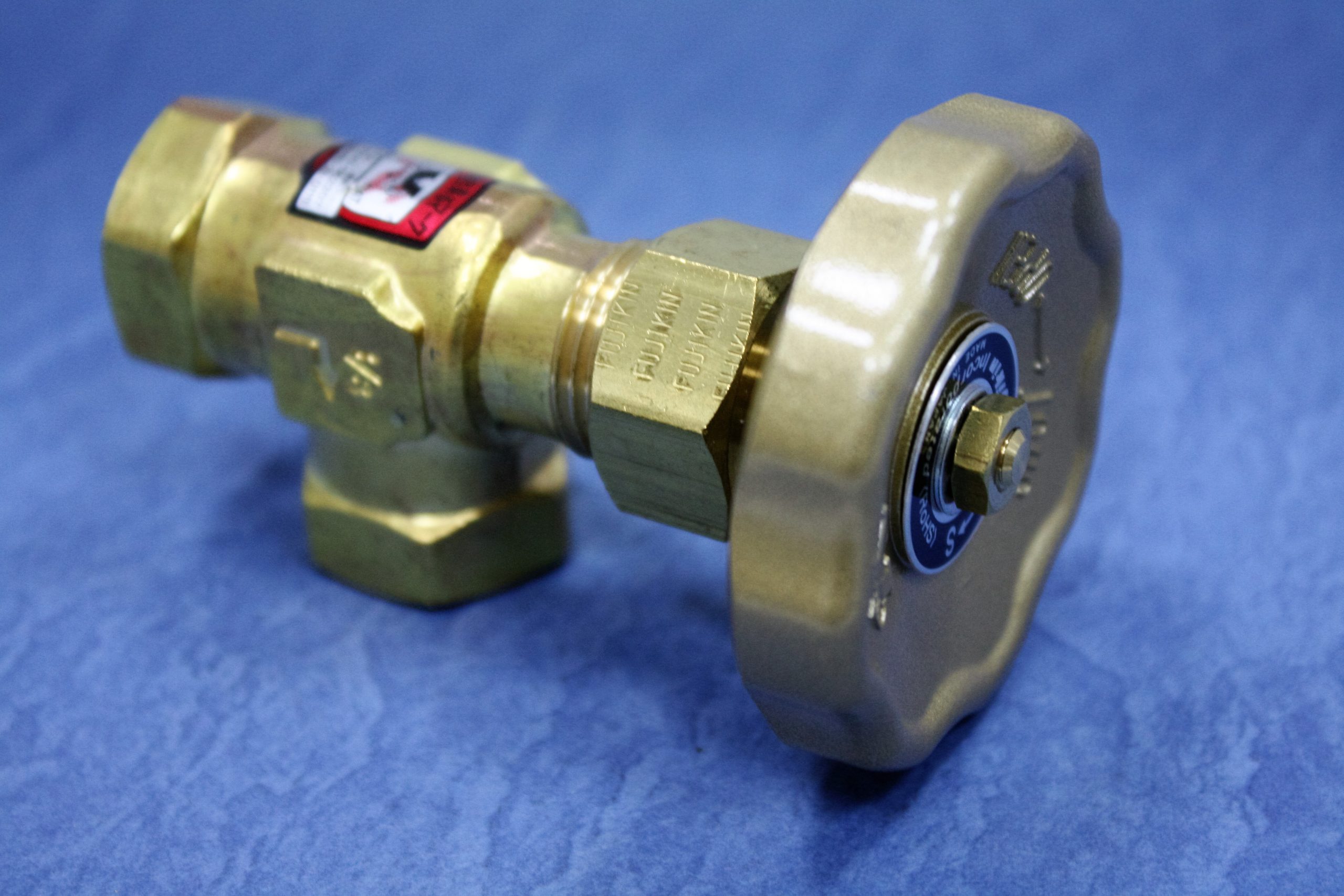

 | K007 | 上下機頭流量針閥 Needle Beside Flow Meter | DWC-F1,G,H,H1,HA | ||

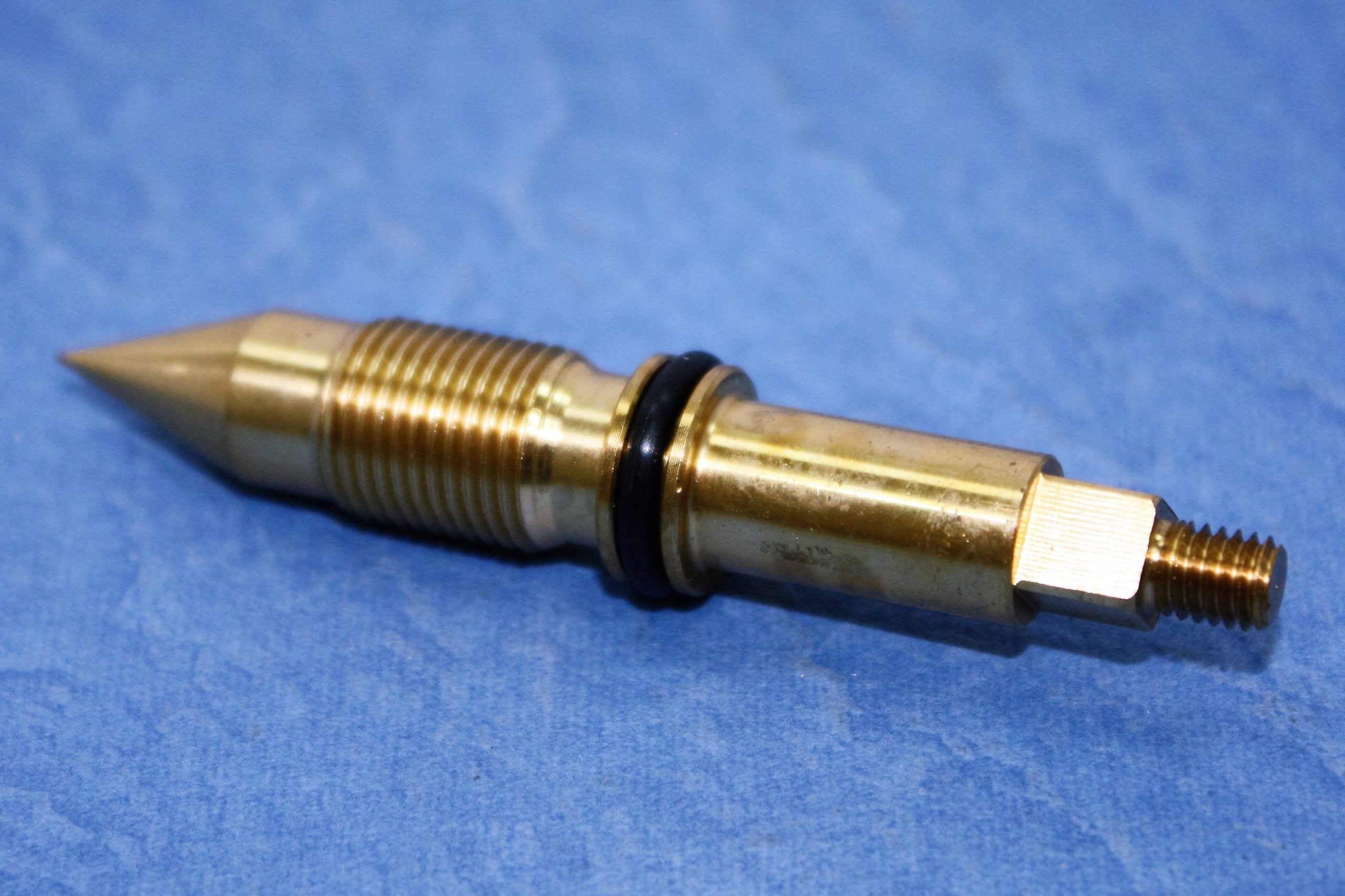

 | K007-1 | 流量針閥用止水針 Needle Beside Flow Meter 12D×67L |
| 圖片 | 編號 | 位置 | 品名尺寸 | 適用機種 | 原廠編號 |
|---|---|---|---|---|---|

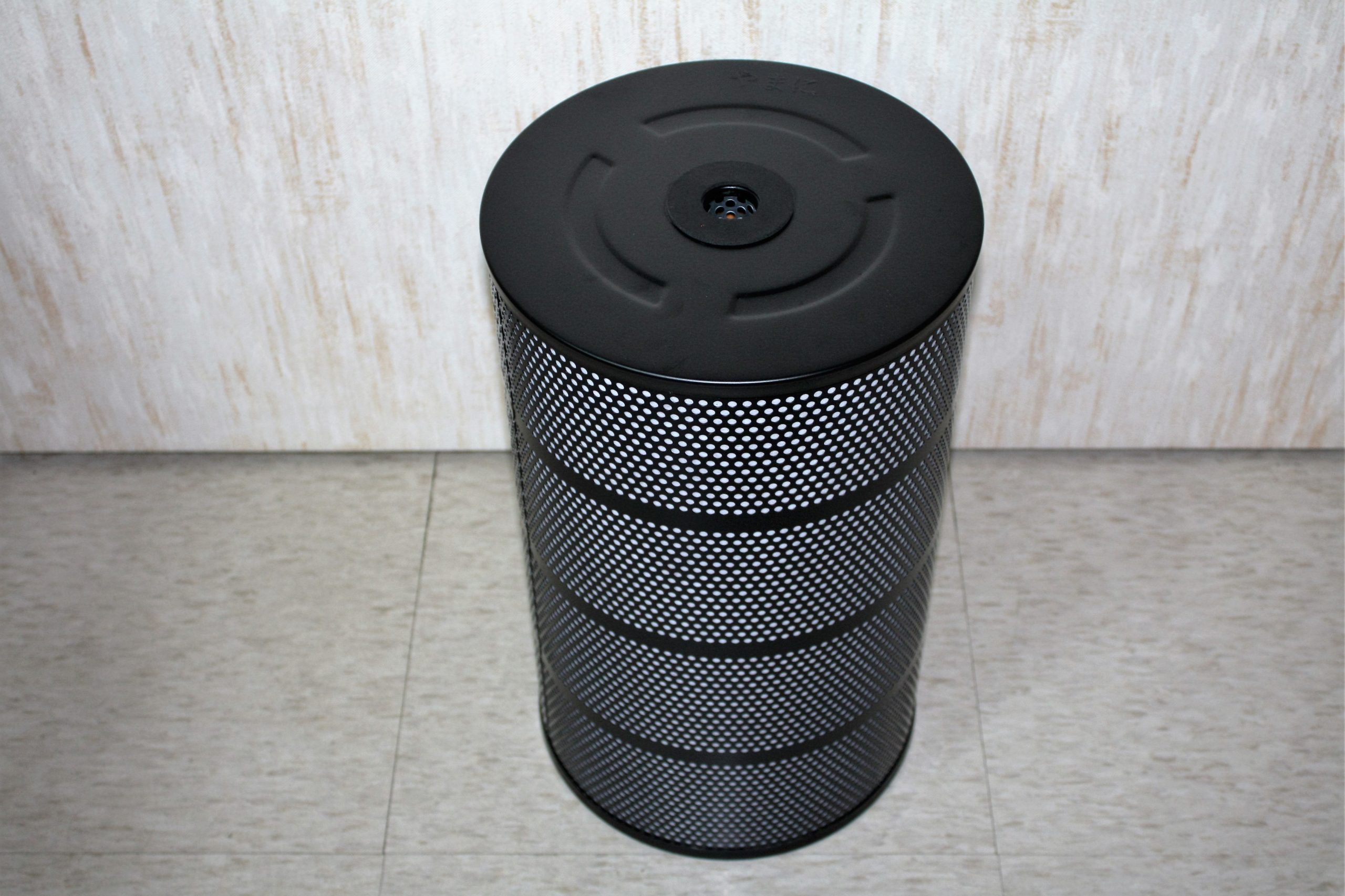

 | SW-20 | 300 × 29 × 500 | DWC-F,G,H,H',H1,HA | ||

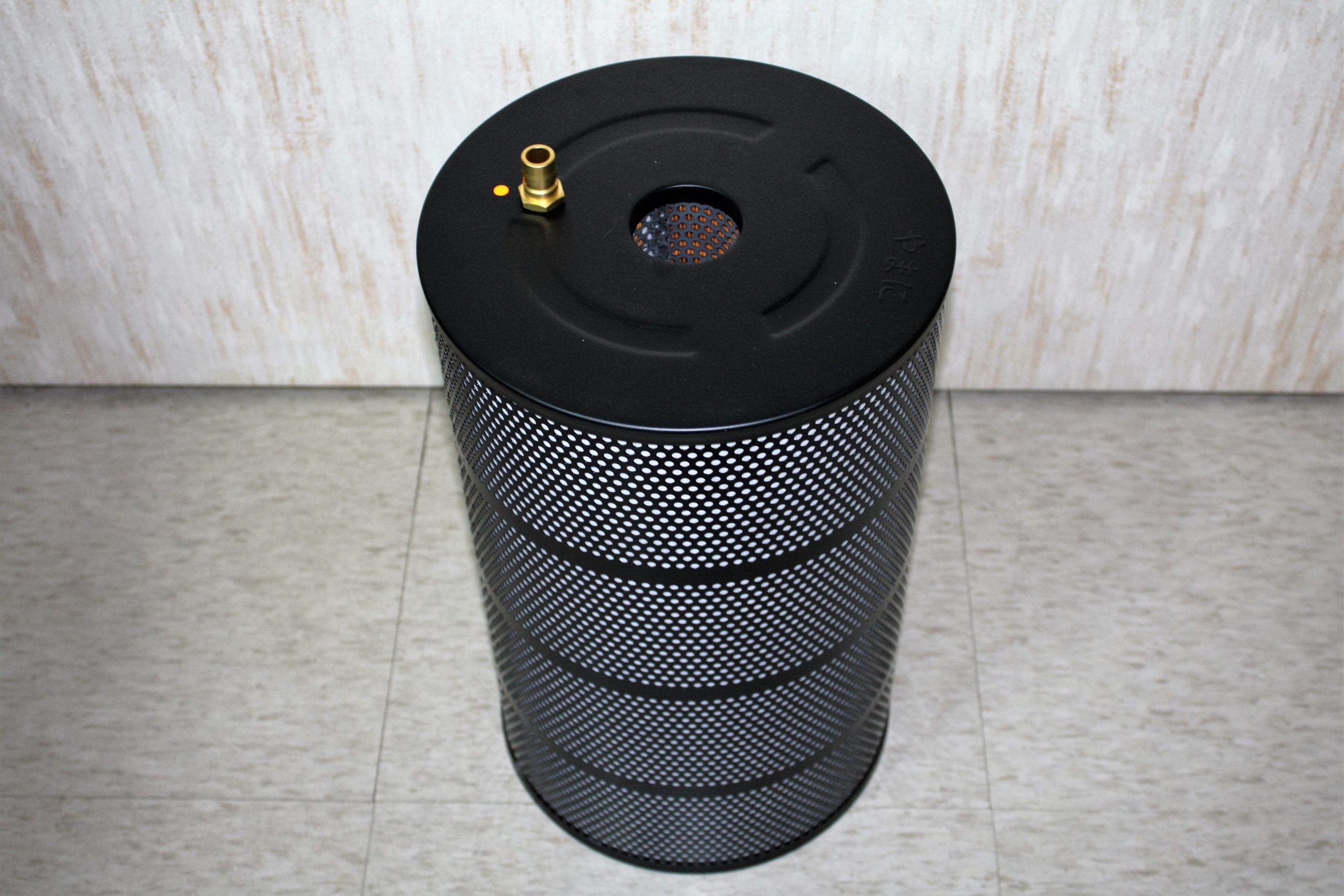

 | SW-40 | 300 × 59 × 500 | DWC-FX,FA,RA,MV | ||

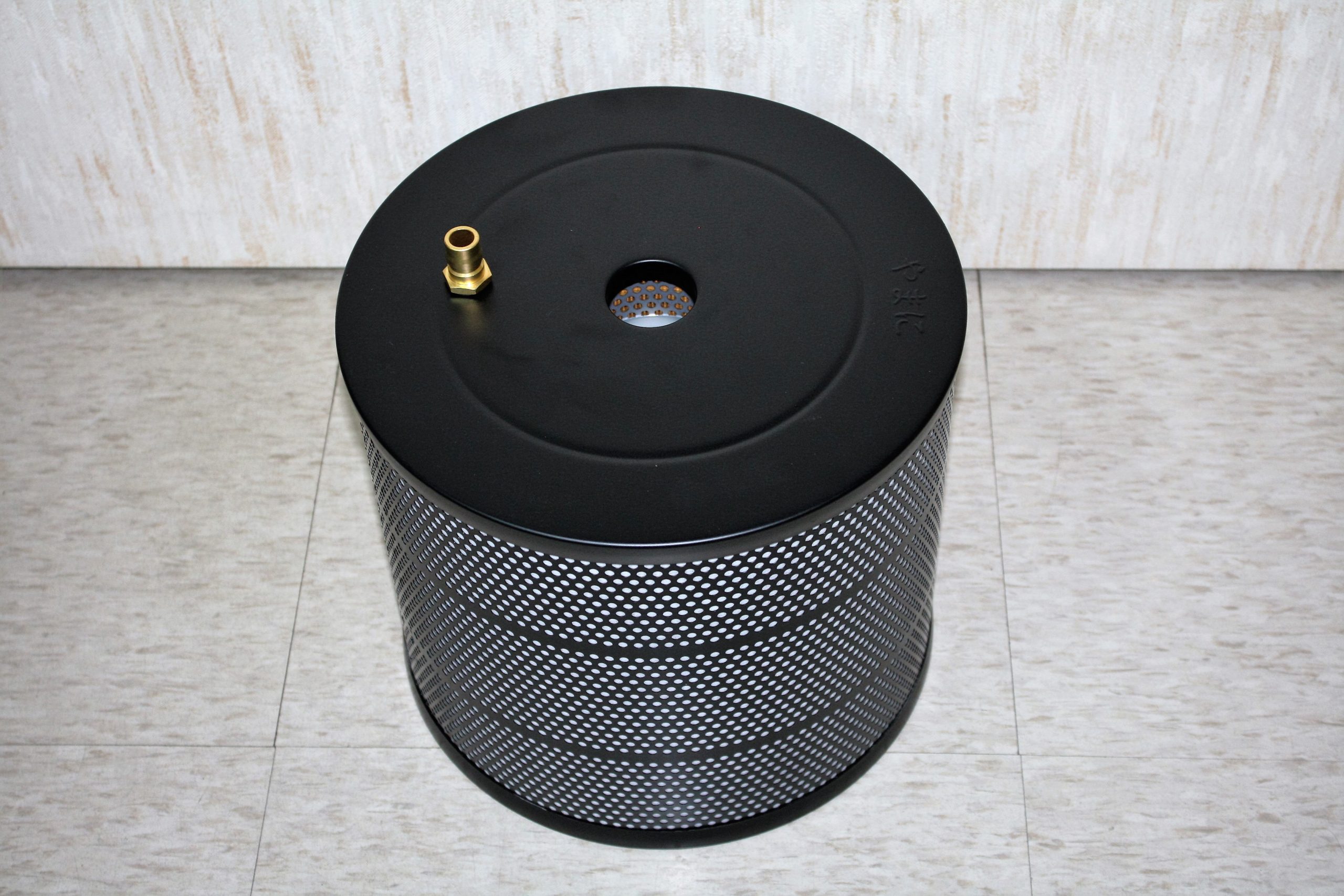

 | SW-340FK | 340 × 300 | DWC-FX,FA,RA | ||

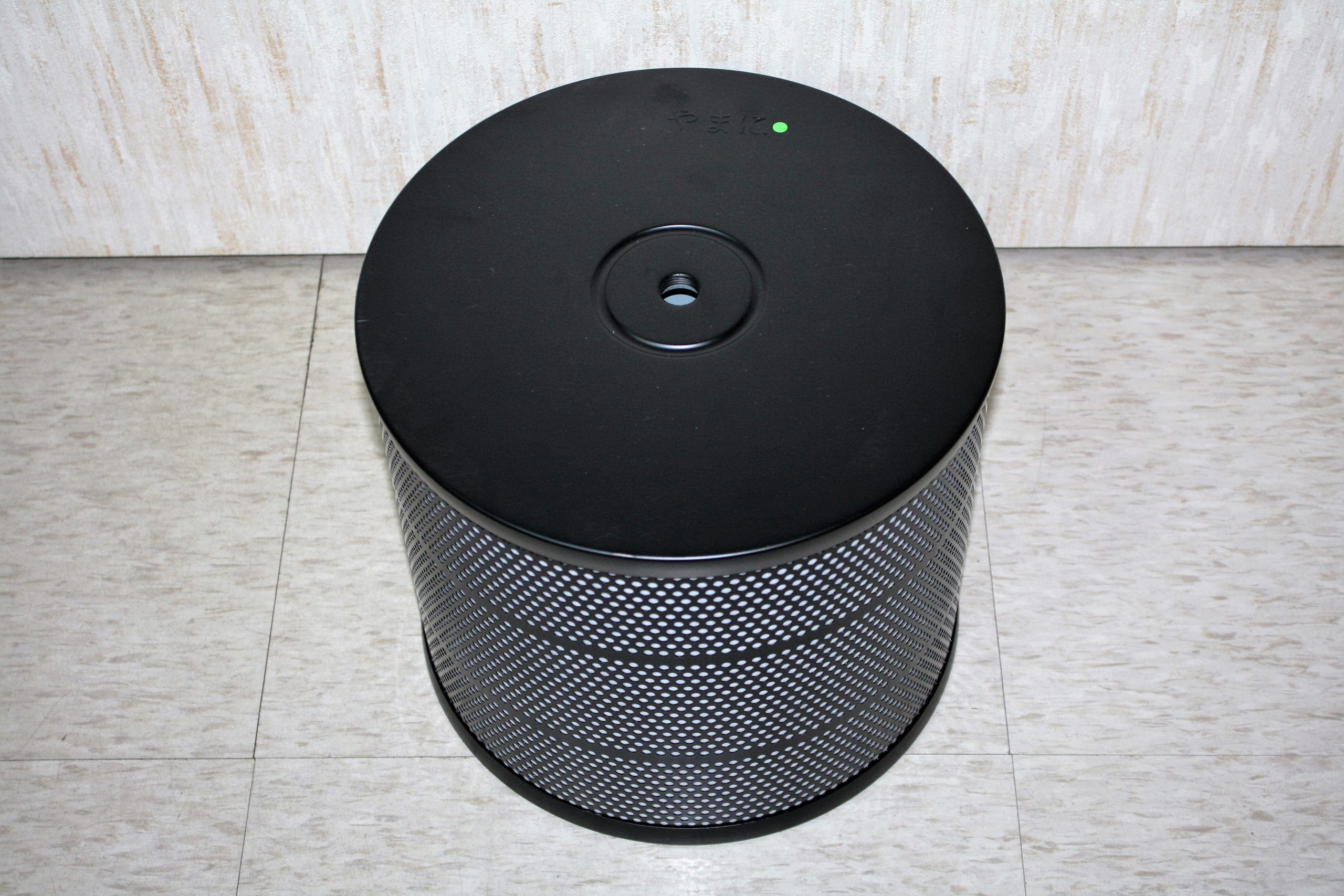

 | SW-340FKM | 340 × 300 | DWC-FA,MV | ||

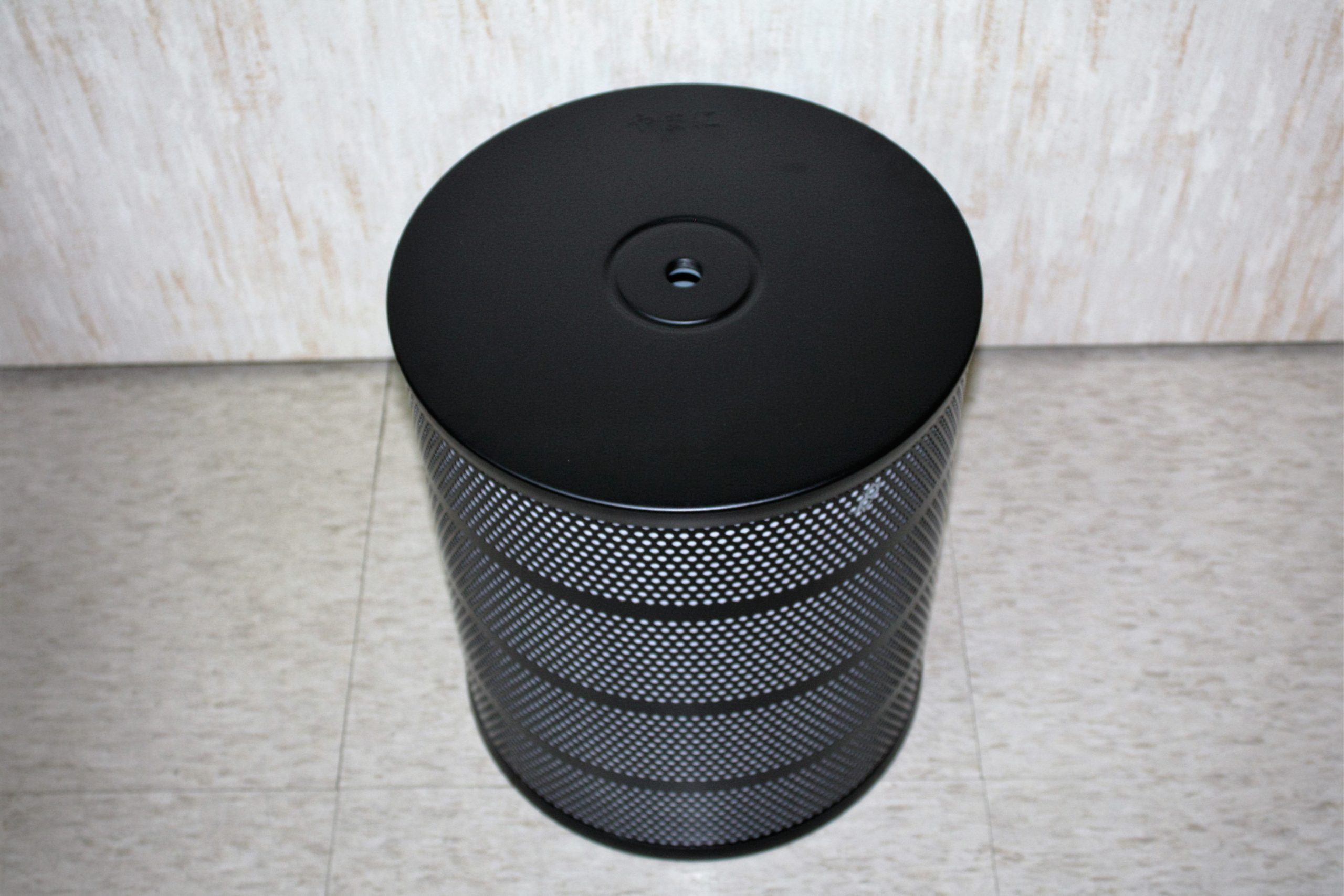

 | SW-340ML | 340 × 400 | DWC-FA,MV |
