| 圖片 | 編號 | 位置 | 品名尺寸 | 適用機種 | 原廠編號 |
|---|---|---|---|---|---|

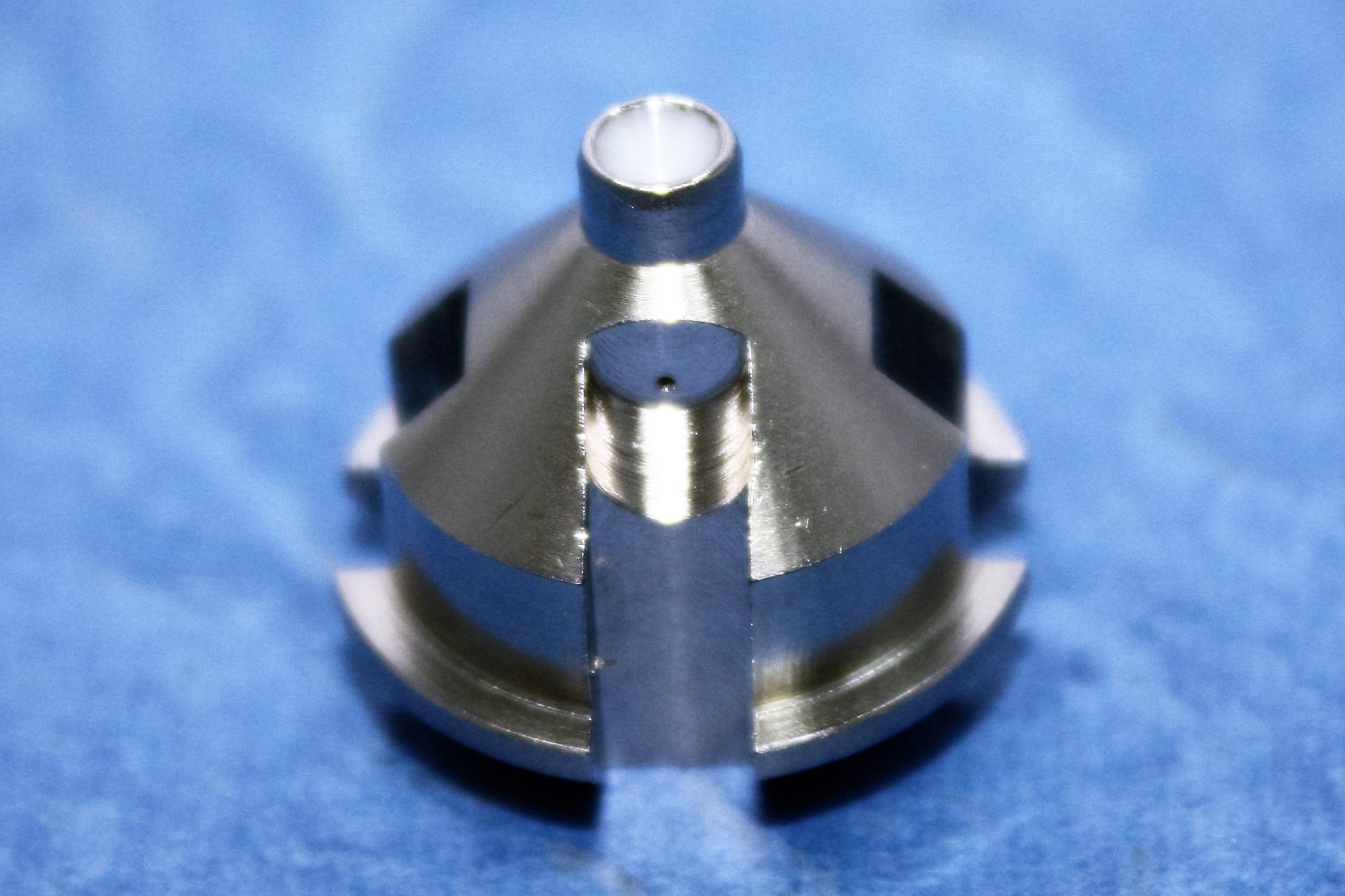

 | S111 | Upper & Lower | 鑽石眼膜 Wire Guide 0.105~0.305mm 0.11~0.31mm | EW-F,K,K1 (Manual/AWF) | 4451771 |
 | S112 | Upper & Lower | 鑽石眼膜 Wire Guide 0.105~0.305mm 0.11~0.31mm | EW-K2,K3 (Manual/AWF) | 4466333 |

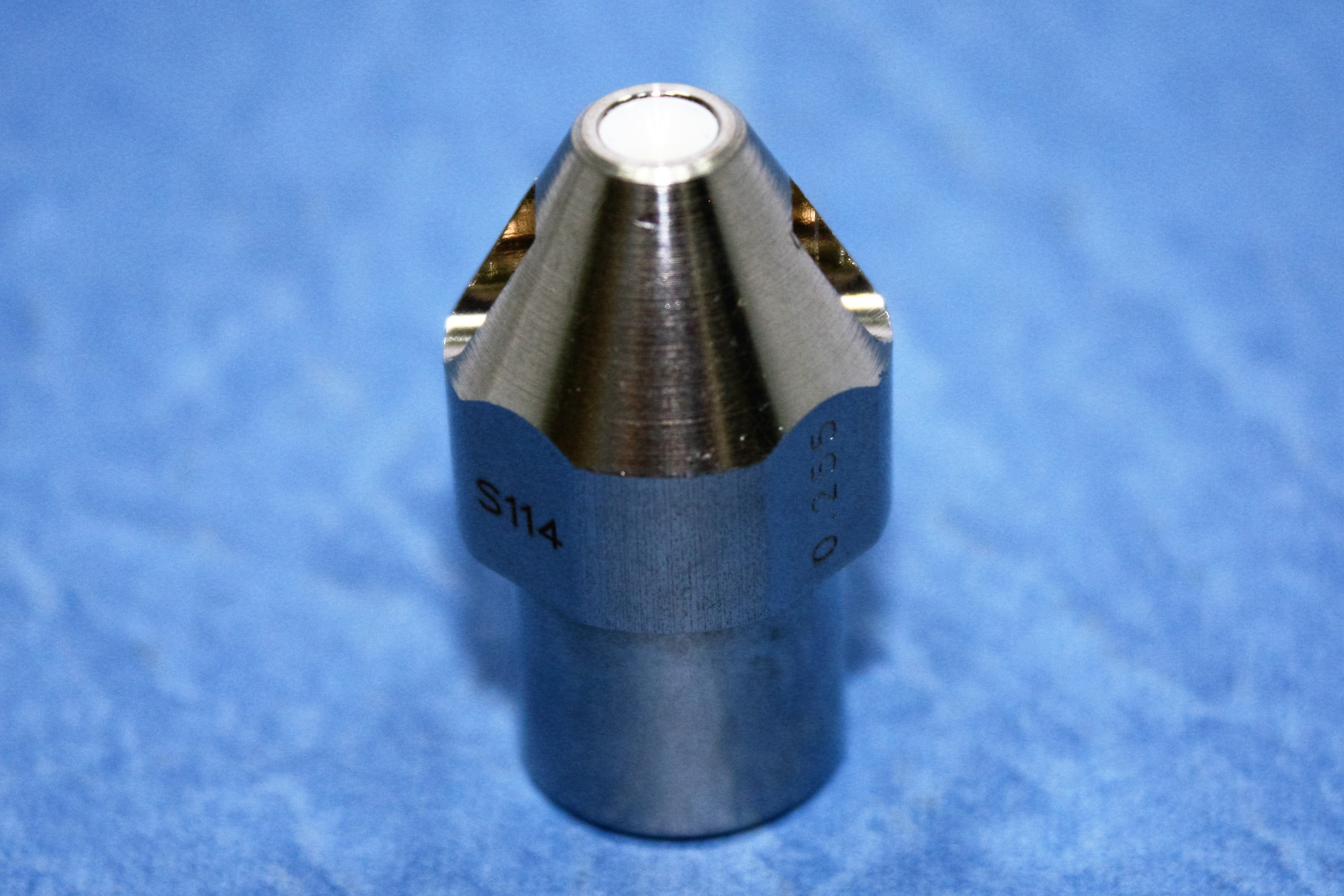

 | S114 | Upper & Lower | 鑽石眼膜 Wire Guide 0.105~0.305mm 0.11~0.31mm | EW-A5S,A7S,B3S3,CS,C5S,C5S2,M3S,5S,7S (AWF) | 3438115 |

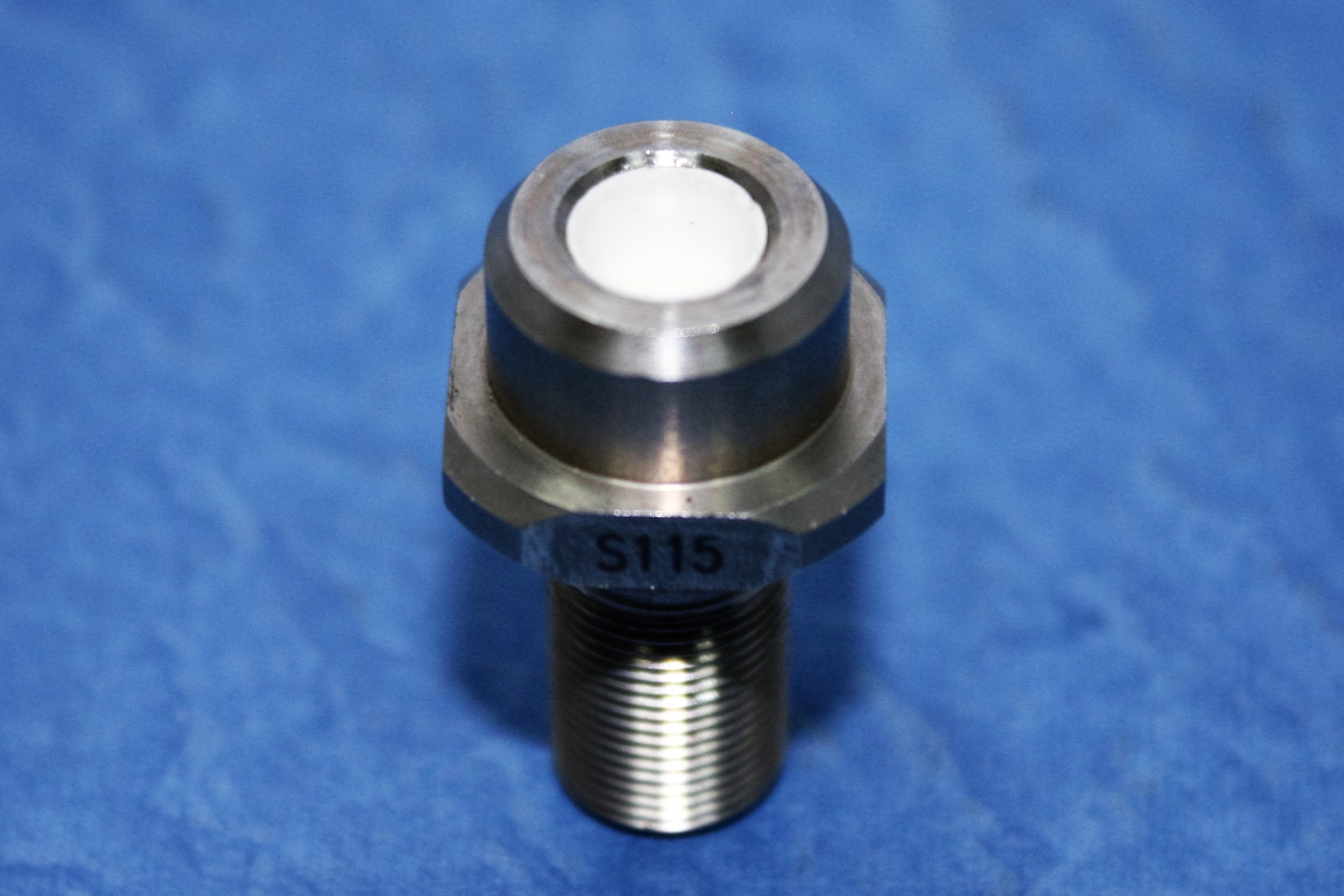

 | S115 | Upper & Lower | 鑽石導引眼膜 0.4mm Wire Guide | EW-A5S,A7S,B3S3,CS,C5S,C5S2,M3S,5S,7S (AWF) | 4461551 |

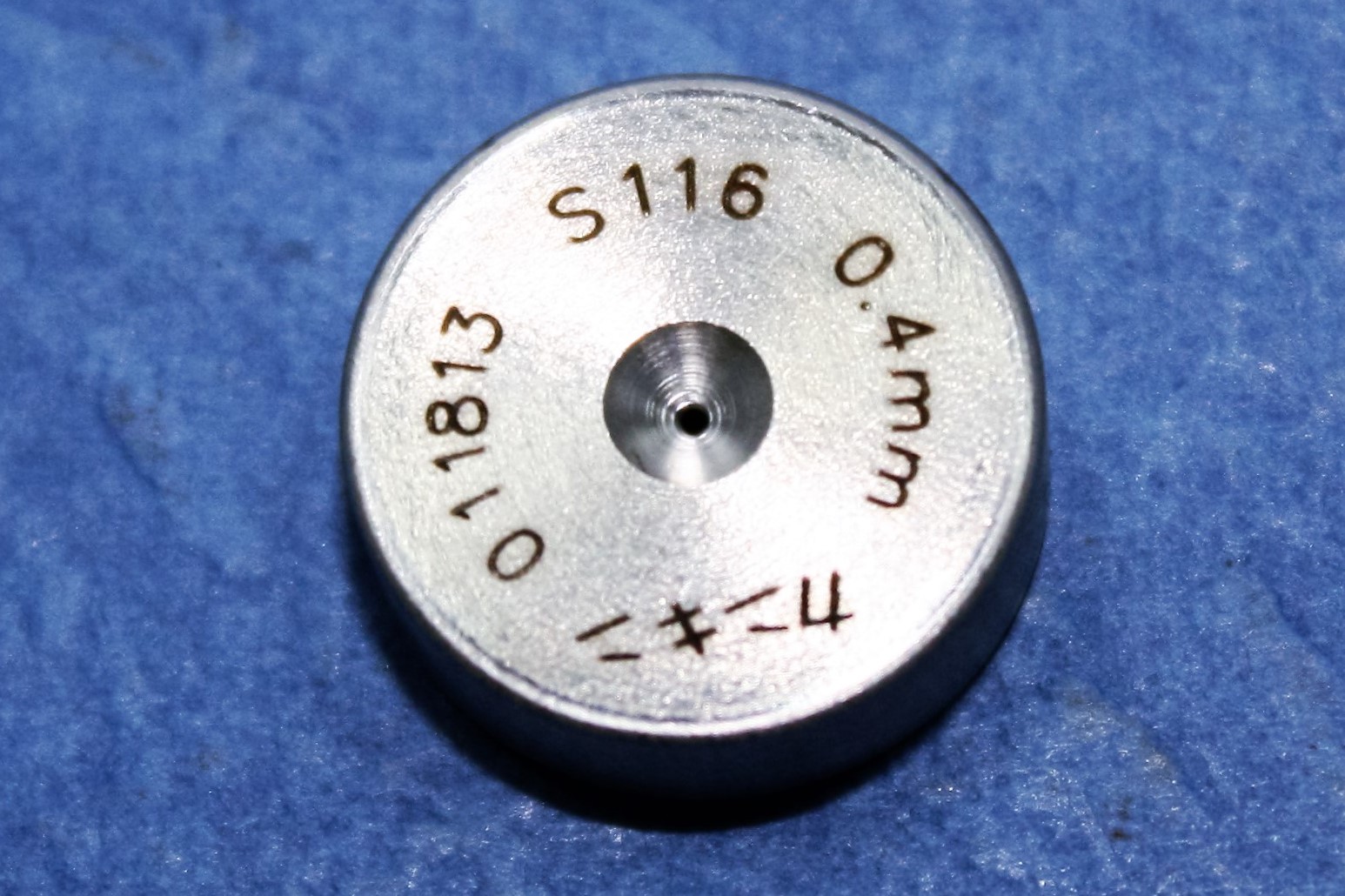

 | S116 | Upper & Lower | 鑽石導引眼膜 0.4mm Wire Guide | EW-A5S,A7S,B3S3,CS,C5S,C5S2,M3S,5S,7S (AWF) | 4558910 |
| 圖片 | 編號 | 位置 | 品名尺寸 | 適用機種 | 原廠編號 |
|---|---|---|---|---|---|

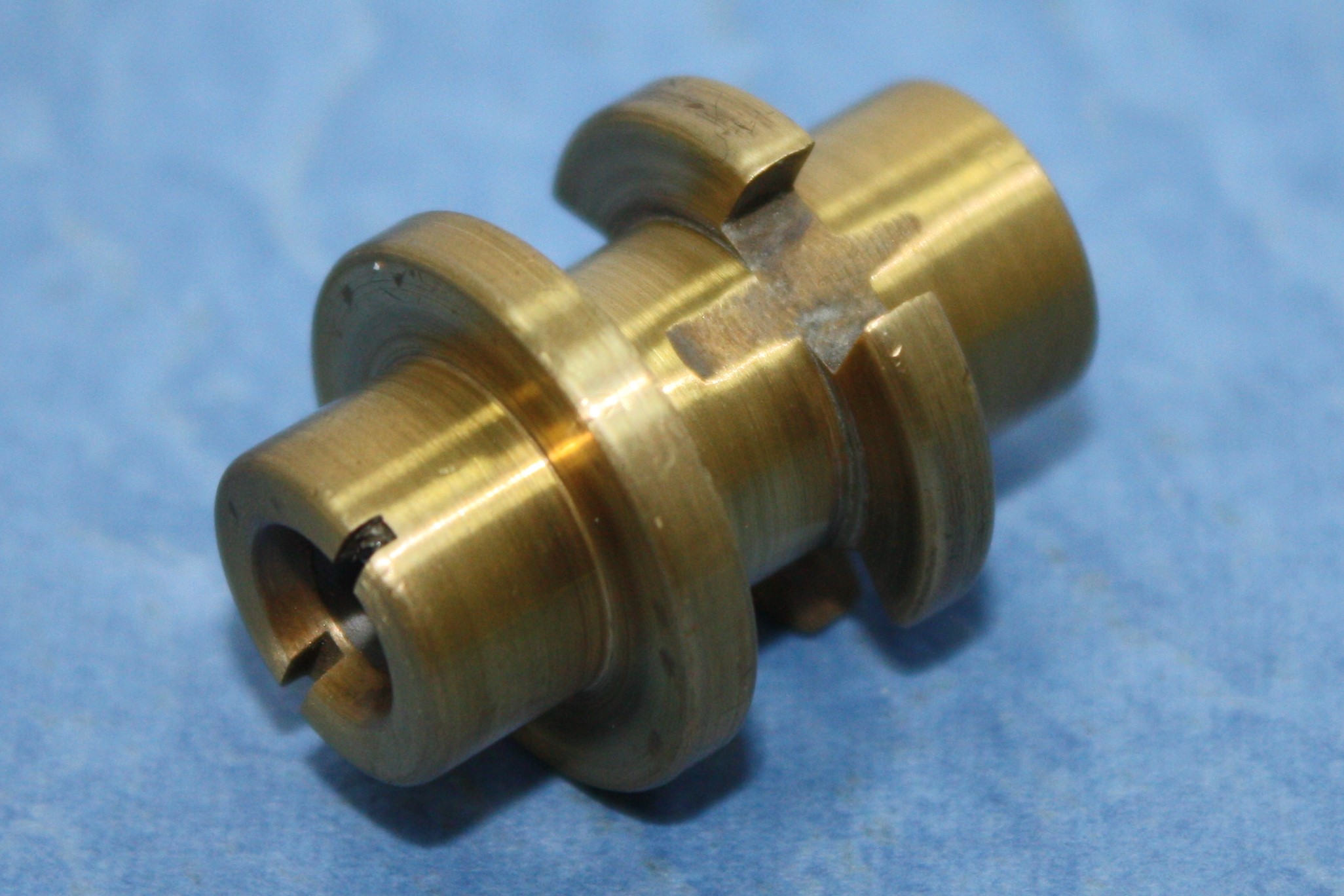

 | S022 | Upper & Lower | 給電板 S022 Power Feed Contact 12 × 28 | EW-F,K,K1 (Manual/AWF) | 4456239 4435332 |

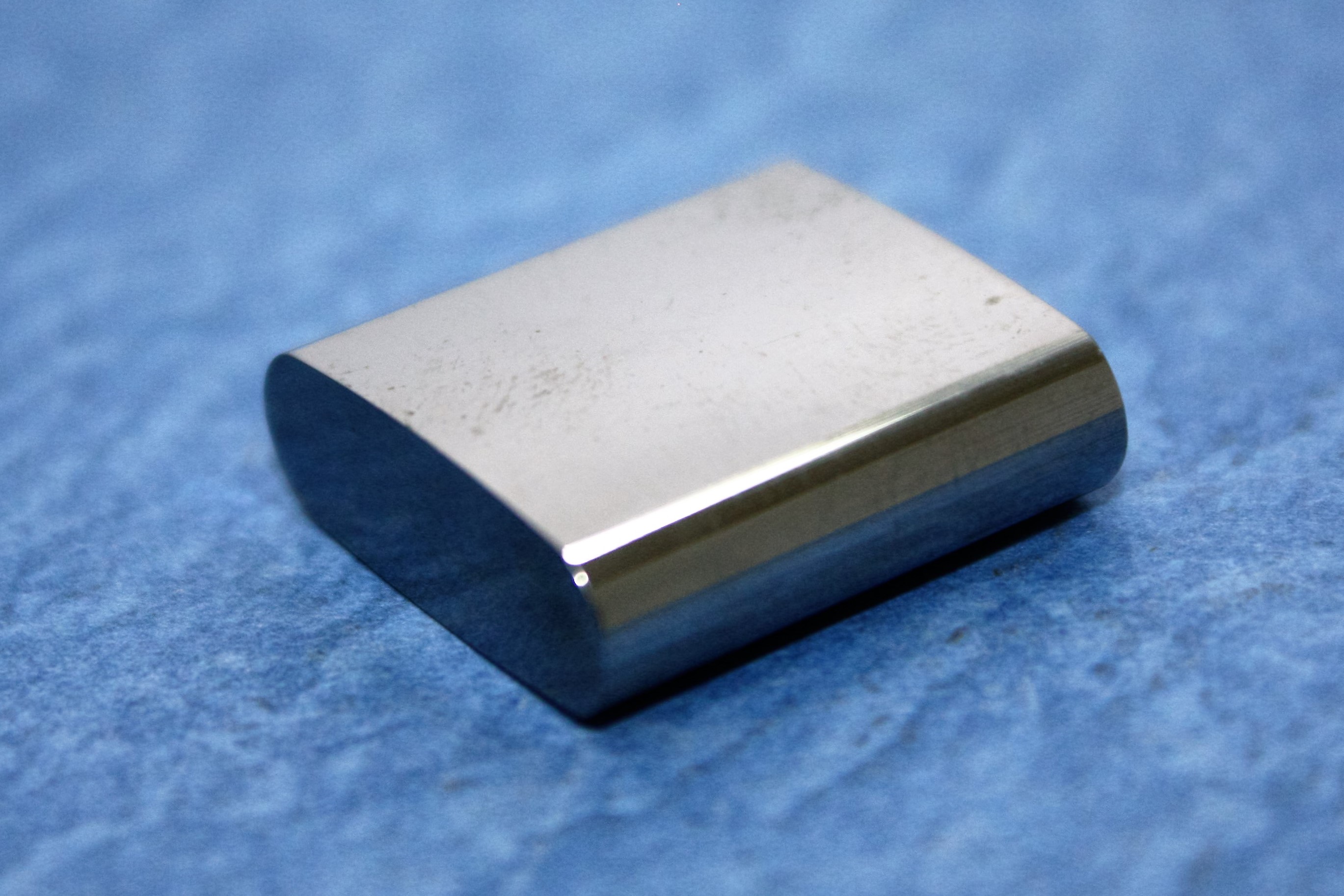

 | S023 | Upper & Lower | 給電板 S023 Power Feed Contact 7×20×20 | EW-A5S,A7S,B3S3,C3,C5S,C5S2 M Type (AWF) | 4469013 |

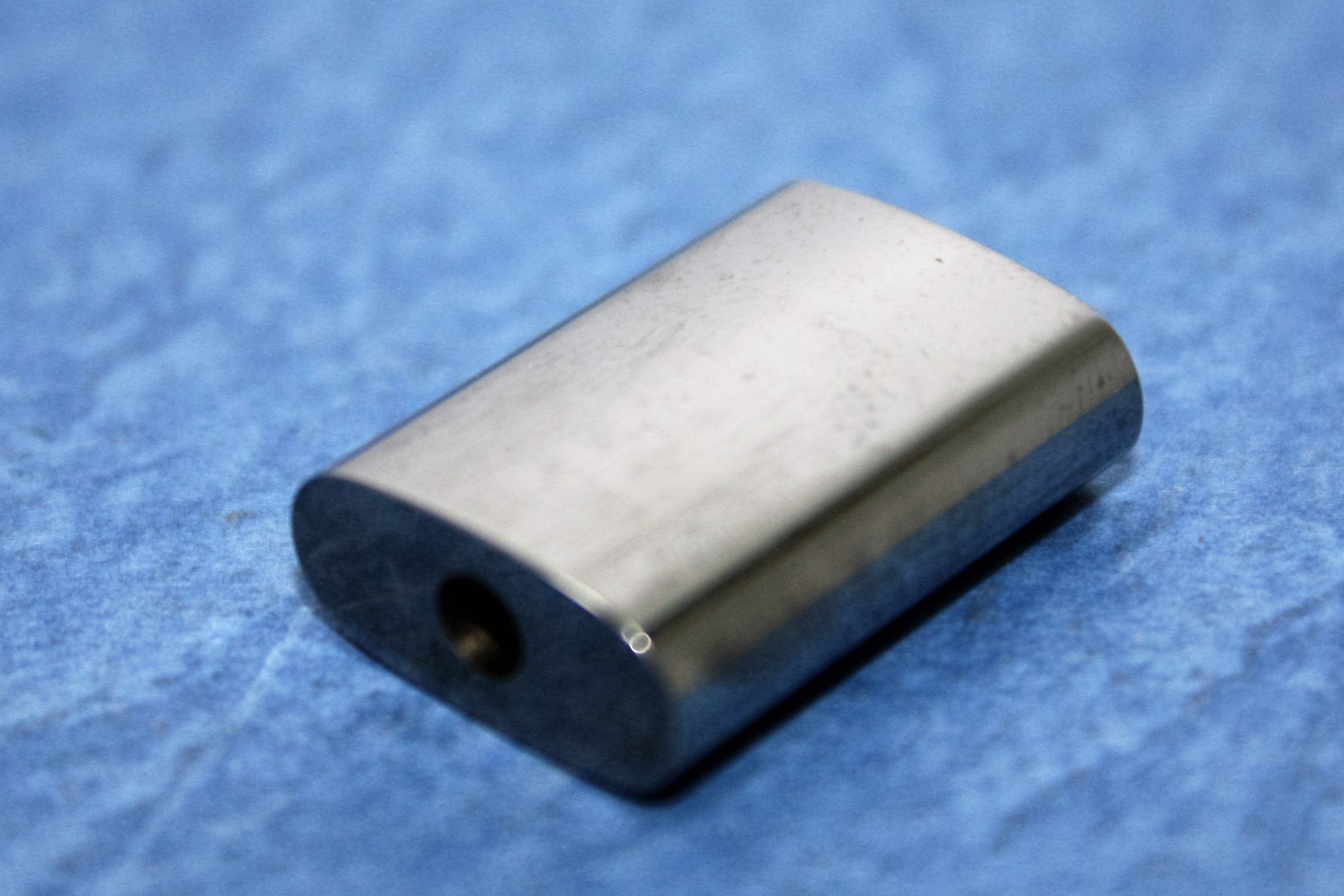

 | S024 | Upper & Lower | 給電板 S024 Power Feed Contact 7×15×20 | EW-K2,K3 (Manual/AWF) | 4463719 4469012 |
| 圖片 | 編號 | 位置 | 品名尺寸 | 適用機種 | 原廠編號 |
|---|---|---|---|---|---|

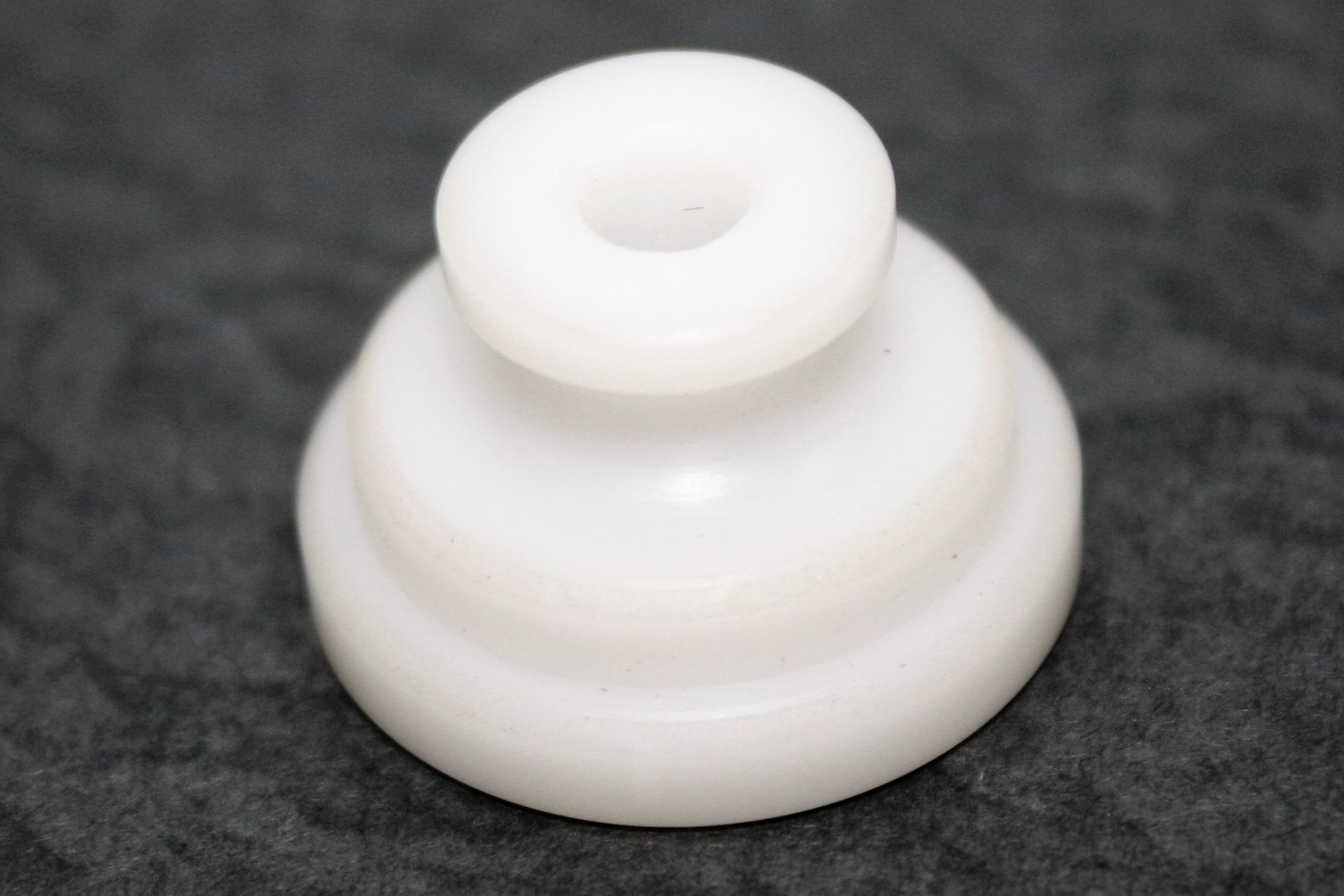

 | S212 | Upper | 上噴水頭 Water Nozzle 23Ø×14L 3Ø 5Ø | EW-K1,K2,K3 (AWF) | 5428160 |

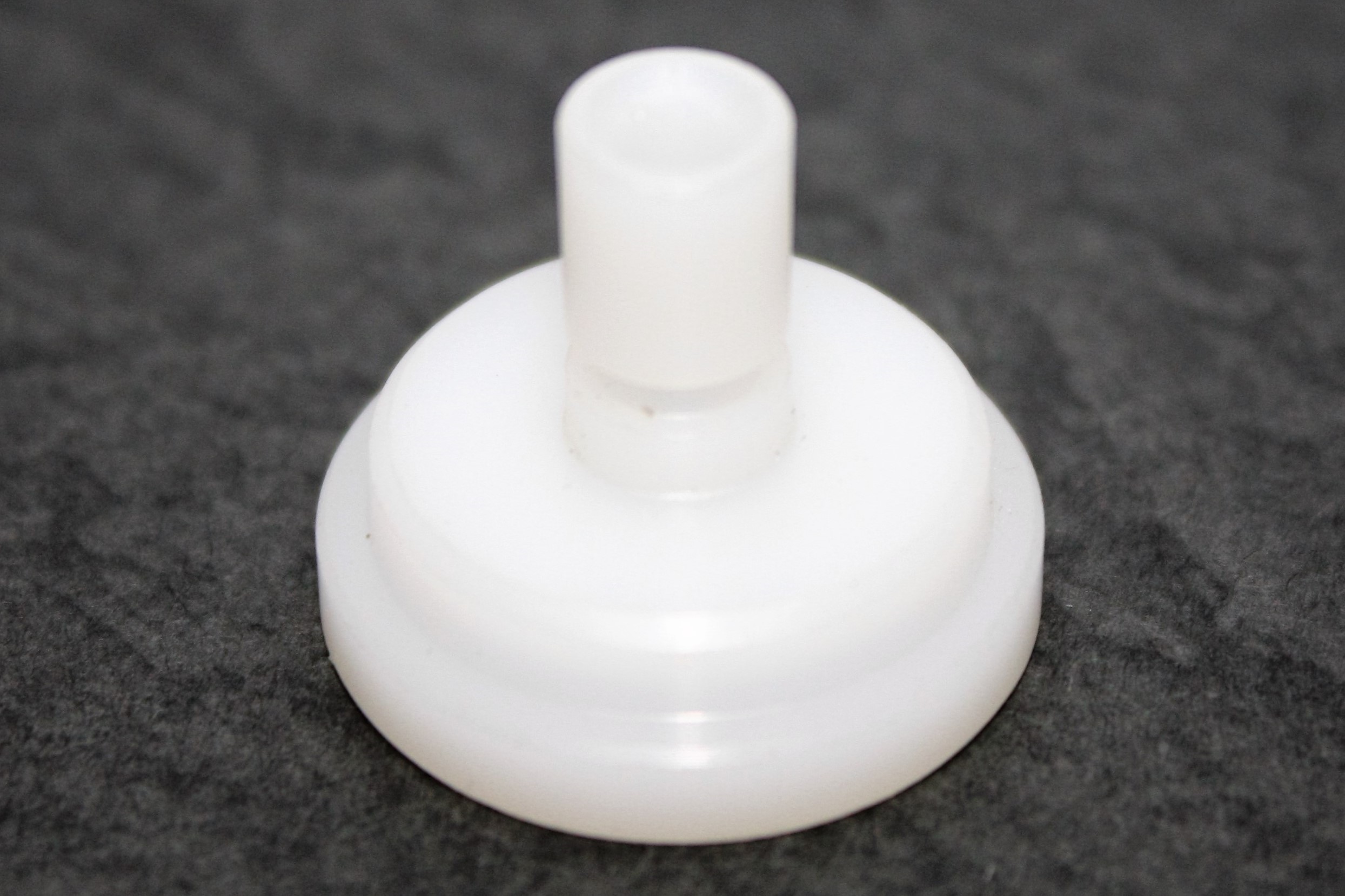

 | S212L | Upper | 上噴水頭 Water Nozzle(extend length) 5Ø+5/15/25mmL | EW-K1,K2,K3 (AWF) | |

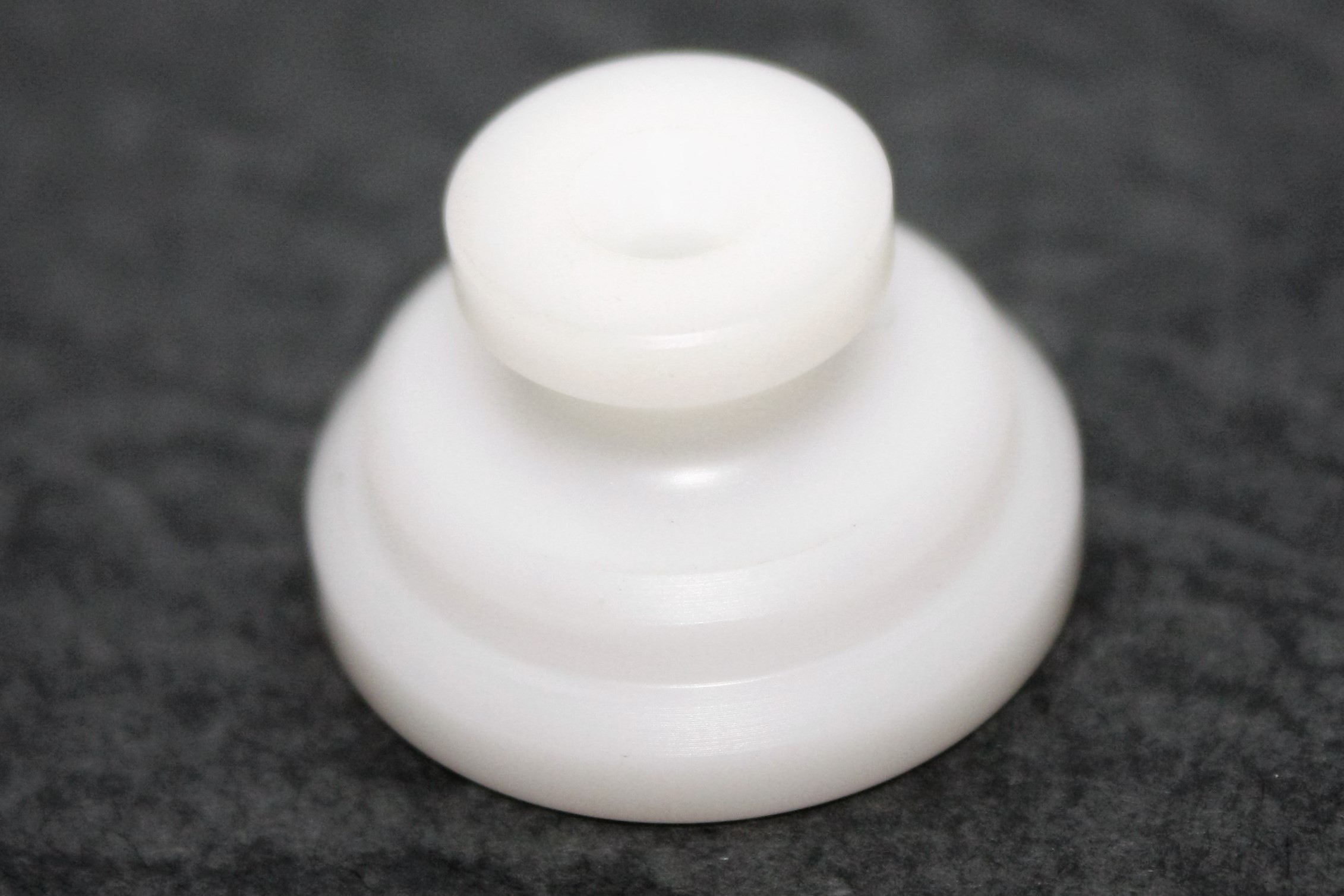

 | S213 | Lower | 下噴水頭 V型口 Water Nozzle 3Ø 5Ø | EW-E,F EW-K1,K2,K3 (Manual/AWF-2B) | 5428161 |
 | S215 | Lower | 下噴水頭 V型口 Water Nozzle 3Ø 5Ø | EW-K1,K2,K3 (AWF) | |
| S215L | Lower | 下噴水頭 Water Nozzle 7Ø | EW-K1,K2,K3 (Manual/AWF-2B) | 5424011 |

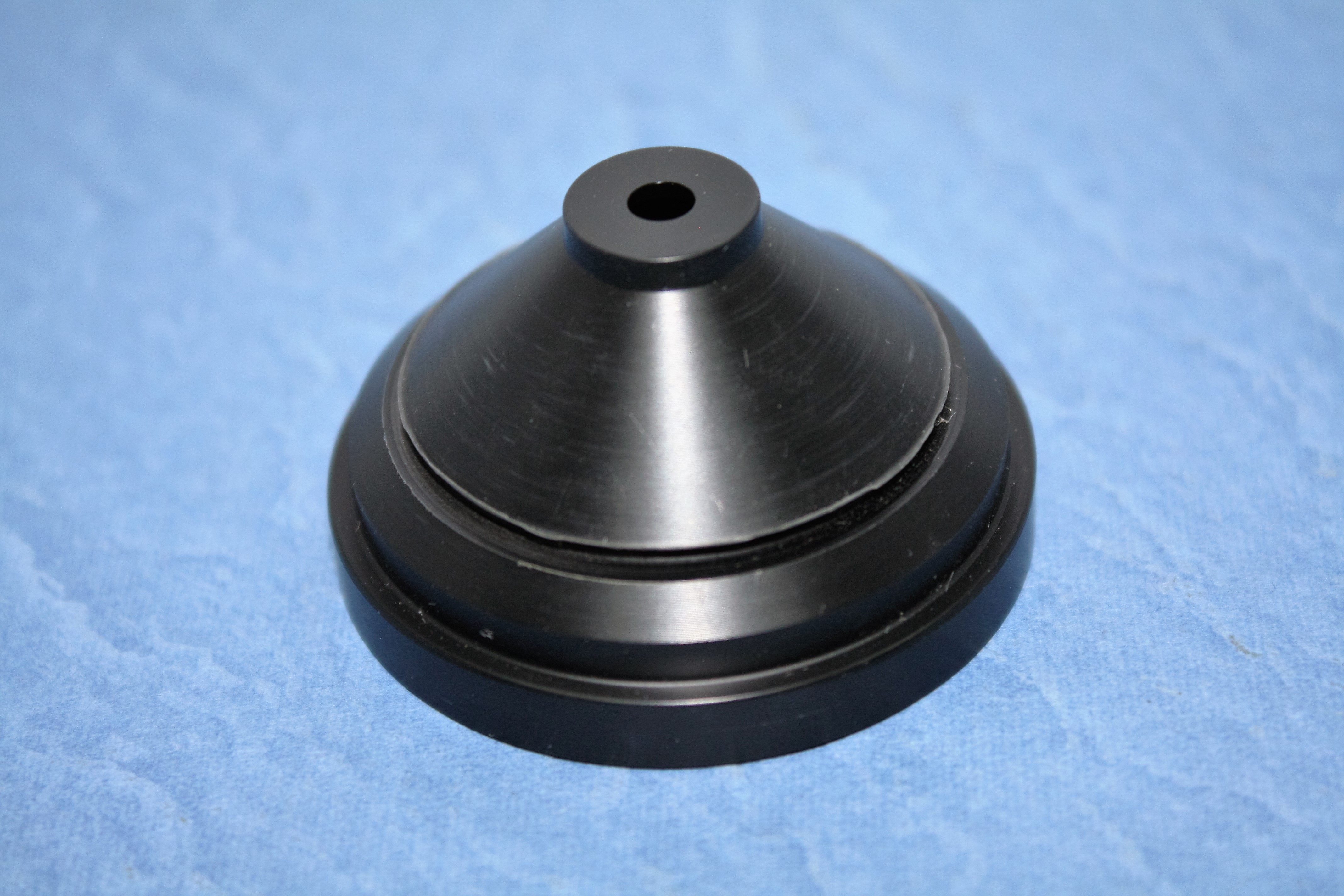

 | S218 | Upper | 上噴水頭 Water Nozzle 4Ø 6.5Ø 10Ø | EW-A5,A5S,A7S (AWF) | 4465970 |

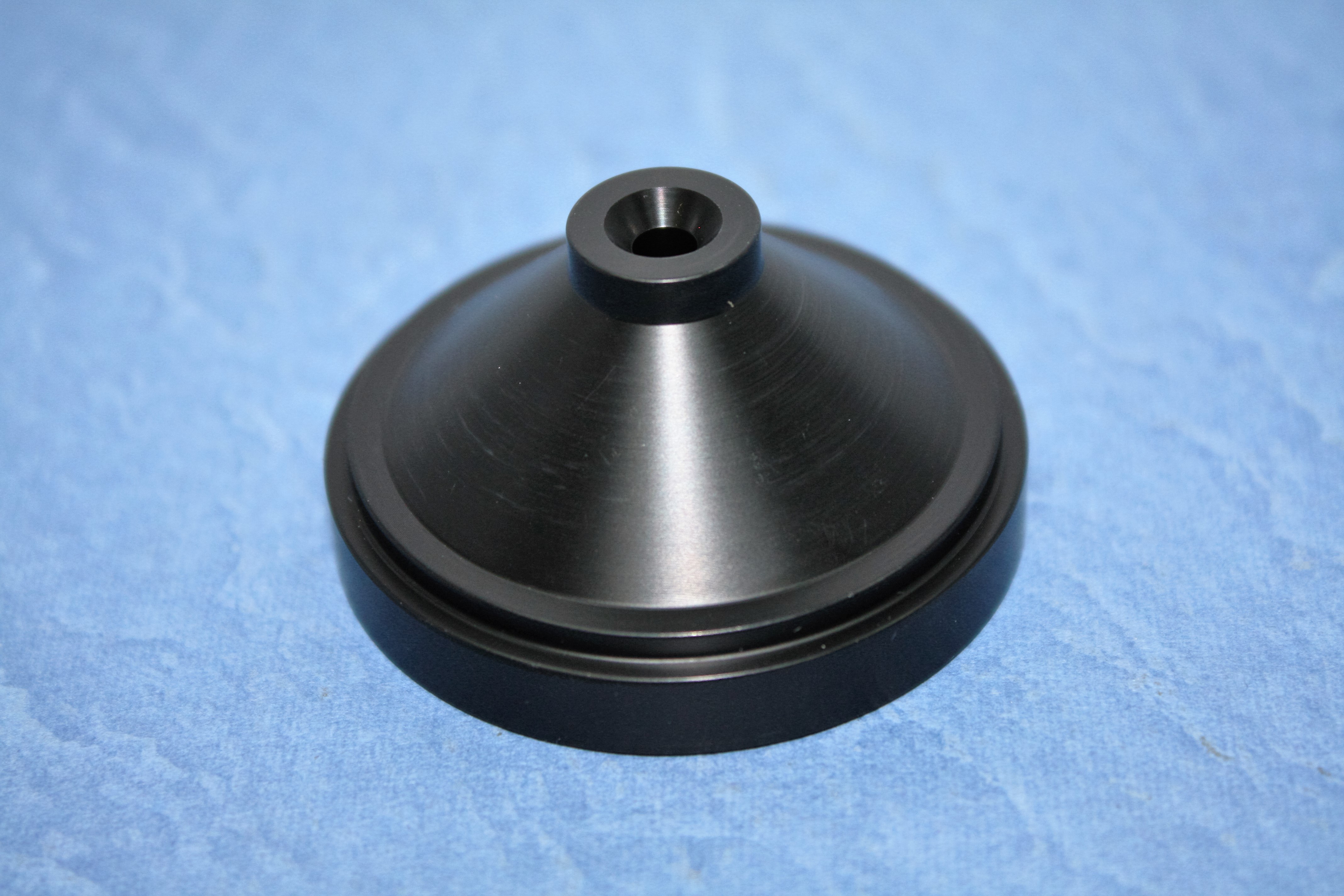

 | S219 | Lower | 下噴水頭 Water Nozzle 4Ø V型口 6.5Ø 10Ø | EW-A5,A5S,A7S (AWF) | 4465971 |

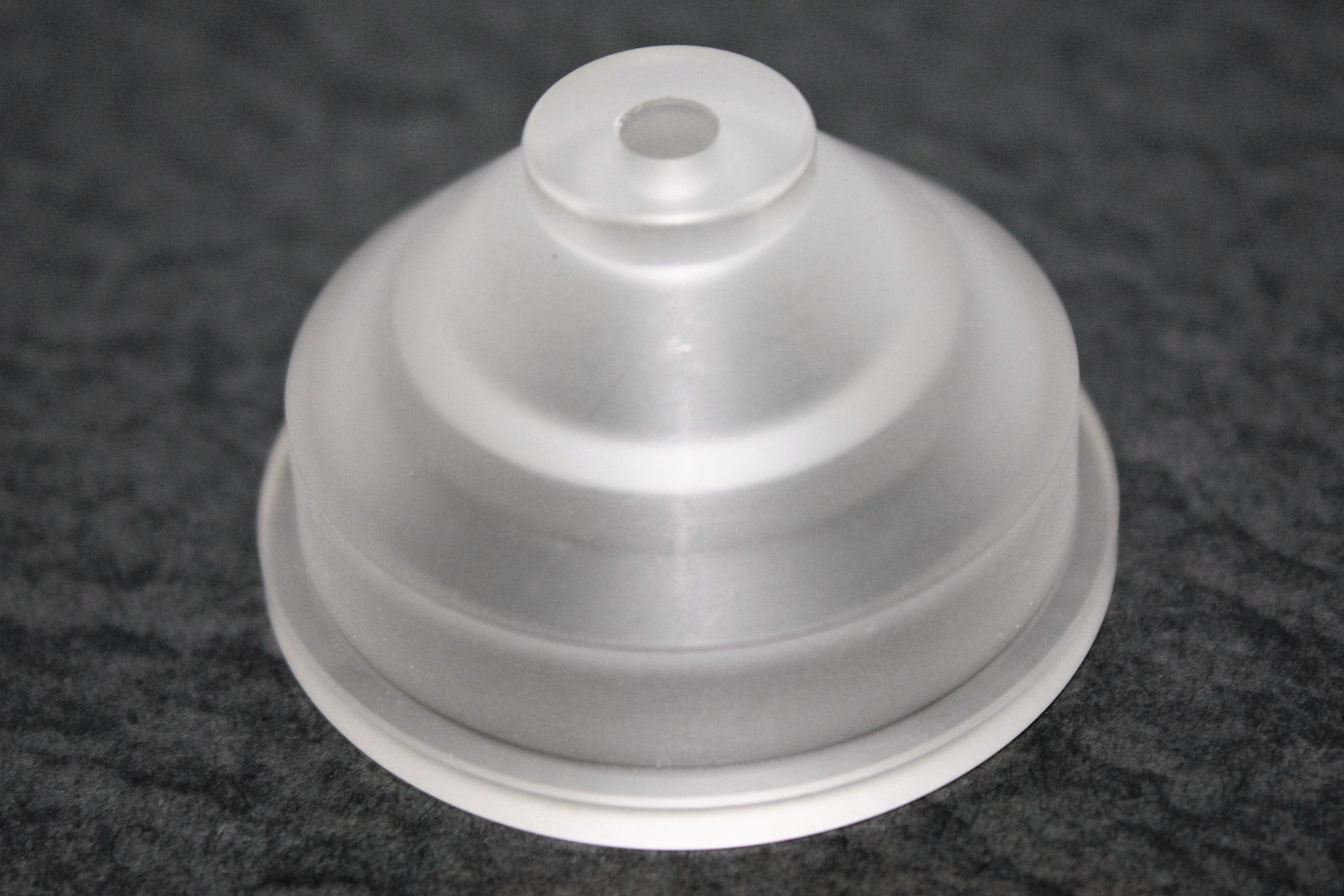

 | S220 | Upper | 上噴水頭 H:23mmL(高度) Water Nozzle 4Ø 6Ø 10Ø | EW-M500S M50A (AWF) | 4469440 |

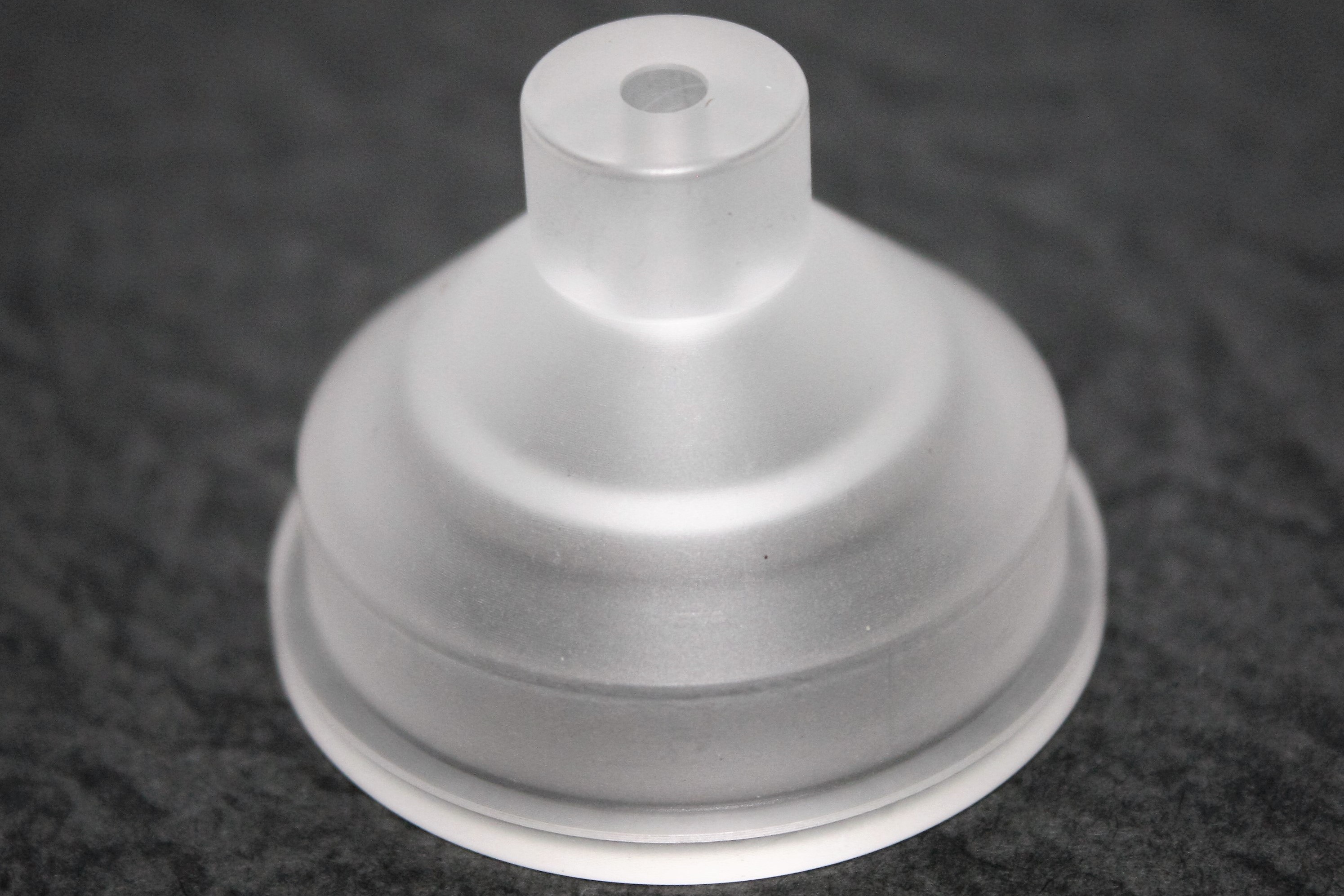

 | S220L | Upper | 上噴水頭(加高) Water Nozzle(extend length) 4Ø+5/15/25mmL | EW-B3S,B5S,C3,C5,M500S (AWF) M50A | |

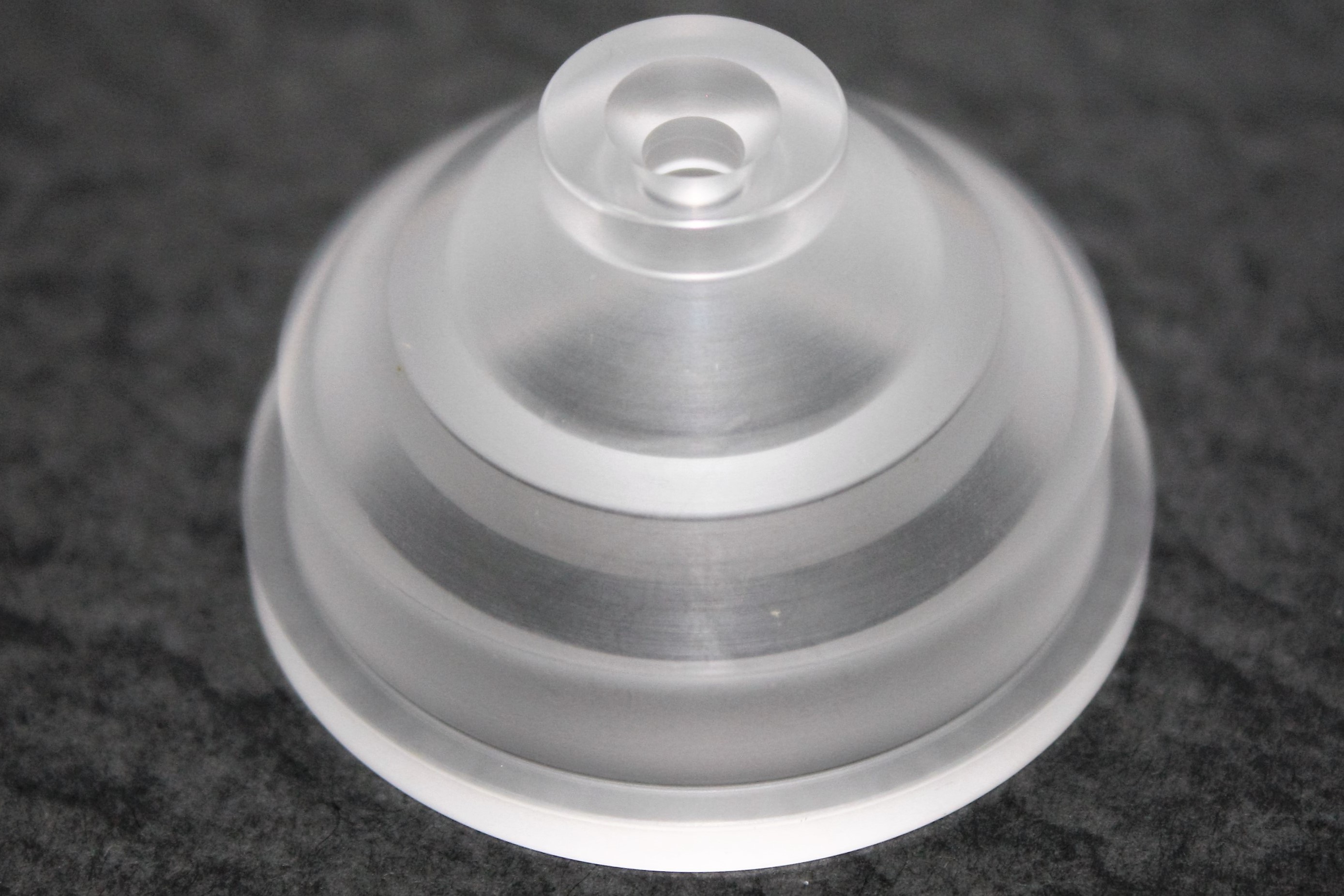

 | S221 | Lower | 下噴水頭 Water Nozzle 4 Ø V型口 6.5Ø 10Ø | EW-B3S,B5S,C3,C5,M500S (AWF) M50A | 4204528 |

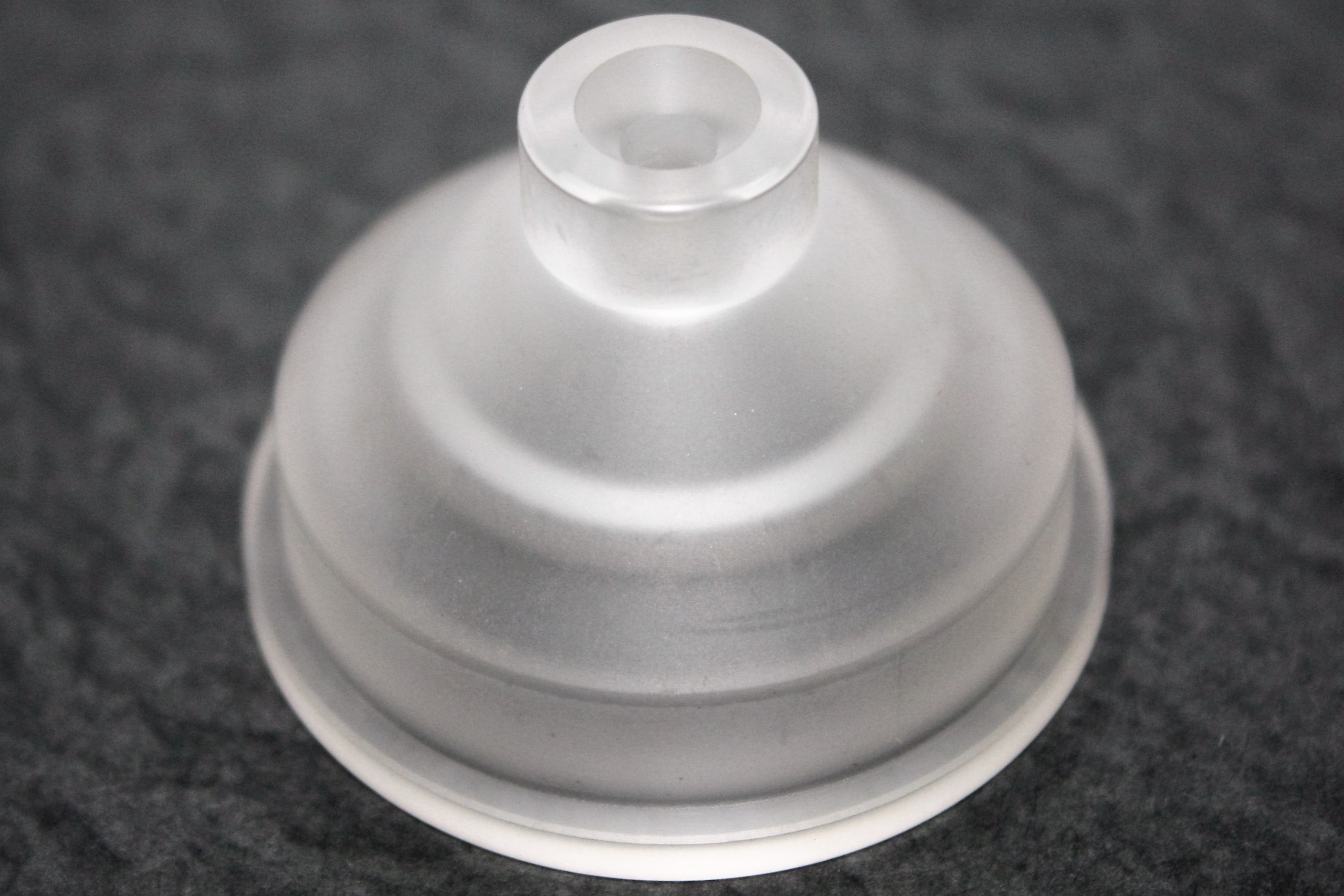

 | S221L | Lower | 下噴水頭(加高) Water Nozzle(extend length) 4 Ø+5/15/25mmL | EW-B3S,B5S,C3,C5,M500S (AWF) M50A | |

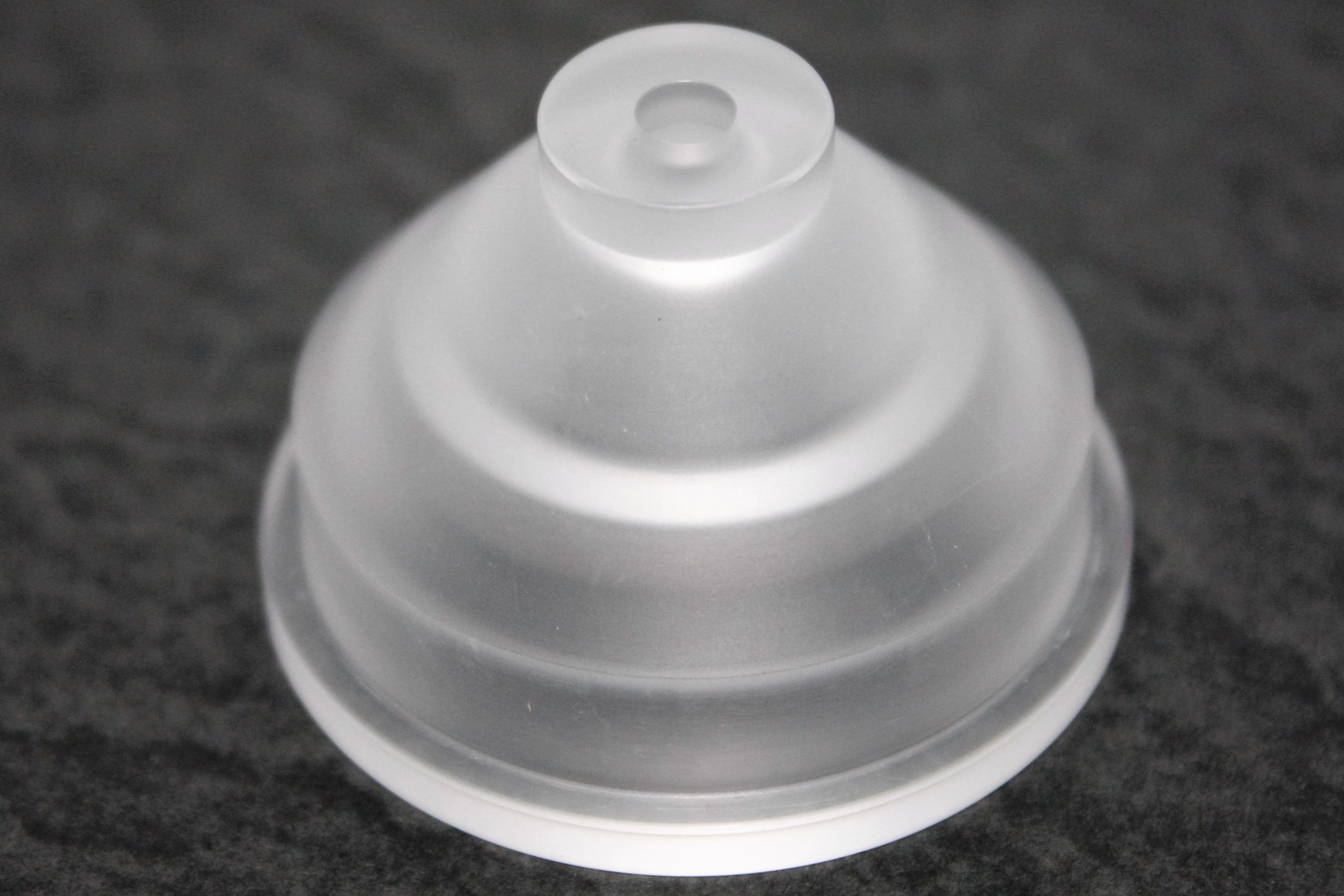

 | S222 | Upper | 上噴水頭 H:25mmL(高度) Water Nozzle 4Ø 6Ø 10Ø | EW-B3S,B5S,C3,C5 (AWF) |
| 圖片 | 編號 | 位置 | 品名尺寸 | 適用機種 | 原廠編號 |
|---|---|---|---|---|---|

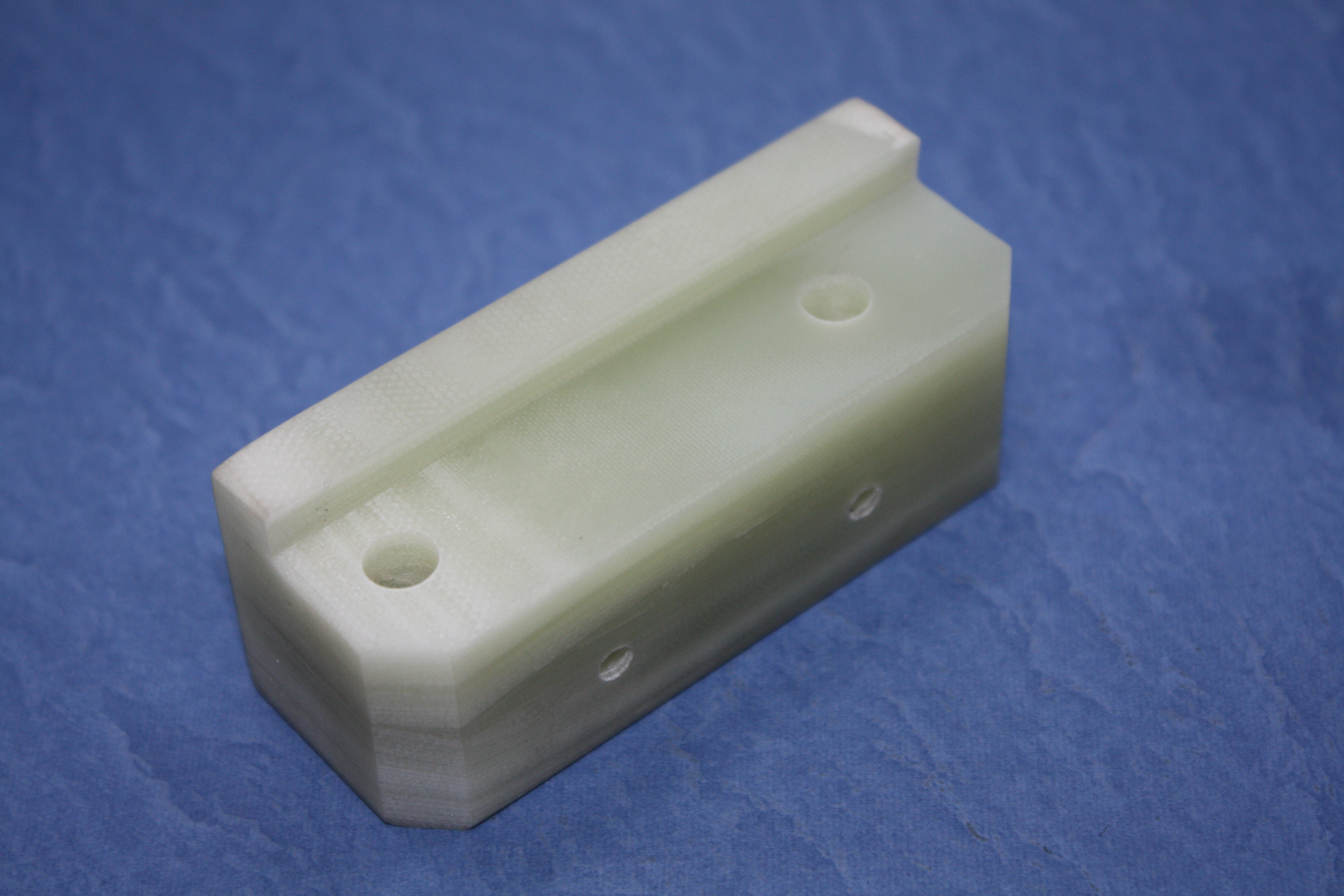

 | S301 | Lower | 下機頭絕緣塊 Lsolator Plate 76×30×27.5 | 300/450K2/K3, 600K2/K3 | |

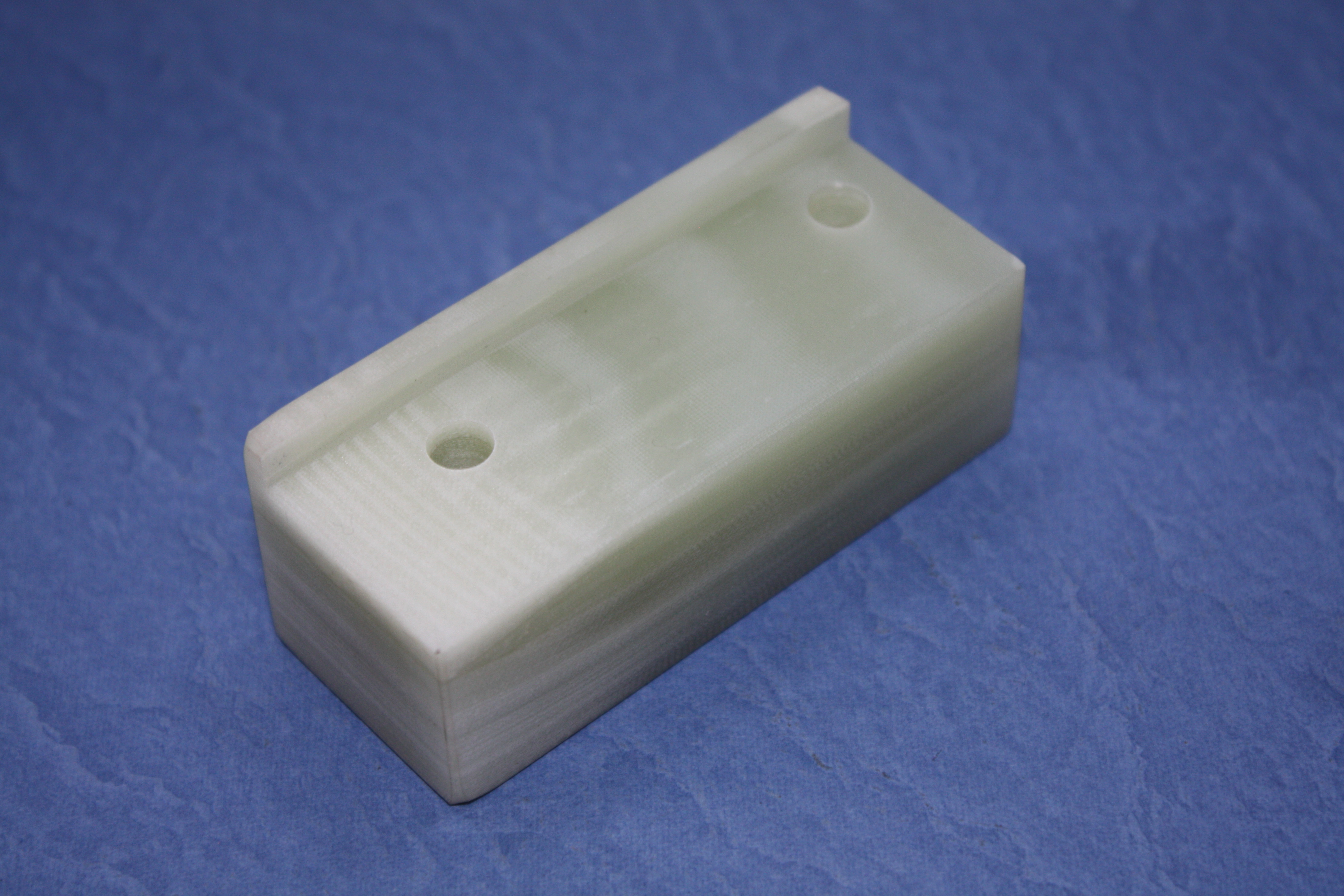

 | S302 | Lower | 下機頭絕緣塊 Lsolator Plate 76×30×30.5 | 300/450K2/K3 | |

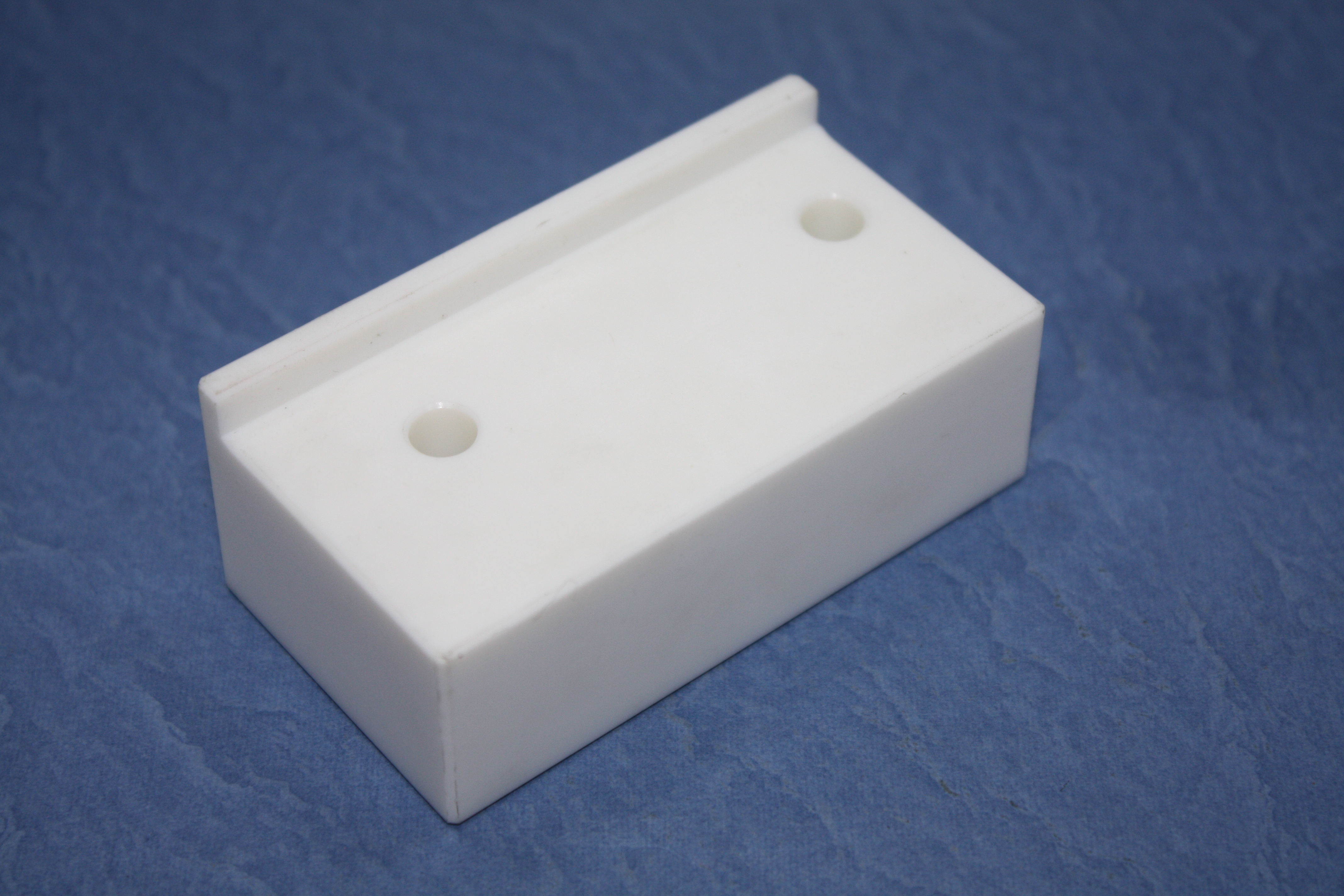

 | S303 | Lower | 下機頭絕緣塊 Lsolator Plate 76×30×40.5 | 600K2/K3 | |

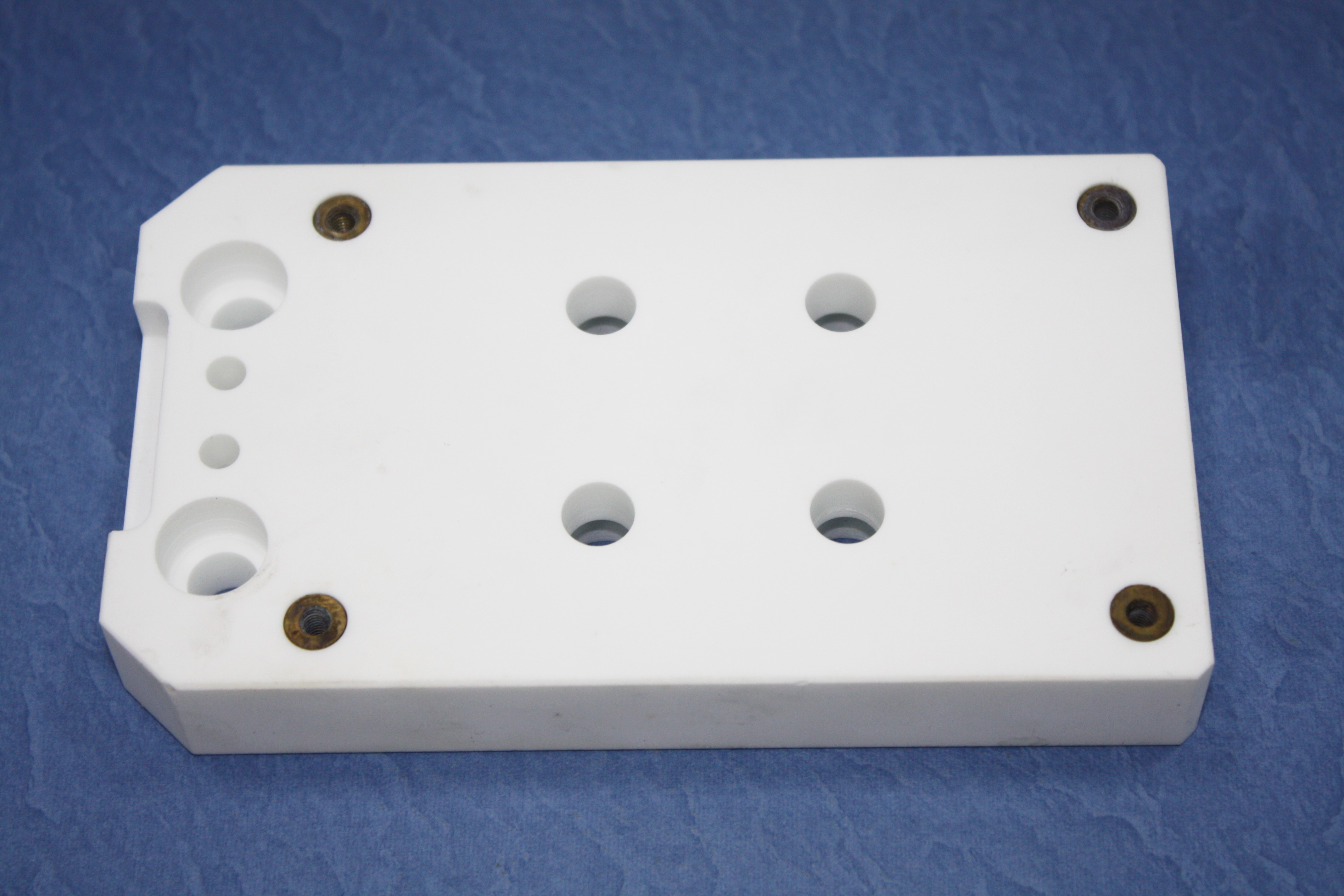

 | S304 | Upper | 上機頭絕緣塊 Lsolator Plate 140×80×20t | EW-A5S,A7S,B3S3,CS,C5S,C5S2,M3S,5S,7S EW-M350S,500S,750S | 3438537(A.Type) 3445762(B.Ctype) |

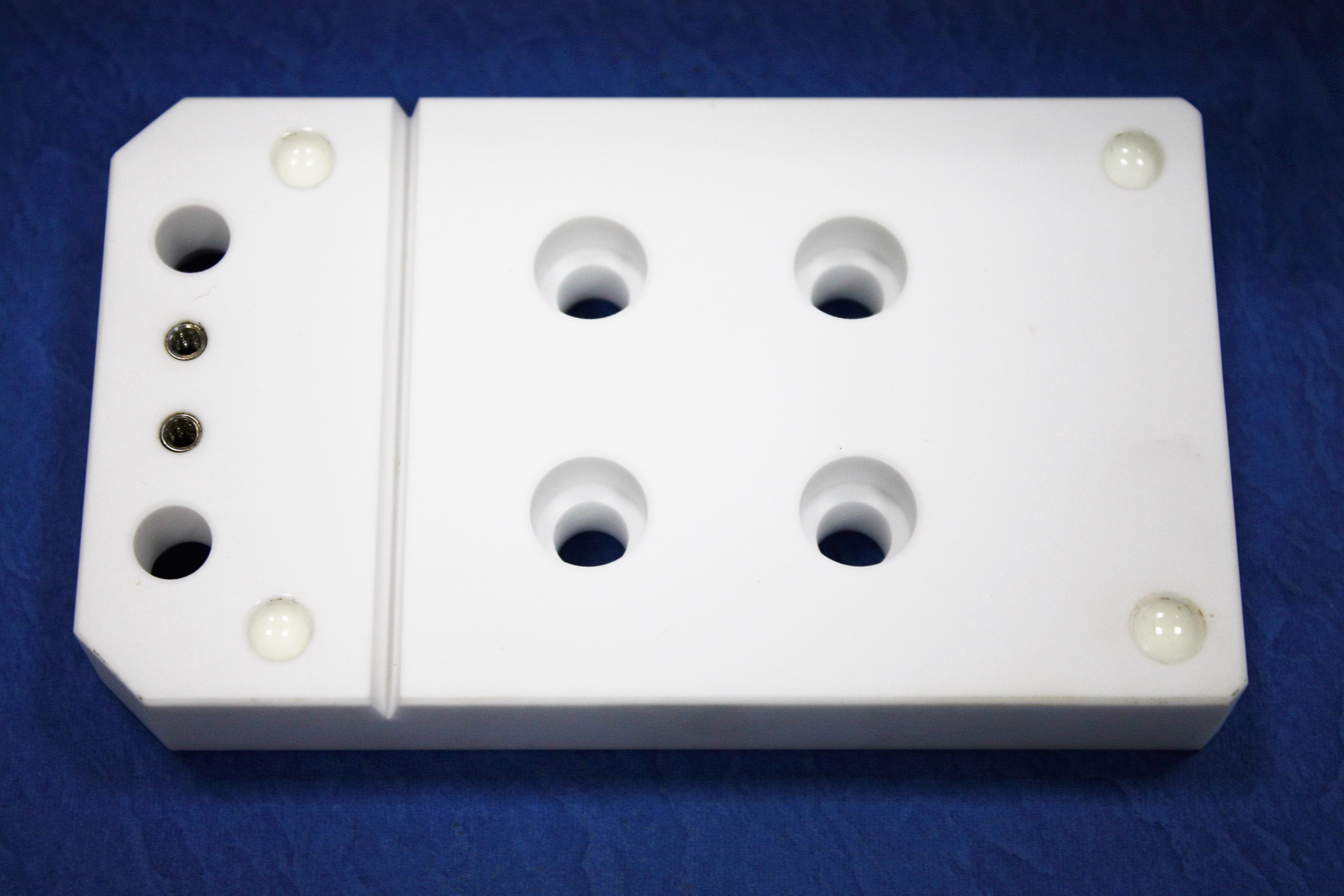

 | S305 | Upper | 上機頭絕緣塊 Lsolator Plate 138×80×20t | EW-M350S,500S,750S | 4208519 4208518(NEW) |
| 圖片 | 編號 | 位置 | 品名尺寸 | 適用機種 | 原廠編號 |
|---|---|---|---|---|---|

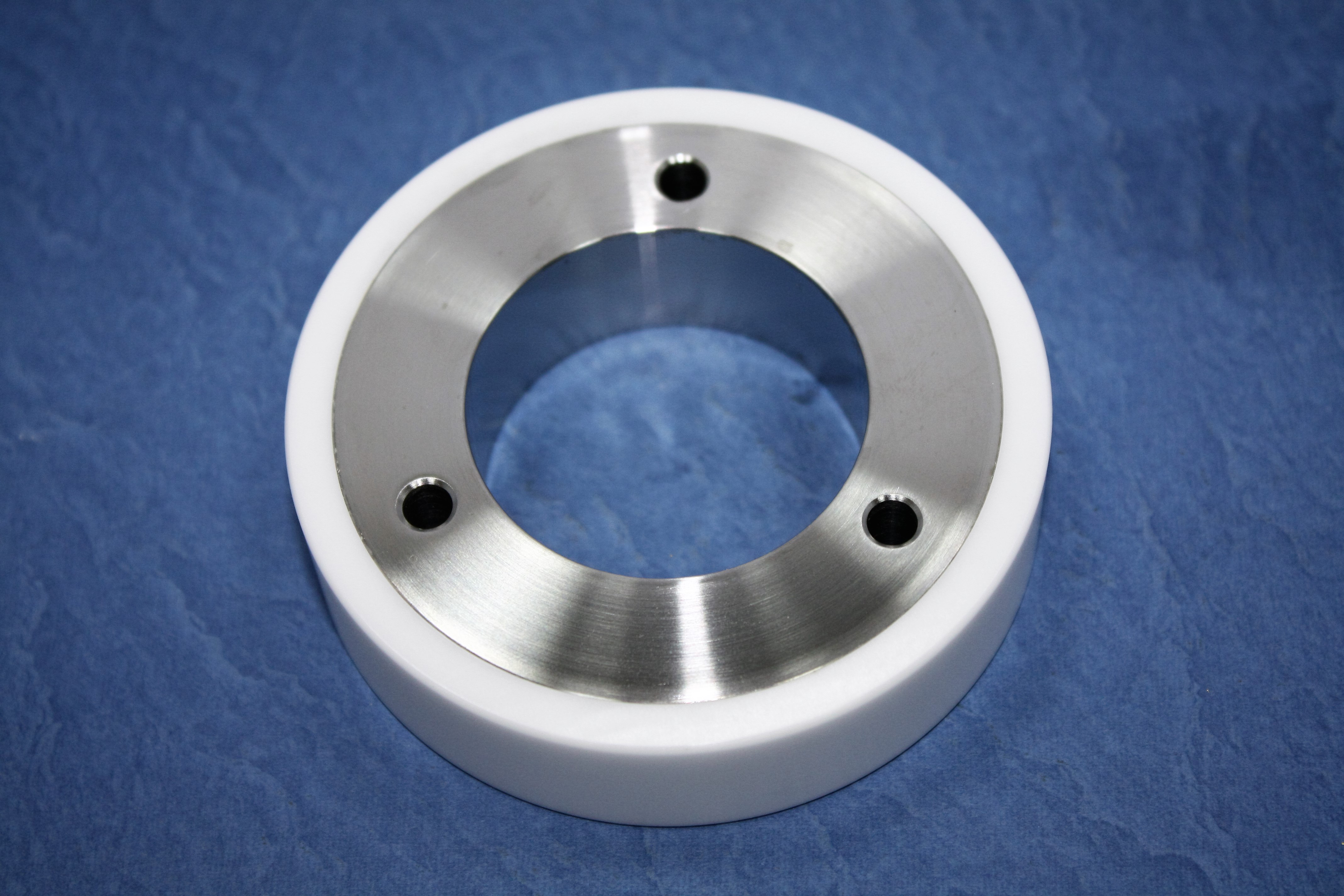

 | S314 | Feed Section | 陶瓷出線輪 Wire Roller(Ceramic) 80Ø×42Ø×20L | EW-F3,K,K1,K2 DWC-A5,A5S,A7S,C3S,C5S DWC-Type:M,M50A | 4440134 |

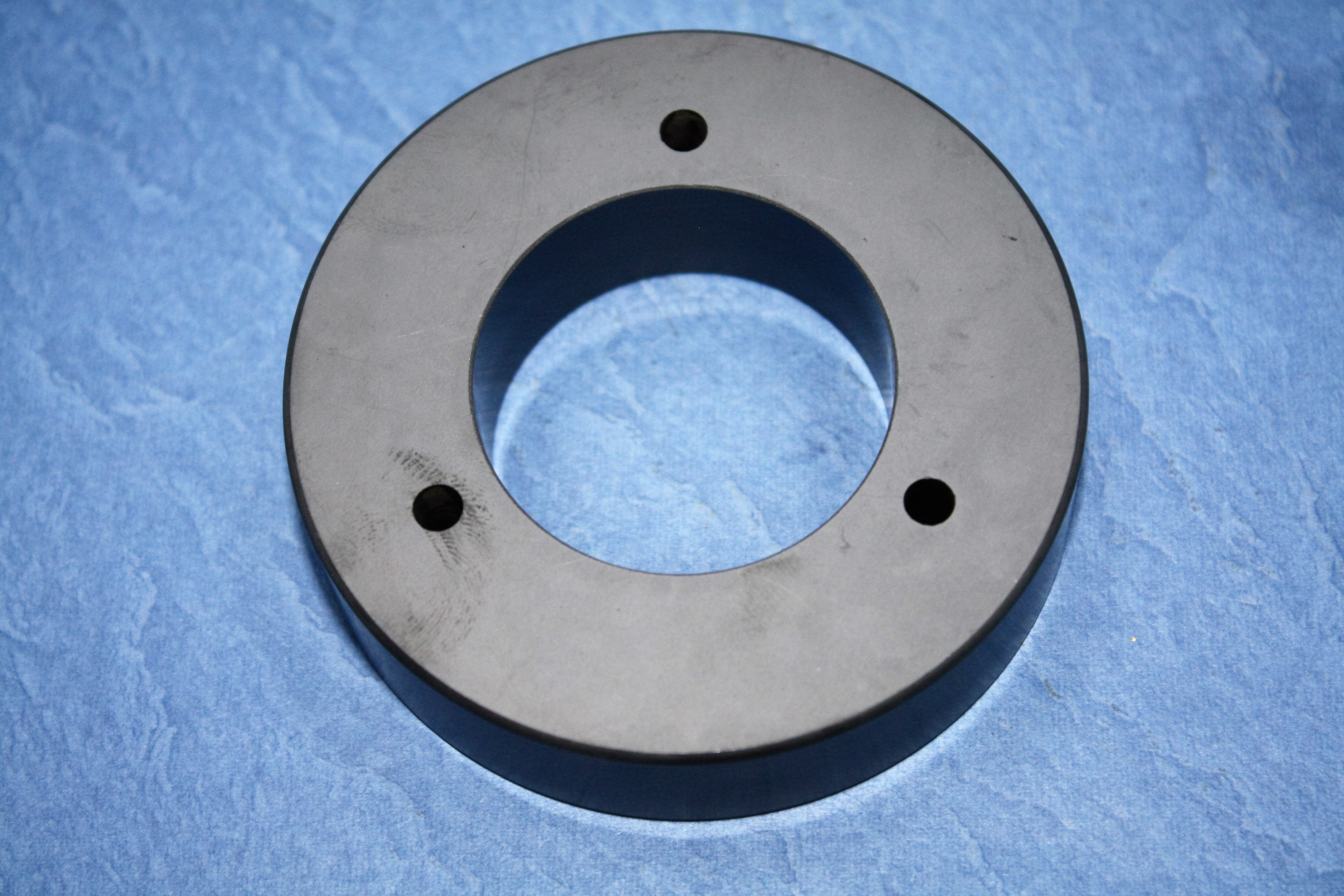

 | S314B | Feed Section | 陶瓷出線輪 Black Wire Roller(Ceramic) 80Ø×42Ø×20L | EW-K2,K3,A5S,A7S,C5S DWC-Type:M,M50A | 4440134 |

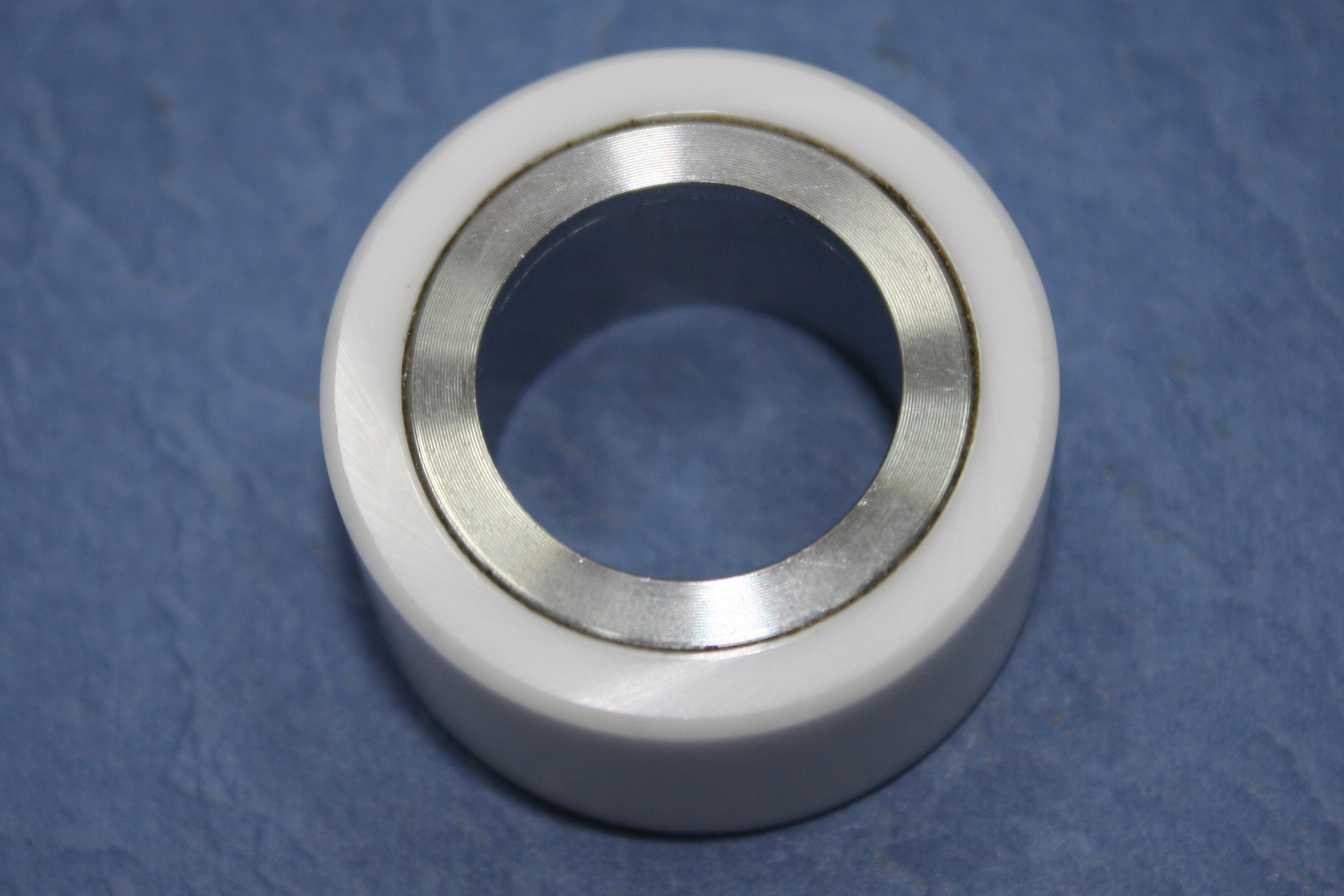

 | S316 | Feed Section | 陶瓷出線輪-副軸 Capstan Roller(Ceramic) 35Ø×22Ø×18L | EW-450K1(AWF-2B) | 5427989 |

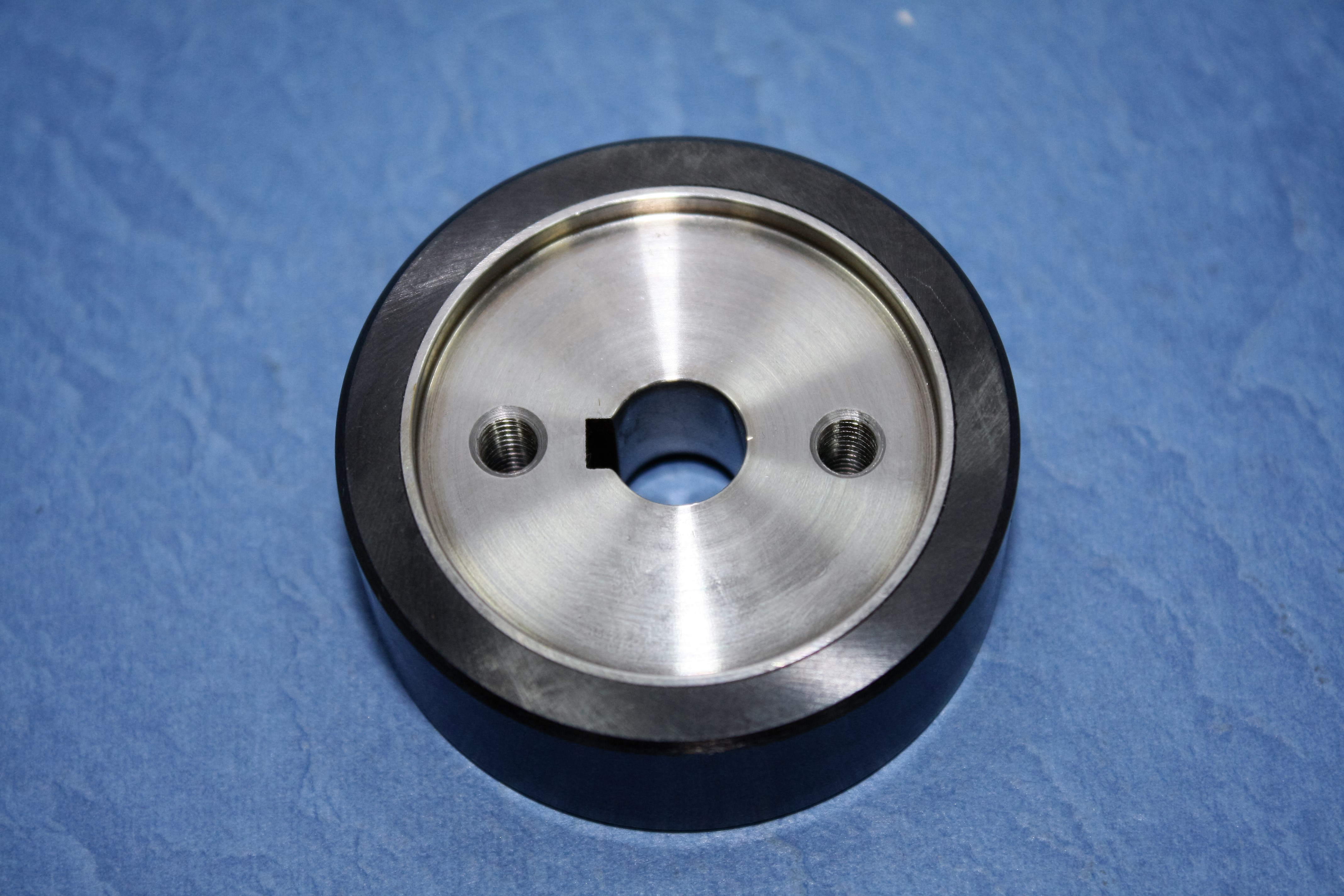

 | S317 | Feed Section | 陶瓷出線輪-主軸 Capstan Roller(Ceramic) 50Ø×10Ø×18L | EW-450K1(AWF-2B) | 5427844 |

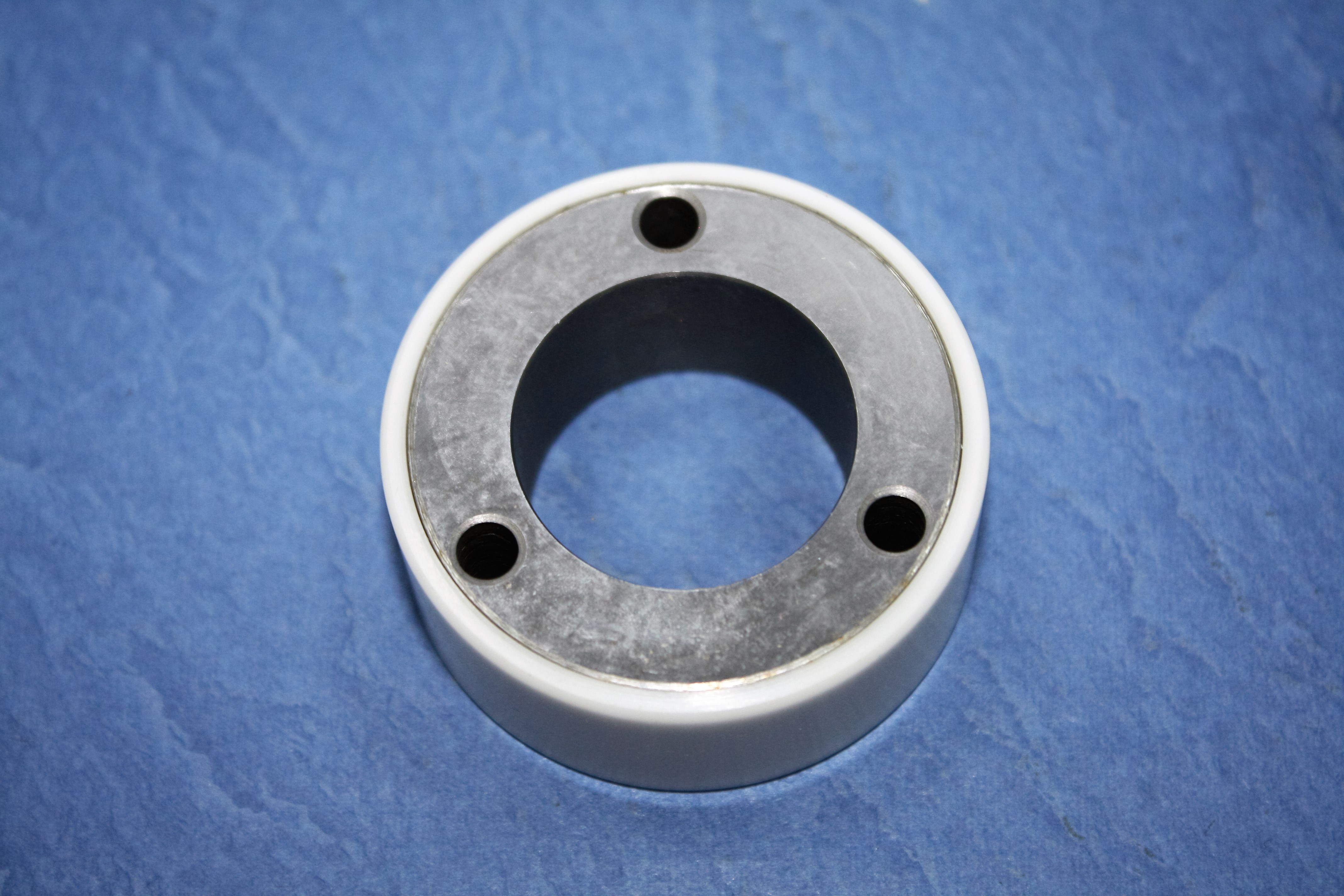

 | S318 | Feed Section | 陶瓷出線輪 Wire Roller(Ceramic) 50Ø×22Ø×20L | EW-F3,K,K1 |
| 圖片 | 編號 | 位置 | 品名尺寸 | 適用機種 | 原廠編號 |
|---|---|---|---|---|---|

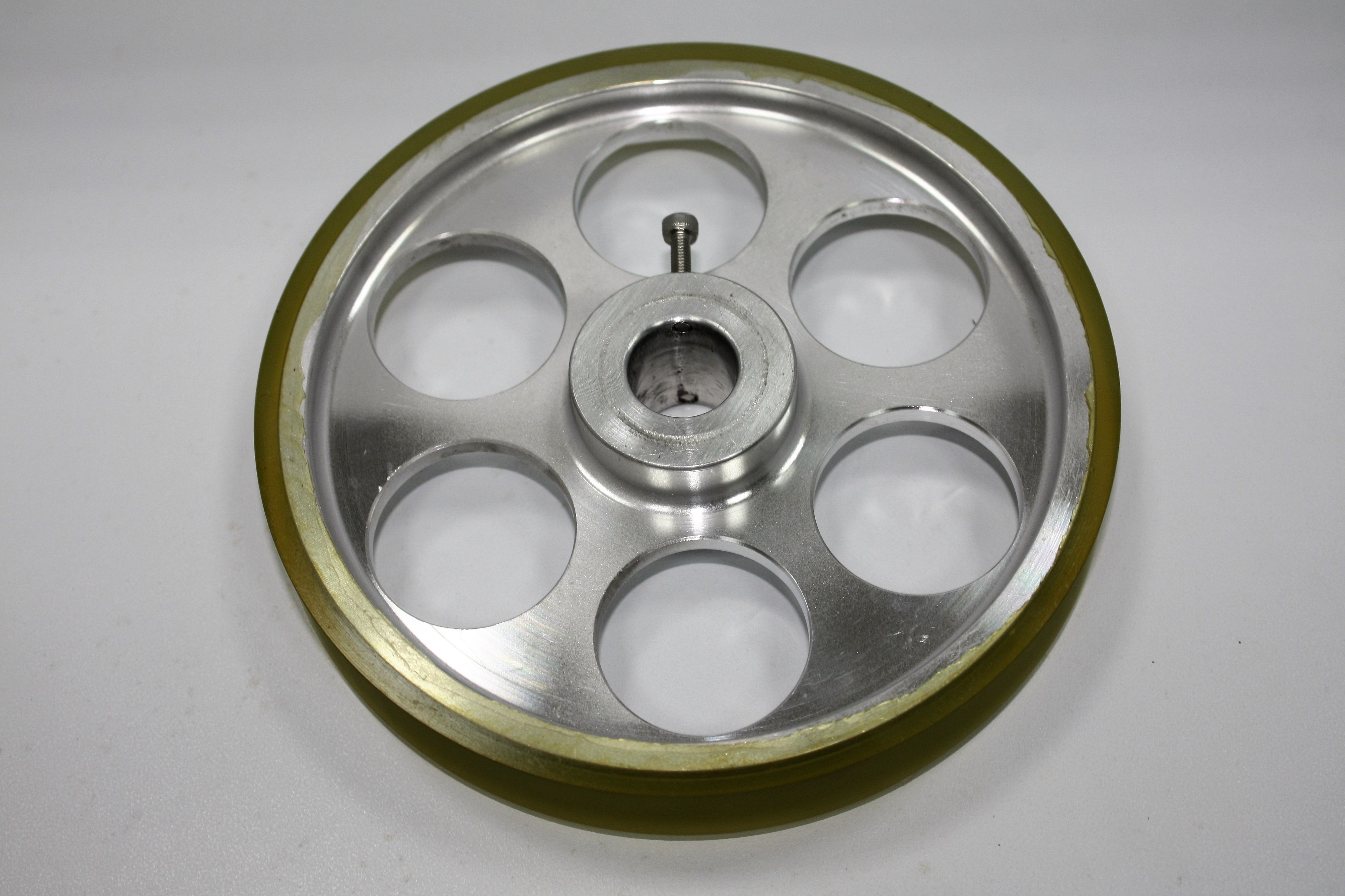

 | S315 | Upper | 張力輪 Brake Pulley 160Ø | EW-F3,K,K1,K2 DWC-A5,A5S,A7S,C3S,C5S DWC-Type:M,M50A | 4466186 |
| 圖片 | 編號 | 位置 | 品名尺寸 | 適用機種 | 原廠編號 |
|---|---|---|---|---|---|

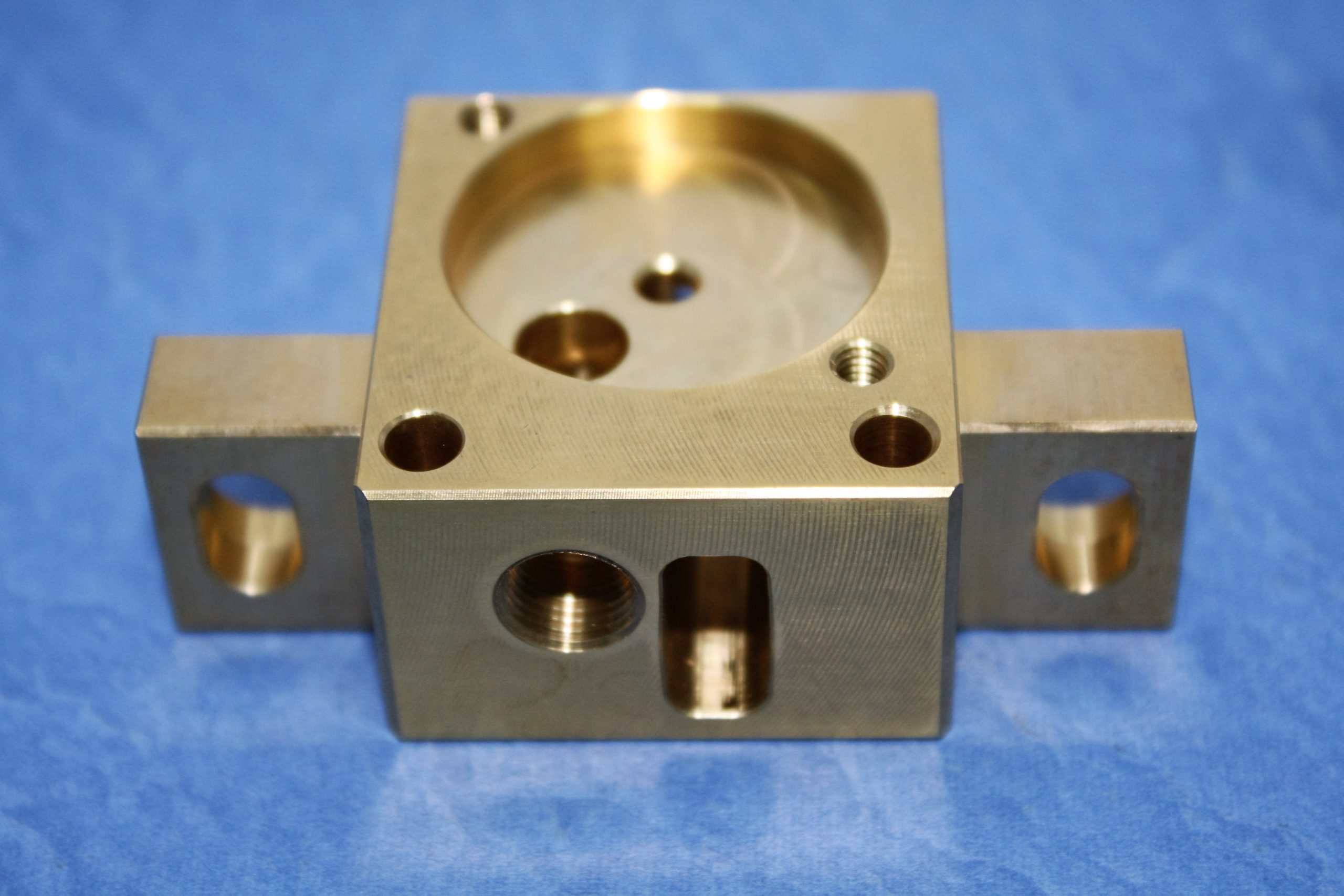

 | S862 | Lower | 下機頭銅座 Electric Bush Holder 41 × 71×24 | EW-K2,K3 | 3443067 |

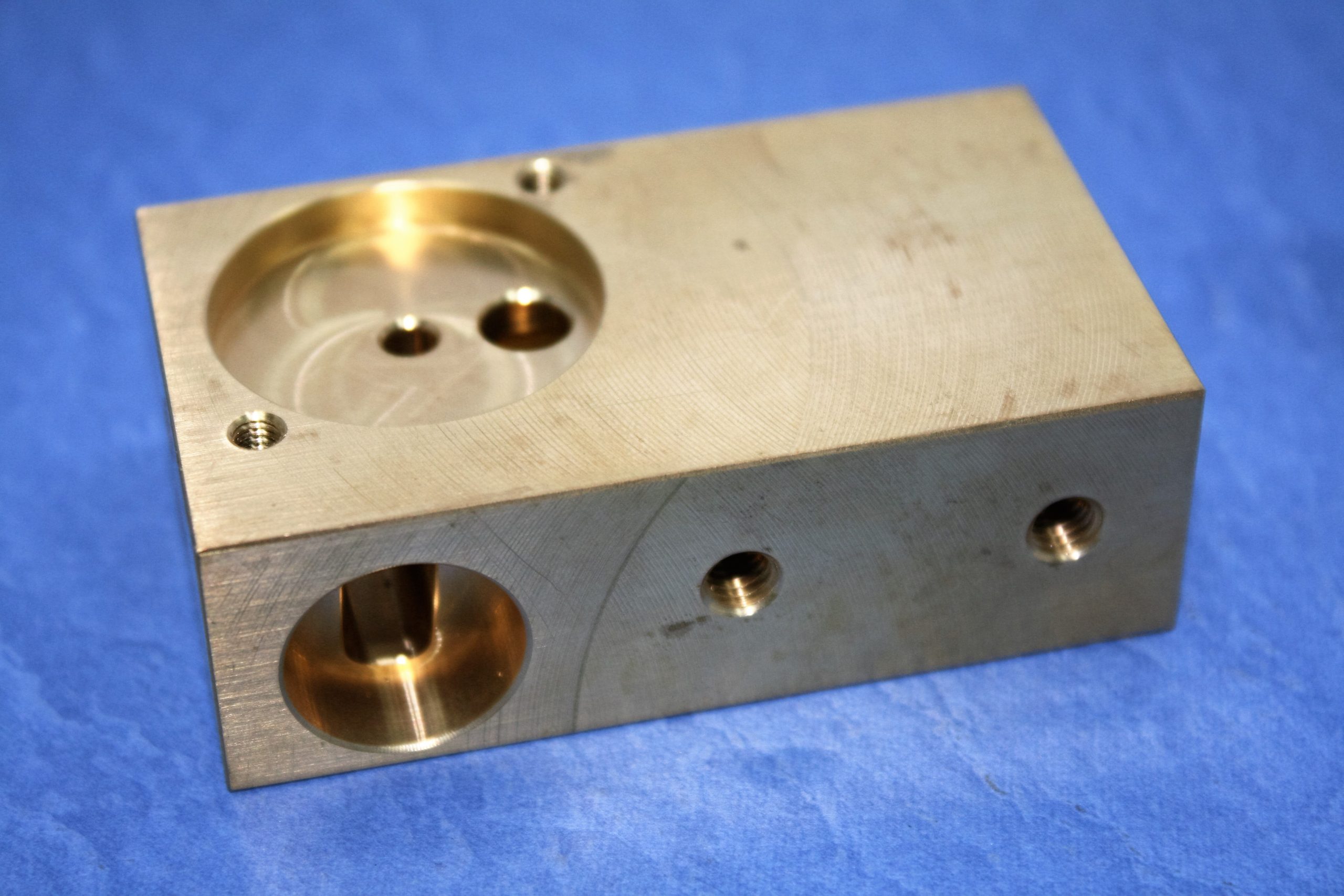

 | S863 | Upper | 上機頭銅座 Electric Bush Holder 74 × 42×24t | EW-K2,K3 | 3442979 |

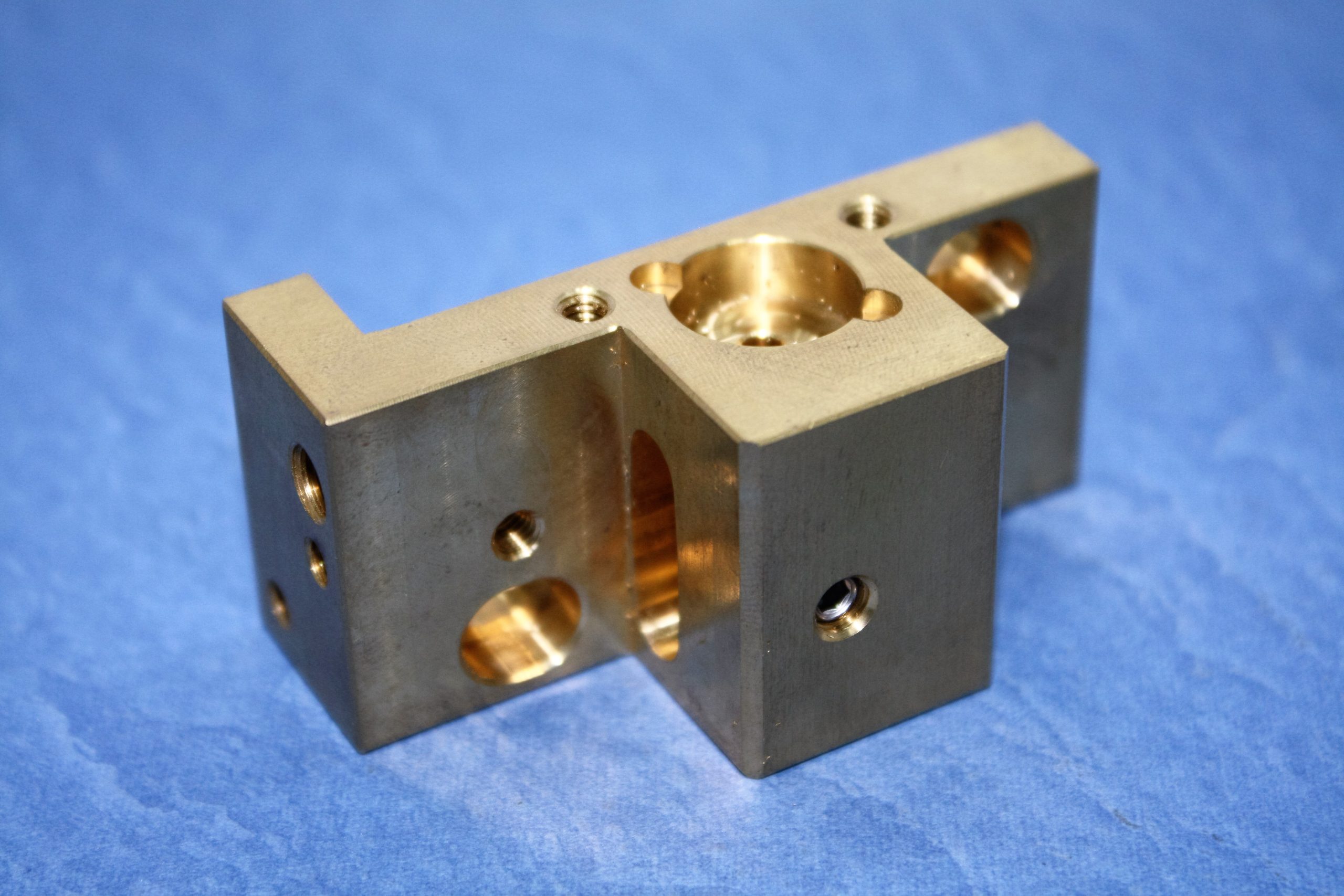

 | S866 | Lower | 下機頭銅座 Electric Bush Holder 65*30*36t | DWC-Type:M DWC-C3S,C5S,C7S | |

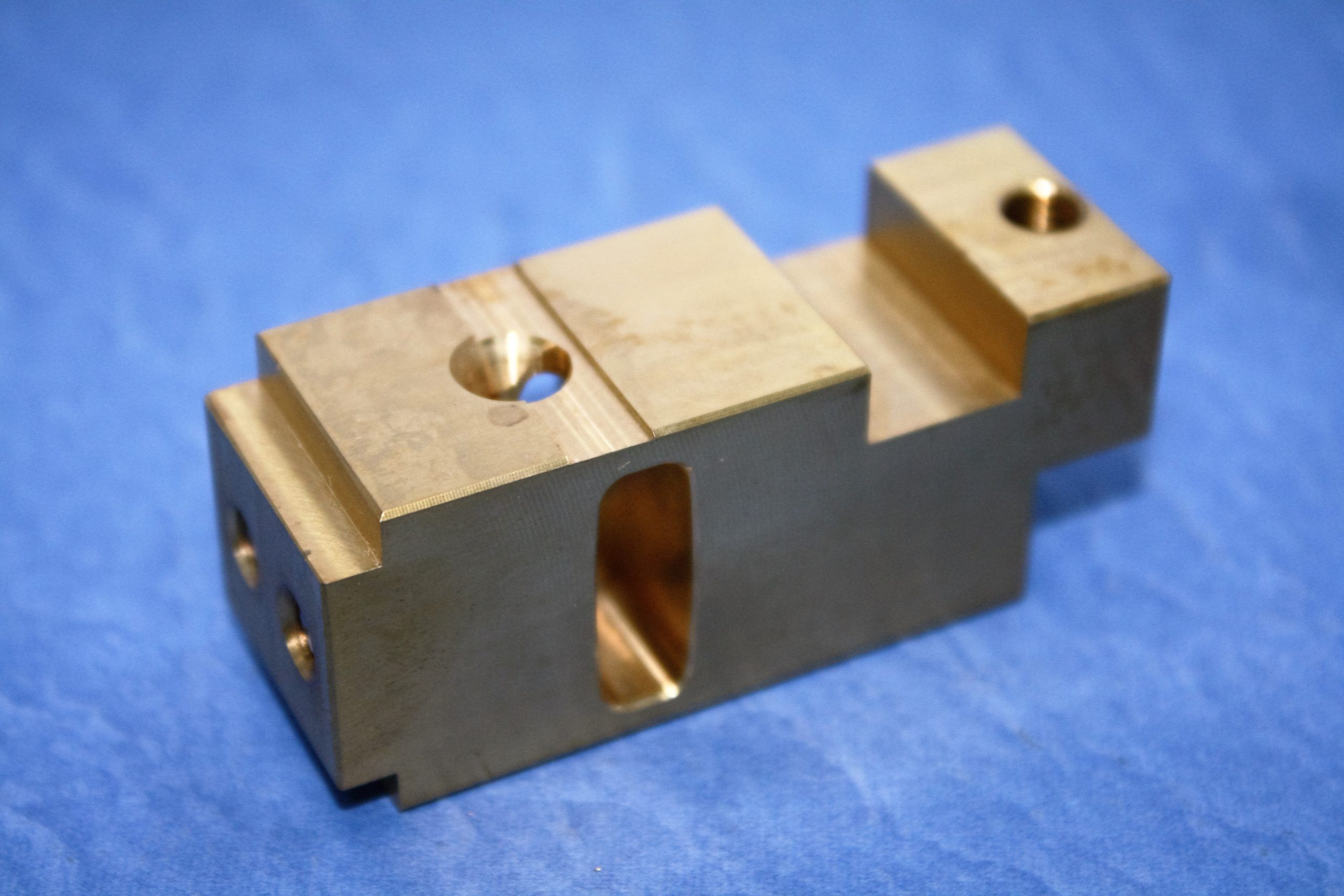

 | S867 | Upper | 上機頭給電子座 Electric Bush Holder 63×22×26 | DWC-Type:M | |

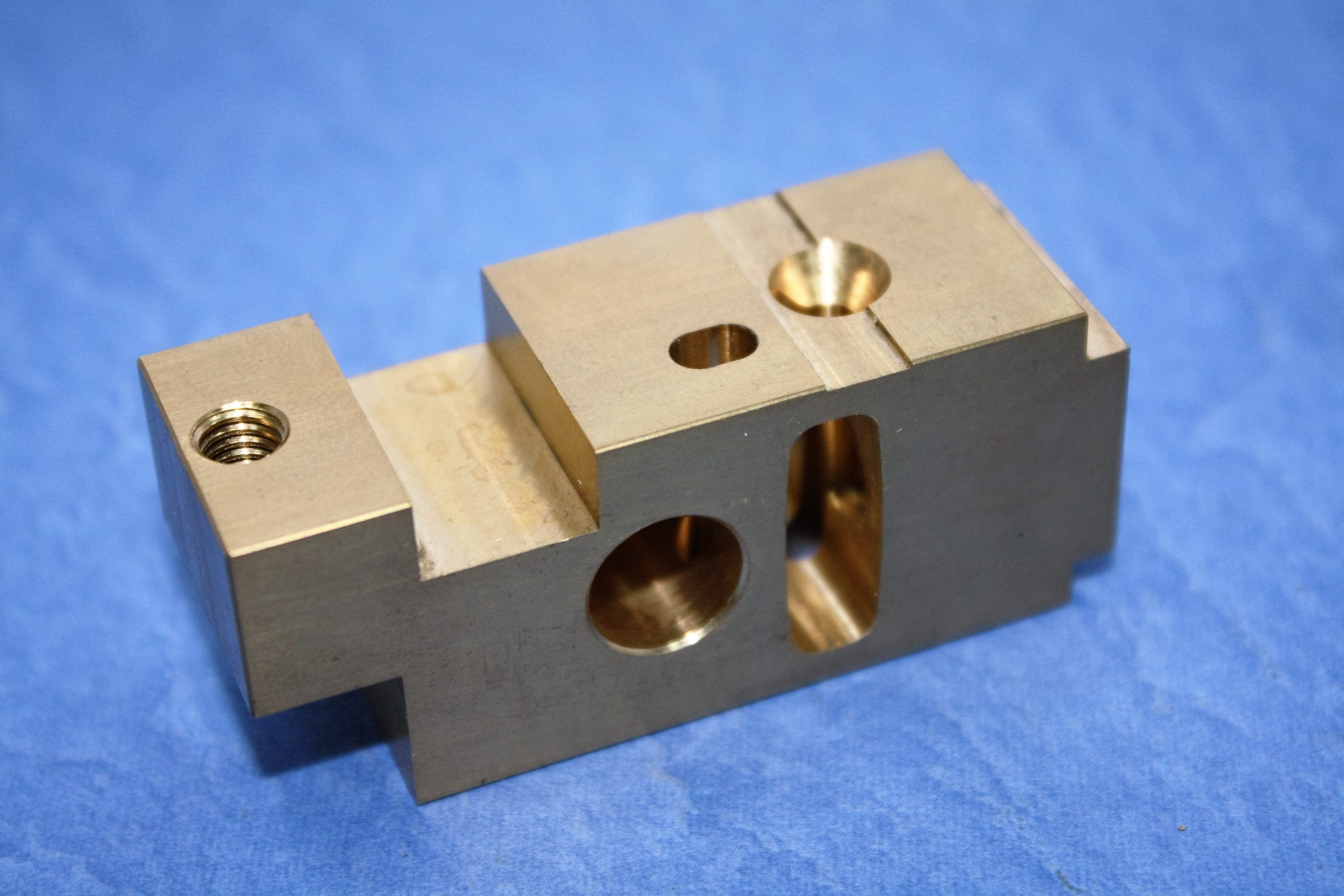

 | S8671 | Upper | 上機頭給電子座 Electric Bush Holder 63×22×26 | DWC-MM,MA,MP | |

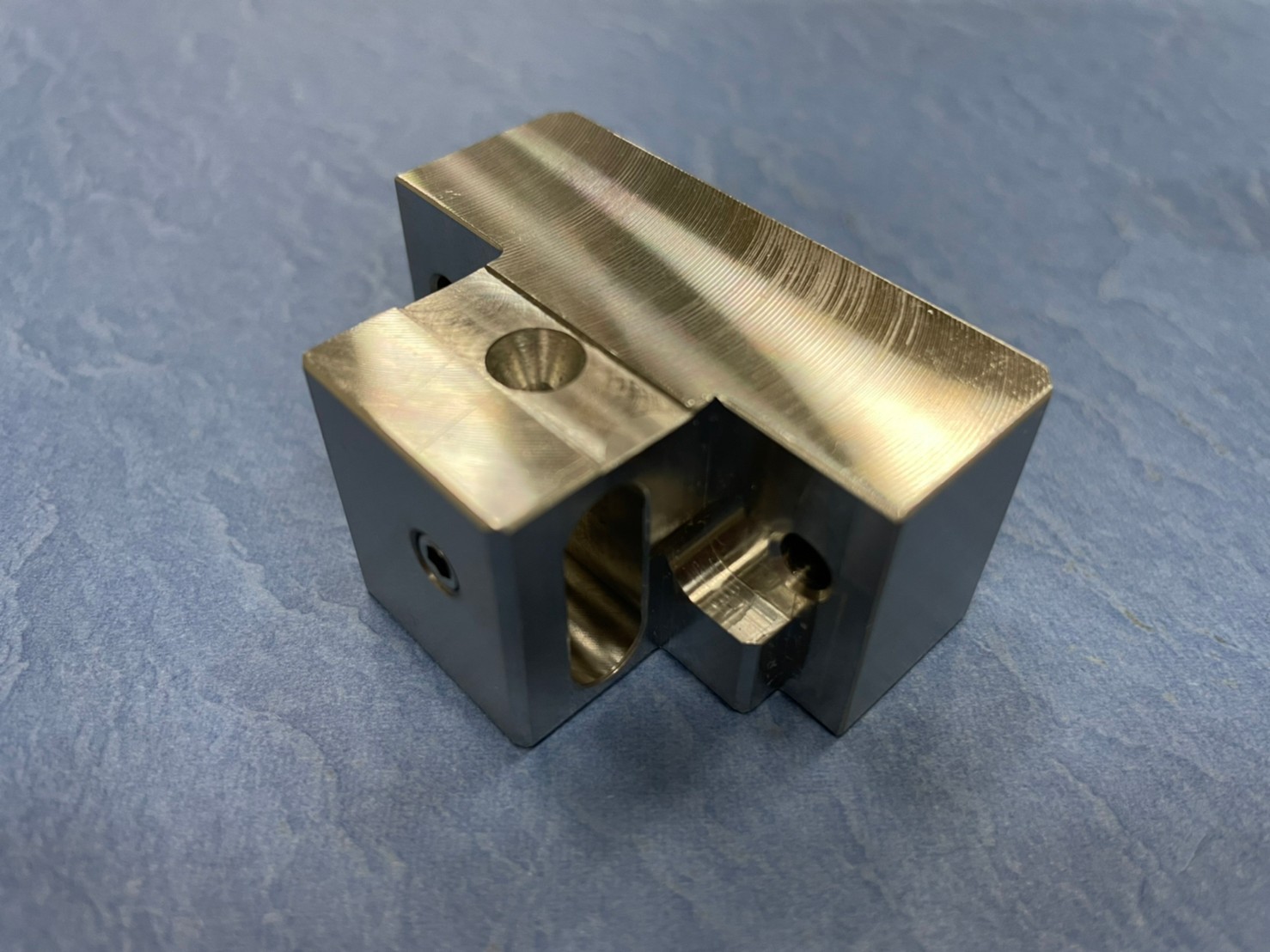

 | SMA866 | Lower | 下機頭給電子座 Electric Bush Holder 52×37×25t | EW-M50A(AWF) | |

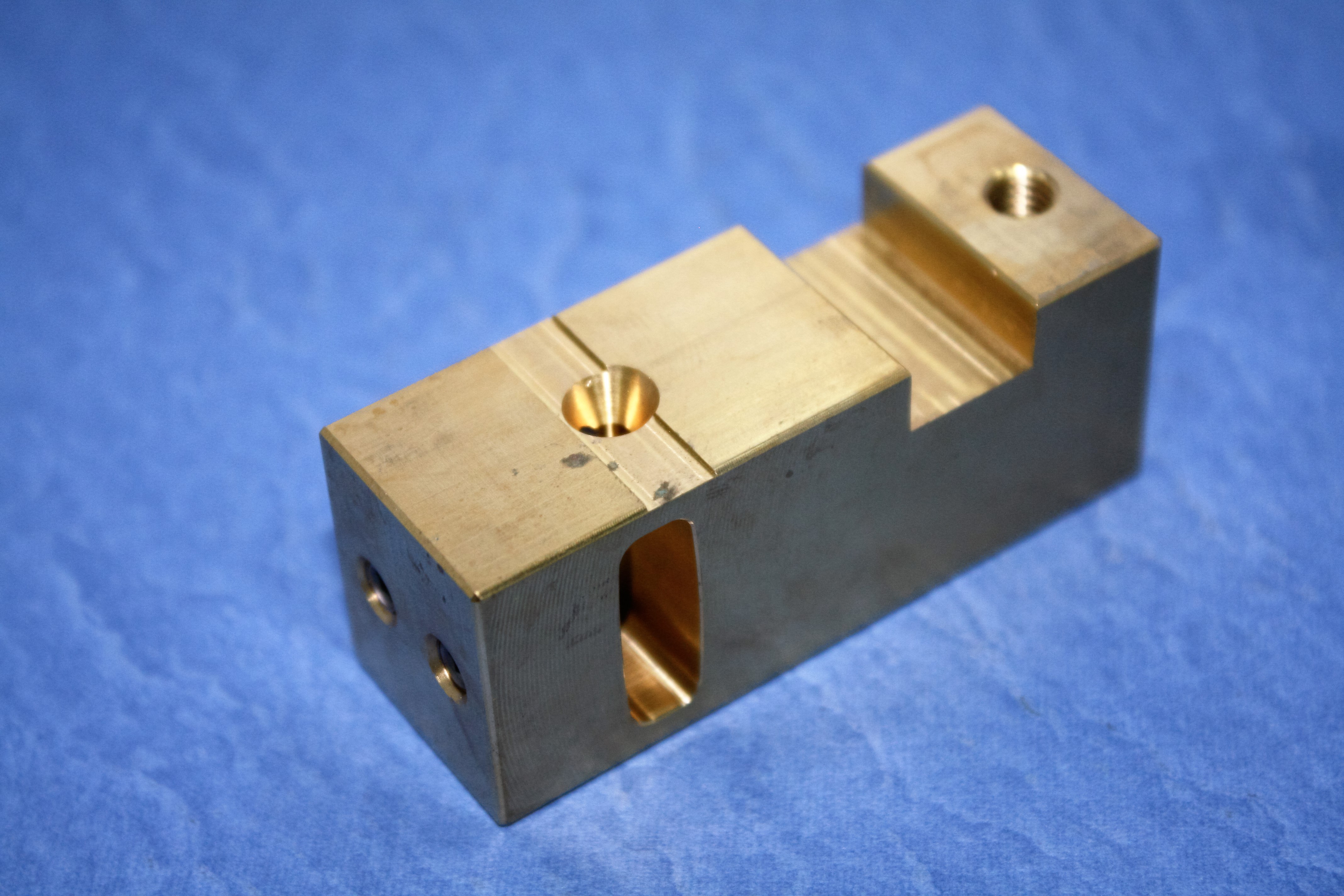

 | SMA867 | Upper | 上機頭給電子座 Electric Bush Holder 64×22×26t | EW-M50A(AWF) | |
 | SMA867-1 | Upper | 上給電子座移動架 40*18*11.4 | EW-M350,M500,MM M50A,M50B(AWF) | |
 | SMA867-2 | Upper | 上給電子座移動架 60*14*10 | EW-M350,M500,MM M50A,M50B(AWF) | |

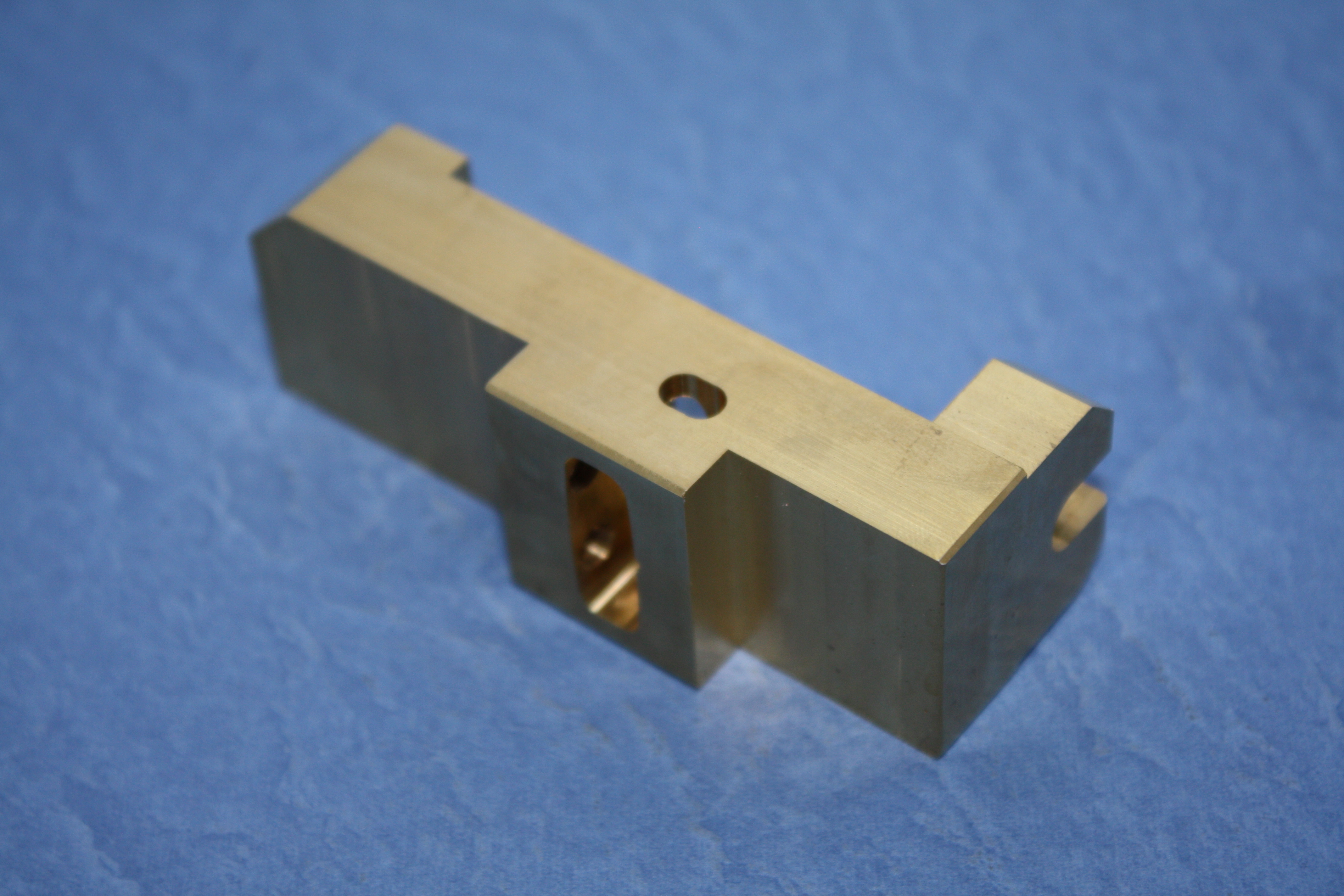

 | S873 | Upper | 上機頭給電子座 Electric Bush Holder 76*32*26t | DWC-A5S,A7S | |

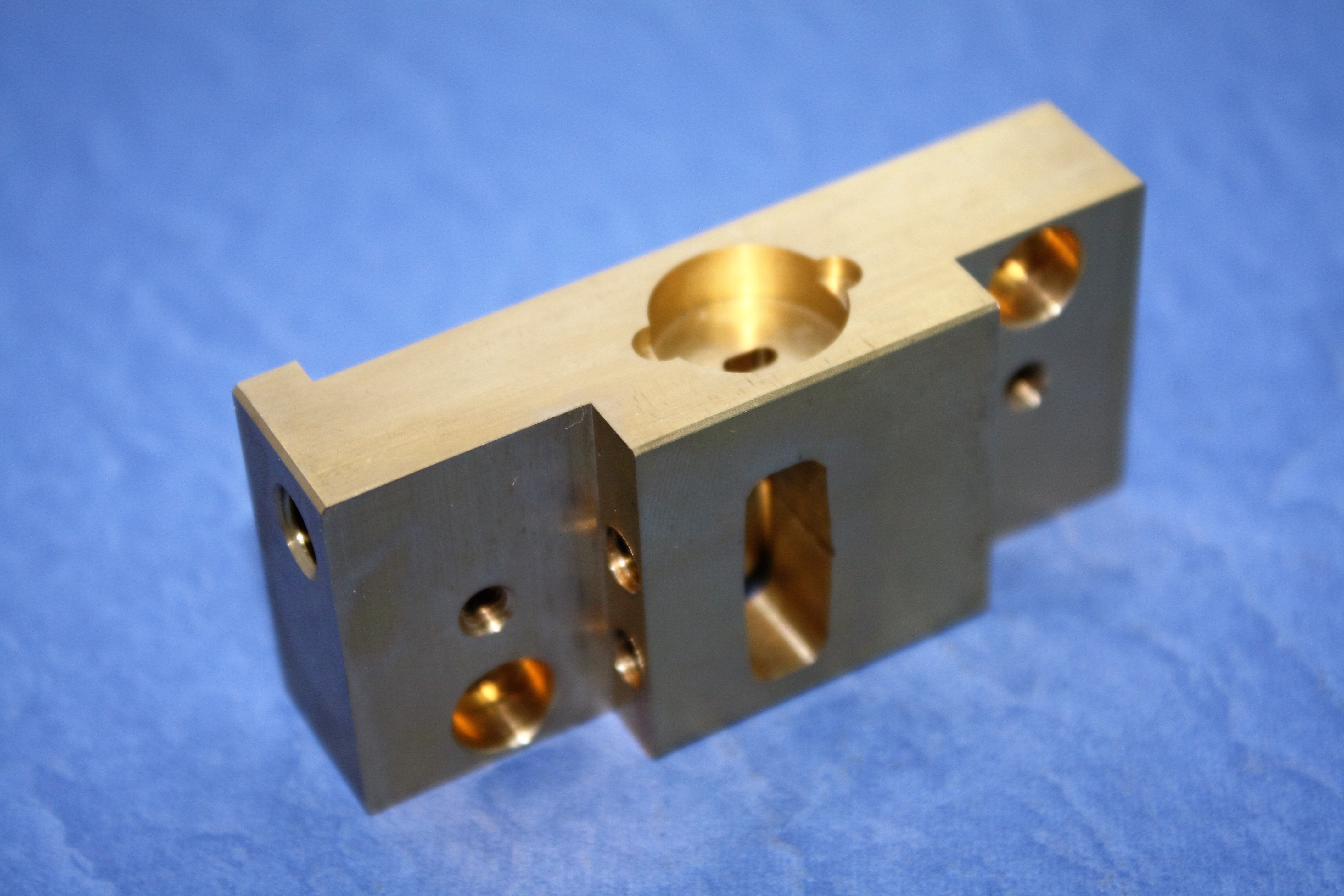

 | S874 | Lower | 下機頭給電子座 Electric Bush Holder 66*21*30t | DWC-A5S,A7S | |

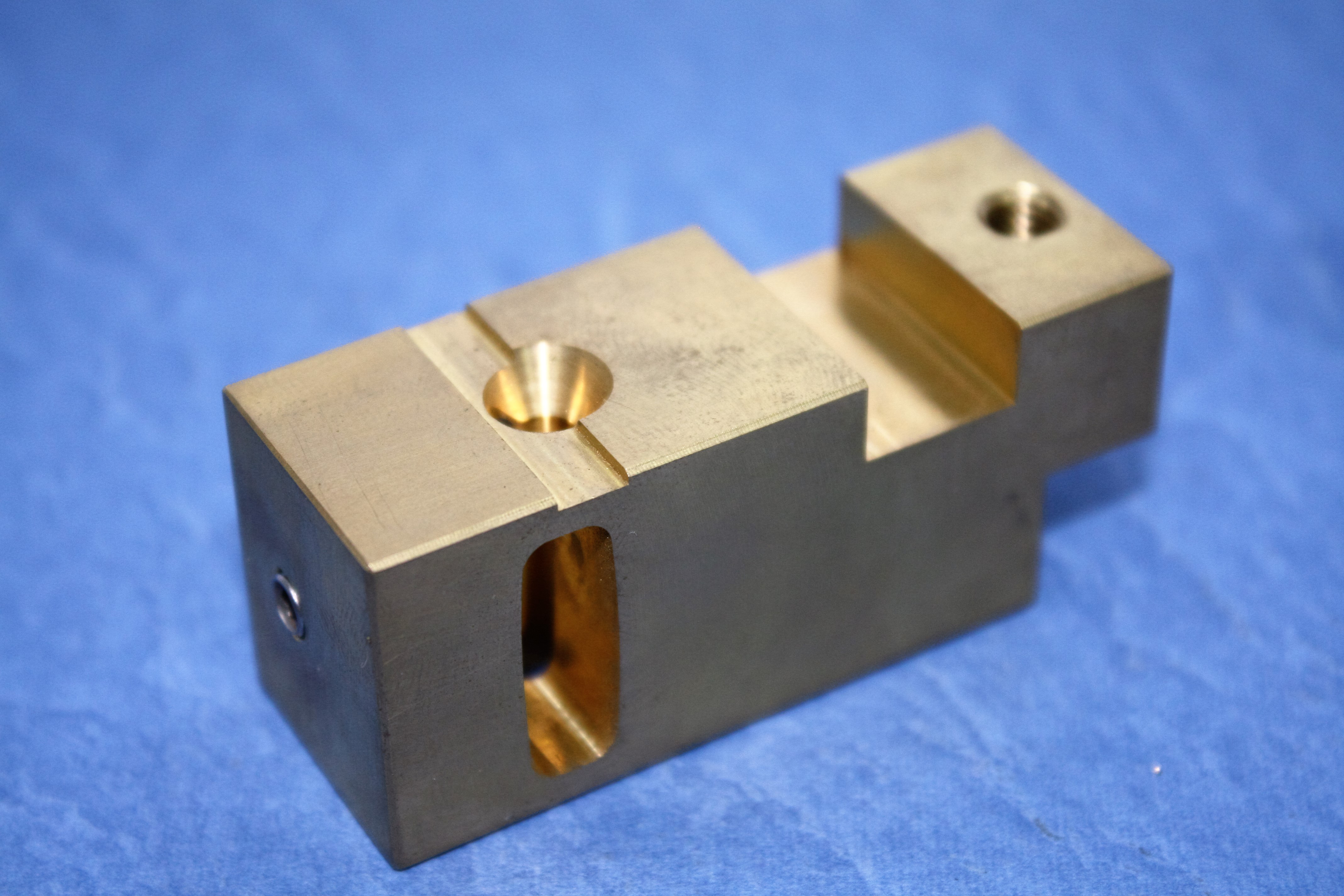

 | S875 | Upper | 上機頭給電子座 Electric Bush Holder 61.5*21.5*22.5t | DWC-C3S,C5S |
| 圖片 | 編號 | 位置 | 品名尺寸 | 適用機種 | 原廠編號 |
|---|---|---|---|---|---|
| S862 | Lower | 下機頭銅座 Electric Bush Holder 41 × 71×24 | EW-K2,K3 | 3443067 |
| S863 | Upper | 上機頭銅座 Electric Bush Holder 74 × 42×24t | EW-K2,K3 | 3442979 |
| S866 | Lower | 下機頭銅座 Electric Bush Holder 65*30*36t | DWC-Type:M DWC-C3S,C5S,C7S | |
| S867 | Upper | 上機頭給電子座 Electric Bush Holder 63×22×26 | DWC-Type:M | |
| S8671 | Upper | 上機頭給電子座 Electric Bush Holder 63×22×26 | DWC-MM,MA,MP | |
| SMA866 | Lower | 下機頭給電子座 Electric Bush Holder 52×37×25t | EW-M50A(AWF) | |
| SMA867 | Upper | 上機頭給電子座 Electric Bush Holder 64×22×26t | EW-M50A(AWF) | |
| SMA867-1 | Upper | 上給電子座移動架 40*18*11.4 | EW-M350,M500,MM M50A,M50B(AWF) | |
| SMA867-2 | Upper | 上給電子座移動架 60*14*10 | EW-M350,M500,MM M50A,M50B(AWF) | |
| S873 | Upper | 上機頭給電子座 Electric Bush Holder 76*32*26t | DWC-A5S,A7S | |
| S874 | Lower | 下機頭給電子座 Electric Bush Holder 66*21*30t | DWC-A5S,A7S | |
| S875 | Upper | 上機頭給電子座 Electric Bush Holder 61.5*21.5*22.5t | DWC-C3S,C5S |
| 圖片 | 編號 | 位置 | 品名尺寸 | 適用機種 | 原廠編號 |
|---|---|---|---|---|---|

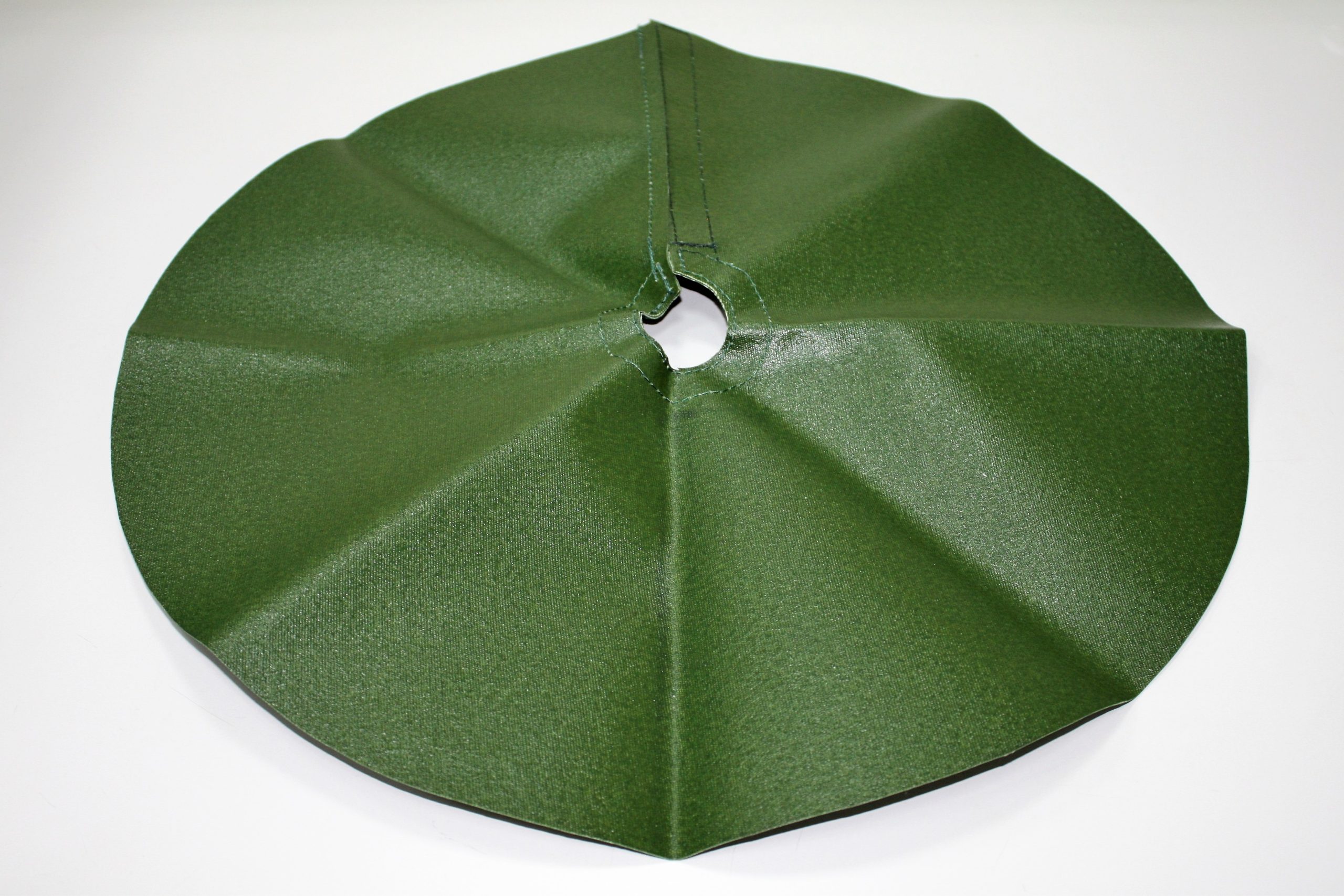

 | W004 | 遮水膠布 Water Cover | Any Machines | ||

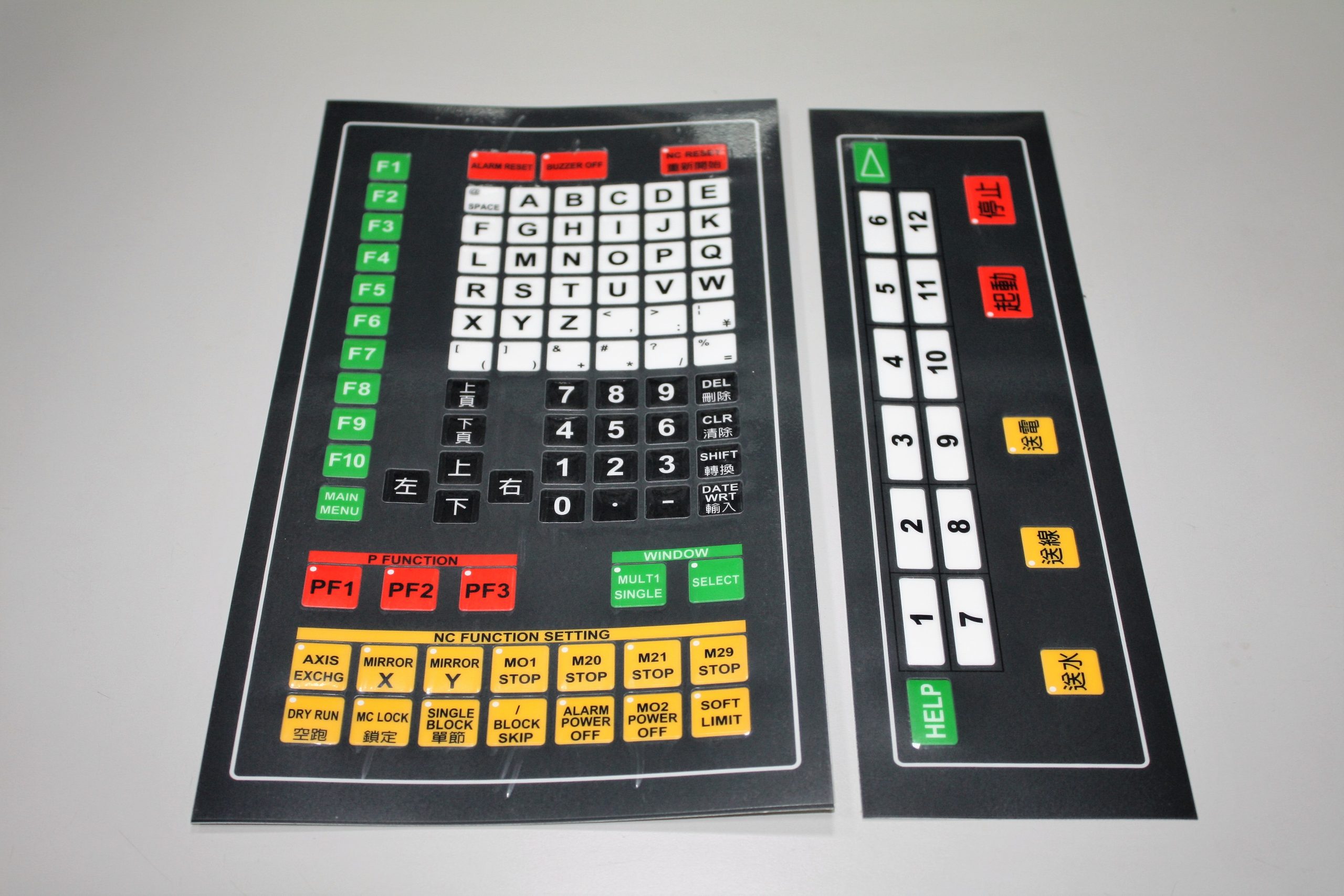

 | S007 | K2面板控制按鍵 K2 Series Control Panel Key Sheets Set | EW-K2,A5S,A7S Type | ||

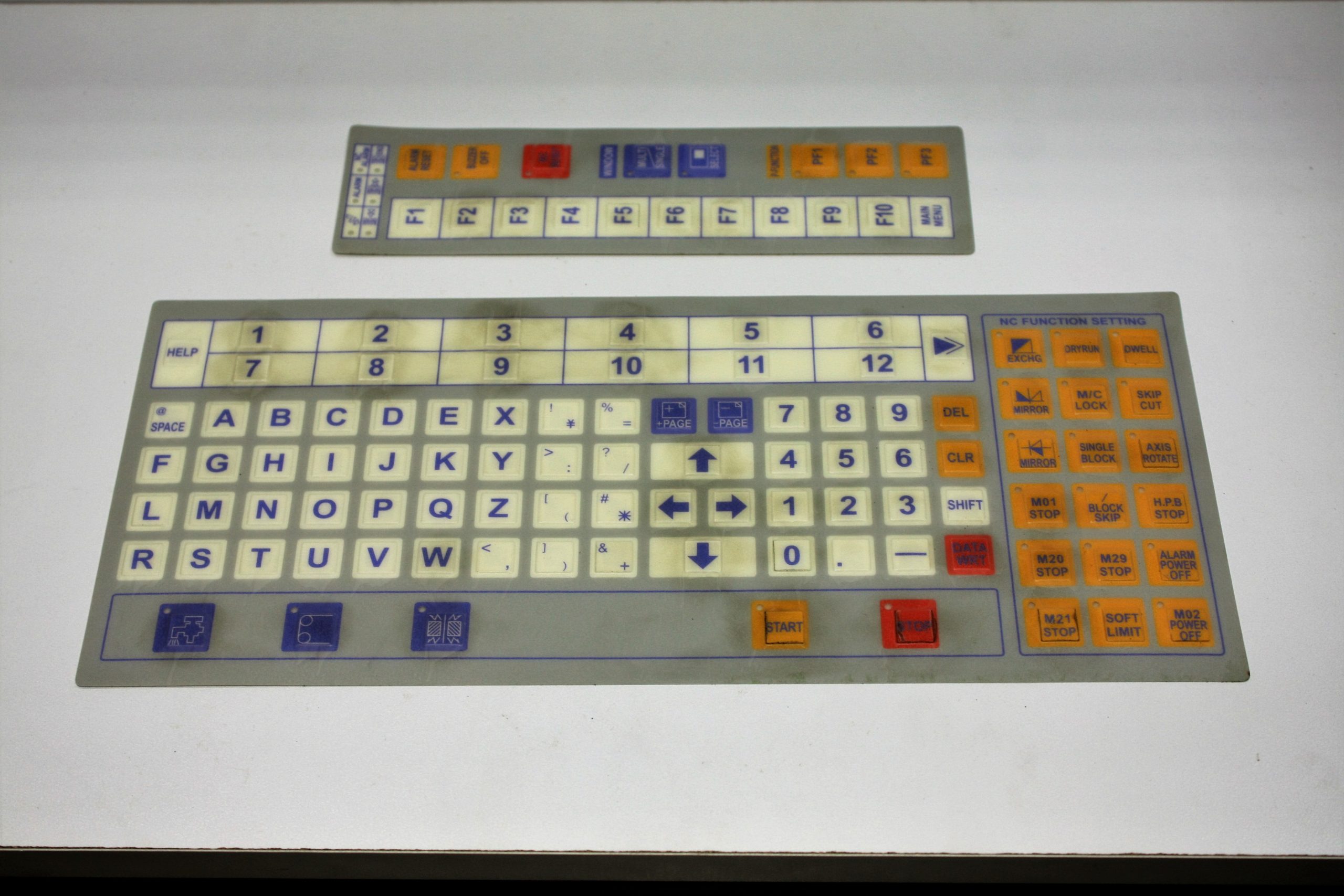

 | S007C | 面板控制按鍵 Series Control Panel Key Sheets Set | EW-K3,A5S2,C3S,C5S | ||
 | S008 | Feed Section | 收線馬達 (SS40E2-H3-25) Wire Receiving Motor | EW-K2,K3 Type 100轉 EW-A5S,A7S EW-C3S,C5S,M,MM | SAWAMURA DV24-100rpm MADE IN JAPAN |

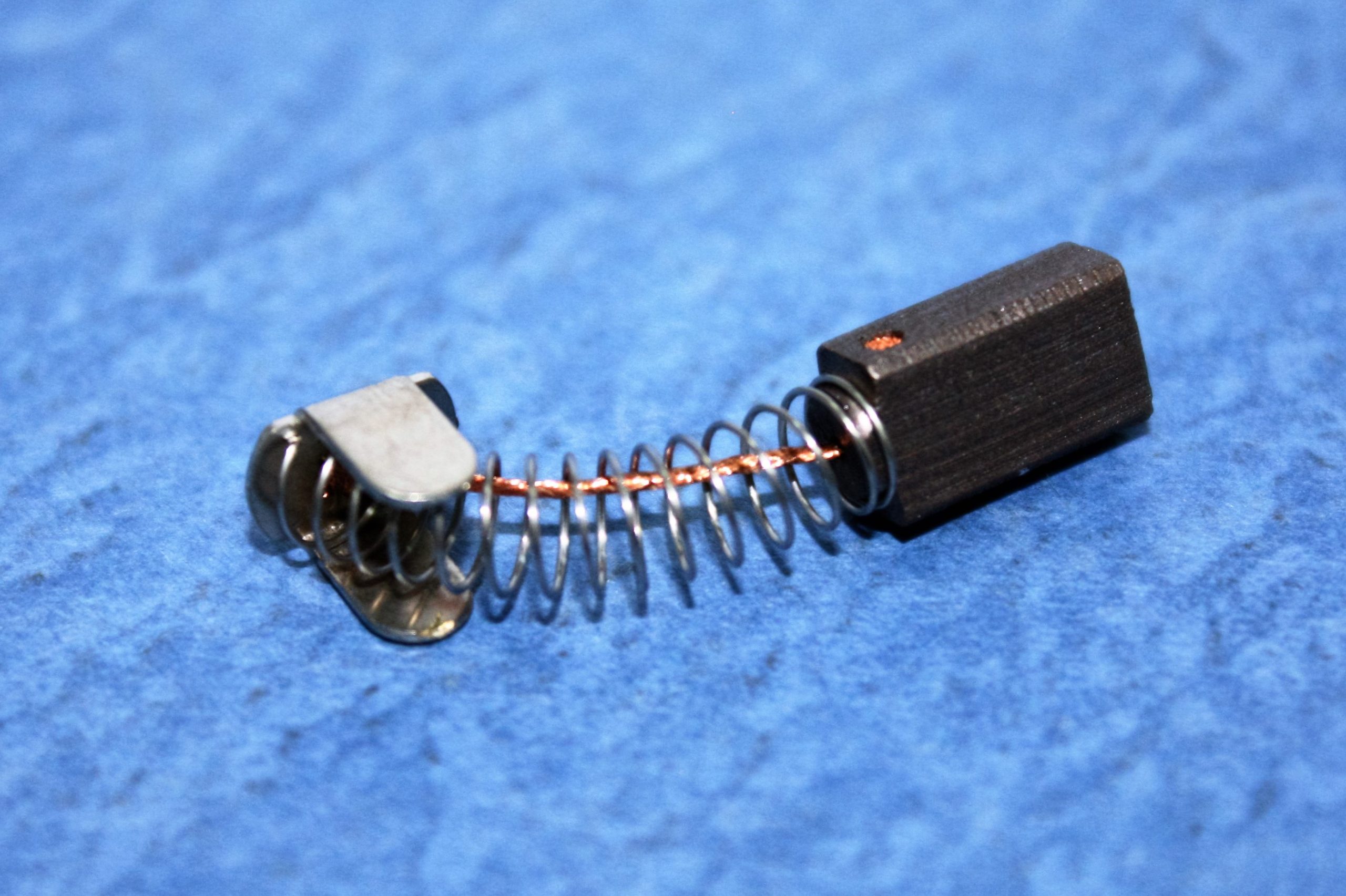

 | S008A | Feed Section | 馬達碳刷 MOTOR BRUSH For S008 | EW-K2,K3 Type EW-A5S,A7S,B3S,C3S,C5S,C5S M.MM,Type | |

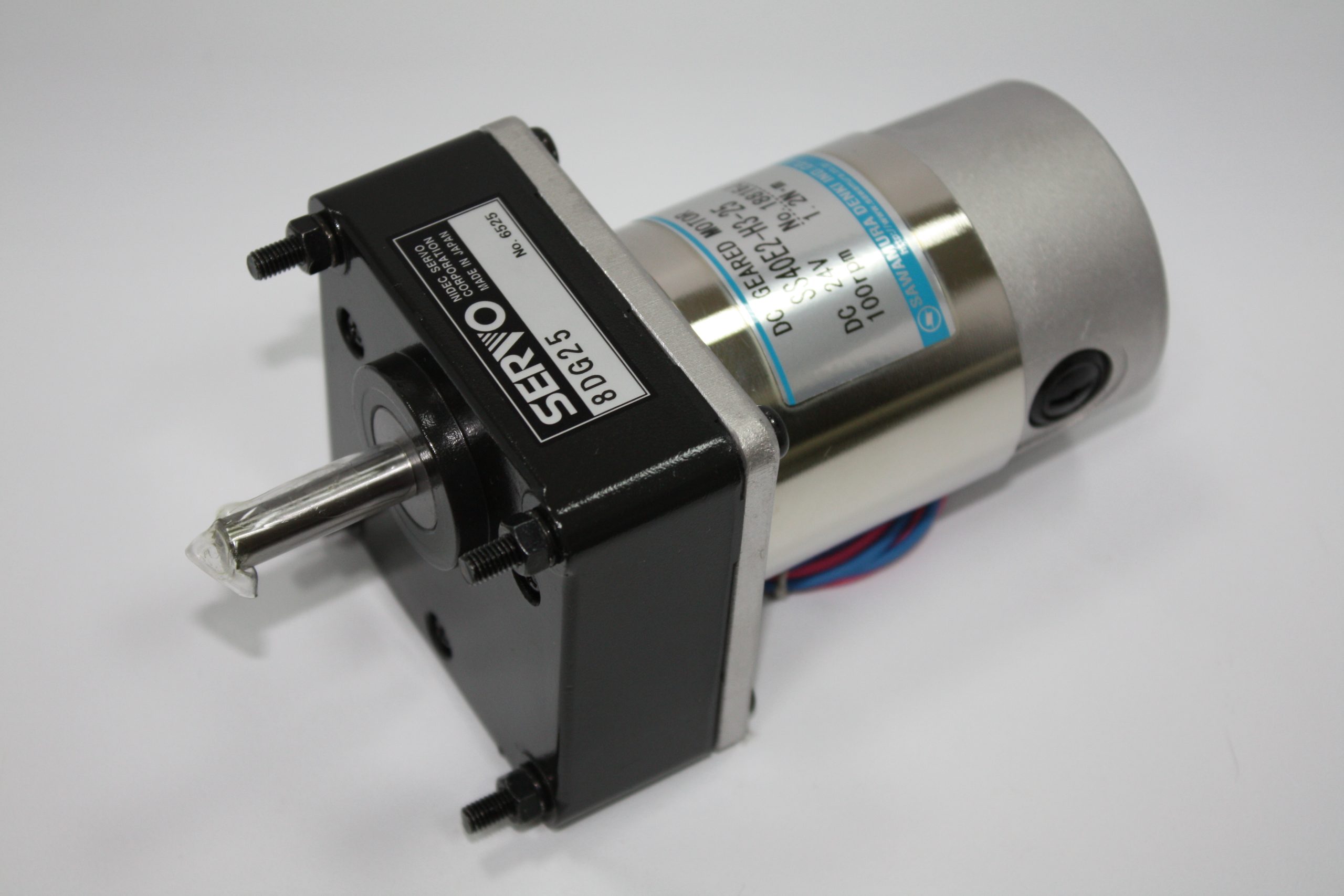

| S008-1 | Feed Section | 收線馬達 (SS40E2-H3-12.5) Wire Receiving Motor | EW-A5S,A7S,B3S,C3S,C5S,C5S M.MM.Type 200轉 | SAWAMURA DV24-200rpm MADE IN JAPAN |

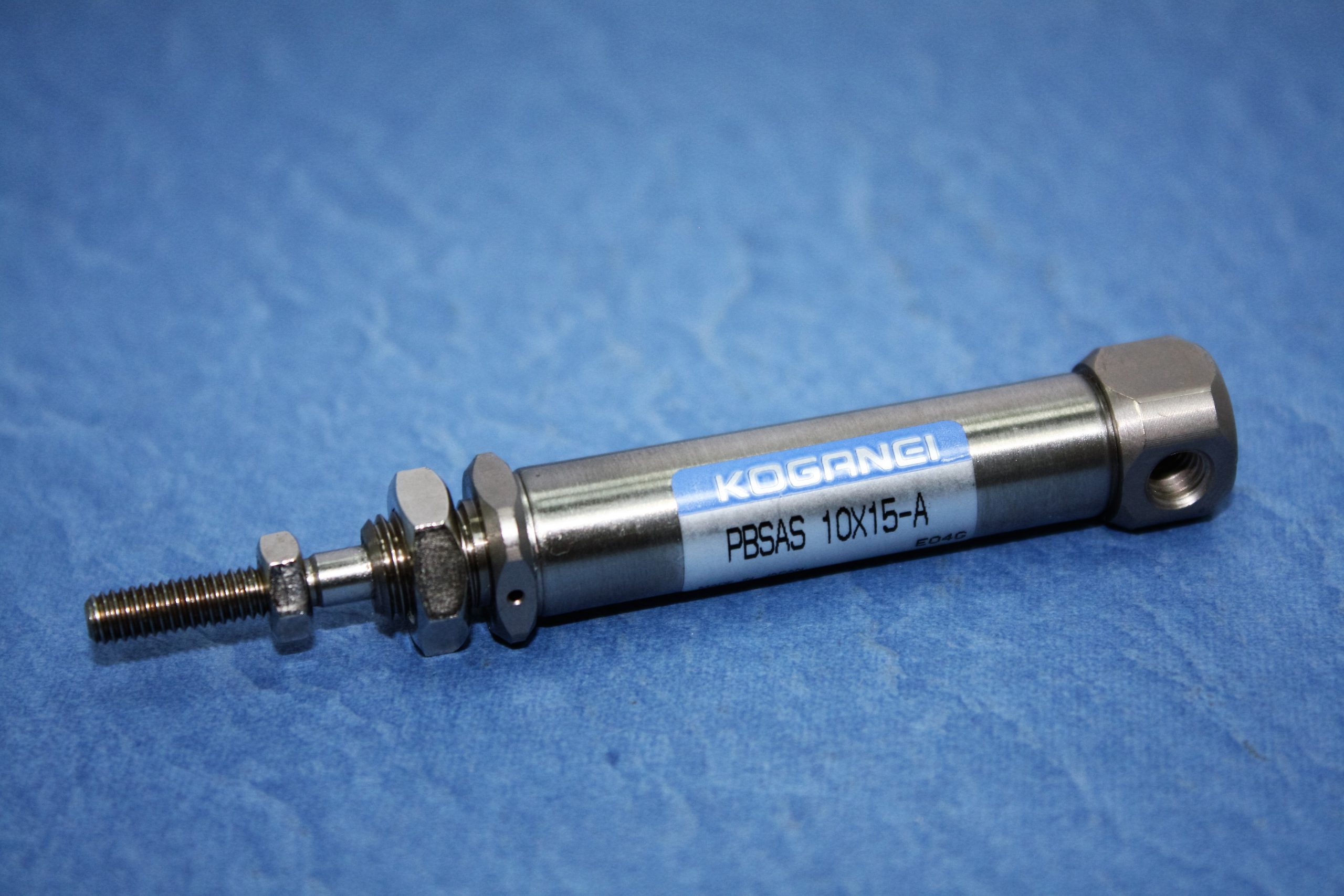

 | SB06 | Upper | 自動穿線剪線氣壓缸 AIRCYLINDER made in japan | For AWT | KOGANEI PBDAS-10×15-A |

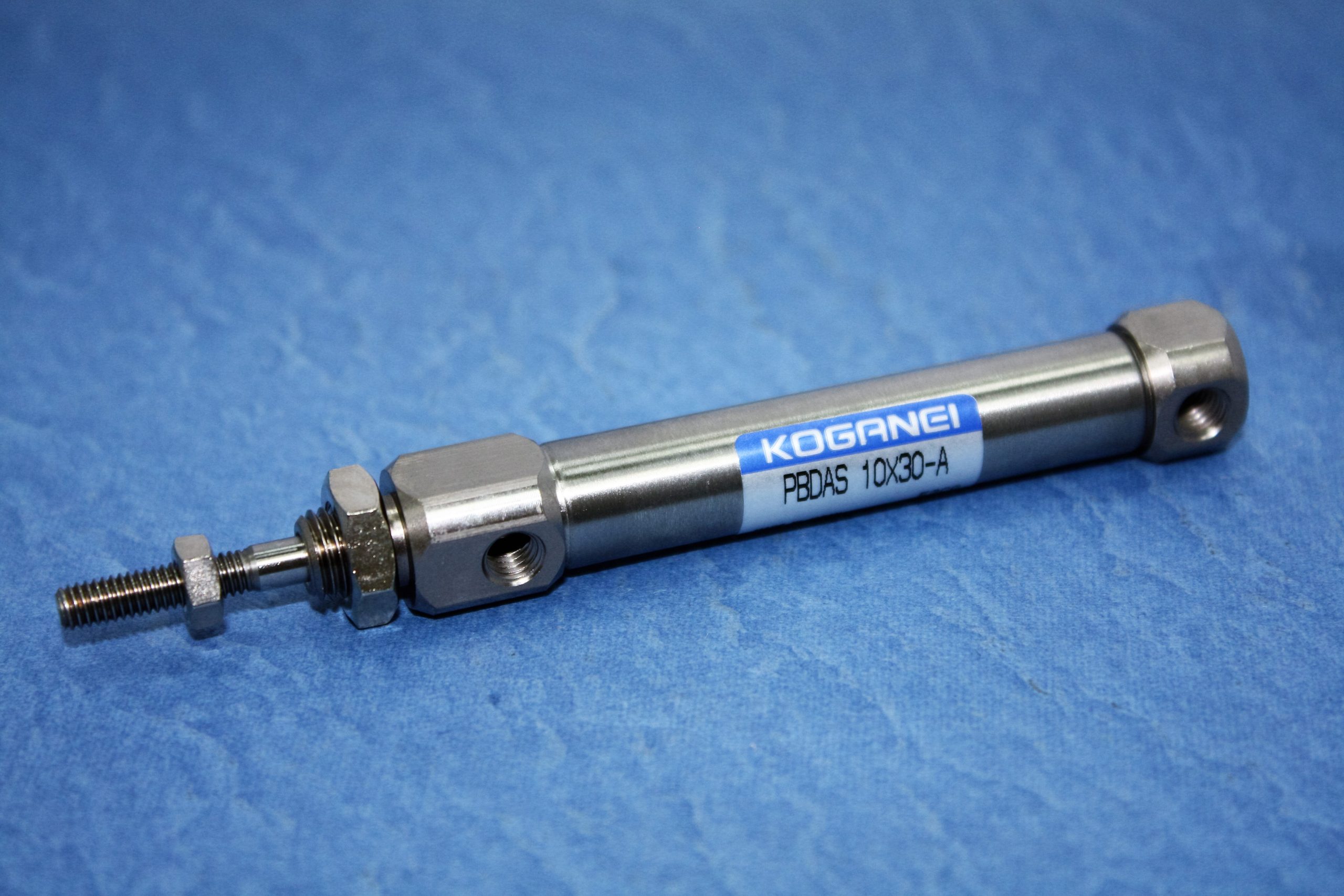

 | SB07 | Upper | 自動穿線剪線氣壓缸 AIRCYLINDER made in japan | For AWT | KOGANEI PBDAS-10×30-A |

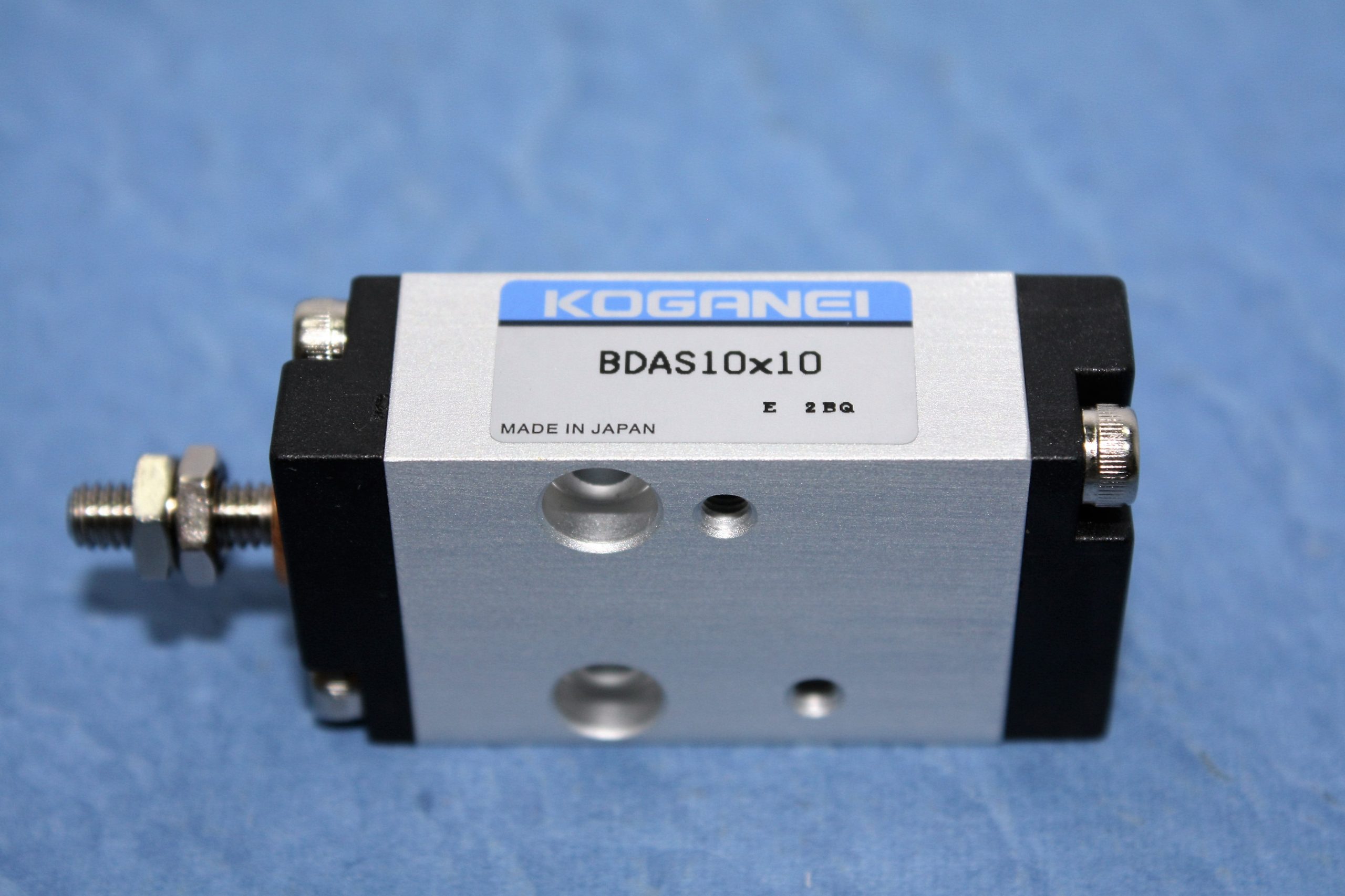

 | SB08 SB09 | Upper | 氣壓缸 AIRCYLINDER made in japan | DWC-C3S,C5S DWC-A5,A5S,A7S DWC-Type:M | KOGANEI MBDA-10×10(08) BDAS-10×10(09) |

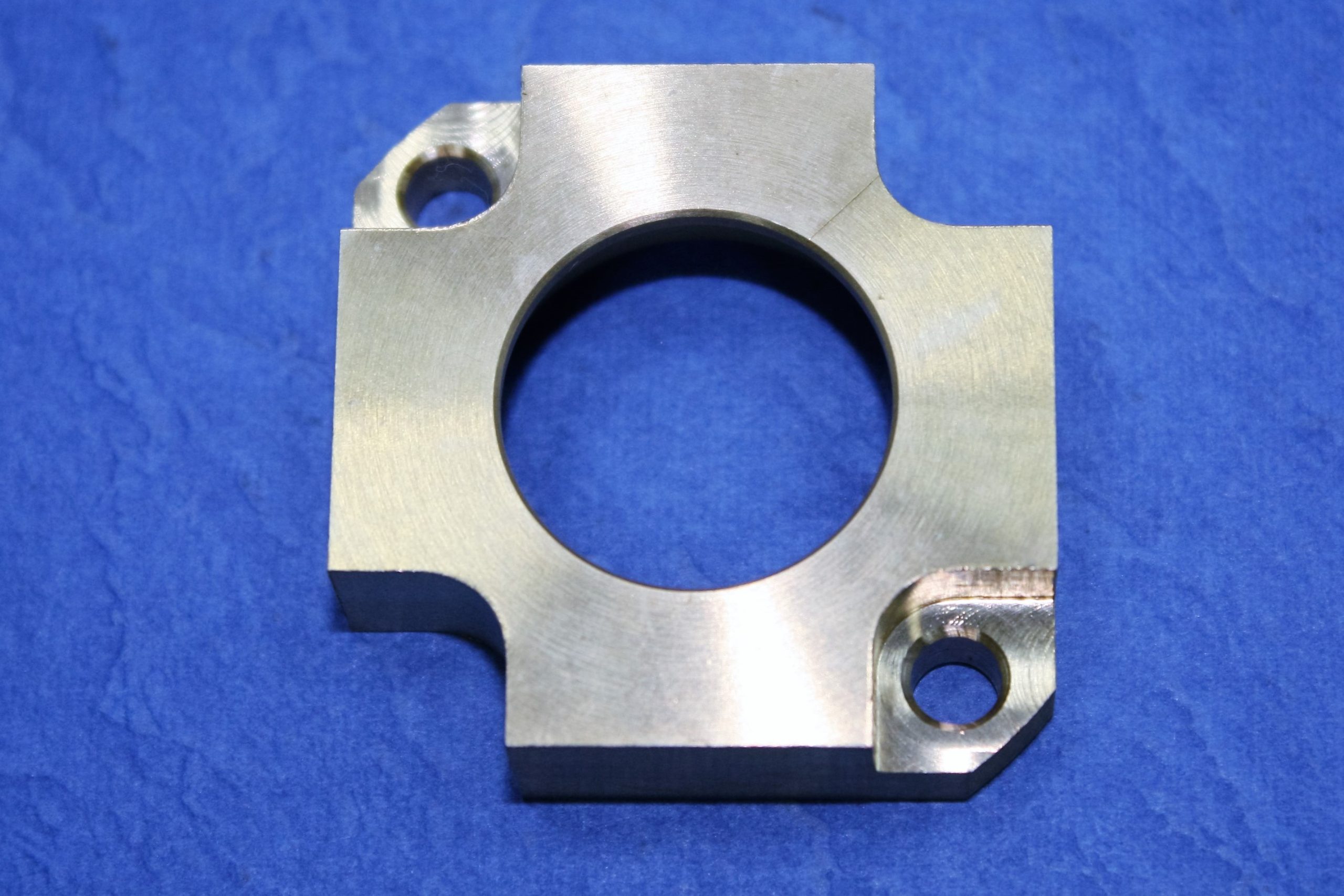

 | S822 | Upper | 上部噴水頭蓋板 34 × 34×10.5t Nozzle Hoder | EW-K2,K3 | |

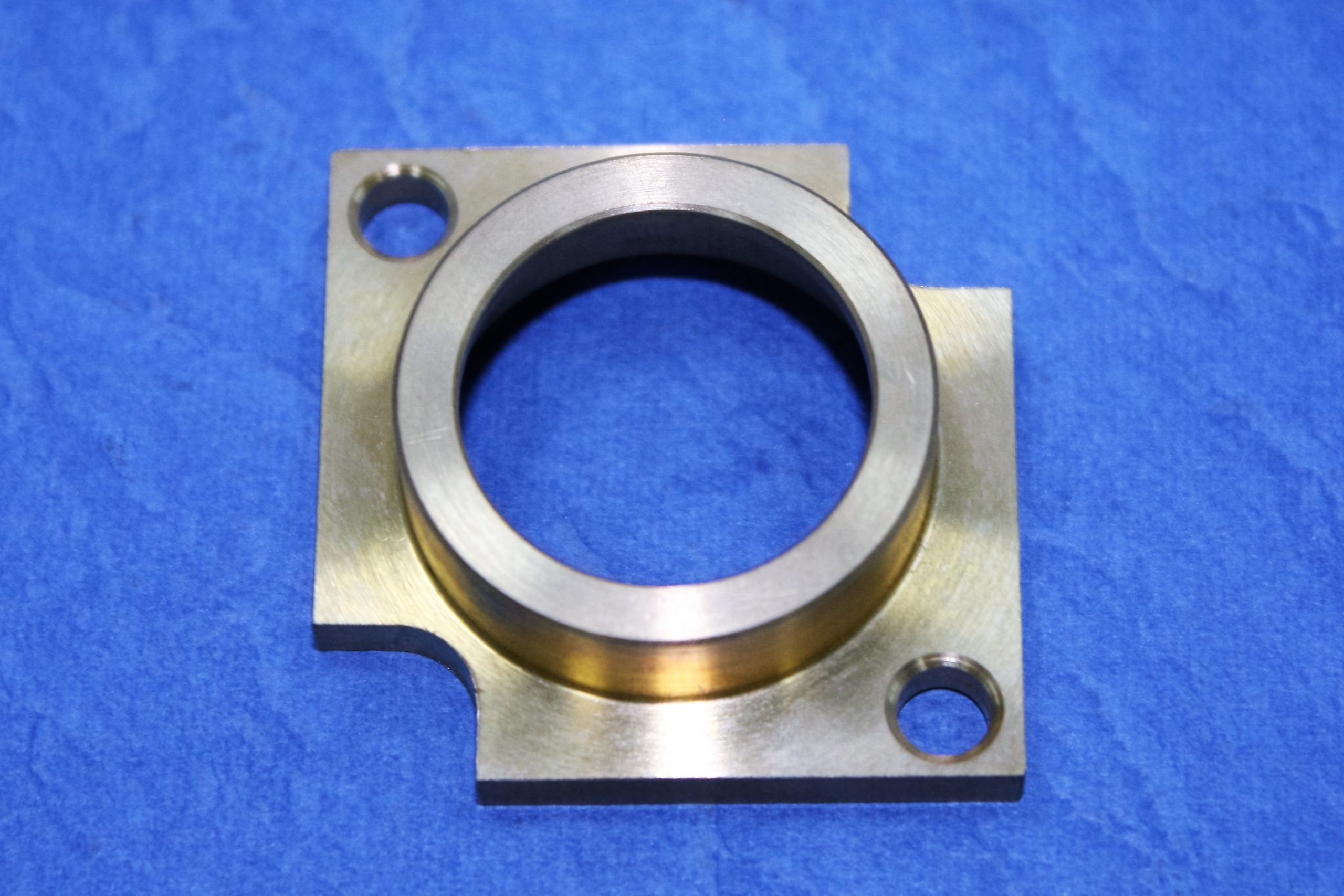

 | S823 | Lower | 下噴水頭蓋板 34 × 34×10.5t Nozzle Hoder | EW-K2,K3 | |

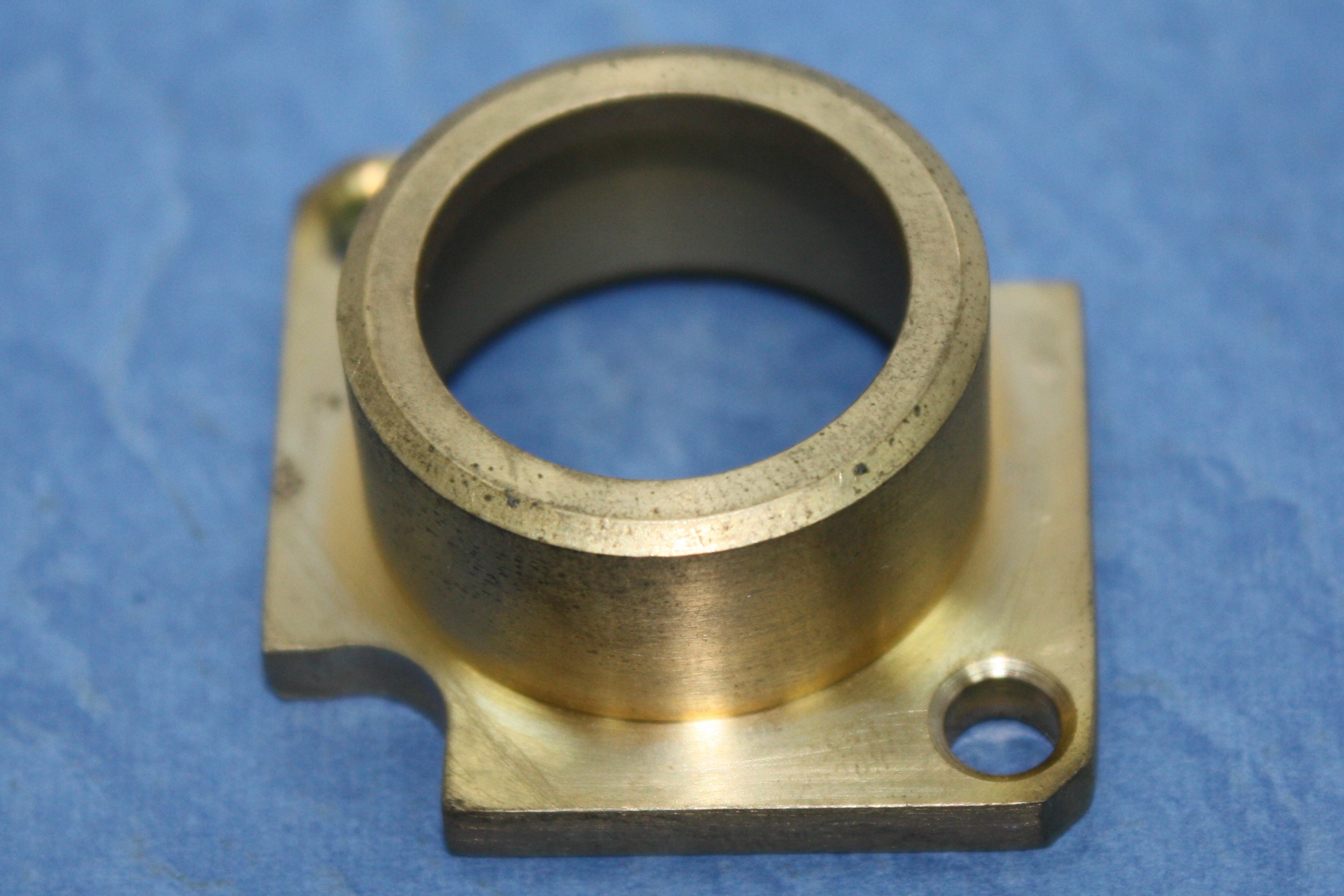

 | S823L | Lower | 下噴水頭蓋板 加高5mm銅製品 Nozzle Hoder | EW-K2,K3 | |

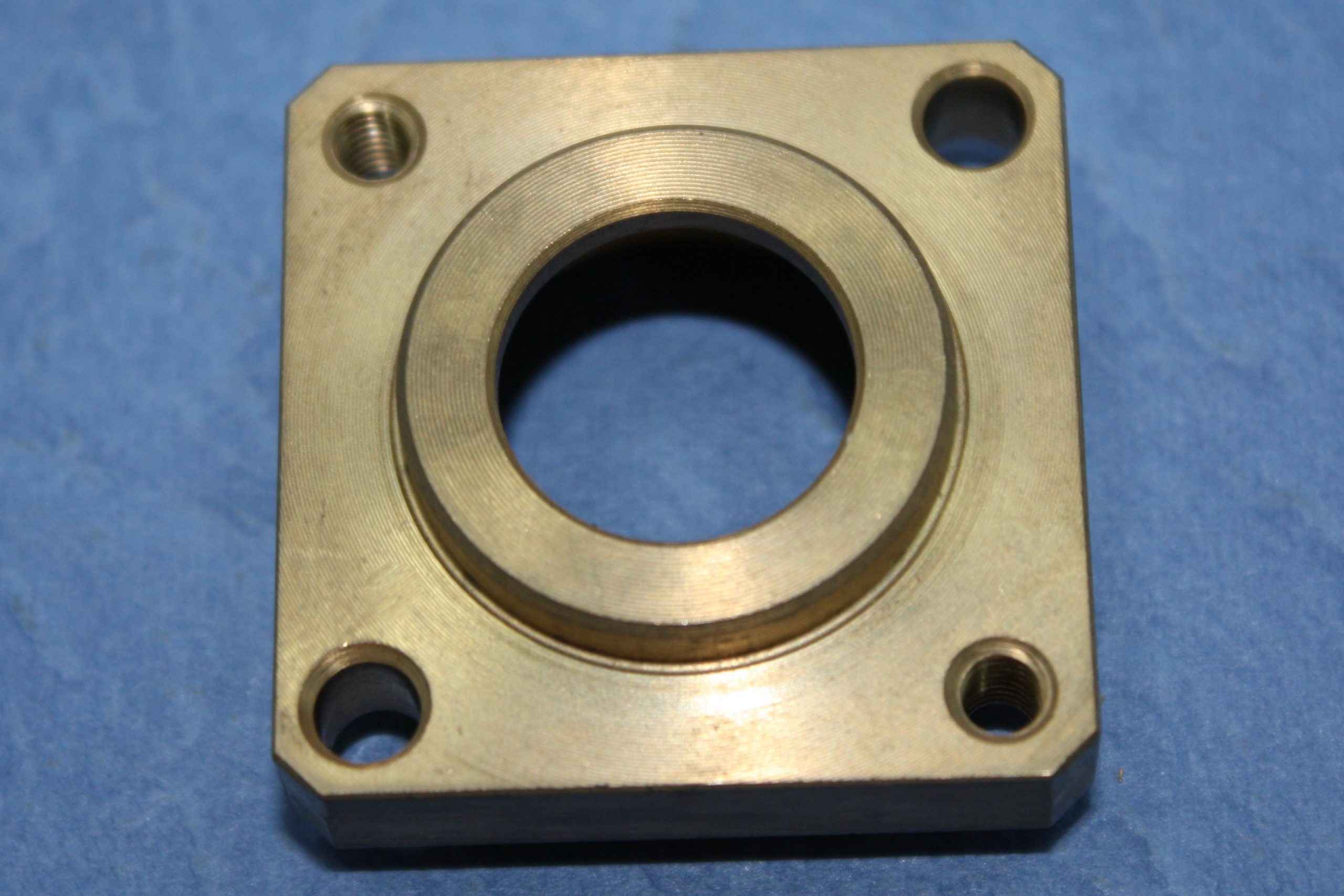

 | S824 | Upper&Lower | 鑽石眼膜蓋板 Guide Holder 34×34×13 | EW-K2,K3 | |

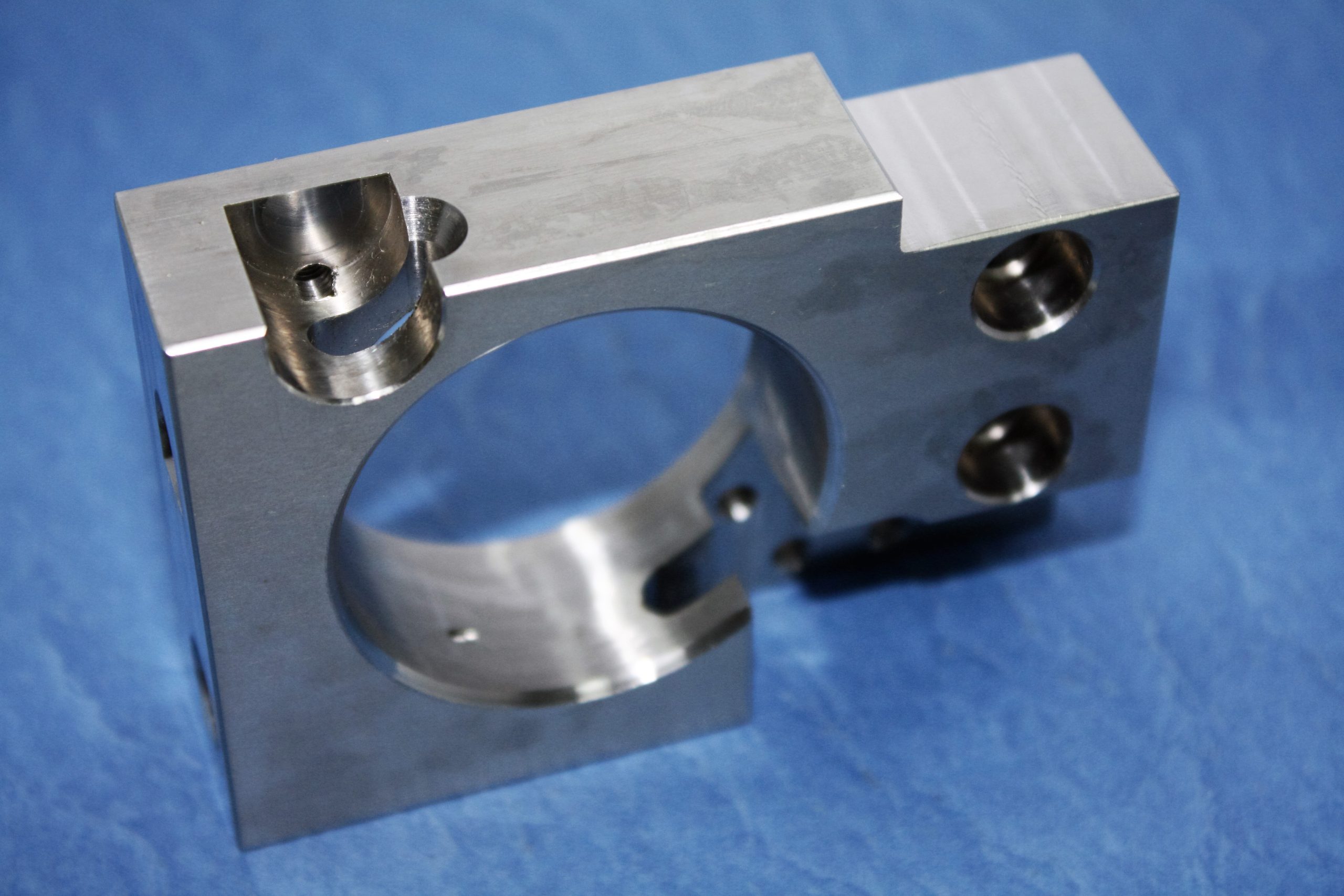

 | S864 | Lower | 下機頭滾輪外框 Roller Housing(SUS) 87*61*21t | EW-K2,K3 | |

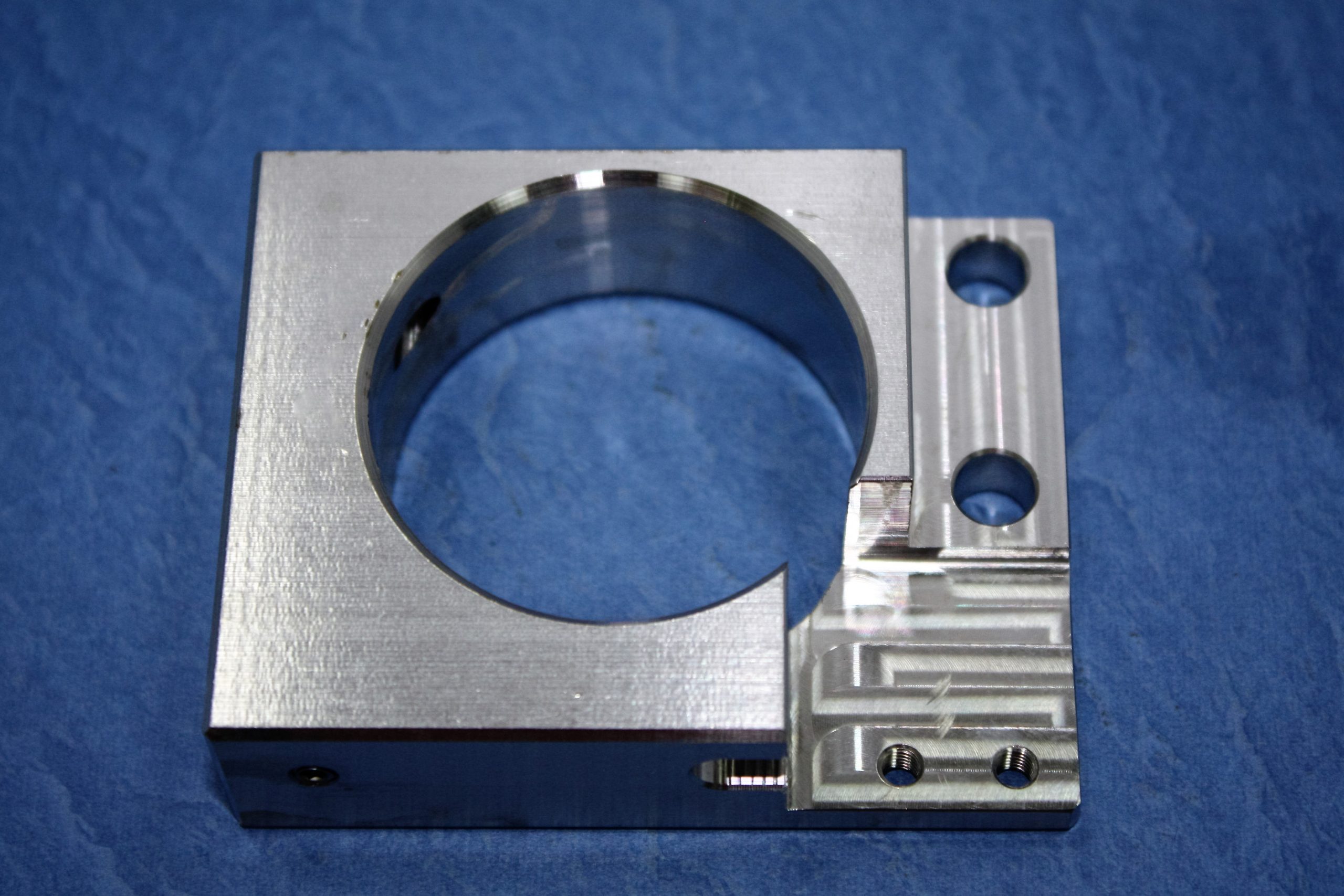

 | S864A | Lower | 下機頭滾輪外框 Roller Housing(SUS) 75*59*28t | EW-A5S,A7S (AWF) | |
 | S865 | Lower | 下機頭滾輪外框 Roller Housing(SUS) 84*61*28t | DWC-C3S,C5S,C7S | 3449295 |

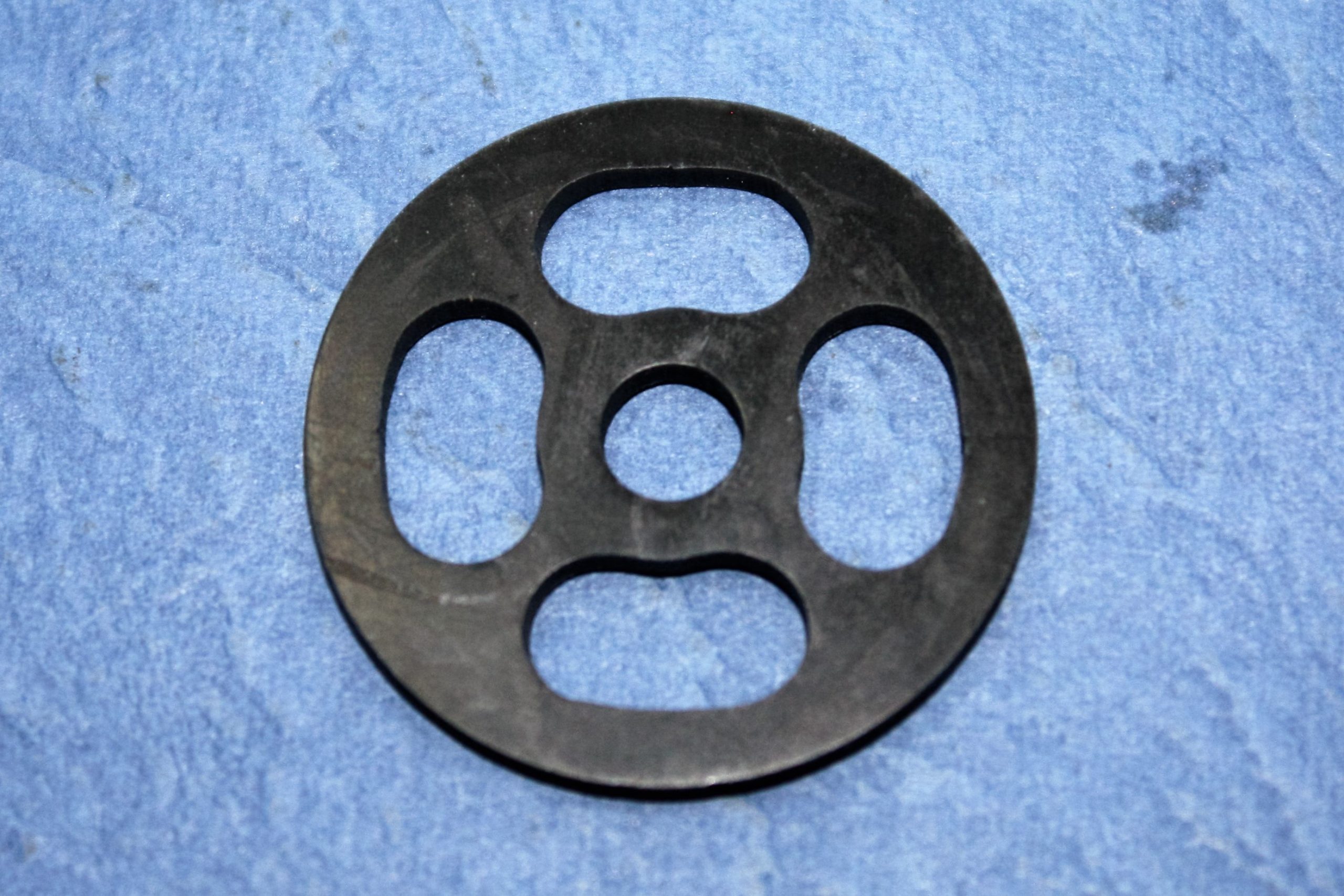

 | S868 | Upper&Lower | 橡膠墊圈 Silicone Gasket 30D×2t×51 | DWC-K2,K3 | |
 | S869 | Lower | 下機頭收線導管座 Roller Housing 38×24 ×16 | DWC-C3S,C5S,C7S | |

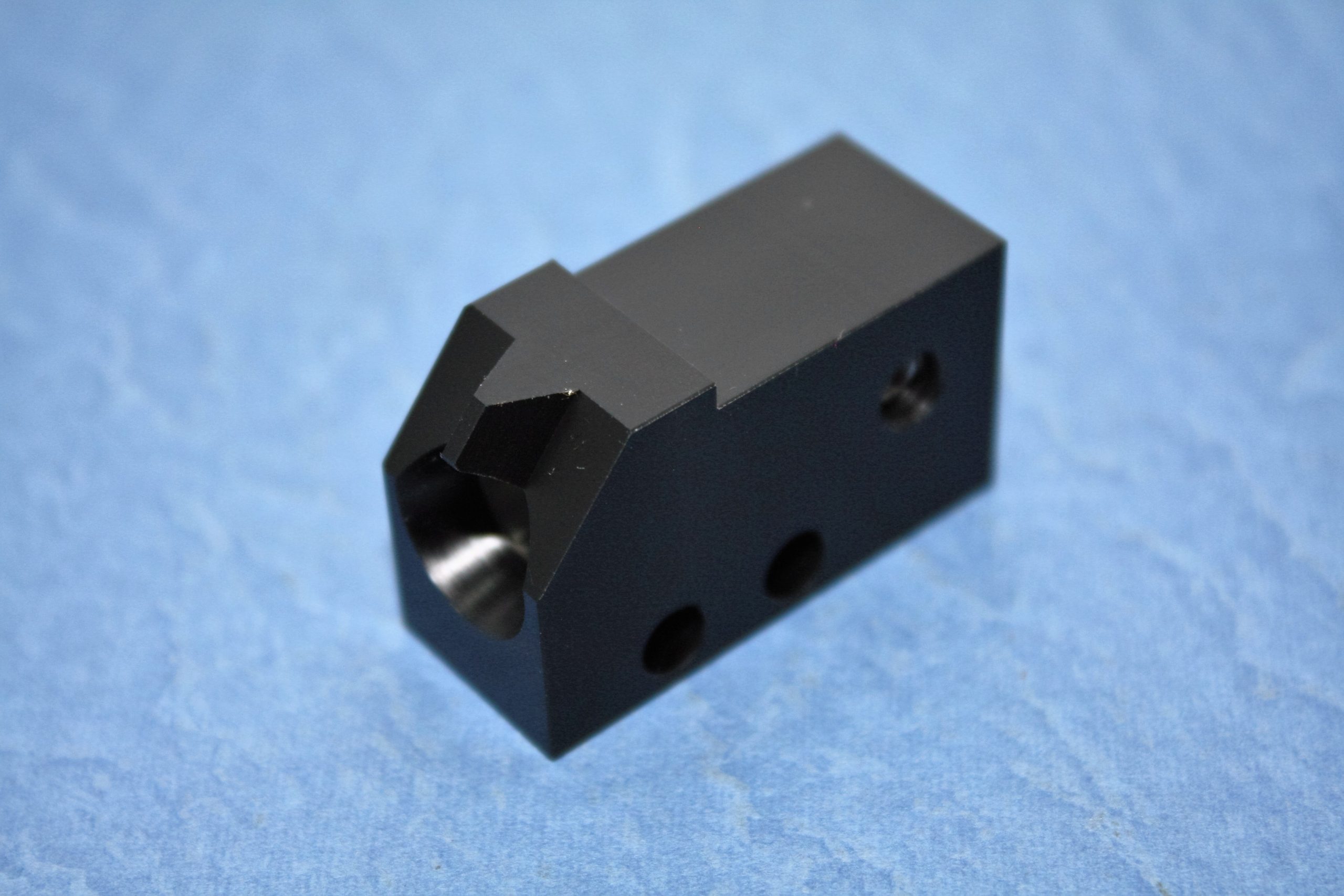

 | S870 | Lower | 下機頭收線導管座 Roller Housing 38×24×16 | DWC-K2,K3 | |

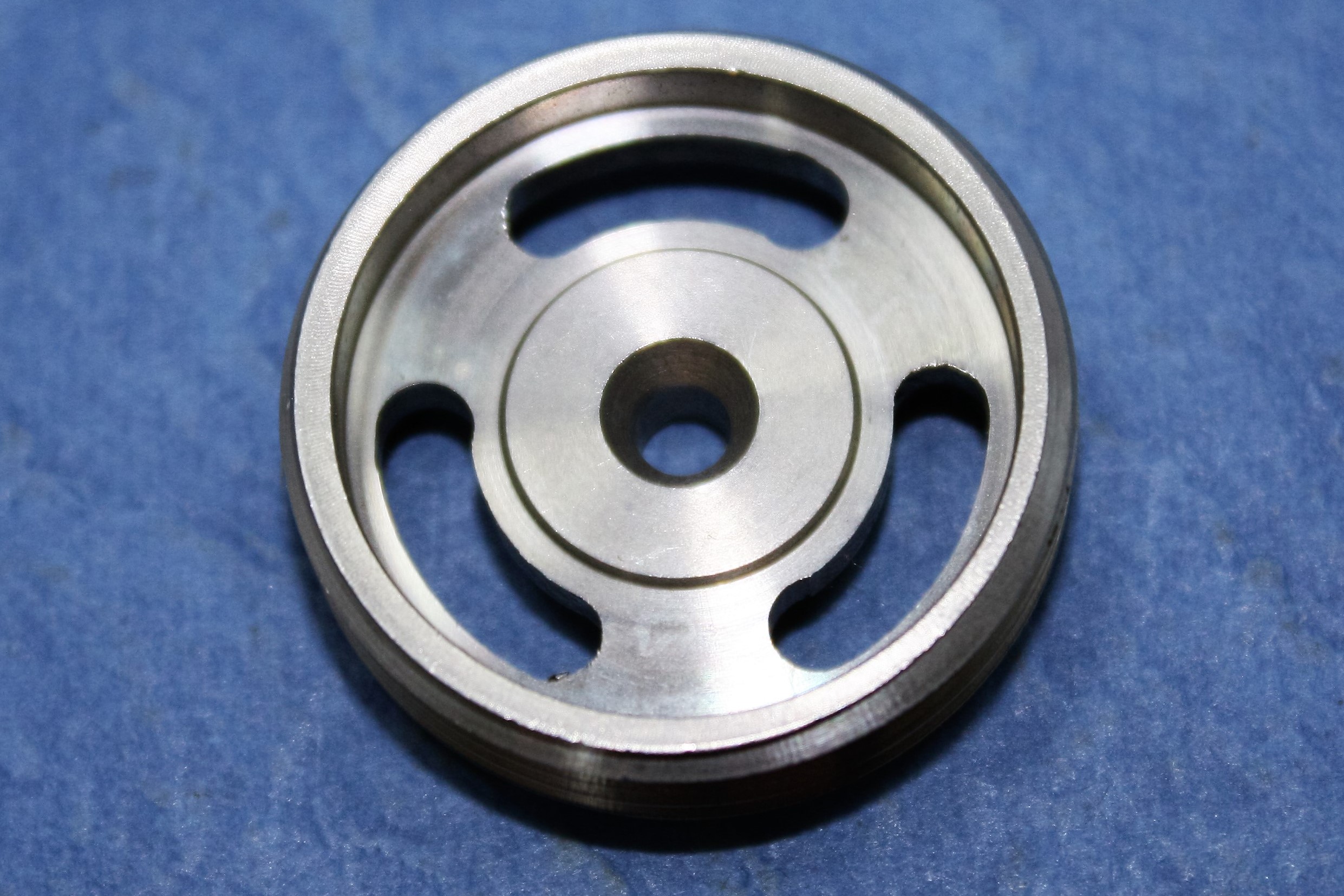

 | S871 | Upper&Lower | 鑽石眼膜固定螺絲 Die Guide Plug(SUS) 25Ø×12.5 | DWC-K2,K3 | |

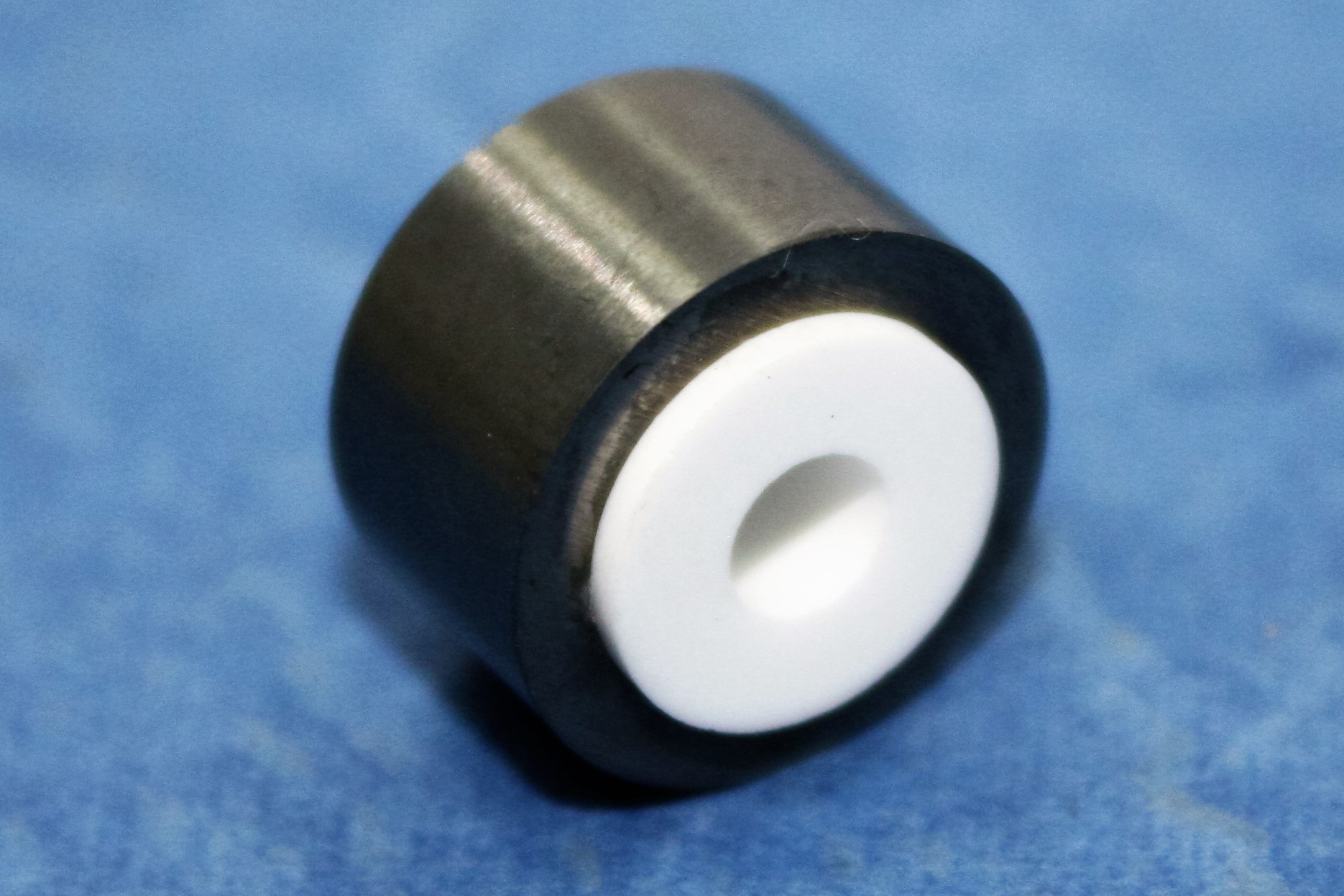

 | S872 | Upper | 自動夾線輪 鎢鋼+陶瓷 14*4*10t AWT Upper Roller | DWC-C3S,C5S DWC-A5,A5S,A7S DWC-Type:M | |

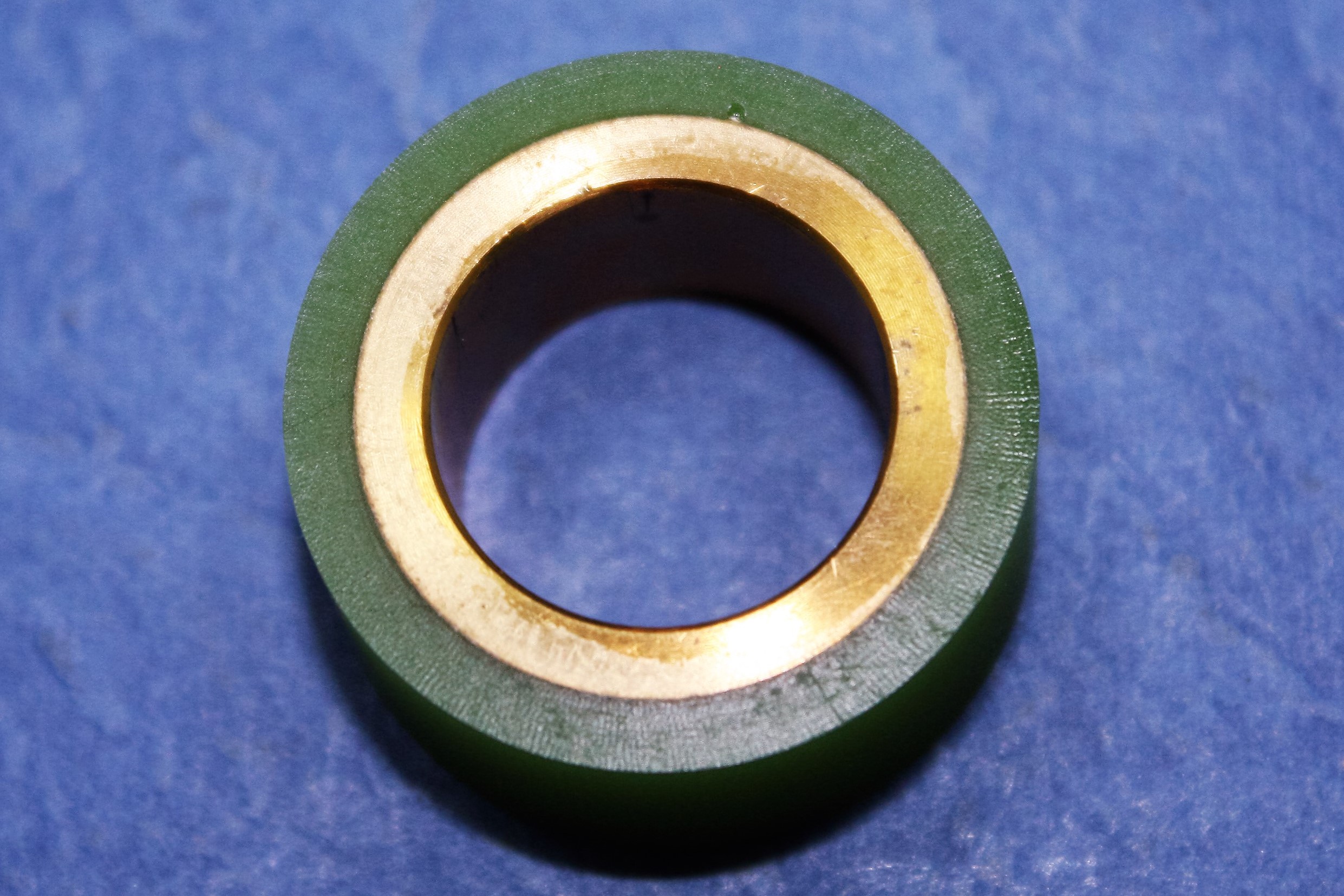

 | S872-1 | Upper | 自動穿線PU送線輪 Wire Roller(PU) 26.2*16*12t | DWC-A5S,A7S,B3S3,C3S,C5S,C5S2,M3S,5S,7S (AWF) | |

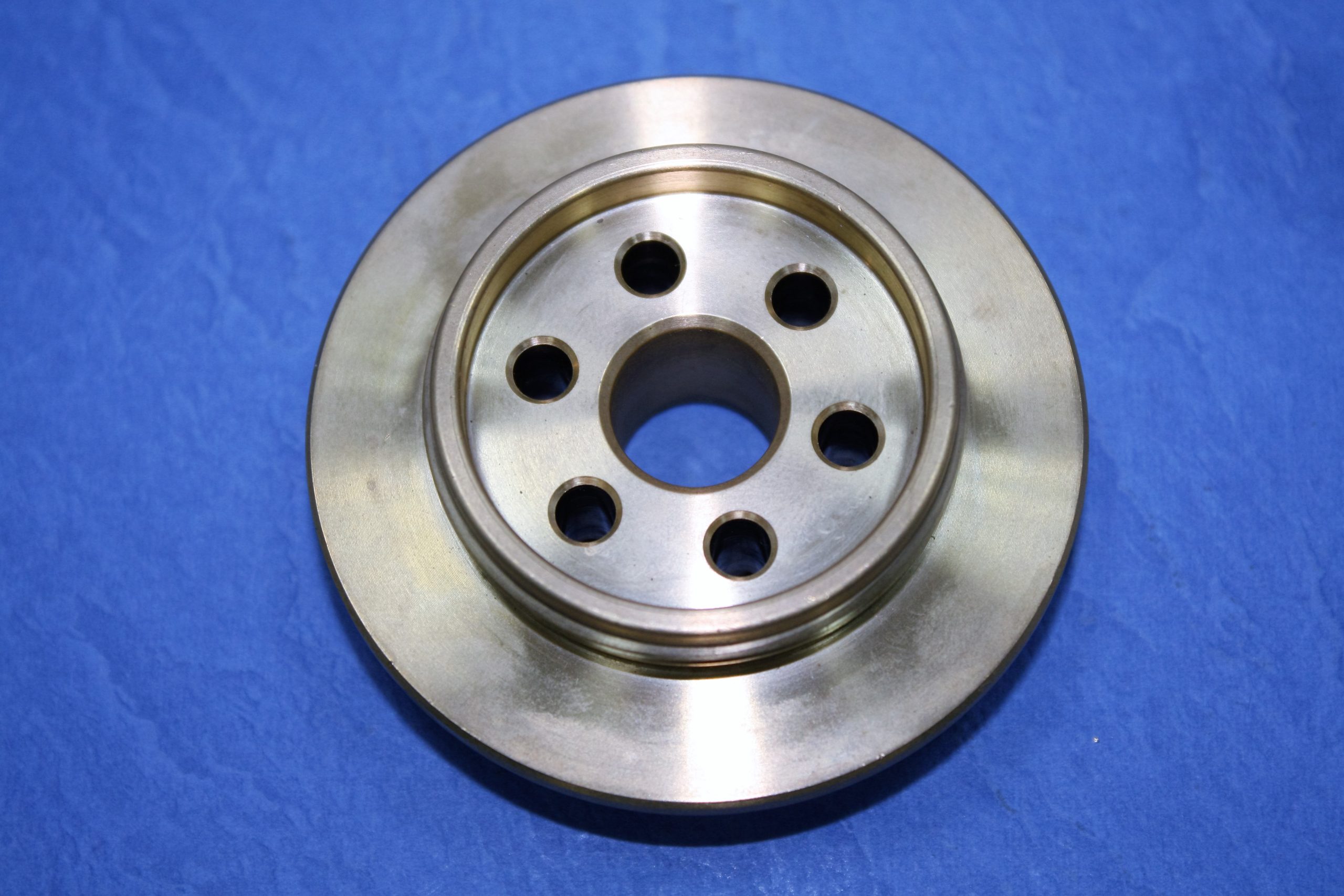

 | S876 | Upper | 上鑽石眼膜固定座 Die Guide Holder 66*14*22t | EW-C5S,C5S2,M,MM (AWF) | |

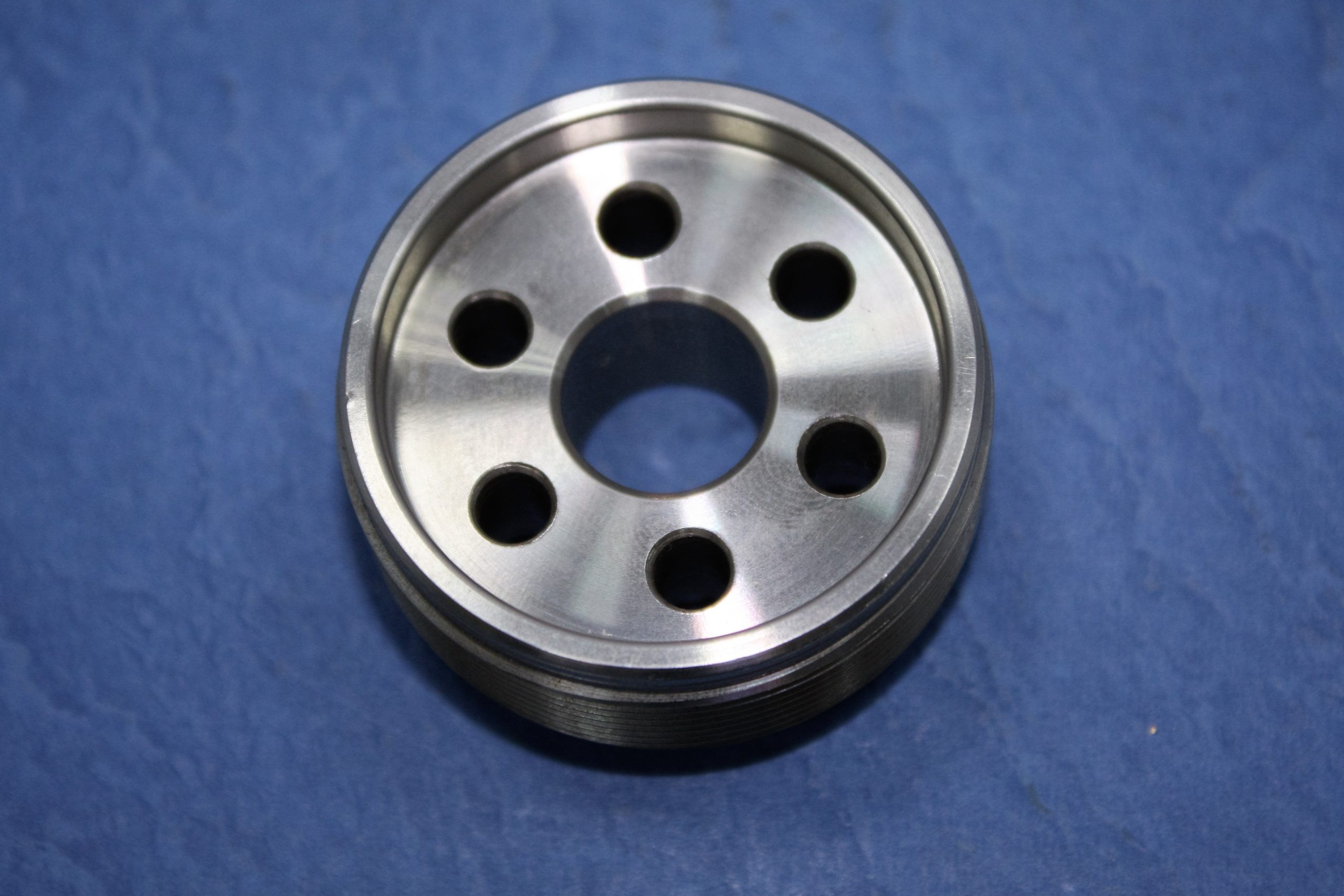

 | S877 | Lower | 下鑽石眼膜固定座 Die Guide Holder 45*14*22t | EW-C5S,C5S2,M,MM (AWF) | |

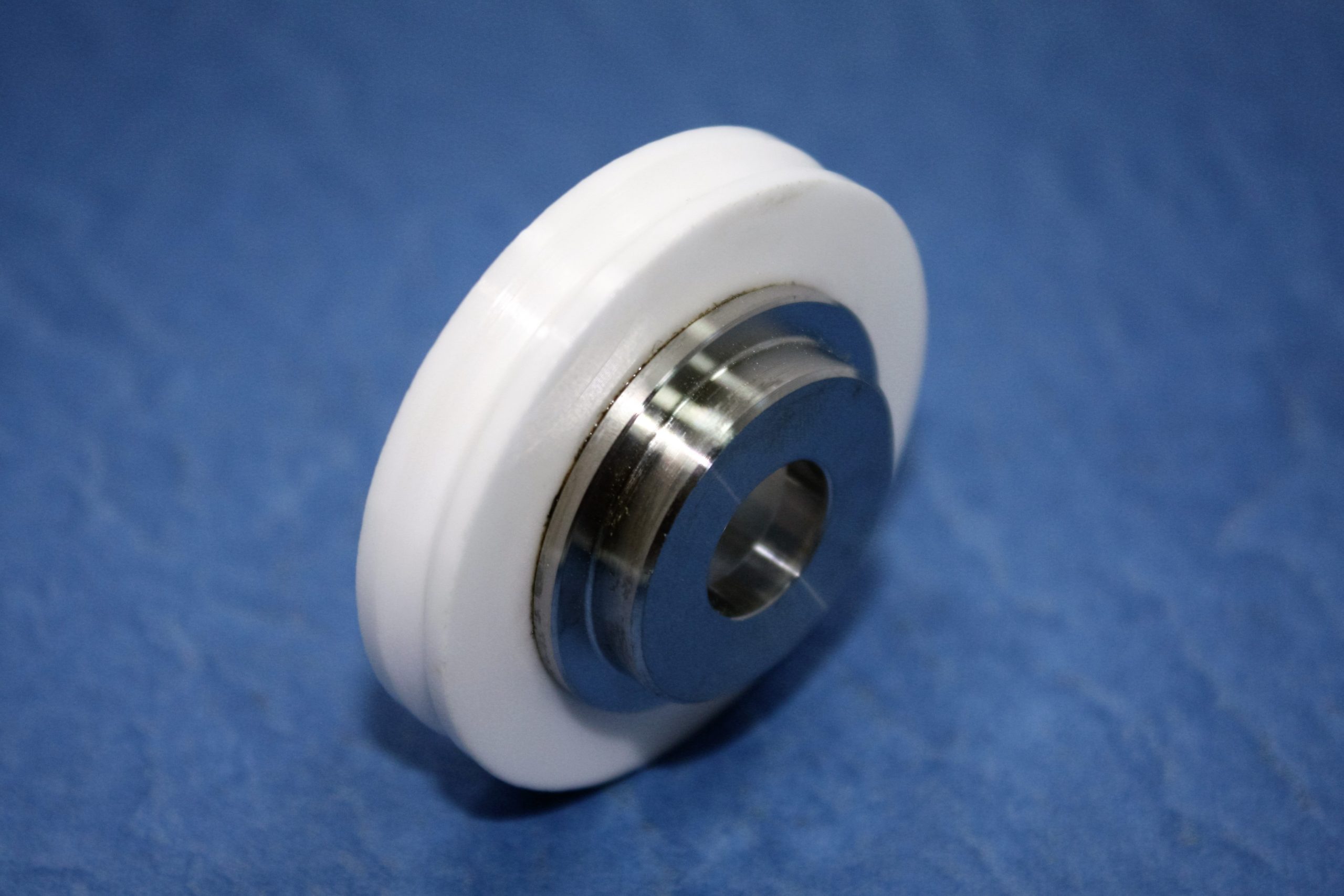

 | S313 | Lower | 下機頭陶瓷引線輪 Lower Roller(Ceramic) 44 Ø×19×19t | EW-K | |

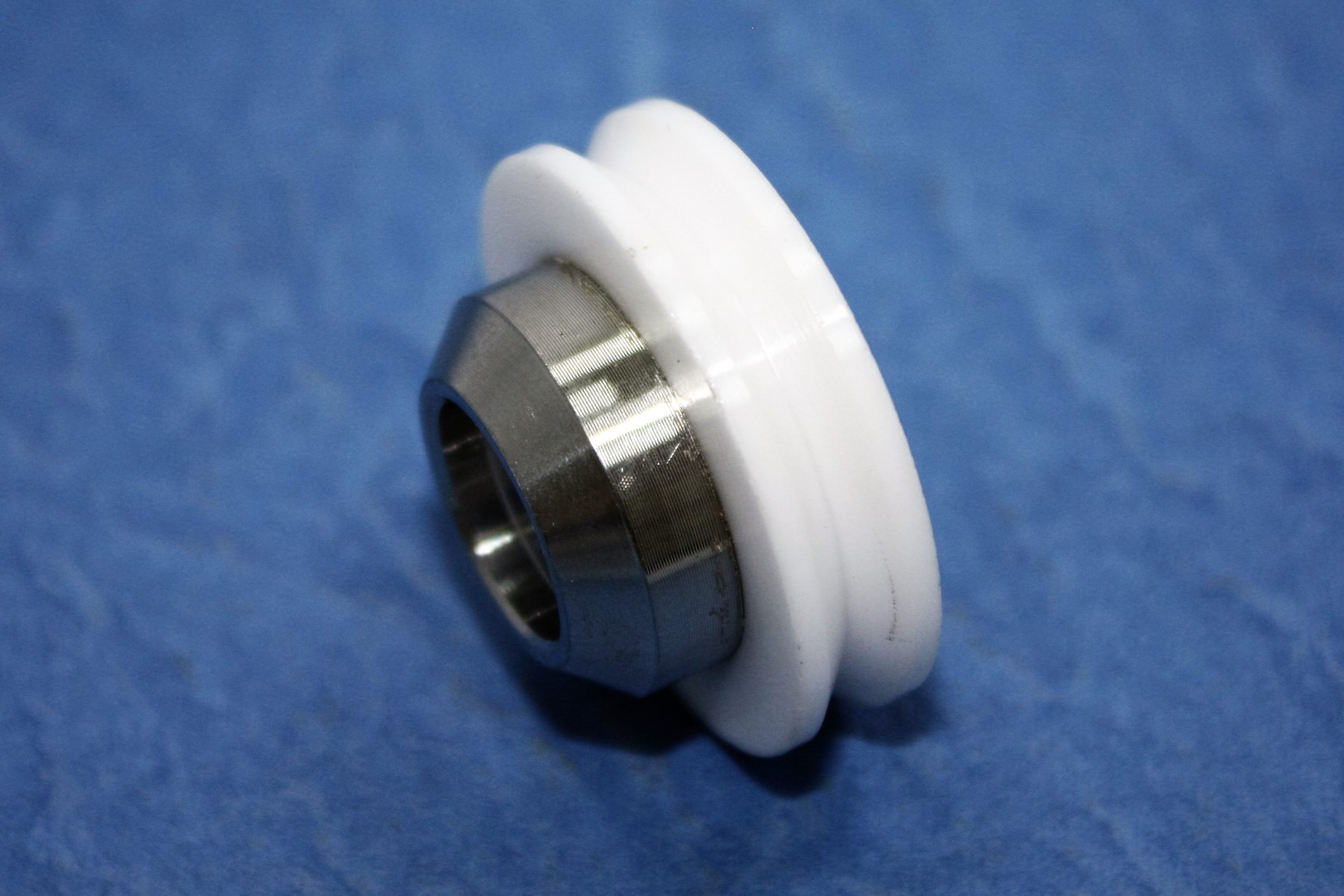

 | S319 | Lower | 上機頭陶瓷引線輪 Upper Roller(Ceramic) 33Ø17t | EW-K1,K2,K3 | |

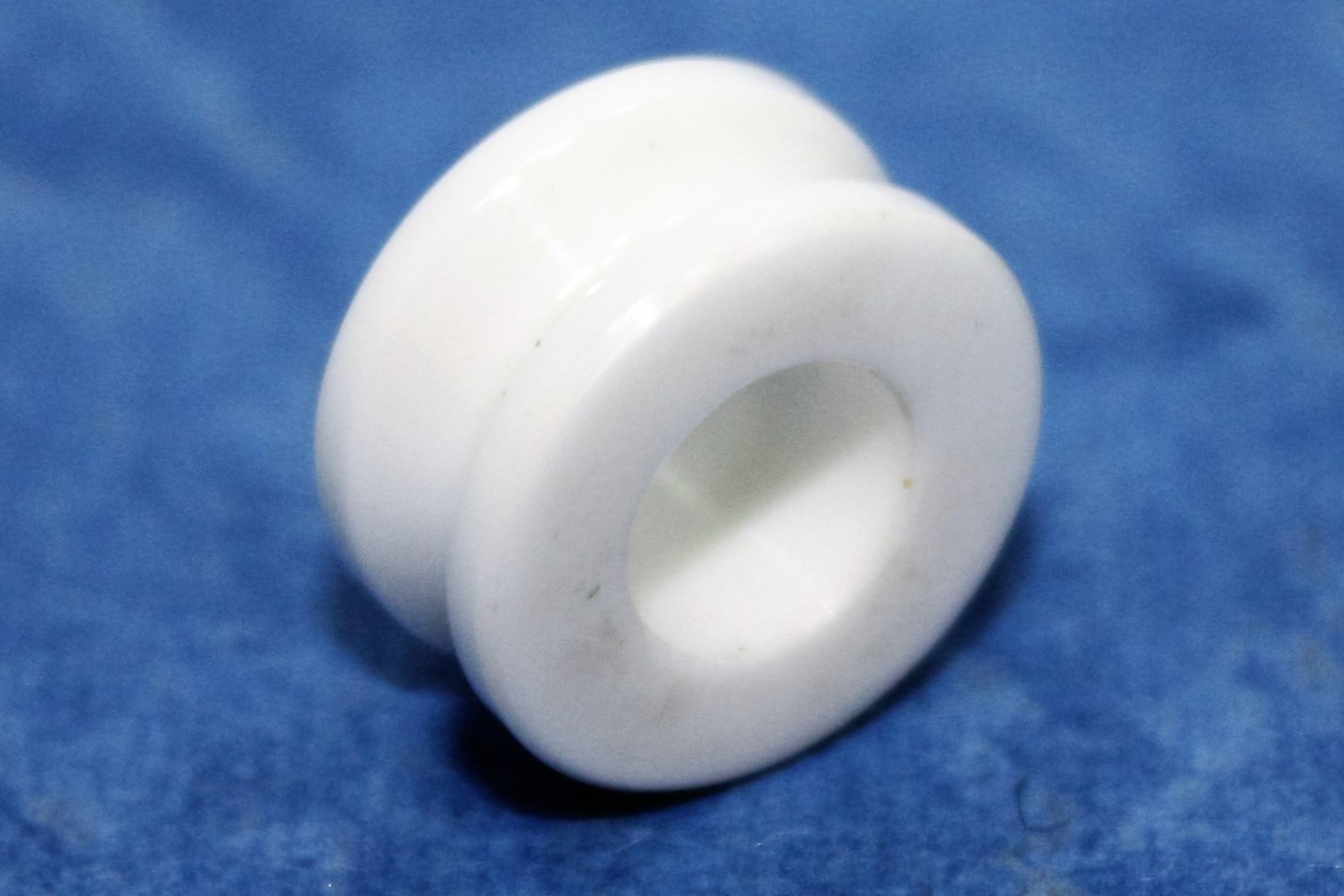

 | S320 | Lower | 下機頭陶瓷引線輪 Lower Roller(Ceramic) 12Ø6t | EW-K1,K2,K3 | |

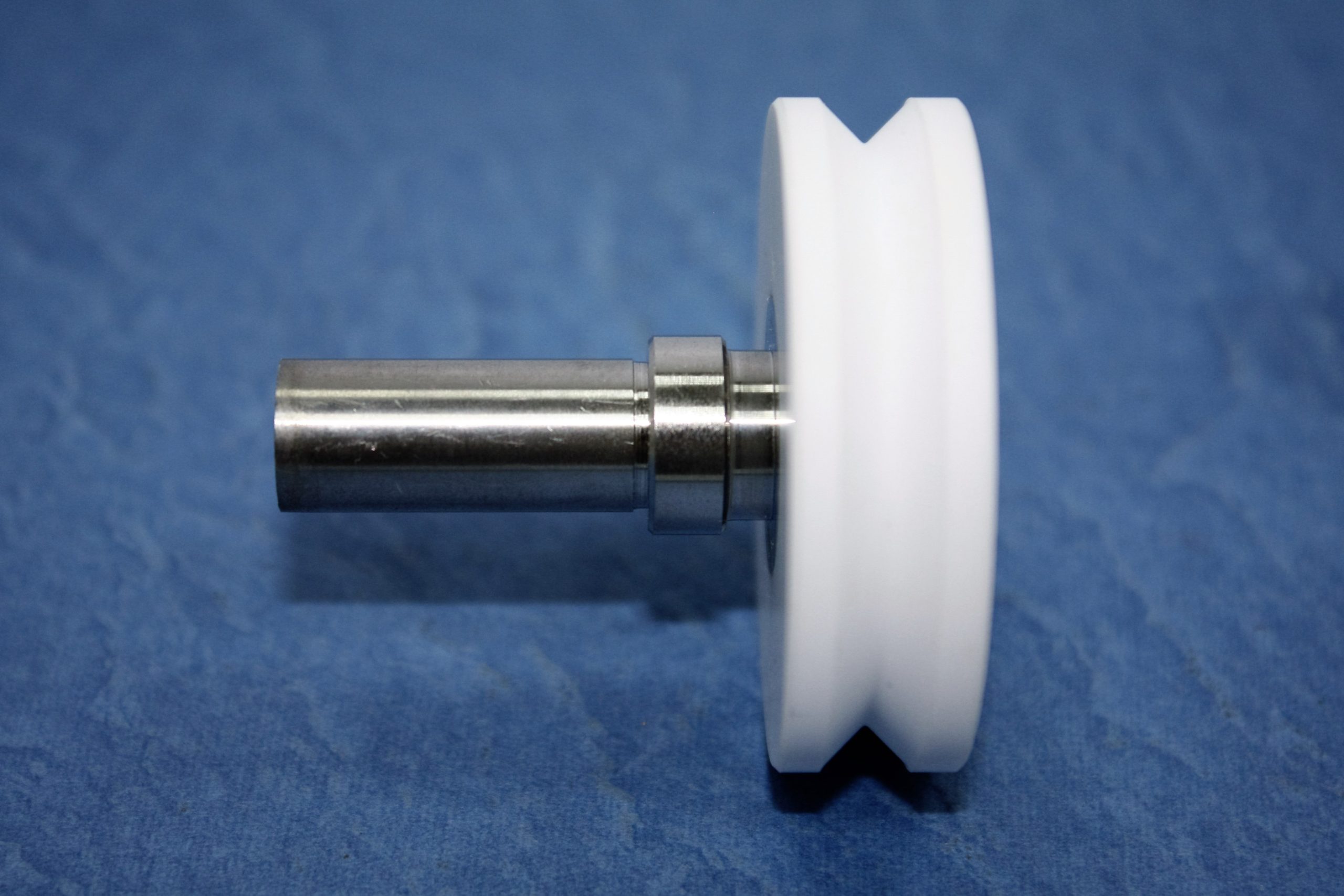

 | S321 | Lower | 下機頭陶瓷引線輪 Lower Roller(Ceramic) 40 Ø×12t-35mm | EW-K2,K3 DWC-M50A | |

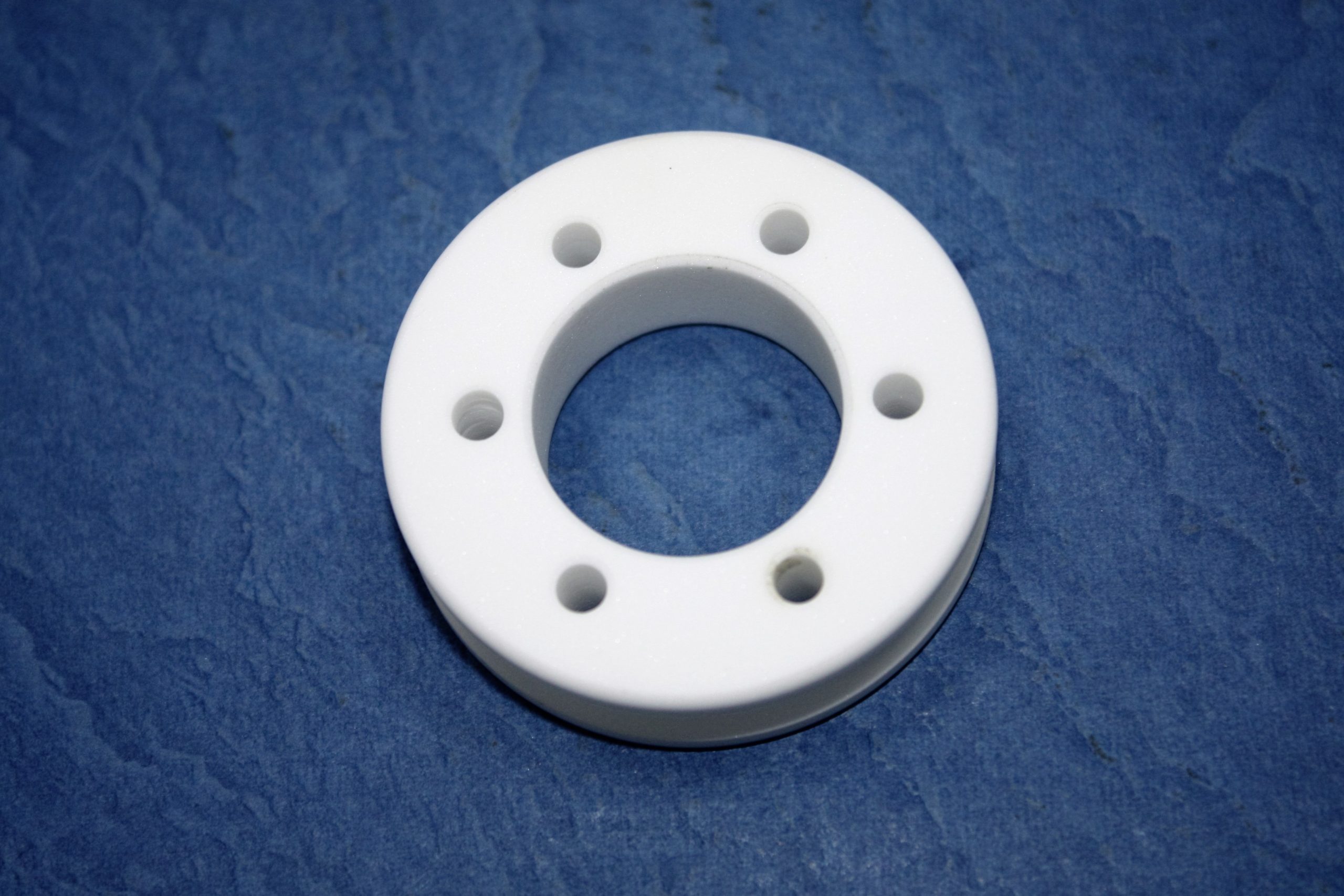

 | S322 | Lower | 下機頭陶瓷引線輪 Lower Roller(Ceramic) 44 Ø*22Ø *12t | DWC-C3S,C5S DWC-Type:M | |
 | S323K S323S | Feed Section | 出線輪軸心 Shaft 42D*110L | S323K For EW-K2,K3 S323S For EW-A5S,A7S EW-C3S,C5S,M,MM | |

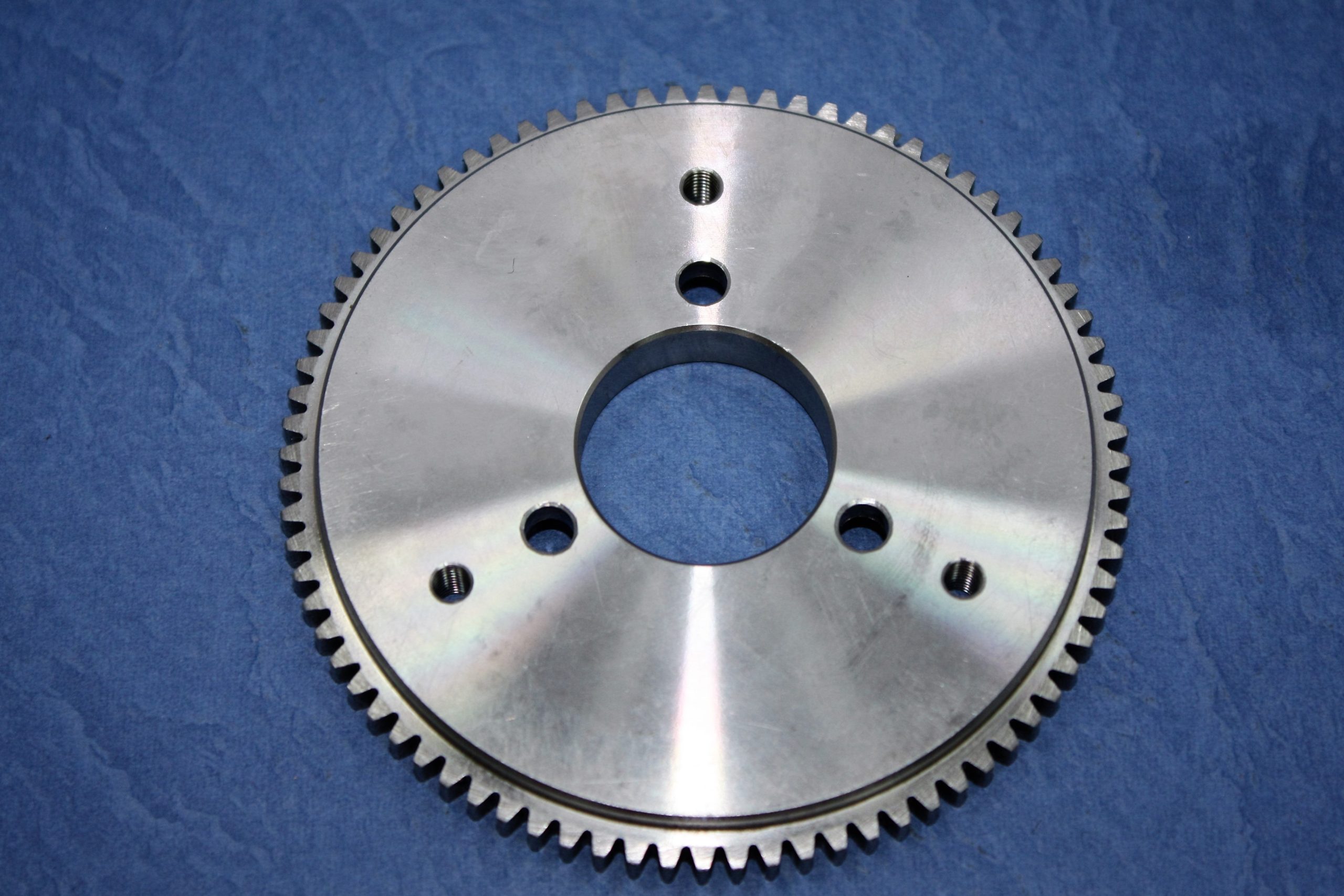

 | S324 | Feed Section | 出線輪齒輪 Gear Plate 82mm | EW-K2,K3 Type EW-A5S,A7S,B3S,C3S,C5S,C5S M.MM,Type | |

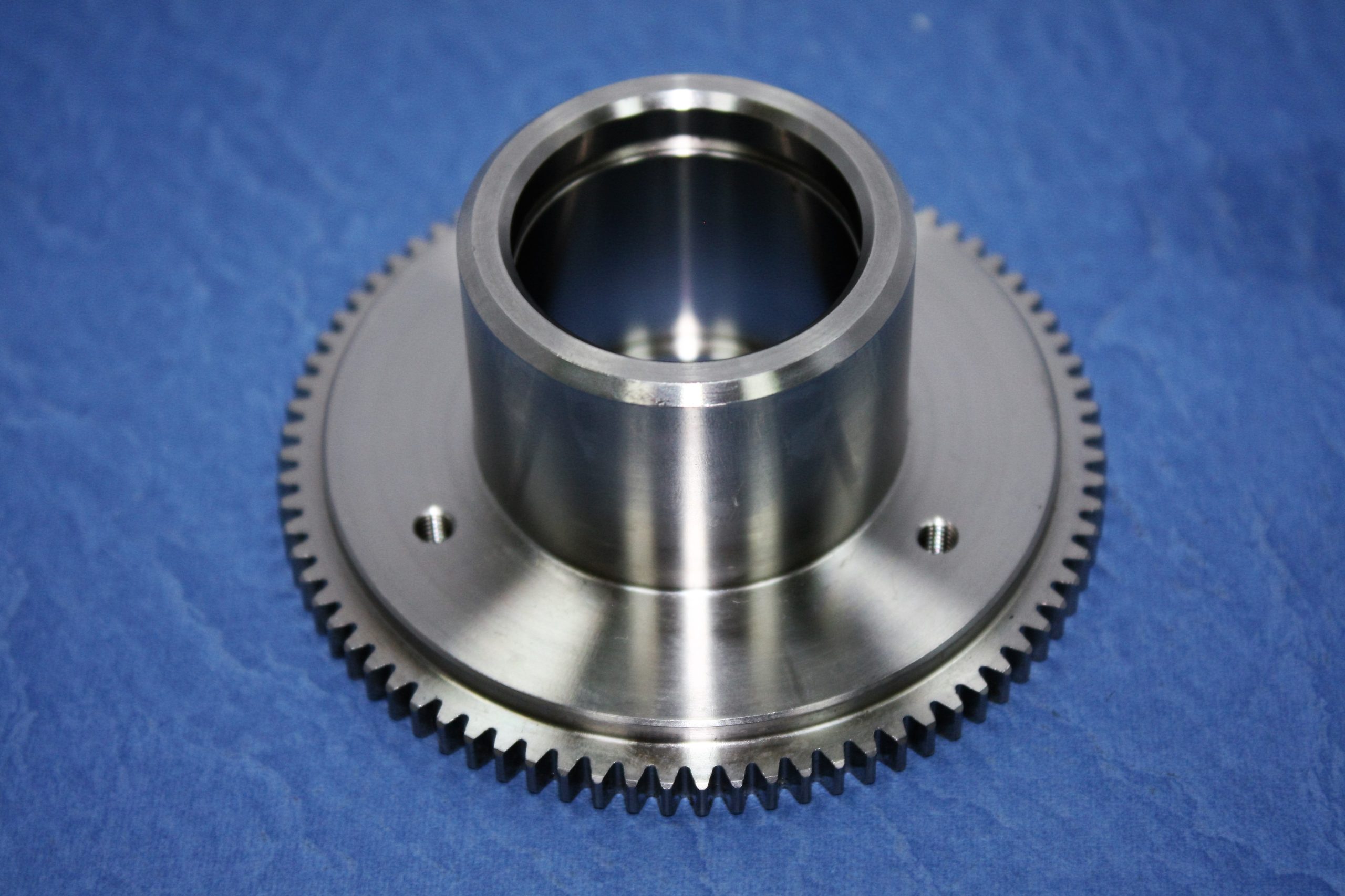

 | S325 | Feed Section | 出線輪齒輪 Gear Plate 82mm | EW-K2,K3 Type EW-A5S,A7S,B3S,C3S,C5S,C5S M.MM,Type | |
 | S327 | 出線末端導引頭 End Head For Leading Wire | EW-K2,K3,A5S,A7S,B3S3,CS,C5S,C5S2,M3S,5S,7S | ||

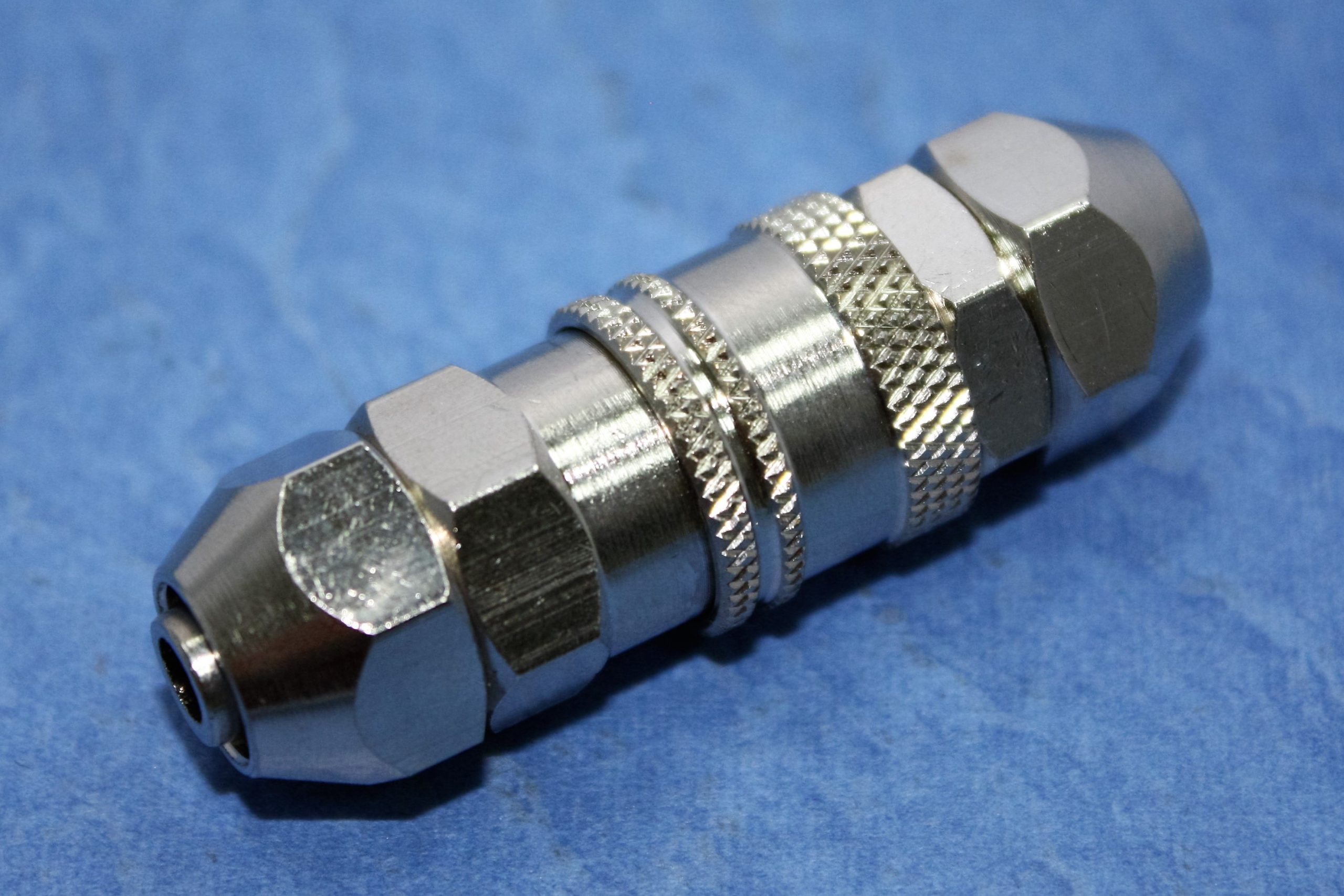

 | SB01 | Upper&Lower | 快速接頭(小) Water Pipe Fitting 閉塞型 | EW-F,K,K1,K2,K3 EW-A5S,A7S,B3S3,C3,C5S,C5S2 | |

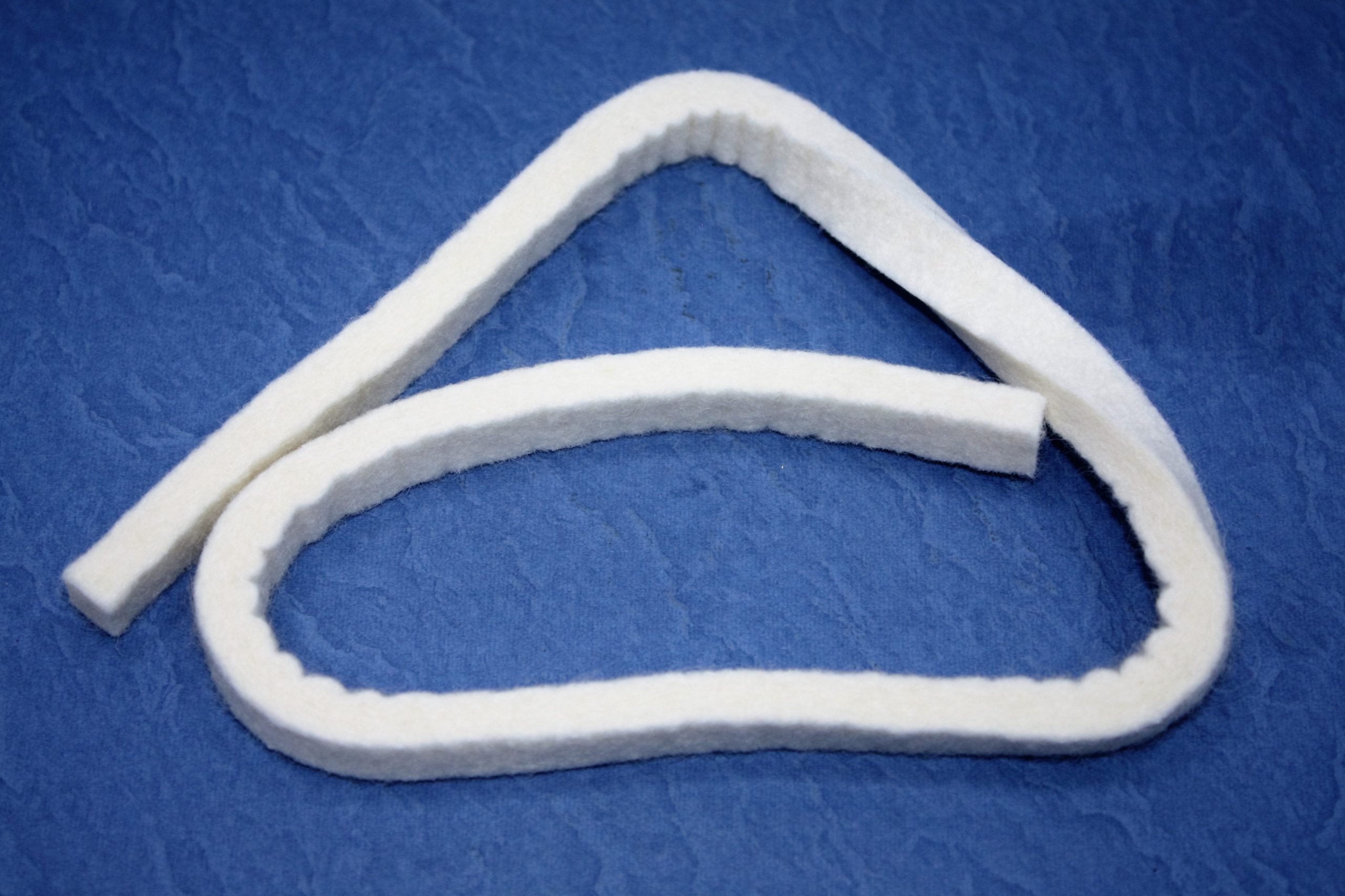

 | SB03 | Upper | 羊毛氈 5mm×400L | EW-F,K,K1,K2,K3 EW-A5S,A7S,B3S3,C3,C5S,C5S2,M Type | |

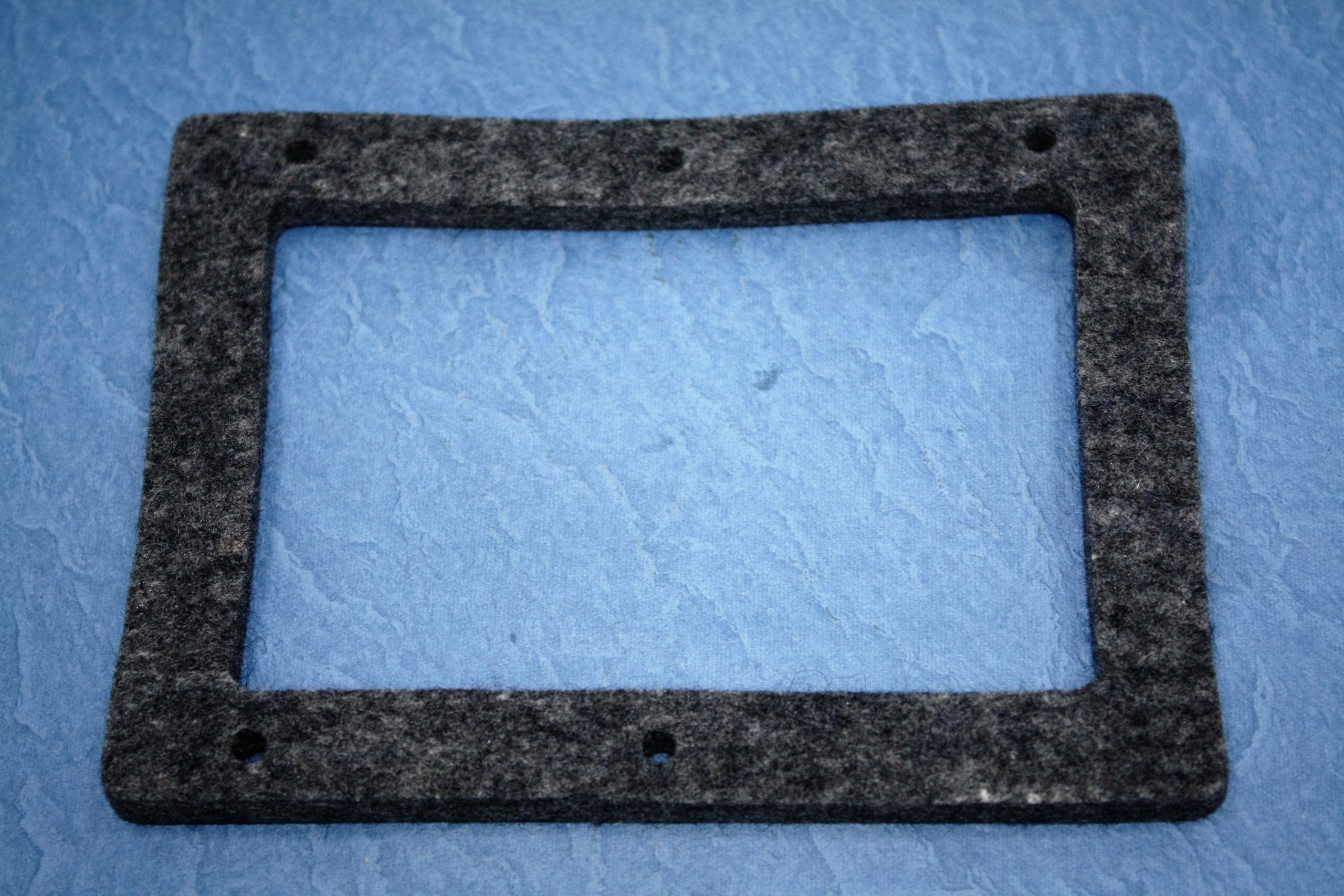

 | SB04 | Lower | 下懸臂用羊毛氈 6mm×110mm×150mm | EW-F,K,K1,K2,K3 EW-A5S,A7S,B3S3,C3,C5S,C5S2 | |

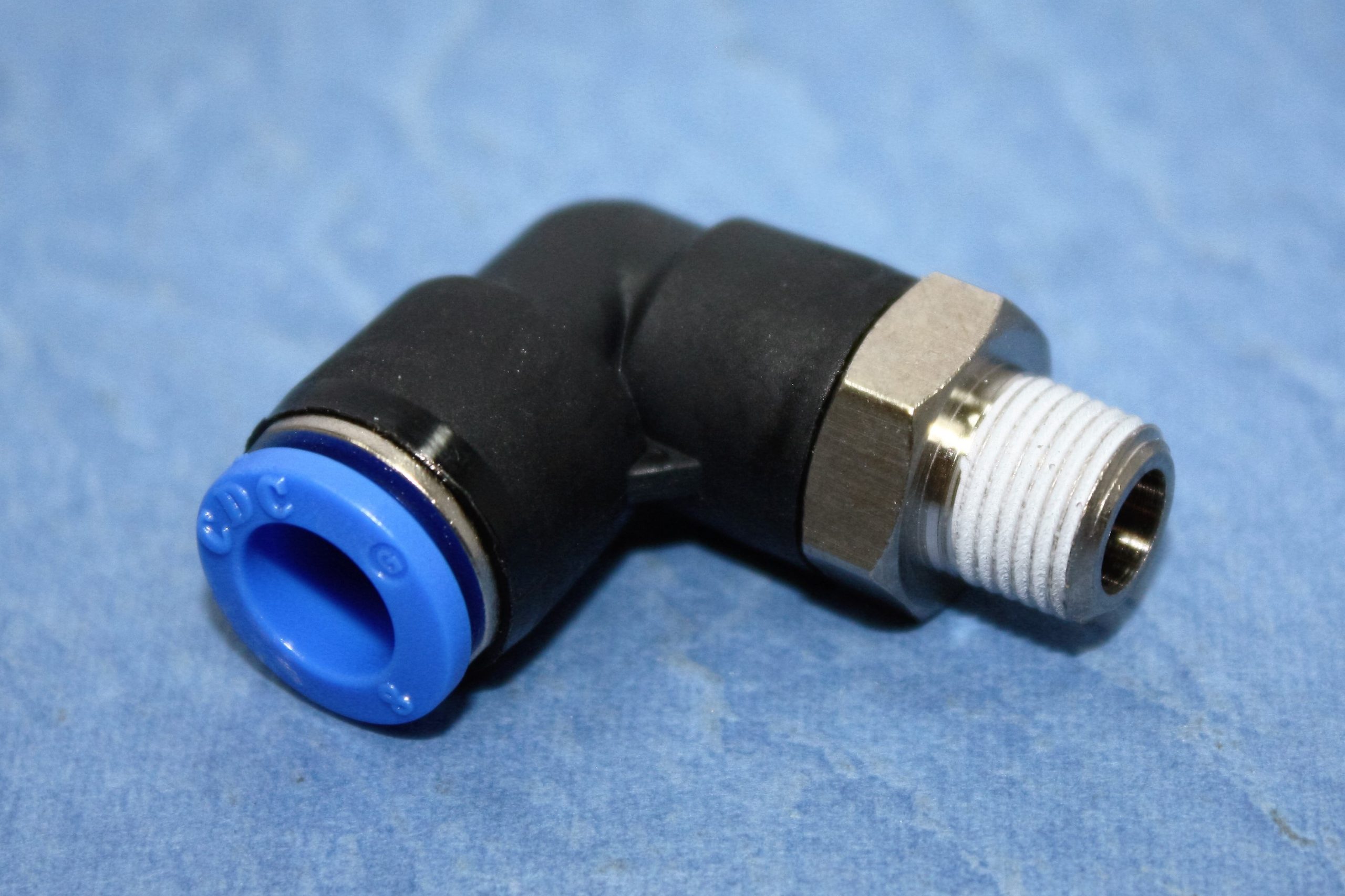

 | SB05-2 | Upper | L型入水管接頭 Water Pipe Fitting | ||

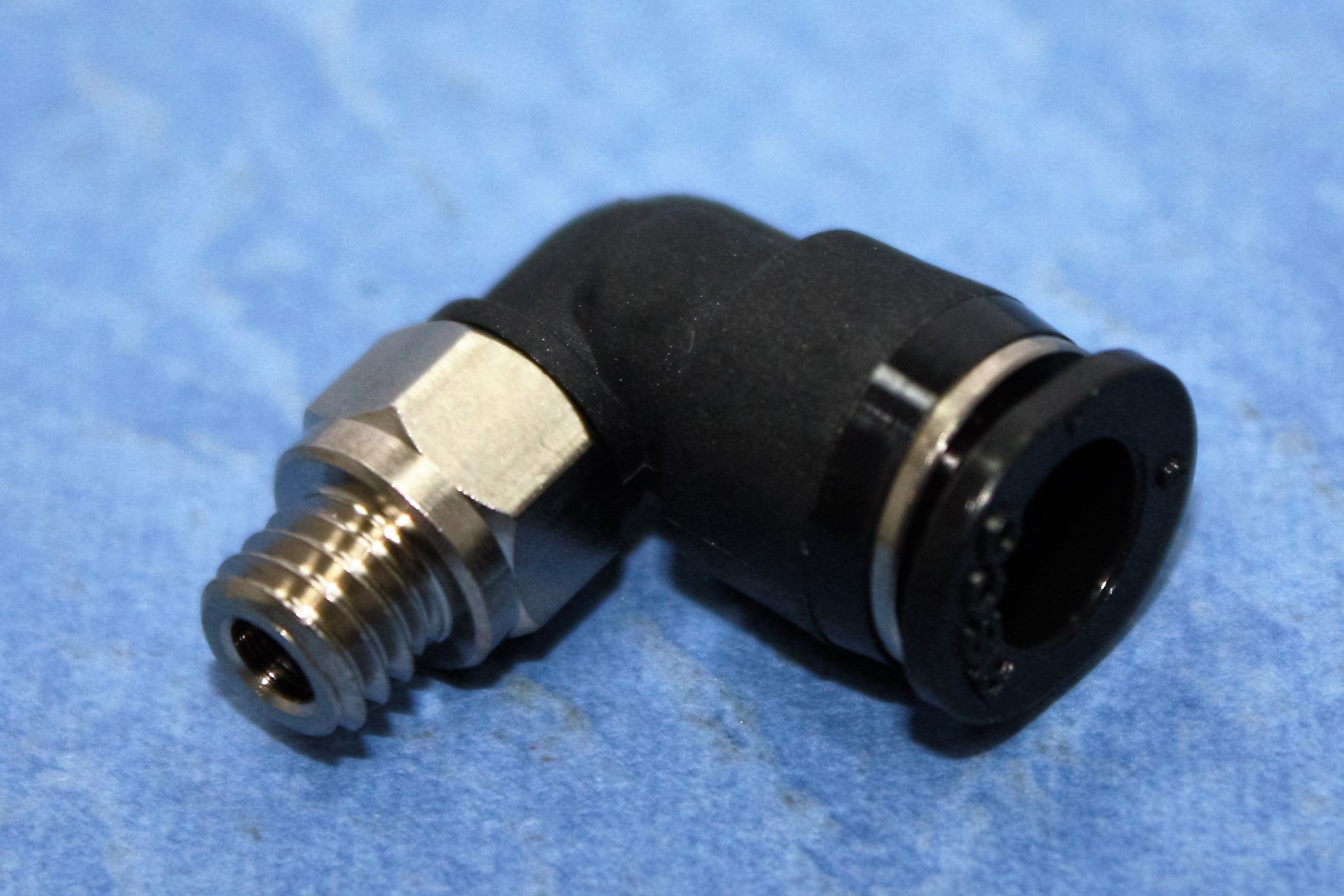

 | PL6-M6M | Upper | 快速接頭 Water Pipe Fitting | ||
 | CHB15 | 控制過濾器高壓幫浦用球閥 BALL-VALVE For Filter puma | EW-F,K,K1,K2,K3 EW-A5S,A7S,B3S3,C3,C5S,C5S2 | ||

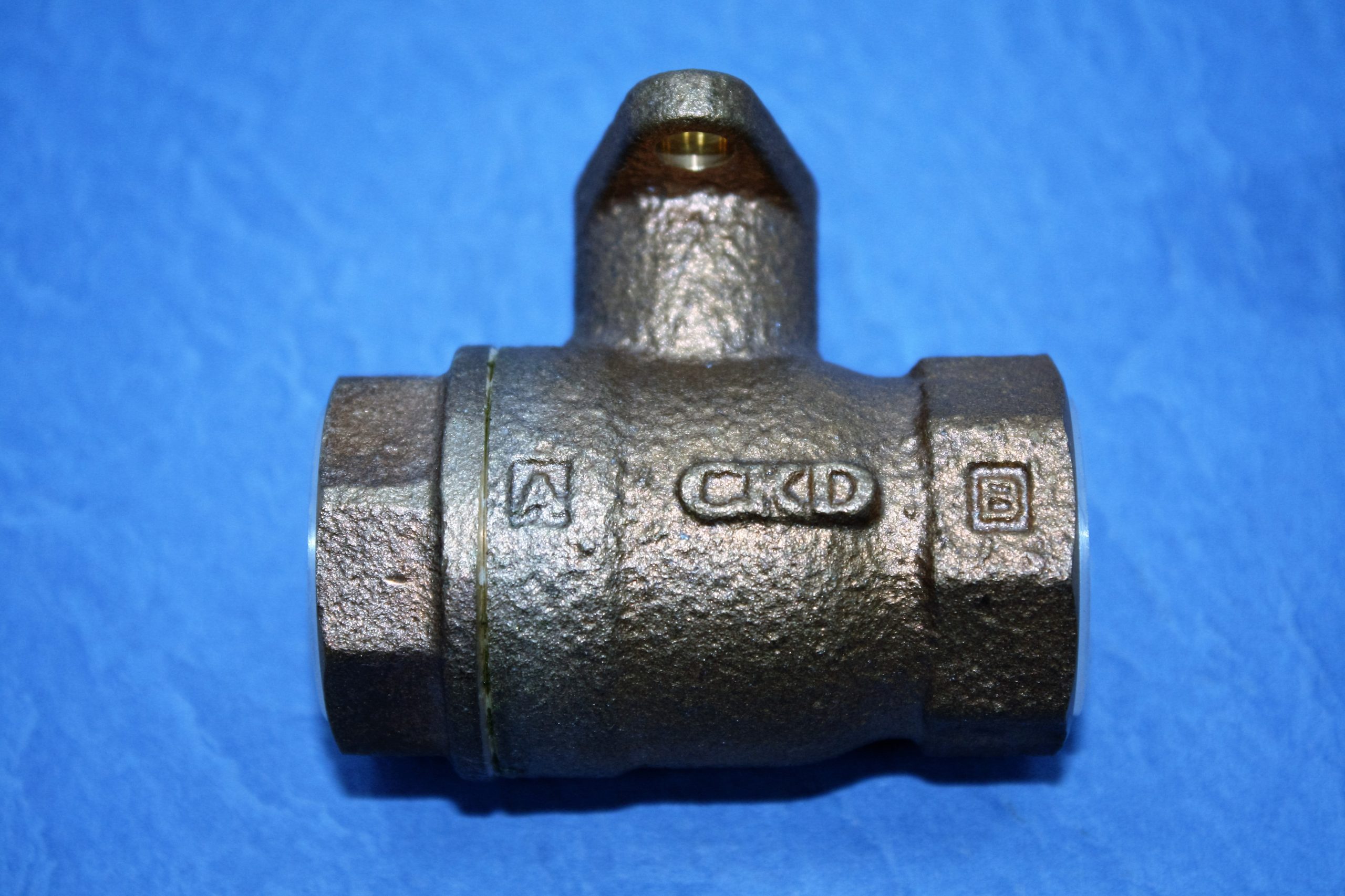

 | CHB20 | 控制機頭水用三通球閥 BALL-VALVE | EW-F,K,K1,K2,K3 EW-A5S,A7S,B3S3,C3,C5S,C5S2 | ||

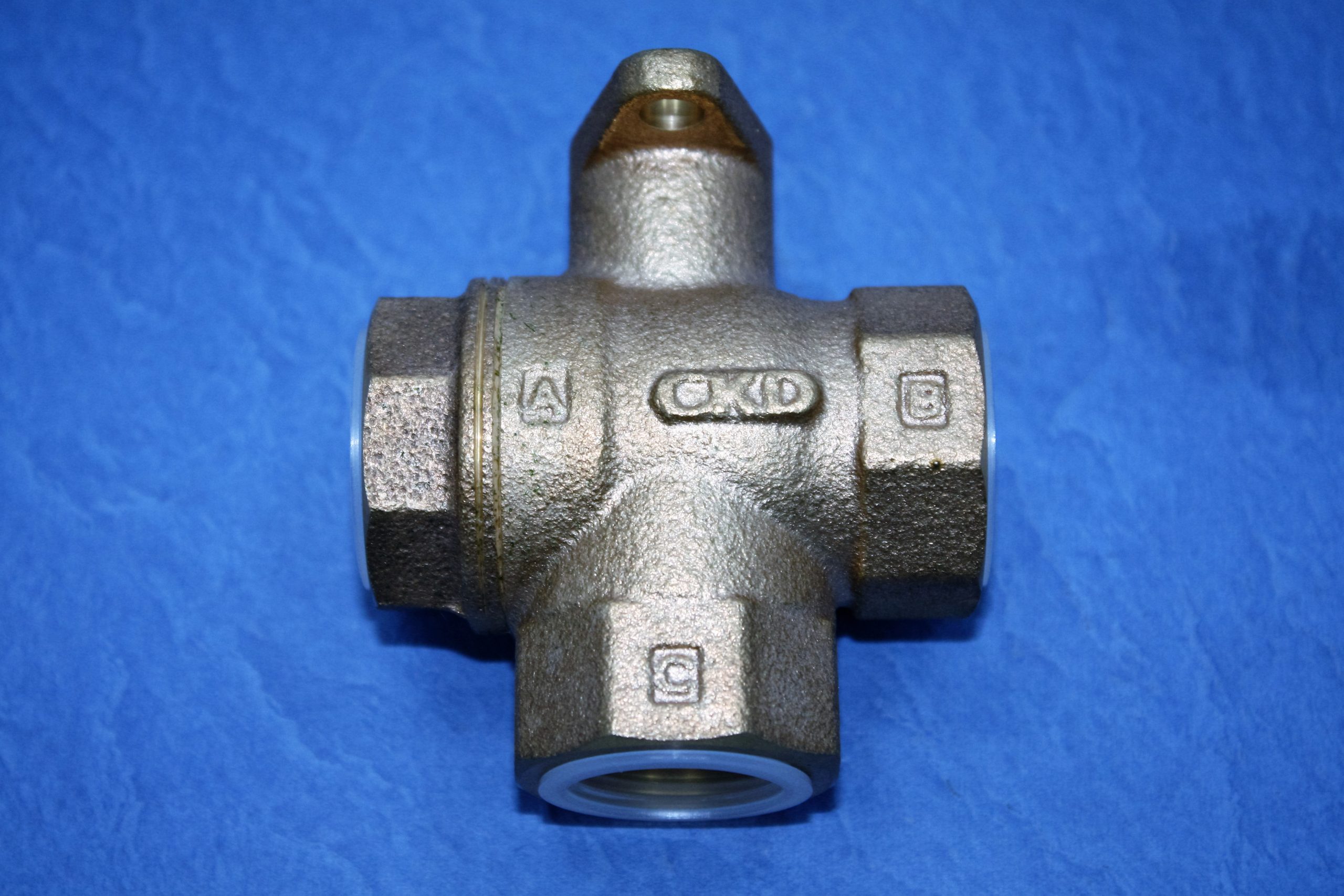

 | CHB201 | 控制高壓幫浦水用三通球閥 BALL-VALVE | EW-F,K,K1,K2,K3 EW-A5S,A7S,B3S3,C3,C5S,C5S2 | ||
 | SBM009 | M系列手動控制盒機板 PC Board For Controller | EW-M.MM.M50AType | PSB-01-01 | |
 | SB12 | M,MM機型用輔助接點 SZ-A40 | EW-M,MM |
| 圖片 | 編號 | 位置 | 品名尺寸 | 適用機種 | 原廠編號 |
|---|---|---|---|---|---|

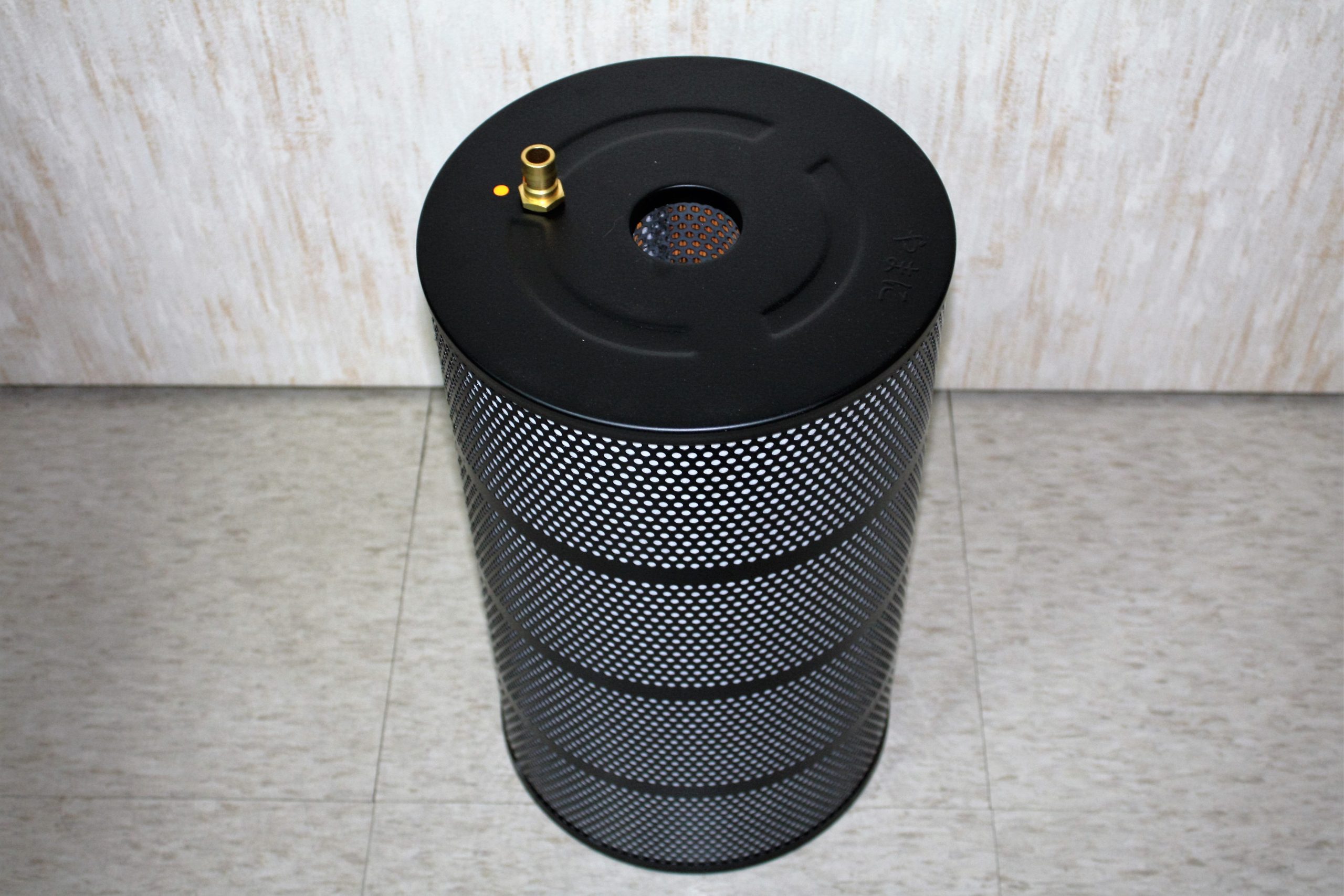

 | SW-40 | Without | 300 × 29×500 | DWC-K2,K3 DWC-A5,A5S,A7S DWC-C3S,C5S | 5~7u 7~10u |

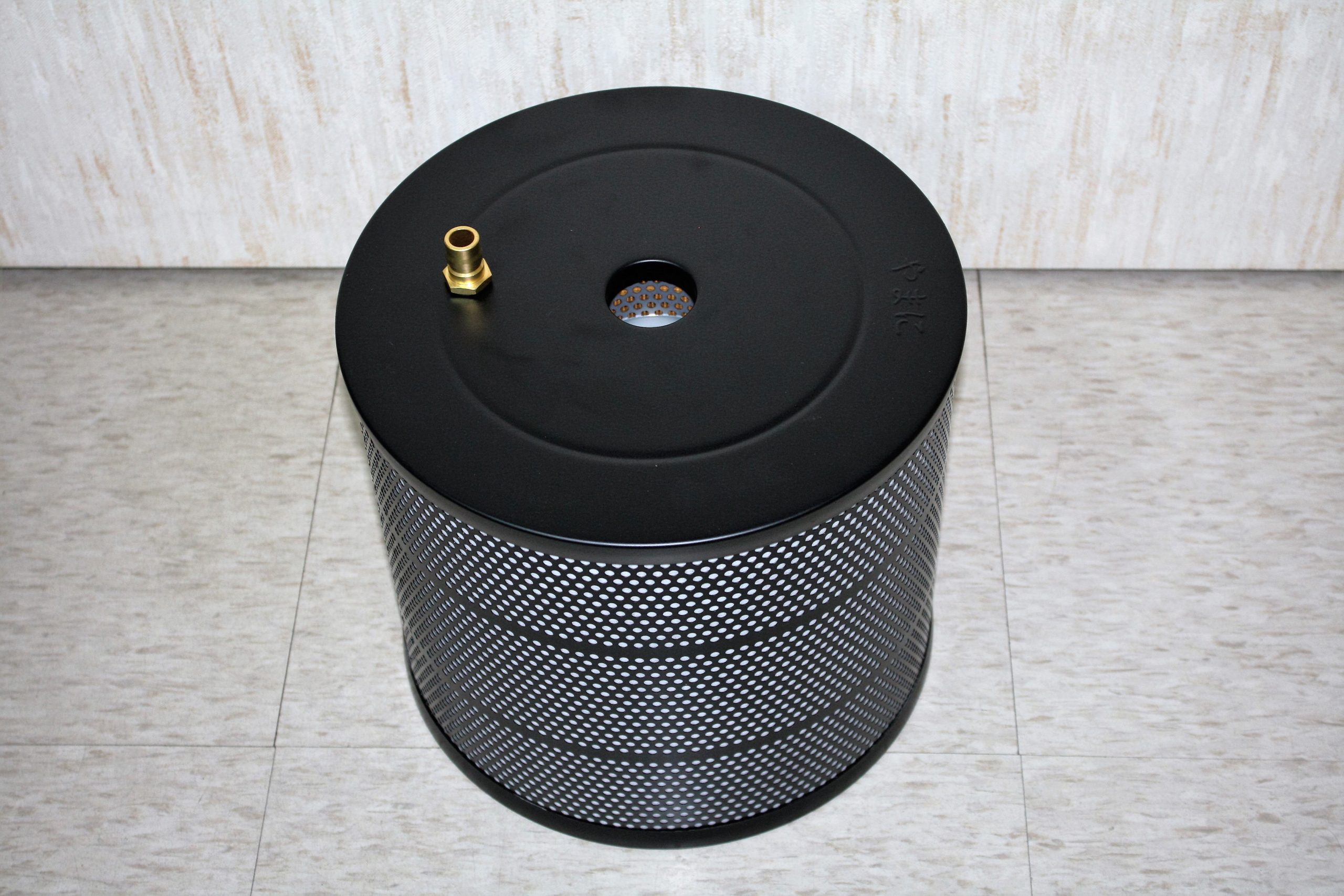

 | SW-340FK | Without | 340×29×300 | DWC-K2,K3 DWC-A5,A5S,A7S DWC-M-TYPE | 5~7u 7~10u |

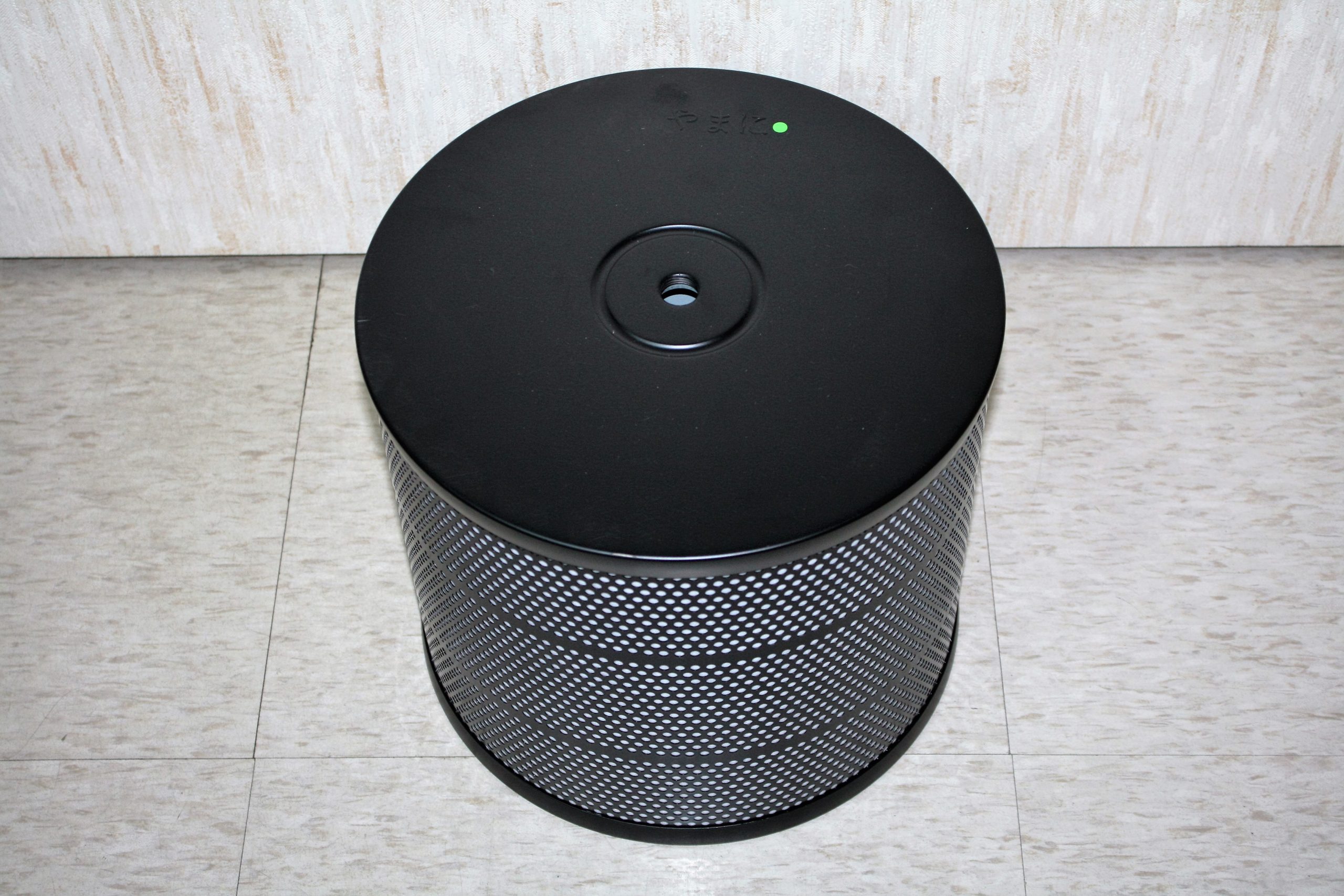

 | SW-340FKM | Without | 340×29×300 | DWC-K2,K3 DWC-A5,A5S,A7S DWC-M-TYPE | 5~7u 7~10u |
